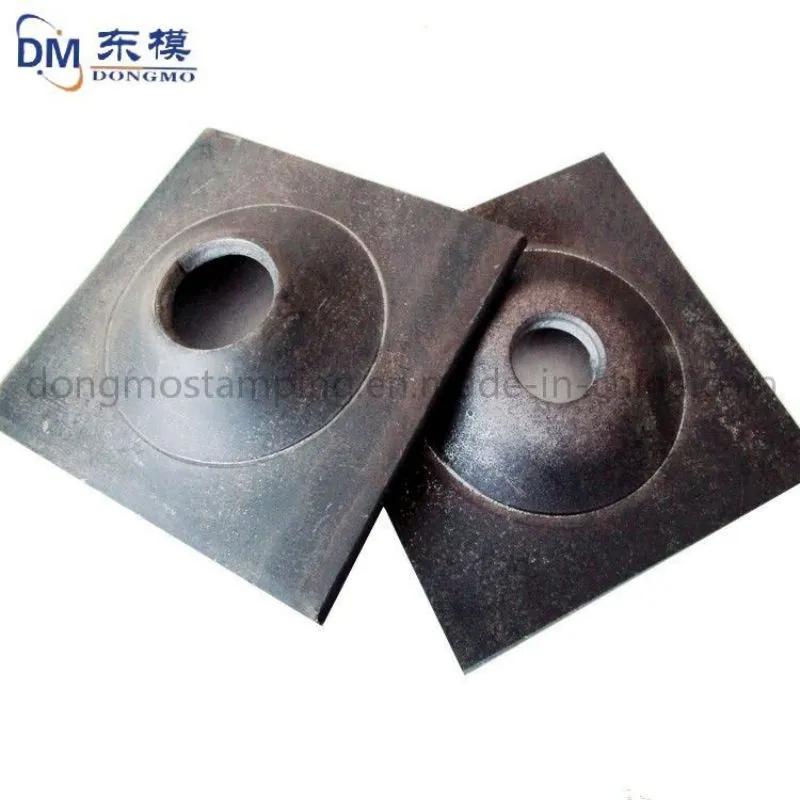

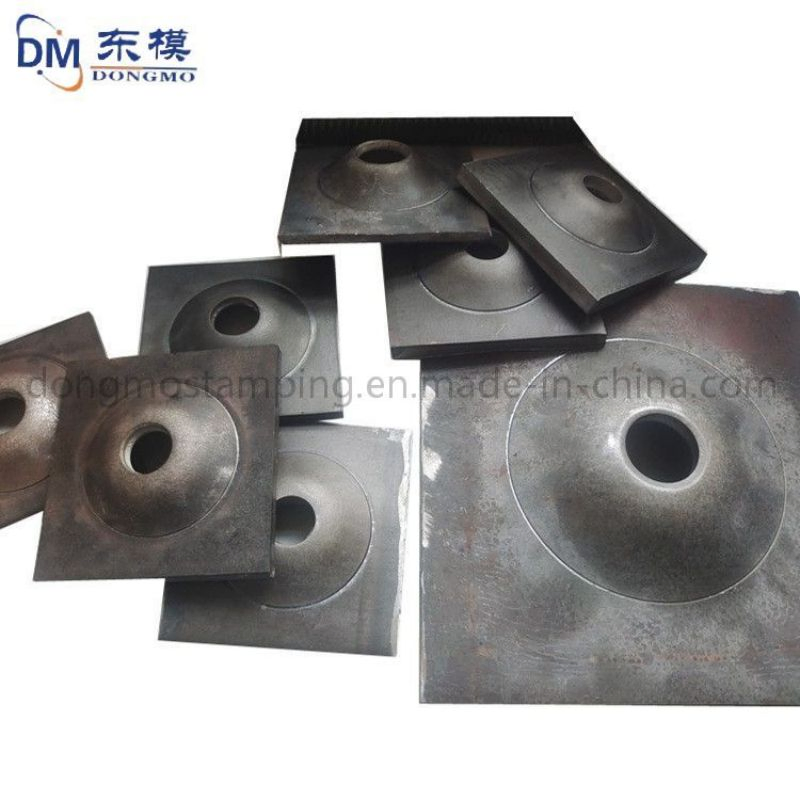

The performance and advantages of bolt tray: utilizing high strength plates, featuring a special shape design for optimal force effect. It is lightweight, easy to install, and significantly improves surface control.
Manufactured from high-grade Q235, Q345, and related materials for durability.

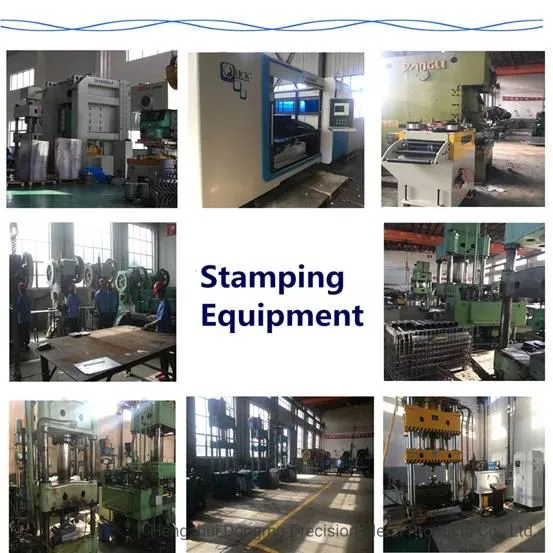

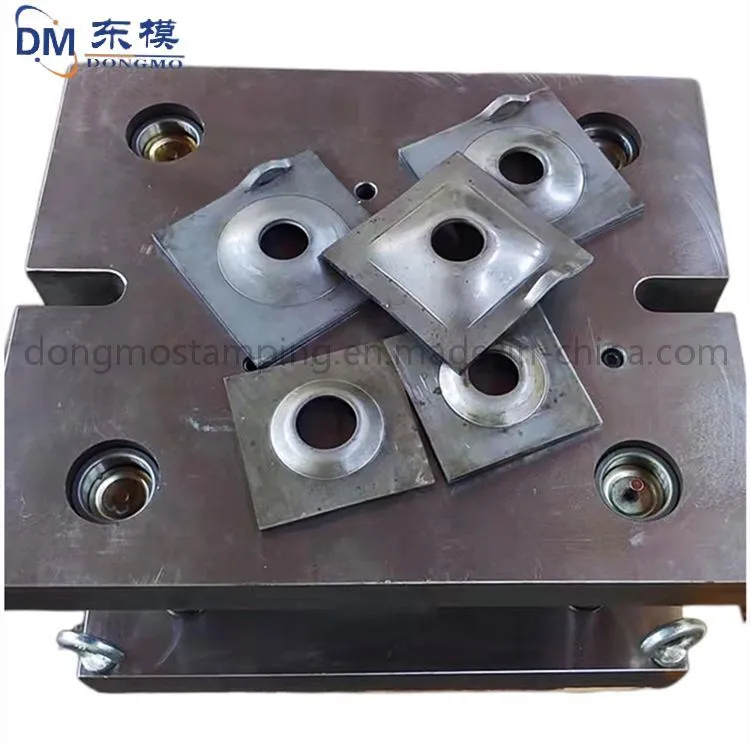

Precision processing via board cutting, punching, and stamping to form the anchor pallet.

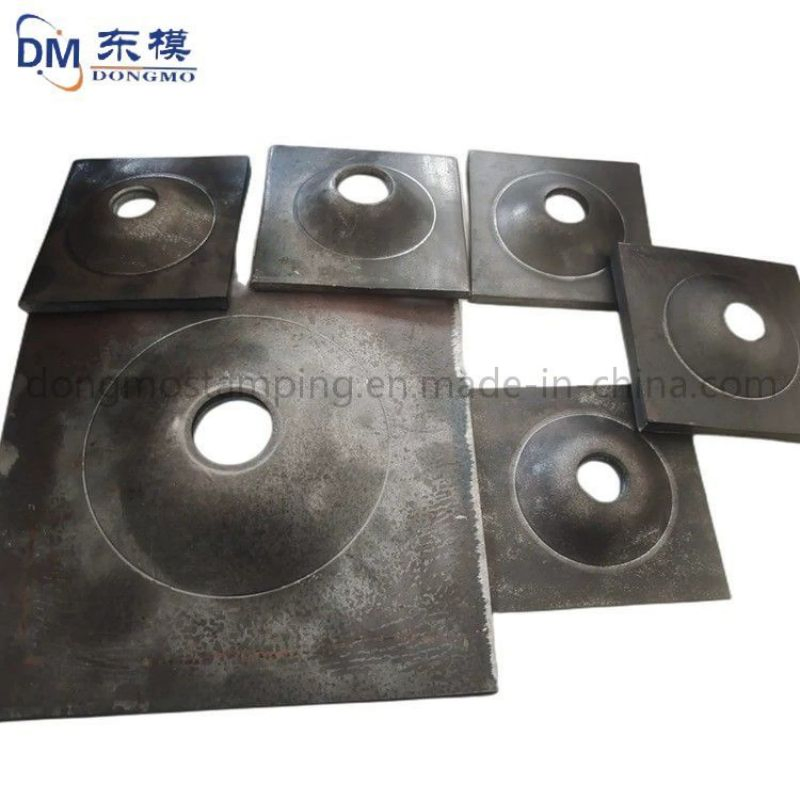

Offered in multiple formats including round anchor, square anchor, and butterfly-shaped anchor pallets.
Meets standards for coal mine, iron ore, national standard, and non-standard pallets.
Available in thicknesses of 5.5 to 6mm, 7.5 to 8mm, 9.5 to 10mm, and 11.5 to 12mm.
High-strength structure with specialized geometries for superior load distribution and surface control.

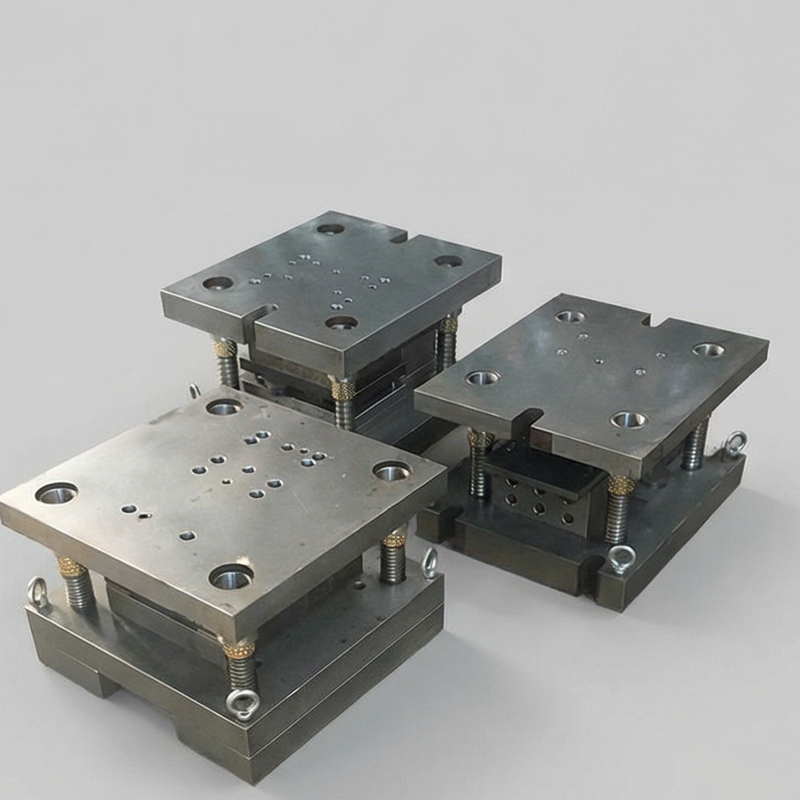

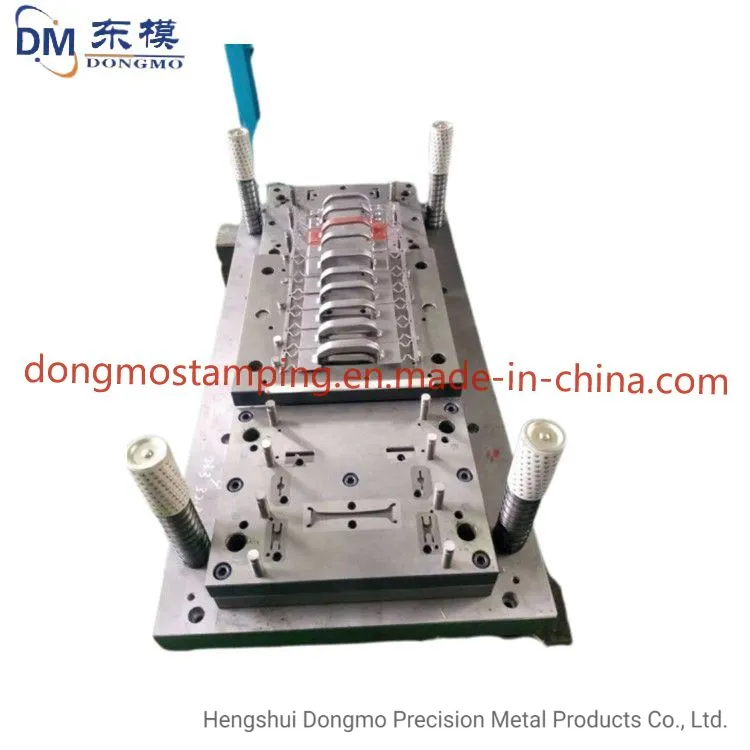

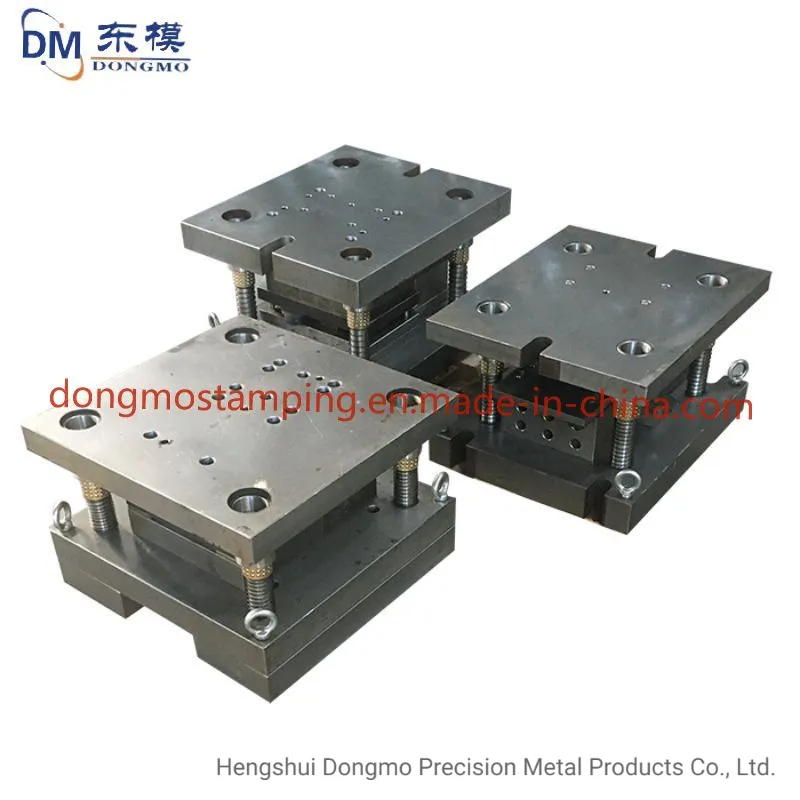

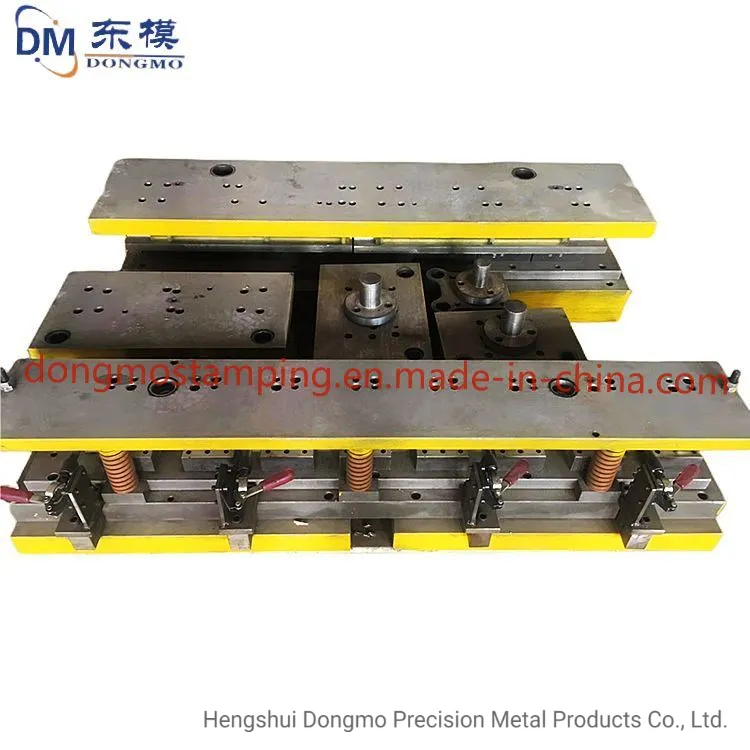

| Product Name | Bolt tray mold |
| Application | Mine bolt tray |
| Material | ST14-ST16S |
| Standard Parts | MISUMI |
| Template Flatness | +/-0.005mm |
| Quantity | 1 set |
| Package | According to customer requirements |
| Standard | ISO9001 |
Customers should provide standard technical specifications, engineering drawings, reference images, operating industrial voltage, and projected output requirements.
The payment structure requires a 40% deposit, with the remaining 60% balance settled prior to shipping (via T/T transactions).
Standard delivery timeframes range from 30 to 60 days following the receipt of the initial deposit.
Yes, we perform comprehensive 100% inspections and testing protocols on all equipment before delivery.
Our molds are fabricated using high-durability grades including D2, YG15, DC53, SKD11, SKH-9, and SKH-51.

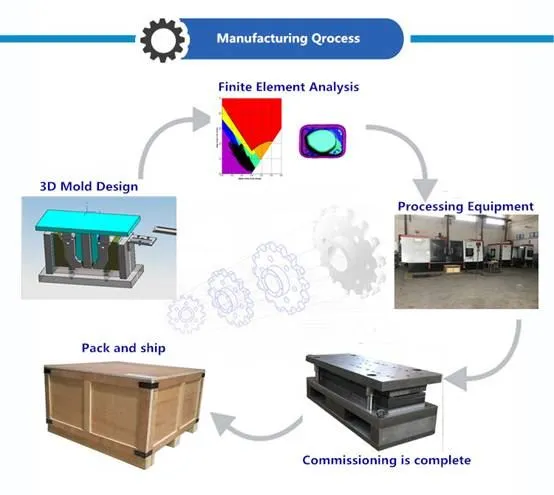

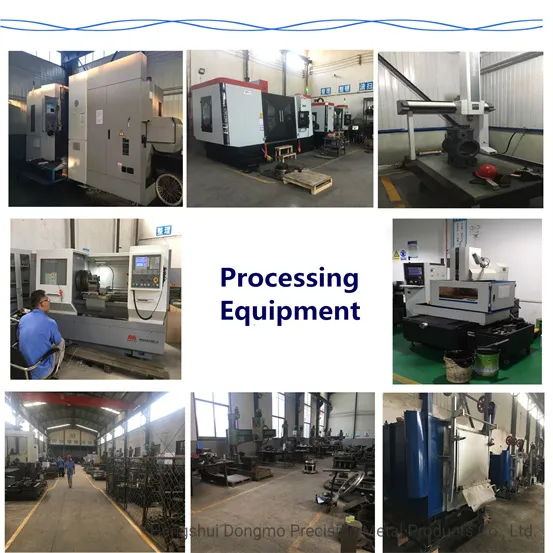

Quality is given structural priority. Processes are monitored continuously from start to finish, with regular dimensional checks performed using advanced three-dimensional coordinates measuring equipment.
