Engineered with premium substrates and specialized coatings to ensure minimal runout tolerance and maximum wear resistance.
The manufacturing landscapes of aerospace defense, interventional medical hardware, and micro-electromechanical systems (MEMS) demand geometric tolerances that push the boundaries of conventional metallurgy. Micro precision cutting tools—specifically defined by shank diameters < 3.0mm and functional cutting geometries scaled down to 0.1mm—are no longer governed by macro-machining mechanics. Traditional shear stresses yield to plastic deformation, and tool runout tolerances (T.I.R) directly control finish quality and lifecycle consistency.
Understanding the interplay between sub-micron tungsten carbide matrices, physical vapor deposition (PVD) coating profiles (such as AlTiN and TiSiN), and edge-radius micro-geometry is vital for engineering teams. Modern manufacturing systems must mitigate micro-chipping caused by thermal shock and harmonic oscillation in spindles operating above 40,000 RPM. This document serves as a guide for engineering and procurement executives to evaluate tooling performance indicators across advanced manufacturing supply chains.
Dongguan Carto Tool Co., Ltd. is a professional manufacturer specializing in industrial cutting tools, CNC machining tools, milling systems, turning solutions, and precision metal cutting technologies. The company is dedicated to providing high-performance tooling solutions for modern manufacturing industries, including automotive, aerospace, mold processing, machinery production, and general metal fabrication.
Since its establishment, Carto Tool has developed from a small-scale cutting tool workshop into a specialized industrial tooling supplier with integrated R&D, production, and quality control capabilities. In its early stage, the company focused on basic turning and milling tool production for local machining workshops. With the rapid growth of China’s manufacturing sector, Carto Tool expanded its technology base and began developing more advanced CNC-compatible cutting systems to meet higher precision and efficiency requirements.
During its development phase, the company invested in carbide material research, coating technology improvements, and CNC tool geometry optimization. It introduced modern production lines and precision grinding equipment to ensure stable performance and long tool life. At the same time, Carto Tool strengthened its testing systems to improve cutting accuracy, wear resistance, and thermal stability across different machining environments.
Today, Dongguan Carto Tool Co., Ltd. serves global industrial clients with a wide range of cutting tool solutions designed for high-speed, high-precision, and heavy-duty applications. The company continues to focus on innovation in CNC machining efficiency, metal cutting performance, and cost optimization for manufacturers. With a commitment to quality and engineering excellence, Carto Tool aims to become a trusted international supplier in the industrial cutting tools industry, supporting smarter and more efficient global manufacturing systems.
As components shrink and material hardness scales upward, the technical requirements for micro cutters undergo radical changes.
Integration of Diamond-Like Carbon (DLC) and multilayered titanium silicon nitride (TiSiN) prevents atomic diffusion and chemical affinity between tool substrate and non-ferrous workpieces.
Transitioning from standard carbide to ultra-fine particles (grain sizes <0.2μm) improves edge retention and yields a 30% reduction in edge wear during operations on hard metals (>60 HRC).
Deploying specialized grinding routines to target positive rake angles and negative land width profiles balances chip evacuation speeds with edge stability under axial forces.
How precision tooling is optimized for high-risk, zero-tolerance environments worldwide.
The manufacturing of titanium implant screws, bone plates, and endoscope housings requires burr-free operations. Our micro-diameter square and ball nose end mills feature specialized edge prep routines that eliminate chip friction, reducing the need for secondary polishing stages. We supply tooling with high wear life for machining medical-grade plastics, PEEK, and stainless alloys.
Aerospace telemetry relies on miniature components machined from Inconel, Titanium, and aircraft-grade aluminum. Standard tooling deflects under high chip loads, causing errors in geometry. Our custom-designed single-flute and multi-flute micro milling tools feature high rigidity to resist lateral forces, ensuring dimensional accuracy across extended run cycles.
With electronic devices scaling down, micro-drills and end mills are required to machine socket boards and connectors in engineering plastics (such as Vespel, Torlon, and FR4). Clean chip evacuation is critical to prevent thermal cracking. Our micro cutters feature polished flutes and high helix angles to eject waste material instantly, maintaining slot dimensions at high spindle speeds.

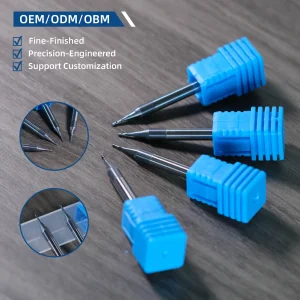

Machining complex luxury watch parts, micro-gears, and gold/platinum jewelry requires sharp cutting edges. Carto Tool's micro ball nose end mills (R0.1 - R0.2) deliver high accuracy, ensuring smooth surface finishes and minimizing the need for manual polishing of intricate watch designs.
Ensuring transparency, performance consistency, and structural compliance for international OEMs and manufacturing hubs.
For procurement professionals sourcing tooling systems, managing the Total Cost of Ownership (TCO) is a primary consideration. Relying purely on cheap alternatives can lead to tool breakages and machine downtime. Selecting a verified manufacturer with ISO-compliant testing procedures is critical to ensuring consistent production runs.
Each tooling batch is accompanied by material certificates tracing the tungsten carbide raw material to its source, ensuring consistent density and grain structure.
Quality control processes follow strict international standards, using automated optical inspection equipment to measure geometries before shipment.
Our CAD/CAM tooling design pipeline supports rapid custom manufacturing, delivering specialized carbide end mills within 10-15 working days.
Developing innovative solutions to meet the demands of tomorrow's ultra-precise machining systems.
Carto Tool is committed to ongoing research into cutting performance, focusing on the following core technological developments:
Expert insights addressing key inquiries from manufacturing engineers and procurement managers.
Most failures result from excessive tool runout (T.I.R), unsuitable feed rates, or poor chip evacuation. When working with micro tools (<1mm), even a runout of 0.005mm can lead to uneven chip loads, causing immediate tool breakage. Ensuring your high-speed spindle has a T.I.R of less than 0.002mm is essential for stable tool performance.
TiSiN coatings offer higher thermal stability, maintaining performance at temperatures up to 1100°C, compared to 800°C for standard AlTiN coatings. With a micro-hardness of around 38 GPa, TiSiN is highly suited for machining hardened steels (up to 65 HRC) and nickel-based superalloys under dry cutting conditions.
Once CAD drawings are approved, custom OEM/ODM manufacturing typically takes 10 to 15 working days. This timeframe covers design verification, CNC profile grinding, coating processes, and final quality control checks using optical measurement tools.
Optimizing chip evacuation involves using tools with polished flutes, appropriate helix angles (often 30° to 35°), and correct cutting parameters. For deep slotting, peck milling routines are recommended to clear chips, and using compressed air or high-pressure coolant mist helps sweep waste material away from the cut.
We source ultra-fine grain tungsten carbide substrates with grain sizes ranging from 0.2μm to 0.5μm and Cobalt content of 10% to 12%. This configuration provides a balance of hardness, edge sharpness, and impact resistance needed to prevent chipping under high-speed milling loads.

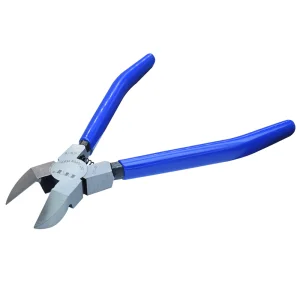

Browse our catalog of micro cutters, electronics-grade side cutters, and high-hardness tooling solutions.
