Efficient CNC Angle Cutting System for High-Speed Steel Processing

Customization: Available
After-sales Service: 24-Hour Online Support
Certification: CE, ISO 9001:2000, ISO 9001:2008

Product Description

Overview (Basic Info)
Condition New
Warranty 1 Year
Angle 45-135°
Max Cutting Length 220mm
Cutting Thickness Carbon Steel: 0.5-4mm / Stainless Steel: 0.5-2mm
Max Angular Cutting Time 10min
Origin China
Product Description

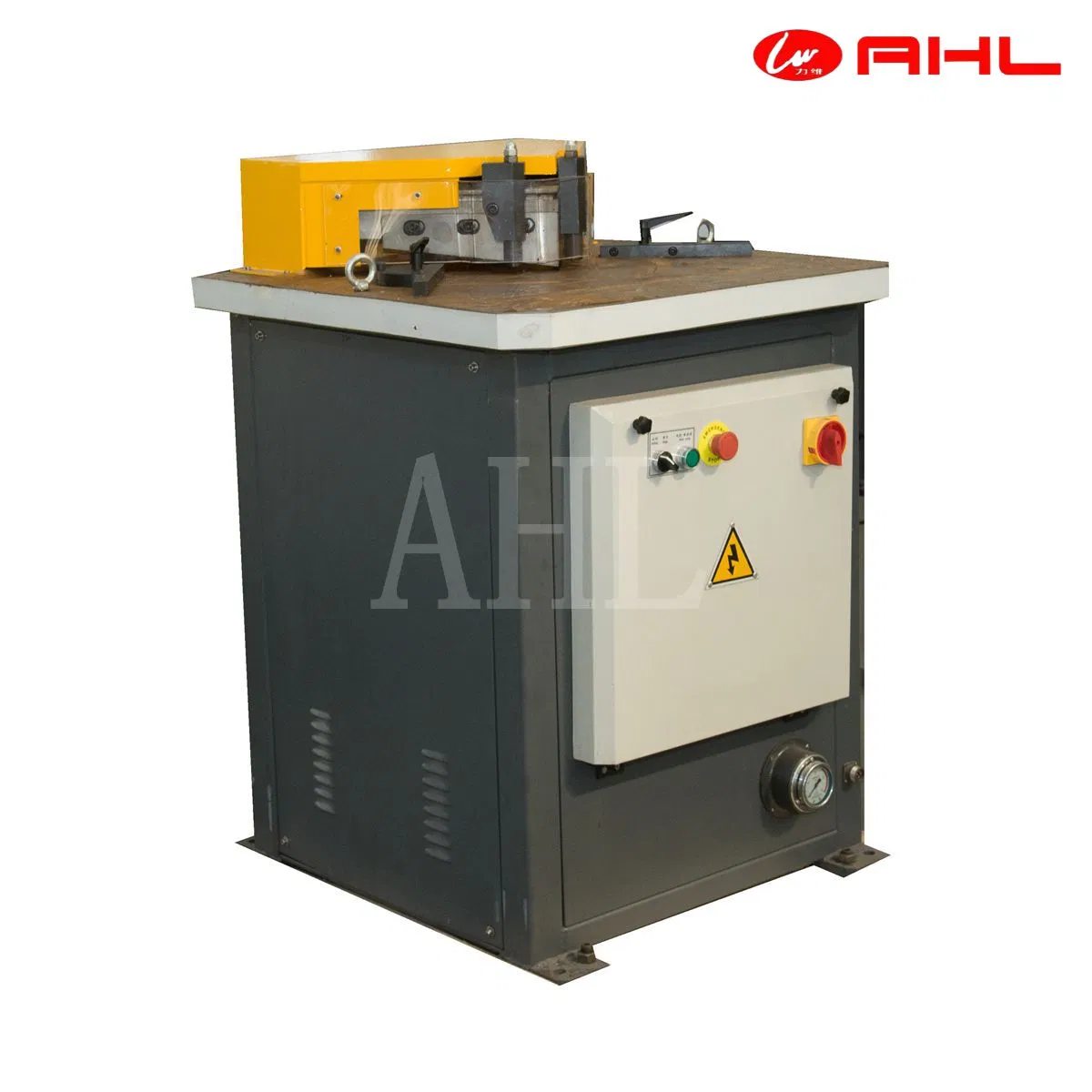

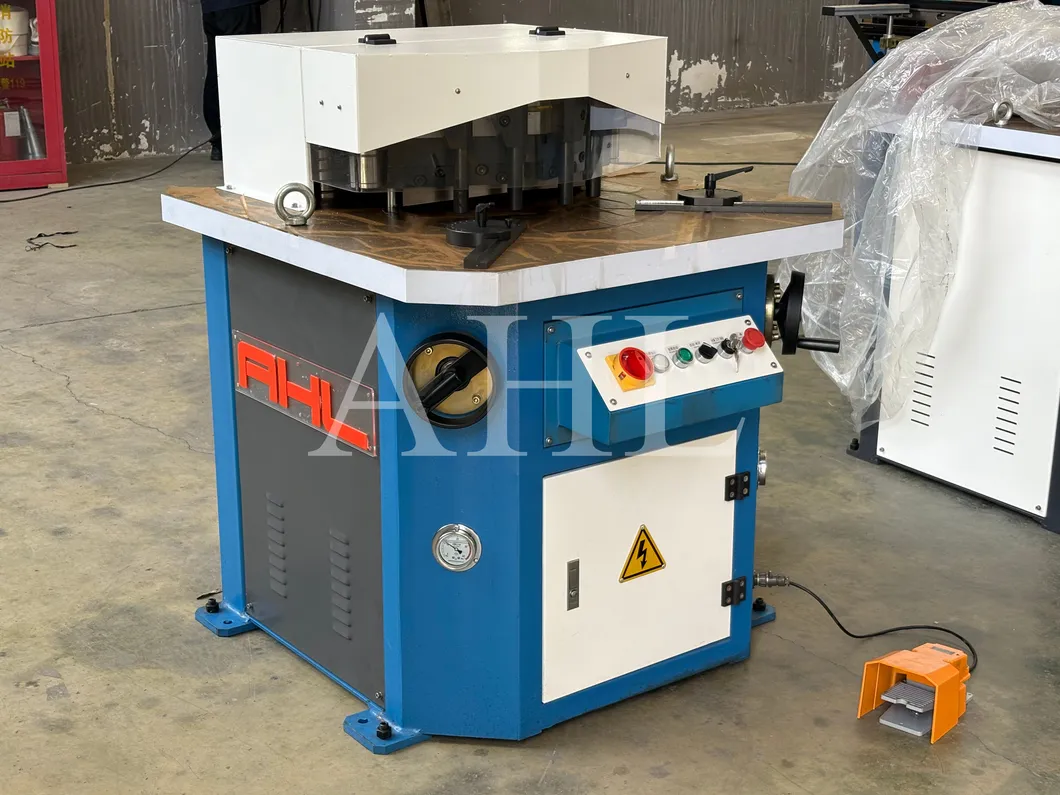

Efficient CNC Angle Cutting System for High-Speed Steel Processing Efficient CNC Angle Cutting System for High-Speed Steel Processing
Product Features
  • Hydraulic transmission type, stable and reliable work.

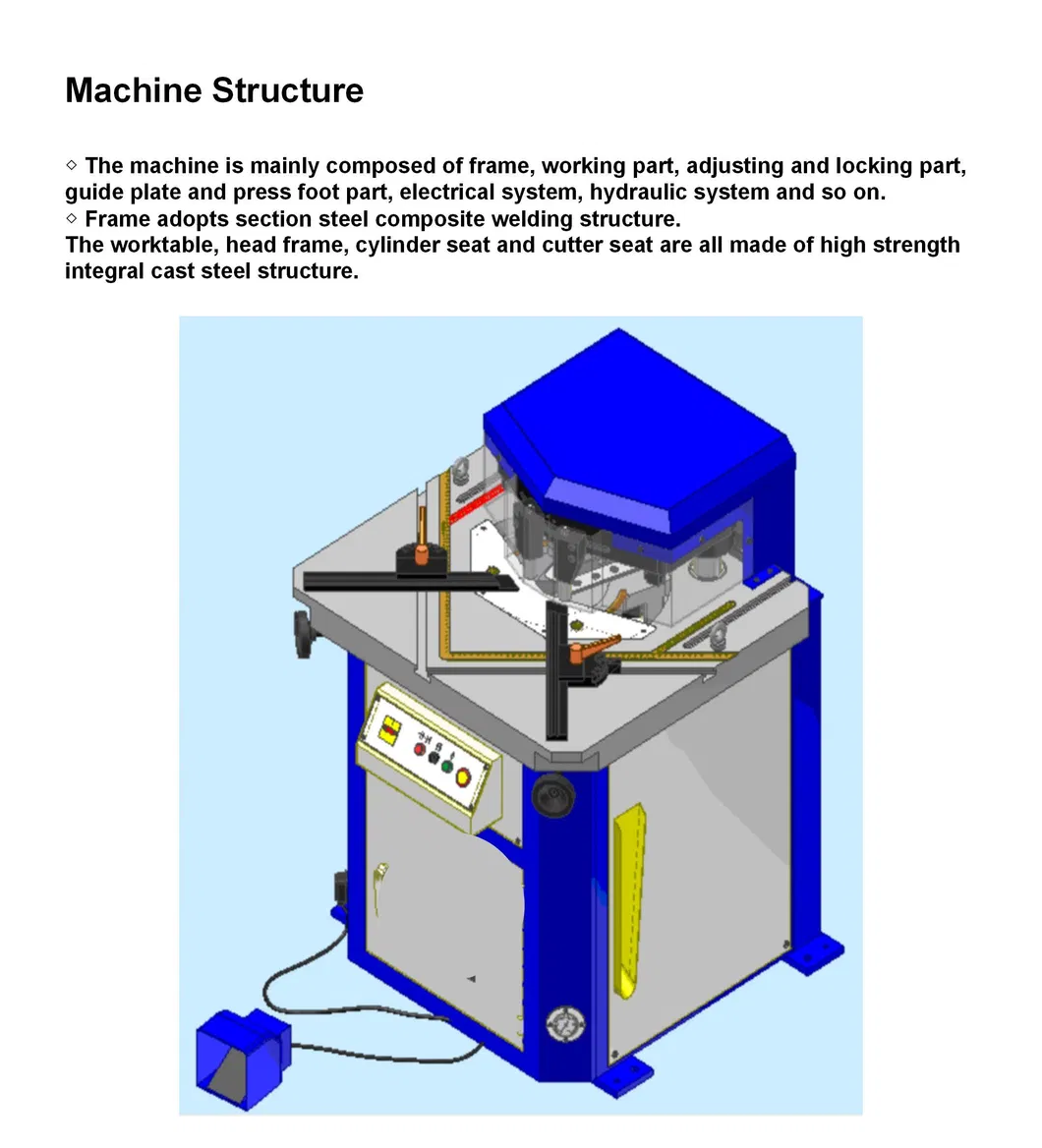

  • The main parts of the working part (such as: workbench, head frame, cylinder seat, etc.) are made of high-strength cast steel parts, which are not easy to deform and have good strength, stiffness and vibration resistance.
  • Shear Angle from 40° to 140°, can be adjusted according to symmetric or asymmetric processing, large range of shear Angle, high cutting accuracy, fast cutting speed.
  • The cutting stroke is adjustable, and the stroke regulator can limit the length of the stroke and increase the number of cuts per minute.
  • Blade clearance adjustment mode can be automatically adjusted according to the thickness of the cut sheet, fast and safe.
  • With single stage and step operation function selection.
  • Hydraulic main valve adopts German Rexroth technology Shanghai HAWEI series products, durable.
  • The main electrical components use Chint products, stable and reliable performance.
Product Parameters
ITEM DATA
Angle (°) 40°-140°
Blade length (mm) 300
Max cutting thickness (σb=450Mpa) 6
Max cutting Angle side length (mm) 300
Stroke number (min) ≥30
Workingtable dimension (mm) 950*850
Workingtable height (mm) 950
Main motor power (kw) 4
Main motor speed (R/MIN) 1440
Tank volume (L) 35
Max working pressure of hydraulic system (Mpa) 15
Machine dimension L*W*H (mm) 950*920*1230

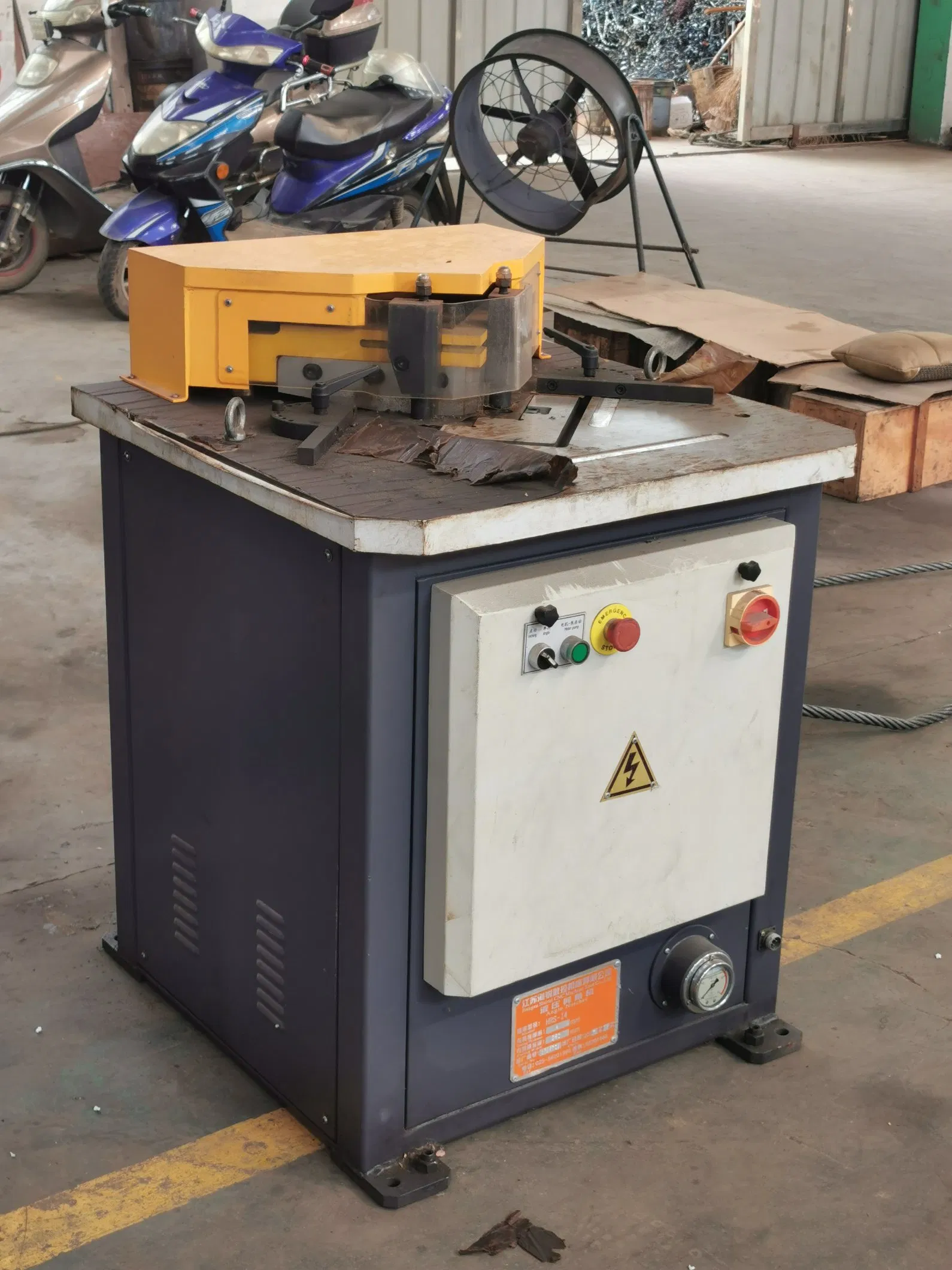

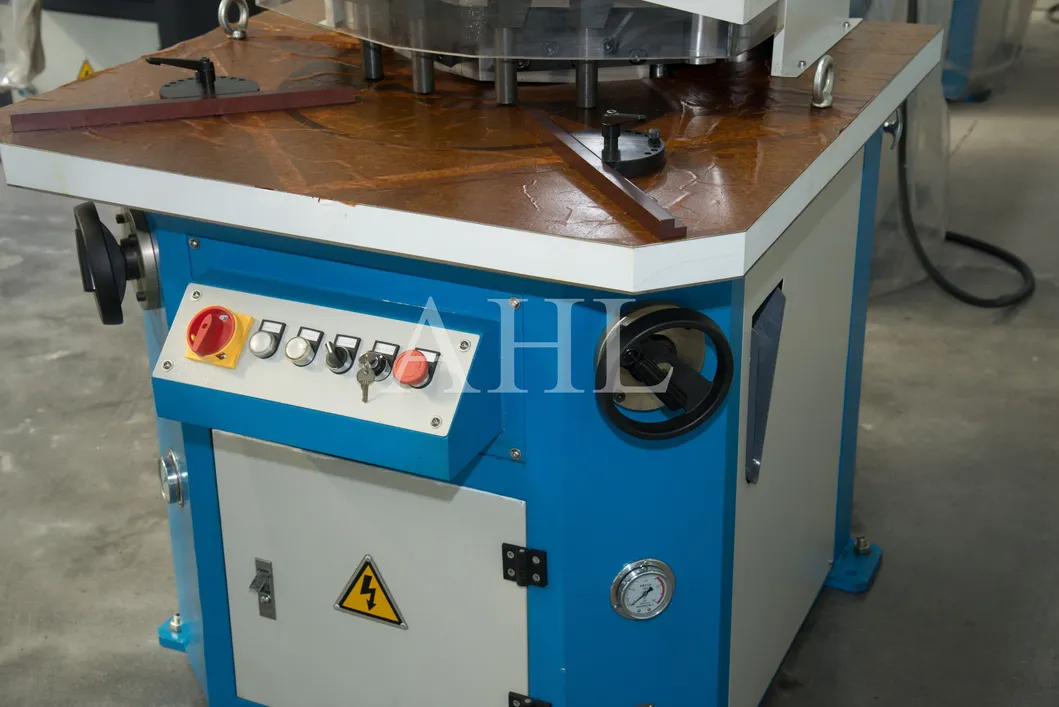

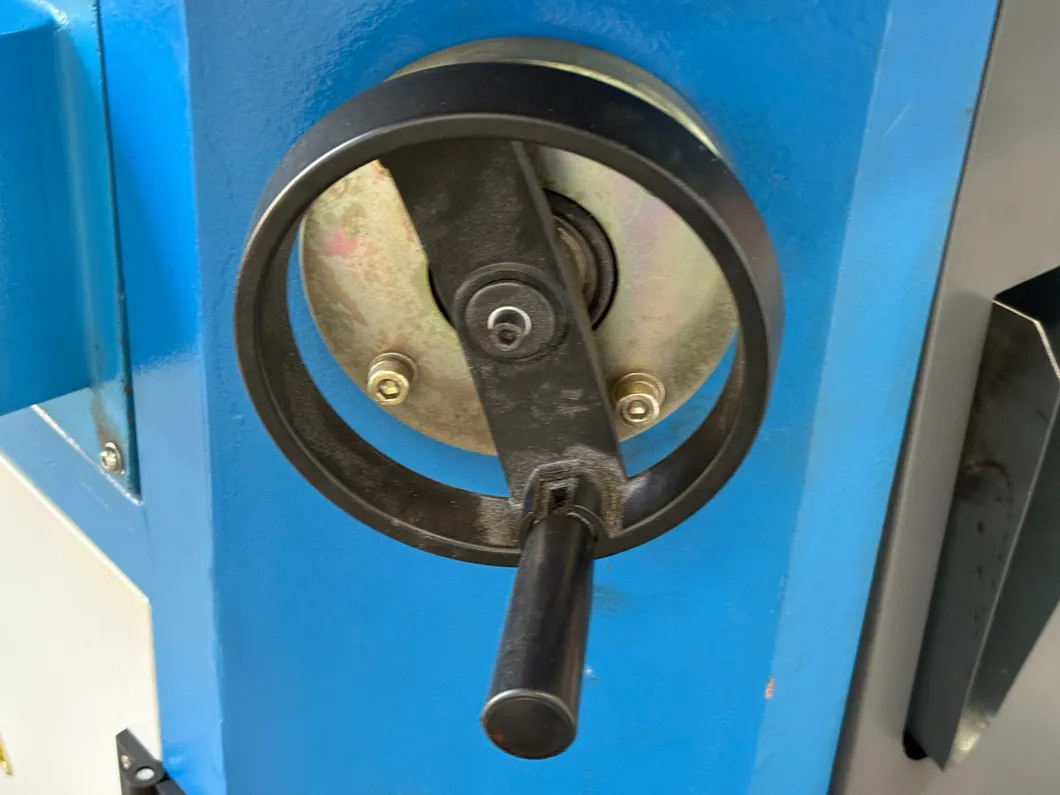

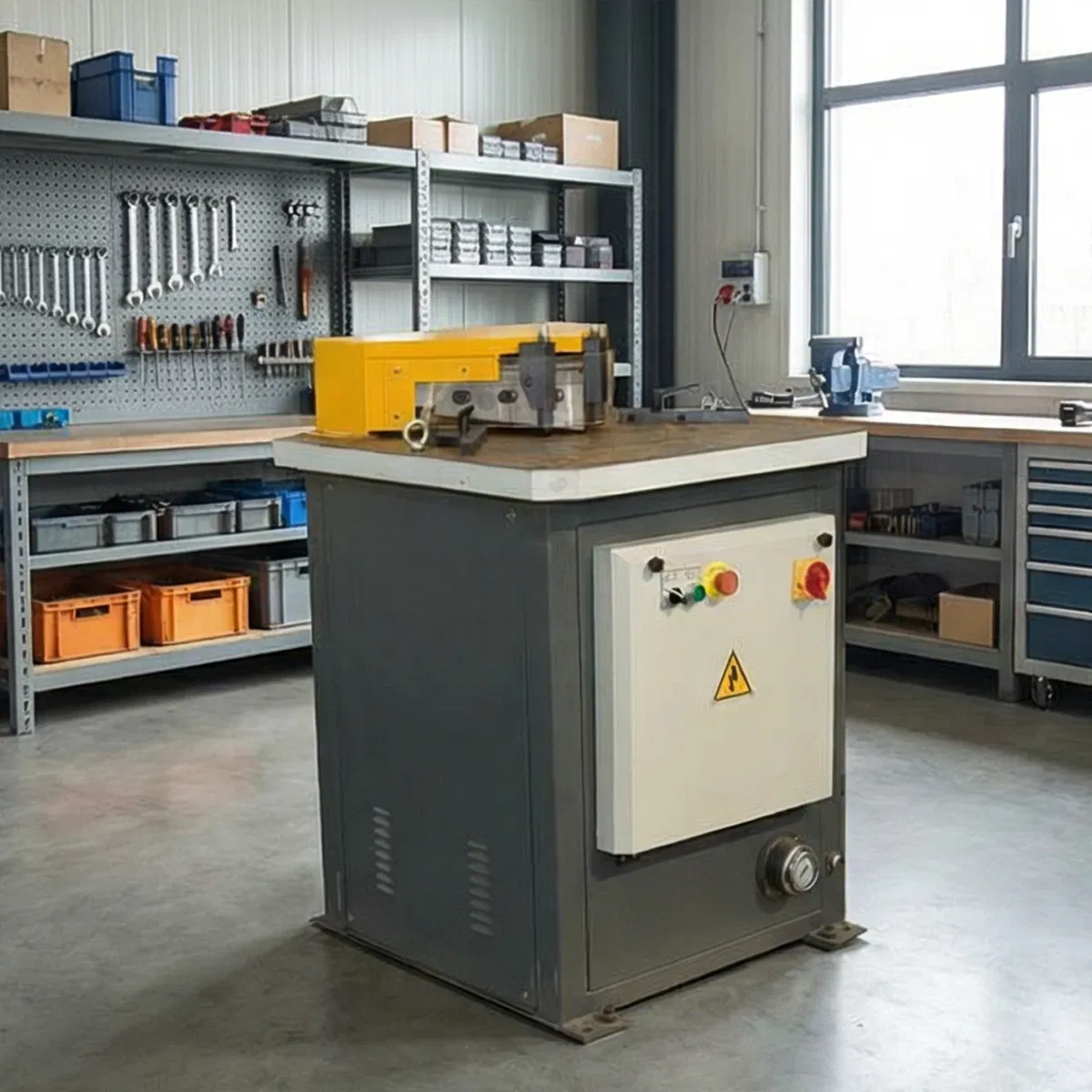

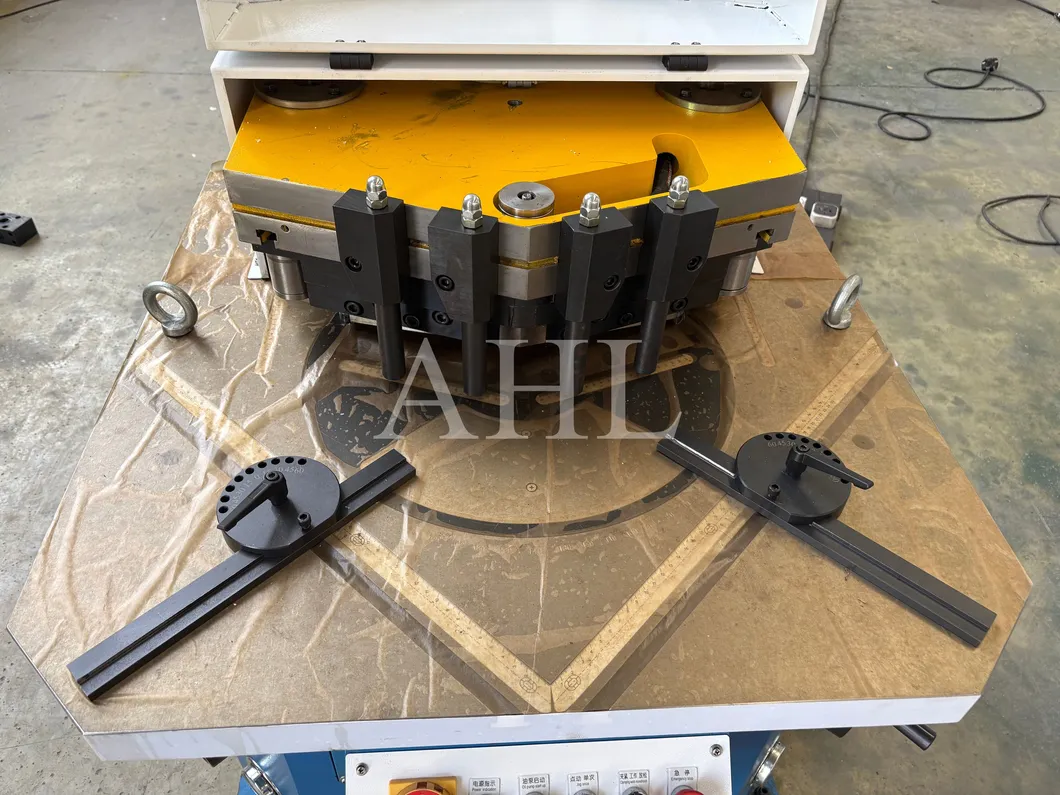

Detailed Photos

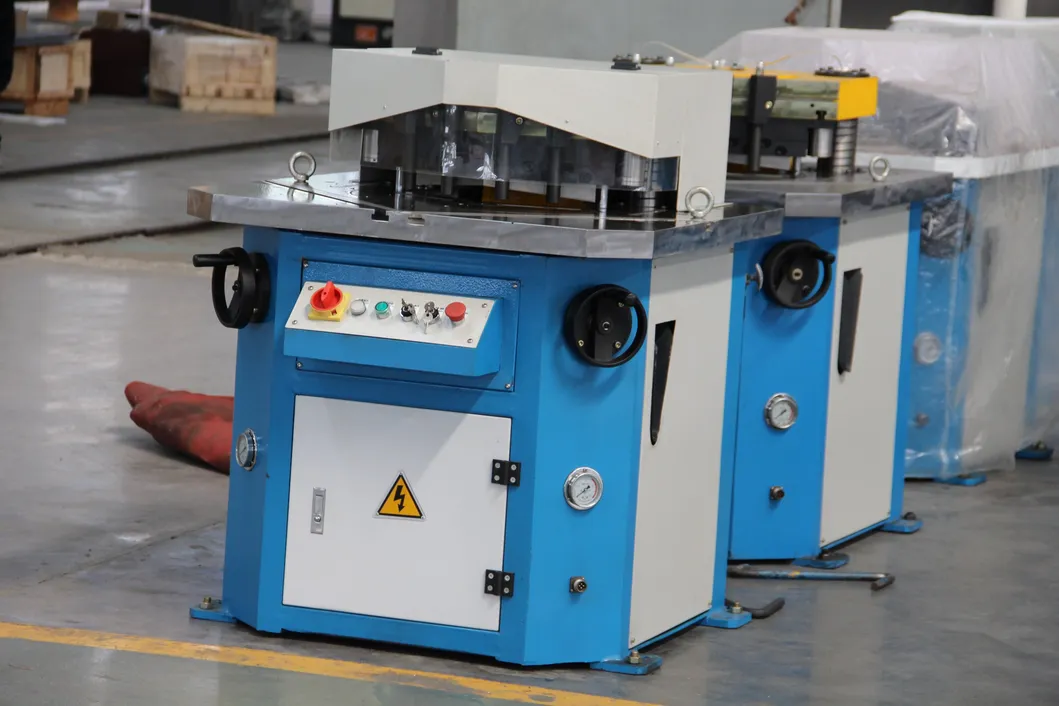

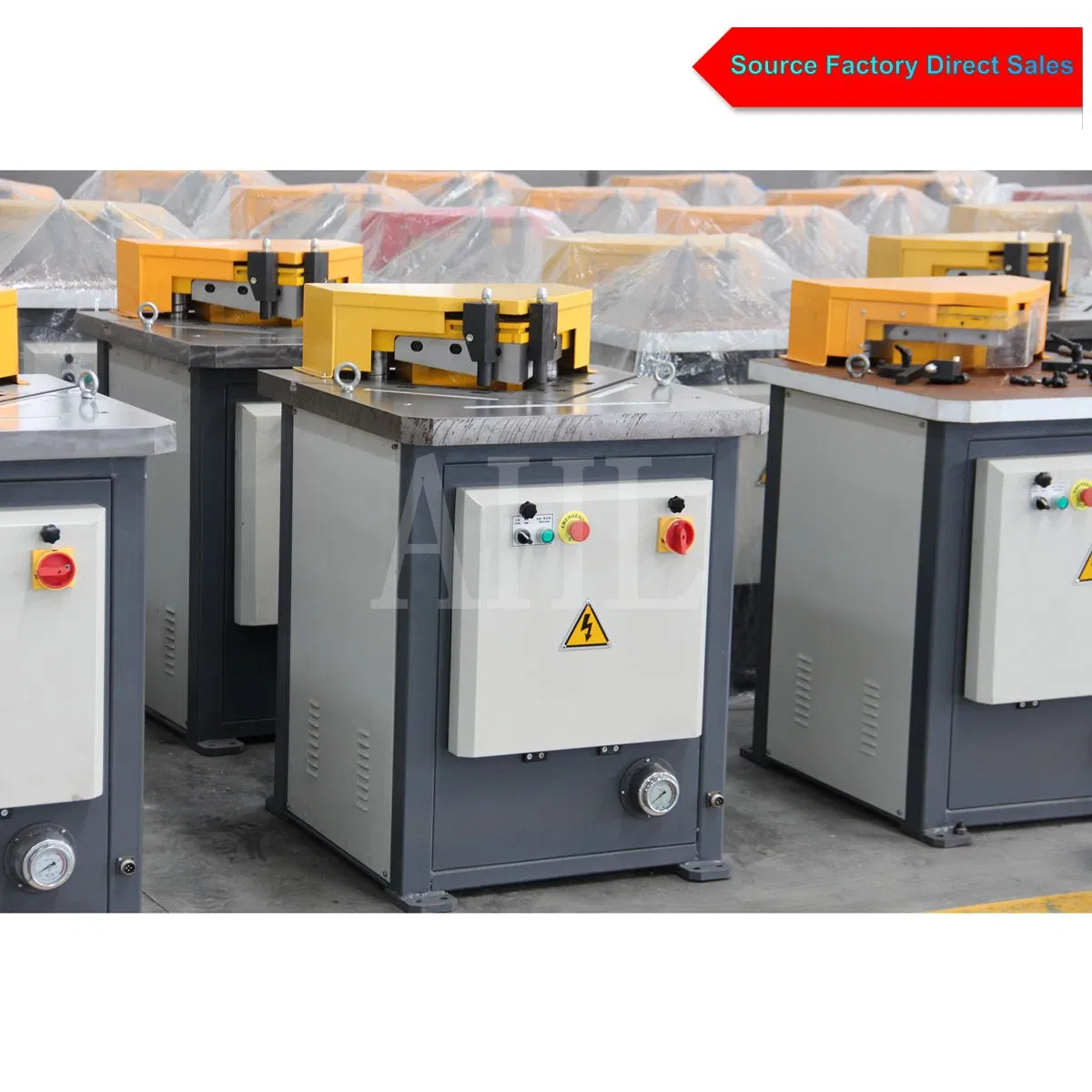

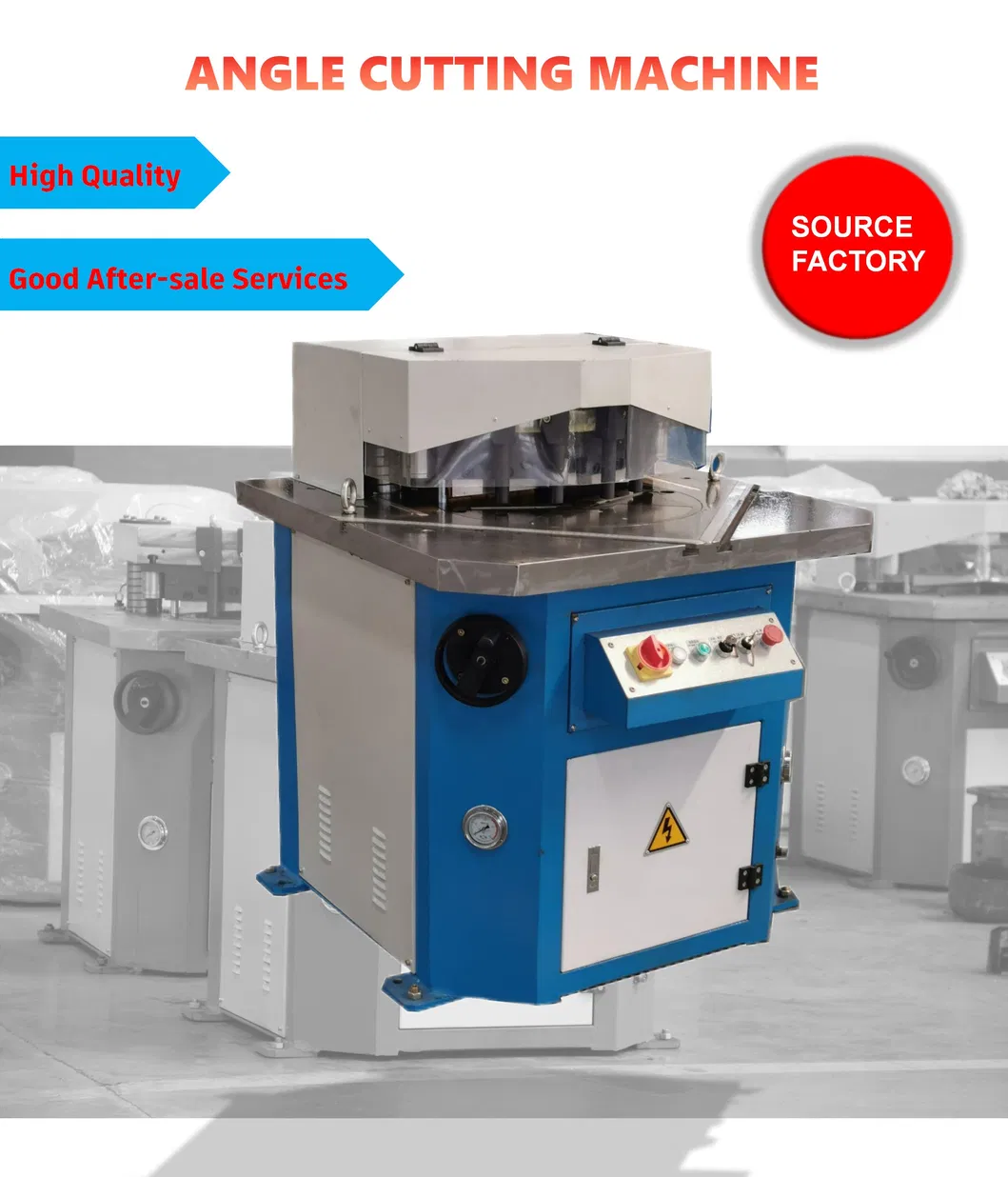

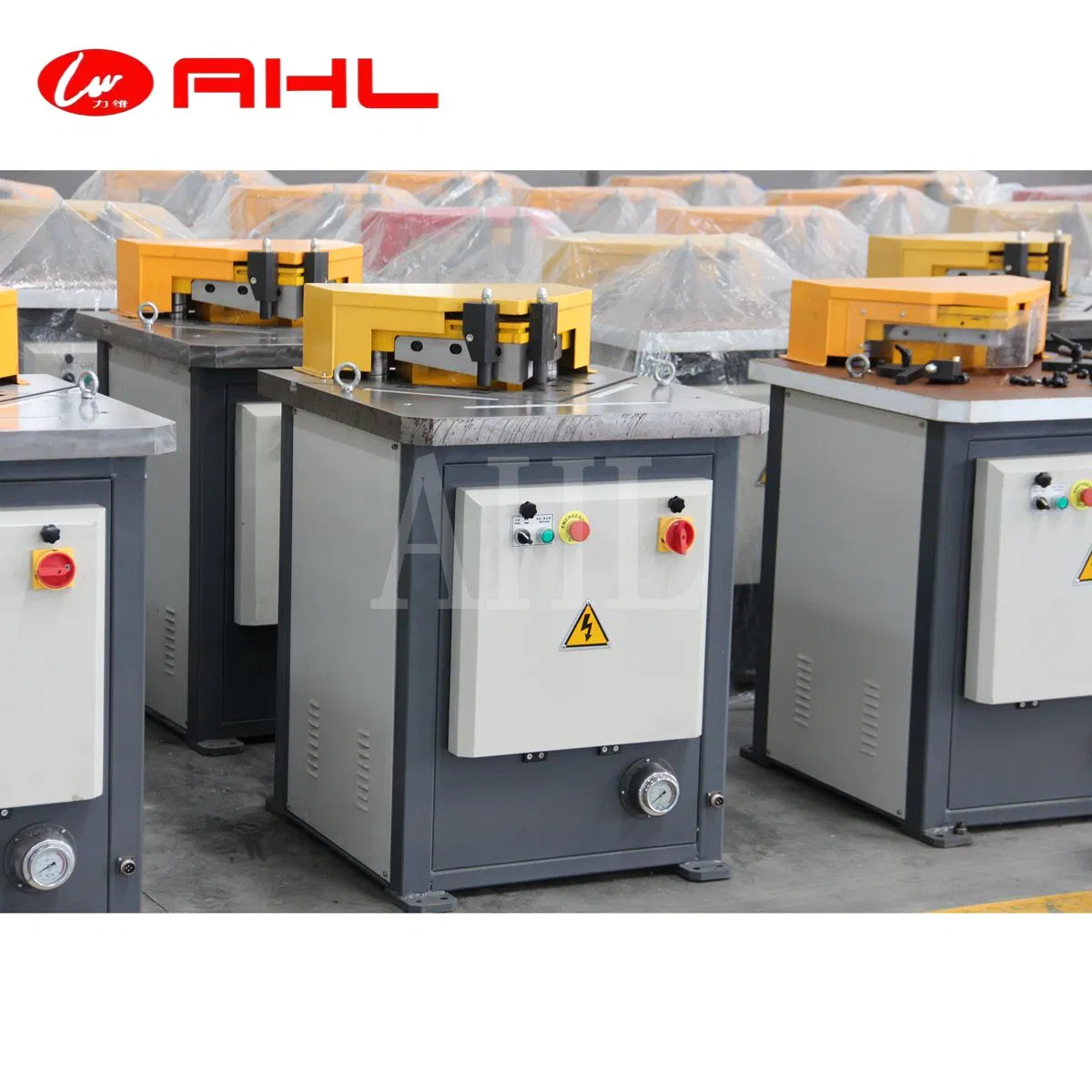

Efficient CNC Angle Cutting System for High-Speed Steel Processing Efficient CNC Angle Cutting System for High-Speed Steel Processing Efficient CNC Angle Cutting System for High-Speed Steel Processing
Efficient CNC Angle Cutting System for High-Speed Steel Processing Efficient CNC Angle Cutting System for High-Speed Steel Processing Efficient CNC Angle Cutting System for High-Speed Steel Processing
Company Profile
Efficient CNC Angle Cutting System for High-Speed Steel Processing
Our Advantages
Efficient CNC Angle Cutting System for High-Speed Steel Processing
Our Services
  • Reply promptly within 24 hours
  • Perfect after-sales service
  • Video inspection
  • Professional technical guidance
  • Complete factory reception
FAQ

?Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis/Conformance; Insurance; Origin, and other export documents where required.

?What is the average lead time?

For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

?What kinds of payment methods do you accept?

You can make the payment to our bank account, Western Union or PayPal: 30% deposit in advance, 70% balance against the copy of B/L. Or irrevocable LC at sight.

?What is the product warranty?

We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone's satisfaction.

?Do you guarantee safe and secure delivery of products?

Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.

?How about the shipping fees?

The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
