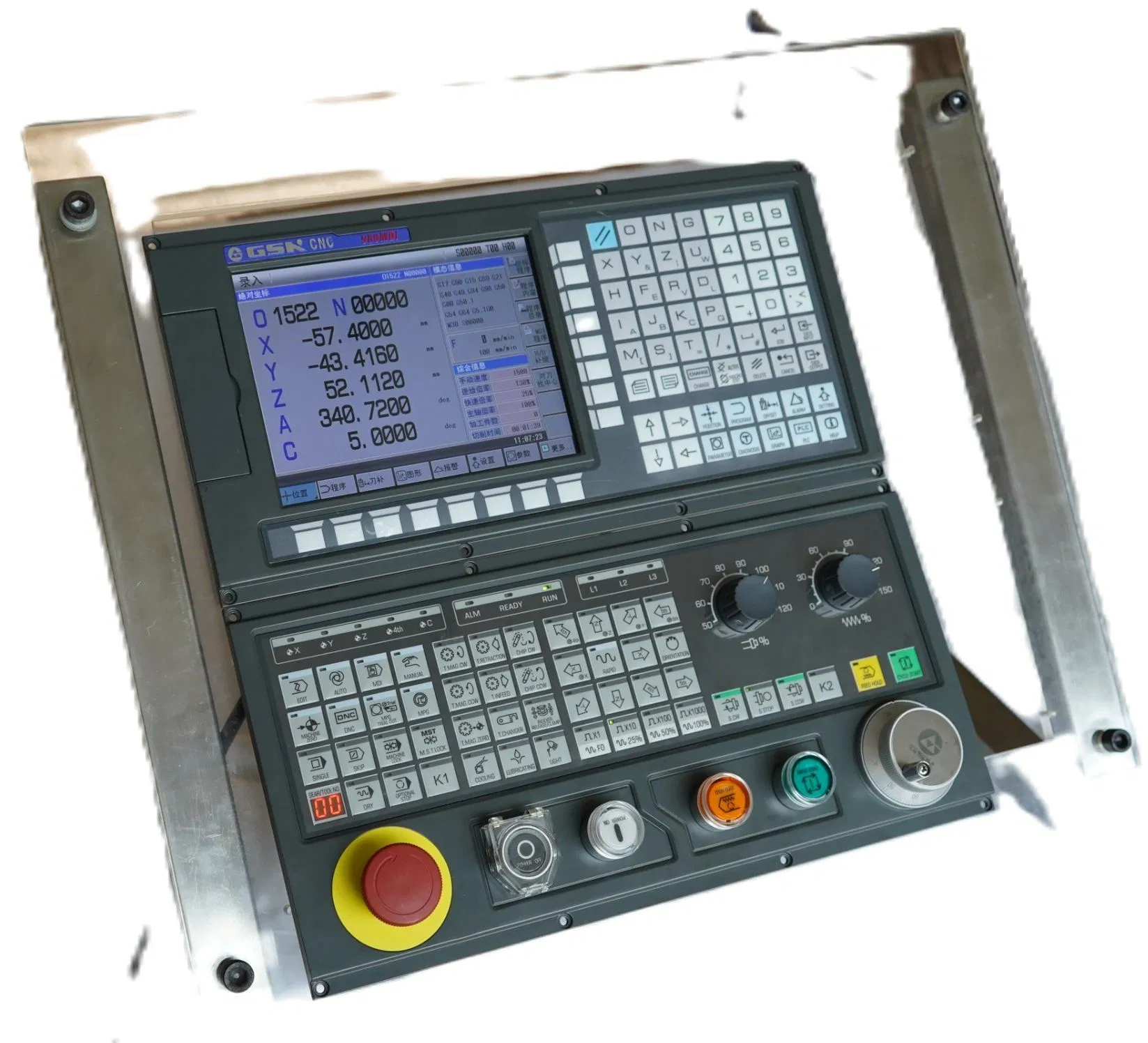

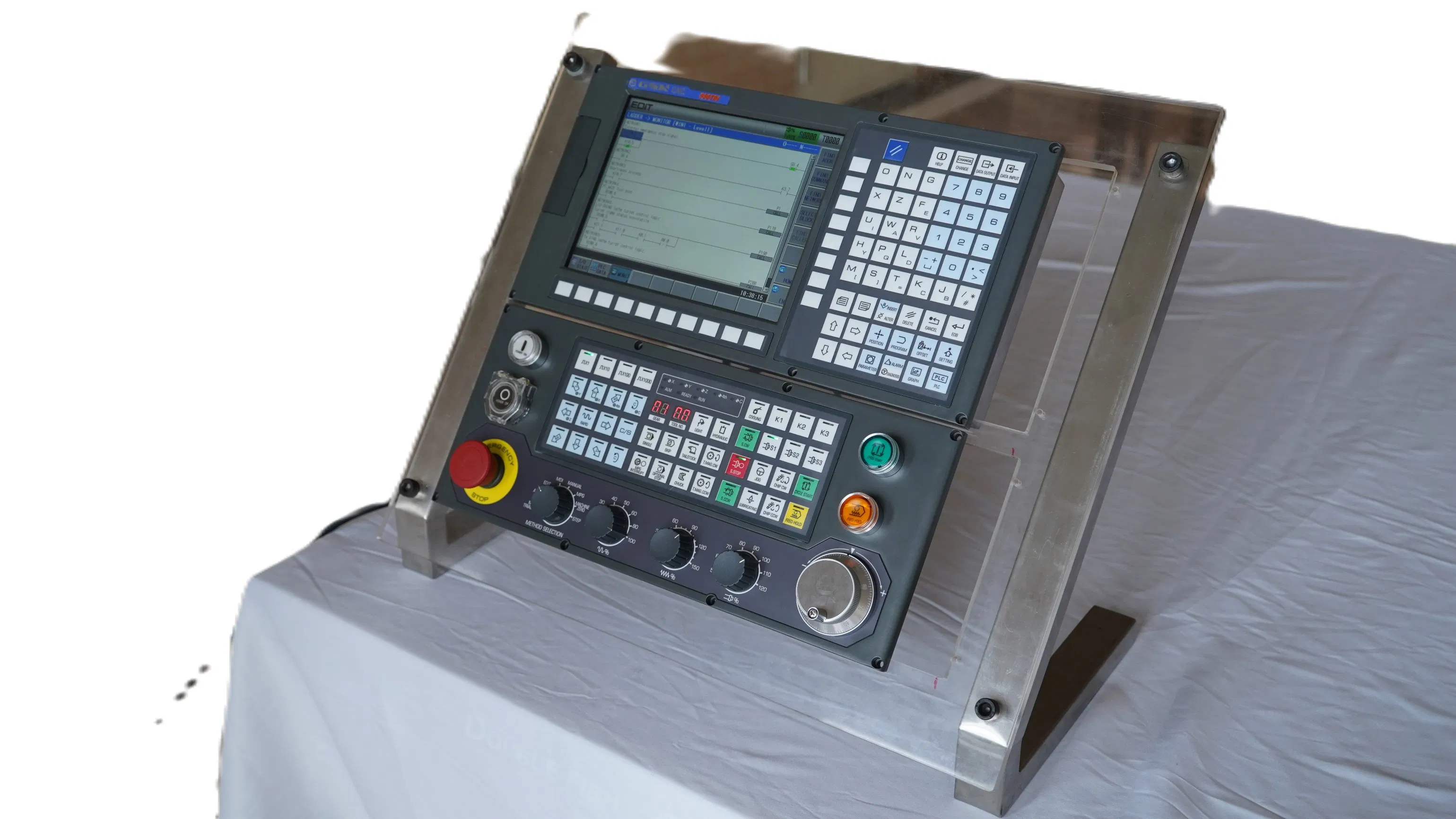

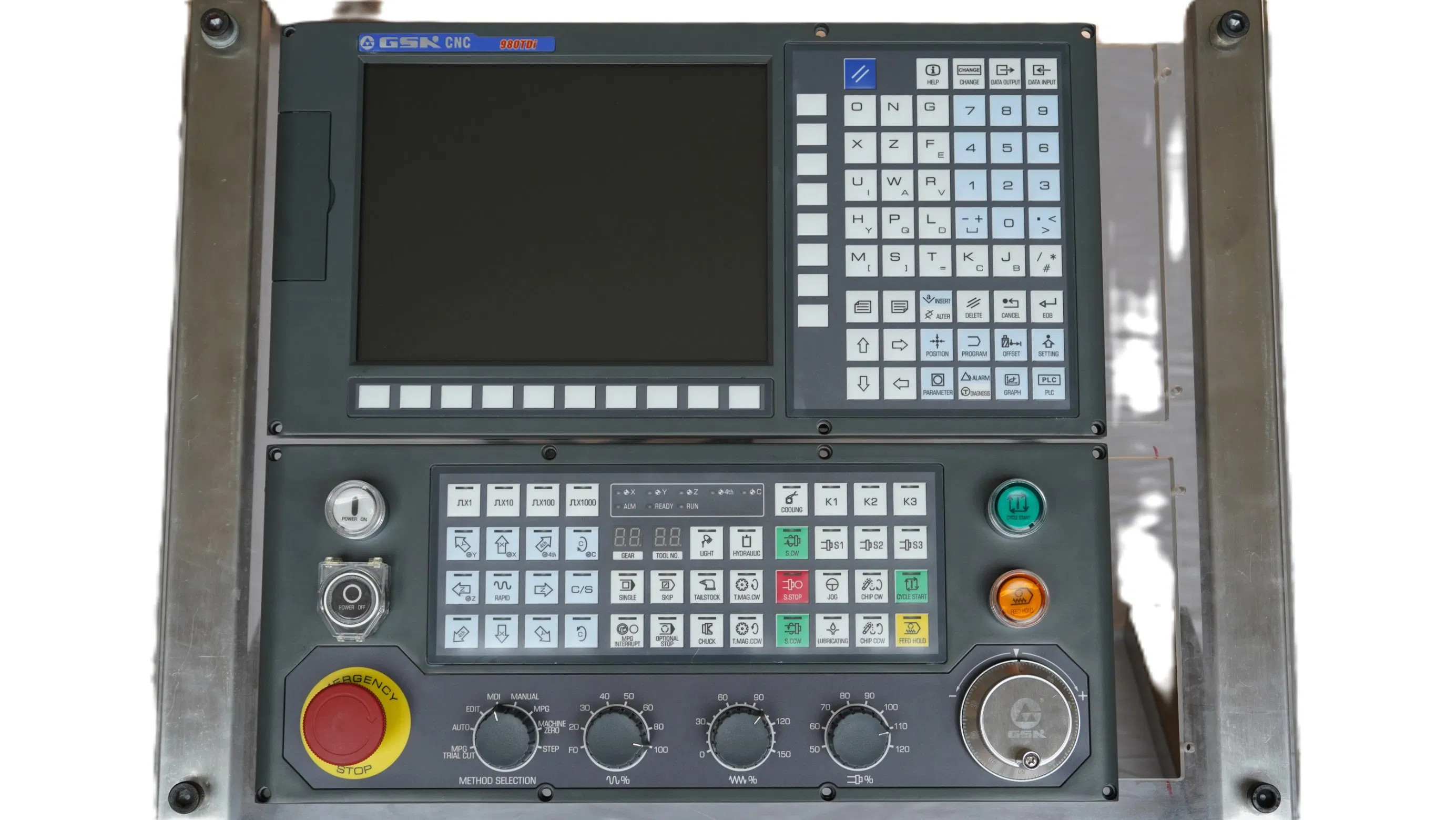

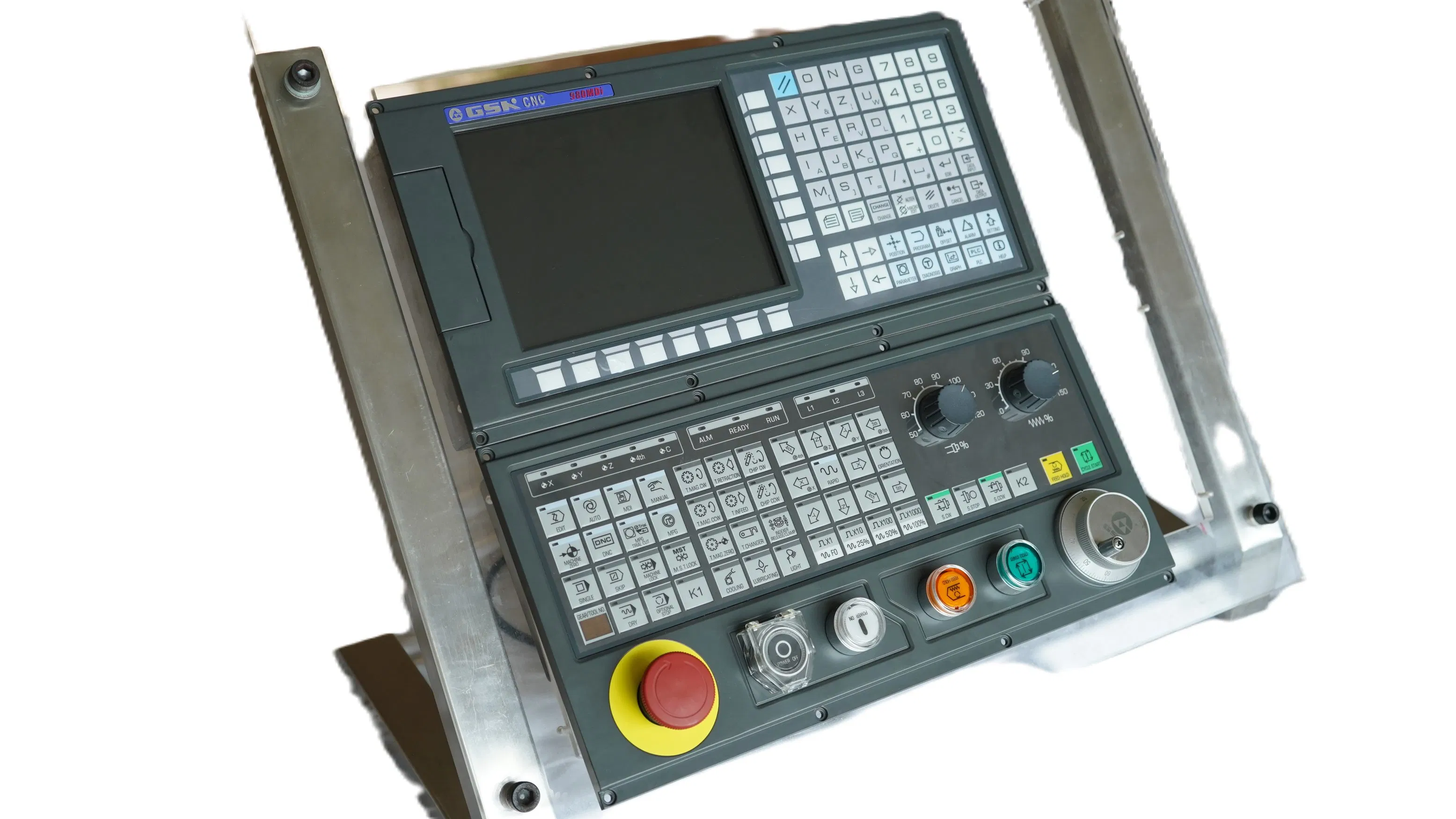

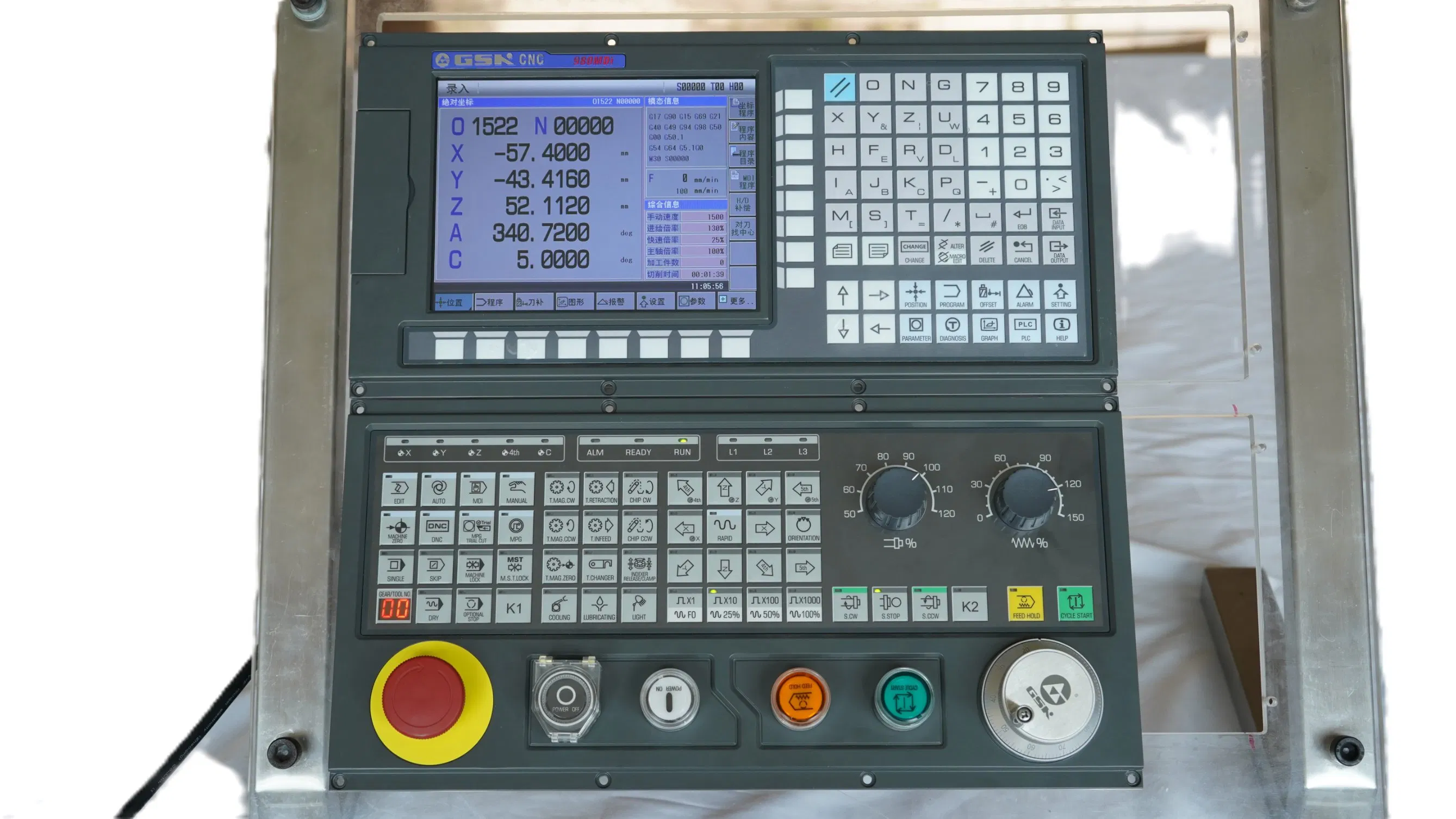

The GSK 25iMC Series stands as a beacon of technological advancement, embodying high-performance and unmatched reliability in the CNC domain. Through relentless innovation, this system integrates state-of-the-art technologies, offering powerful functionalities, seamless operation, and a versatile application spectrum.

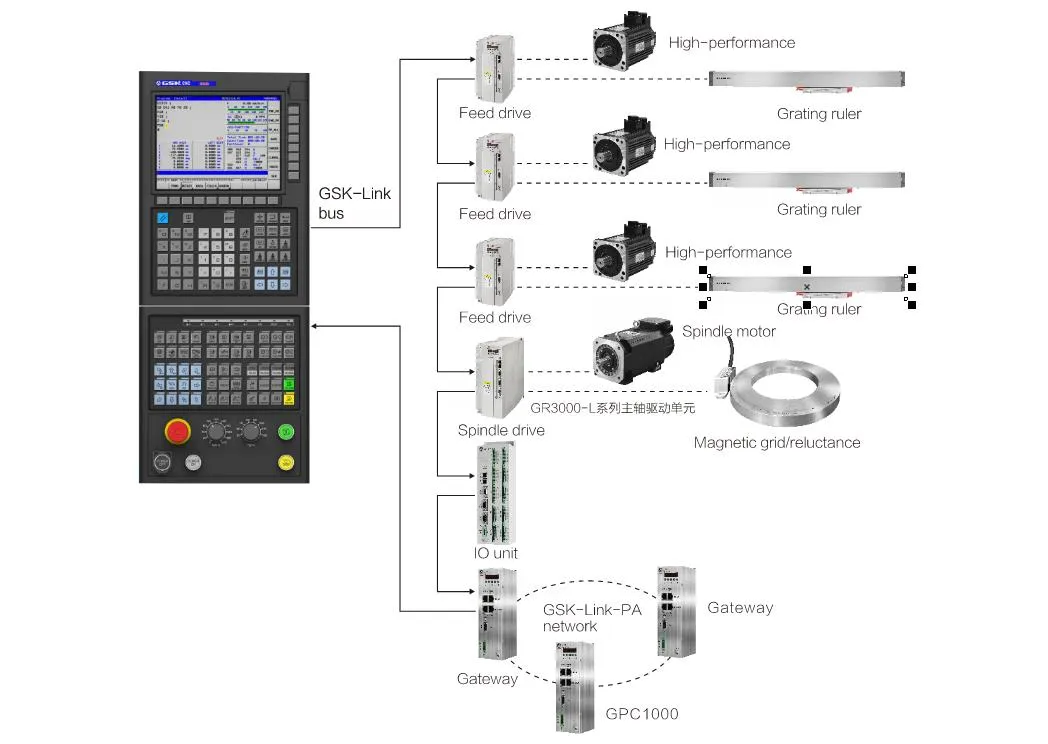

The GSK 25i is equipped with the revolutionary new-generation CNC controller. Experience unprecedented data processing speeds, enhanced system stability, potent control capabilities, multi-axis linkage, and bus control, all delivered with high speed, precision, and absolute encoder accuracy.
This remarkable series is a staple in sectors like automotive manufacturing, energy, power, hardware mold, and 3C industries. It delivers unparalleled motion control and process solutions, ensuring efficiency and precision across diverse industrial applications.

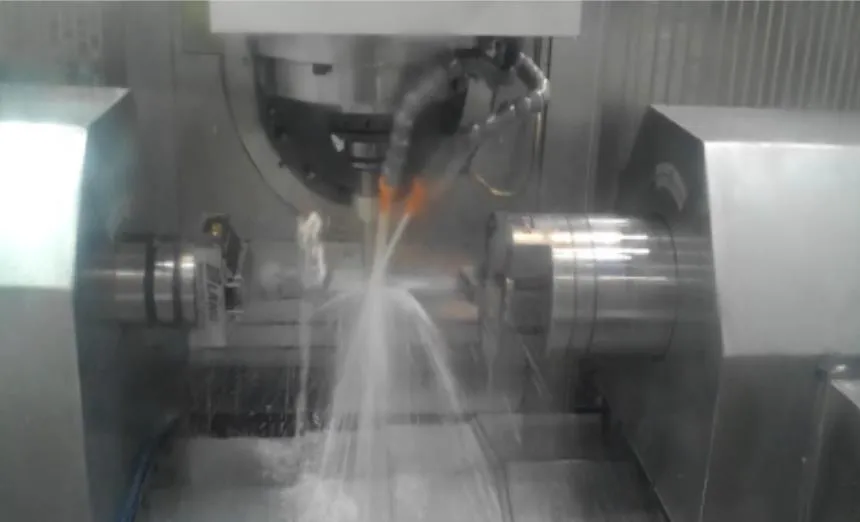

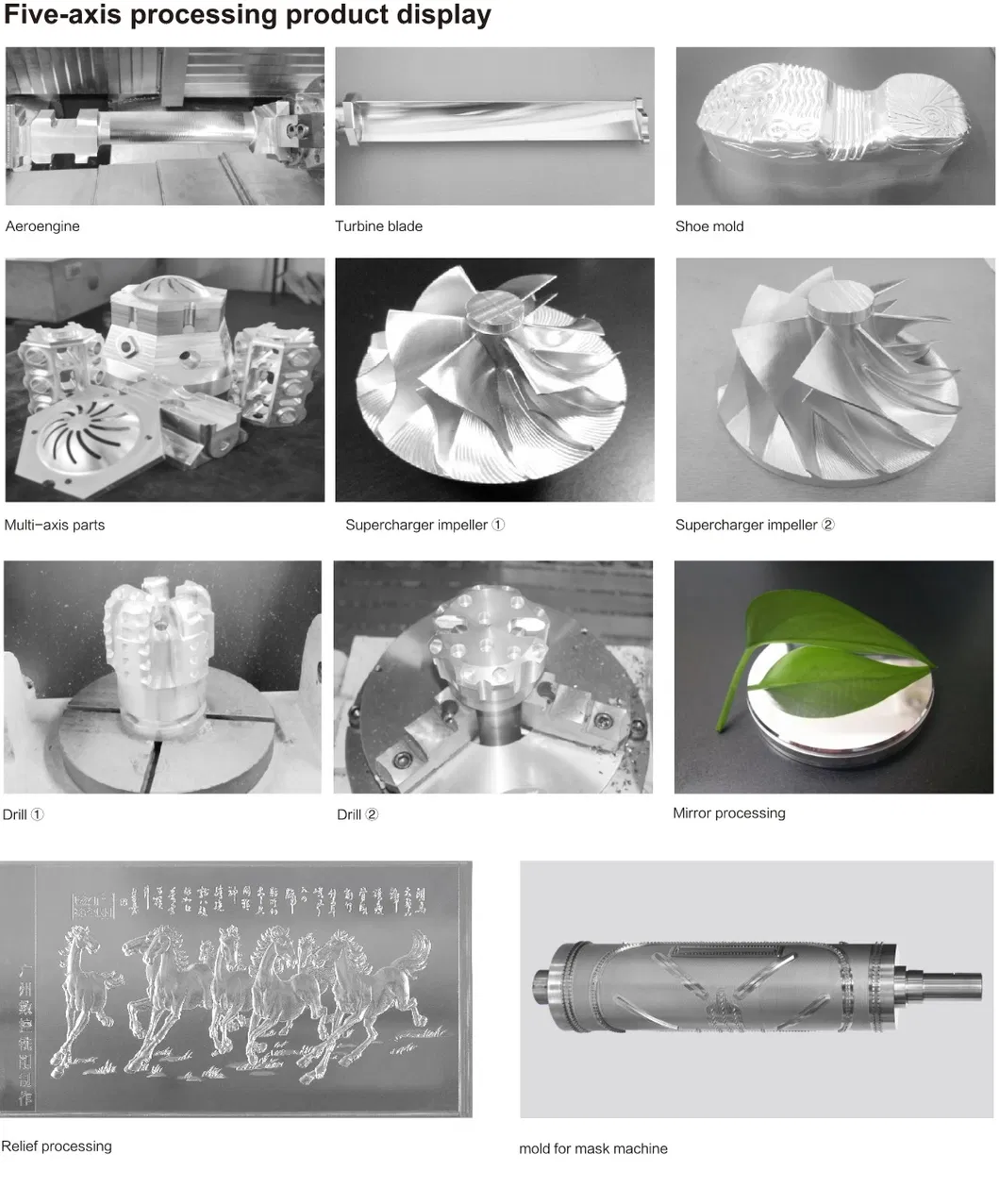

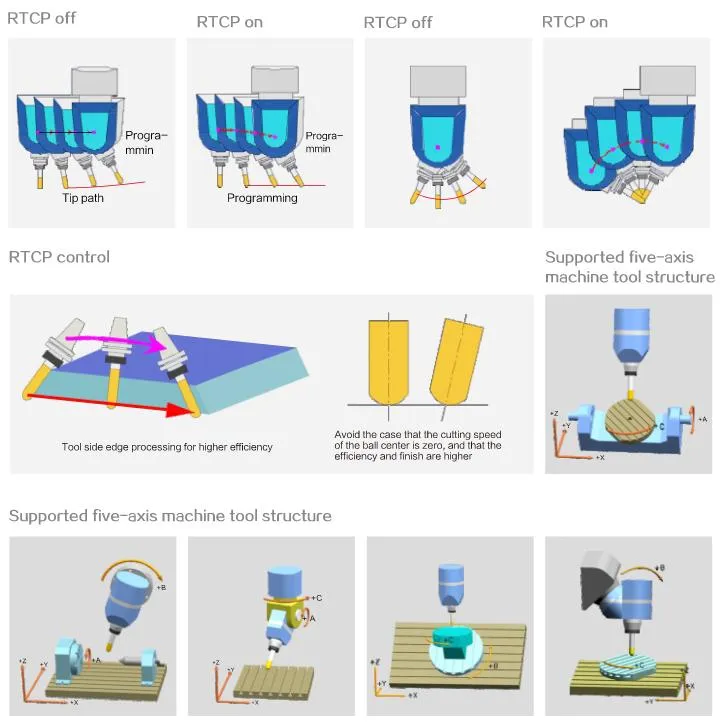

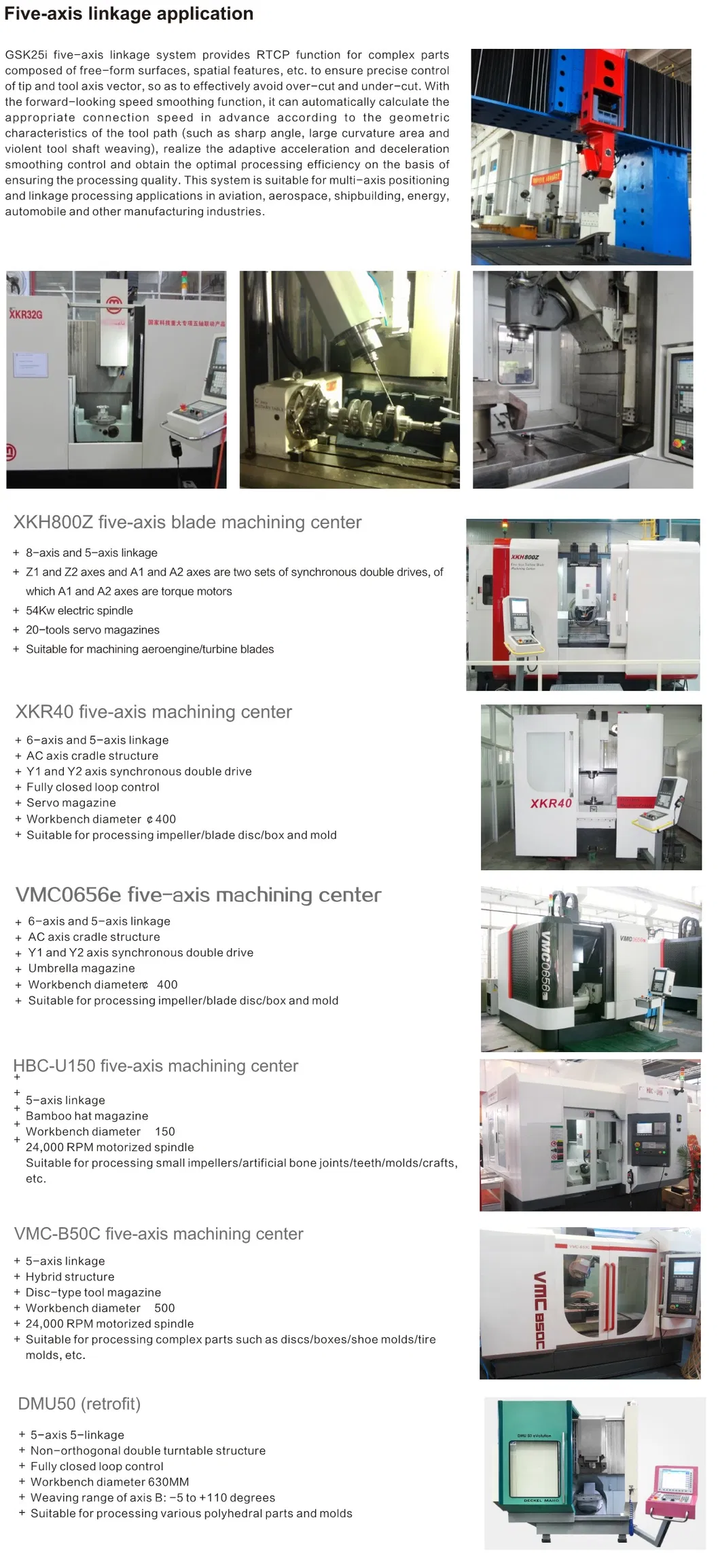

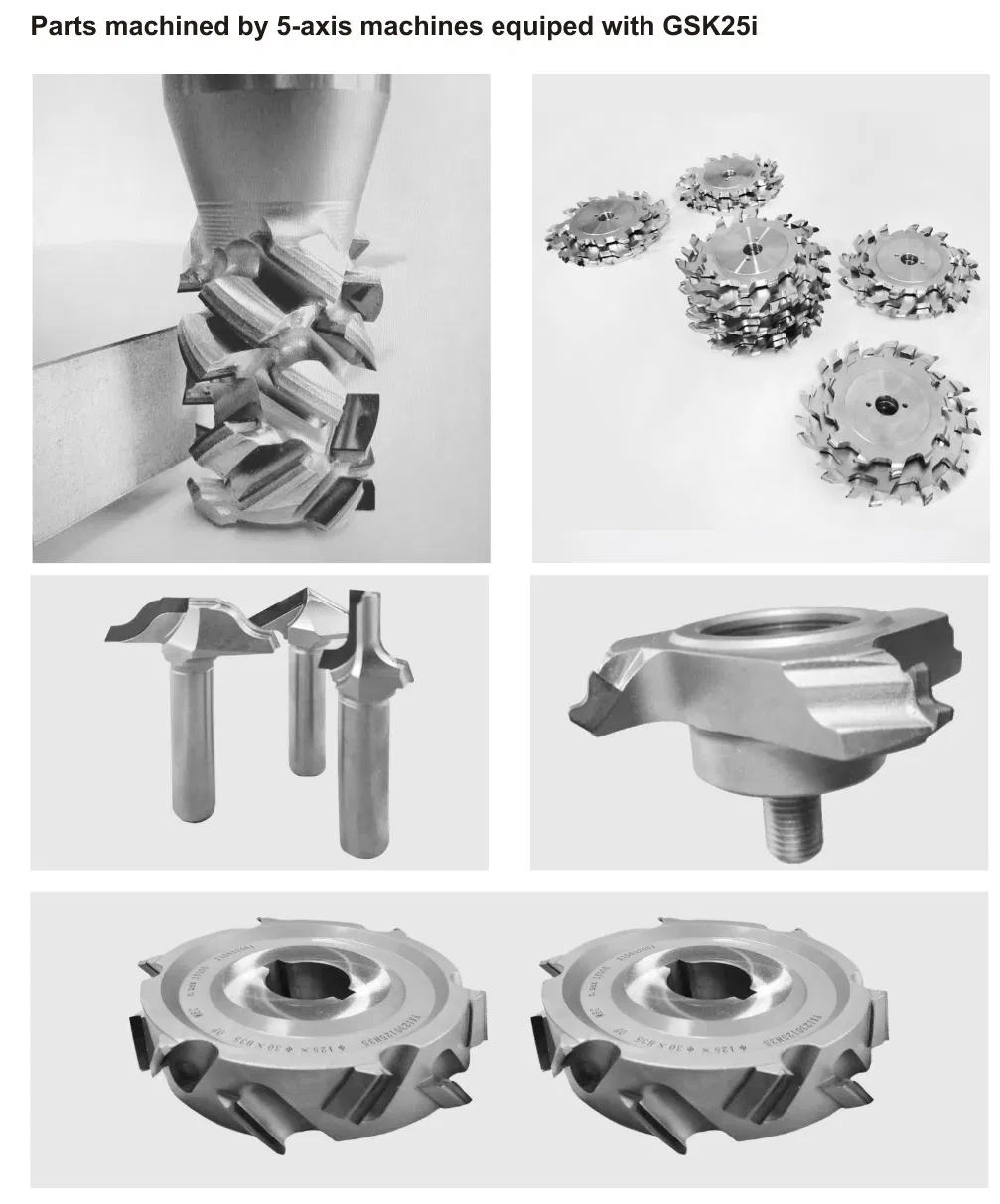

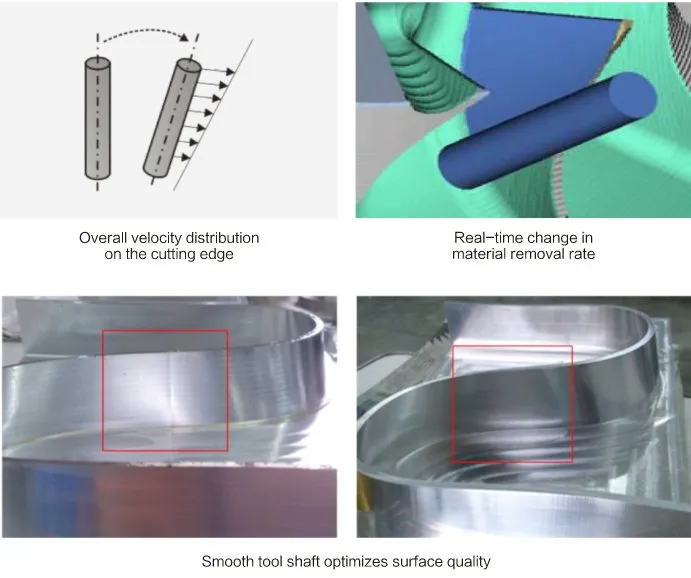

Empowering 8-axis and 5-linkage operations, the system supports a myriad of five-axis machine tool structures. Perfect for complex multi-axis parts such as aeroengines, steam turbine blades, and molds, it offers five-axis RTCP, inclined plane (3+2 positioning), five-axis tool path fairing, adaptive feed rate control for five-axis edge processing, and five-axis hand pulse insertion, meeting all multi-axis processing and quality demands.

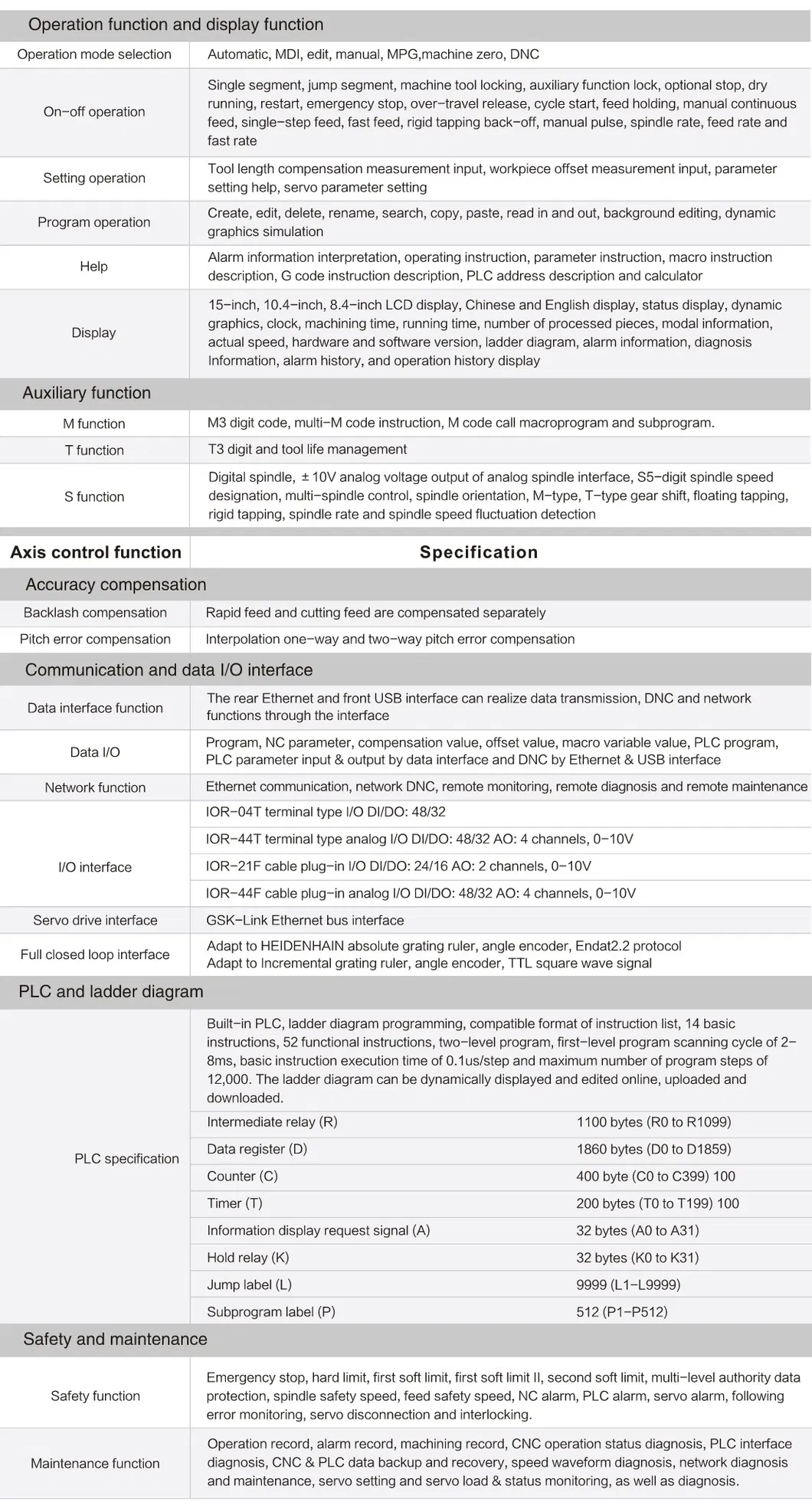

| Axis control function | Specification | |||
|---|---|---|---|---|
| Axis control function | ||||
| Maximum number of control axes | 8 feed axes plus 2 servo spindles | |||
| Number of linkage axes | 4-axis linkage | |||
| 5-axis linkage | ||||
| Number of controlled PLC axes | Up to 8 axes | |||
| Synchronous control of feed axis | Up to 4 groups | |||
| Closed loop control | Support incremental, absolute encoder or grating ruler | |||
| Minimum instruction unit | Minimum instruction unit IS-B | 0.001mm | 0.0001inch | 0.001° |
| Minimum instruction unit IS-C | 0.0001mm | 0.00001inch | 0.0001° | |
| Minimum detection unit | Minimum instruction unit IS-B | 0.001mm | 0.0001inch | 0.001° |
| Minimum instruction unit IS-C | 0.0001mm | 0.00001inch | 0.0001° | |
| Maximum instruction value | +999999.9999mm / +99999.9999inch / +999999.9999° | |||
| Maximum feed speed | Maximum feed speed 200m/min | |||
| Automatic acceleration and deceleration | Linear before interpolation, S-curve acceleration/deceleration, jerk control | |||
| High-speed and high-precision machining | G05 high-speed small line segment look-ahead interpolation, path smoothing, and up to 1000 look-ahead and read-ahead segments | |||
| 5-axis control function (optional) | ||||
| RTCP function | Tool center point control G43.4 | |||
| Inclined surface machining | Five-axis positioning (3+2) machining G68.2 | |||
| Five-axis manual feed | Manual feed in tool axis, right angle direction of tool axis and rotation direction of tool center point | |||
| Programming function | ||||
|---|---|---|---|---|
| Program format | ISO instruction standard, program name: 0+4 digits, segment number N+5 digits, G+3 digits, coordinate value IP 6 digits before the decimal point, coordinate value IP : 4 after the decimal point, S+5 digits, T+3 digits, M +3 digits, F+6 digits before the decimal point and F+4 digits after the decimal point | |||
| Interpolation function | 48 groups of basic coordinate system G52-G59 and additional extended coordinate system (G54.1) | |||
| Workpiece coordinate system | 48 groups of basic coordinate system G52-G59 and additional extended coordinate system (G54.1) | |||
| Tool compensation | C tool compensation function. 400 sets of tool compensation | |||
| Programming function | There are more than 100 G instructions in total, including 12 common fixed cycles, 19 special fixed cycles and compound cycles, face milling, coordinate system rotation, scaling, mirroring, automatic tool length measurement, tool center point control, and inclined surface machining commands. The number of subroutine calls is 4, and the user macro program is type B | |||
| Program storage | 4G Memory, up to 400 programs | |||
| Reference point function | G27 returns to reference point to check; G28 returns to reference point; G29 returns from the reference point; G30 returns to reference points 2, 3 and 4 | |||
| Skip function | G31 skip function for tool and workpiece measurement | |||
| Programmable control function | Programmable stroke limit (G22 and G23), programmable data input (G10) | |||
At the forefront of basic equipment industrial development, we offer comprehensive "trinity" solutions in CNC systems, servo drives, and motors. Pioneering the industrial robot and electric injection molding sectors, we innovate new marketing models through machine tool exhibitions, providing holistic remanufacturing services and professional solutions. Committed to integrating production with education, we spearhead vocational training for CNC expertise, evolving into a high-tech nexus of science, education, industry, and trade.
Guided by our corporate philosophy of "crafting a century-old enterprise and forging gold quality" and our service ethos of "constant improvement and user satisfaction," we are dedicated to enhancing customer value through relentless technological innovation. We are committed to advancing the localization of the basic equipment industry, elevating technological standards, and driving the growth of the equipment manufacturing sector.
CNC System & Industrial robot

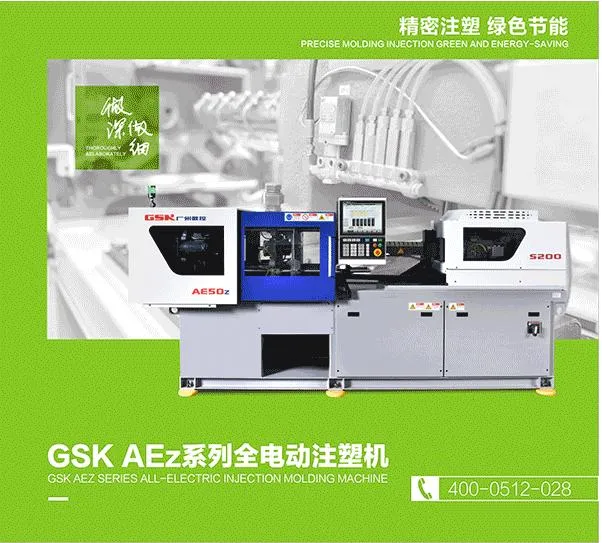

Full electric injection molding machine CNC machine

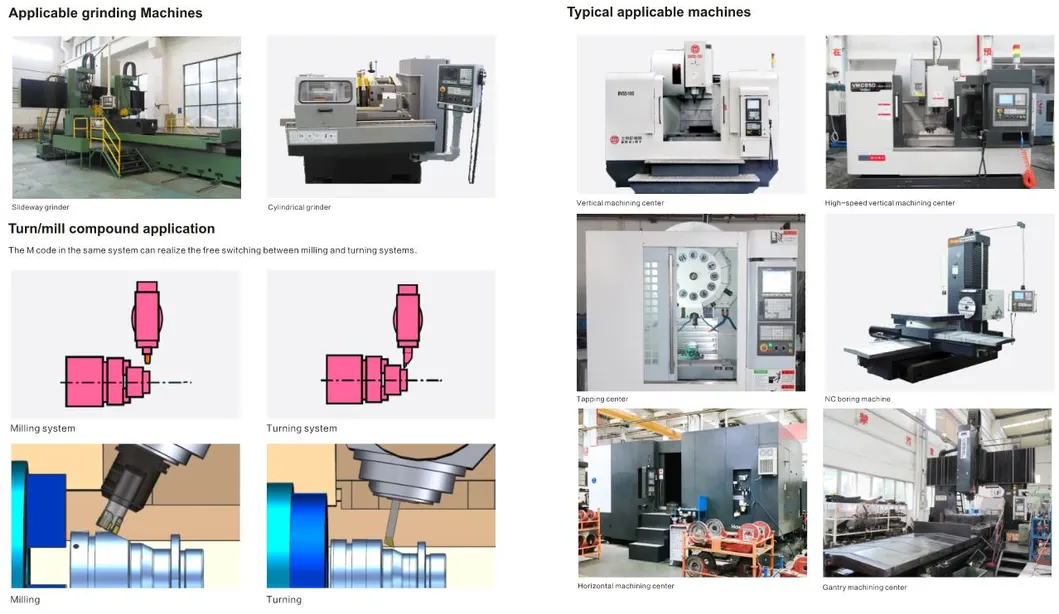

The series is widely used in automotive manufacturing, energy, power, hardware mold, and 3C industries. It delivers exceptional motion control and process solutions for diverse industrial applications.
Yes. The system supports 5-axis machining with RTCP (optional), enabling 8-axis and 5-linkage operations. It is well-suited for complex parts like aeroengines, steam turbine blades, and molds.

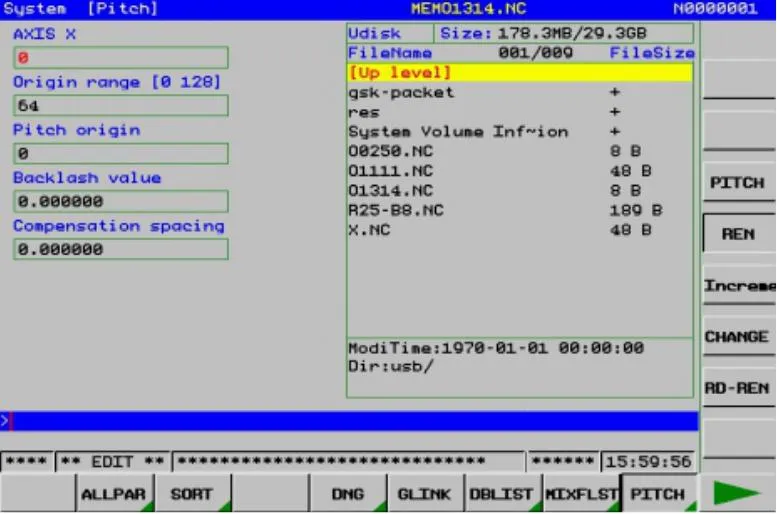

You can easily load the REN file for the designated axis with a single click. This enables fast parameter setup, data writing, and supports one-key incremental loading to eliminate manual input errors.
The system features control for up to 8 feed axes and 2 servo spindles, supporting 4-axis or 5-axis linkage, closed-loop control (absolute/incremental encoders or grating rulers), and reaches a maximum feed speed of 200m/min.
It aligns with the ISO instruction standard, offering over 100 G instructions, including fixed/compound cycles, coordinate rotation, scaling, mirroring, and G43.4 RTCP. It includes a 4G memory capacity storing up to 400 programs.
It features G05 high-speed small line segment look-ahead interpolation, path smoothing, jerk control, S-curve acceleration/deceleration, and up to 1000 look-ahead and read-ahead segments.
