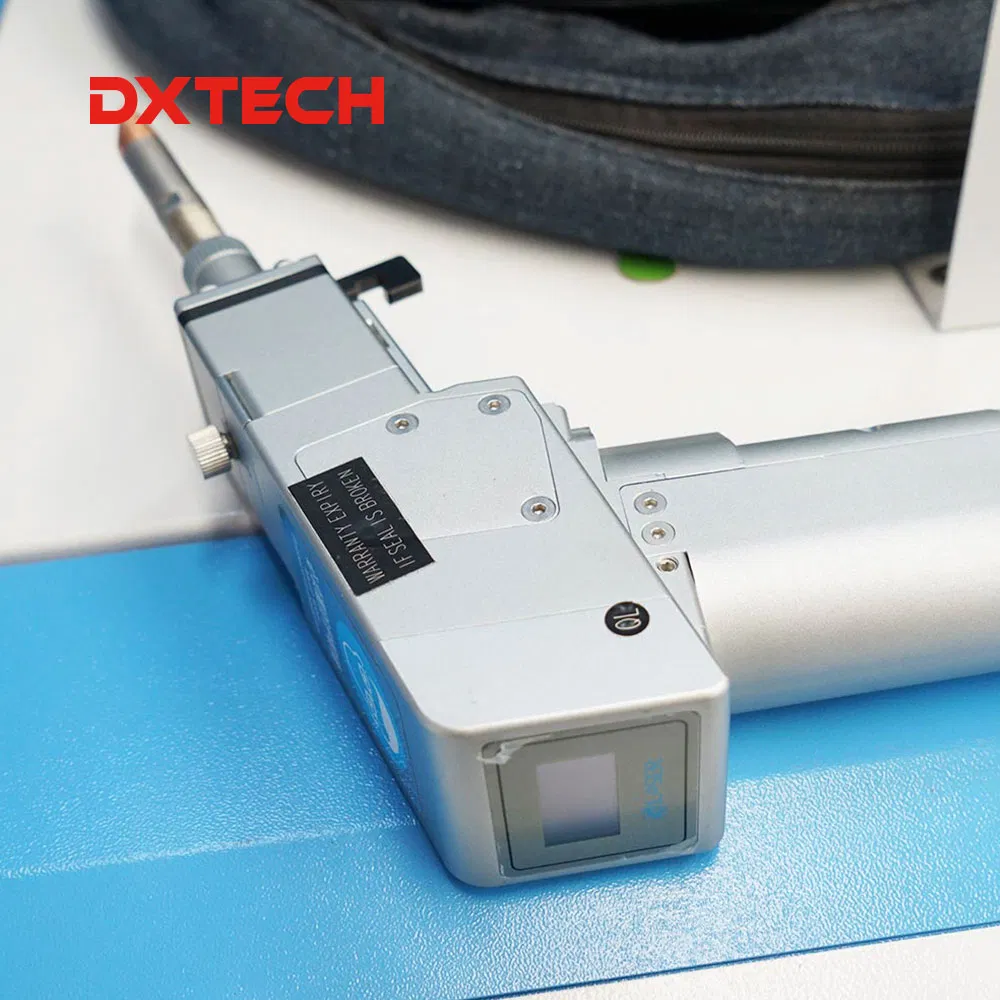

High Speed Welding Tool for Butt Spot Welding Brass Aluminum Metal Material with Long Lifetime with Auto Wire Feeder System
1 / 5

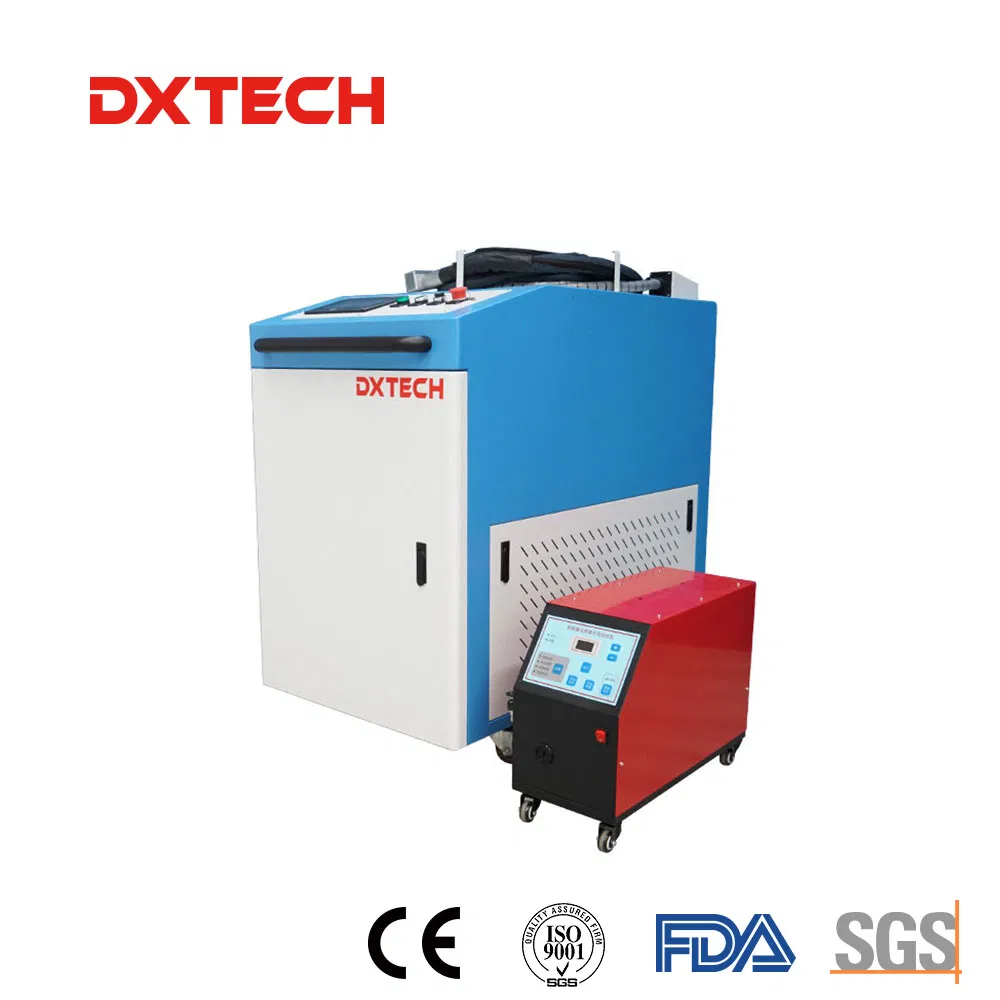

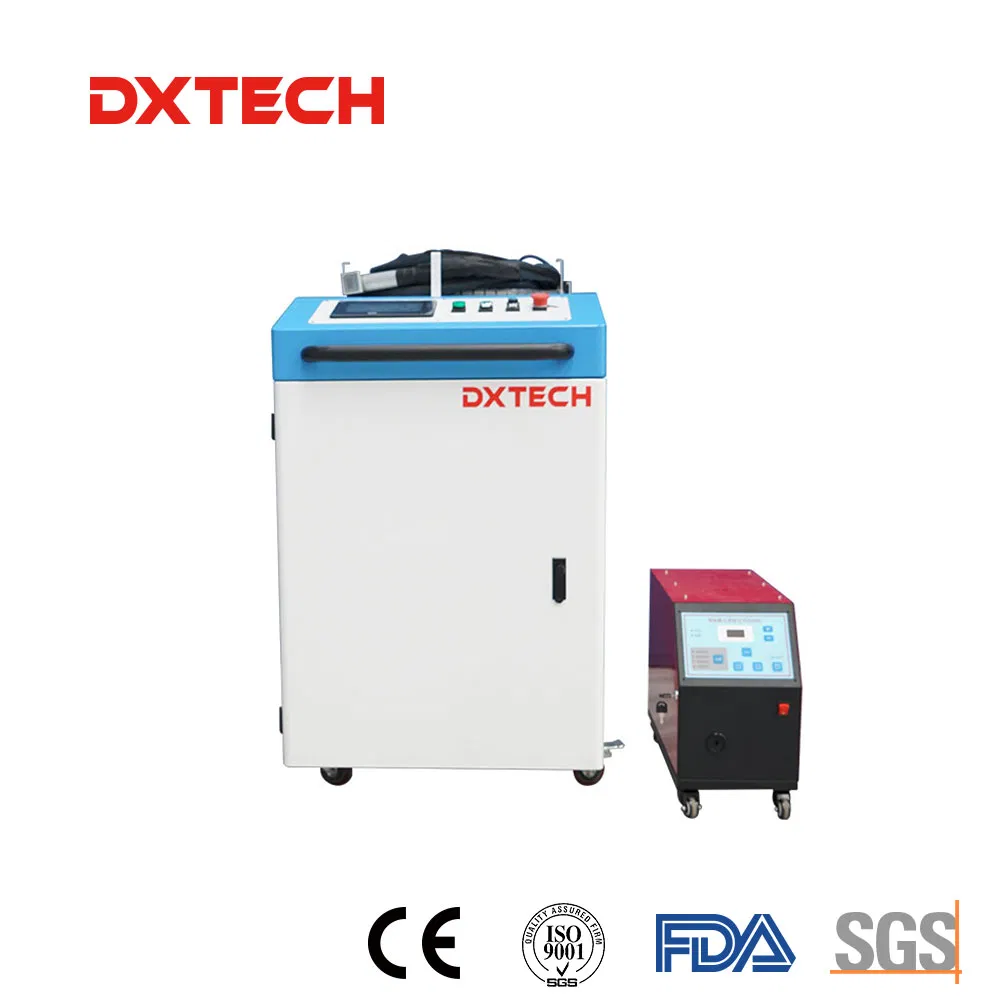

High Speed Welding Tool for Butt Spot Welding Brass Aluminum Metal Material with Long Lifetime with Auto Wire Feeder System
A laser welding machine is good at conducting spot welding, butt welding, overlap welding, and sealing welding with fast speed and high precision. It can weld carbon steels, HSLA steels, stainless steel, aluminum, and titanium. Common laser welding equipment mainly includes laser mold welding, manual, automatic, and handheld laser welding, galvanometer welder, etc.
Technical Parameters
Parameter
Specification Details
Model
XTW-1000
Working Area
1500*3000mm (optional)
Laser Output Power
1000W
X/Y-axis positioning accuracy
±0.03mm
X/Y-axis repositioning accuracy
±0.02mm
Max Cutting Speed
25m/min
Maximum acceleration
1.5G
Servo motor
Japan Yaskawa / Japan Fuji
Electrical components
Schneider
Reducer
Japan SHIMPO
Cutting Materials and Thickness Reference
Material Type
500W
750W
1000W
1500W
2000W
3000W
Carbon steel
0.4-6mm
0.4-10mm
0.4-12mm
0.4-14mm
0.4-16mm
0.4-20mm
Stainless steel
0.4-3mm
0.4-4mm
0.4-5mm
0.4-6mm
0.4-8mm
0.4-10mm
Aluminum
0.4-2mm
0.4-3mm
0.4-3mm
0.4-4mm
0.4-6mm
0.4-8mm
Brass
-
-
0.4-3mm
0.4-3mm
0.4-3mm
0.4-8mm

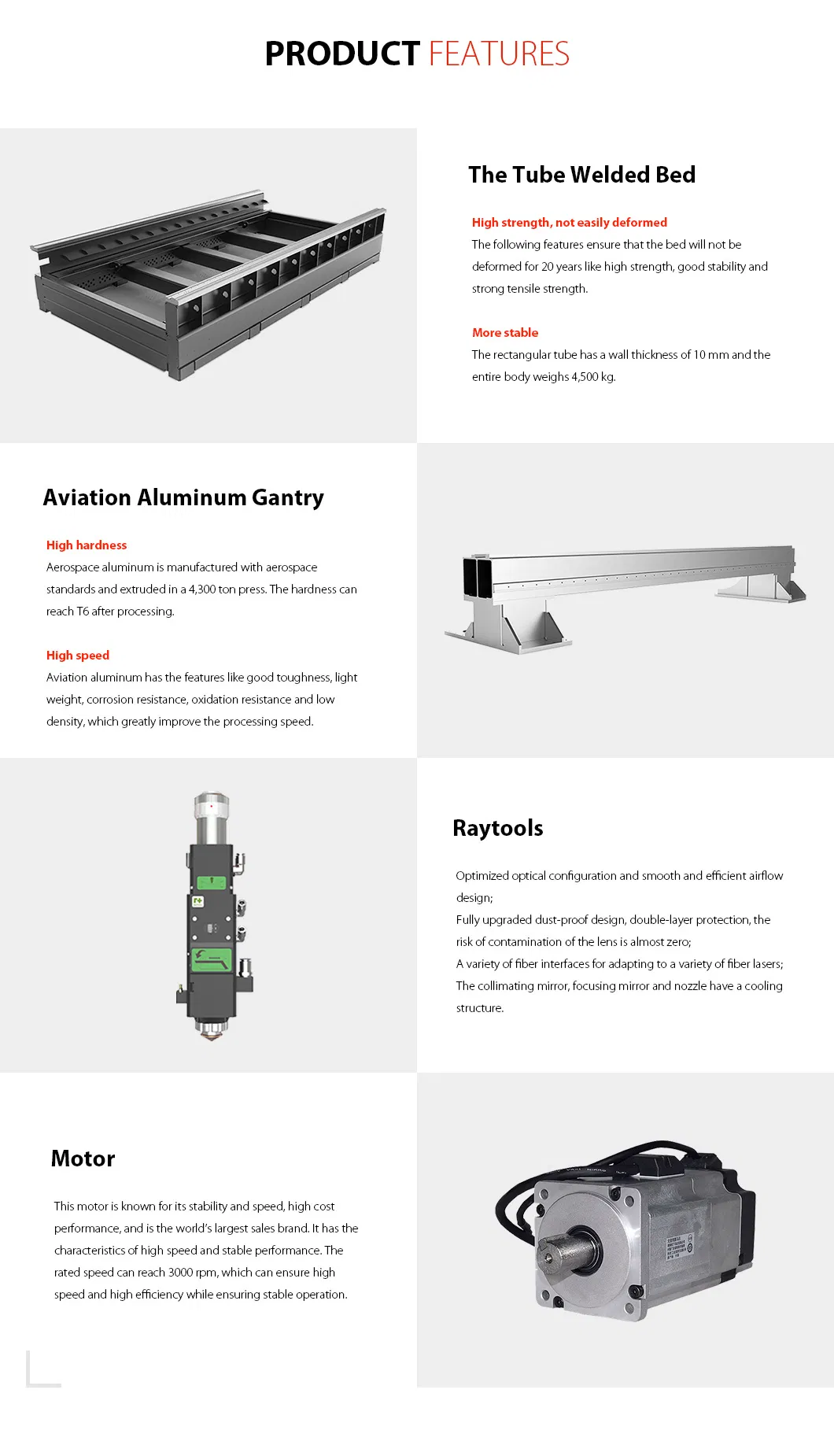

Detailed Images
The Tube Welded Bed
High strength, not easily deformed: The structure ensures that the bed will not be deformed for 20 years, offering exceptional stability and strong tensile strength.
More stable: The rectangular tube features a wall thickness of 10 mm, and the entire body weighs 4,500 kg for high-precision operations.
Aviation Aluminum Gantry
-- High hardness: Aerospace-standard aluminum is extruded via a 4,300-ton press. Hardness levels can reach T6 after thorough processing.
-- High speed: Characterized by good toughness, lightweight properties, corrosion/oxidation resistance, and low density, which significantly enhances general processing speeds.
Raytools Custom Cutting Head
-- Optimized optical configuration accompanied by a smooth and efficient airflow design.
-- Fully upgraded dust-proof design featuring double-layer protection, reducing contamination risks of the lens to near zero.
-- Multiple fiber interfaces for versatile adaptation to various fiber laser models.
-- Built-in cooling structures for the collimating mirror, focusing mirror, and nozzle.
Industrial Applications
-- Material Compatibility: Suitable for processing stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plated zinc plates, copper, and various other metals.
-- Diverse Industries: The system is extensively used in automotive manufacturing, advertising sign production, kitchenware processing, sheet metal and cabinet production, fitness equipment fabrication, precision parts, elevators, household appliances, craft gifting, tool finishing, decoration, and more.
Packing & Delivery
Protective 3-Layer Packaging System: 1. Innermost Layer: EPE pearl cotton film wrapper.
2. Middle Layer: Sealed wrapping using eco-friendly protection materials.
3. Outermost Layer: Firmly bound with PE stretch film.
Our packaging is designed to be highly environmentally friendly. Standard packages can also be configured using fumigation-free wooden cases upon request to provide maximum security during transit.
Frequently Asked Questions
1. What types of metals can this machine weld and cut?
This machine is highly efficient for processing a variety of metals, including carbon steels, stainless steel, aluminum, titanium, galvanized steel, brass, and copper.
2. What is the maximum cutting speed and positioning accuracy?
The machine delivers a maximum cutting speed of up to 25m/min, with an X/Y-axis positioning accuracy of ±0.03mm and repositioning accuracy of ±0.02mm.
3. How does the tube welded bed prevent deformation?
The bed is constructed from a rectangular tube with a wall thickness of 10 mm. The heavy-duty structural layout provides high tensile strength and stability, ensuring no deformation for up to 20 years.
4. What are the benefits of using an Aviation Aluminum Gantry?
Extruded using a 4,300-ton press to achieve T6 hardness, the aviation aluminum gantry offers low density, lightweight design, and exceptional toughness. This increases processing acceleration and speed.
5. What kind of packaging is used for shipping?
We use a reliable three-layer packaging system: EPE pearl cotton film for the inner layer, environmental protection wrapping for the middle layer, and PE stretch film on the outside. Optional fumigation-free wooden cases are also available.
6. What components are integrated into the laser system?
Key components include high-performance fiber lasers, precision Japanese Yaskawa or Fuji servo motors, Hiwin guide rails, a Raytools cutting head, and Schneider electrical components.
