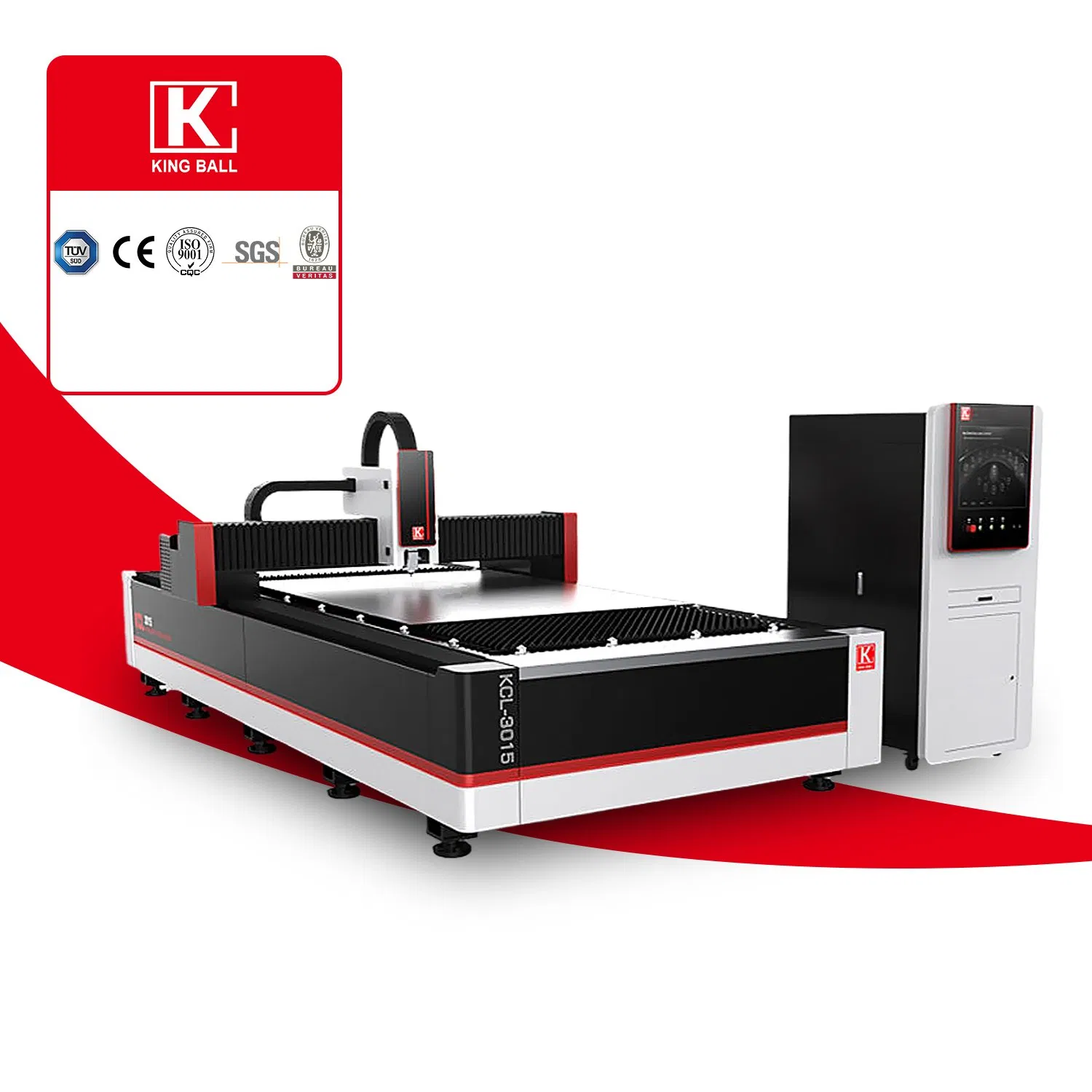

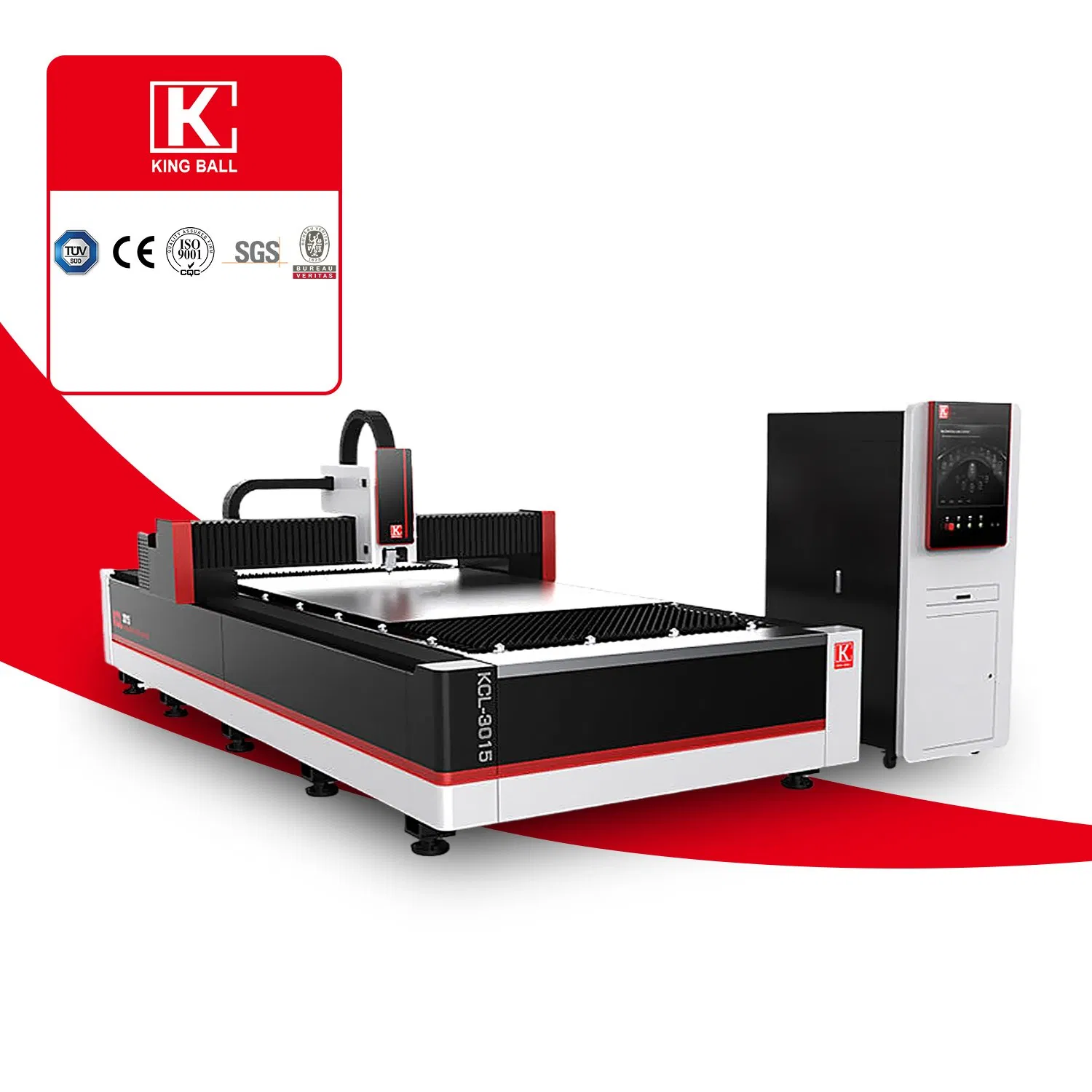

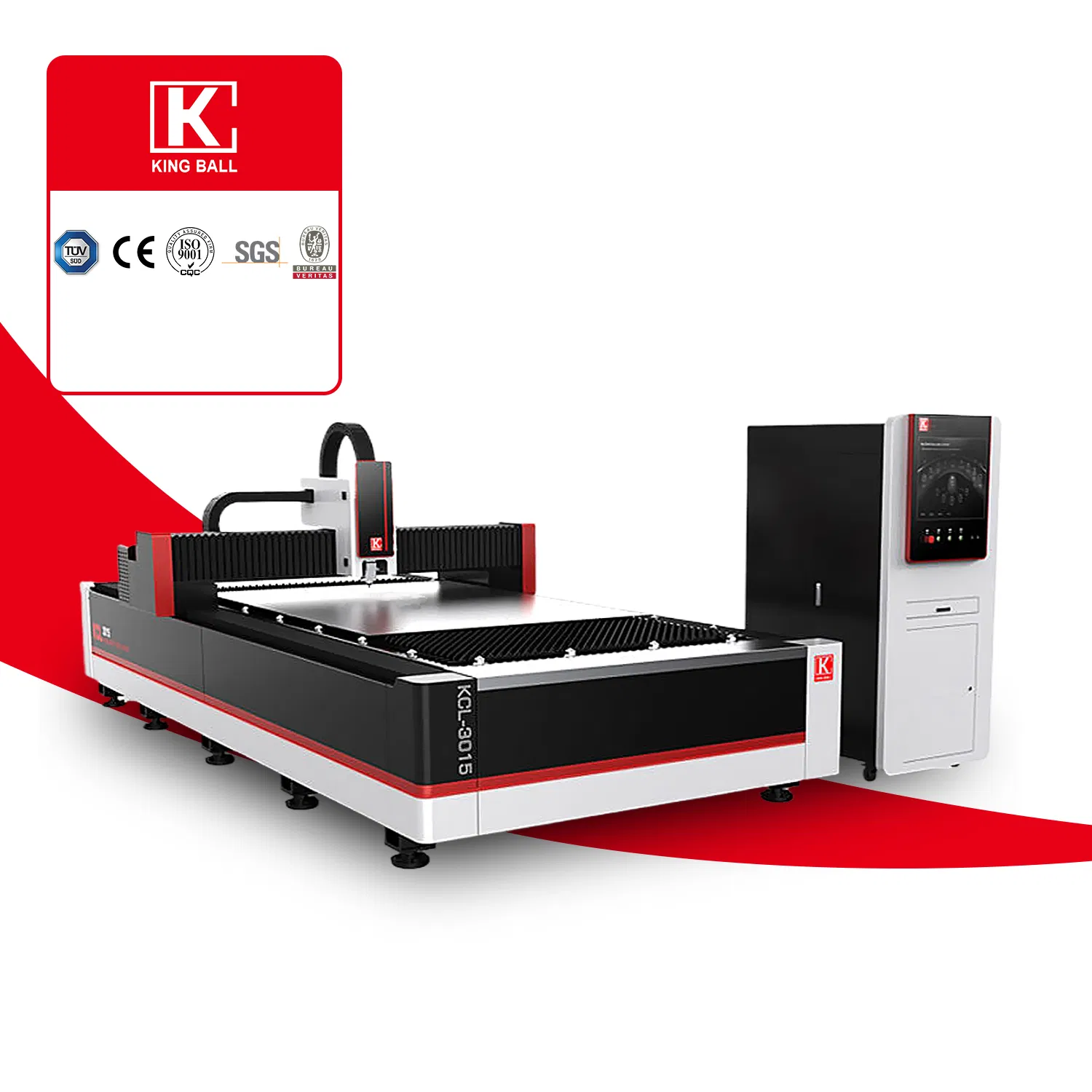

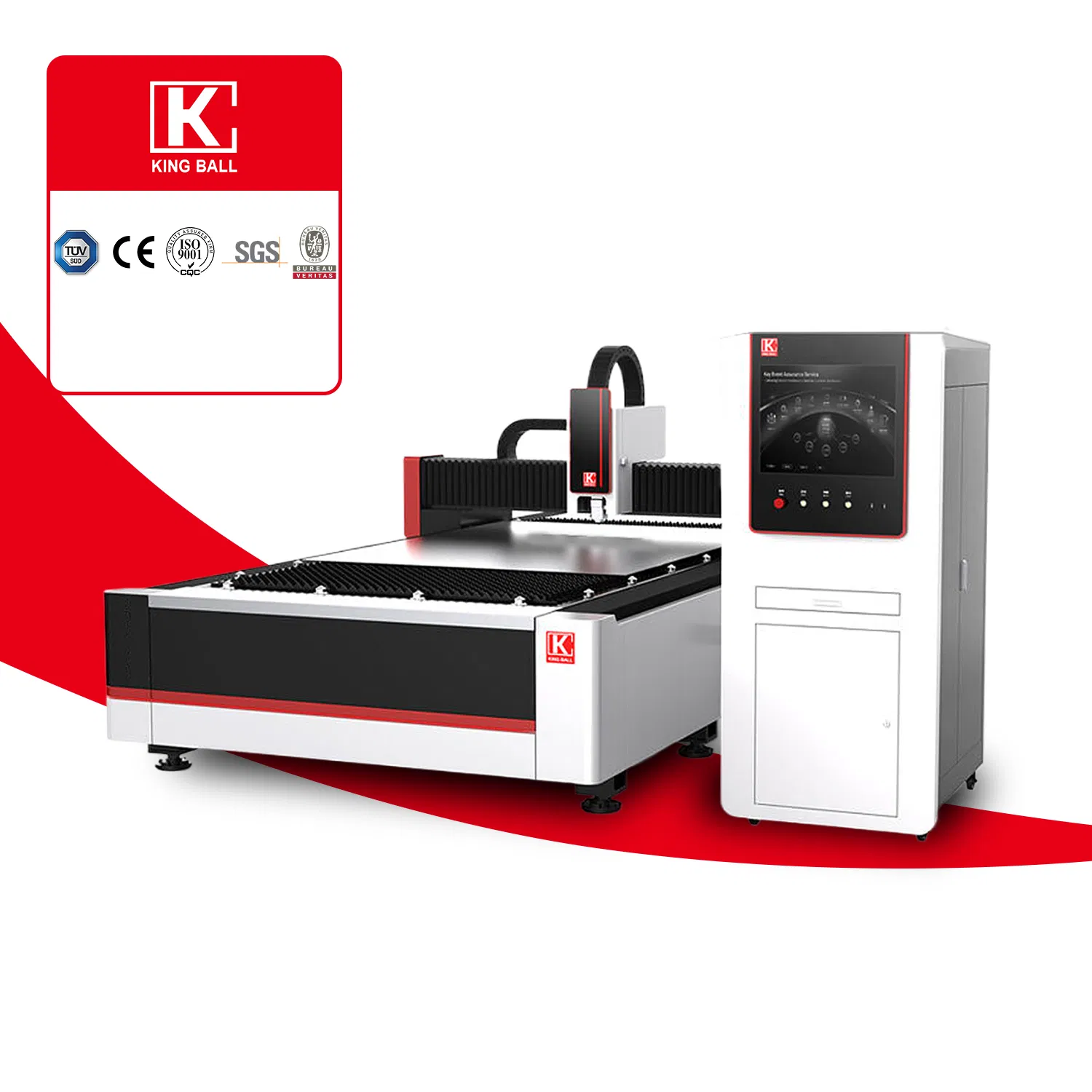

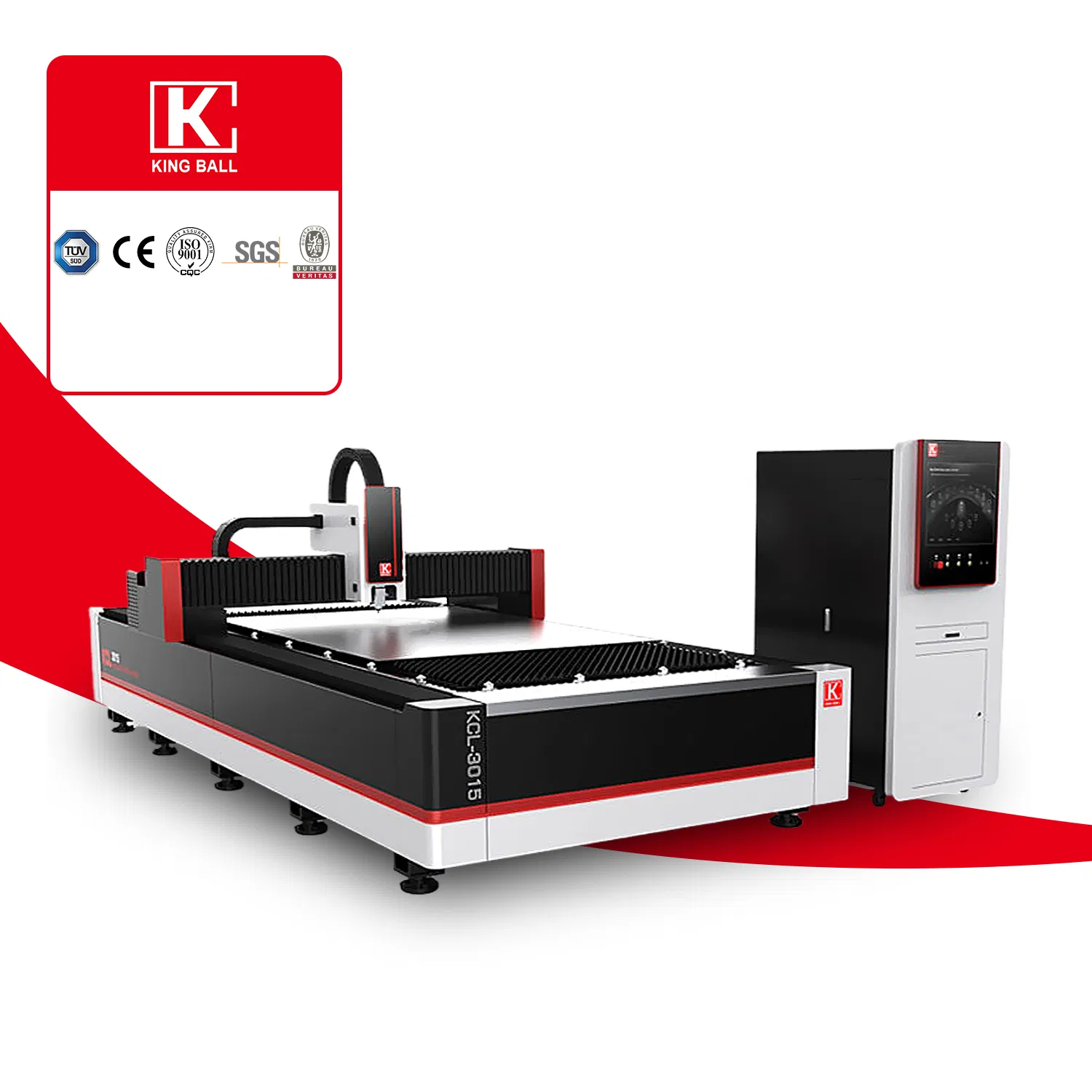

Advanced Metal Cutting Laser System

Customization:	Available
After-sales Service:	Training How to Install and Use The Machine
Warranty:	2 Years

Send Inquiry

Product Description

Basic Info.

Model NO.

KCL-3015-1500W

Application

Food Machinery, Automotive Industry

Cooling System

Water Cooling

Technical Class

Continuous Wave Laser

Applicable Material

Metal

Structure Type

Desktop

Laser Classification

Solid Laser

Laser Technology

Laser Fusion Cutting

Laser Power

500W / 1000W / 2000W / 3000W

Control System

Cypcut System

Motor

Japan Yaskawa Servo Motor

Max Cutting Speed

15- 45mm/S (1mm Stainless Steel)

Tube Diameter

20mm-220mm Diameter

Transport Package

Packaged by Plywood

Specification

KCL-D

Origin

China

HS Code

8456110090

Production Capacity

200sets/Month

Packaging & Delivery

Package Size

400.00cm * 250.00cm * 200.00cm

Package Gross Weight

10.000kg

Product Description

Detailed Images

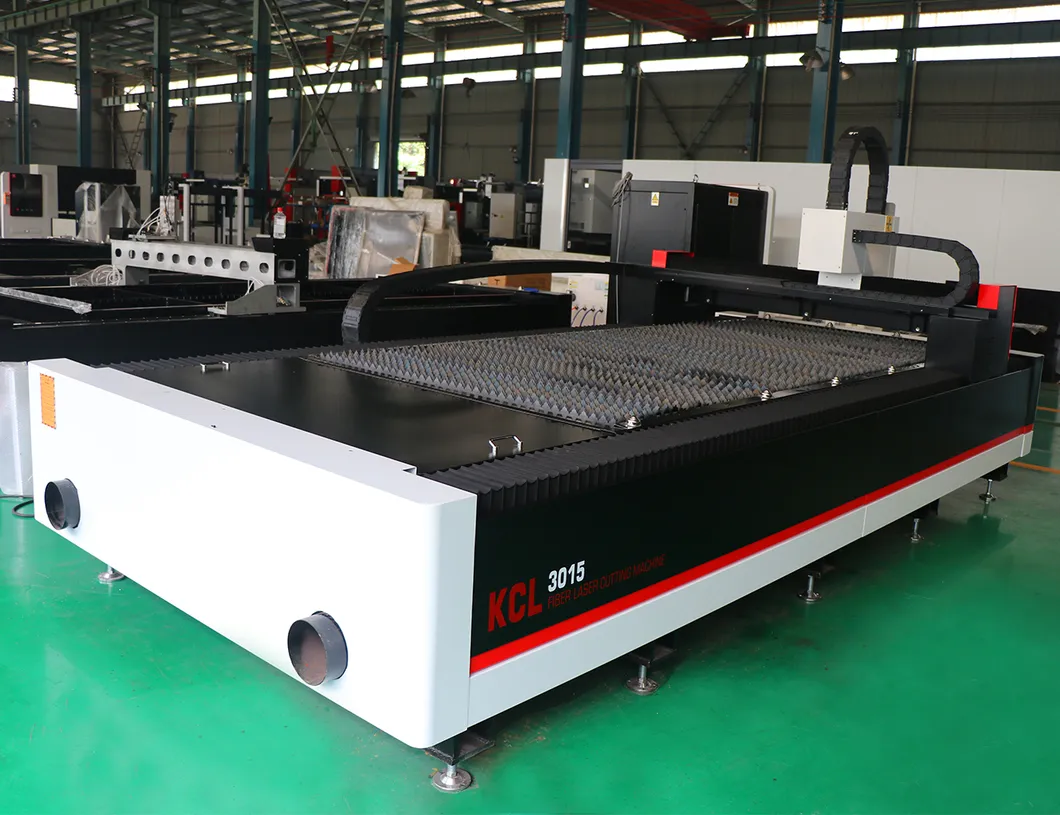

Model	KCL-D3015	KCL-D4015	KCL-D4020	KCL-D6020	KCL-D6025	KCL-D8025	KCL-D10025	KCL-D12025
Cutting Range (mm)	3000*1500	4000*1500	4000*2000	6000*2000	6000*2500	8000*2500	10000*2500	12000*2500
Laser Power (w)	1000W & 1500W & 2000W & 3000W & 6000W & 8000W & 12000W
Maximum idle speed	160 m/min
Maximum cutting speed	35-80 m/min
Positioning Accuracy	0.03 mm
Reposition Accuracy	0.02 mm

Core Technology

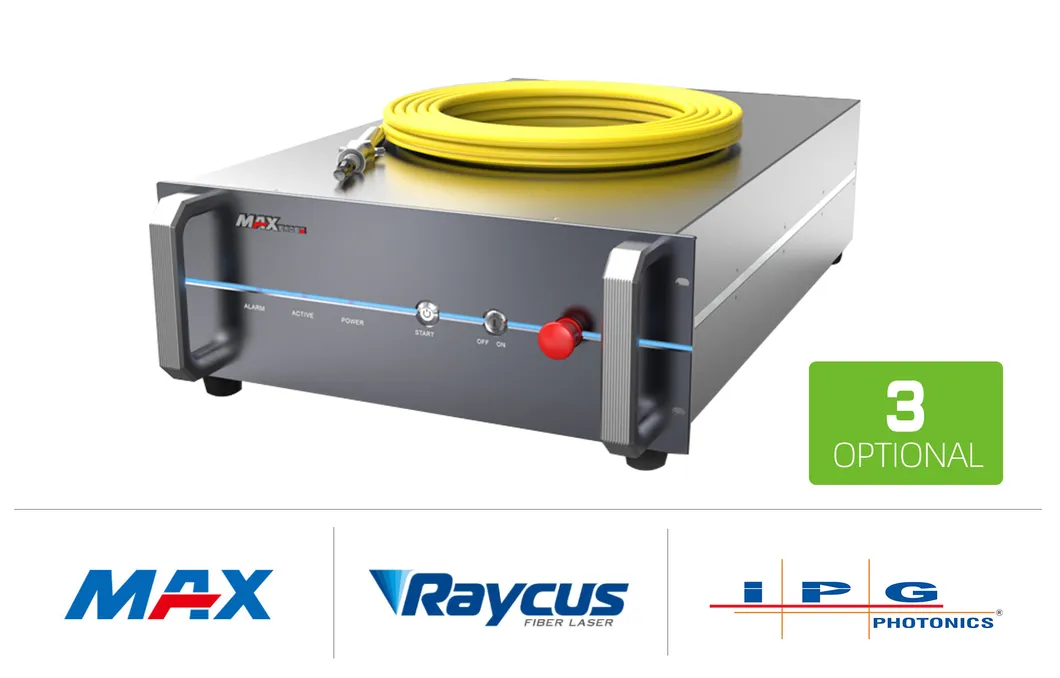

MAX & Raycus & IPG Brand Laser Source

Superior electro-optic conversion efficiency, unparalleled reliability & modularity, easy maintenance, minimal downtime, and anti-high reflection functionality.

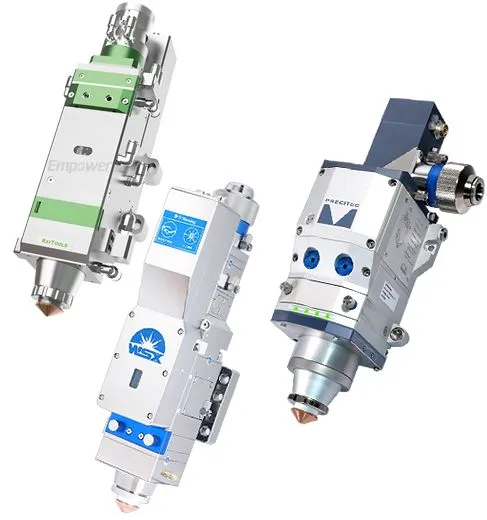

Laser Cutting Head

Equipped with 3 protection lenses for effective collimating focus lens protection and 2-way optical water cooling for enhanced efficiency. Extends continuous working time significantly. Multiple brands of laser heads are available.

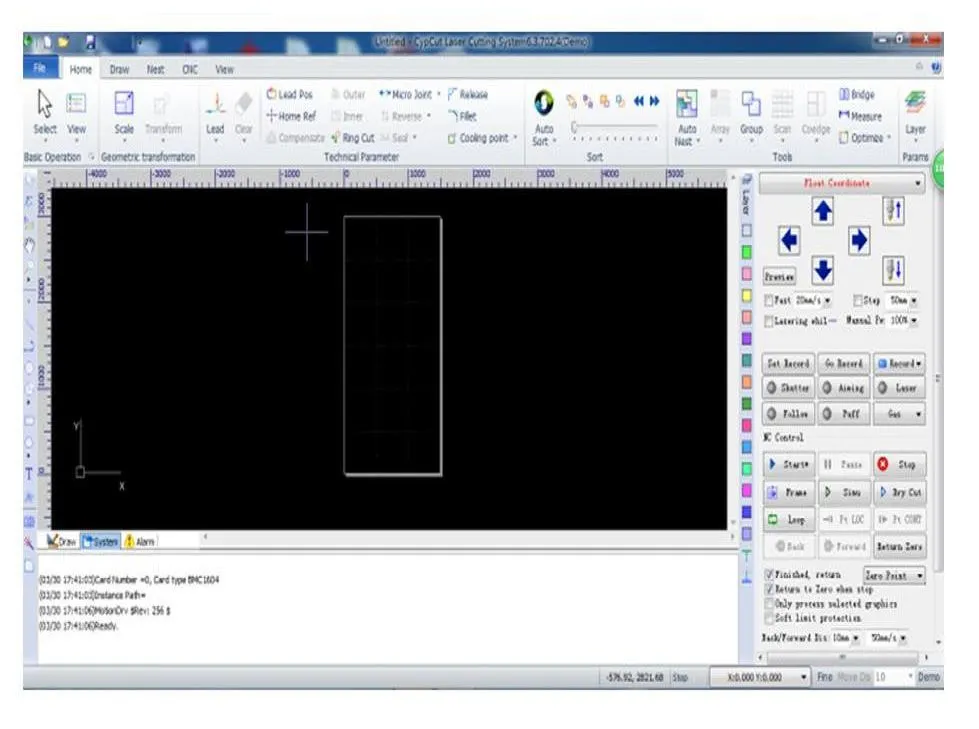

CYPCUT Control System

User-friendly operation, various file editing functions, supports remote control, and includes real-time alarm and protection systems.

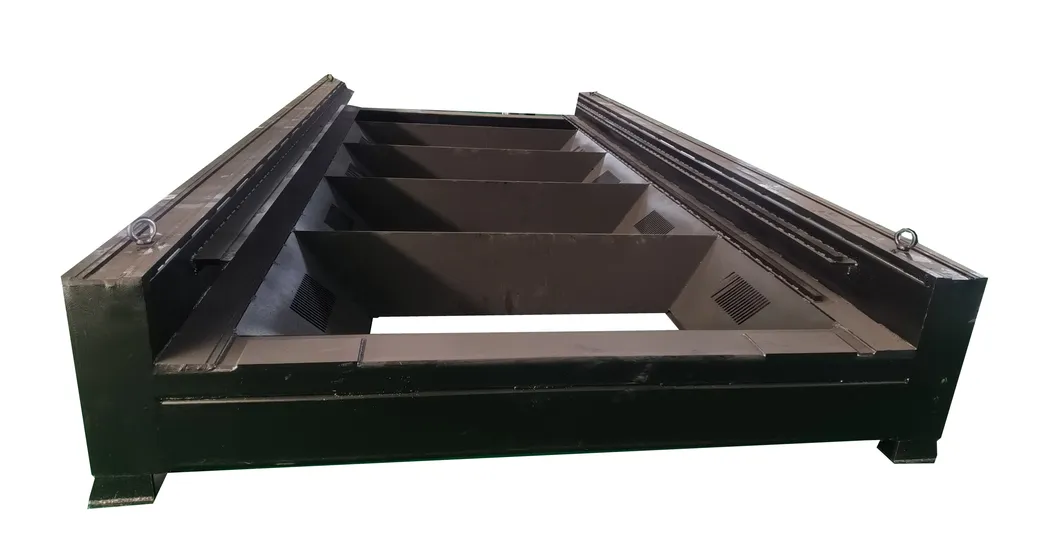

Steel Plate Welding Frame

Steel frames undergo annealing at over 600 degrees to relieve stress, ensuring years of heavy-duty usage without distortion. Auto-changing pallet system supports up to 1800kg load, resulting in less vibration and higher accuracy. Reinforced frames minimize twists and deformation. Robust steel bars join the machine frames to the chassis, ensuring stability.

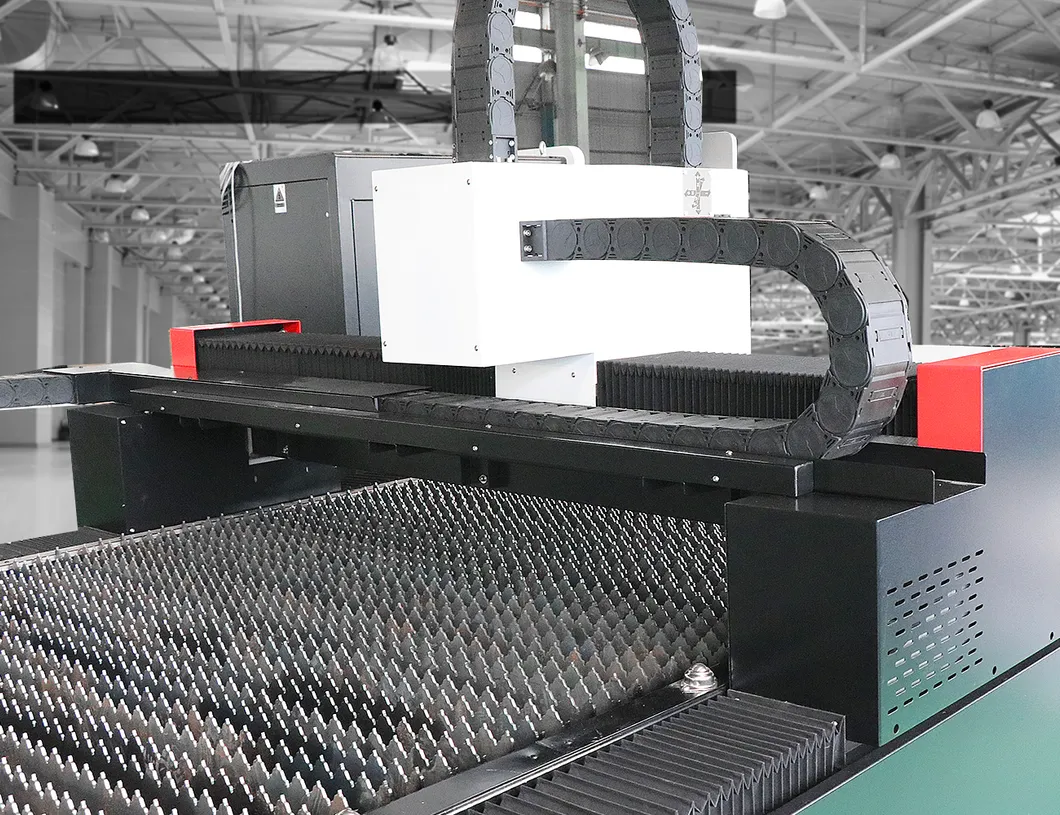

Aluminum Beam

The beam uses overall aluminum casting and annealing to eliminate internal stress. The process involves casting, stress-relief treatments, machining, and tempering. Precision is ensured through a meticulous process, guaranteeing long-term strength, rigidity, and stability, ideal for high-speed, high-power laser cutting. Provides effective assurance for high-speed cutting on high-power laser machines.

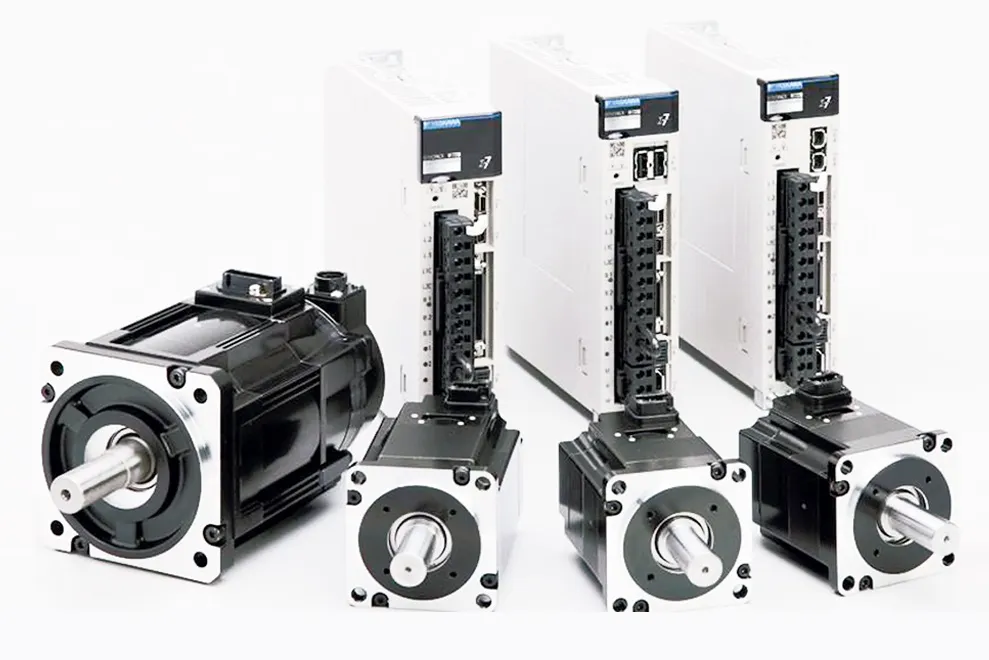

France MOTOREDUCER & Servo Motor - Japan FUJI

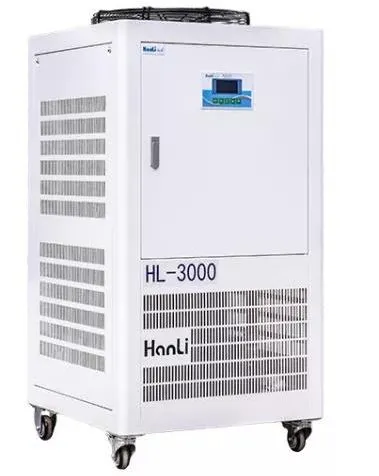

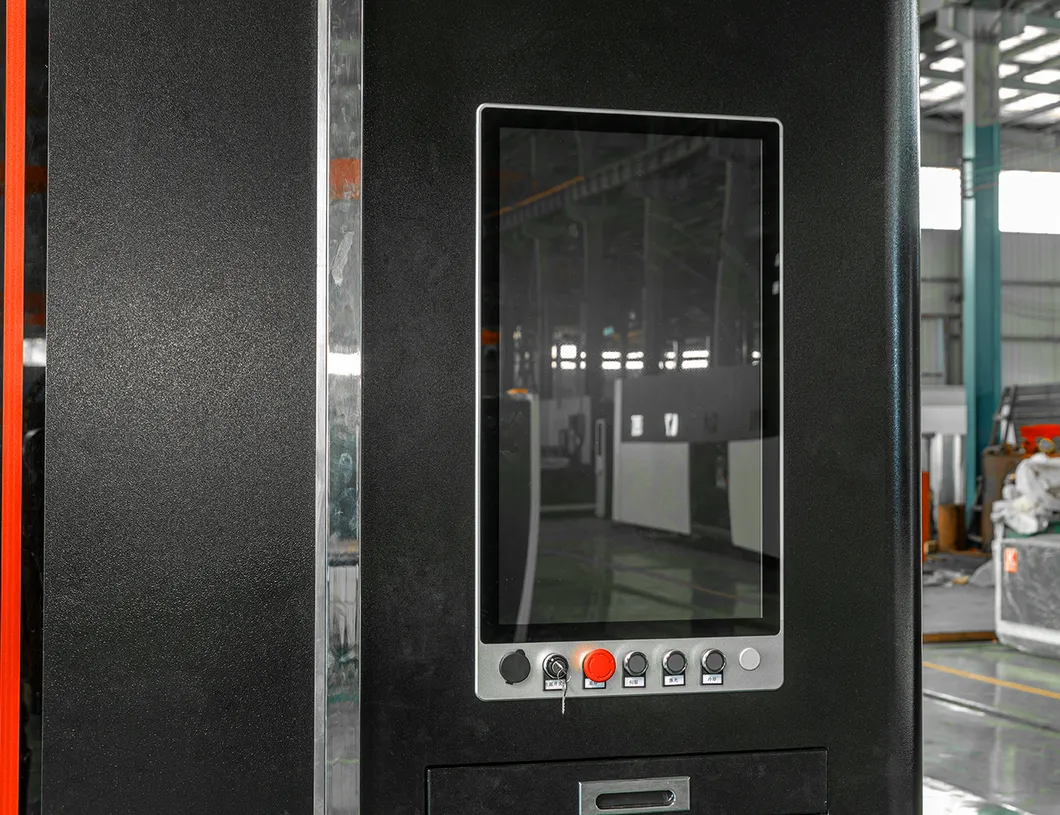

Hanli Brand Industrial Chiller & Touch Screen Control

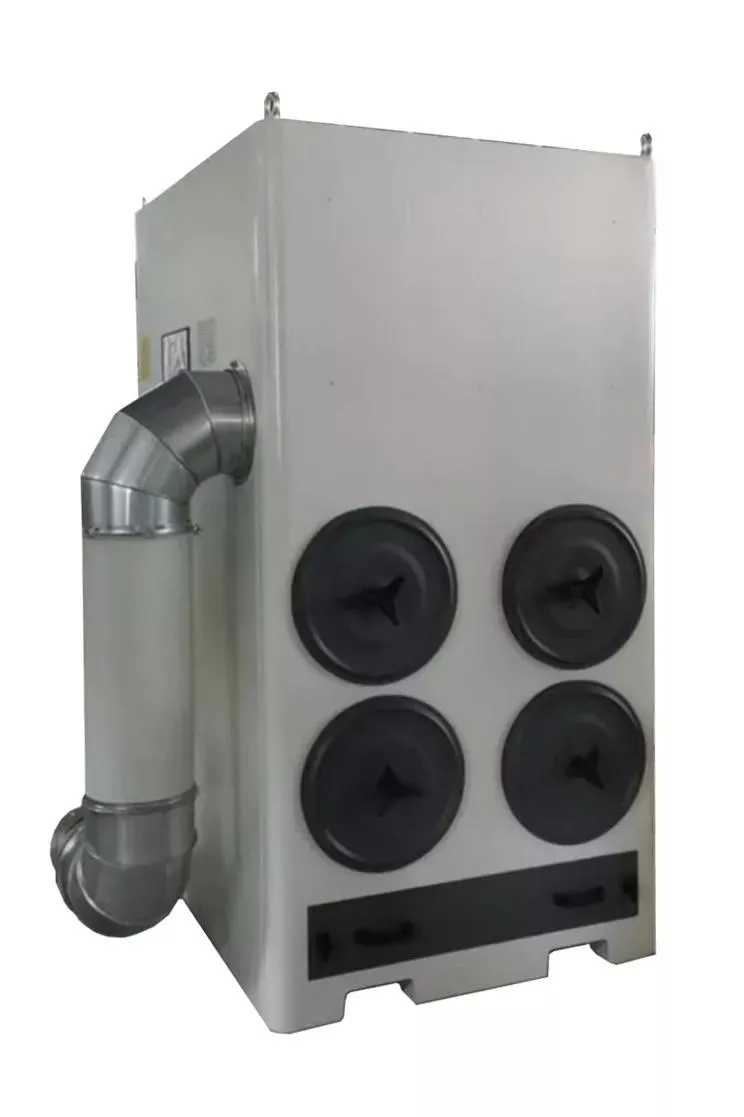

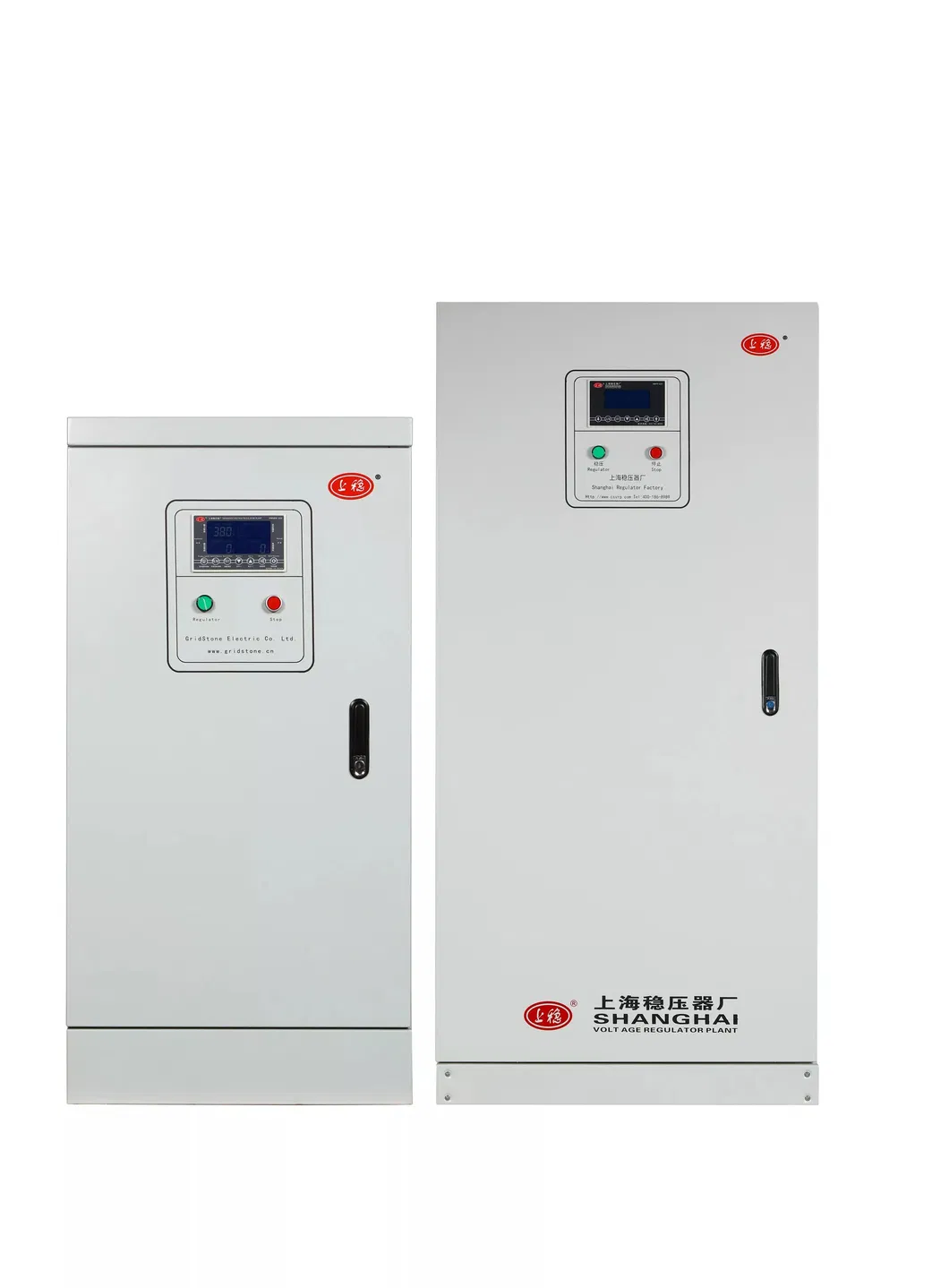

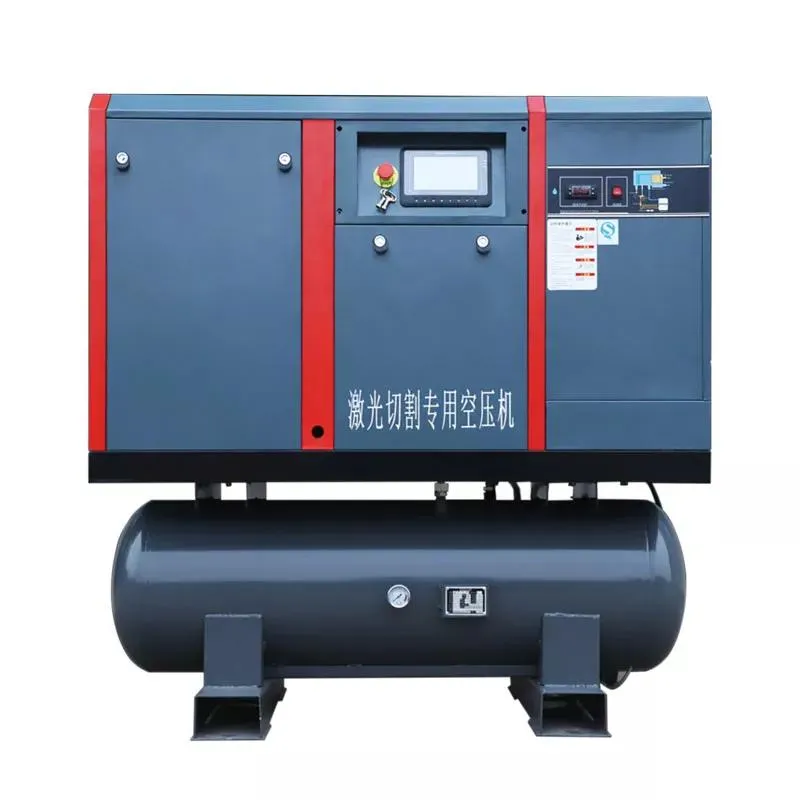

Air Compressor (Optional) | Voltage Regulator (Optional) | Dust Extraction System (Optional)

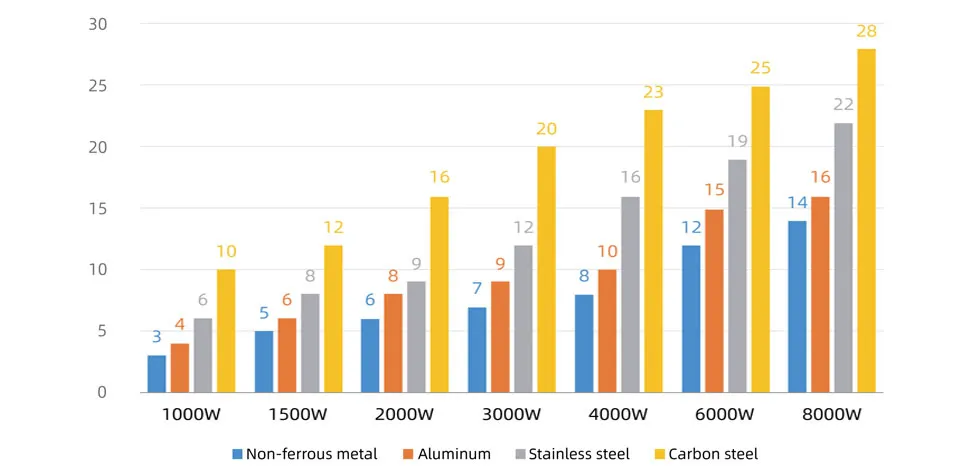

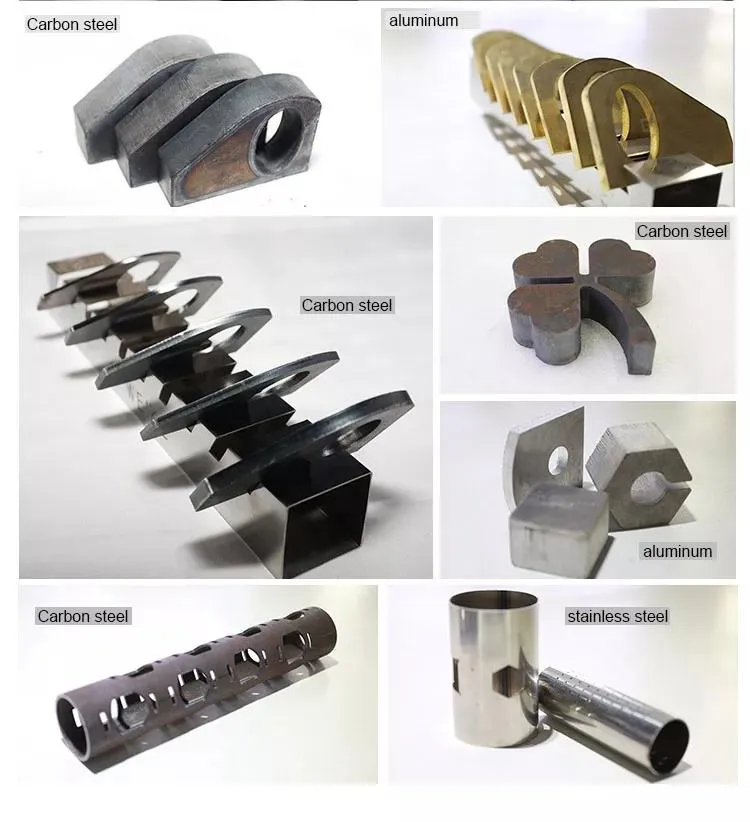

Fiber Laser Cutting Machine Thickness Capabilities & Cutting Samples

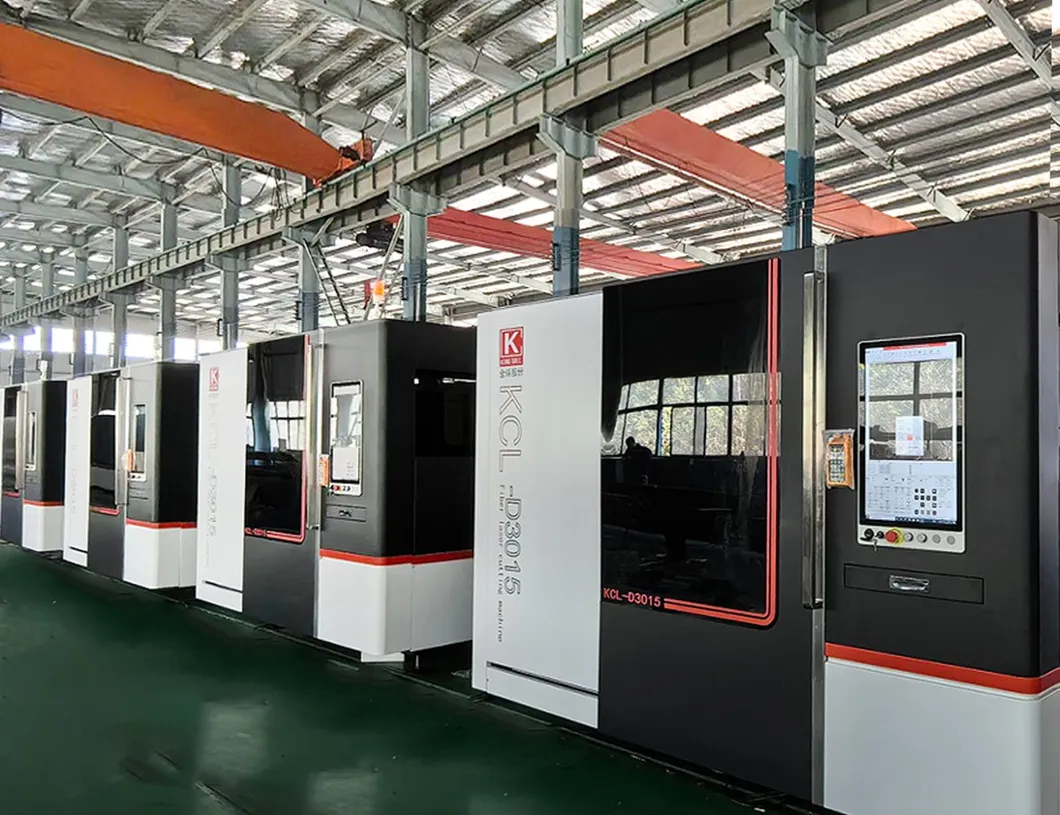

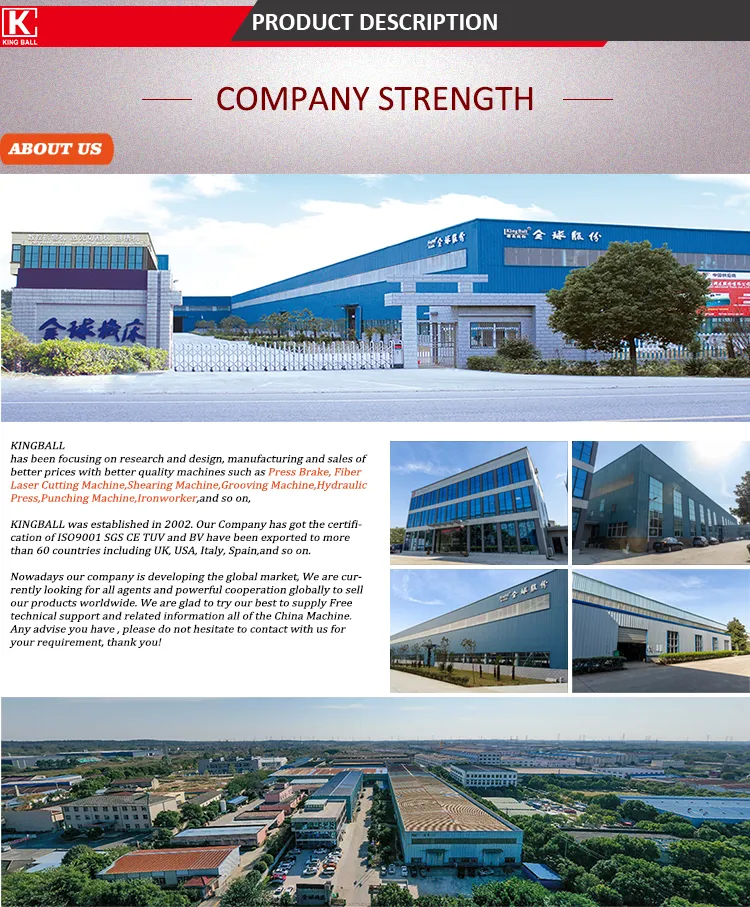

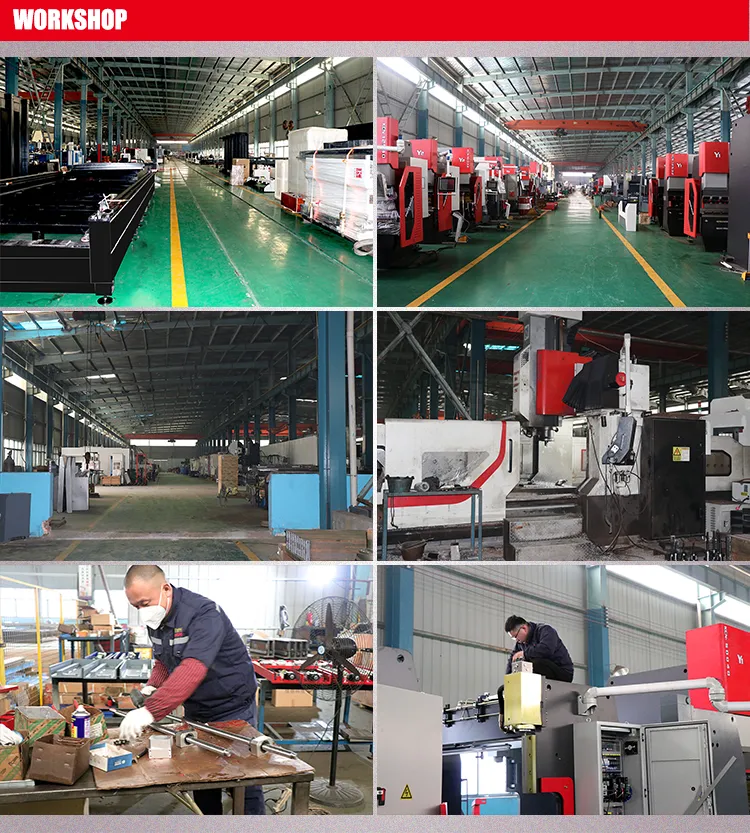

Factory Introduction

Our Service

Pre-sales Services

Inquiry and consulting support
Sample testing support
Visit our factory

After-sales Services

Two-year warranty period
Training on installation and machine usage
Engineers available for overseas machinery servicing
