Precision Water Faucet Rotary Transfer System for Optimal Performance

Customization:	Available
After-sales Service:	Available
Warranty:	One Year

Send Inquiry

Product Description

Basic Specifications

Model NO. MW8G12Z

Type Metal Cutting

Application Machining

Processing Method Metal Cutting and Removal

Automatic Grade Automatic

Precision Precision

Certification GS, CE

Condition New

Accuracy High Precision

Spindles Customized According to Work Piece

Stations Multiple Stations Customized

Capacity Mass Production

Transport Package Sea Worthy Packaging

Specification 3.5x2.4x2.85meter

Origin China

HS Code 8457300000

Packaging & Delivery

Package Size 400.00cm * 250.00cm * 250.00cm

Package Gross Weight 8000.000kg

Product Description

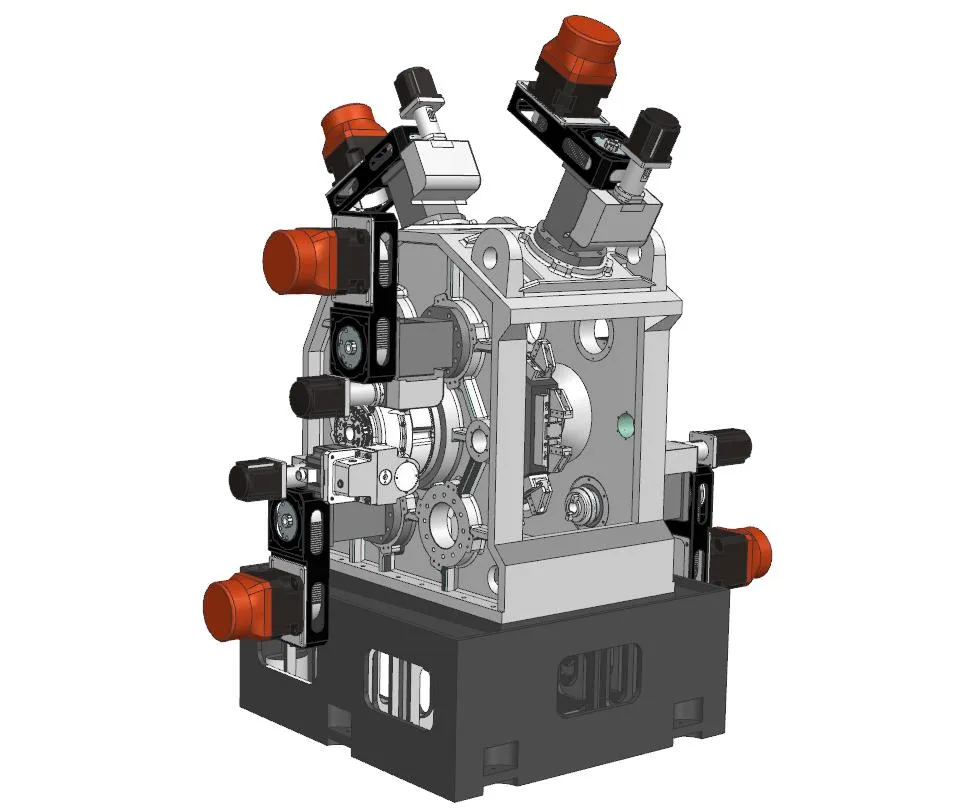

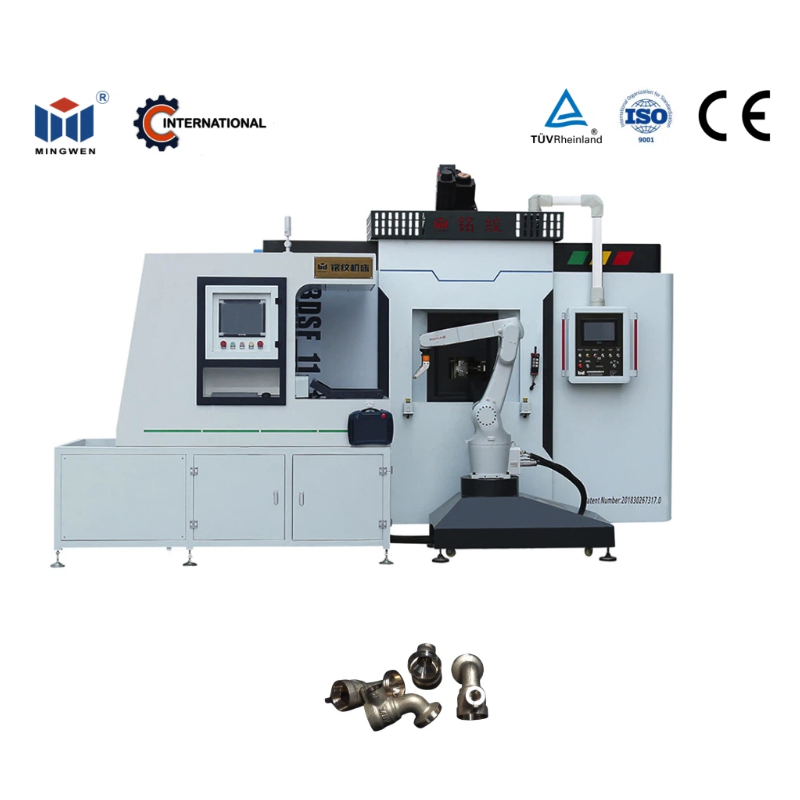

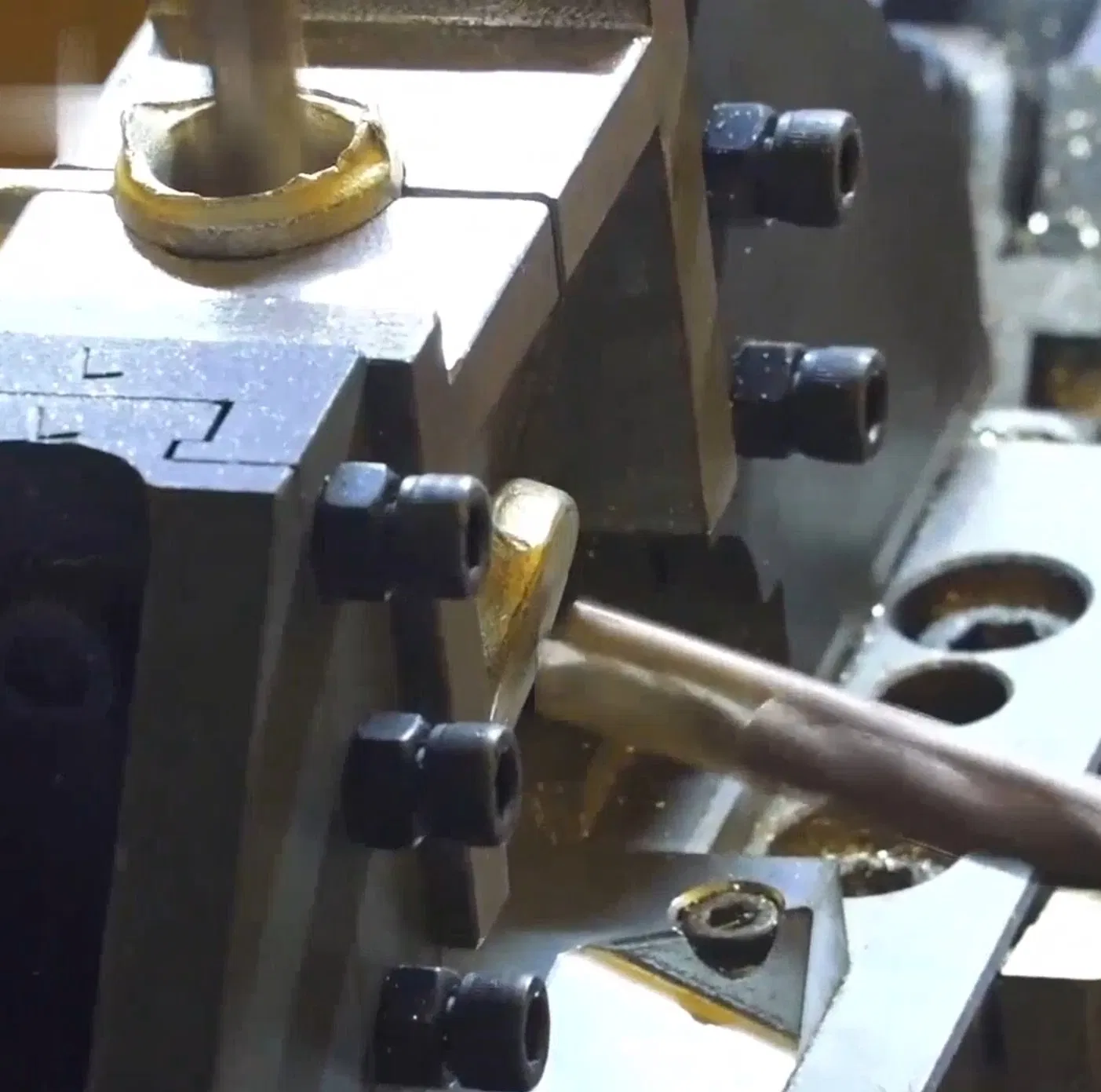

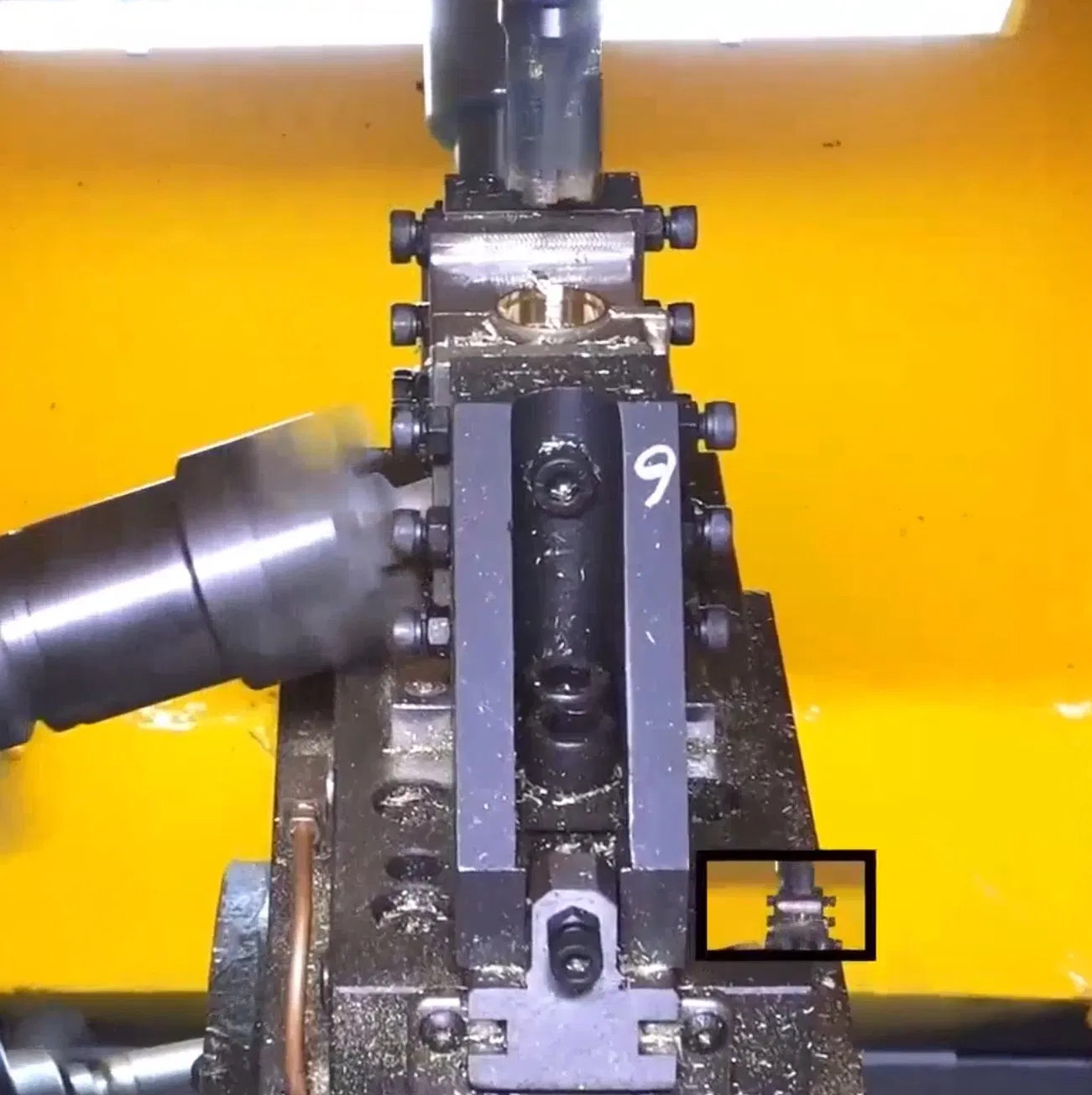

Rotary Transfer Machine for Machining Water Faucet

This is a multi-station transfer machine. It can meet multi-spot processing needs and complete the machining within very short cycle time by multi-spindle linkage. It can achieve automatic cutting of aluminum bar and continuous processing.

Owing to its high cost performance and efficiency, it is widely used in mass-production tasks. And it fits compact workshop condition.

Its compact structure and amazing cycle time have huge advantages over normal single CNC turning machines or other boring machines.

It's very easy to customize machine according to user's specific requirements about processing, and power head can be set flexibly according to process conversion.

Left layout			Middle layout			Right layout
			Station #1 Load/Unload
Roughly drilling						Roughly drilling



Spindle#1, 110mm, Drilling		Station #2				Spindle#2, 110mm, Drilling		Station #2

Turning motor (servo) 4 KW, 2800RPM	Feeding motor (servo) 1 KW, <2000RPM	Synchronized clamp. Code: CP-40				Turning motor (servo) 4 KW, 2800RPM	Feeding motor (servo) 1 KW, <2000RPM	Synchronized clamp. Code: CP-40



Fine boring			Drilling			Fine boring



Spindle#3, 110mm, Boring		Station #3	Spindle#4, 110mm, Drilling		Station #3	Spindle#5, 110mm, Boring		Station #3

Turning motor (servo) 4KW, 2800RPM	Feeding motor (servo) 1 KW, <2000RPM	Synchronized clamp. Code: CP-40	Turning motor (servo) 4 KW, 2800RPM	Feeding motor (servo) 1 KW, <2000RPM	Synchronized clamp. Code: CP-40	Turning motor (servo) 4KW, 2800RPM	Feeding motor (servo) 1 KW, <2000RPM	Synchronized clamp. Code: CP-40



Leath						Threading



Spindle#6, 110mm, Leath		Station #4				Spindle #7, 110mm, Threading (Ext)		Station #4

Turning motor (servo) 4 KW, 2800RPM	Feeding motor (servo) 1 KW, <2000RPM	Synchronized clamp. Code: CP-40				Turning motor (servo) 5KW, 2800RPM	Feeding motor (servo) 1 KW, <1200RPM	Synchronized clamp. Code: CP-40



Grooving



Spindle#8, 110mm, Drilling		Station #5

Turning motor (servo) 4 KW, 2800RPM	Feeding motor (servo) 1 KW, <2000RPM	Synchronized clamp. Code: CP-40



			Drilling



			Spindle#9, 110mm, Drilling		Station #6

			Turning motor (servo) 4 KW, 2800RPM	Feeding motor (servo) 1 KW, <2000RPM	Synchronized clamp. Code: CP-40



Fine boring			Leath



Spindle#10, 110mm, Boring		Station #7	Spindle#11, 110mm, Leath		Station #7

Turning motor (servo) 4KW, 2800RPM	Feeding motor (servo) 1 KW, <2000RPM	Synchronized clamp. Code: CP-40	Turning motor (servo) 4 KW, 2800RPM	Feeding motor (servo) 1 KW, <2000RPM	Synchronized clamp. Code: CP-40



			Drilling			Threading



			Spindle#12, 110mm, Drilling		Station #8	Spindle #13, 110mm, Threading (Ext)		Station #8

			Turning motor (servo) 4 KW, 2800RPM	Feeding motor (servo) 1 KW, <2000RPM	Synchronized clamp. Code: CP-40	Turning motor (servo) 5KW, 2800RPM	Feeding motor (servo) 1 KW, <1200RPM	Synchronized clamp. Code: CP-40

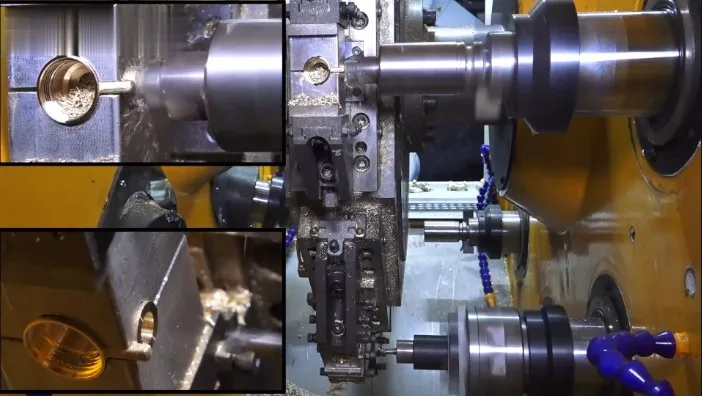

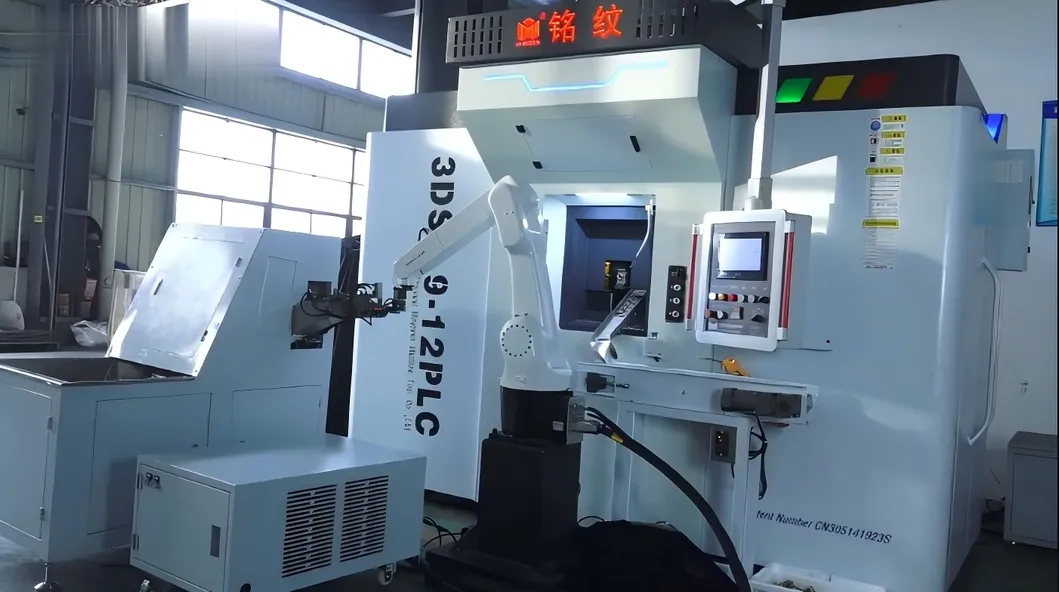

Example of the Rotary Transfer Machine Process

Roughly drilling			Smaller positioning hole
Spindle #1, 110mm, Drilling		Station #2	Spindle #2, 110mm, Drilling		Station #2
Turning motor (servo) 4 KW, 2800RPM	Feeding motor (servo) 1 KW, <2000RPM	Synchronized clamp. Code: CP-40	Turning motor (servo) 4 KW, 2800RPM	Feeding motor (servo) 1 KW, <2000RPM	Synchronized clamp. Code: CP-40
Smaller hole drilling			Bigger Hole drilling
Spindle #3, 110mm, Drilling (Int)		Station #3	Spindle #4, 110mm, Threading (Ext)		Station #3
Turning motor (servo) 3KW, 2800RPM	Feeding motor (servo) 1 KW, <2000RPM	Synchronized clamp. Code: CP-40	Turning motor (servo) 5KW, 2800RPM	Feeding motor (servo) 1 KW, <1200RPM	Synchronized clamp. Code: CP-40

Smaller hole drilling			Smaller hole threading
Spindle #5, 110mm, Boring or Milling		Station #4	Spindle #6, 110mm, Groove Milling		Station #4
Turning motor (servo) 4KW, 2800RPM	Feeding motor (servo) 1 KW, <2000RPM	Synchronized clamp. Code: CP-40	Turning motor (servo) 3 KW, German threading head, 800RPM	Feeding motor (servo) Y-axis 1 KW, X-axis 0.75KW, <2000RPM	Synchronized clamp. Code: CP-40
One side surface milling, with slidable power head			Another side surface milling with slidable power head
Spindle #7, 110mm, Threading		Station #5	Spindle #8, 110mm, Grooving		Station #5
Turning motor (servo) 4KW, 2800RPM	Feeding motor (servo) 1 KW, <1200RPM	Synchronized clamp. Code: CP-40	Turning motor (servo) 4KW, 2800RPM	Feeding motor (servo) 1 KW, <2000RPM	Synchronized clamp. Code: CP-40

Bigger hole grooving (boring)			Edge milling
Spindle #9, 110mm, Drilling		Station #6	Spindle #10, 110mm, Threading (Int)		Station #7
Turning motor (servo) 4KW, 2800RPM	Feeding motor (servo) 1 KW, <2000RPM	Synchronized clamp. Code: CP-40	Turning motor (servo) 3 KW, 2800RPM	Feeding motor (servo) 1 KW, <1200RPM	Synchronized clamp. Code: CP-40

Another bigger hole grooving (boring)			Smaller hole threading
Spindle #11, 110mm, Drilling		Station #6	Spindle #12, 110mm, Threading (Int)		Station #7
Turning motor (servo) 4KW, 2800RPM	Feeding motor (servo) 1 KW, <2000RPM	Synchronized clamp. Code: CP-40	Turning motor (servo) 3 KW, 800RPM	Feeding motor (servo) 1 KW, <1200RPM	Synchronized clamp. Code: CP-40

Machine Basic Parameters

Parameter	Specification
Station Numbers	8 stations
Spindle Numbers	12 spindles
Synchronized Clamp Model	CP-40
Driving Head Motor	Full servo
PLC mode	Bus motion Controller
Indexing Table	421-8D
HMI	10"
Spindle Size	D110mm
Total Power	62KW
Machine Foot print area (overall size) CM	350x240x310cm
Weight (KG)	9100

Frequently Asked Questions

What is the main application of this rotary transfer machine?

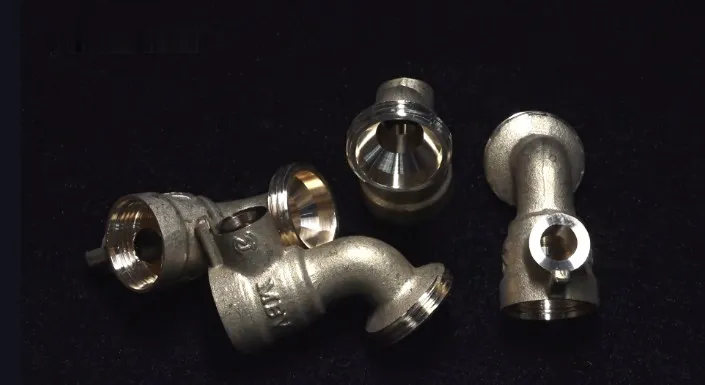

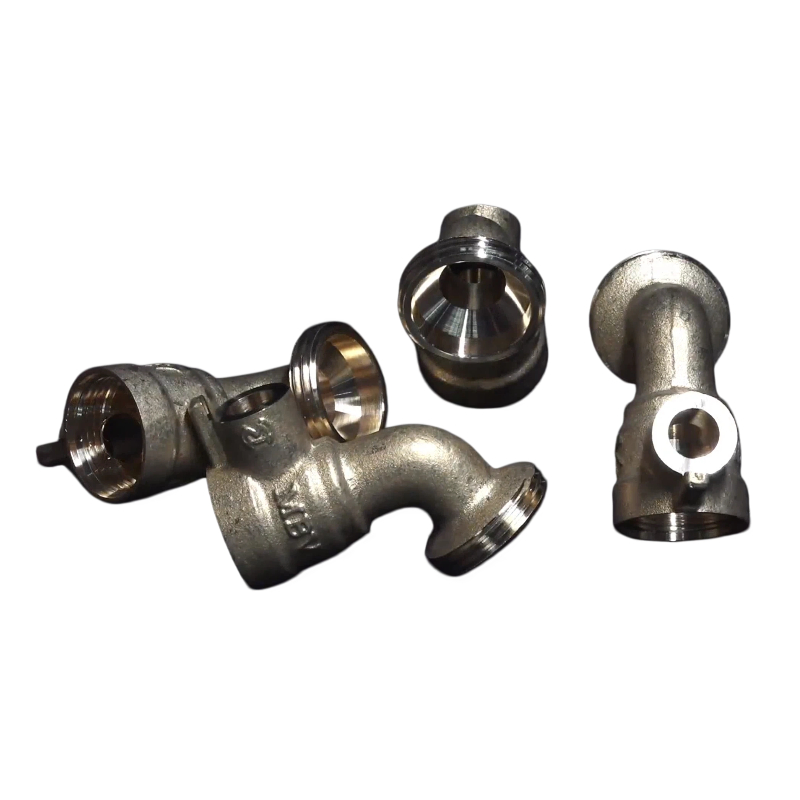

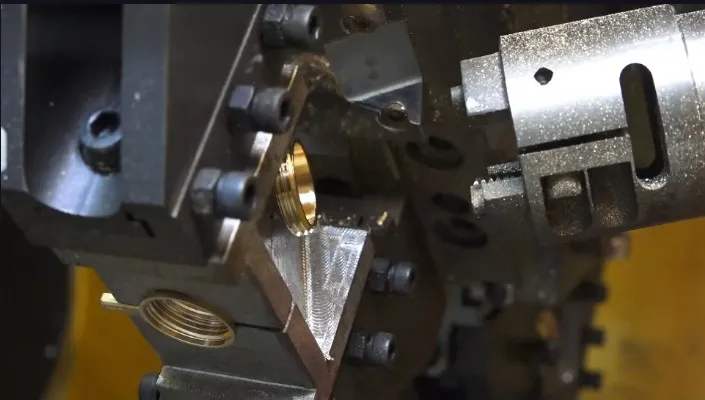

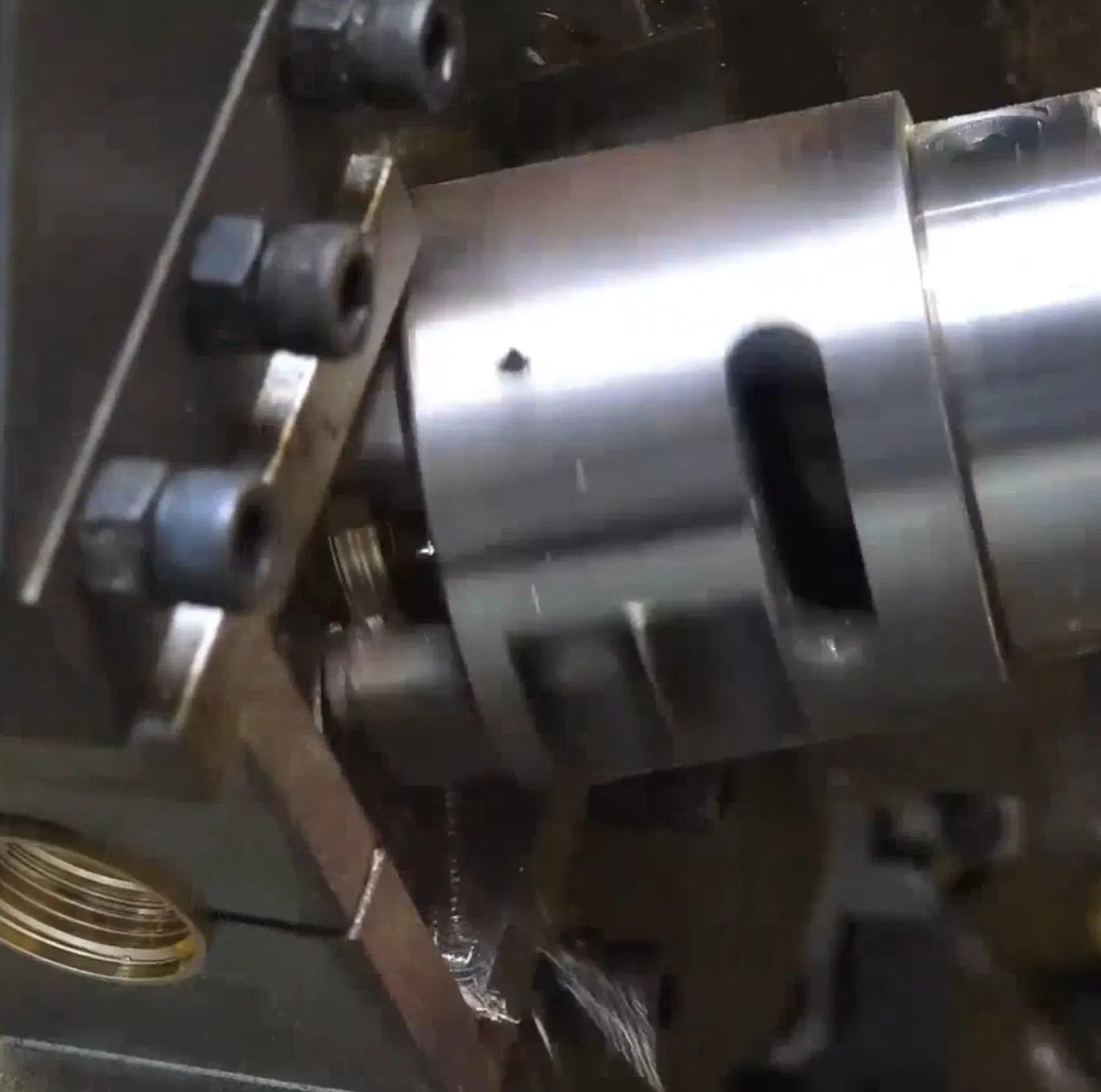

The machine is designed for metal cutting, removal, and machining tasks. It is highly optimized for the mass production of water faucets.

Can this machine be customized to meet specific work requirements?

Yes. The machine can be easily customized according to specific user processing requirements. The power head configuration can also be set flexibly depending on process conversion.

What are the core technical parameters of the machine?

The basic model includes 8 stations and 12 spindles, utilizes a CP-40 synchronized clamp model, has a total power of 62KW, and runs on a Bus motion Controller PLC system.

How does it compare to standard CNC turning machines?

Its compact structure and multi-spindle linkage linkage provide faster cycle times and much higher efficiency, making it highly advantageous over single CNC turning machines or traditional boring machines for mass production.

What are the dimensions and shipping specifications?

The machine itself measures 3.5x2.4x2.85 meters (overall size area 350x240x310cm). For transport, it is packed in sea-worthy packaging measuring 400.00cm * 250.00cm * 250.00cm, with a gross shipping weight of approximately 8000.000kg.
