High-Efficiency Rotary Transfer System for Gate Valve Production

Customization:	Available
After-sales Service:	Available
Warranty:	Available

Send Inquiry

Product Description

Overview
Certifications

Basic Info & Specifications

Model NO. MW6G6Z-GV

Type Metal Cutting

Application Machining

Processing Method Metal Removal

Automatic Grade Automatic

Precision Precision

Certification GS, CE

Condition New

Accuracy High Precision

Spindles Customized According to Work Piece

Stations Multiple Stations Customized

Capacity Mass Production

Transport Package Sea Worthy Packaging

Specification 3.4x2.4x2.85meter

Origin China

HS Code 8457300000

Packaging & Delivery

Package Size 315.00cm * 210.00cm * 235.00cm

Package Gross Weight 8000.000kg

Product Description

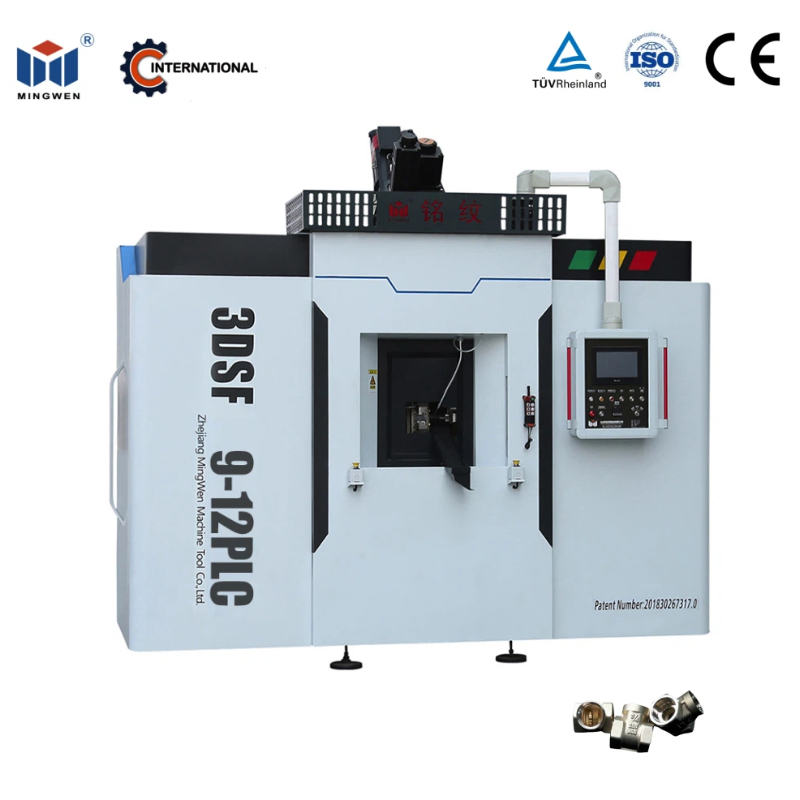

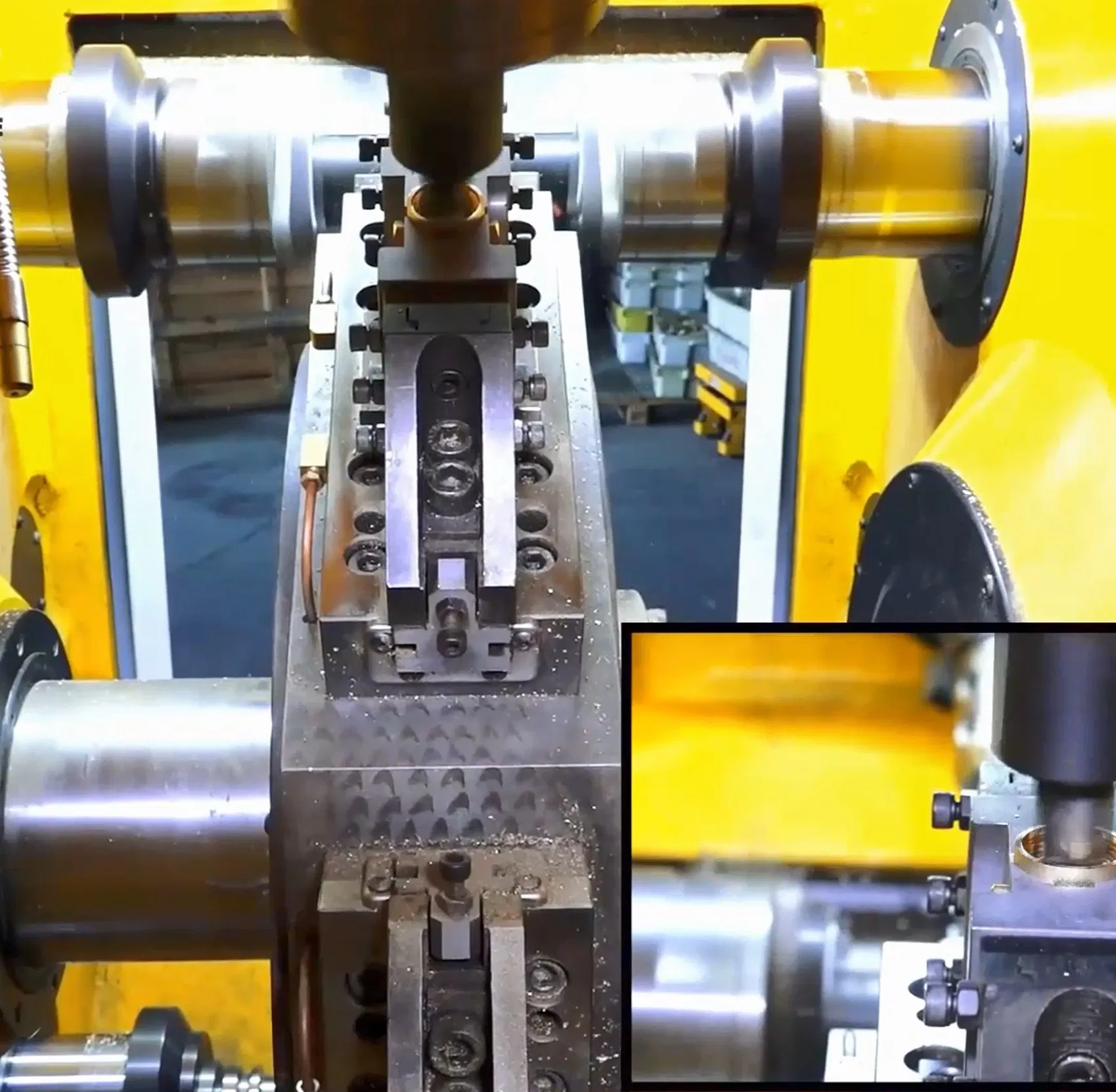

Vertical Rotary Transfer Machine for Brass Ball Valves

This is a multi-station transfer machine. It can meet multi-spot processing needs and complete the machining within very short cycle time by multi-spindle linkage. Here demonstrate the processing of parts for gate valve body.

Owing to its high cost performance and efficiency, it is widely used in mass-production tasks. And it fits compact workshop condition.

Its compact structure and amazing cycle time have huge advantages over normal single CNC turning machines or other boring machines.

It's very easy to customize machine according to user's specific requirements about processing, and power head can be set flexibly according to process conversion.

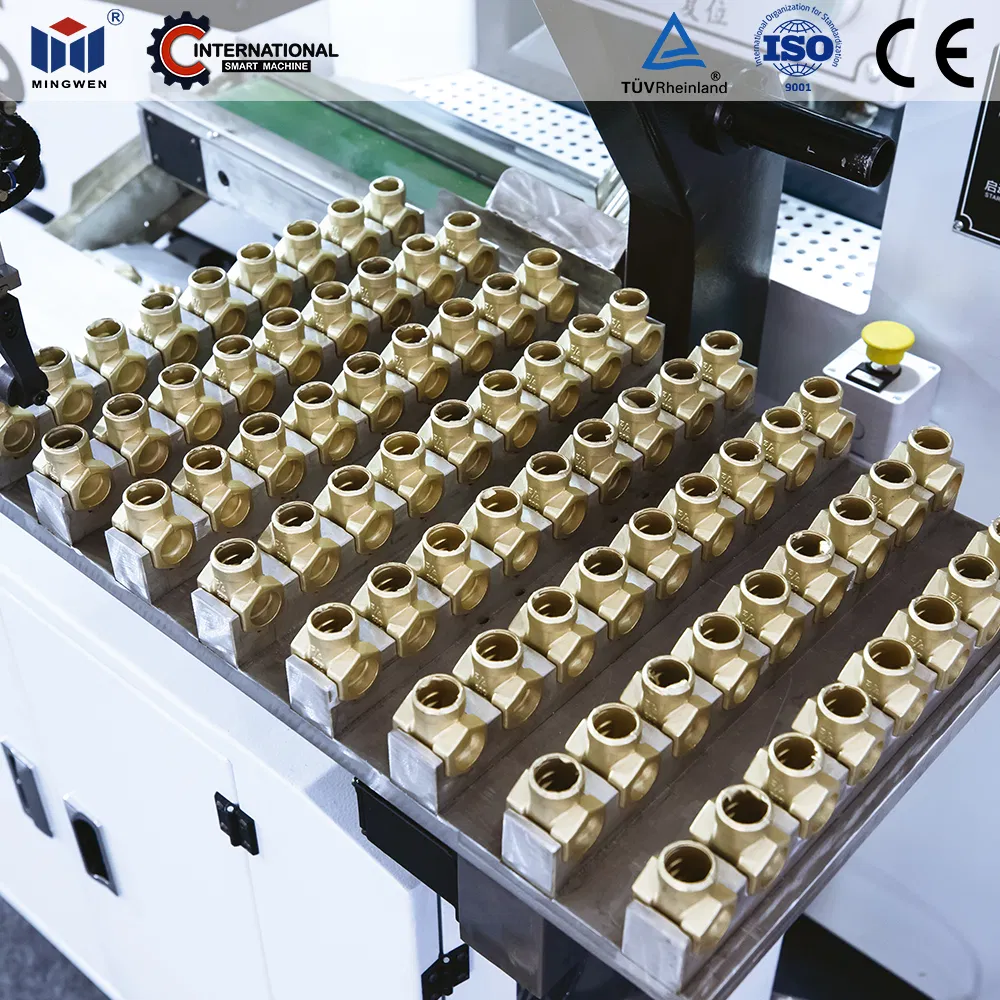

Example of the Rotary Transfer Machine Process

Station #2 - Spindle #1 (Rough Drilling)

Spindle Info: 110mm, Taiwan made, Drilling

Turning Motor (Servo): 4 KW, Gtake China, 2800RPM
Feeding Motor (Servo): 1 KW, Less than 2000RPM
Synchronized Clamp: CP-40, China made

Station #2 - Spindle #2 (Smaller Positioning Hole)

Spindle Info: 110mm, Taiwan made, Drilling

Turning Motor (Servo): 4 KW, Gtake China, 2800RPM
Feeding Motor (Servo): 1 KW, Xinjie China, Less than 2000RPM
Synchronized Clamp: CP-40, China made

Station #3 - Spindle #3 (Smaller Hole Drilling)

Spindle Info: 110mm, Taiwan made, Drilling (Int)

Turning Motor (Servo): 3 KW, Xinjie China, 2800RPM
Feeding Motor (Servo): 1 KW, Xinjie China, Less than 2000RPM
Synchronized Clamp: CP-40, China made

Station #3 - Spindle #4 (Bigger Hole Drilling)

Spindle Info: 110mm, Taiwan made, Threading (Ext)

Turning Motor (Servo): 5 KW, Gtake China, 2800RPM
Feeding Motor (Servo): 1 KW, Xinjie China, Less than 1200RPM
Synchronized Clamp: CP-40, China made

Station #4 - Spindle #5 (Smaller Hole Boring/Milling)

Spindle Info: 110mm, Taiwan made, Boring/Milling

Turning Motor (Servo): 4 KW, Gtake China, 2800RPM
Feeding Motor (Servo): 1 KW, Xinjie China, Less than 2000RPM
Synchronized Clamp: CP-40, China made

Station #4 - Spindle #6 (Smaller Hole Threading)

Spindle Info: 110mm, Taiwan made, Groove Milling

Turning Motor (Servo): 3 KW, German Threading Head, 800RPM
Feeding Motor (Servo): Y-Axis 1 KW, X-Axis 0.75 KW, Xinjie China, Less than 2000RPM
Synchronized Clamp: CP-40, China made

Station #5 - Spindle #7 (One Side Surface Milling)

Spindle Info: 110mm, Taiwan made, Threading (Slidable Power Head)

Turning Motor (Servo): 4 KW, Gtake China, 2800RPM
Feeding Motor (Servo): 1 KW, Xinjie China, Less than 1200RPM
Synchronized Clamp: CP-40, China made

Station #5 - Spindle #8 (Another Side Surface Milling)

Spindle Info: 110mm, Taiwan made, Grooving (Slidable Power Head)

Turning Motor (Servo): 4 KW, Gtake China, 2800RPM
Feeding Motor (Servo): 1 KW, Xinjie China, Less than 2000RPM
Synchronized Clamp: CP-40, China made

Station #6 - Spindle #9 & #11 (Bigger Hole Grooving)

Spindle Info: 110mm, Taiwan made, Drilling

Turning Motor (Servo): 4 KW, Gtake China, 2800RPM
Feeding Motor (Servo): 1 KW, Xinjie China, Less than 2000RPM
Synchronized Clamp: CP-40, China made

Station #7 - Spindle #10 & #12 (Edge Milling / Threading)

Spindle Info: 110mm, Taiwan made, Threading (Int)

Turning Motor (Servo): 3 KW, Xinjie China, 2800RPM / 800RPM
Feeding Motor (Servo): 1 KW, Xinjie China, Less than 1200RPM
Synchronized Clamp: CP-40, China made

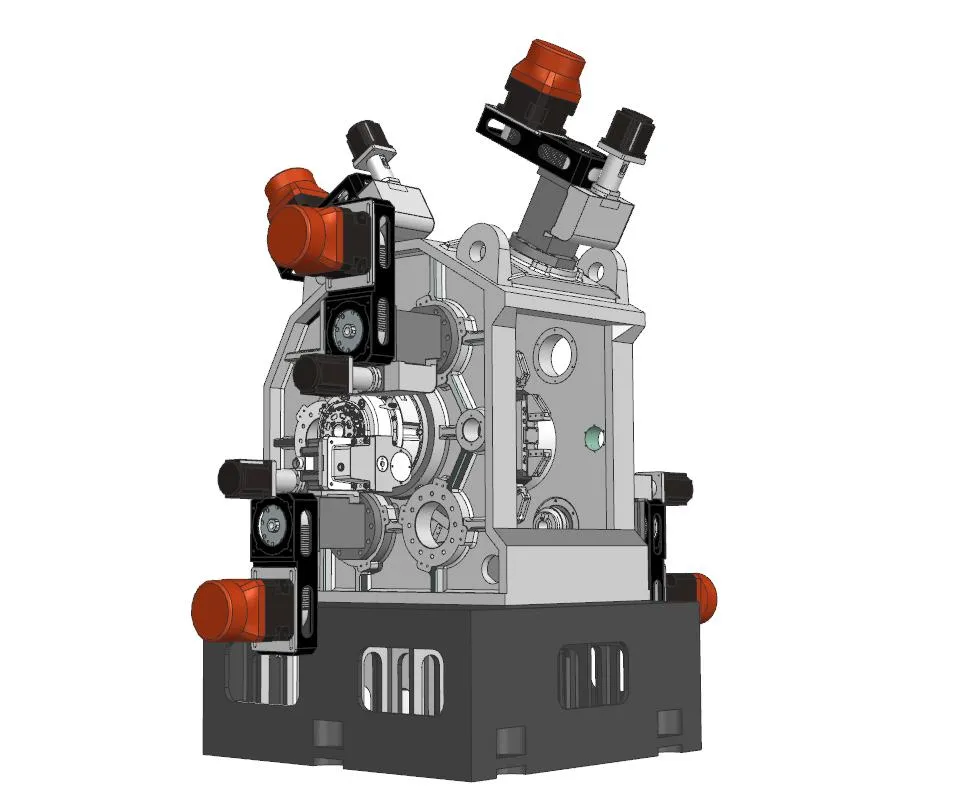

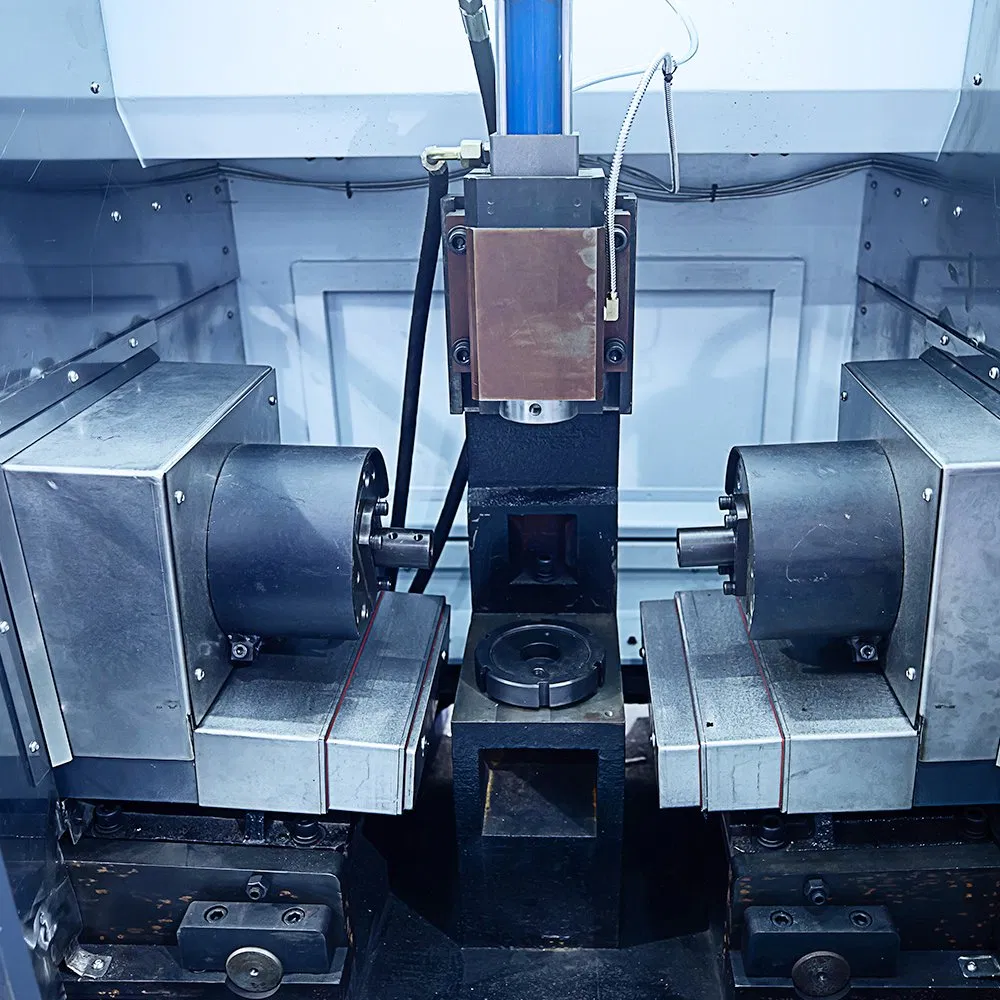

High-Efficiency Rotary Transfer System details

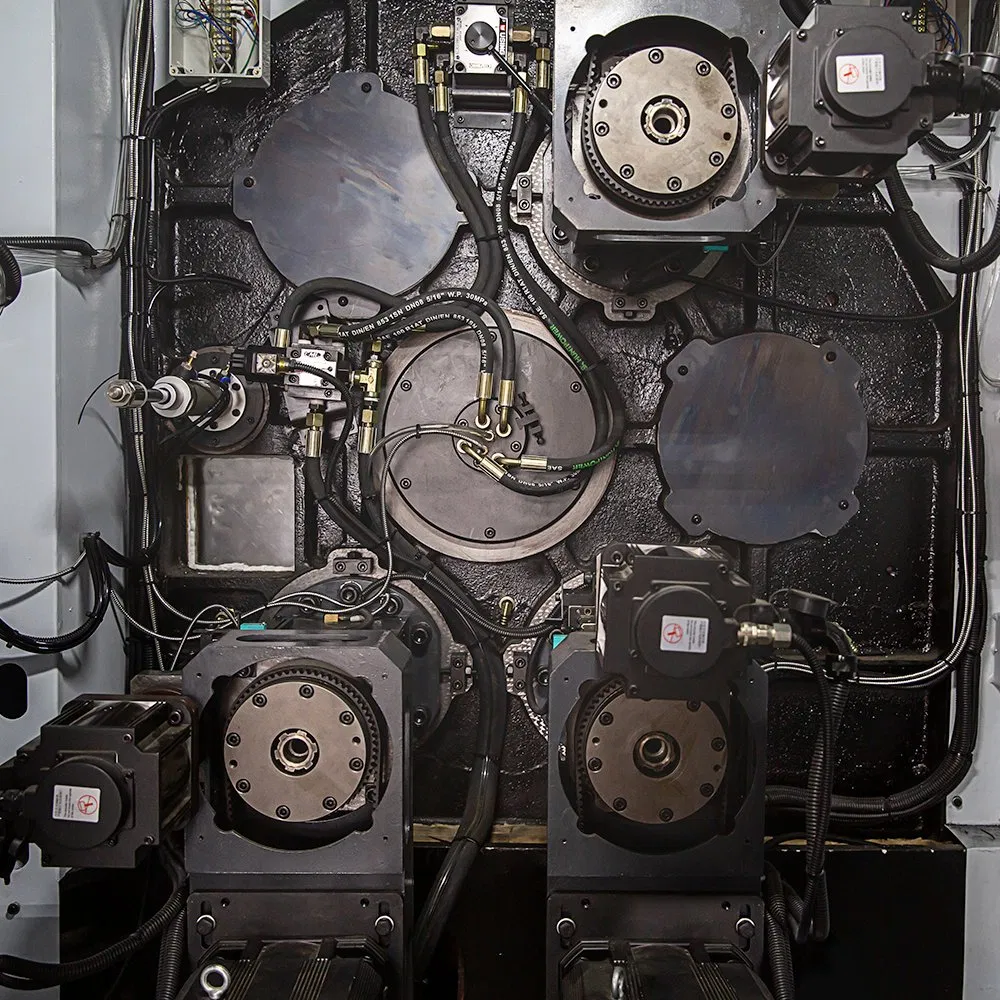

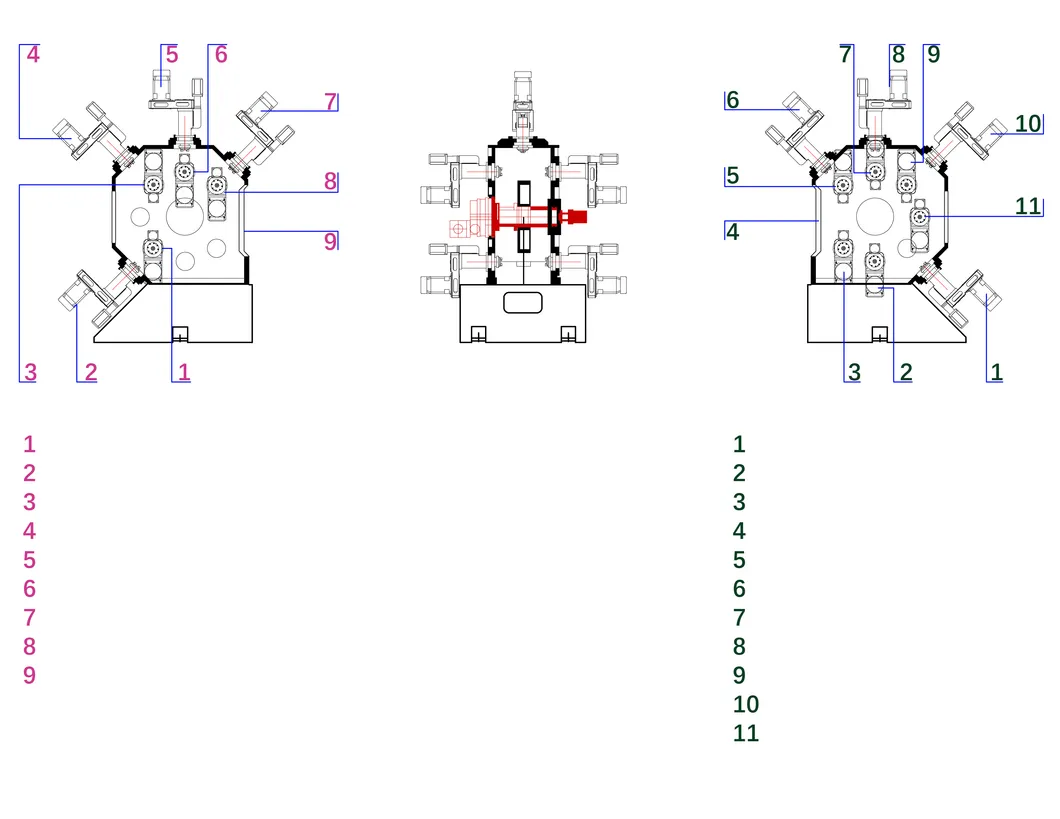

High-Efficiency Rotary Transfer System structure

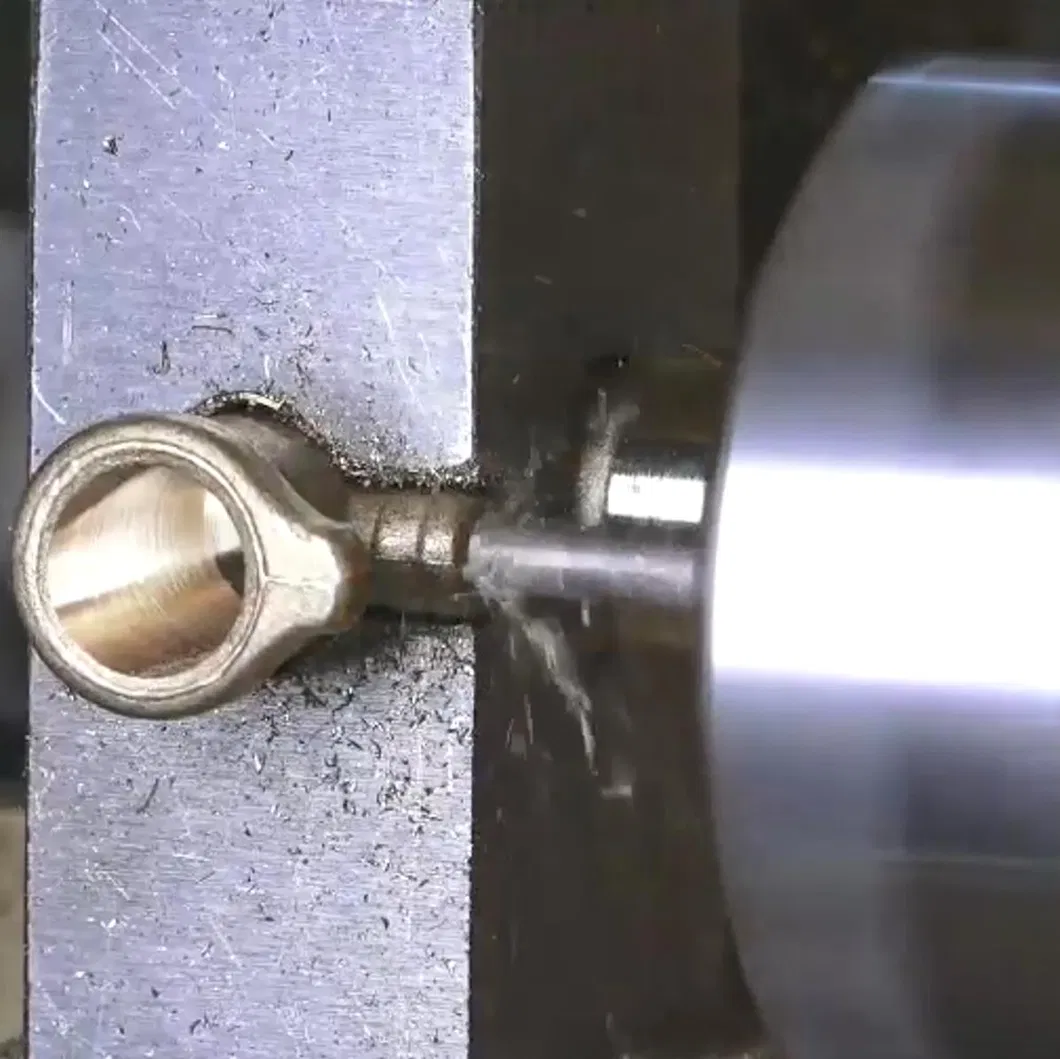

High-Efficiency Rotary Transfer System components

Machine Basic Parameters

Parameters	Specifications Details
Station Numbers	6 stations
Spindle Numbers	6 spindles
Synchronized Clamp Model	CP-40
Driving Head Motor	Full servo
PLC mode	Bus motion Controller
Indexing Table	421-8D
HMI	10"
Spindle Size	D110mm
Total Power	62KW
Machine Footprint Area (Overall Size)	350x240x298cm
Weight (KG)	9000

Certifications

Frequently Asked Questions (FAQ)

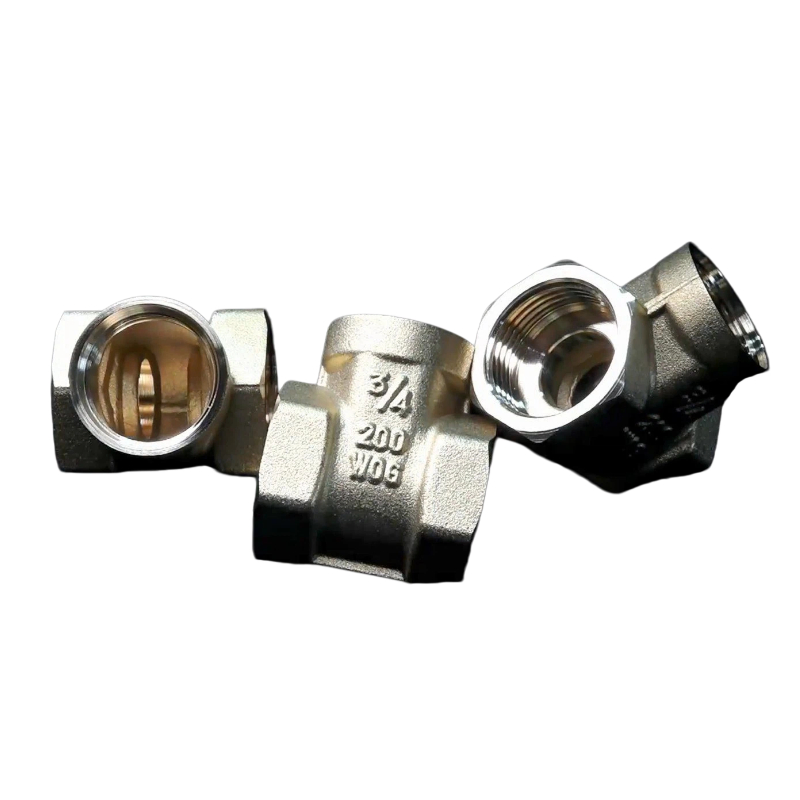

What components can the Vertical Rotary Transfer Machine process?

The machine is designed to satisfy multi-station machining processes, specifically suited for processing gate valve bodies, brass ball valves, and other metal parts requiring precise multi-spindle linkage.

How does this rotary transfer system compare to standard CNC turning machines?

It features a highly compact structure and exceptionally short cycle times. By linking multiple spindles together, it operates at higher efficiency and lower footprint margins than conventional single-spindle CNC turning or boring machines.

Can the spindle layout and power heads be customized?

Yes. The system supports full customization of the processing layouts according to the user's specific processing requirements. The power heads can be adjusted flexibly based on process conversion configurations.

What are the primary electrical and control system features of this machine?

The machine utilizes a full-servo driving head system, a 10-inch HMI (Human-Machine Interface) control panel, and a bus motion controller for standard PLC system automation.

What is the total footprint and transit shipping weight of the unit?

The operational footprint size of the machine is 350x240x298 cm, with a system weight of 9000 kg. For shipping, it is packaged at 315.00cm * 210.00cm * 235.00cm with a total gross weight of 8000.000kg.

What type of indexing table and synchronized clamps are used?

The system features a model 421-8D indexing table paired with high-performance model CP-40 synchronized clamps manufactured to high specifications.
