| Model NO. | HMDB | Application | Metal |
| Process Usage | Metal-Cutting CNC Machine Tools | Movement Method | Linear Control |
| Control Method | Open-Loop Control | Numerical Control | CNC/MNC |
| Processing Precision | 0.01~0.02(mm) | Performance Classification | High-End CNC Machine Tools |
| Certification | GS, CE, RoHS, ISO 9001 | Condition | New |
| Name | Double Spindle CNC Machining Center | Structure | Horizontal CNC Machining Center |
| Core Advantage | Double Side Spindle Drilling Milling with Atc | Function | Double Ends Hole Drilling,Tapping,Face Milling |
| Usage | Railway Axle,Truck Axle End Processing | Other Applications | Truck Axle,Rear Axle, Shaft, Piston Rod, Motor Shaft |
| CNC Type | Dual Channel Absolute Value Bus | Automation | Support |
| Model Extension | 1000mm,2000mm,3000mm,4000mm | Processing Details | Drilling/Milling/Tapping/Turning Metal Shaft |
| Keywords | CNC Milling Machine | Machine Tool Design | Double Spindle CNC Milling Machine |
| Machine Bed | Horizontal Milling Machine | Feature Tags 1 | High-End Manufacturer |
| Feature Tags 2 | Top CNC Factory | Transport Package | Discussed |
| Specification | HMDB-2000 | Trademark | Available |
| Origin | China | HS Code | 8457101000 |
| Production Capacity | 30 Units/Month |
Perfectly engineered for shaft metal drilling, milling, and tapping
| Project | Unit | Parameter |
|---|---|---|
| USAGE | ||
| Workpiece diameter | mm | 50~200 |
| Workpiece length | mm | 500~1000/1500/2000/2500/3000/4000 |
| Process details | - | Heavy milling, edge hole drilling, tapping, boring, turning |
| Custom details | - | Diameter, length of parts |
| Function | - | Complete process shaft metal |
| DETAILS | ||
| Axis each side | - | 3 |
| Tool magazine | P | 16~32 |
| CNC controller | - | Double channel |
| Controller Brand Options | - | KND, GSK, FANUC, SIEMENS (Optional) |
| OVERVIEW | ||
| Overall machine size (approx.) | mm | 6400×2100×2600 |
| Overall machine weight (approx.) | kg | 15000 |
| Total power (approx.) | kw | 60 |

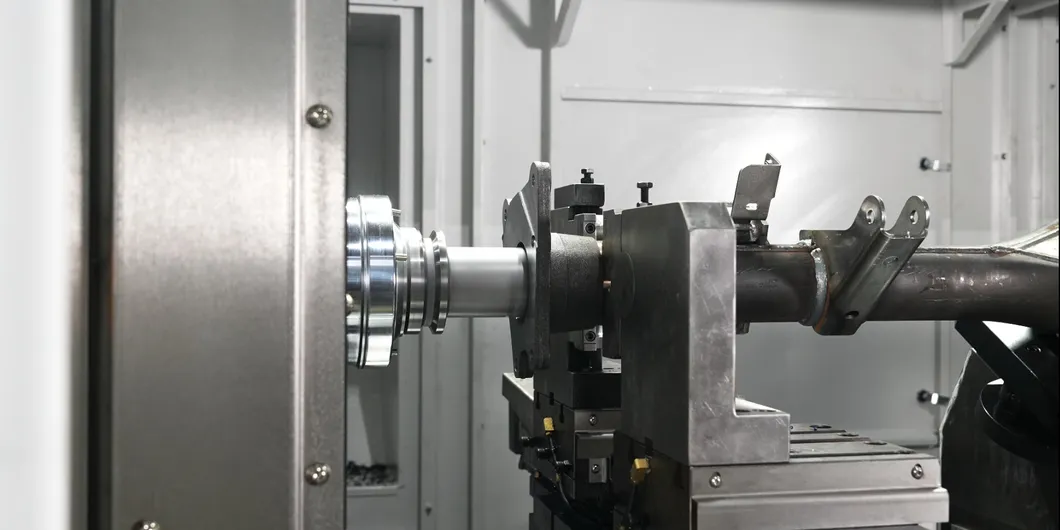

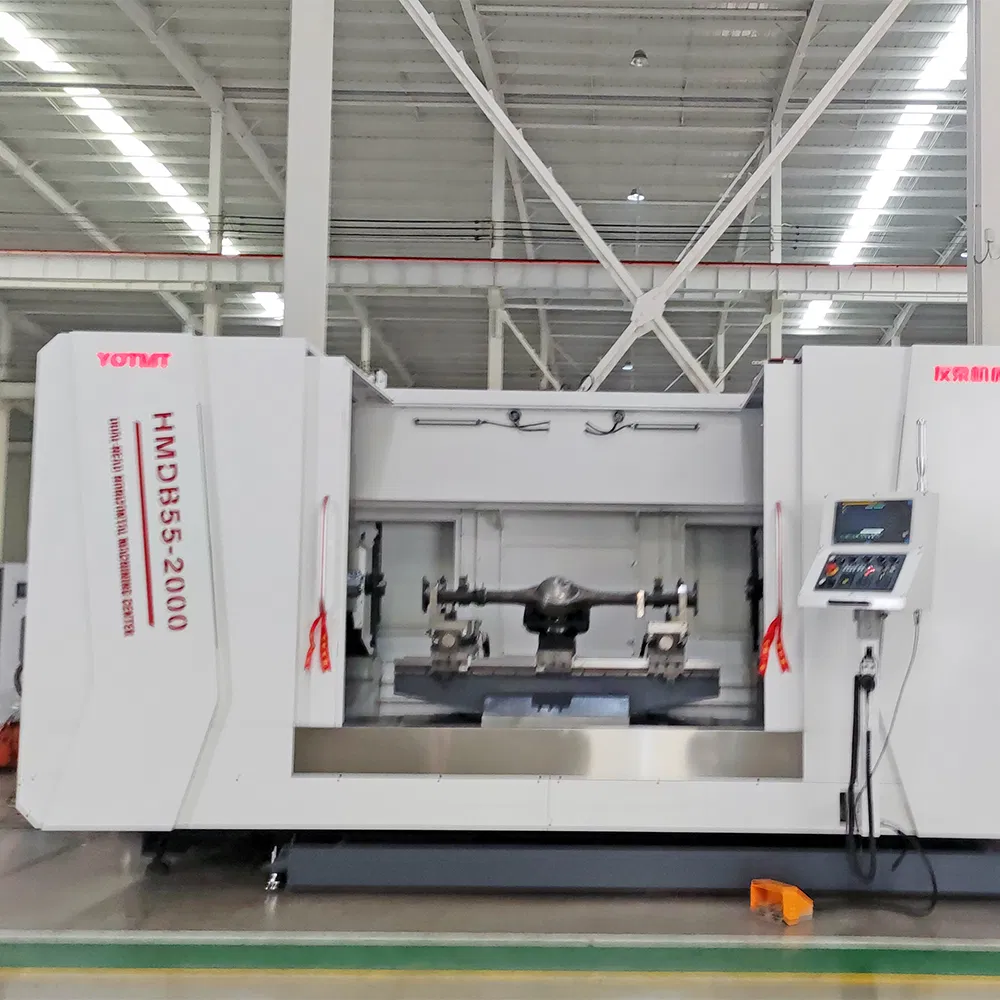

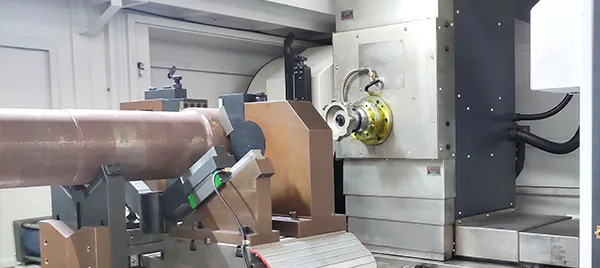

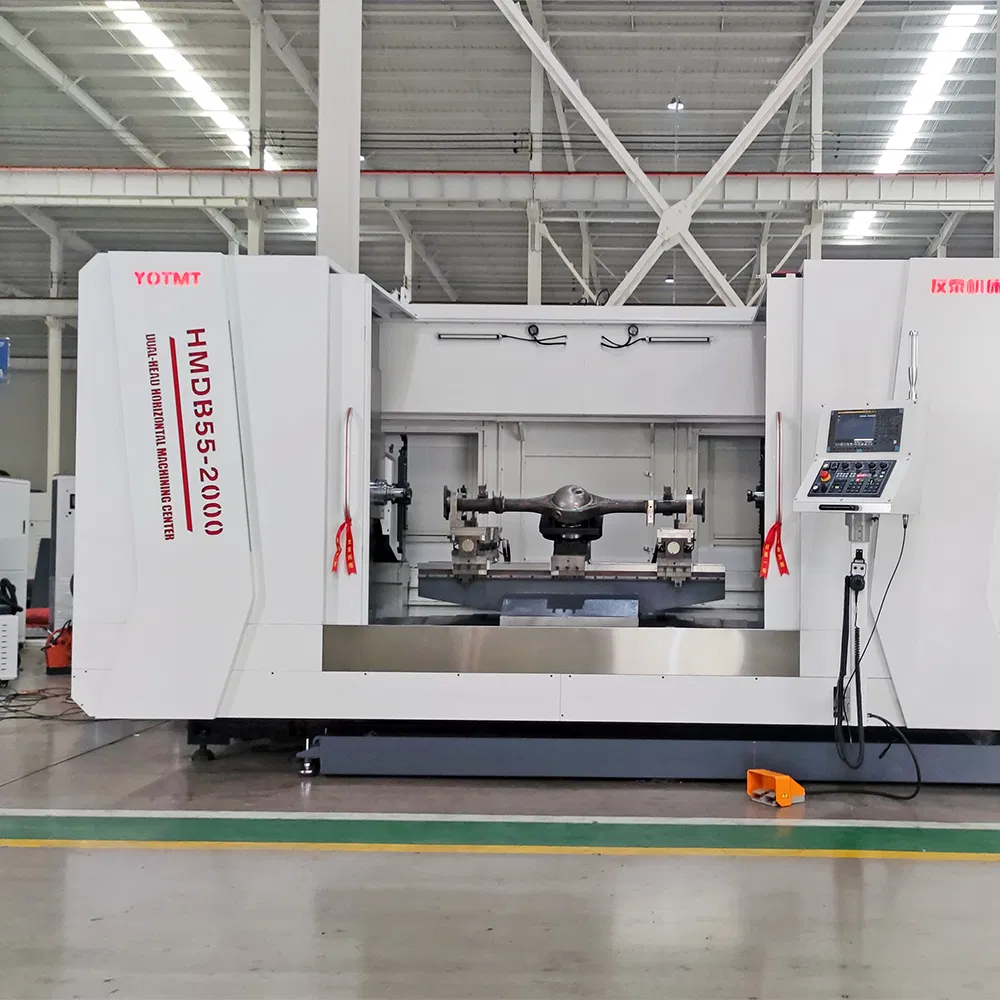

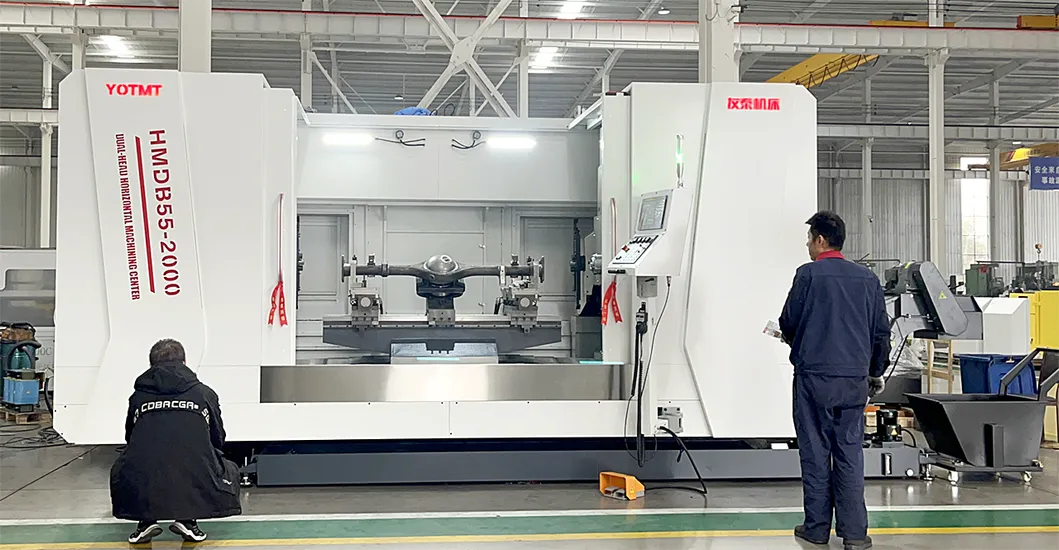

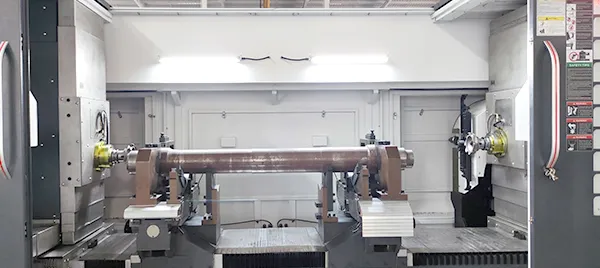

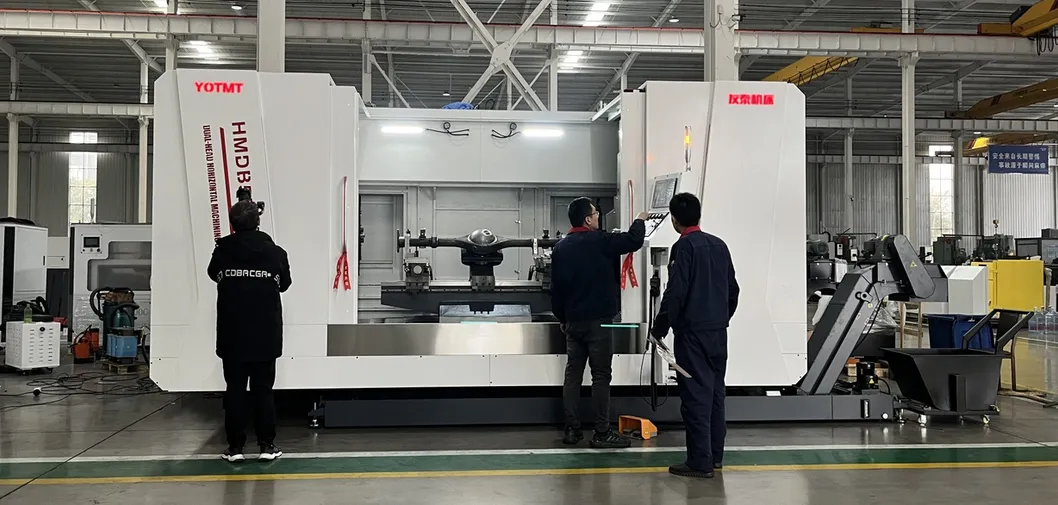

Our machine features a cutting-edge double-ended spindle design, integrating a horizontal spindle box layout with three dynamic moving axes on each side. This enables the simultaneous execution of milling, drilling, and tapping on two sections of the workpiece for maximum productivity.
Immerse yourself in precision with our dual-end face processing, where each side is equipped with an advanced automatic tool change magazine, effortlessly accommodating a variety of drilling and tapping applications with remarkable flexibility.

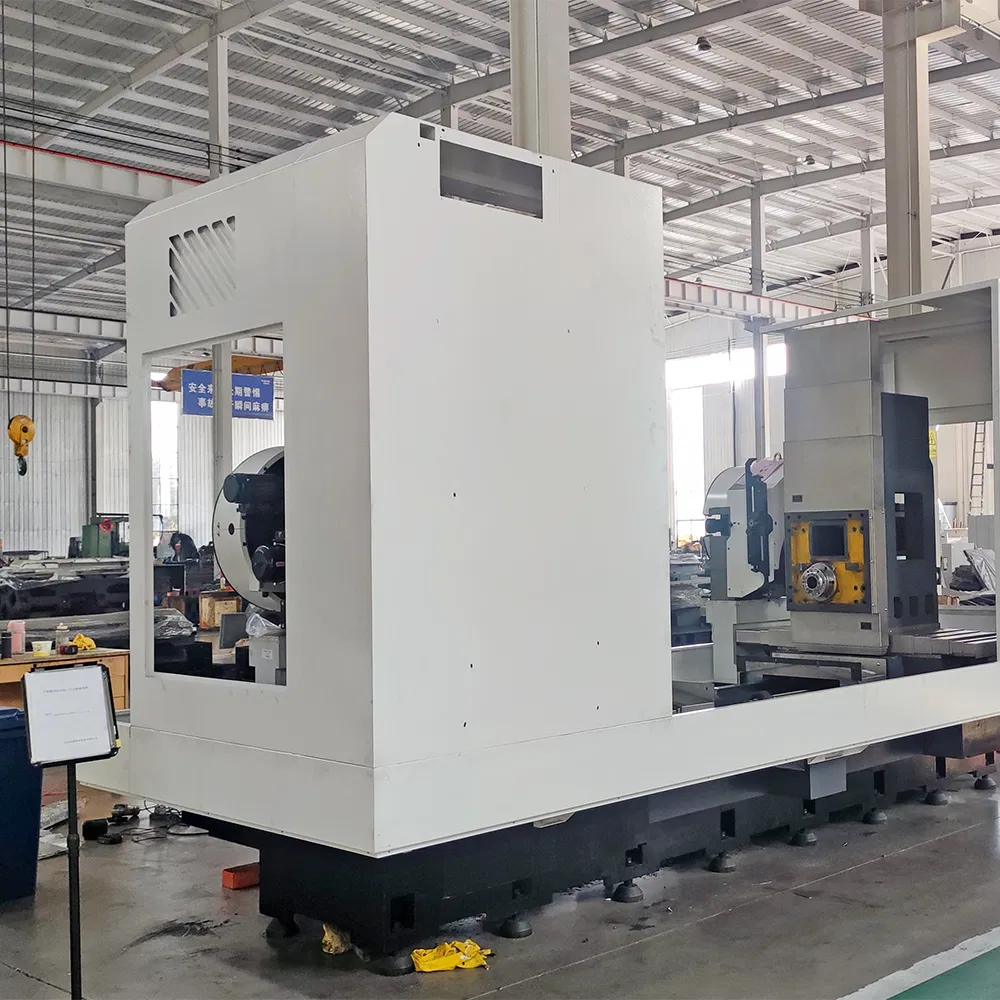

The machine is equipped with an integrated casting base and spindle box, augmented by a robust enclosed double-layer protective design, featuring top-tier quality accessories that ensure unmatched durability and reliability. Experience the pinnacle of quality with global brand accessories, offering customizable options to suit your specific needs.

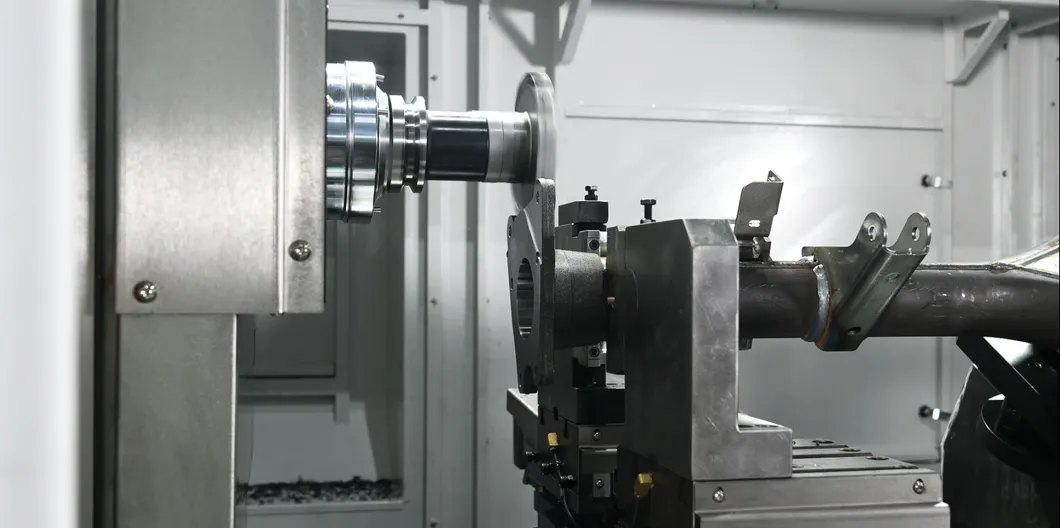

Enjoy the convenience of a foot switch and manual trimmer, along with the power of robust BT50 spindles, integrating a dual-channel CNC system for precision and control. This is paired with an adjustable self-centering hydraulic clamp, delivering high-pressure coolant for peak performance, ensuring efficient chip flushing and cooling.
With customizable 3-axis and 4-axis configurations available for each side, featuring automatic adaptation for more efficient symmetric groove machining tools. Features dual spindle and dual automatic tool magazine for unmatched productivity.
Celebrated as one of the leading pioneers in the realm of CNC machine tool manufacturing, our factory excels in creating exceptional tools engineered for precise double-sided processing.
Our facility stands out with an extraordinary collection of hundreds of technical patents, showcasing our expertise in innovative drilling, milling, and turning of shaft parts. We consistently achieve unmatched precision, setting the standard for machining excellence.
Our premium positioning machine tool products have garnered universal admiration and respect, earning accolades from sophisticated users in developed nations around the world.

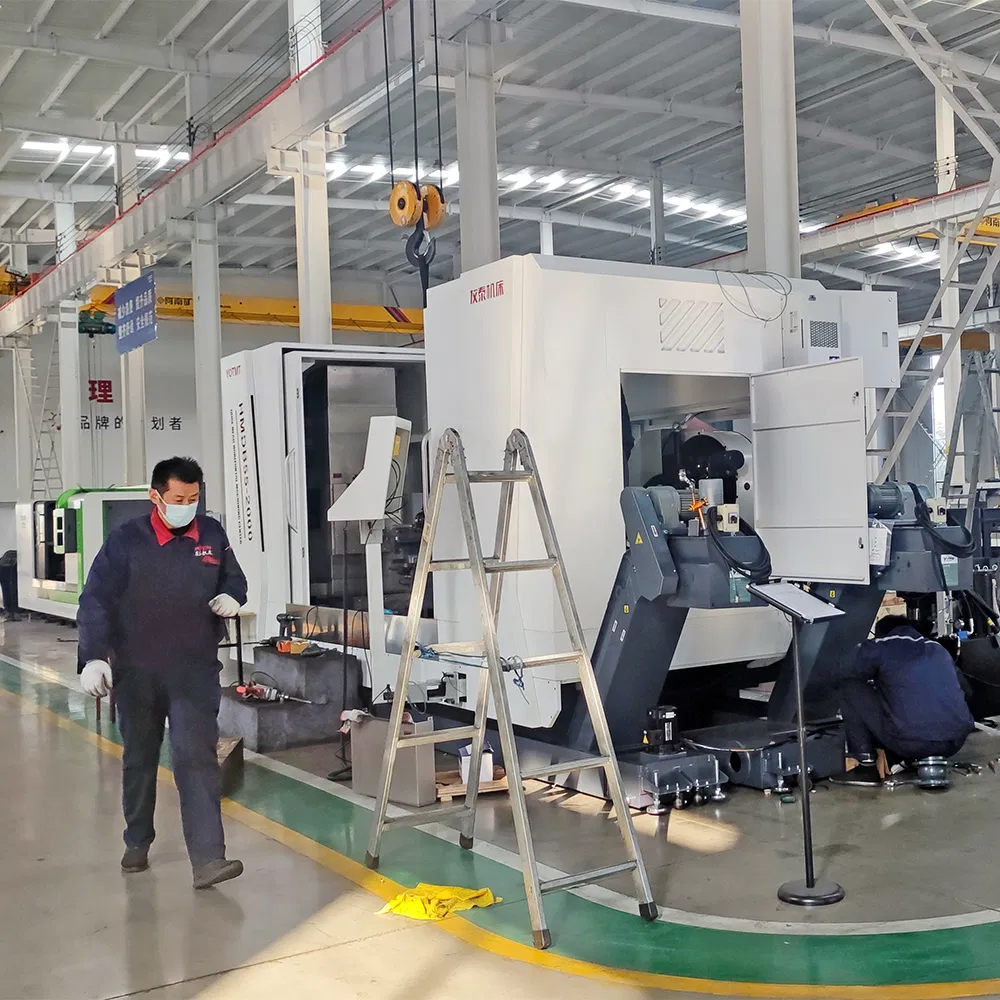

Our facility is a state-of-the-art center for exceptional metalworking craftsmanship. We play an indispensable role in advancing the global machinery manufacturing industry, embodying an ideal confluence of tradition and cutting-edge technology.

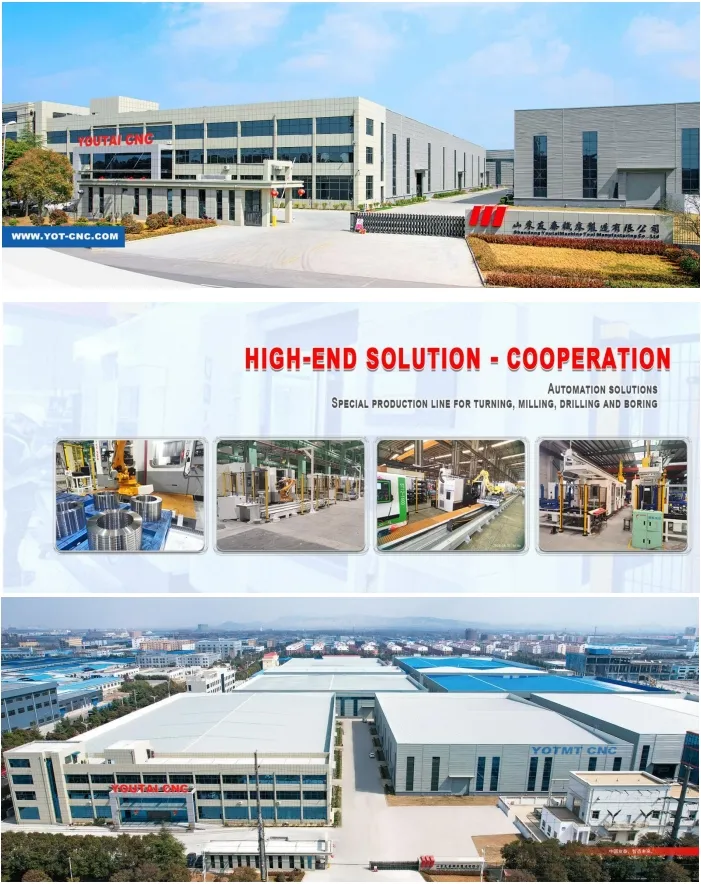

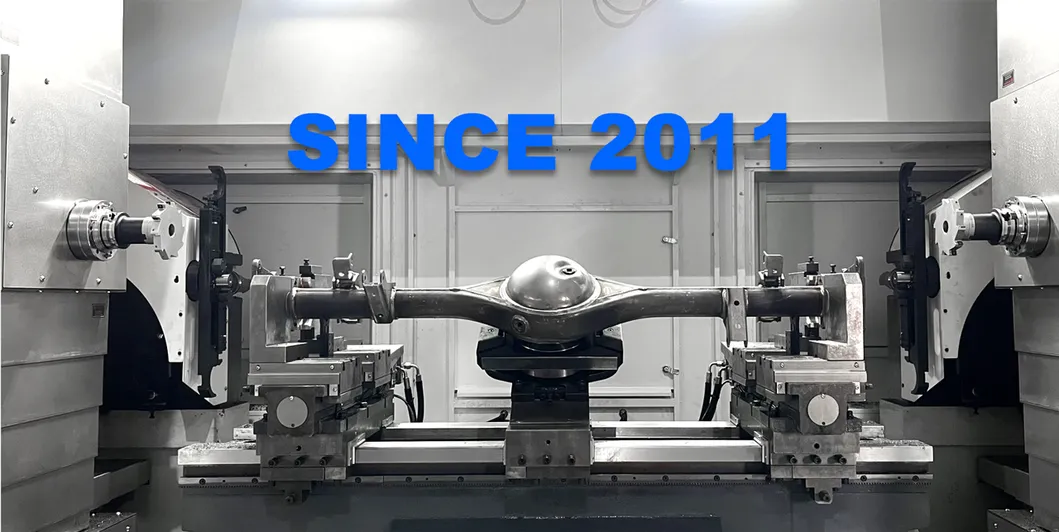

Established in 2011, we have been a trailblazer in crafting innovative, high-efficiency machining equipment optimized for shaft parts. As a technology-driven company, our focus is on developing premium CNC machine tools and specialized industrial equipment for varied applications. Our extensive site spans over 50 acres, featuring more than 30,000 square meters of cutting-edge workshops and office spaces. With a comprehensive array of sophisticated precision machines, including the latest gantry machining centers and CNC guide rail grinders, paired with high-precision measuring instruments, we ensure our products uphold the pinnacle of quality.
Our vibrant team consists of over 100 devoted professionals, including more than 30 technical experts with extensive expertise, alongside an equivalent number of engineering specialists. We cultivate strong collaborations with over ten custom part enterprises. Through our independent R&D efforts, we have developed an impressive array of machines. Our portfolio boasts innovative milling end face drilling center hole tools, adaptable double-side lathes, and durable twin-head horizontal machining centers specifically engineered for cylinder barrels. Encompassing over twenty series and more than fifty distinctive products, our offerings are successfully exported to key markets in Europe and Asia.

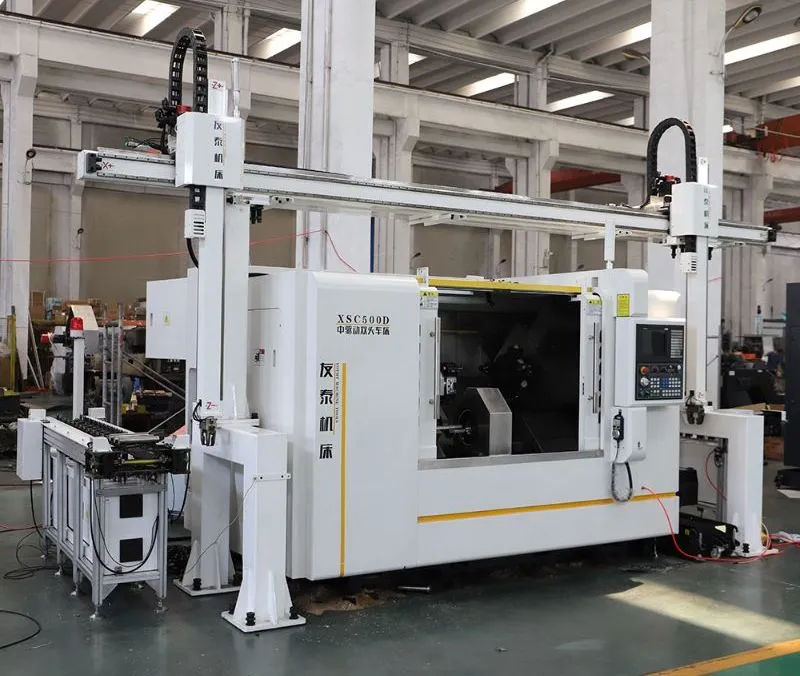

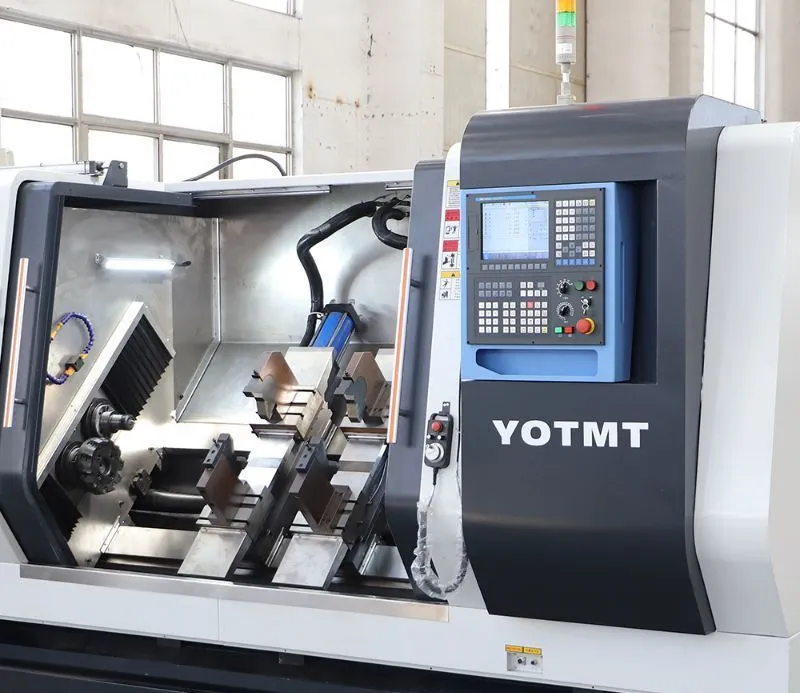

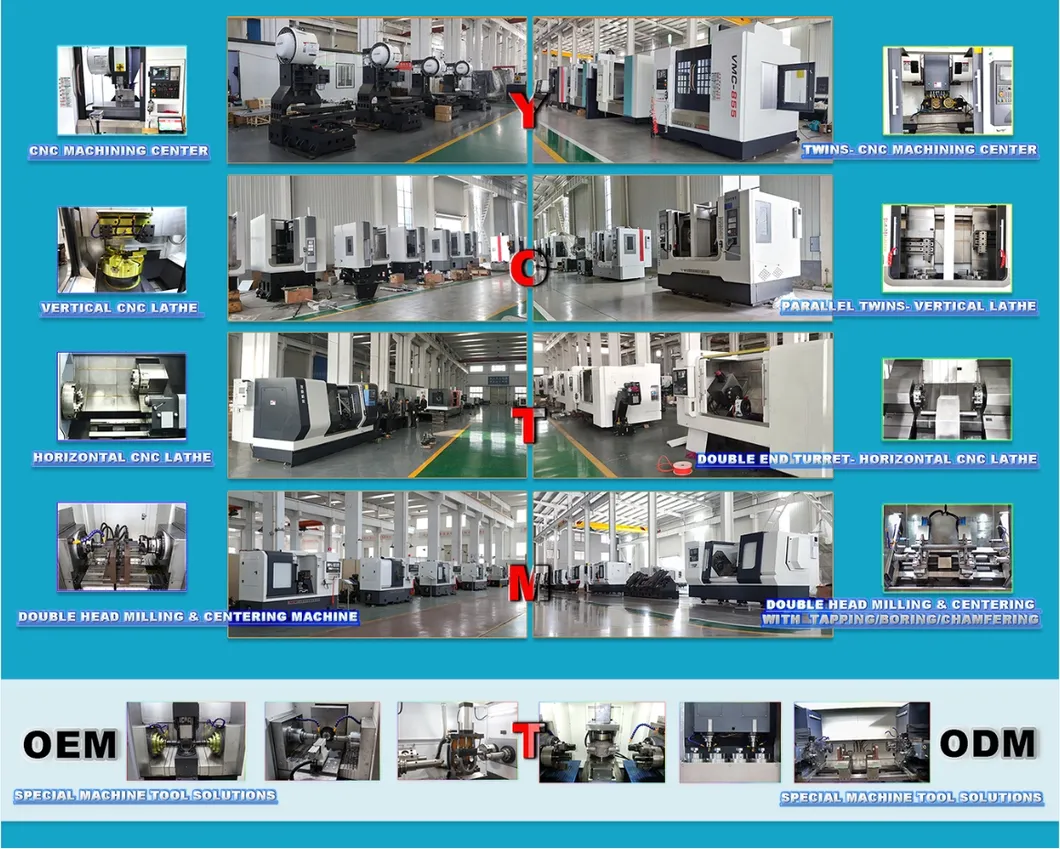

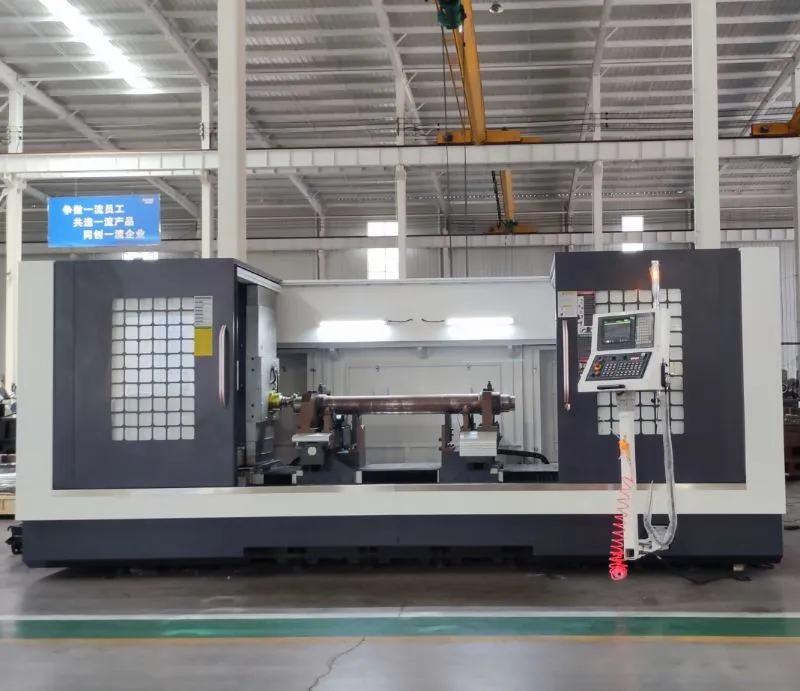

Discover Our Exceptional Machine Lineup: Double-Sided Machining Center, Precision Facing and Centering Machine, Advanced Double-Side Turning CNC Lathe. Experience unmatched innovation and precision engineering.
Q1: What are the primary applications of this Double Spindle CNC Machining Center?

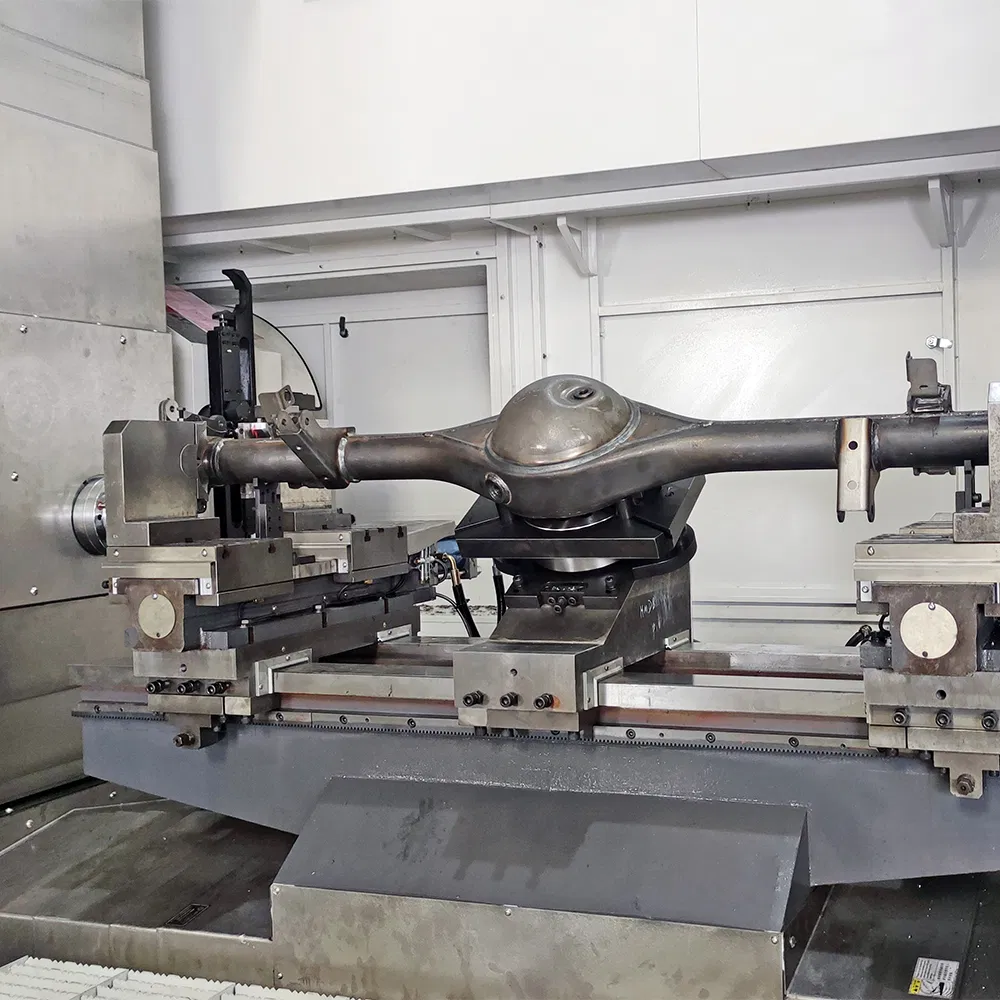

A1: It is specially designed for processing shaft metal parts, such as truck axles, railway axles, rear axles, motor shafts, piston rods, and similar workpieces. It handles simultaneous double-ended drilling, tapping, face milling, and turning.
Q2: How does the dual-spindle system improve manufacturing efficiency?
A2: The dual-spindle and dual-channel design allows the machine tool to process both ends of a shaft workpiece simultaneously in a single clamping. This ensures high coaxiality, eliminates double-clamping errors, and doubles output compared to standard single-spindle machines.
Q3: Can the machine support customized workpiece sizes?
A3: Yes. We offer customizable parameters based on workpiece specifications. The system supports diameters from 50mm to 200mm and extensions in lengths of 1000mm, 2000mm, 3000mm, and 4000mm.
Q4: What control systems are available for this CNC machine tool?
A4: The machine features a dual-channel system control. Optional systems including FANUC, SIEMENS, GSK, and KND can be integrated depending on user preferences and requirements.
Q5: What safety protection systems are included?
A5: The machine features an advanced grating interactive safety protection system along with an enclosed double-layer protective design to guarantee maximum operational safety for users.
Q6: What is the capacity of the automatic tool changer (ATC)?
A6: Each side of the machine is equipped with an automatic tool magazine containing 16 to 32 tools, enabling fast, automatic tool changes for complex multi-operation processing.
