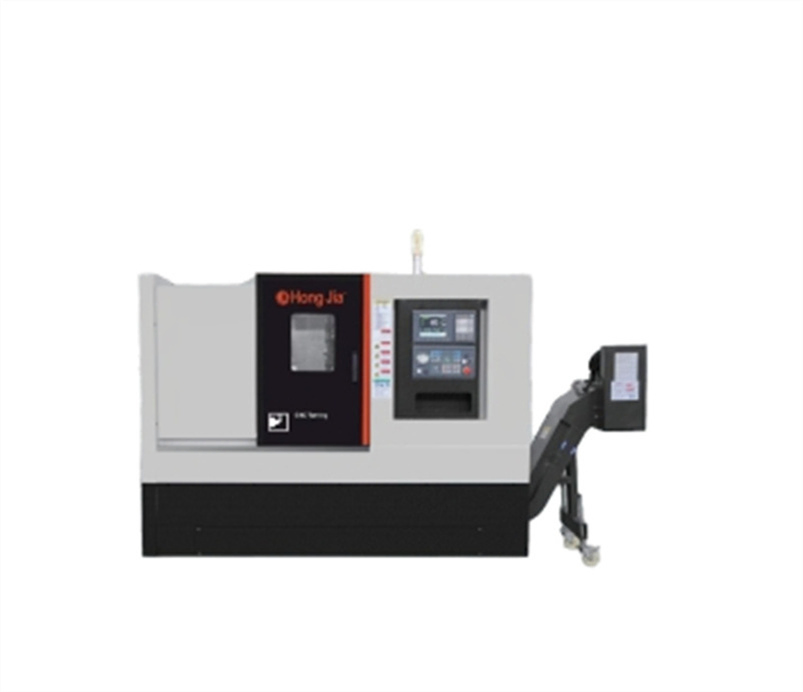

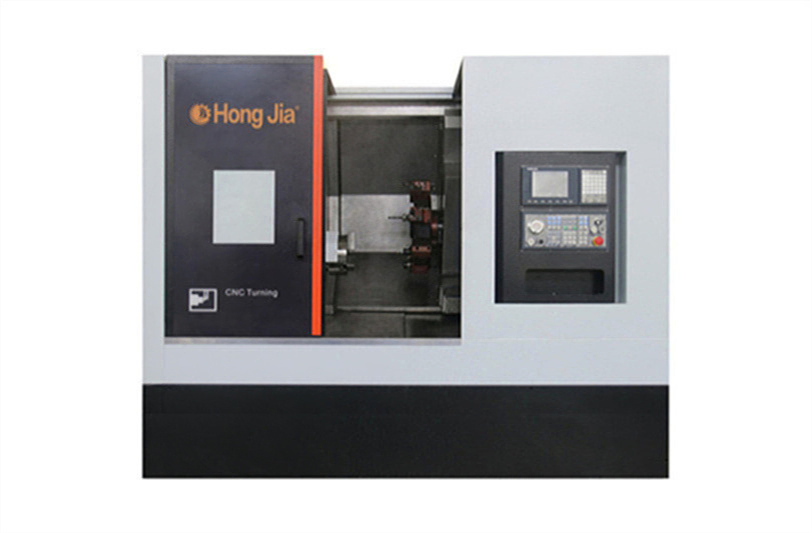

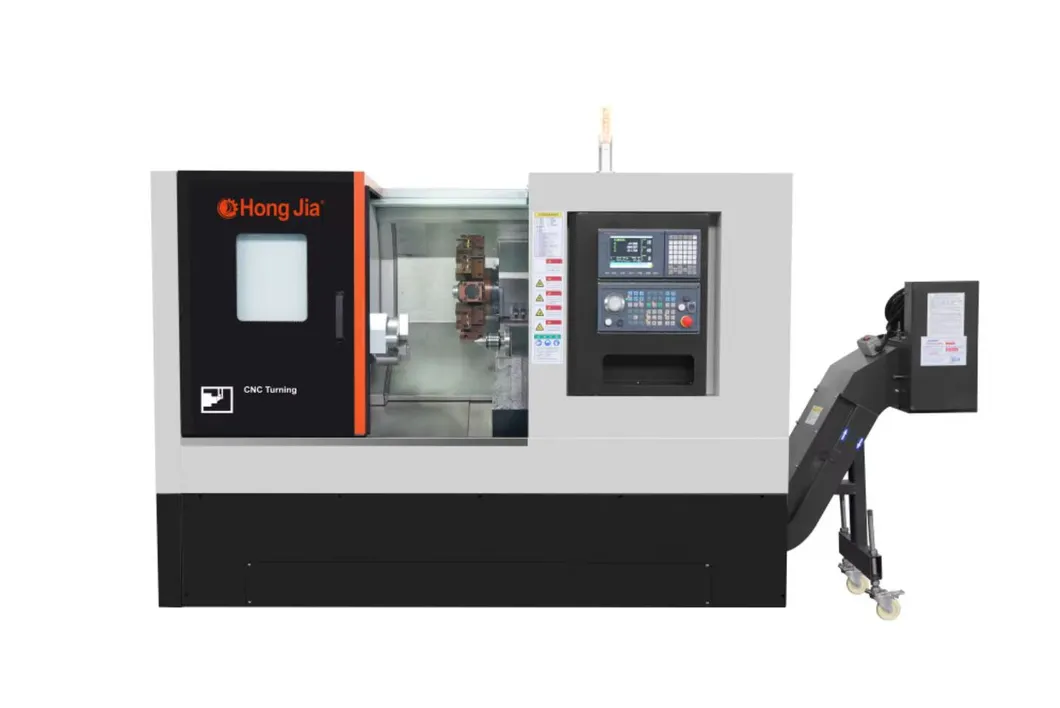

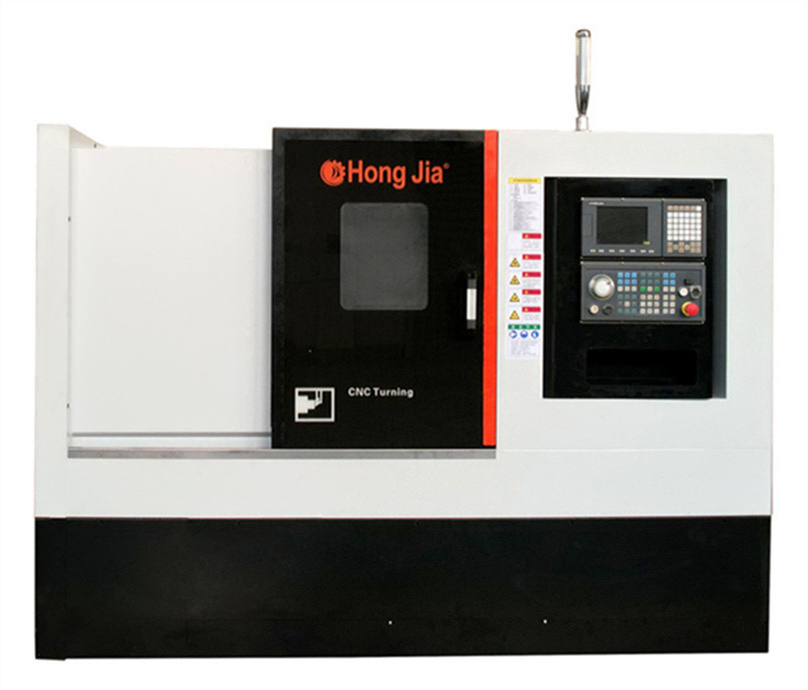

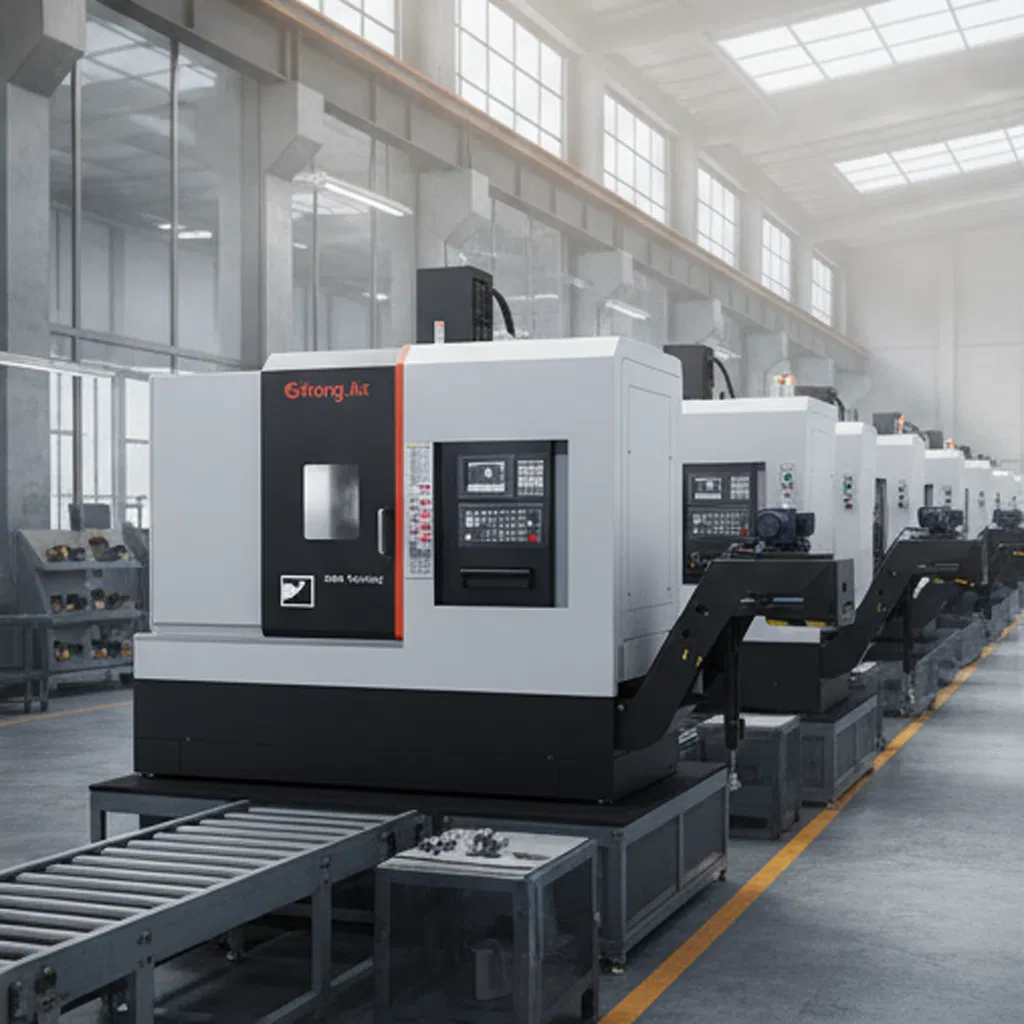

Introducing the remarkable NC-108D CNC machine tool, a versatile and reliable cornerstone for your machining needs. Perfect for turning, drilling, and boring operations, this machine is designed to handle a wide range of tasks with precision and efficiency.
Experience unmatched versatility with the NC-108D CNC machine tool, which provides lathe, drill, and bore capabilities. Built with a high rigidity basic structure, it delivers exceptional cutting performance, stable machining accuracy, and high productivity. Its sturdy design ensures heavy cutting prowess and consistent precision. The pull-out coolant tank simplifies chip cleaning, boasting a standard capacity of 125L. Elevate your workshop's efficiency and precision with this indispensable tool, ideal for varied machining applications.
Equipped with the cutting-edge SYTEC/22TA drive motor and spindle drive, this machine includes a high-speed precision motorized spindle as a standard feature, ensuring unparalleled performance every time. Outfitted with high-precision linear guideways and ball screws sourced from Taiwan or Japan, the machine features a detachable coolant tank and an integrated chip conveyor. It comes standard with a hydraulic 3-jaw chuck and a high-speed precision spindle unit, making it a formidable tool for any machining task. Engineered for a diverse range of applications, this CNC machine tool is designed to fulfill the demands of modern manufacturing processes, offering both versatility and precision in one powerful package.
Discover the NC-108D-Y, a top-tier choice for extensive applications. It excels with advanced functions and reliable performance, delivering high-quality results every time. Whether you're a seasoned professional or need efficient product production, this machine is built to meet and exceed your expectations. Elevate your workshop's capabilities with the NC-108D-Y CNC machine today and witness the transformative impact on precision and efficiency.
| Number | Item | Unit | Specification |
|---|---|---|---|
| 1 | Maximum turning diameter on the bed | mm | Φ560 |
| 2 | Maximum machining diameter (disc type) | mm | Twelve station tower / Eight station cutter tower |
| 3 | Maximum machining diameter (shaft type) | mm | Φ280 |
| 4 | Maximum turning diameter on a skateboard | mm | Φ280 |
| 5 | Distance between two centers | mm | 500 |
| 6 | Maximum working length | mm | 500 |
| 7 | Maximum tie rod through hole diameter | mm | Φ52 |
| 8 | Spindle nose form | - | A2-6 |
| 9 | Spindle through hole diameter | mm | Φ66 |
| 10 | Taper of spindle inner hole | - | MT-6 |
| 11 | Three chuck holding capability | - | 8* |
| 12 | Pull rod action form | - | Hydraulic pressure |
| 13 | Maximum spindle speed | r/min | 4000 |
| 14 | Main motor power | KW | 11/15 |
| 15 | X-axis travel | mm | 225 |
| 16 | Z-axis travel | mm | 490 |
| 17 | X/Z axis fast moving speed | m/min | 25 |
| 18 | Positioning accuracy (X/Z) | mm | 0.008/0.010 |
| 19 | Repeated positioning accuracy (X/Z) | mm | 0.006/0.008 |
| 20 | Tool number | - | 12 |
| 21 | Driving form | - | Servo |
| 22 | Height of center | mm | 80 |
| 23 | Tool change time (T-T) | seconds | 0.2 |
| 24 | Boring tool holder specifications | mm | 32 |
| 25 | Square tool holder specifications | mm | 25 |
| 26 | Power head speed | - | 4000 |
| 27 | Power head motor power | - | 3.6 |
| 28 | Power head torque | - | 15 |
| 29 | Power head type | - | 55 |
| 30 | Taper of tailstock sleeve | - | MT-5 |
| 31 | Maximum/minimum holding workpiece length | mm | 500/60 |
| 32 | Safety shield | - | Completely closed |
| 33 | Numerical control system | - | SYTEC 7TA/FANUC OI-TF/GSK988TA |
| 34 | Overall dimensions of the machine (L×W×H) | mm | 2500×1700×1790 (Chip removal machine not included) |
| 35 | Machine weight | kg | 4200 |

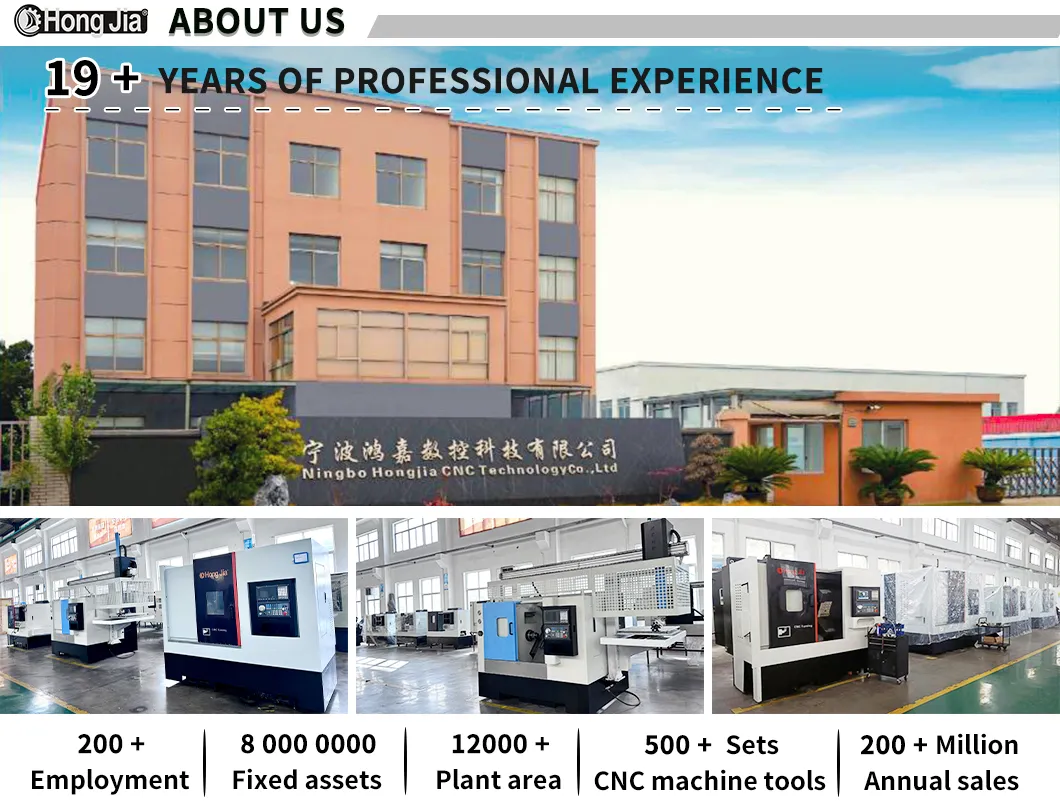

Our enterprise stands as a beacon of innovation, specializing in the R&D, production, and sales of cutting-edge CNC metal-cutting equipment. Situated in a state-of-the-art technological development zone, the company is a pioneer in blending research, manufacturing, sales, and service within the CNC technology sphere. Since its inception, our brand has consistently embraced technological advancement, closely aligning with market needs to furnish global industry professionals with efficient, stable, and reliable CNC equipment and bespoke solutions, leveraging our profound technical acumen and extensive industry experience.
