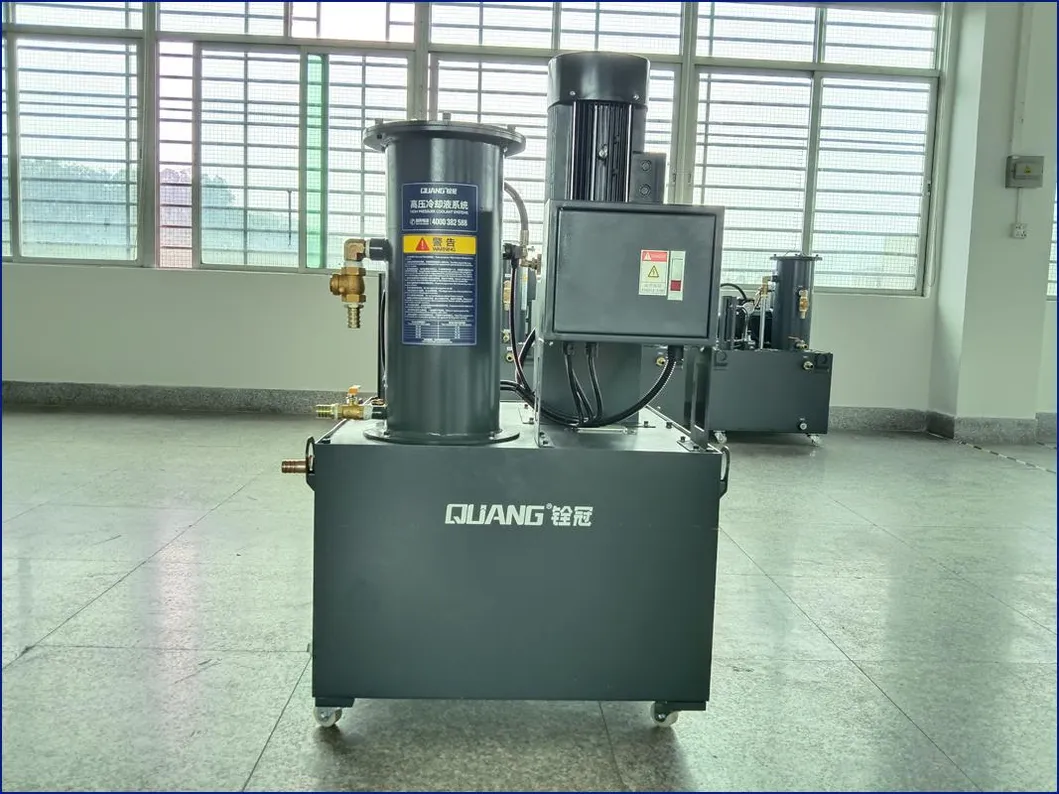

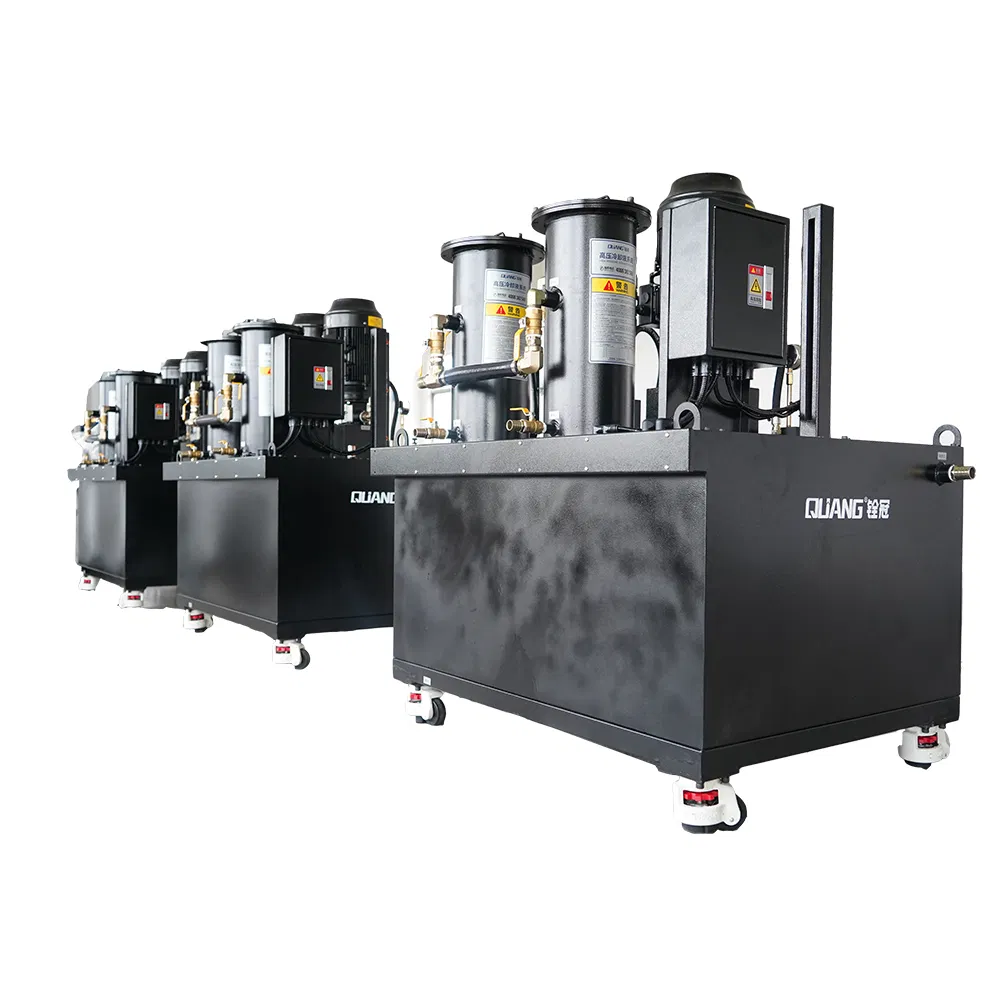

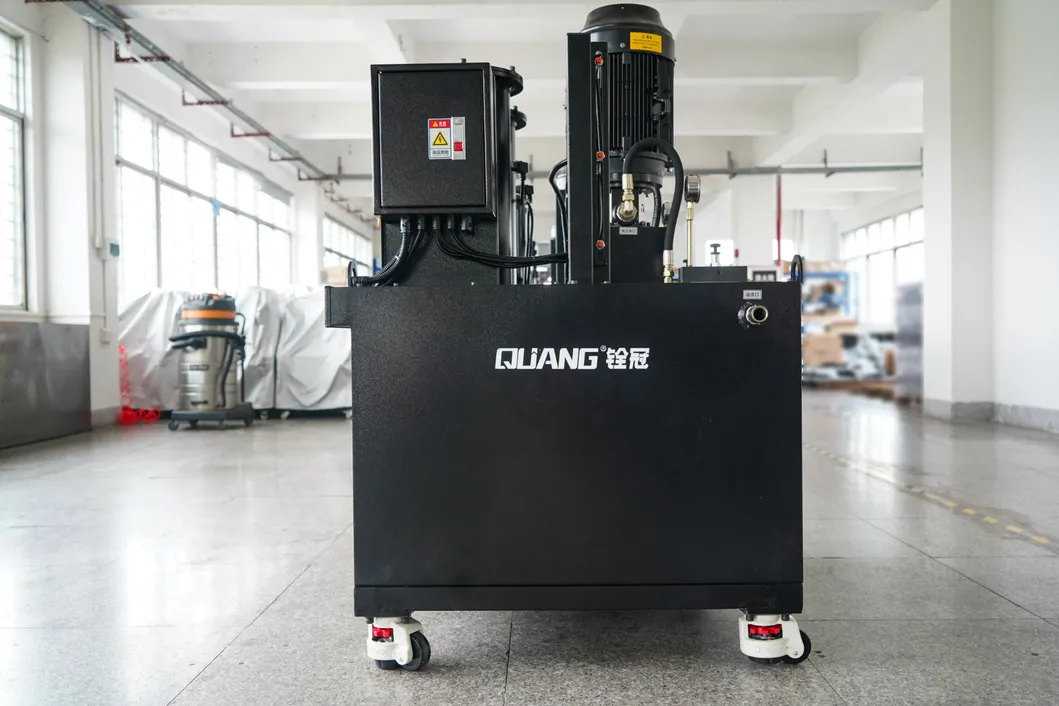

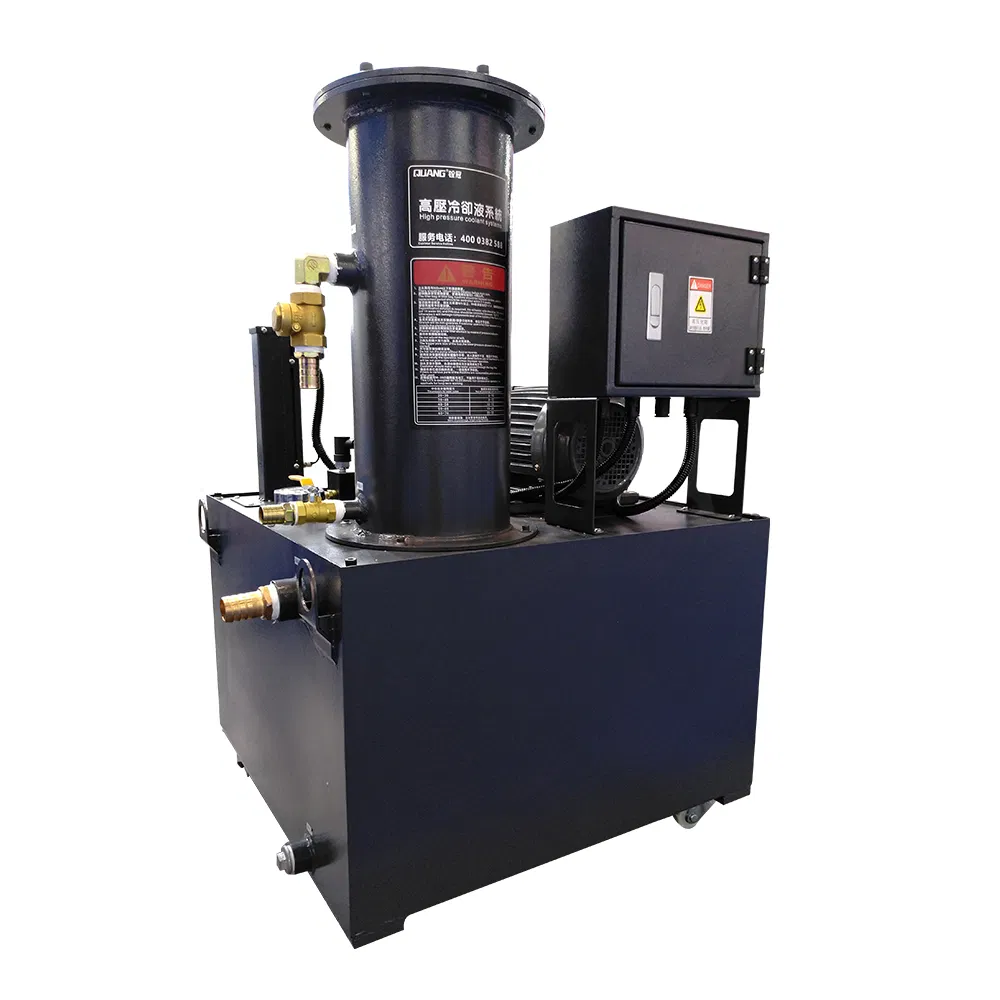

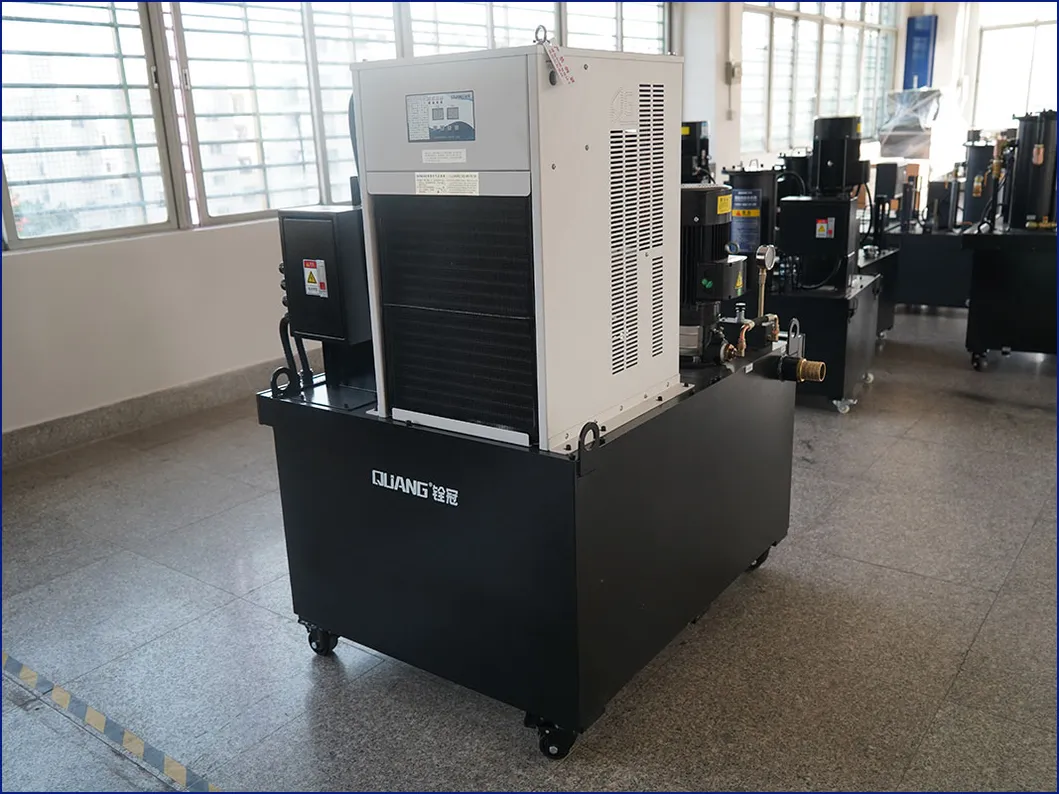

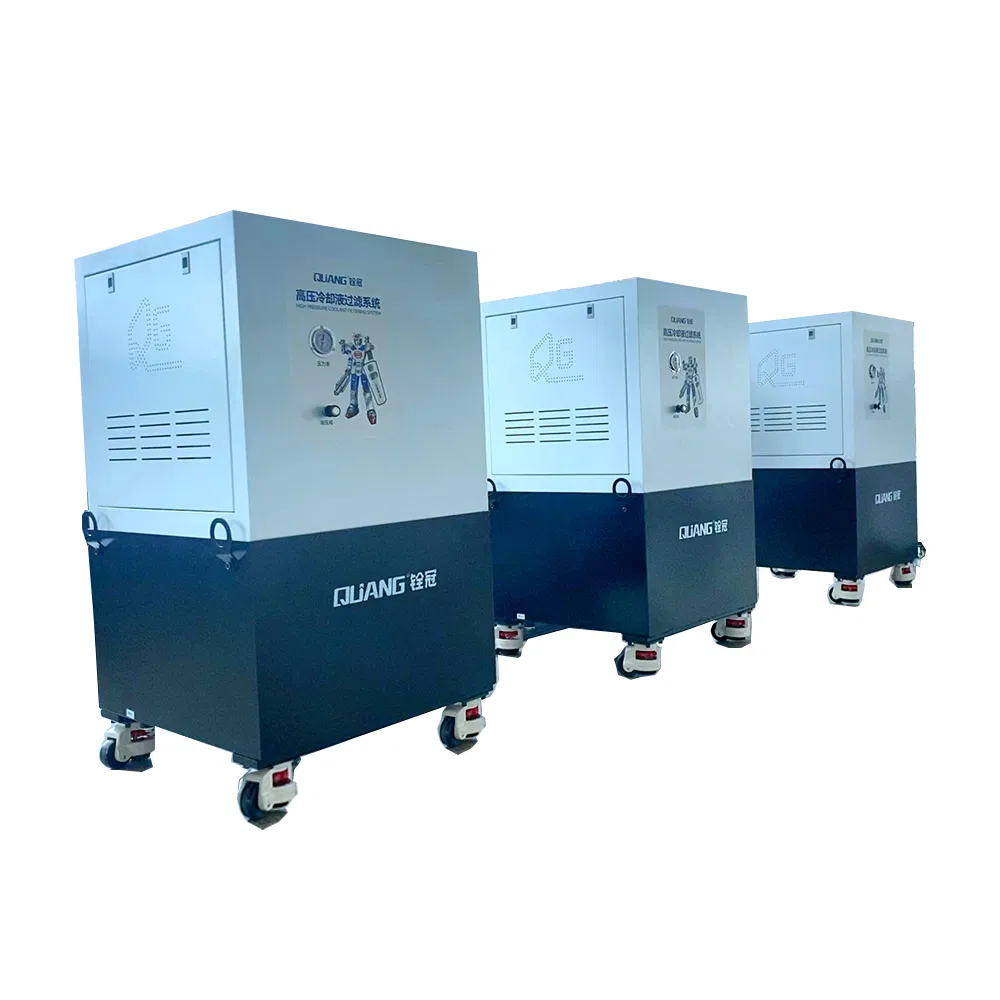

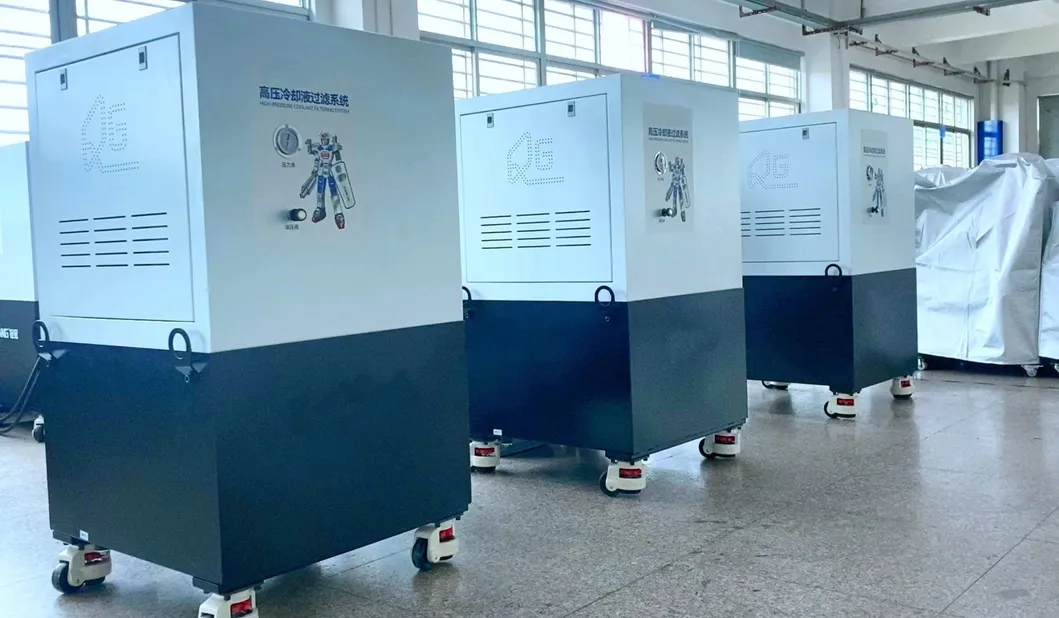

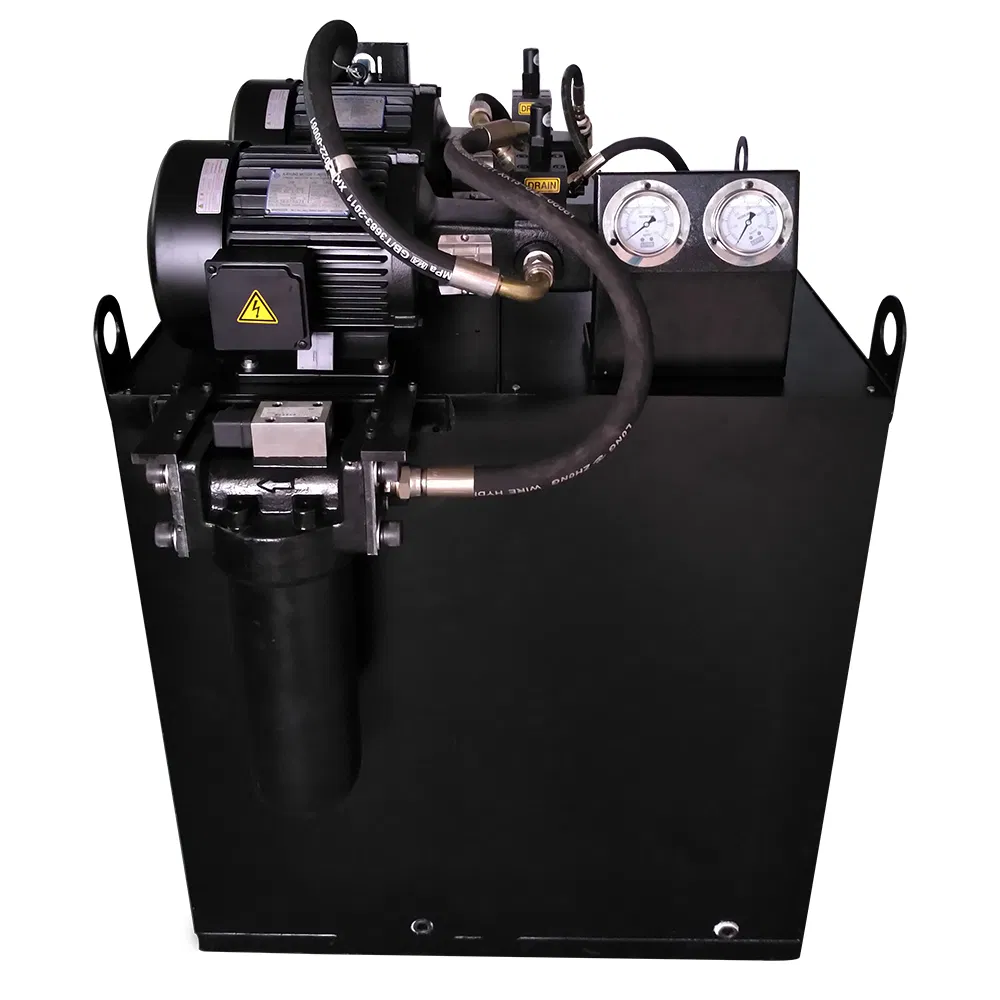

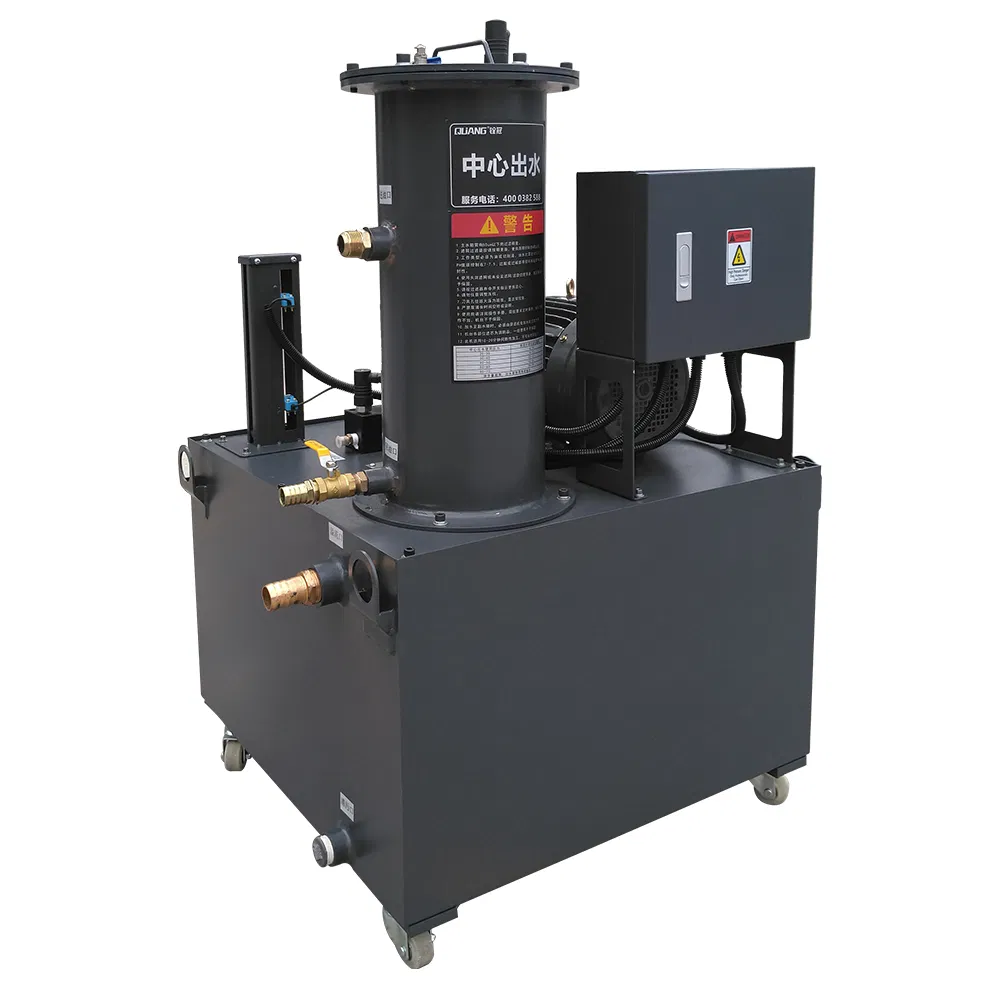

The water outlet from the center of the spindle, also known as spindle internal cooling or tool internal cooling, refers to the direct transfer of coolant through the spindle through pressure to the cutting part of the tool. In addition to timely cooling of the tool, high-pressure coolant can also be used to vigorously wash the chips milled from the workpiece.
| Item | QG-HPC-2MP-33LA-1 | QG-HPC-3MP-33LA-1 | QG-HPC-5MP-35LA-1 | QG-HPC-7MP-35LA-1 |
|---|---|---|---|---|
| Outlet pressure | 20Bar | 30Bar | 50Bar | 70Bar |
| flow rate | 33L/min | 33L/min | 35L/min | 35L/min |
| Rated power | 3.0KW | 5.5KW | 5.5KW | 7.5KW |
| Input Power | 220V/380V 50HZ/60HZ | |||
| Bag filtration | Min 25μm | |||
| Pump type | centrifugal pump | centrifugal pump/Screw pump | Screw pump | Screw pump |
| Pump brand | Customers can specify the water pump brand (centrifugal pump brand Nanyuan, screw pump brand yellow pump) | |||
| Size | 700*700*1080mm | 700*700*1080mm | 700*700*1230mm | 700*700*1230mm |
| Water tank capacity | 220L | 220L | 220L | 220L |
Eliminate the worry of entanglement in metal processing, avoid iron filings entangled on parts and tools, and ensure smoother production.
Increase chip cutting speed and tap into more productivity in production.
Reduced tool wear. Reduce the local temperature generated by high temperatures during machining and extend the tool life. Reduce the frequency of tool replacement and reduce tool usage.
Improve quality stability and improve the qualification rate of parts processing.
Improve the surface smoothness of parts, enhance their quality, and enhance their market competitiveness.
Designed with an automatic cleaning filter element function, it is easy to disassemble and maintain, making it convenient and fast.
The spindle center water outlet system is mainly applicable to metal processing equipment, such as spindle water outlet CNC machining centers, deep hole drilling and milling machines, crankshaft grinders, gear grinding machines, CNC turning and milling composite machining machines, gantry drilling and milling machines, gantry machining centers, CNC lathes, deep hole boring and milling drilling machines, etc.
Always used in: automotive component manufacturing, precision mechanical processing manufacturing, batch intelligent production lines for workpiece and tool washing, cooling, lubrication, chip breaking, and chip removal, extending the service life of the tool, improving the machining accuracy and surface finish of the components.
