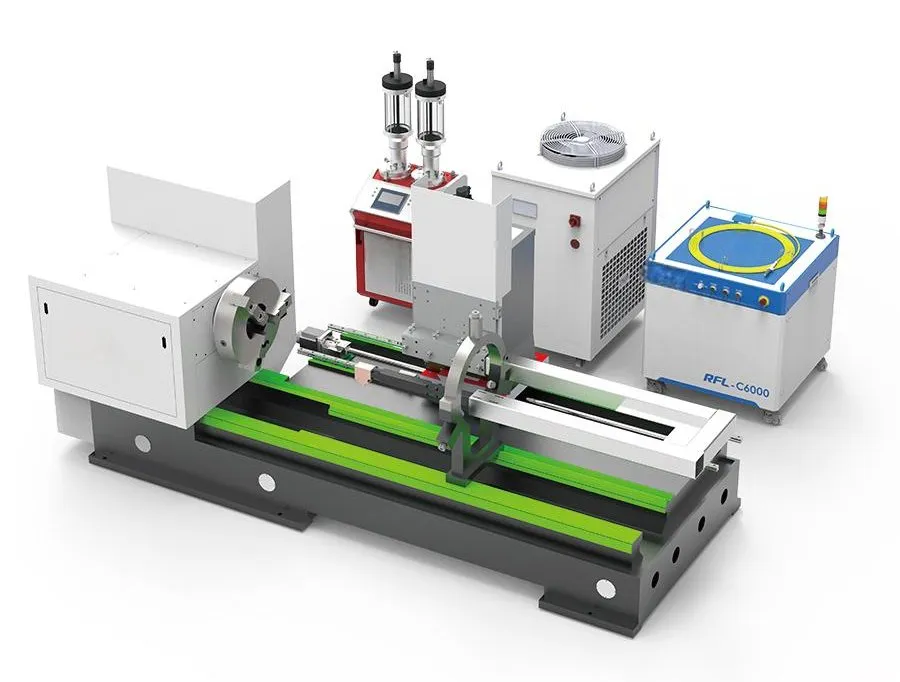

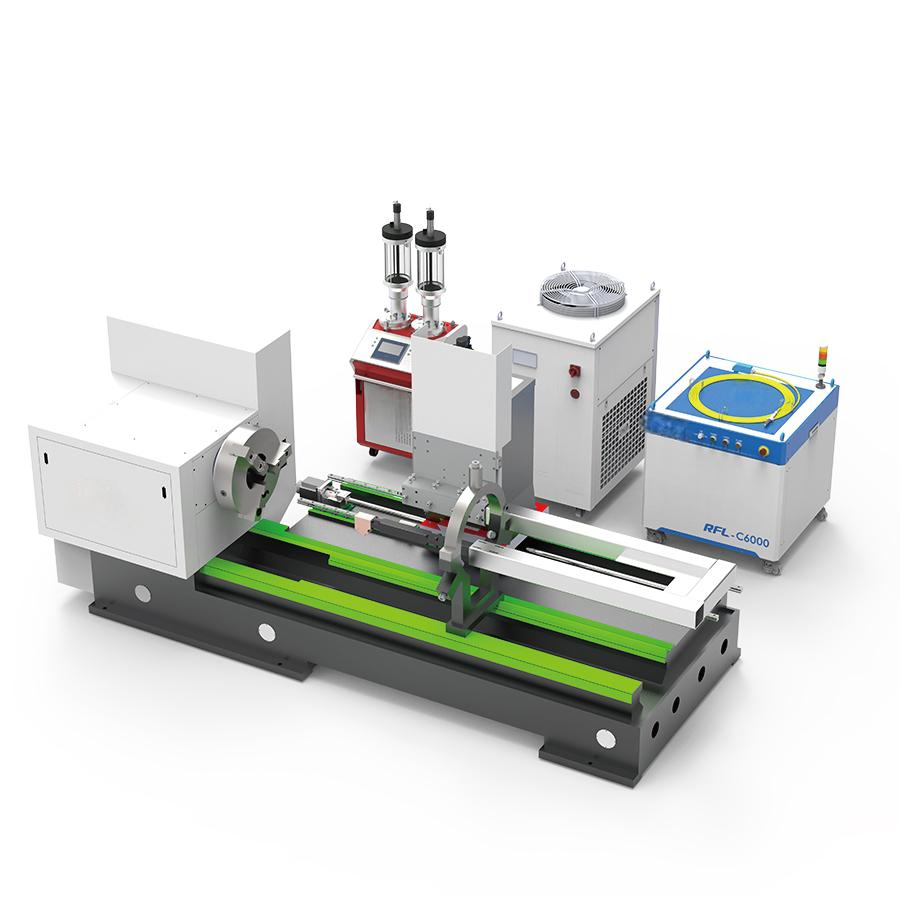

Specifically designed the Ultra-high-speed Laser Cladding System as an advanced composite machine. It perfectly integrates turning, cladding, and mirror processing into one platform.

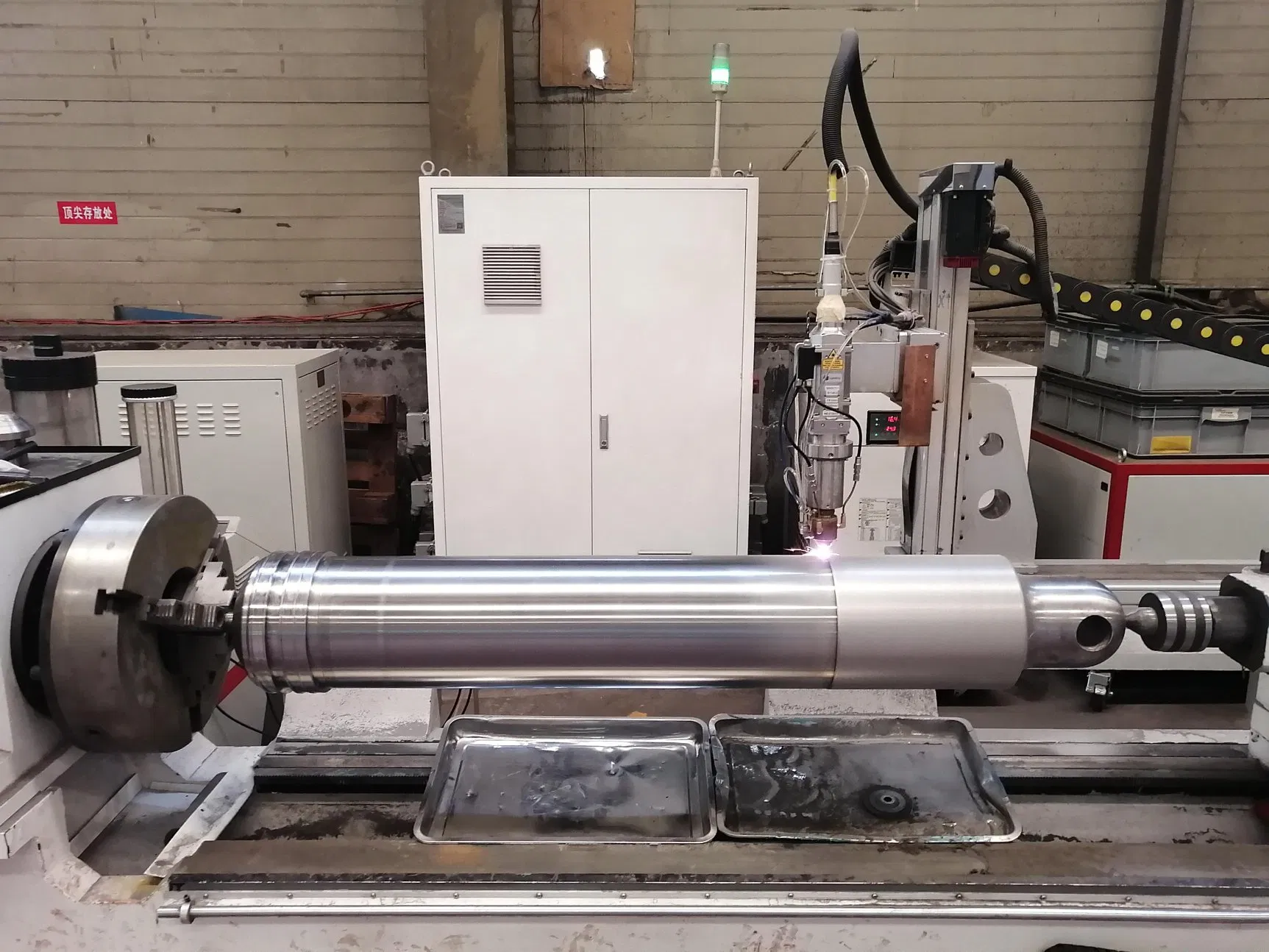

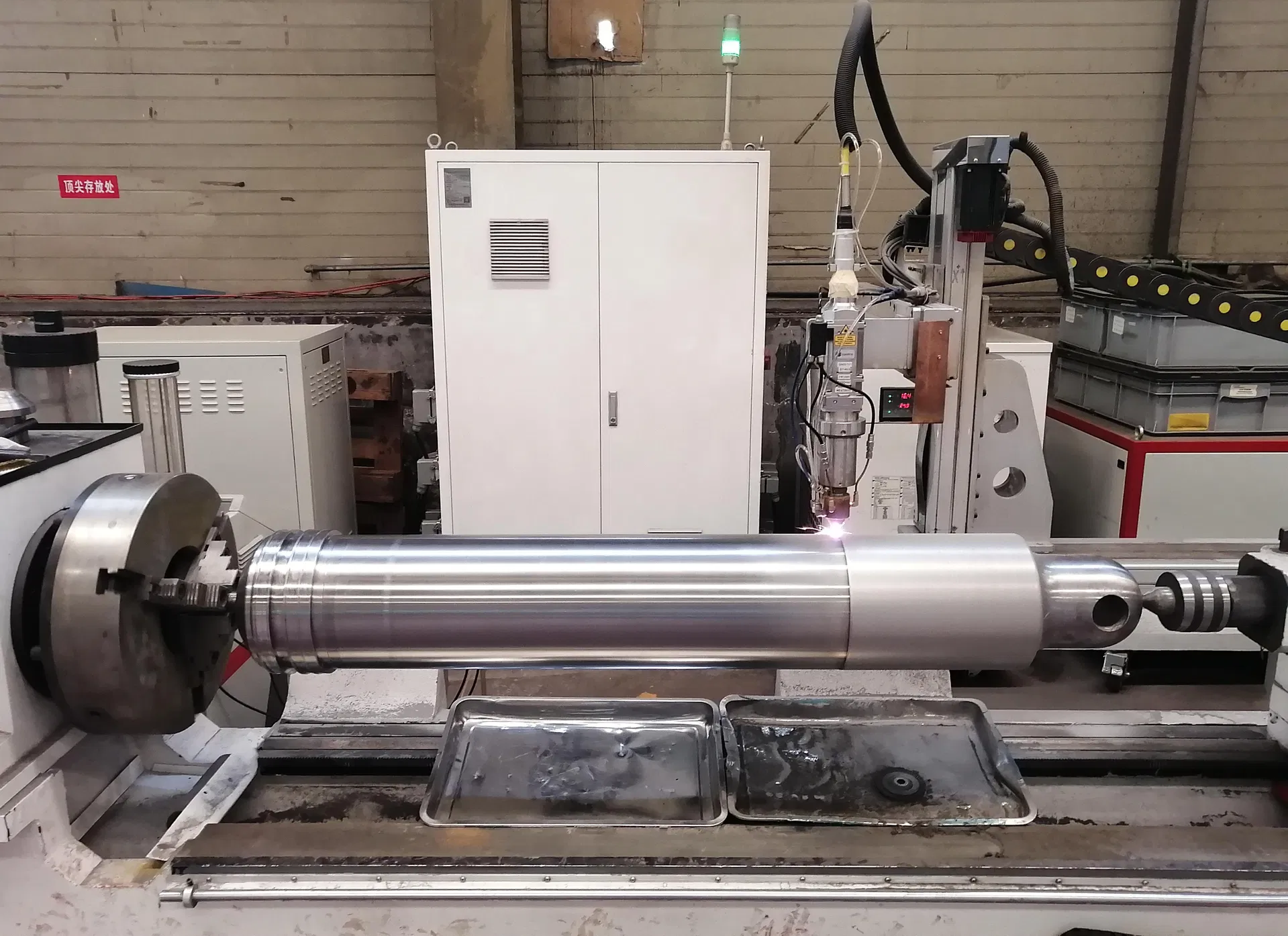

Operators can sequentially complete additive machining, deductive machining, and mirror finishing on shaft parts using just a single clamping setup. This eliminates the round runout errors usually caused by multiple clampings. As a result, the system drastically improves both coating quality and overall production efficiency. It delivers high integration, exceptional reliability, and a sleek, user-friendly design.
| Technical Specifications | |
|---|---|
| Specifications | Details |
| Laser Source | Fiber / Diode laser |
| Laser Power | ≤ 12 kW |
| Processing Length | 3 m |
| Maximum Rotation Diameter | 400 / 600 mm |
| Weight Capacity | 3 t |
| Motion Mechanism | 3+1 Axis |
| Spindle Speed | 1-150 / 1-200 rpm |
| Deposition Efficiency | ≤ 500 cm²/min |
| Layer Thickness | 50 - 1500 μm |
| Substrate Dilution Rate | < 1% |
| Repeat Position Accuracy | ± 0.05 mm |

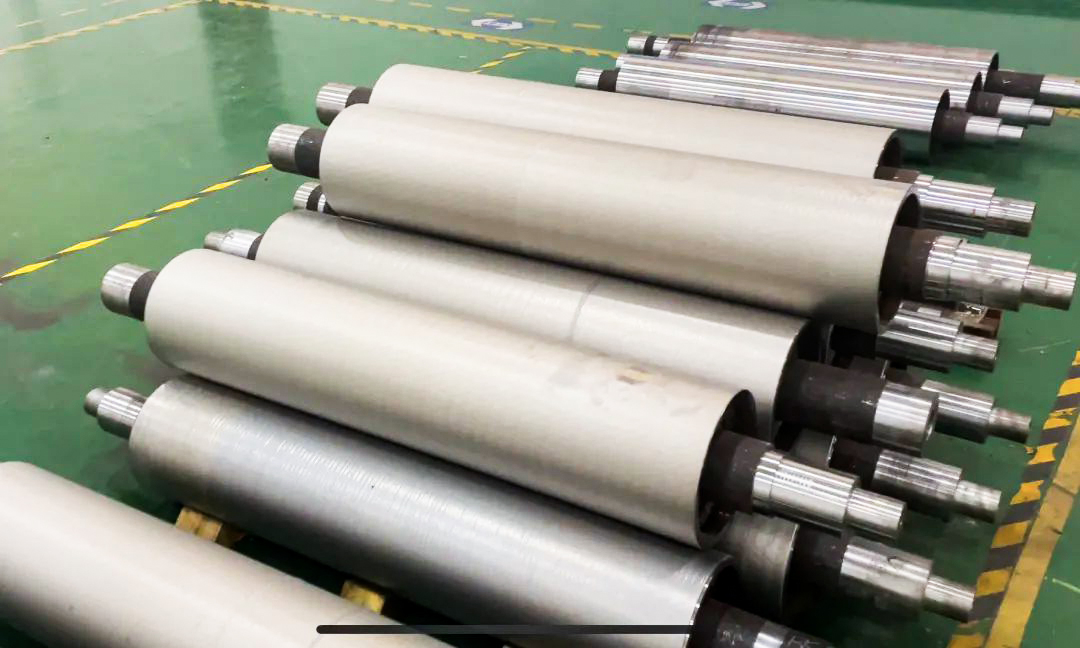

This equipment processes all types of industrial shafts and rolls perfectly. It serves as an essential manufacturing and repair tool for heavy-duty sectors, including:
Nondestructively repair high-value metal parts. Keep core equipment running longer.
Cut downtime. Boost production. Upgrade your surface treatment process today.
