Carto Tool
1 / 5
| Basic Specifications | |||
|---|---|---|---|
| Model NO. | OEM | Application | Metal Processing Machinery Parts |
| Material Capabilities | Aluminium, Brass, Bronze, Steel, Stainless Steel, Plastic | Model Number | OEM |
| Color | Customized | Workflows | CNC Machining / CNC Turning / CNC Milling / CNC Lathe |
| Quotation Drawing Format | 2D (PDF/CAD), 3D (STP/STEP/X-T) | Surface Treatment | Cleaning, Sandblasting, Oxidation, Powder Coating, Oil Spraying |
| Determine PO | Order production materials | Delivery Time | 3-7 days for samples, about 30 days for bulk orders |
| Packaging & Transport | Wooden box, Carton, Pallet, Foam bag, White paper | Norm | Original form |
| Customs Code | 7320209000 | Production Capacity | 150,000 |
Our exceptional packaging solutions feature a variety of options including robust wooden boxes, sturdy pallets, versatile cartons, durable PVC trays, and reliable PP bags. Each package is meticulously customized to align perfectly with your unique specifications, ensuring unmatched protection and presentation.
Port of Shipment: Shenzhen | Lead Time: 8 days for 1-5 pieces (larger quantities to be negotiated)
| Service Category | Detailed Capabilities & Specifications |
|---|---|
| Business Type | Factory / Manufacturer |
| Scope of Services | CNC Machining, Turning and Milling, CNC Turning, 5-Axis / Mill-Turn, ODM Parts |
| Materials |

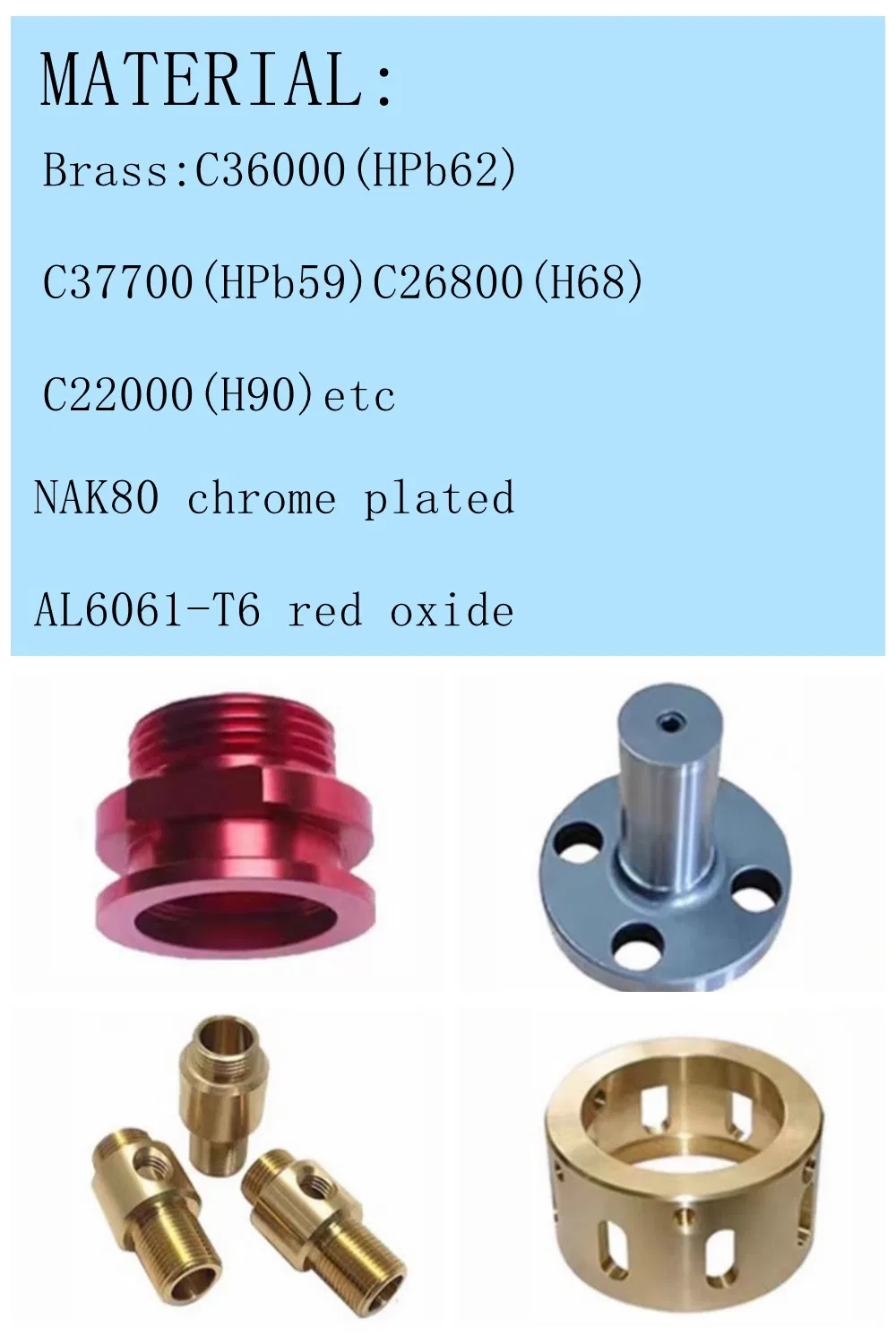

1. Aluminium: AL 6061-T6, 5052, 6063, 7075, 2014, etc. 2. Stainless Steel: 303, 304, 316L, 17-4 (SUS630), etc. 3. Steel Sheets: 4140, Q235, Q345B, 20#, 45#, etc. 4. Titanium: TA1, TA2/GR2, TA4/GR5, TC4, TC18, etc. 5. Brass: C36000(HPb62), C37700(HPb59), C26800(H68), C22000(H90), etc. 6. Copper, Bronze, Magnesium alloys, POM, PEEK, PPS, PA66, ABS, PMMA, PC, etc. |
| Surface Treatment |

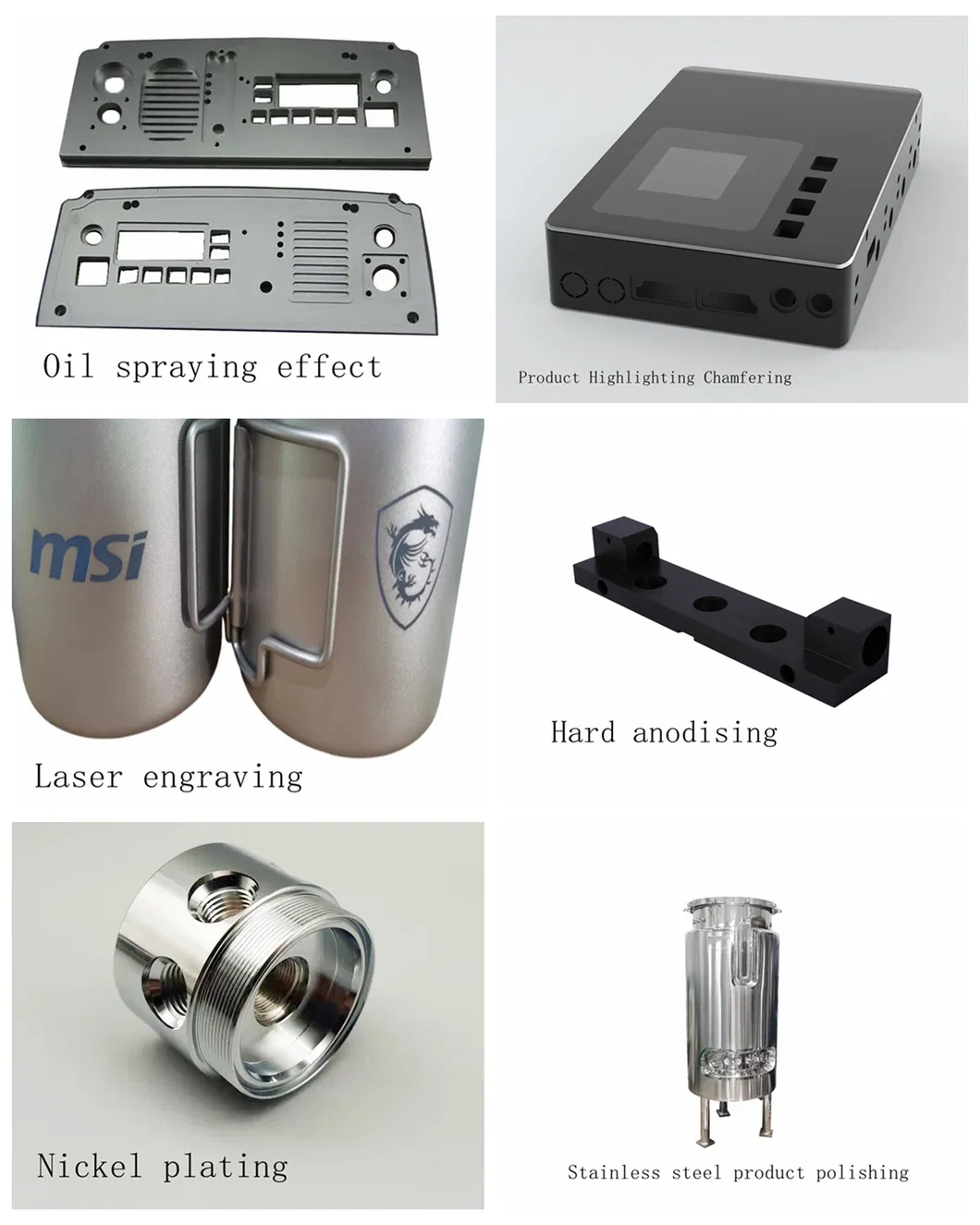

1. Sandblasted, Anodised Colour, Blackening, Galvanised/Nickel Plated, Polished, etc. 2. Powder Coating, Purified, Titanium Plating, Electro Zinc Plating, etc. 3. Chrome Plating, Electrophoresis, Hardening, Polishing. 4. Electropolished, Knurling, Laser Etching, Micro-marking, etc. |
| Our Equipment |
CNC Machining Centres (Milling Machines), CNC Lathes, Grinding Machines, 5-Axis Combined Turning and Milling. Outsourcing capabilities: Wire Cutting, External and Internal Grinding, Electrical Discharge, Laser Cutting, Deep Hole Drilling. |
| Drawing Format | STEP, STP, IGS, X-T, DXF, DWG, PDF |
| Dimensional Tolerances | ±0.01mm ~ ±0.05mm |
| Surface Roughness | Ra 0.1 ~ 3.2 |

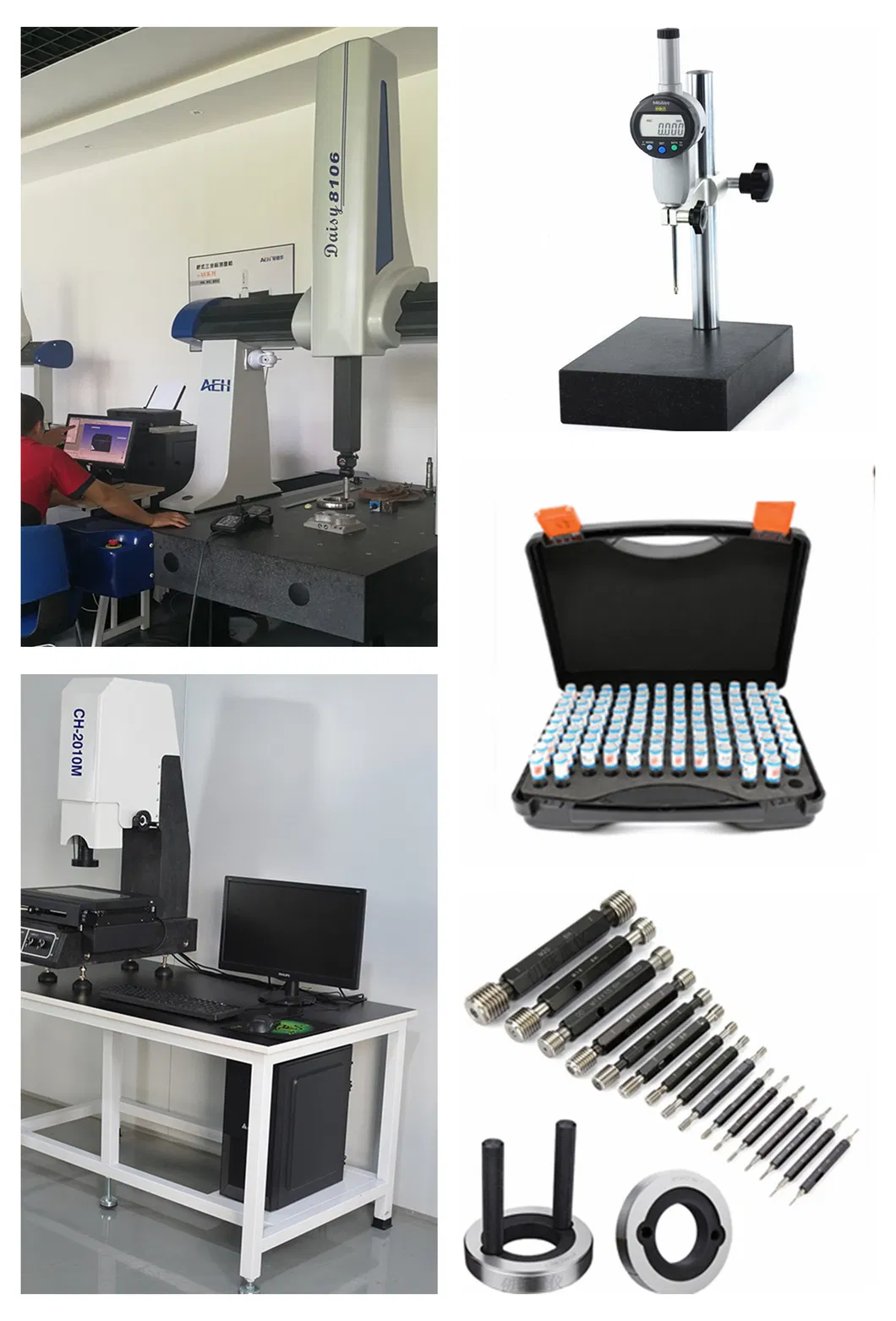

| QC Detection | Complete testing laboratory with micrometers, optical comparators, calipers, CMM depth caliper vernier, universal protractor, clocks, internal Celsius scale |
| Machine Table Size |
CNC turning range of work: ¢5mm - 200mm - 300mm CNC milling range of work: 2200mm x 1800mm x 150mm |

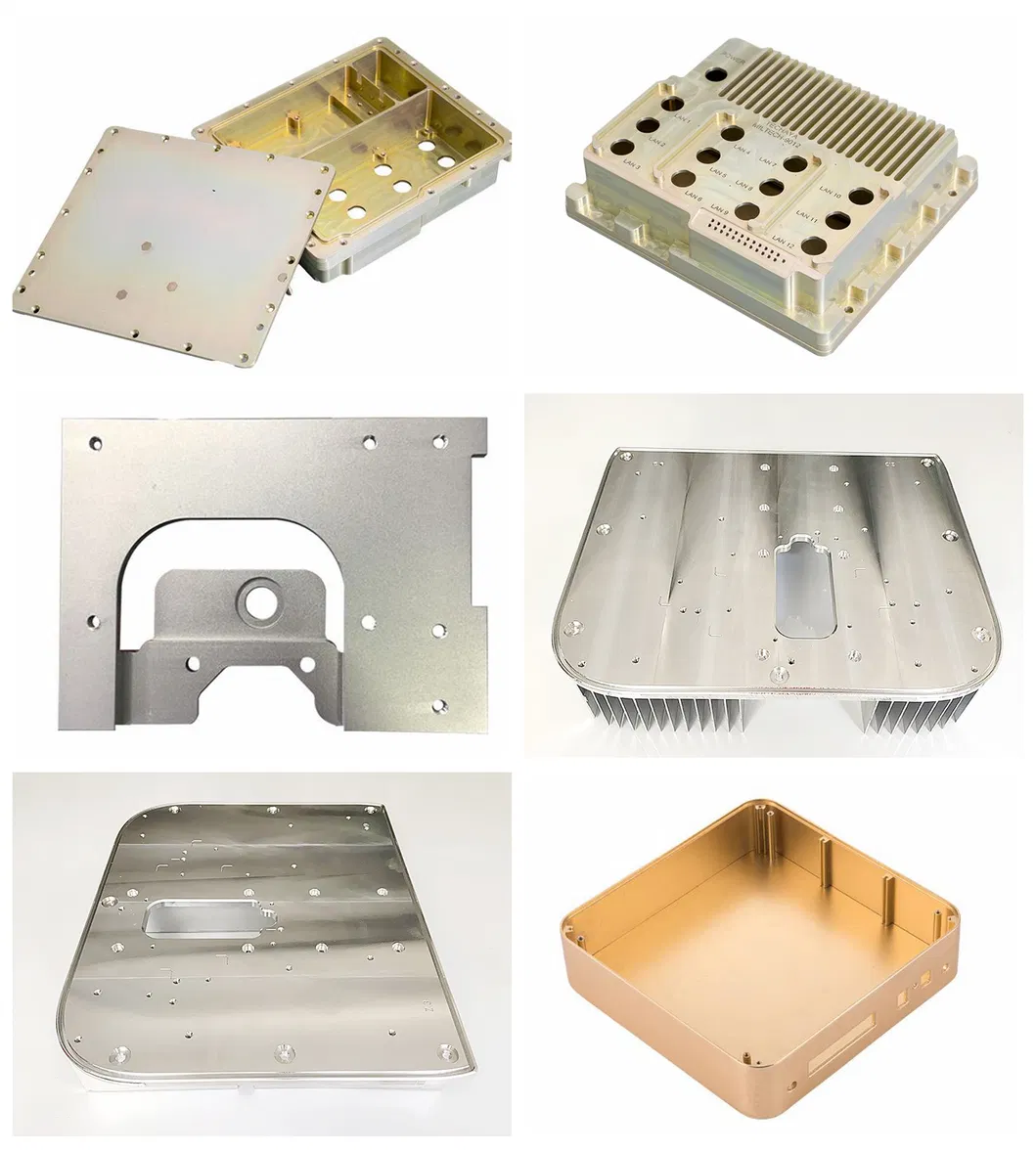

OEM PROTOTYPE CNC MILLING SERVICE

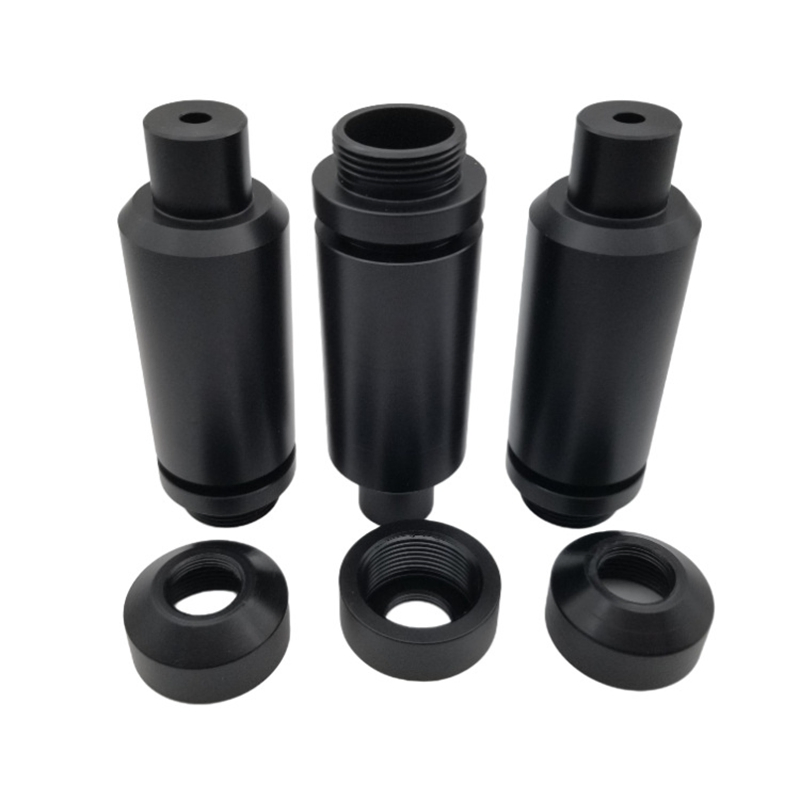

Material:
Our distinguished materials selection includes premium-grade aluminum options like AL:6061-T6, AL:6083, and AL:7075, each offering unparalleled strength and remarkable durability.
Surface Treatment:

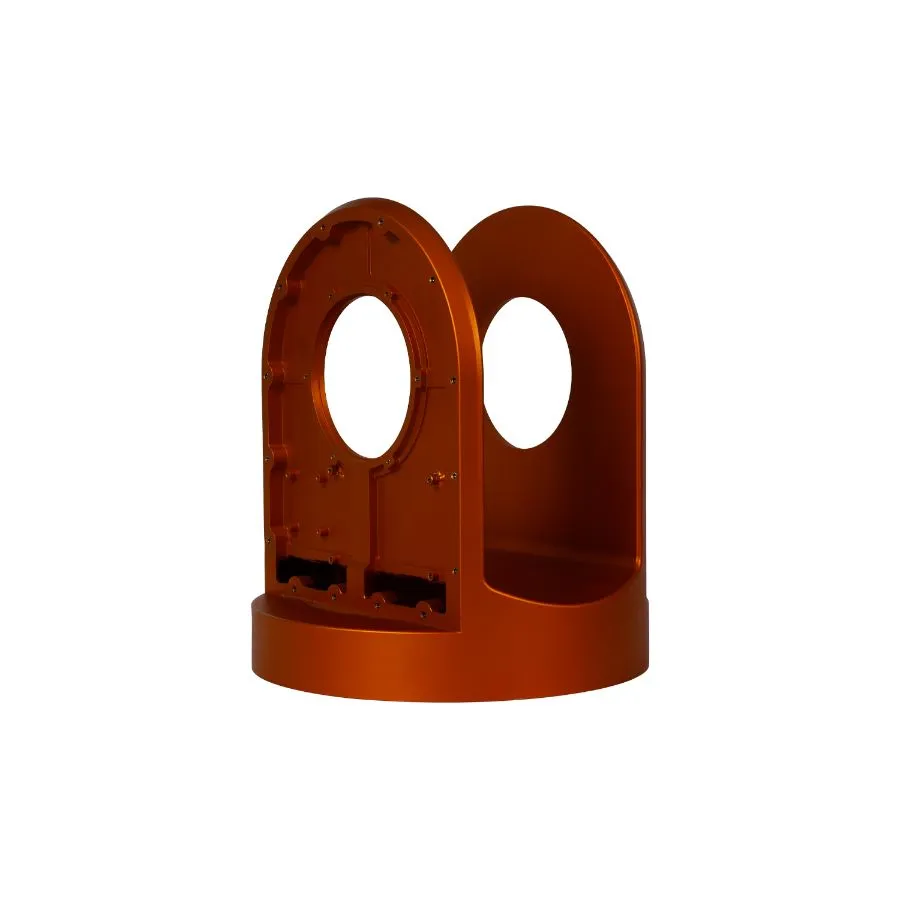

Expertly finished with a striking red sandblasted anodized coating, providing not only aesthetic allure but also fortified protection.
Tolerance: Ra 1.6

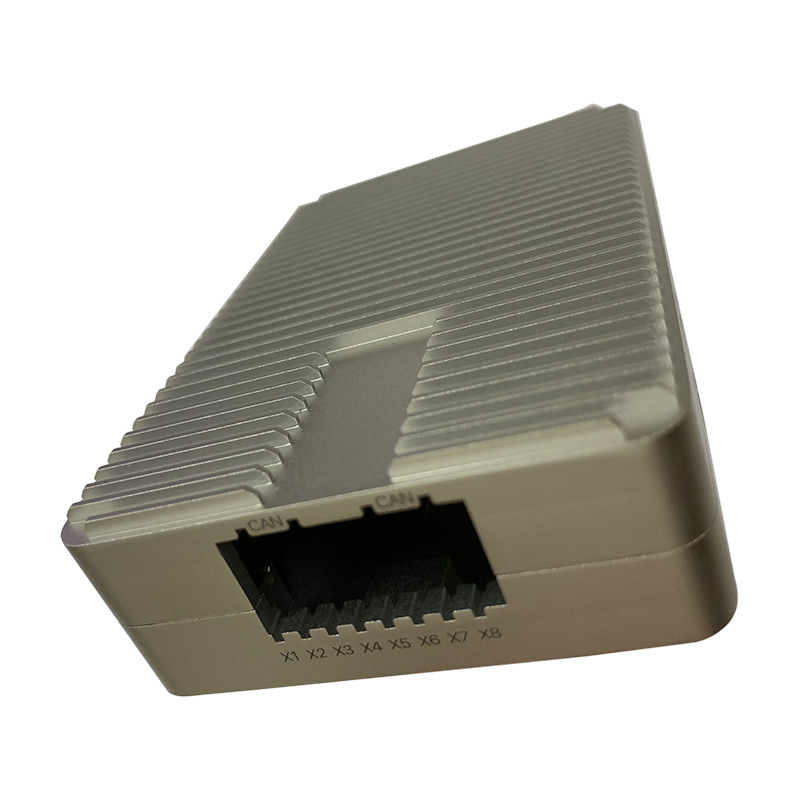

Material:
Select from our high-quality aluminum materials such as AL:5083, AL:5052, and AL:6061-T6, each chosen for their superior performance and reliability.
Surface Treatment:
Concluded with a sophisticated conductive gold anodized layer, ensuring both functional excellence and elegant appeal.
Tolerance: Ra 1.6

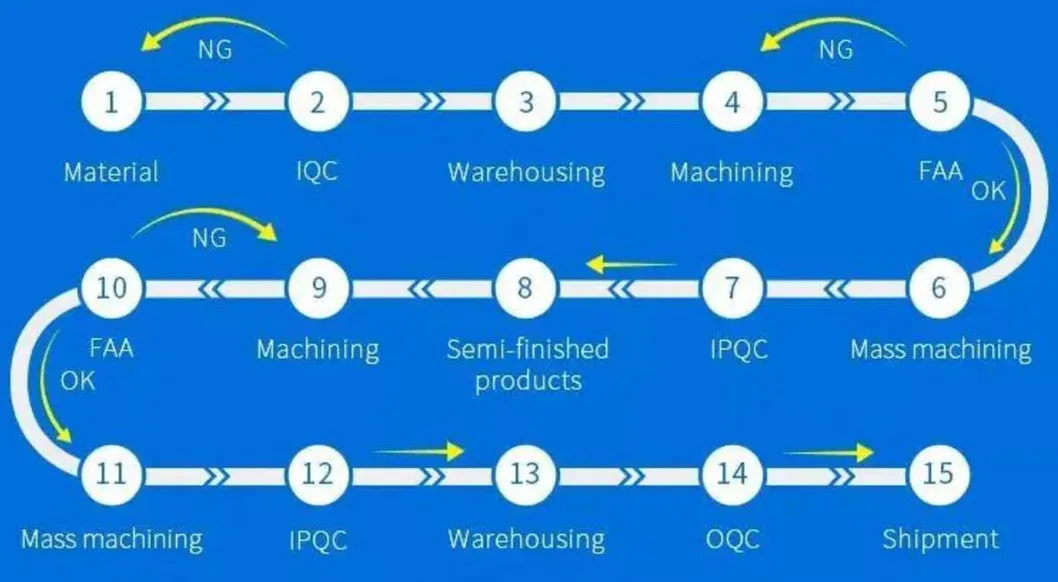

Our rigorous quality control process incorporates the daily use of cutting-edge dimensional inspection tools, ensuring that each product is crafted with precision and unparalleled quality.
Note: In the absence of 2D drawings, parts will be meticulously crafted to meet the industry-leading ISO 2768 M standards, achieving tight tolerances of +/- 0.01 mm for absolute precision.
| CNC Machining Standards | ||
|---|---|---|
| Type | Dimension (Metric) | Dimension (Imperial) |
| Linear Size | ±0.025mm | ±0.001 inches |
| Bore Diameter (Uncompared Bore) | ±0.025mm | ±0.001 inches |
| Shaft Diameter | ±0.025mm | ±0.001 inches |
| Minimum Thread Size Available | M1 x 0.25mm | - |
| Part Size Limitations | 2200x1850x350mm | 86x72x13 inches |
Packing and dispatching are crucial links that directly affect whether the goods can reach customers safely and in a timely manner. During the packing process, our staff carefully check the quantity, specifications, and other order details to ensure perfect consistency. Customer details, cargo information, and tracking markings are clearly displayed on every package for easy identification. According to your requirements, we choose the most suitable transportation mode, including sea, air, and land transport. Prior to shipment, we handle all customs clearance and inspection procedures to facilitate a smooth transit.
