Innovative 2025 Glass Cutting System for Precision Applications

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO.

Zxx-C2515

Application

Glass

Process Usage

CNC Machine Tools

Movement Method

Linear Control

Control Method

Semi-Closed Loop Control

Numerical Control

CNC/MNC

Processing Precision

0.01mm, 0.05-0.1(mm)

Performance

High-End CNC

Certification

CE, ISO 9001

Condition

New

Structure

Horizontal

Control System

PLC

Type

Glass Process Center

Washing Machine Type

Waterjet

Edging Machine Type

Drilling, Milling, Edging, Polishing

Grinding Head Number

Drawing

CAD Drawing

Heads Number

Max.Motion Range

2700*1650mm

Power

13kw

Glass Thickness

3-25mm

Speed

0-20m/Min

Voltage

380V/50Hz

Min Process Size

75X15mm

Packaging & Delivery

Package Size

220.00cm * 200.00cm * 180.00cm

Package Gross Weight

200.000kg

Product Description Specifications

Description	Unit	Parameter
Model No.	1	ZXX - C3018
Colum	Set	Heavy iron
Control System	set	LEETRO
Axis	PC	Cutter change: by hand
		Diam: ¢125
		coller: cool water
		RPM: 24000
		POWER: 7.5KW
Drive	set	YMPC
Invertor	kw	BEST: 11KW
Max glass size put	mm	3000*1800mm (Length not limited by adding table)
Max Grinding Size	mm	*25001450mm**
Max router (milling) size	mm	*27001650mm**
Z-axis space height-open	mm	380
motor	set	CHINT
Internal of machine structure	set	Half cover / waterproof design
Work table load weight	KG	120
Positioning accuracy	mm	0.01
Repeated positioning accuracy	MM	0.01
Max speed (empty)	M/MIN	15
Max process speed	M/MIN	3M/MIN
Stroke protection	PC	Omron, Japan
GEAR	PC	GERMAN DMJ-1.5M High precision
Guide Screw bearing	PC	HIWIN
Guide Screw bearing	PC	Model: Z axis with diagonal contact
Lubrication system	set	Origin: TAIRUN
Lubrication system	set	Lubrication automatically
Cooling type	set	Water pump
Main axis cooling	set	Automatic thermostat cooler
Main electric	set	CHINT / SCHNEIDER
Volt./Frequency	KW	AC/380v/10KW/50HZ (As per customer request)
Machine Size	mm	*225040002200mm*
weight	KG	2200
power	KW.H	11.1

Innovative 2025 Glass Cutting System - Inside Details

Innovative 2025 Glass Cutting System - Structural view

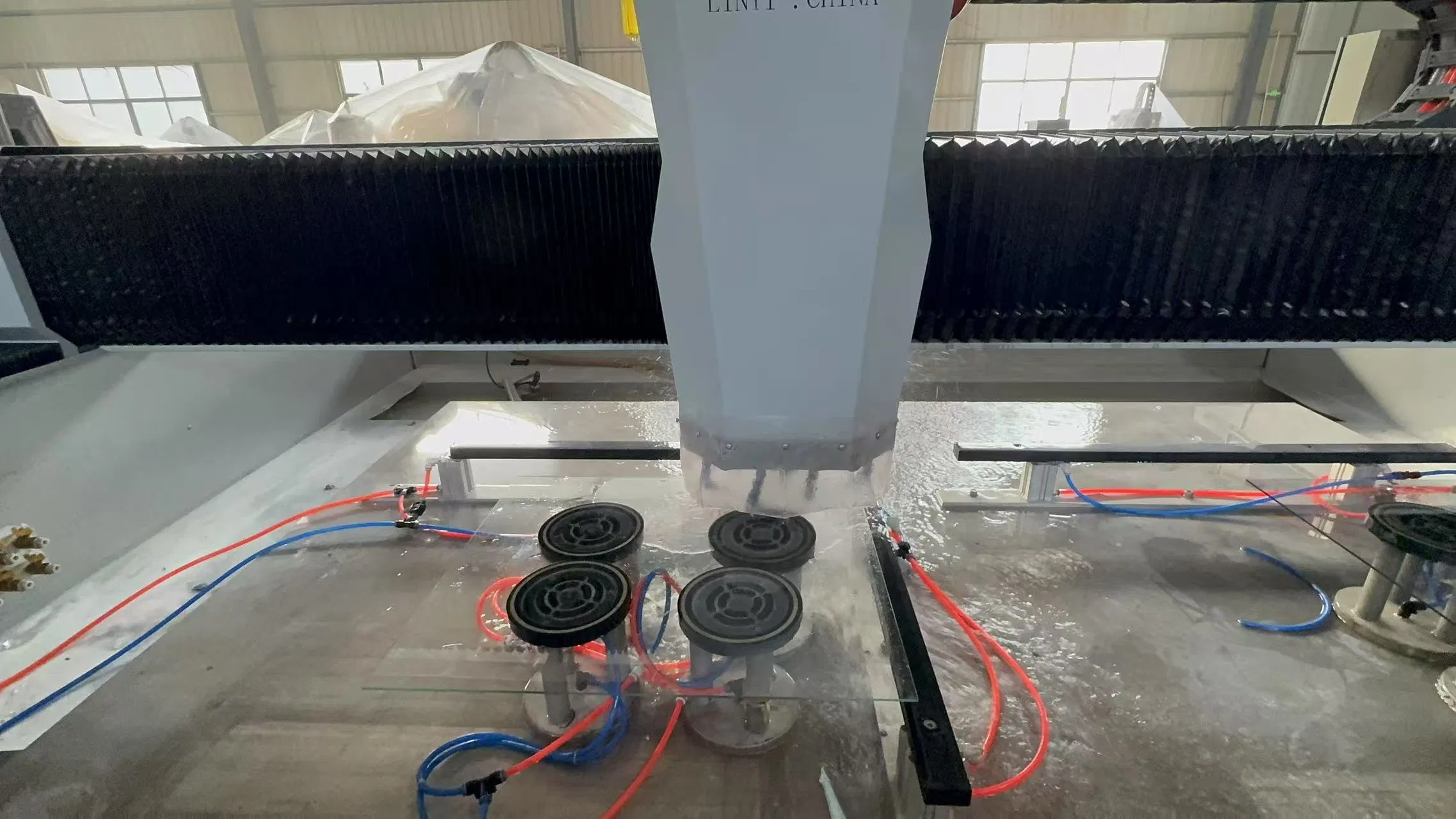

Innovative 2025 Glass Cutting System - Processing details

Services & Operation Policies

Provide on-site installation and after-sales support. (All travel, accommodation, and food costs are at the buyer's expense. Additionally, technicians require a daily payment.)
The machine is shipped as one integrated, fully assembled unit. Operation manual and CD are included to facilitate self-guided learning.
Welcome client training sessions at the factory. Training fees and accommodation within the factory premises are provided free of charge.
One-year warranty period and life-long maintenance support. Core machine components (excluding consumables) will be replaced at no charge during the warranty period.
24-hour ongoing technical support is accessible through standard online communication tools.

Innovative 2025 Glass Cutting System - Dimensions and setup

Frequently Asked Questions (FAQ)

What functions can this glass processing machine perform?

This versatile horizontal glass process center combines drilling, milling, edging, and polishing functions in one system. It is designed to process glass with high efficiency.

What thickness and sizes of glass can the machine handle?

The machine can process glass thicknesses ranging from 3mm up to 25mm. For the ZXX-C3018 model, the maximum input glass size is 3000*1800mm (which can be extended further by adding custom tables), with a maximum grinding size of 2500*1450mm.

What is the positioning accuracy of the system?

The processing center offers exceptional precision with a positioning accuracy of 0.01mm and a repeated positioning accuracy of 0.01mm, ensuring high-quality output for intricate patterns.

How is the machine delivered, and is installation required?

The machine is shipped as one fully assembled unit. Setup is straightforward, and we include an operations manual and CD. We also support on-site installation and factory-based training sessions.

What is the warranty policy and technical support availability?

We provide a 1-year warranty period and life-long maintenance. Main structural components (excluding consumables) are eligible for free replacement during the warranty period. We also provide continuous 24-hour technical support online.

What components and systems ensure machine reliability?

The machine utilizes premium industrial components, including a LEETRO control system, HIWIN guide screws, a German DMJ-1.5M high-precision gear system, Omron stroke protection, and electrical components from Schneider and Chint.
