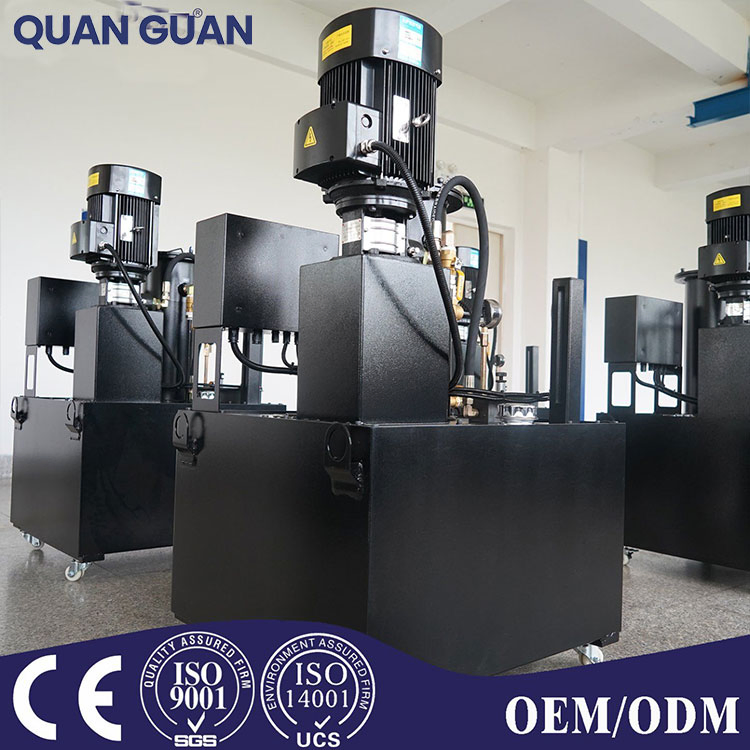

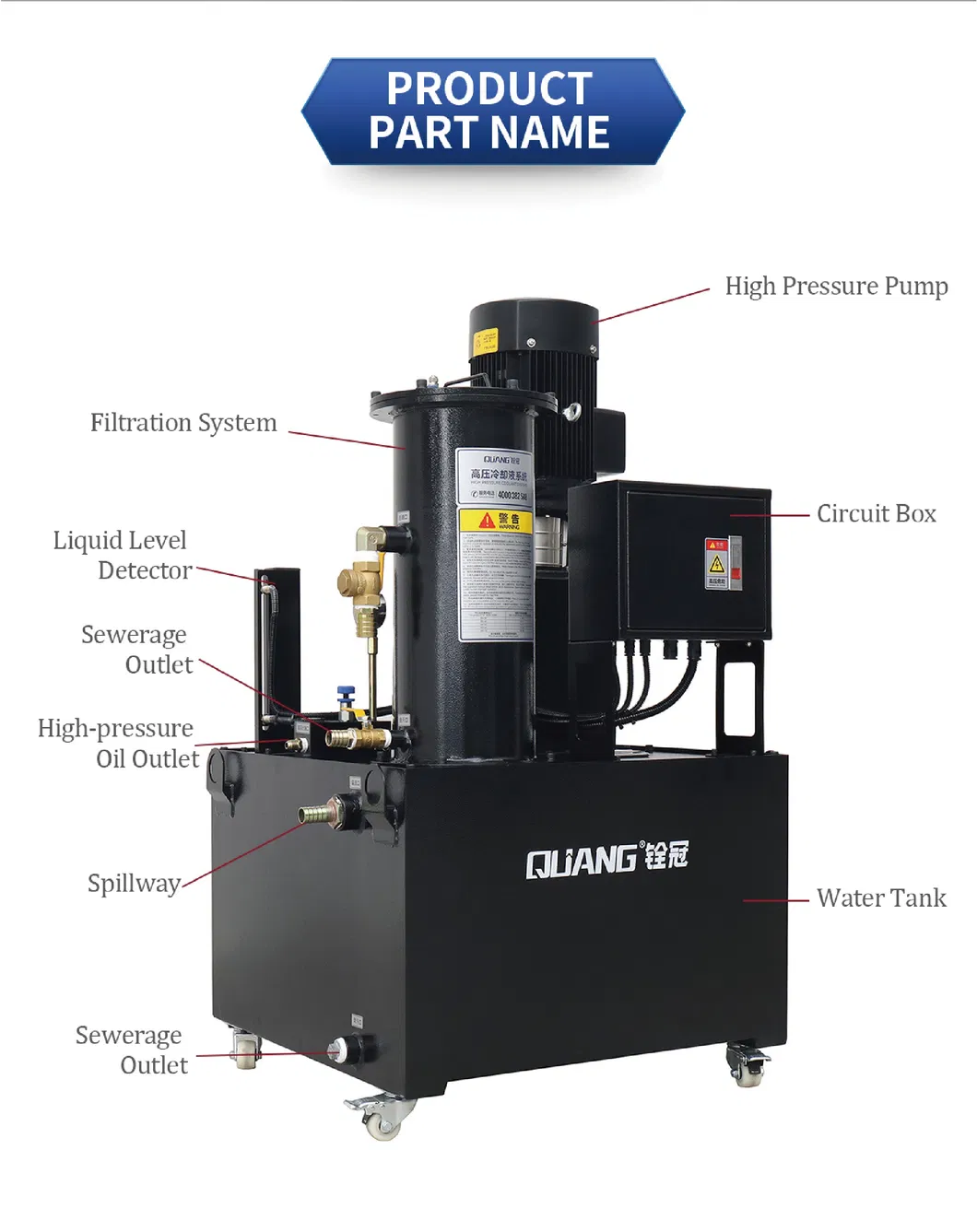

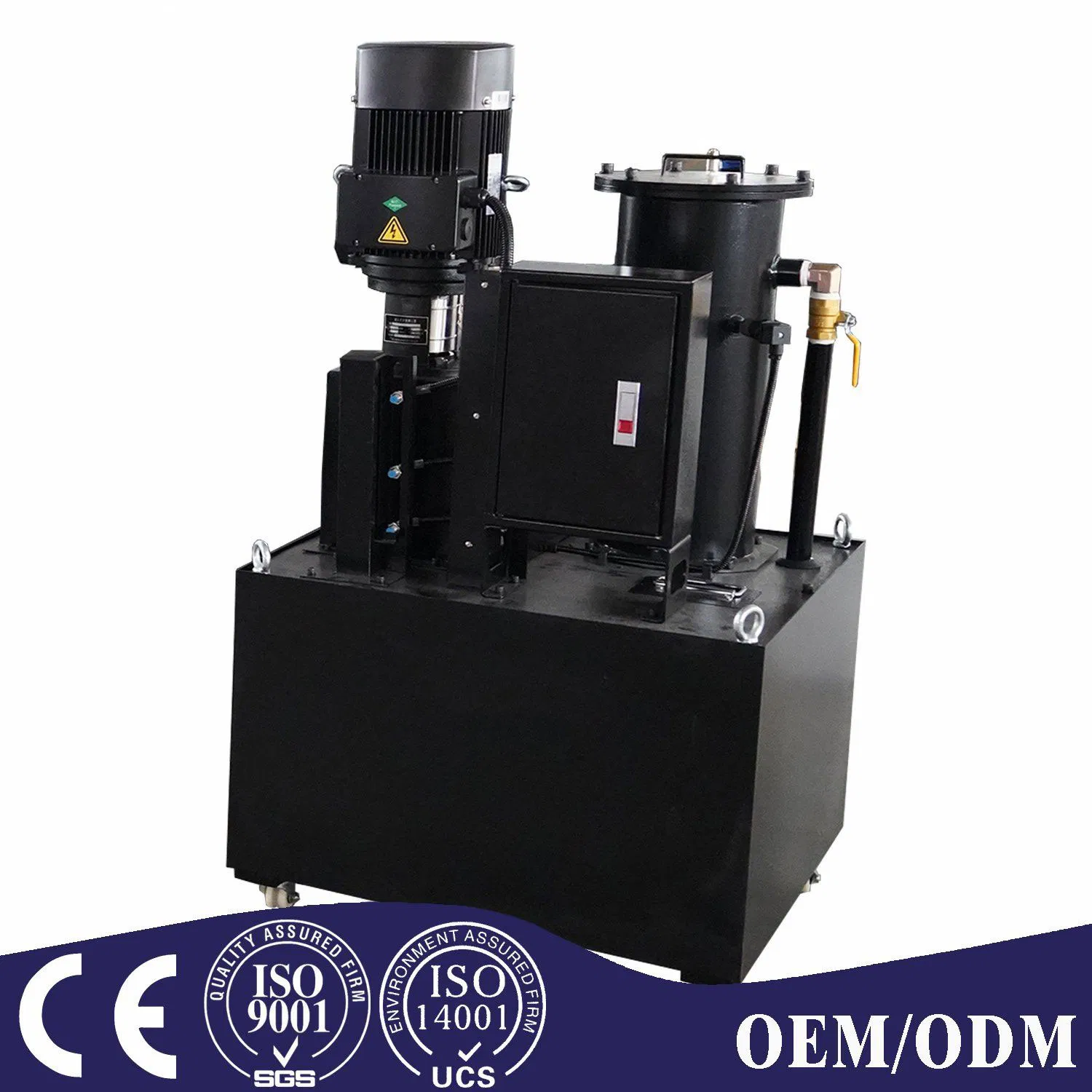

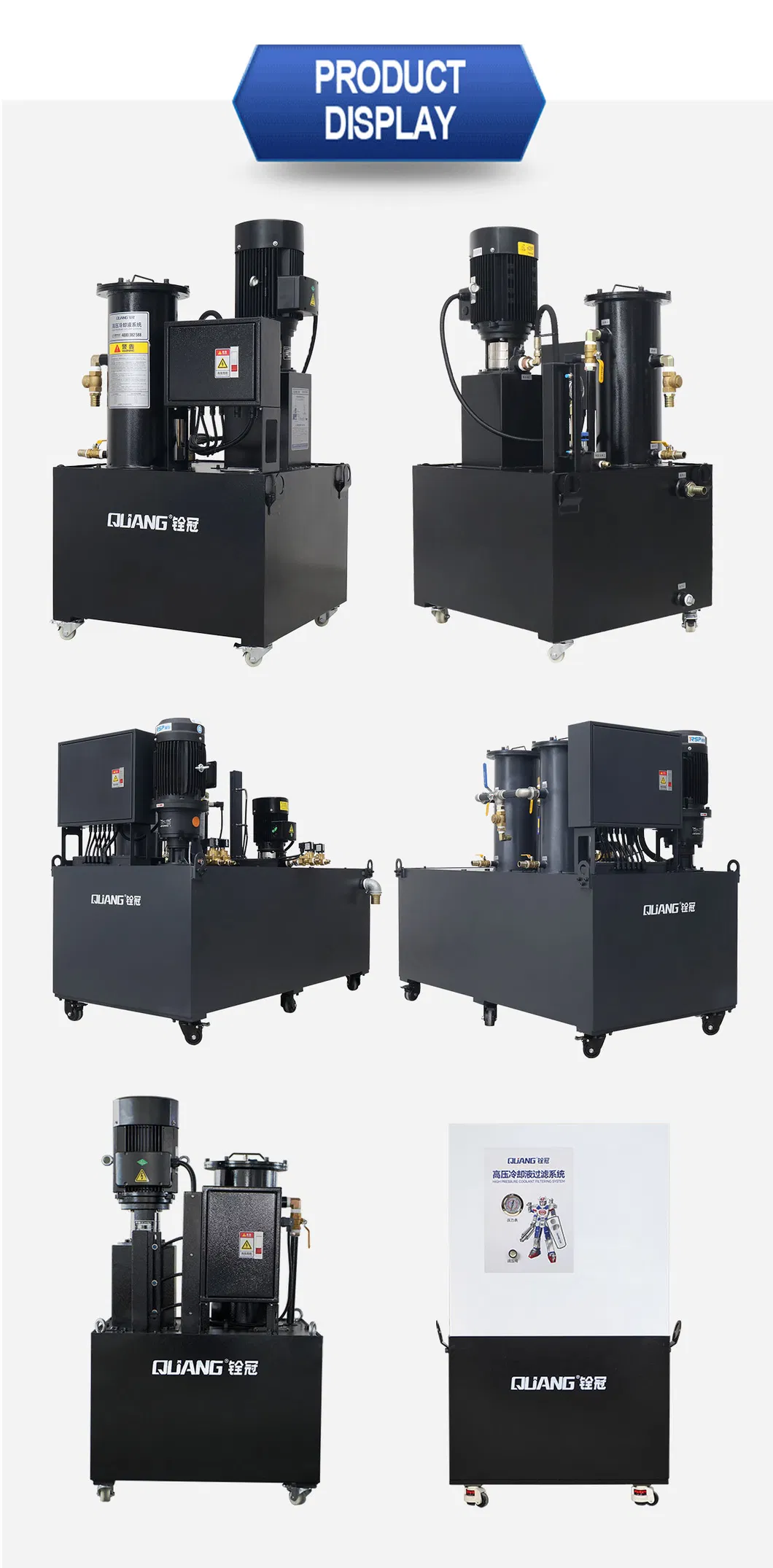

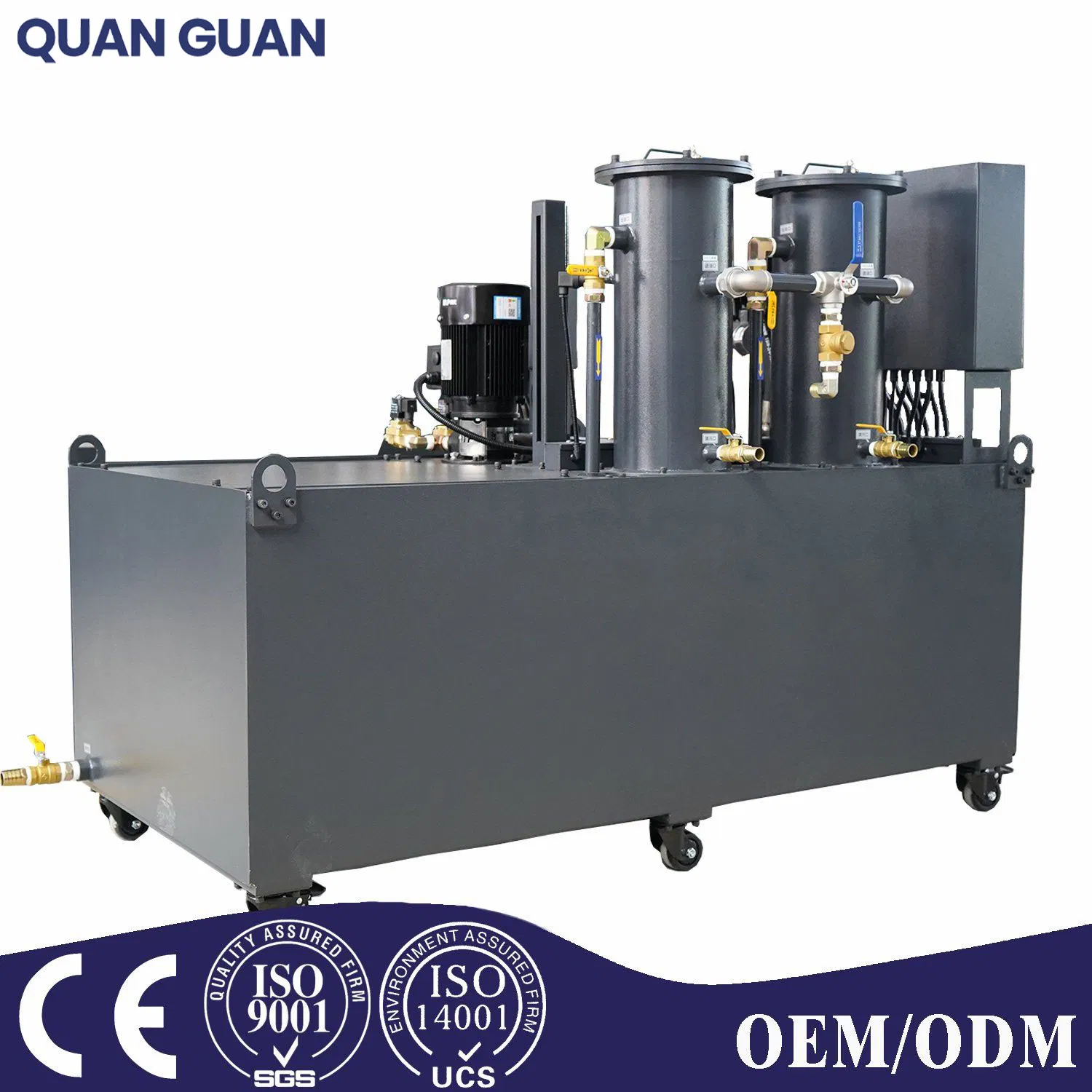

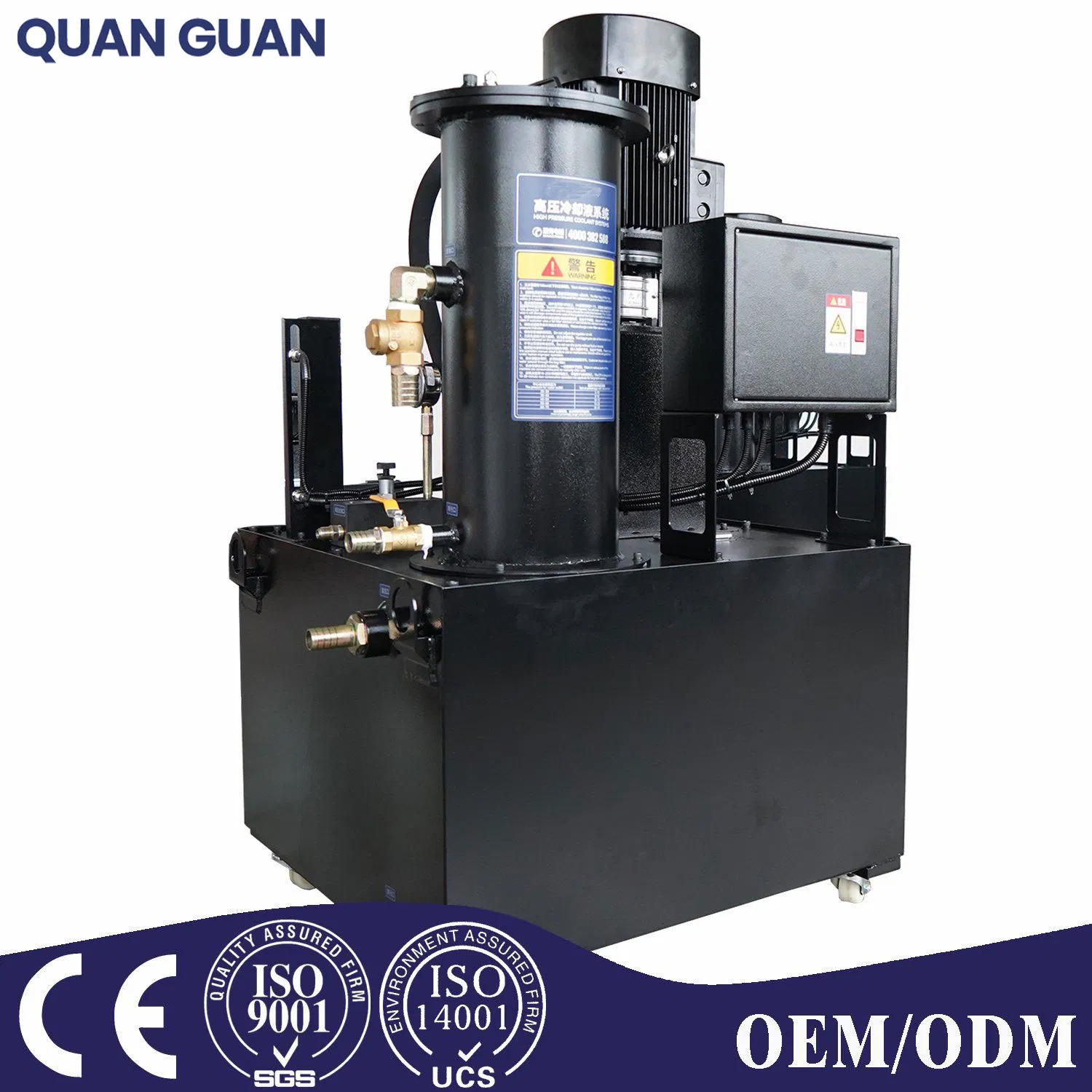

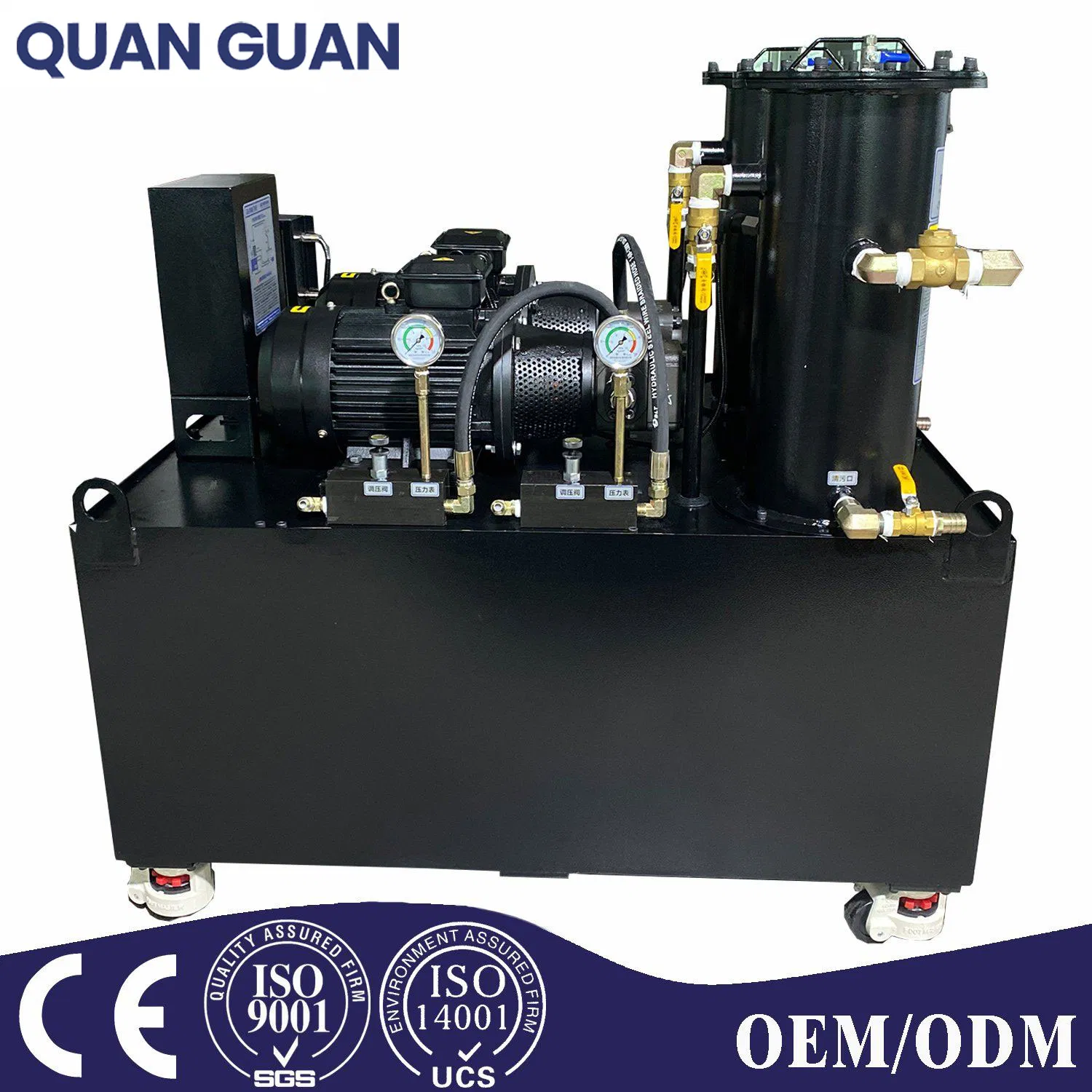

The water outlet from the center of the spindle, also known as spindle internal cooling or tool internal cooling, refers to the direct transfer of coolant through the spindle through pressure to the cutting part of the tool. In addition to timely cooling of the tool, high-pressure coolant can also be used to vigorously wash the chips milled from the workpiece.
| Item | QG-HPC-2MP-33LA-LX-1 | QG-HPC-3MP-33LA-LX-1 | QG-HPC-5MP-40LA-LG-1 | QG-HPC-7MP-40LA-LG-1 |
|---|---|---|---|---|
| Outlet pressure | 20Bar | 30Bar | 50Bar | 70Bar |
| flow rate | 33L/min | 33L/min | 40L/min | 40L/min |
| Rated power | 2.2KW | 4.0KW | 5.5KW | 7.5KW |
| Input Power | 220V/380V 50HZ/60HZ | |||
| Bag filtration | Min 25μm | |||
| Pump type | centrifugal pump | centrifugal pump/Screw pump | Screw pump | Screw pump |
| Pump brand | Customers can specify the water pump brand (centrifugal pump brand Nanyuan, screw pump brand yellow pump) | |||
| Size | 700*700*1080mm | 700*700*1080mm | 770*880*1390mm | 770*880*1390mm |
| Water tank capacity | 220L | 220L | 350L | 350L |
Eliminate the worry of entanglement in metal processing, avoid iron filings entangled on parts and tools, and ensure smoother production.
Increase chip cutting speed and tap into more productivity in production.
Reduced tool wear. Reduce the local temperature generated by high temperatures during machining and extend the tool life. Reduce the frequency of tool replacement.
Improve quality stability and improve the qualification rate of parts processing.
Improve the surface smoothness of parts, enhance their quality, and enhance their market competitiveness.

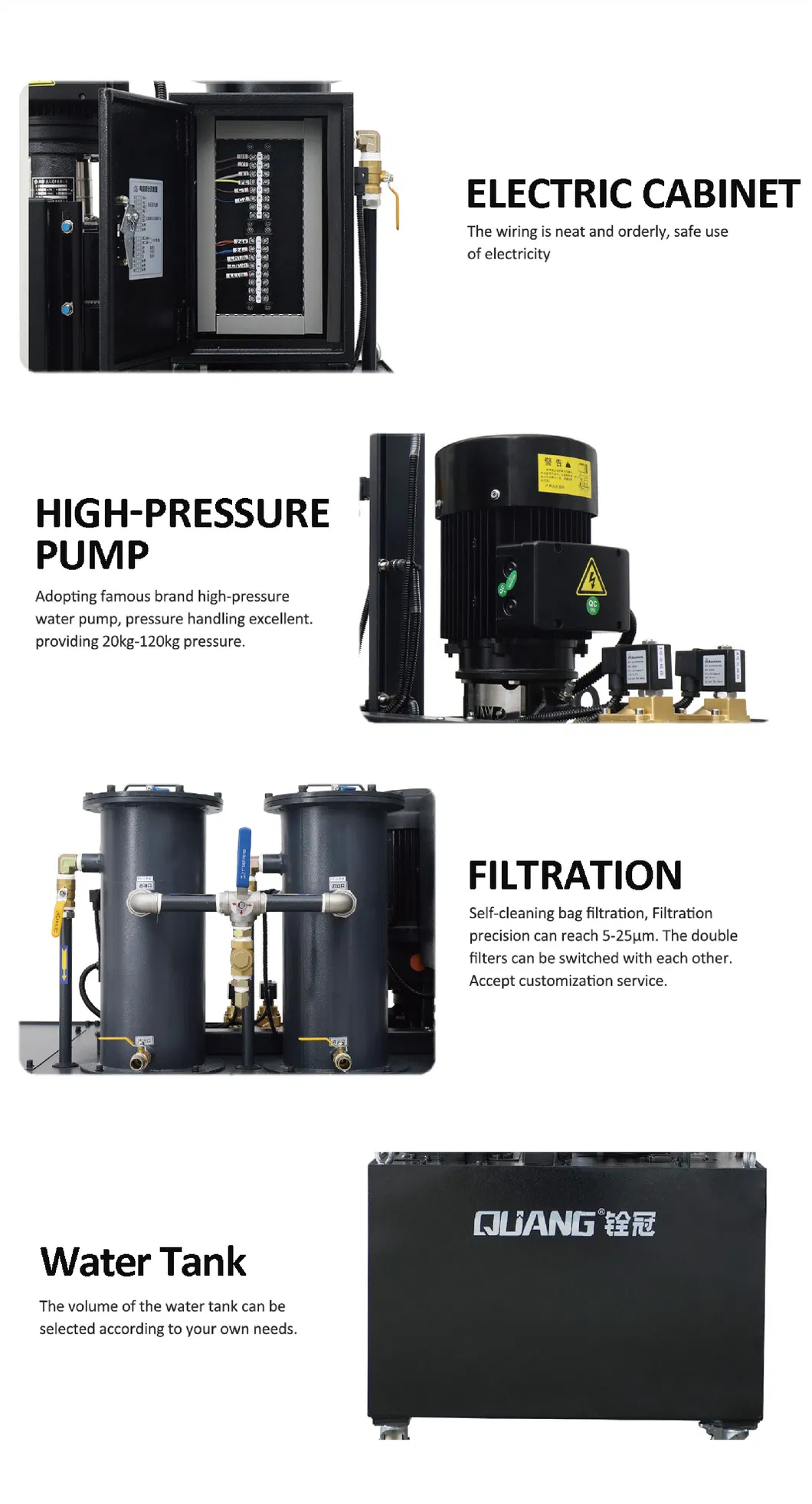

Designed with an automatic cleaning filter element function, it is easy to disassemble and maintain, making it convenient and fast.
The spindle center water outlet system is mainly applicable to metal processing equipment, such as spindle water outlet CNC machining centers, deep hole drilling and milling machines, crankshaft grinders, gear grinding machines, CNC turning and milling composite machining machines, gantry drilling and milling machines, gantry machining centers, CNC lathes, deep hole boring and milling drilling machines, etc.
Always used in: automotive component manufacturing, precision mechanical processing manufacturing, batch intelligent production lines for workpiece and tool washing, cooling, lubrication, chip breaking, and chip removal, extending the service life of the tool, improving the machining accuracy and surface finish of the components.
Spindle internal cooling refers to the direct transfer of coolant under high pressure through the center of the spindle directly to the cutting zone of the tool. This optimizes cooling, lubrication, and chip flushing.
The system features bag filtration with an accuracy of less than 25μm. This ensures micro-particles are efficiently filtered out, preventing damage to the spindle and tool.
It is widely used in automotive component manufacturing and precision machining. It integrates with CNC machining centers, deep hole drilling/milling machines, crankshaft grinders, CNC lathes, and gantry machining centers.
Yes. Customers can specify the pump brand based on requirements. Generally, Nanyuan brand is used for centrifugal pumps, and Yellow Pump brand is preferred for screw pumps.
By delivering coolant directly to the cutting point, it reduces the high local temperatures generated during heavy machining. This dramatically reduces tool wear and extends the service life of tools.
The system supports standard industrial power grids with input voltages of AC220V or AC380V at 50Hz/60Hz frequencies.
