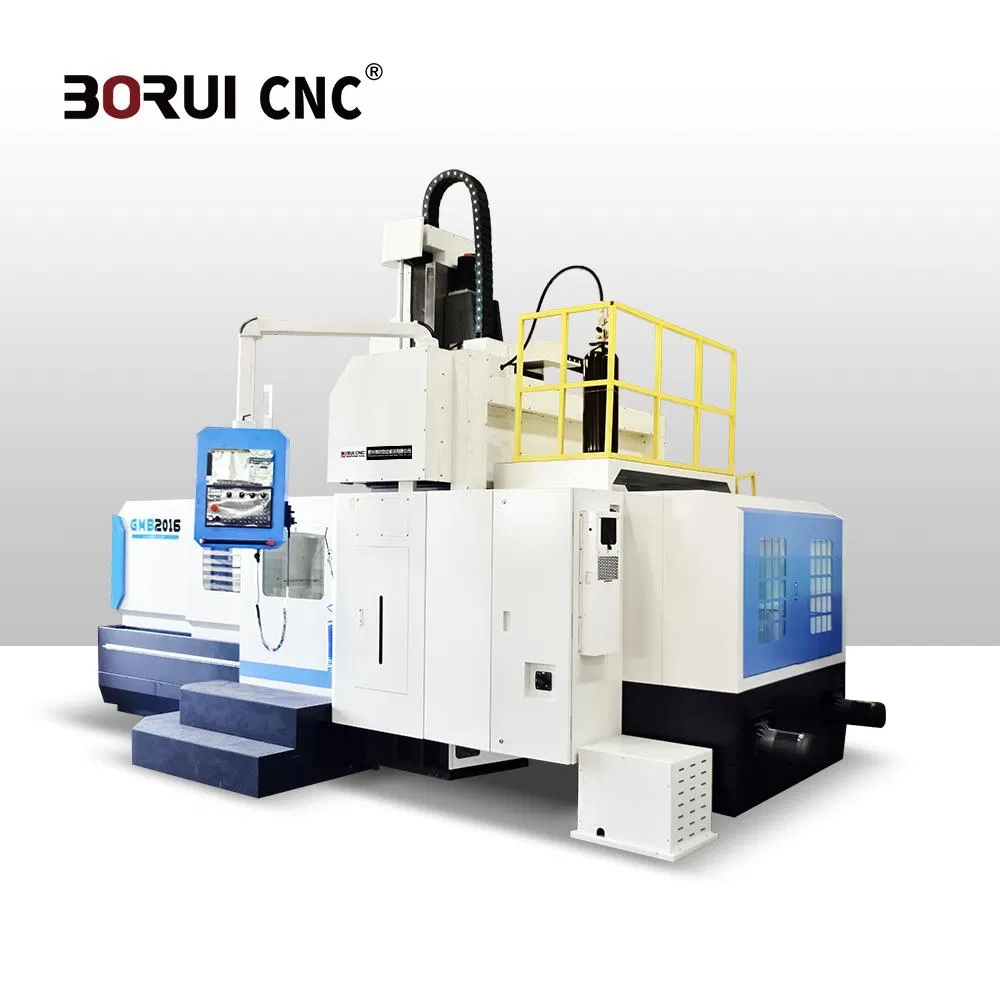

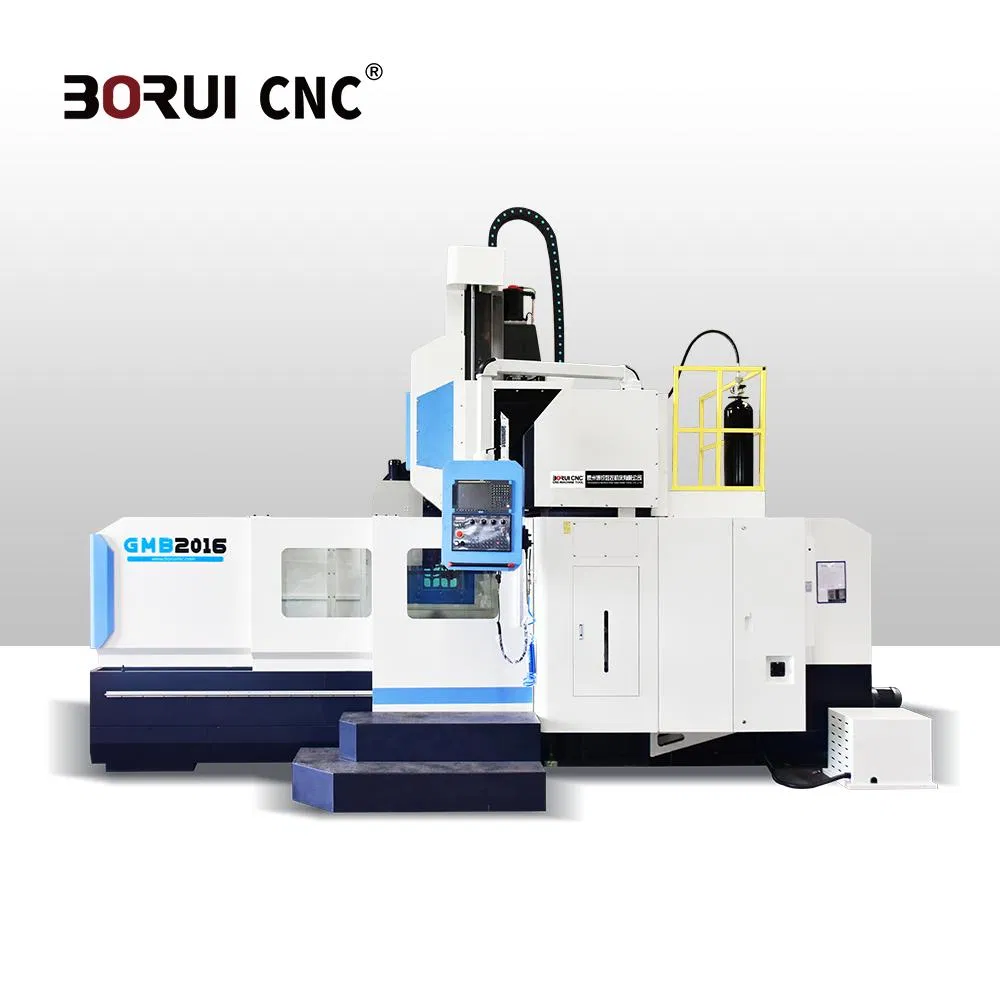

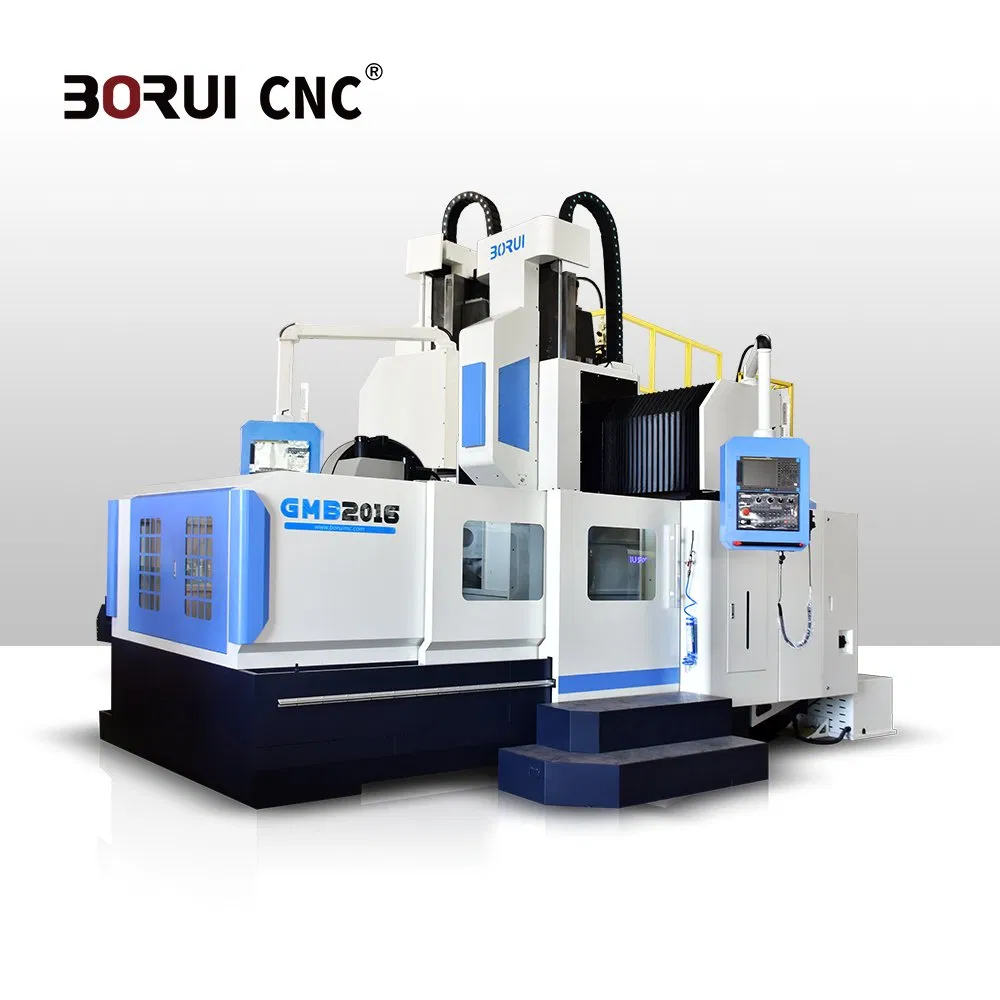

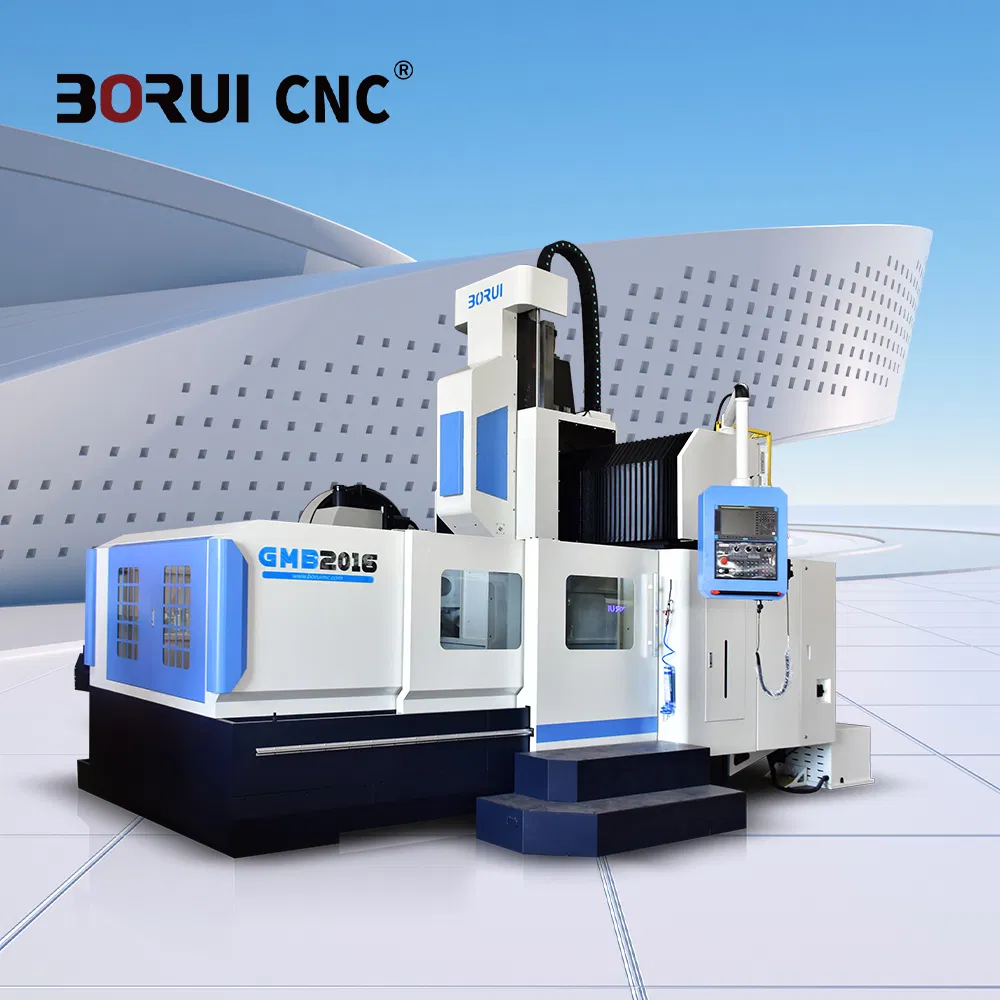

GMB2016 Automatic Machining Center Gantry Type 5 Axis CNC Milling Machine for Metal
Product Description
The gantry machining center refers to the machining center in which the axis of the Z axis of the main shaft is perpendicular to the worktable. Especially suitable for machining large workpieces and workpieces with complex shapes. There are fixed beam type (beam fixed, worktable moving/rotating), moving beam type (beam moving up and down, worktable moving back and forth), moving column type (worktable fixed, gantry moving), crane type (worktable fixed, cross beam moving). Gantry machining center adheres to the characteristics of traditional gantry machine tools with strong rigidity, symmetrical structure and high stability. Through finite element analysis, the structure of basic components is optimized, the dynamic performance of products is improved, and the perfect combination of high power, high torque, high efficiency and high precision machining is realized. It is suitable for large and heavy processing fields such as ships, metallurgy, petrochemicals, mining machinery, electric energy, plastic machinery, construction machinery, and heavy industry machinery.

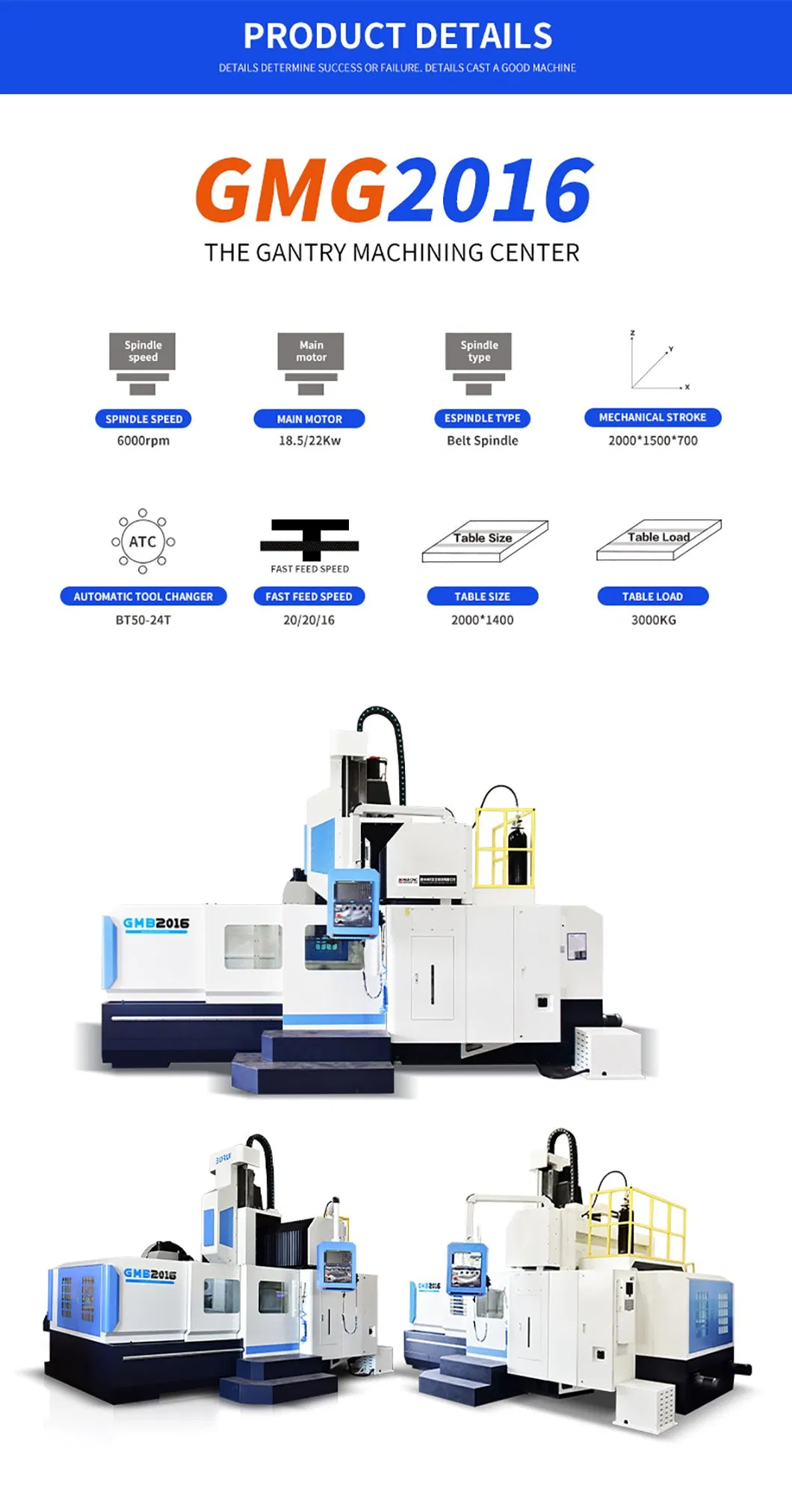

Product Parameters
Product number
GMB 2016
Unit
Workbench
Working desk size
1400×2000
mm
Distance between two columns
1600
mm
Allowable maximum load
3000
kg
T-slot size
22×7
mmxpcs

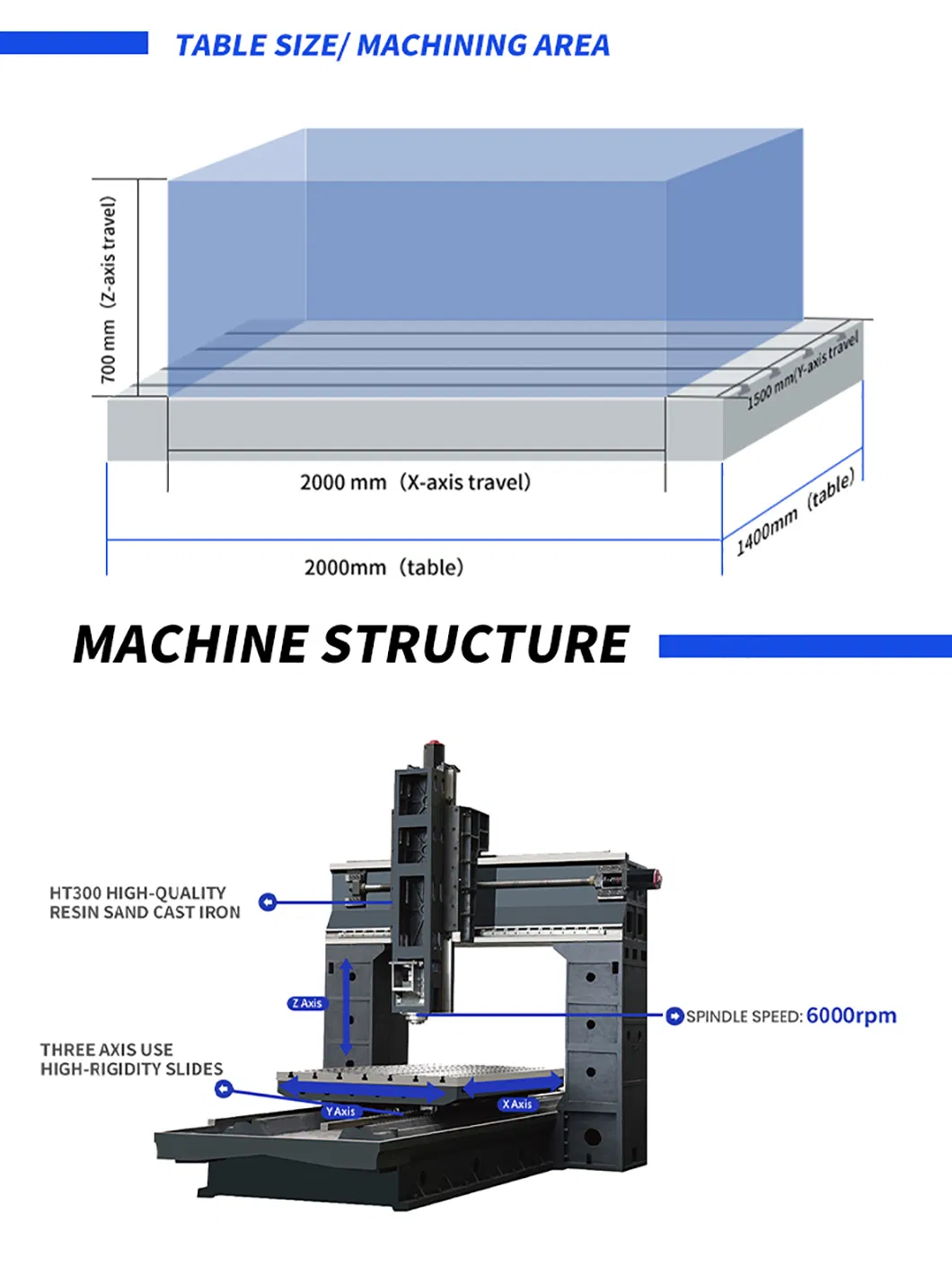

Processing range
X axis maximum stroke
2000
mm
Y axis maximum stroke
1500
mm
Z axis maximum stroke
700
mm
Distance from spindle end to table surface
Max.
850
mm
Distance from spindle end to table surface
Min.
150
mm
Spindle
Main motor power
18.5
KW
Main motor torque
113
NM
Taper hole (7:24)
BT50
-
Spindle speed range
40~6000
r/min
Feed
Cutting feed speed range
1~10000
mm/min
Move quickly
X axis
20
m/min
Y axis
20
Z axis
16
Positioning accuracy
X axis
Executive standard: JB/T8771.4-1998
0.025
mm
Y axis
0.020
Z axis
0.015
Repositioning resolution
X axis
Executive standard: JB/T8771.4-1998
0.014
mm
Y axis
0.012
Z axis
0.010
Machine Weight
16000
Kg
Total electrical capacity
48
KVA
Machine tool outline size
6300×3050×4100
mm

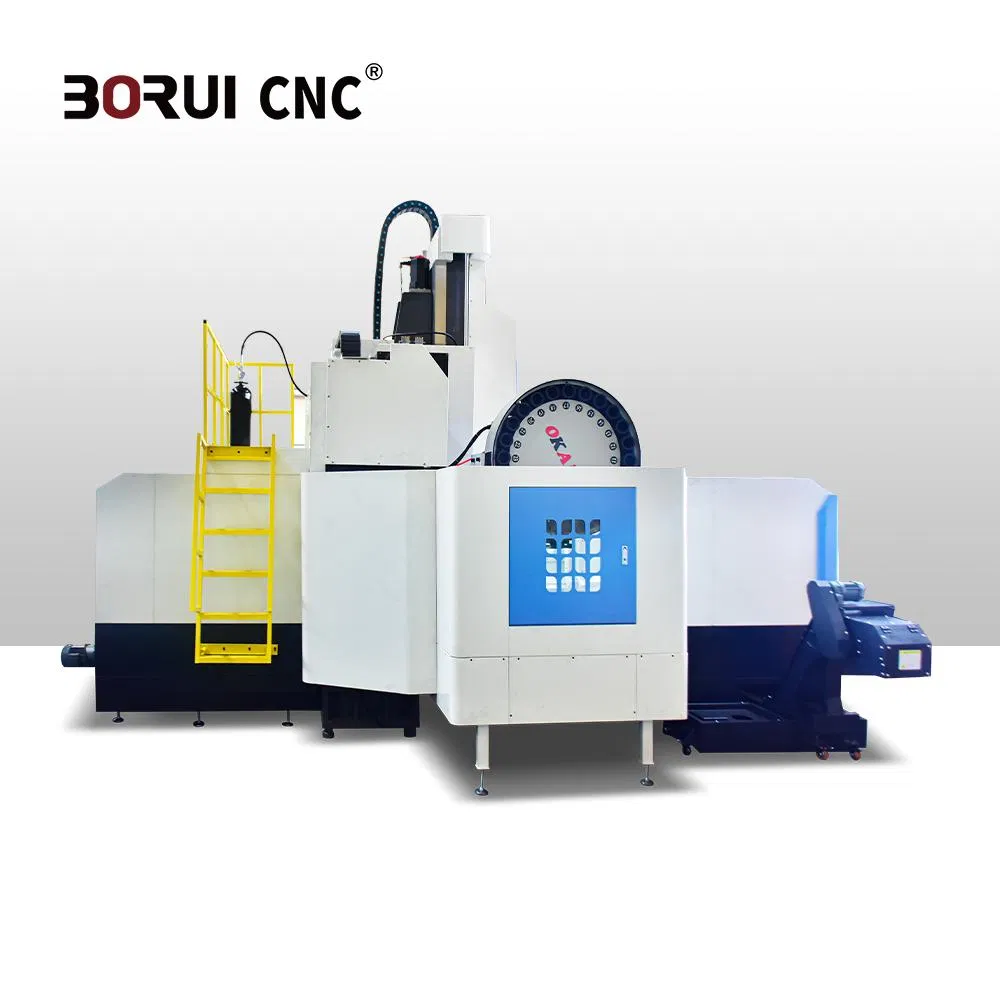

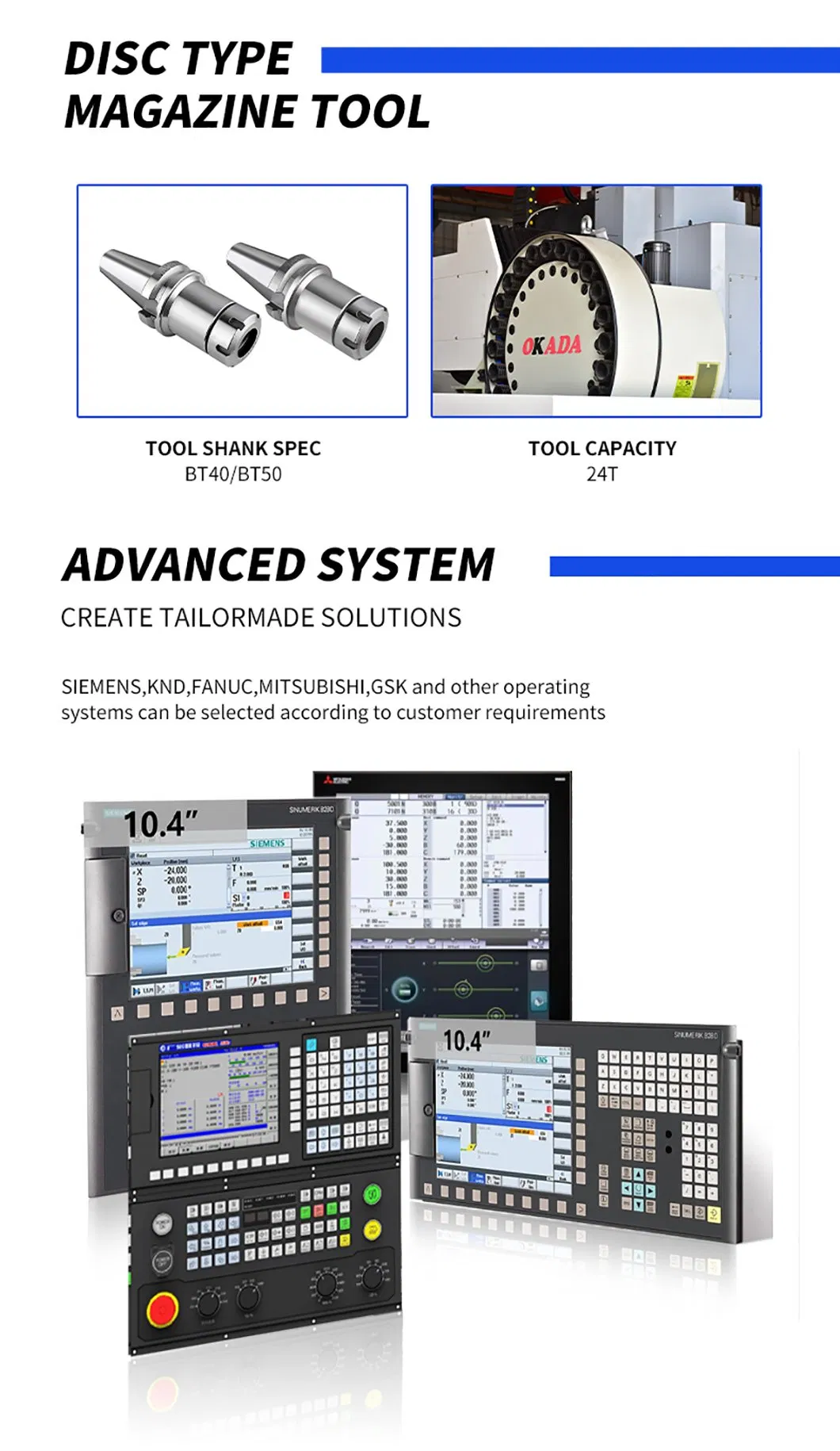

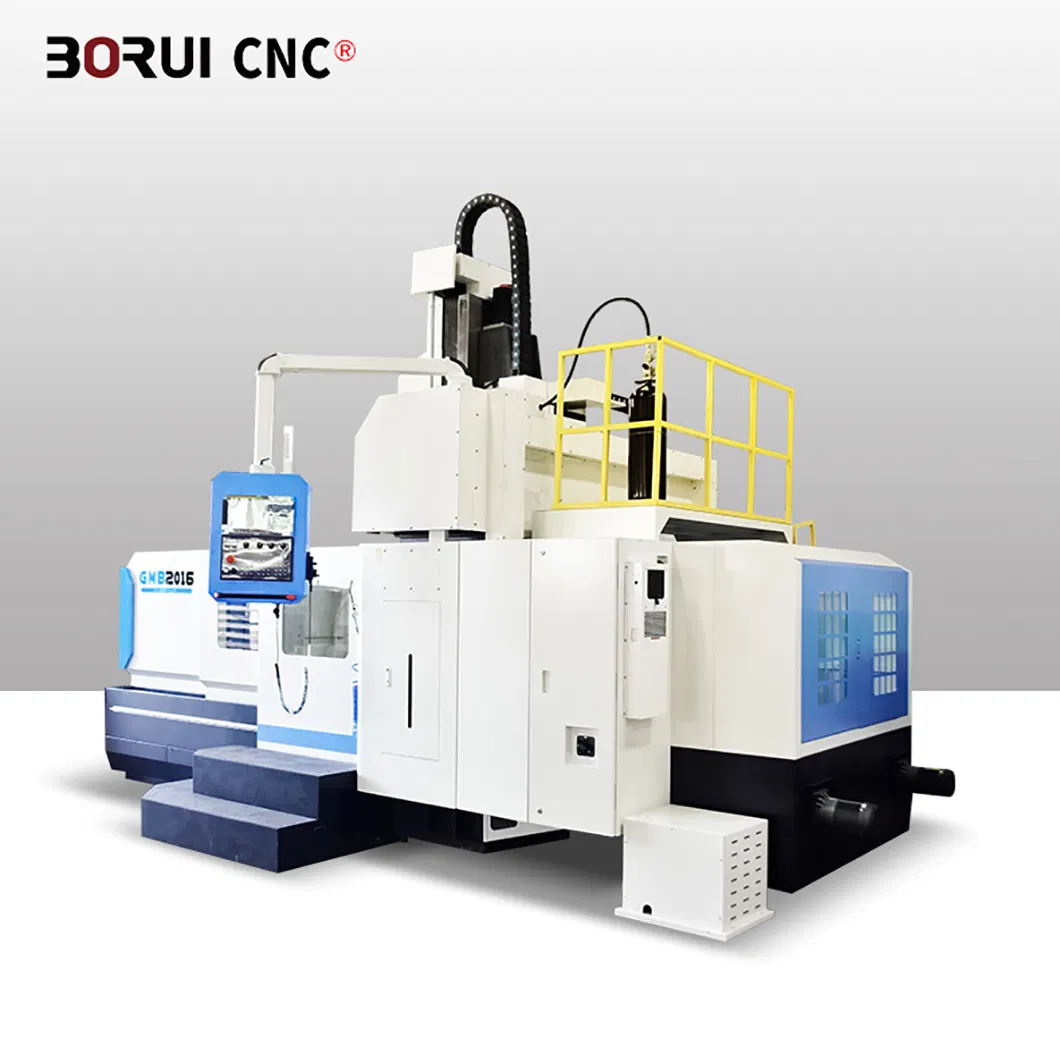

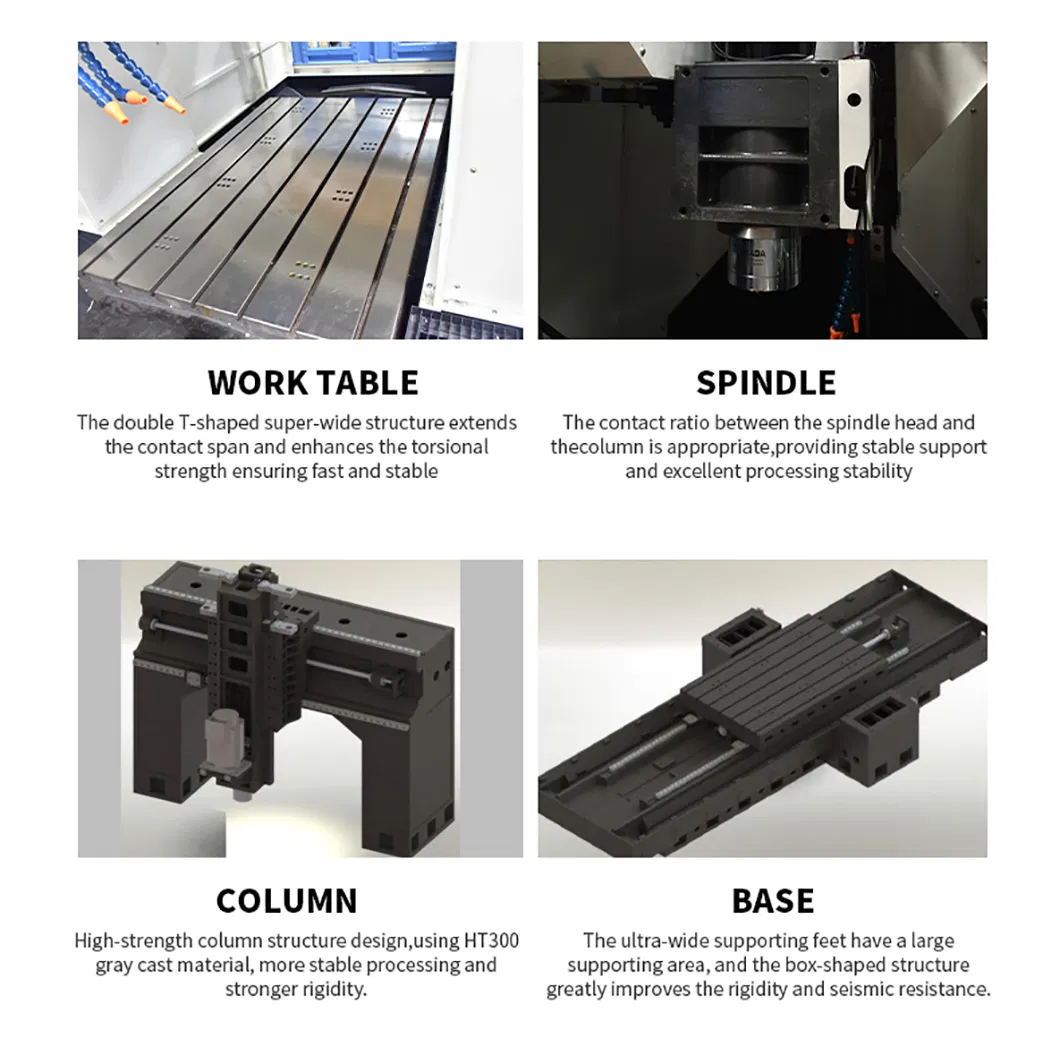

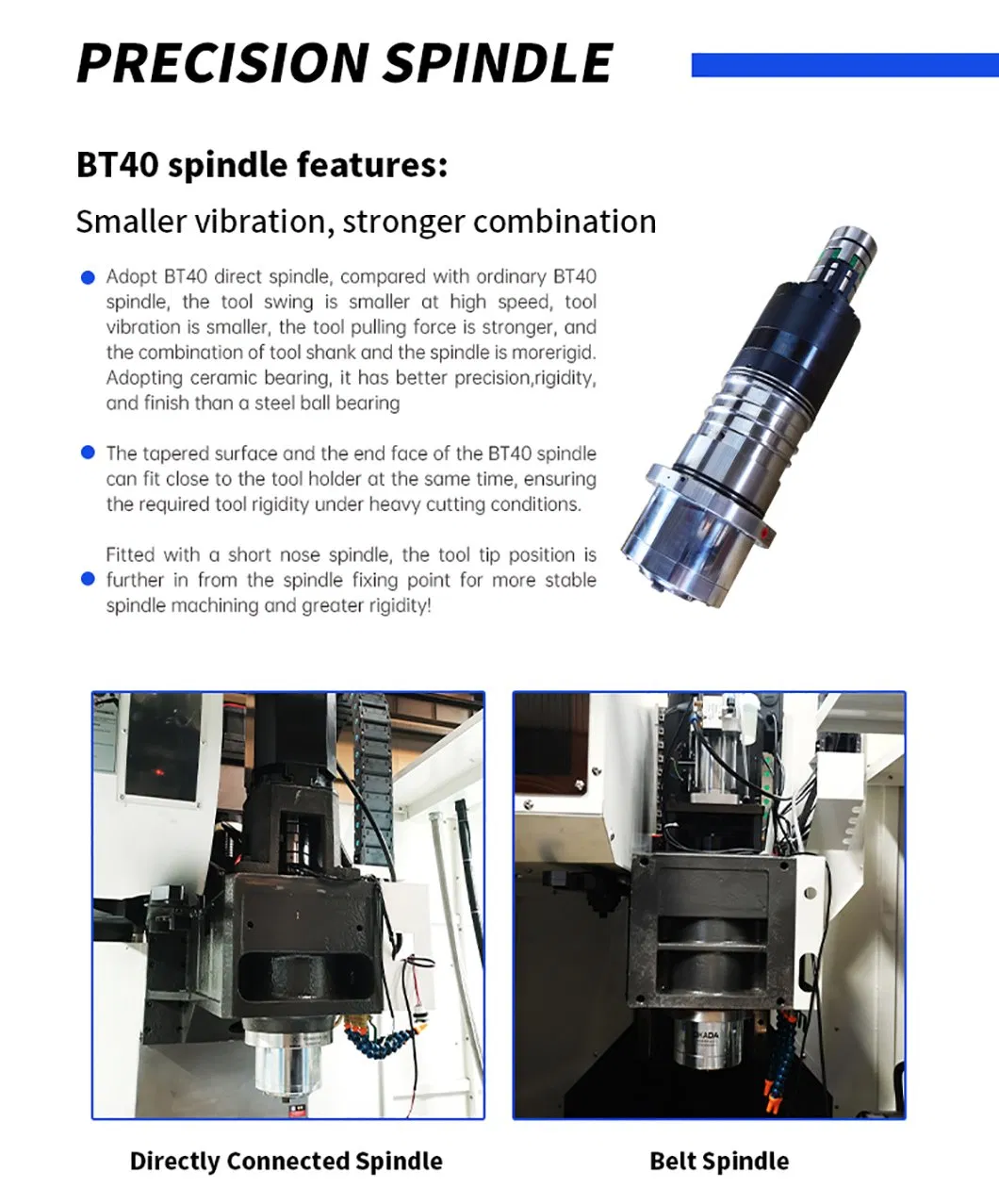

Detailed Photos
Packaging & Shipping
For machine: Usually transported by sea.
For documents: Sent via international express (e.g. DHL, TNT or EMS).
For packing: Free fumigation plywood packaging with a steel base.
Our Service
Technical support online service provided.
Technical files service provided.
Machine operation videos provided.
On-site training service provided.
Spare parts replacement and repair service provided.
All inquiries will be replied to within 8 hours.
Custom engineering and specifications development.
Transparent cooperation policy with honest feature listings.
Company Profile
Frequently Asked Questions
1. How can I choose the most suitable machine?
Please provide your specific requirements or workpiece drawings. Our team will evaluate the details and recommend the most matching model for your production needs.
2. What are the main products available?
We specialize in a variety of machinery, including CNC Lathe Machines, CNC Milling Machines, Vertical Machining Centers, Lathe Machines, Drilling Machines, Radial Drilling Machines, Sawing Machines, and Shapers.
3. How can I visit your manufacturing facility?
You are warmly welcomed to visit. Please contact us in advance to plan and coordinate the arrangements for your visit.
4. What are your accepted trade terms?
We accept FOB, CFR, and CIF trade terms.
5. What are the payment terms?
Payment is accepted via T/T with a 30% initial deposit and the remaining 70% balance paid before shipment. Irrevocable L/C at sight is also accepted.
6. What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set. (For some specific low-cost machinery, it may vary).
