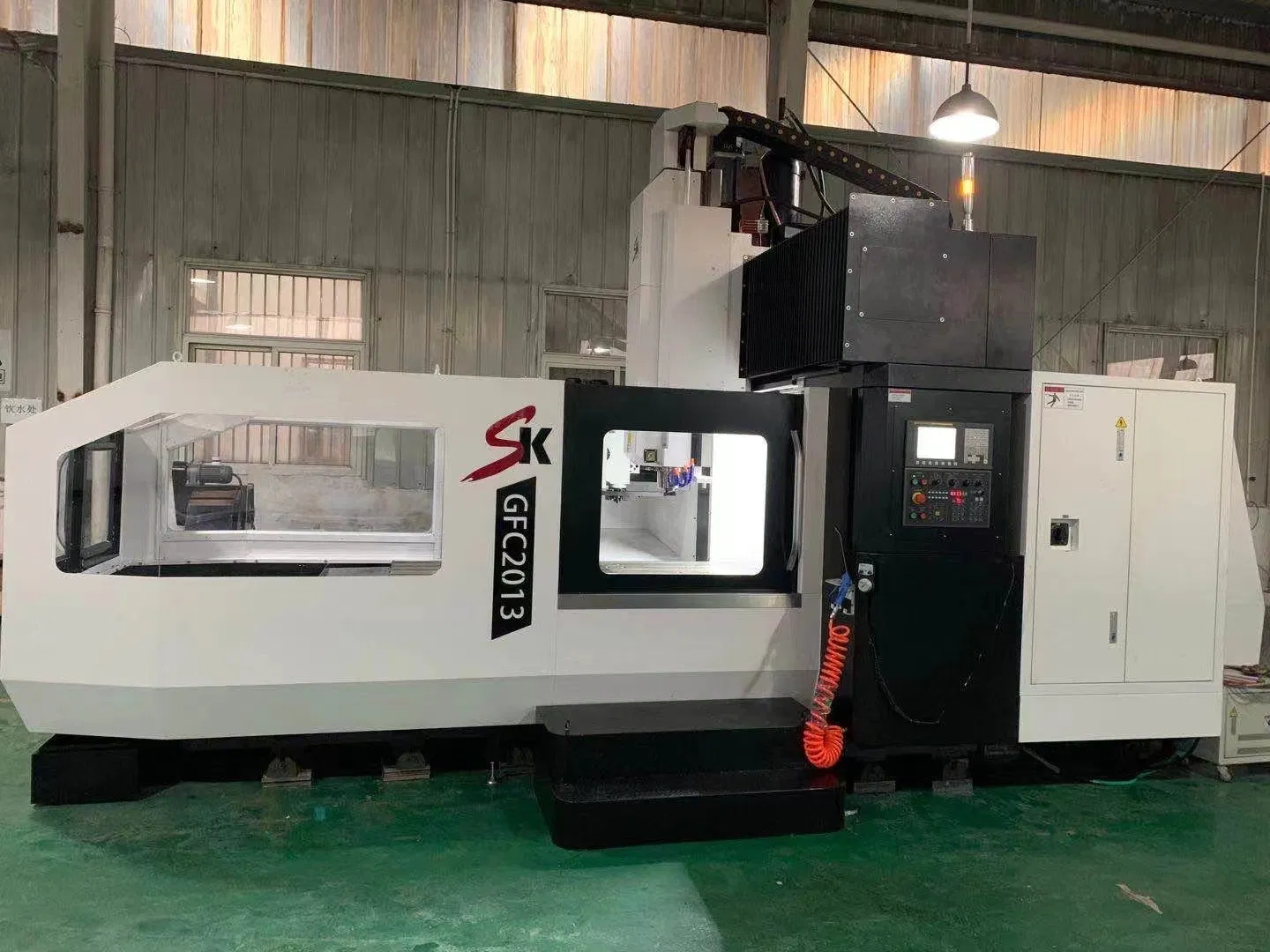

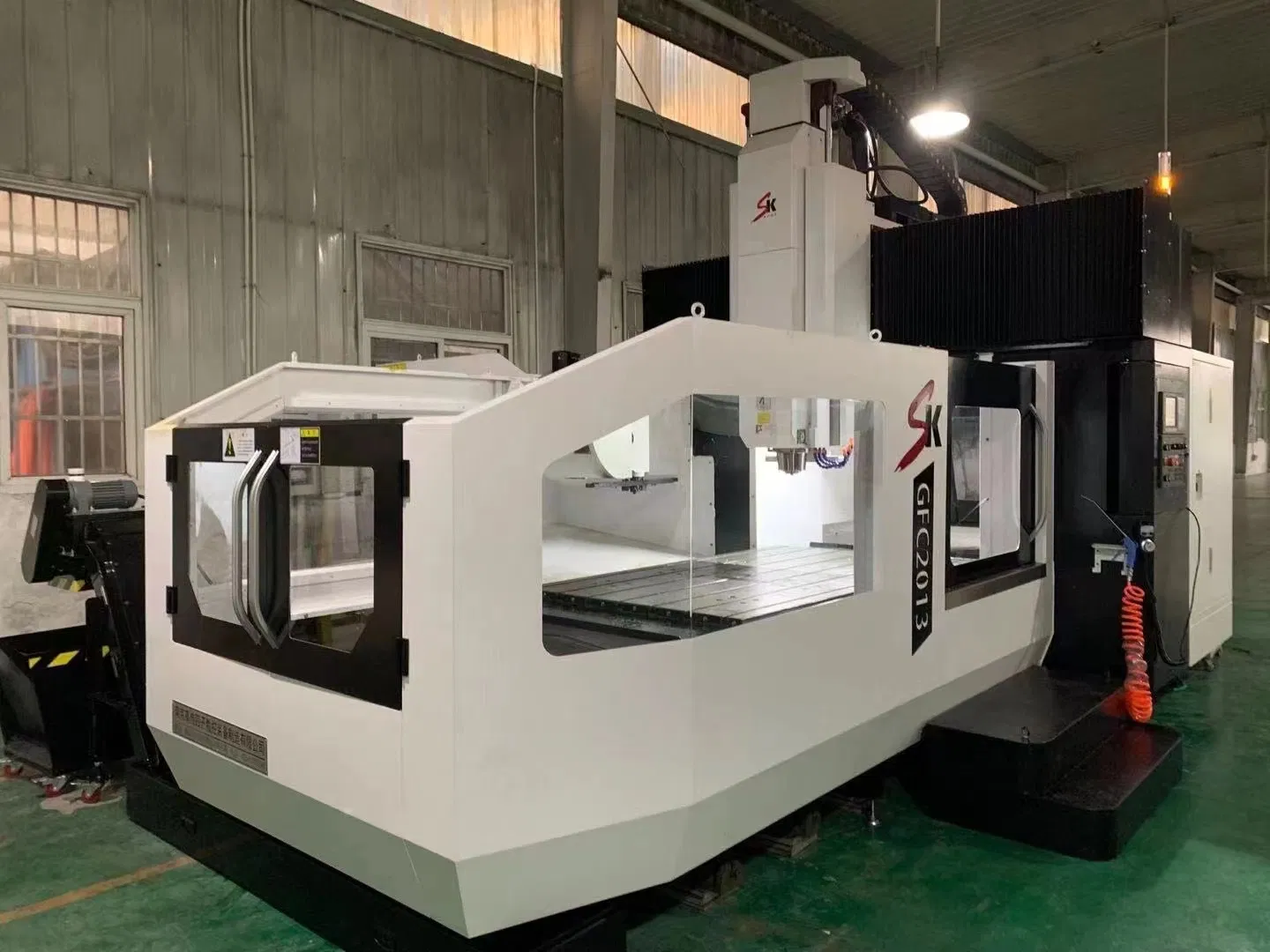

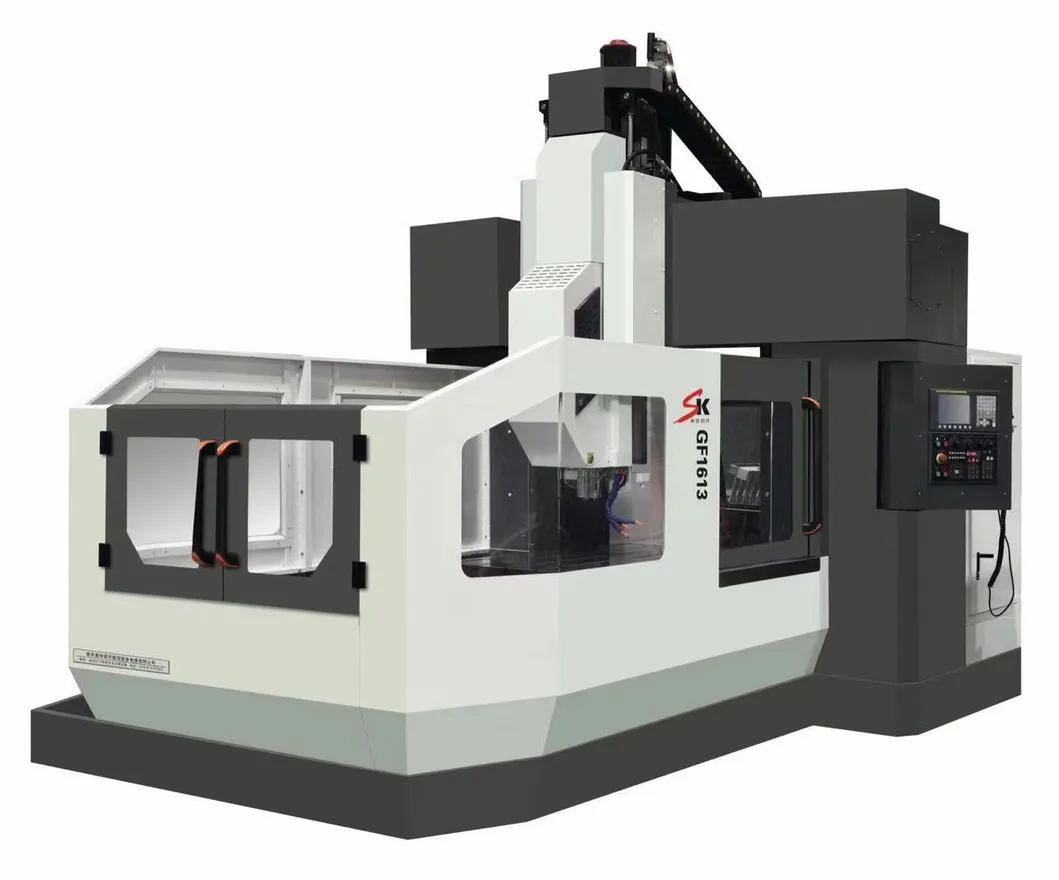

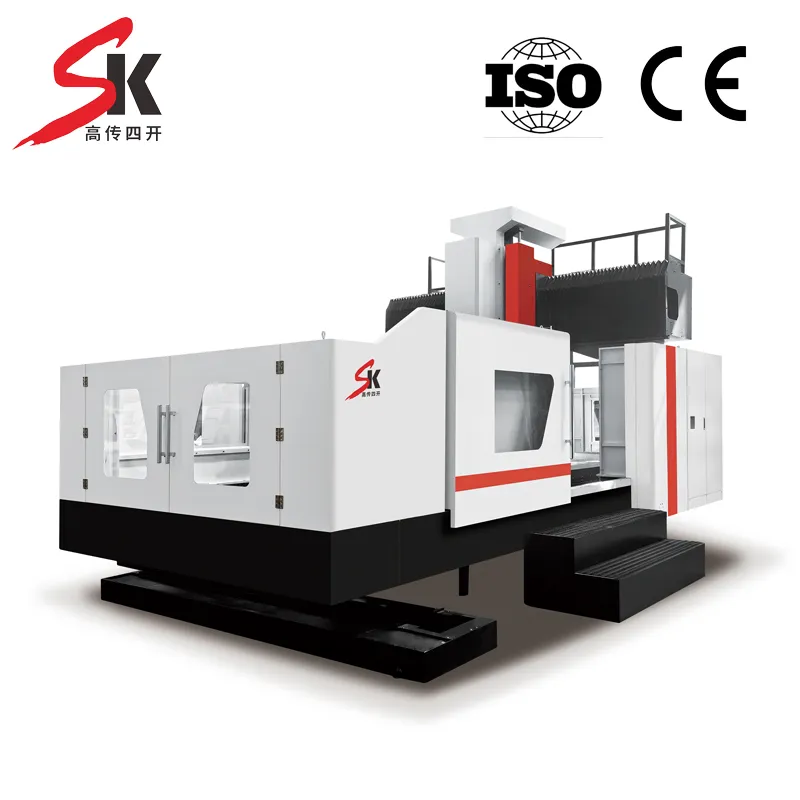

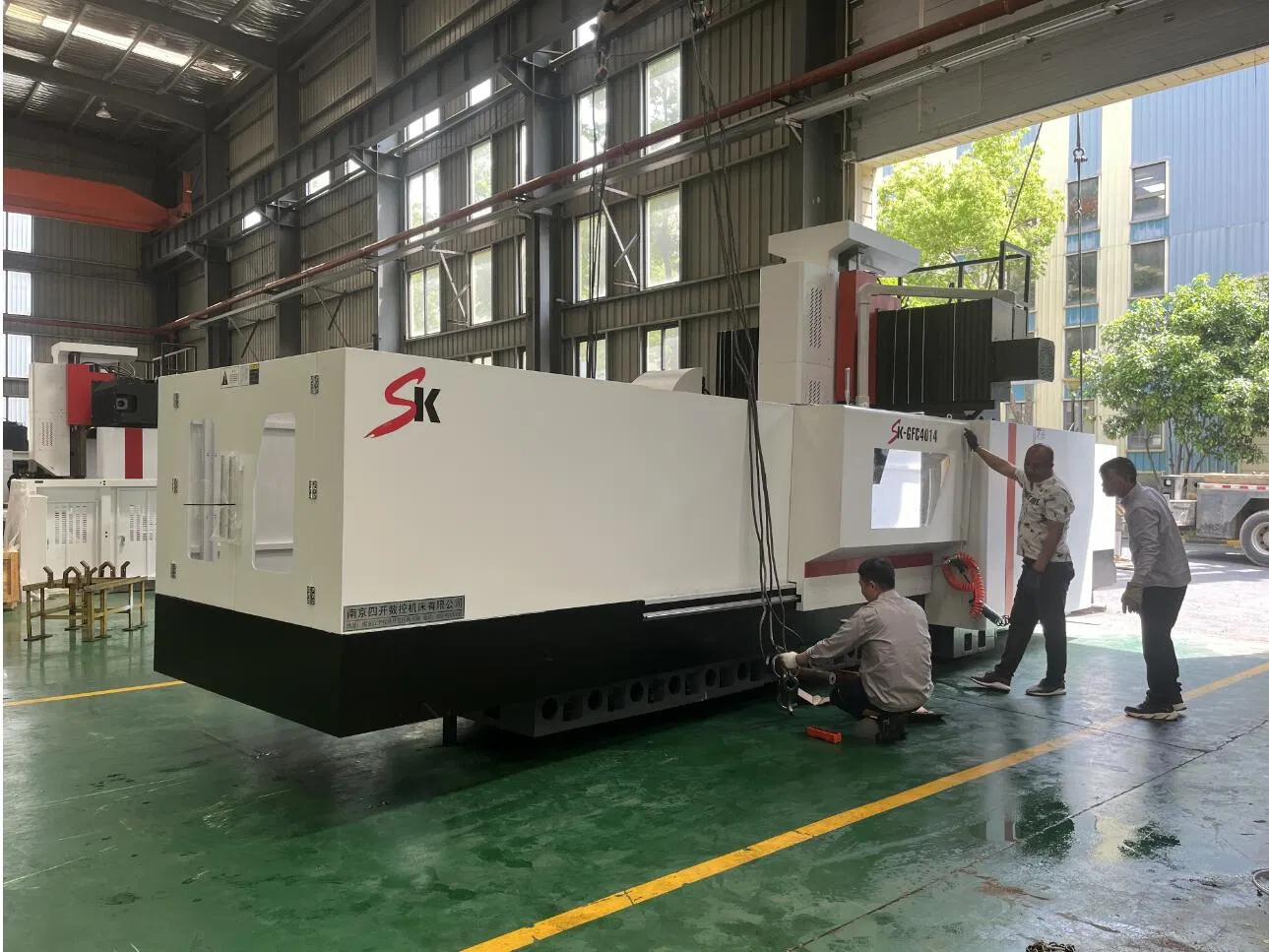

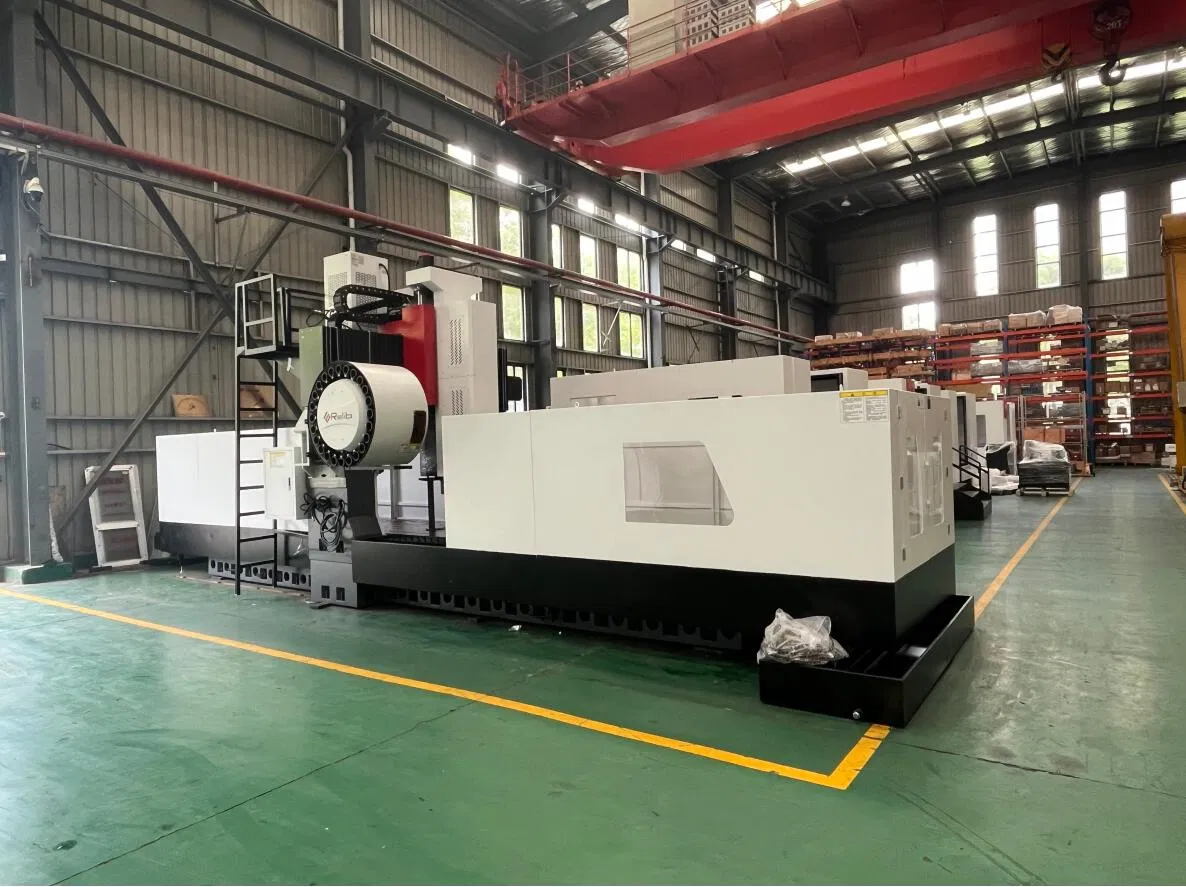

The Professional Gantry Vertical CNC Double Column Metal-Cutting Machining Center stands as a testament to pinnacle engineering and cutting-edge technology. This sophisticated machine is engineered to meet the most demanding industrial applications, delivering unmatched precision, reliability, and efficiency. With its robust structure and advanced CNC capabilities, each cut is executed with utmost accuracy, making it an essential asset for high-performance metalworking operations.
Automatic Tool Change System: Experience the speed and safety of our arm-type tool change system, delivering swift, seamless, and dependable tool exchanges. Controlled by advanced PLC software, the tool exchange process completes in approximately 8 seconds, minimizing non-cutting time.
Rotatable Control Box: The rotatable seat-type control panel and portable handwheel operation box offer unparalleled convenience. Operators can utilize it from any position, with the foot switch enabling easy tool clamping and release on the spindle head.
Servo Motor: The servo motor directly drives the screw rod via coupling, reducing vibration and enhancing precision across all three axes. Featuring a servo motor with a built-in absolute encoder for indirect displacement measurement, forming a semi-closed loop system to ensure pinpoint positioning accuracy.
| Specification | Unit | GF-2214/2514/3014/4014 | GF-2217/2717/3017/4217 | GF-2718/3218/4218 | GF-2722/3022/42222/5222/6222 | GF3025/4025/5025/6025 |
|---|---|---|---|---|---|---|
| X-axis travel | mm | 2200/2500/3000/4200 | 2200/2700/3000/4200 | 2700/3200/4200 | 2700/3000/4200/5200/6200 | 3200/4200/5200/6400 |
| Y-axis travel | mm | 1450 | 1700 | 2000 | 2400 | 2800 |
| Z-axis travel | mm | 850 | 850 | 1000 | 1000 | 1100 |
| Gantry width | mm | 1400 | 1700 | 1800 | 2200 | 2500 |
| X/Y/Z guide track | - | XY:Linear guide track Z:Slide guide track |
XY:Linear guide track Z:Slide guide track |
XY:Linear guide track Z:Slide guide track |
XY:Linear guide track Z:Slide guide track |
XY:Linear guide track Z:Slide guide track |
| Worktable size | mm | 2200/2500/3000/4000x1200 | 2200/2700/3000/4200X1500 | 2600/3000/4000X1800 | 2500/3000/4200/5000/6000X2000 | 3200/4200/5000/6200X2300 |
| Table form (No.* screw hole) | mm | 7-22*150 | 7-22*220 | 9-22*180 | 9-22*203 | 9-22*226 |
| Spindle type | BT | BT50 | BT50 | BT50 | BT50 | BT50 |
| Spindle speed | rpm | 6000 | 6000 | 6000 | 6000 | 6000 |
| Spindle dia | Ø | 190 | 190 | 190 | 190 | 190 |
| Spindle motor | kw | 15/18.5 | 15/18.5 | 15/18.5 | 22/26 | 22/26 |
| X/Y/Z quickly move speed | m/min | 15/15/12 | 15/15/12 | 15/15/12 | 12/12/12 | 12/12/12 |
| Max cutting feed speed | - | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 |
| Tool magazine capacity | pcs | 24 | 24 | 24 | 24 | 24 |
| Max tool weight | Kg | 18 | 18 | 18 | 18 | 18 |
| X/Y/Z axis position accuracy | mm | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 |
| X/Y/Z axis repeat position accuracy | mm | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 |
| Max.loading of worktable | kg | 4000/5000/6000/8000 | 5000/5000/6000/8000 | 6000/8000/10000 | 7000/9000/11000/13000/16000 | 8000/12000/16000/19000 |
| Distance from spindle front end to table center | mm | 270-1120 | 165-1025 | 150-1150 | 150-1150 | 200-1300 |
| Machine size (L×W×H) | m | 6.4/7.4/8.4/10x4x3.7 | 6.6/7.6/8.6/10.6X4.5X3.5 | 7.5/8.5/10.5X4.7X3.8 | 7.5/8.5/10.5/12.5/14.5X5X3.8 | 8.5/10.5/12.5/14.5X5.7X4.5 |
| Machine weight | t | 16/19/22/25 | 18/21/24/27 | 23/26/31 | 24/27/30/35/40 | 32/37/42/47 |
| Specification | Unit | GF3228/4228/5028/6228 | GF-3232/4232/5232/6232 | GF4037/5037/6037/8037 | GF4042/5042/6042/8042 |
|---|---|---|---|---|---|
| X-axis travel | mm | 3200/4200/5000/6200 | 3200/4200/5000/6000 | 4200/5200/6200/8200 | 4200/5200/6200/8200 |
| Y-axis travel | mm | 3200 | 3300 | 4000 | 4500 |
| Z-axis travel | mm | 1100 | 1250 | 1250 | 1250 |
| Gantry width | mm | 2800 | 3200 | 3700 | 4200 |
| X/Y/Z guide track | - | XY:Linear guide track Z:Slide guide track |
XY:Linear guide track Z:Slide guide track |
XY:Linear guide track Z:Slide guide track |
XY:Linear guide track Z:Slide guide track |
| Worktable size | mm | 3200/4200/5000/6200X2300 | 3200/4200/5000/6000X2700 | 4000/5000/6000/8000x3000 | 4000x5000x6000x8000x3000 |
| Table form (No.* screw hole) | mm | 9-22*226 | 13-22*180 | 13-28*200 | 13-28*200 |
| Spindle type | BT | BT50 | BT50 | BT50 | BT50 |
| Spindle speed | rpm | 6000 | 6000 | 6000 | 6000 |
| Spindle dia | Ø | 190 | 190 | 200 | 200 |
| Spindle motor | kw | 22/26 | 22/26 | 22/26 | 22/26 |
| X/Y/Z quickly move speed | m/min | 12/12/12 | 12/12/12 | 15/15/12 | 12/12/12 |
| Max cutting feed speed | - | 1-10000 | 1-10000 | 1-10000 | 1-10000 |
| Tool magazine capacity | pcs | 24 | 24 | 24 | 24 |
| Max tool weight | Kg | 18 | 18 | 18 | 18 |
| X/Y/Z axis position accuracy | mm | 0.008 | 0.008 | 0.008 | 0.008 |
| X/Y/Z axis repeat position accuracy | mm | 0.005 | 0.005 | 0.005 | 0.005 |
| Max.loading of worktable | kg | 9000/12000/15000/18000 | 16000/20000/23000/26000 | 16000/20000/26000/30000 | 16000/20000/26000/30000 |
| Distance from spindle front end to table center | mm | 200-1300 | 175-1425 | 250-1500 | 250-1500 |
| Machine size (L×W×H) | m | 8/10/12/14X6X4.8 | 9/11/13/15X6.5X4.8 | 11/13/15/19X7X5 | 11/13/15/19X7.5X5.2 |
| Machine weight | t | 35/40/45/50 | 40/45/50/60 | 50/57/65/80 | 55/63/73/93 |
| No. | Accessory Name | No. | Accessory Name | No. | Accessory Name | No. | Accessory Name |
|---|---|---|---|---|---|---|---|
| 1 | 24 tool magazines | 6 | Tri-color warning light | 11 | Spindle cooling | 16 | Portable chip blowing air gun |
| 2 | Workpiece Cooling System | 7 | Machine cleaning water gun | 12 | Fully enclosed protective cover | 17 | Large flow chip flushing device |
| 3 | Automatic lubrication system | 8 | Spindle output water | 13 | Foundation screws and pads | 18 | Spindle nose labyrinth dust blower |
| 4 | Spindle air curtain dustproof system | 9 | Electric cabinet heat exchanger | 14 | Tools and Toolboxes | 19 | Chip trolley |
| 5 | LED working light | 10 | Network transmission and CF card function | 15 | Double screw conveyor & chain chip conveyor | 20 | Transformer |

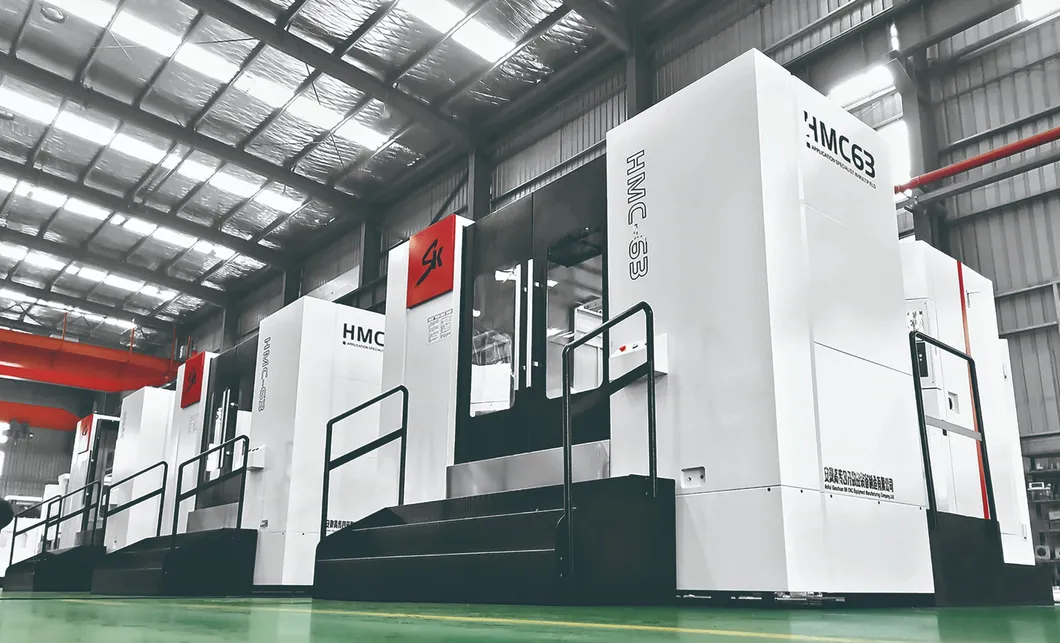

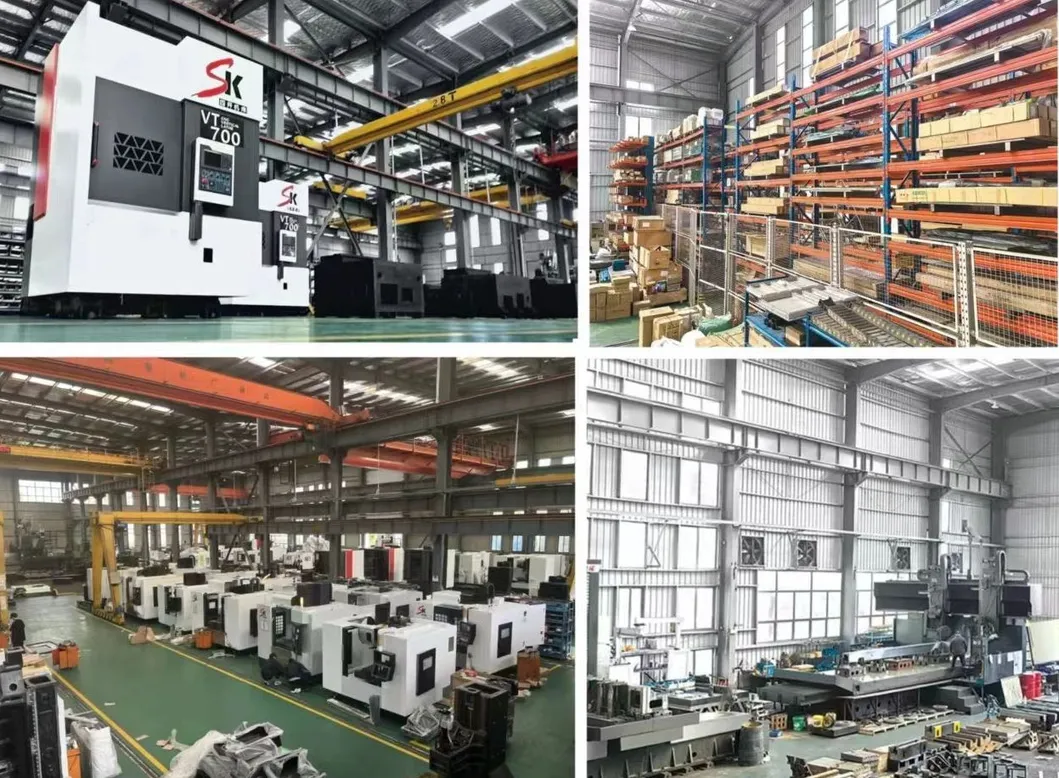

Discover the Unmatched Advanced Capabilities of Our STATE-OF-THE-ART FACTORY WORKSHOP.

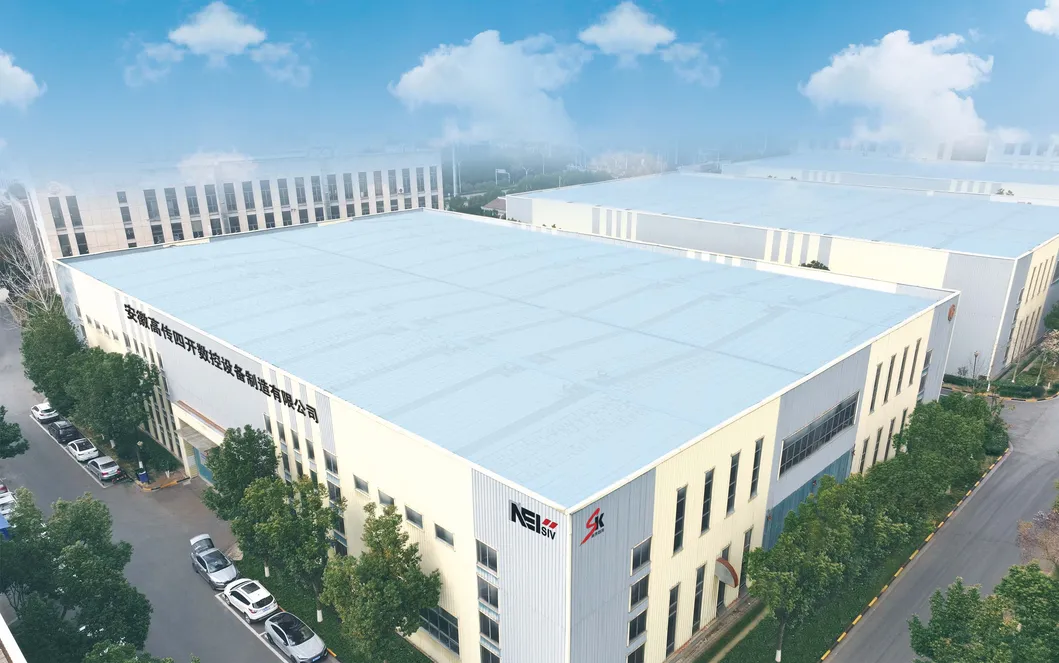

Company Strength: Founded in 1993, our company made a monumental strategic relocation in 2021.
As a trailblazing high-tech enterprise, we specialize in the innovative design and precision manufacturing of CNC machine tools. Our flagship products boast completely independent intellectual property rights, and several of our series have been distinguished with the prestigious High-tech Product Certificates.
Recognized as a pioneering high-tech enterprise, we forged a dynamic partnership with a leading transmission group in 2010. With the group's unwavering support, we strive for unparalleled excellence and continuous self-improvement. We collaborate with illustrious international and Taiwanese machine tool companies to achieve extraordinary quality and performance, aiming to compete at the pinnacle of global standards.
Our unwavering commitment to excellence is underscored by a portfolio of prestigious certifications. These endorsements affirm that our Vertical CNC Milling High Precision Gantry Metal Cutting Heavy Duty Center adheres to the pinnacle of quality and safety standards.

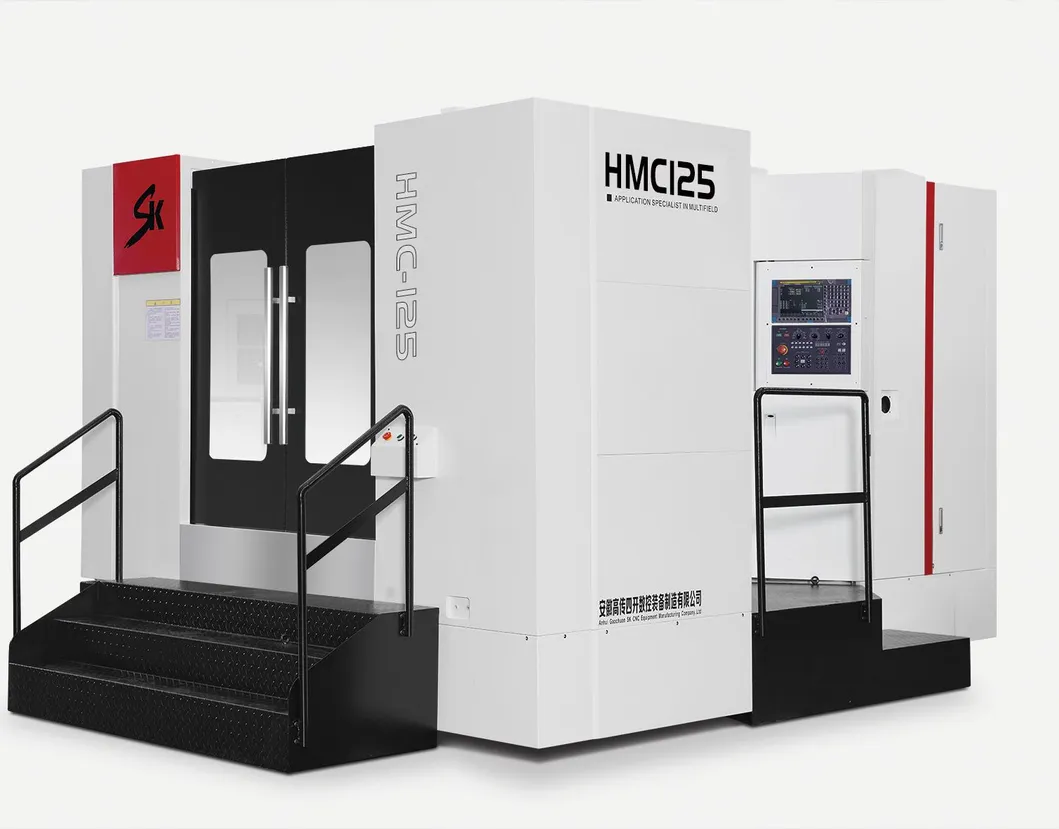

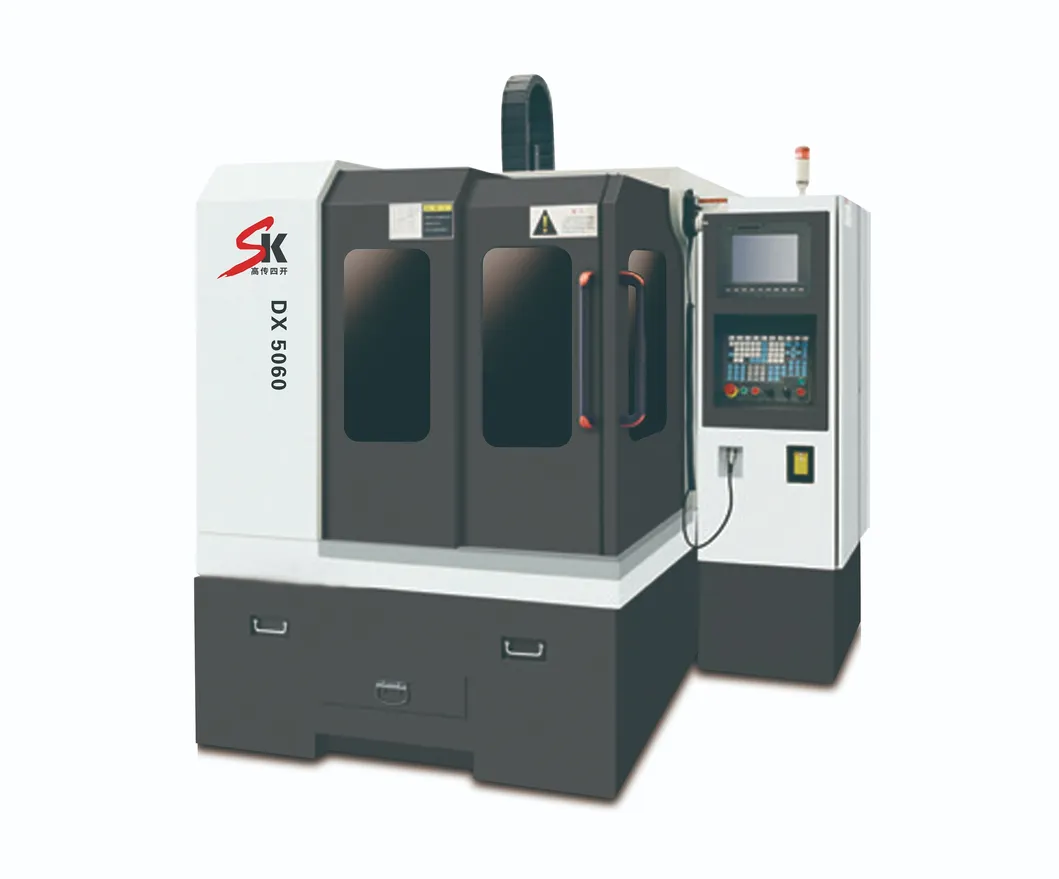

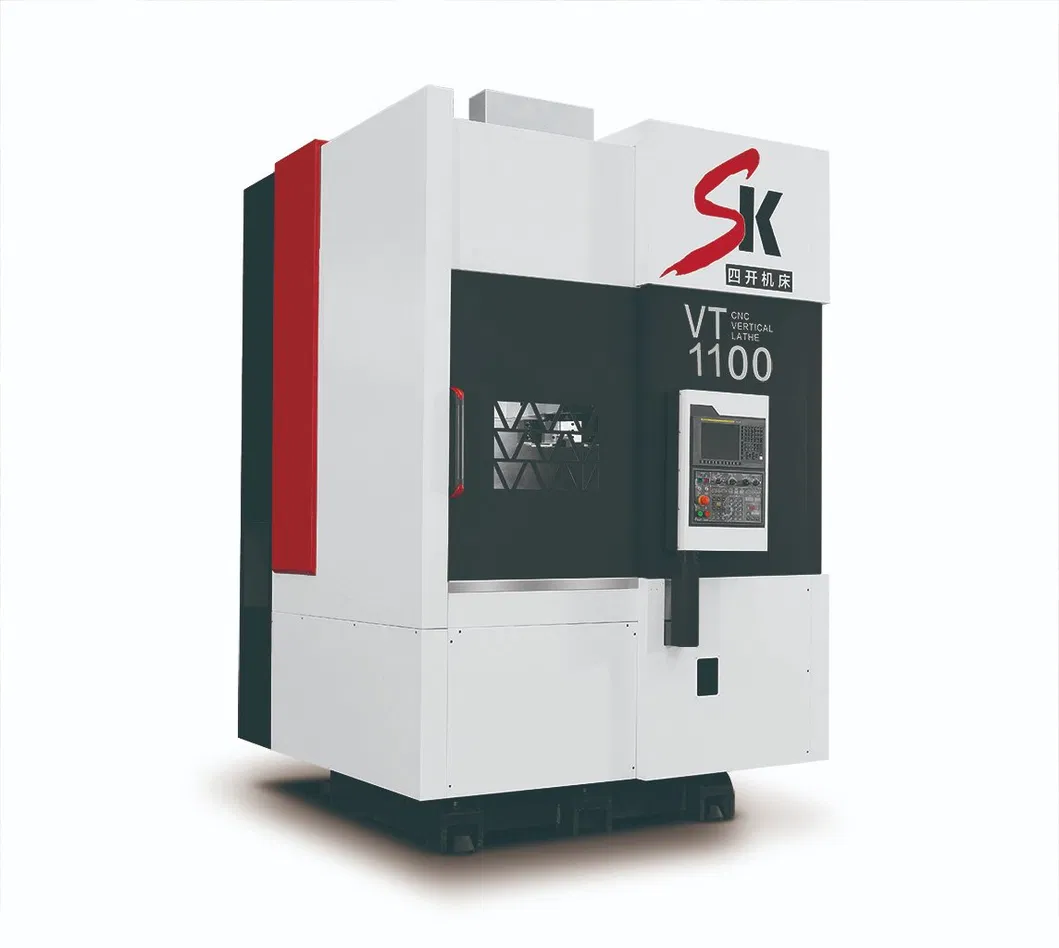

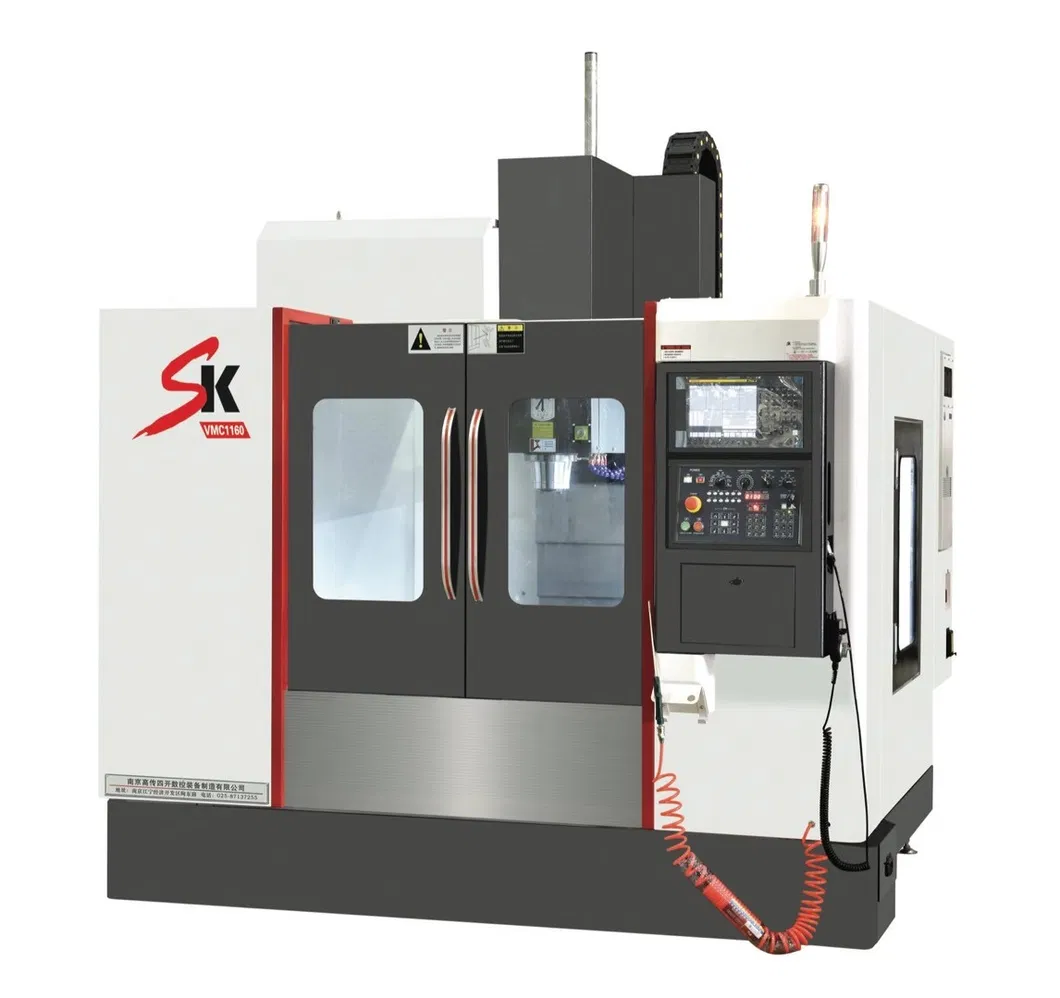

Embark on a journey through our extensive array of pioneering equipment, extending beyond our Vertical CNC Milling High Precision Gantry Metal Cutting Heavy Duty Center. Unveil groundbreaking solutions tailored to meet a myriad of industrial demands with unparalleled precision and exceptional performance.
The machine supports several leading numerical control systems, including Siemens, GSK, Knd, Fanuc, and Mitsubishi.
The arm-type tool change system, controlled by advanced PLC software, completes tool exchanges in approximately 8 seconds, effectively minimizing non-cutting time.
The positioning accuracy of the three axes is 0.008 mm, and the repeat positioning accuracy is 0.005 mm, ensuring high-precision machining.
We offer a one-year comprehensive service starting from the BL date. In case of malfunctions, diagnosis is provided immediately, with a response within 24 hours if the issue is indeterminate.
Yes, standard accessories include an automatic lubrication system, workpiece cooling system, spindle cooling, 24 tool magazines, and a chip trolley, among others.

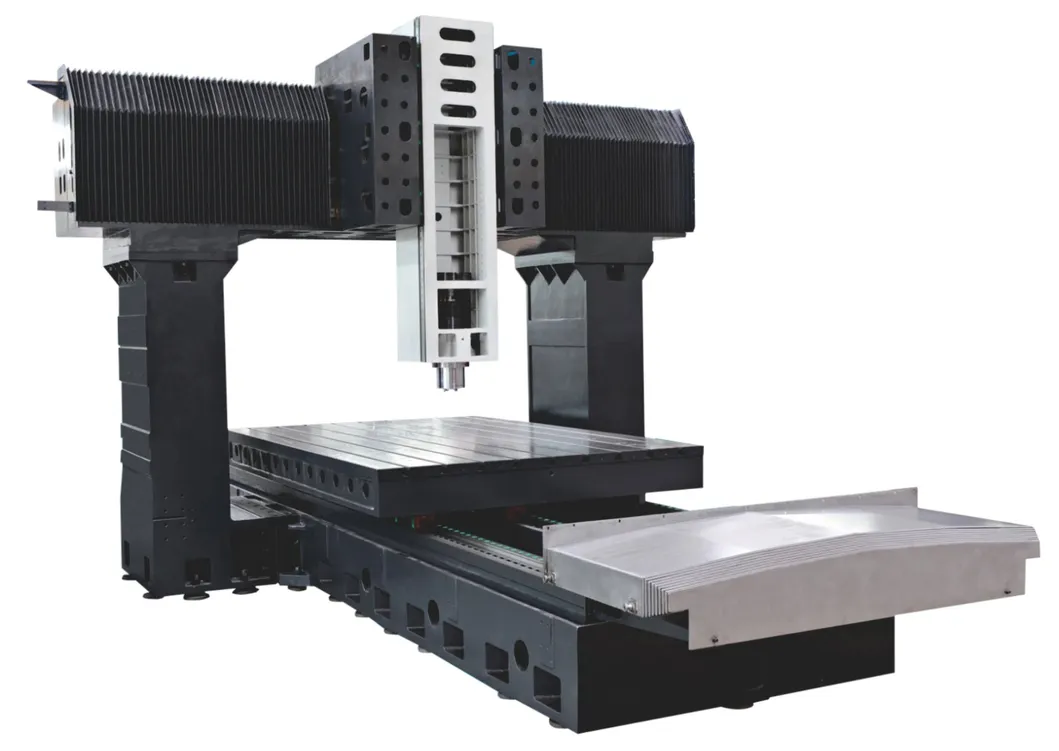

The machine tool is constructed from premium-grade resin sand casting with a box-shaped structural design, followed by aging treatment to eliminate internal stress and guarantee stability.
