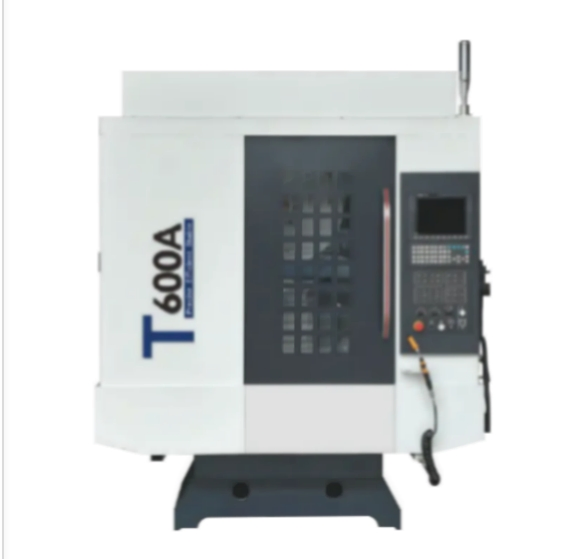

The core of a milling centre machine is an automatic tool changer integrated into a CNC milling machine. This system enables continuous multi-process machining, specializing in high-precision and efficient processing of complex flat and three-dimensional parts. It is a key piece of equipment for flexible manufacturing in machining.
I. Core Product Features
Highly Integrated Configuration: Standard automatic tool changer (typically with a tool magazine capacity of 16-60 tools) automatically switches between milling cutters, drills, taps, and other tools without manual intervention.
Multi-Axis Mobility: Mainstream models offer 3 axes (X/Y/Z), while mid-range and high-end models support 4 axes (with additional A/C axis indexing) or 5 axes (fully linked), enabling machining of complex curved and inclined surfaces.
High-Precision Structural Design: Utilizing a rigid bed, high-precision ball screws and linear guides, driven by servo motors, achieves positioning accuracy of up to 0.001mm, meeting precision machining requirements. Intelligent Adaptation: Equipped with mainstream CNC systems (such as FANUC, Siemens, and Mitsubishi), it supports program pre-reading, tool life management, and machining error compensation. Some models can be integrated with MES systems for intelligent production.
II. Main Functions
Basic Milling: Performs core operations such as plane milling (rough and fine milling), contour milling (external and internal contours), groove milling (right-angle slots, T-slots, dovetail slots), and step milling.
Holemaking: Through automatic tool change, it performs various hole types, including drilling, reaming, tapping (internal and external threads), and countersinking, without changing equipment.
Complex Feature Machining: 4/5-axis models can machine curved surfaces (such as mold cavities and impeller blades), inclined surfaces, and spatial hole systems, meeting the machining needs of irregular parts. Auxiliary Features: Equipped with a coolant (cutting fluid) system for cooling and chip removal, some models feature a spindle center water outlet function; support for automatic workpiece coordinate setting (e.g., probe measurement), reducing manual tool setting time.
III. Typical Applications
This machine is widely used in industries requiring multi-process, high-precision machining, particularly for complex structural parts:
Mold Manufacturing: Machining precision components such as cavities, cores, and mold bases for plastic and stamping molds, as well as electrodes.
Automotive Parts: Machining complex structural parts such as engine cylinder heads, transmission housings, chassis brackets, and steering knuckles.
Aerospace: Machining parts made of difficult-to-machine materials such as aluminum and titanium alloys, such as aircraft frames, engine blades, and sensor housings.
Electronics and Medical Devices: Machining small, high-precision parts such as precision connectors, mobile phone midframes, and surgical instruments.
IV. Core Advantages
Significantly Improved Production Efficiency: The automatic tool changer reduces tool change time. Multiple processes can be completed on the same machine, eliminating workpiece transfer between multiple machines. This reduces machining cycle times by 30%-50% compared to conventional milling machines. Ensure consistent machining accuracy: Reduce workpiece clamping times (typically, all steps are completed in a single clamping), minimize positioning errors, and minimize part precision fluctuations during mass production.
Reduced labor reliance and costs: The CNC system enables automated machining, with operators only responsible for loading, unloading, and equipment monitoring, allowing one person to manage multiple machines.
High machining flexibility: Quickly switch between machining part models by modifying the CNC program, eliminating the need for extensive fixture replacement or equipment configuration adjustments, accommodating high-variety, small-batch production needs.
Main Products

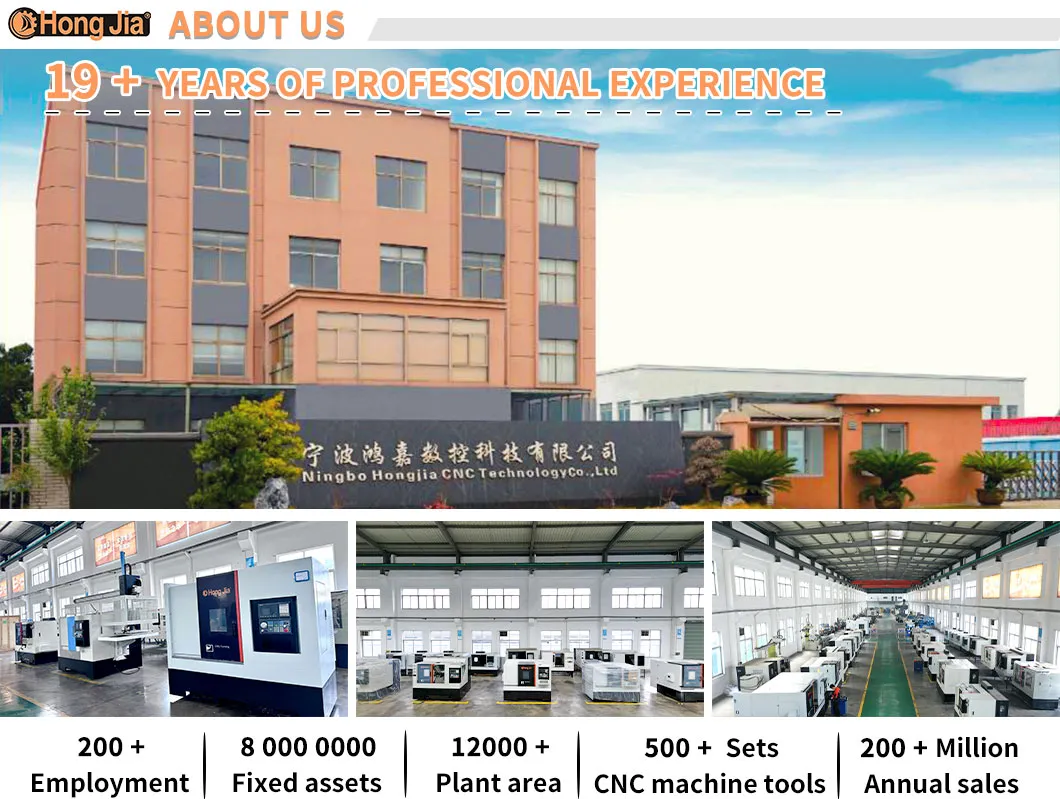

Company Profile
We are a high-tech enterprise specializing in the R&D, production, and sales of CNC metal-cutting equipment. Located in Zhejiang Province, the company is an innovative entity integrating research, manufacturing, sales, and service in the field of CNC technology. Since our establishment, we have consistently prioritized technological innovation, aligned with market demands, and leveraged our robust technical expertise and extensive industry experience to provide global customers with efficient, stable, and reliable CNC equipment and tailored solutions.
Certifications
Exhibitions & Our Customers
Packaging & Shipping
FAQ
Q1: How can I choose the most suitable machines?
A: Please tell us your specifications, and we will help you select the best model, or you can choose the exact model yourself. Alternatively, you can send us the product drawings, and we will recommend the most suitable machines for your needs.
Q2: What are the main products you offer?
A: We specialize in all kinds of machines, such as CNC Lathe Machines, CNC Milling Machines, CNC Turning Machines, Vertical Machining Centers, Horizontal Machining Centers, Lathe Machines, and turning & milling composite processing equipment.
Q3: What industries benefit most from the Lathe Milling Centre Machine?
A: The machine is extensively utilized in mold manufacturing, automotive parts production (such as engine cylinder heads and steering knuckles), aerospace components (aluminum and titanium alloys), and high-precision electronics/medical devices.
Q4: What is the processing precision of your CNC machines?
A: Our high-end CNC machine tools deliver exceptional accuracy, with processing precision ranging from 0.01 to 0.02 mm and structural positioning accuracy reaching up to 0.001 mm.
Q5: What is the standard lead time and MOQ?
A: The Minimum Order Quantity (MOQ) is 1 set. The standard delivery time is 30 days, and the equipment is shipped in secure wooden cases to ensure transit safety.
Q6: Are the machines certified for global trade?
A: Yes. All of our CNC equipment complies with international manufacturing standards, holding both CE and ISO 9001 certifications.
