High Pressure Coolant System for Increased Speed in Cutting Milling Drilling Operations

Basic Info

Type Water-Cooled

Cooling Water Industrial Water

System Type Combined

Fans Species Frequency Fan

Noise Level Low

Application Fields Precision Machining, Turning, Milling & Drilling

Certification ISO, CE

Condition New

Flow Rate 35L/Min

Filter Accuracy Less 25um

Number of Water Outlets 1

Input Voltage AC220V/AC380V

Transport Package Wooden Box

Specification 700*700*1230mm

Origin China

Packaging & Delivery

Package Size 770.00cm * 880.00cm * 1390.00cm

Package Gross Weight 100.000kg

Product Description

The water outlet from the center of the spindle, also known as spindle internal cooling or tool internal cooling, refers to the direct transfer of coolant through the spindle through pressure to the cutting part of the tool. In addition to timely cooling of the tool, high-pressure coolant can also be used to vigorously wash the chips milled from the workpiece.

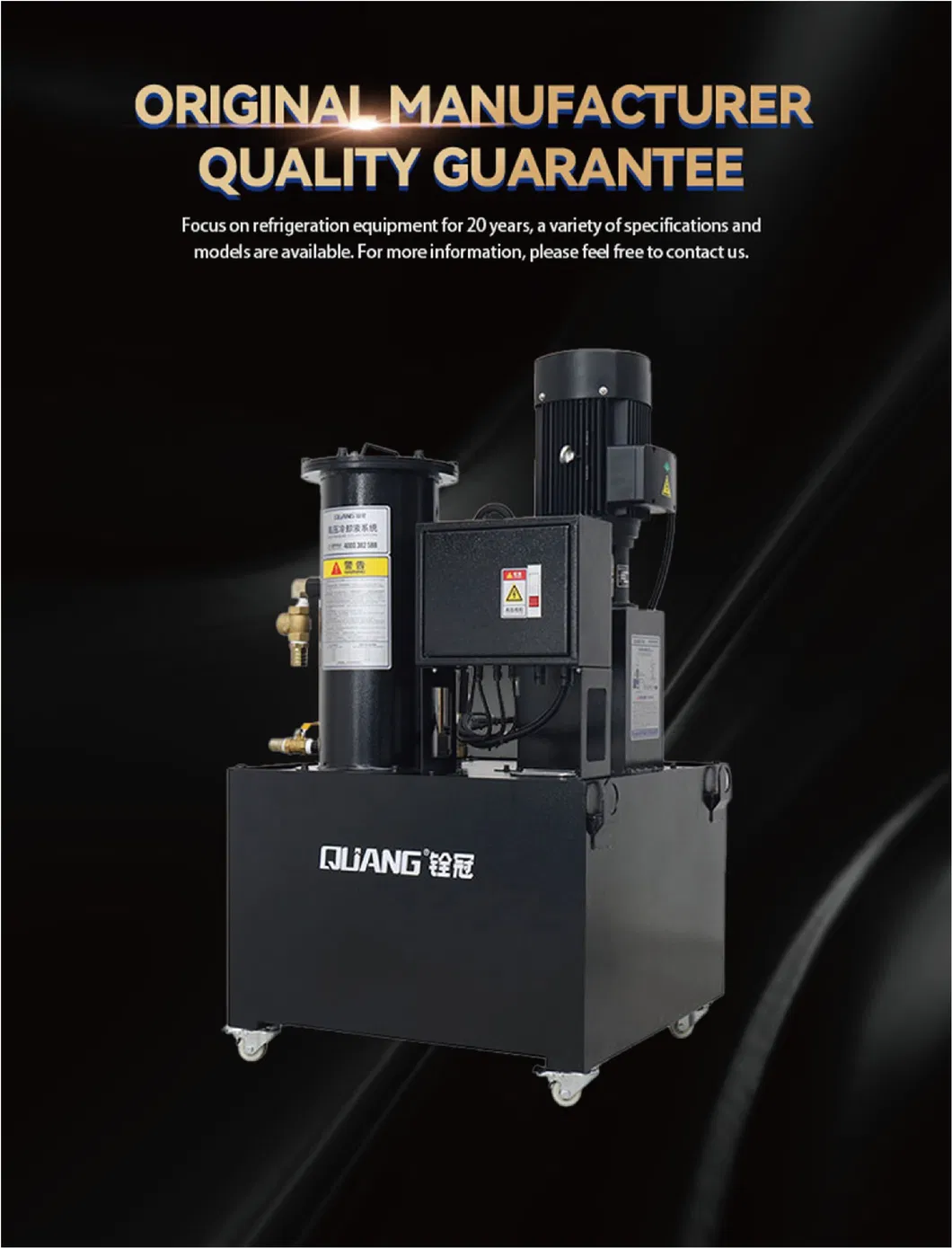

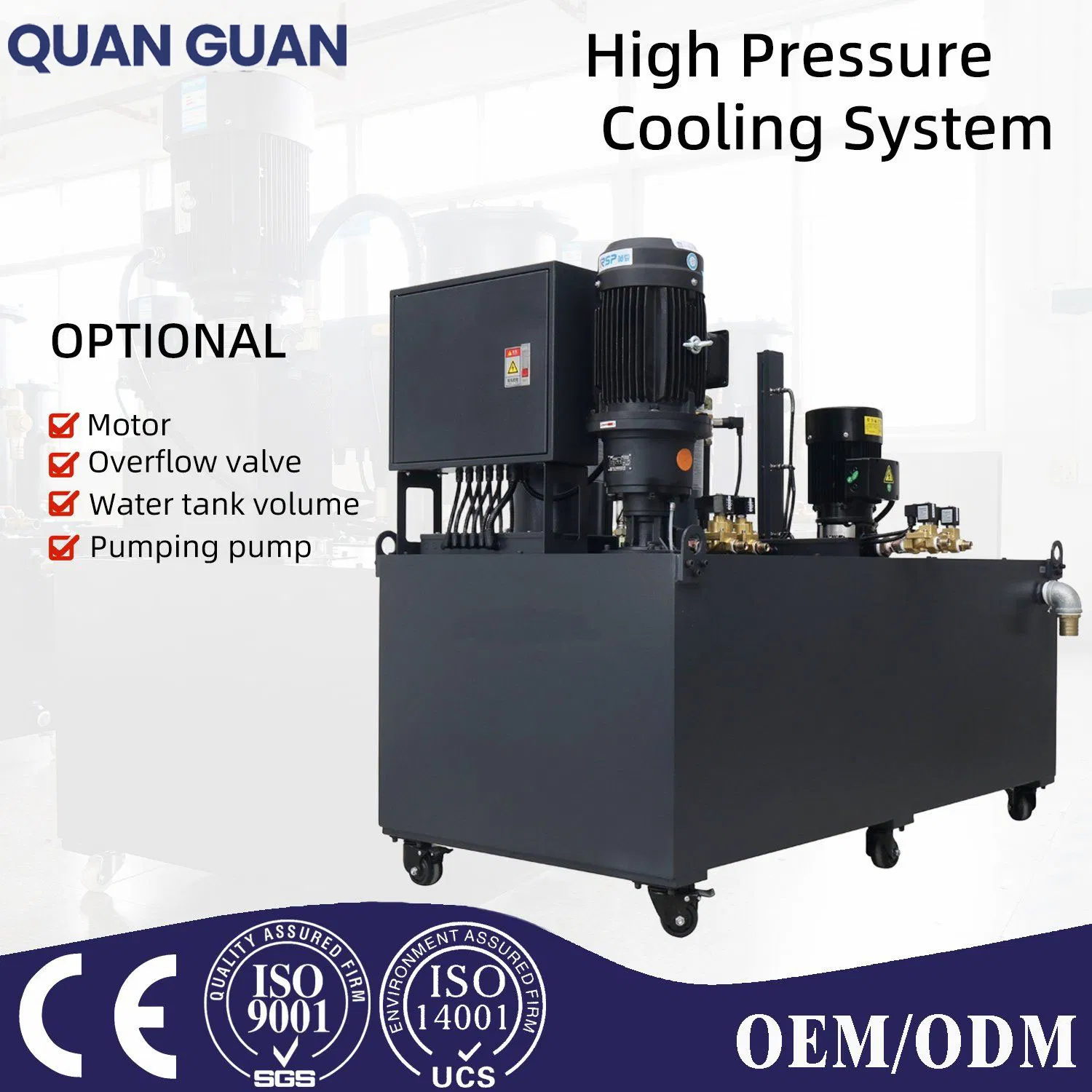

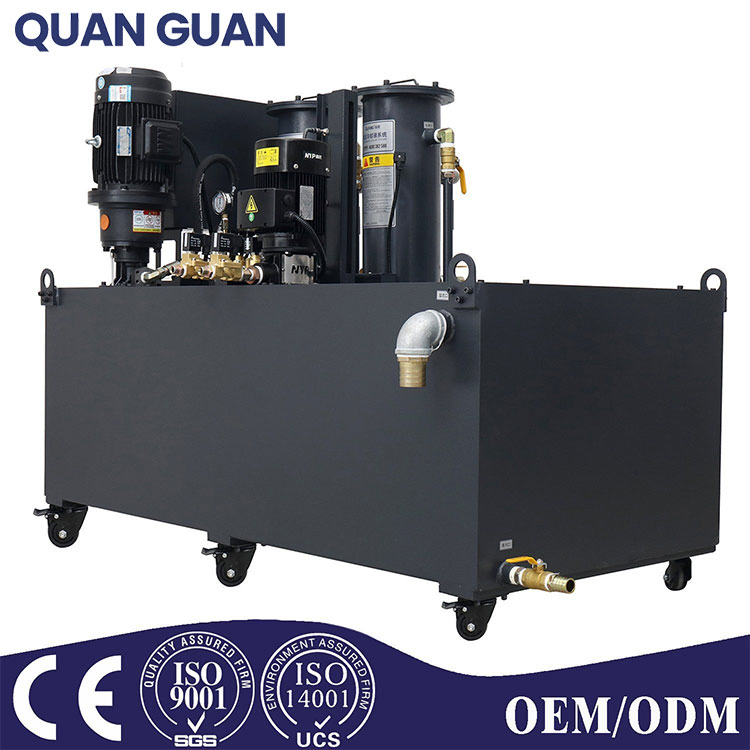

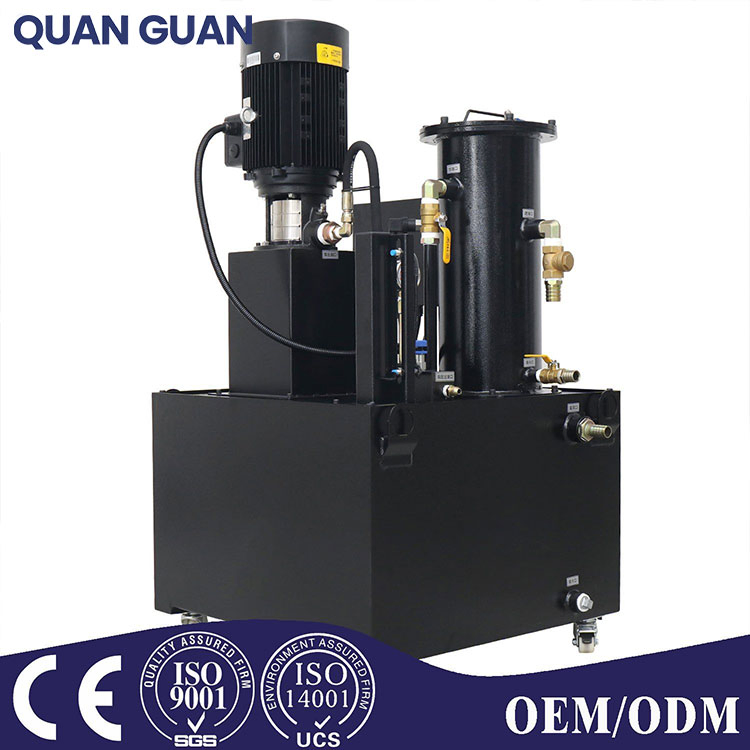

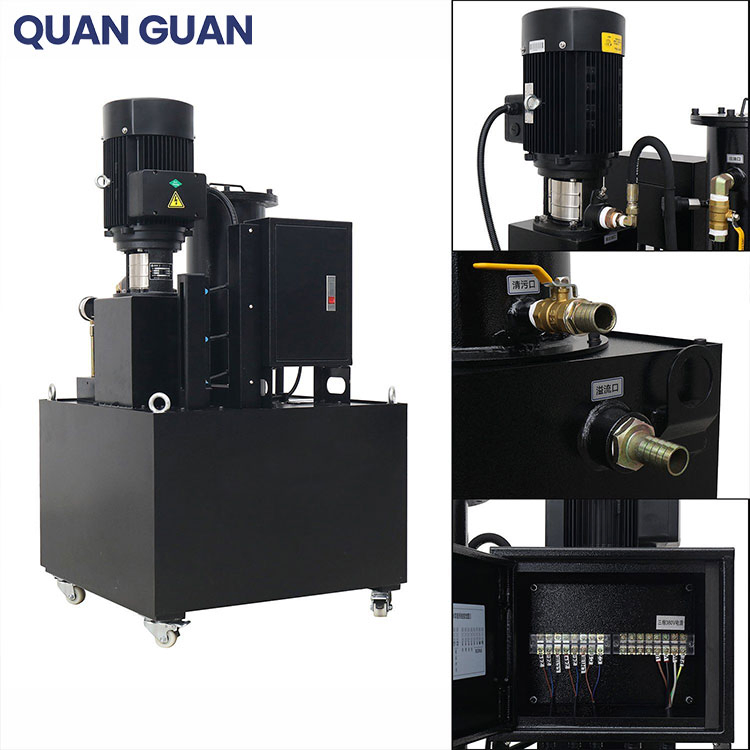

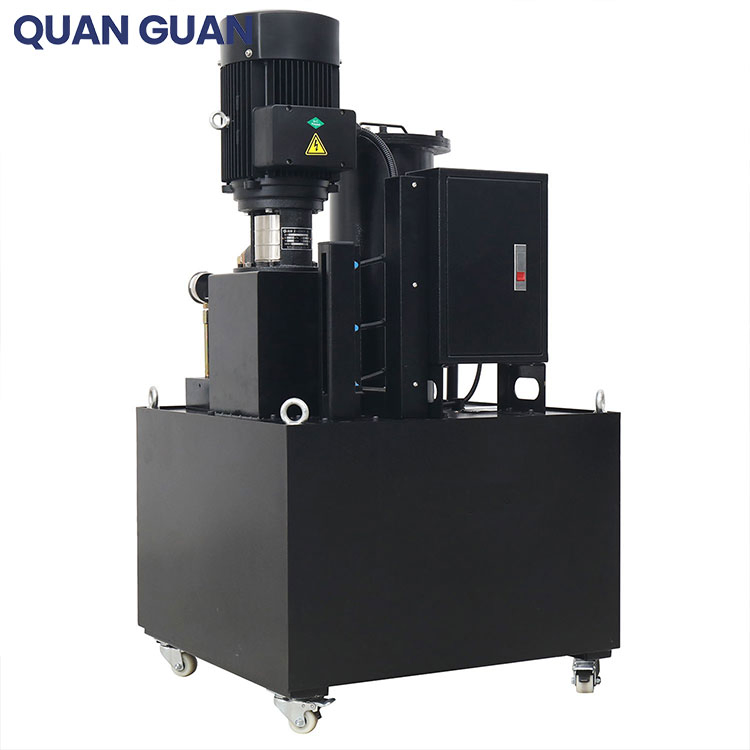

High Pressure Coolant System for Increased Speed in Cutting Milling Drilling Operations

Product Parameters

Item	QG-HPC-2MP-33LA-LX-1	QG-HPC-3MP-33LA-LX-1	QG-HPC-5MP-40LA-LG-1	QG-HPC-7MP-40LA-LG-1
Outlet pressure	20Bar	30Bar	50Bar	70Bar
Flow rate	33L/min	33L/min	40L/min	40L/min
Rated power	2.2KW	4.0KW	5.5KW	7.5KW
Input Power	220V/380V 50HZ/60HZ
Bag filtration	Min 25μm
Pump type	Centrifugal pump	Centrifugal pump/Screw pump	Screw pump	Screw pump
Pump brand	Customers can specify the water pump brand (centrifugal pump brand Nanyuan, screw pump brand yellow pump)
Size	7007001080mm	7007001080mm	7708801390mm	7708801390mm
Water tank capacity	220L	220L	350L	350L

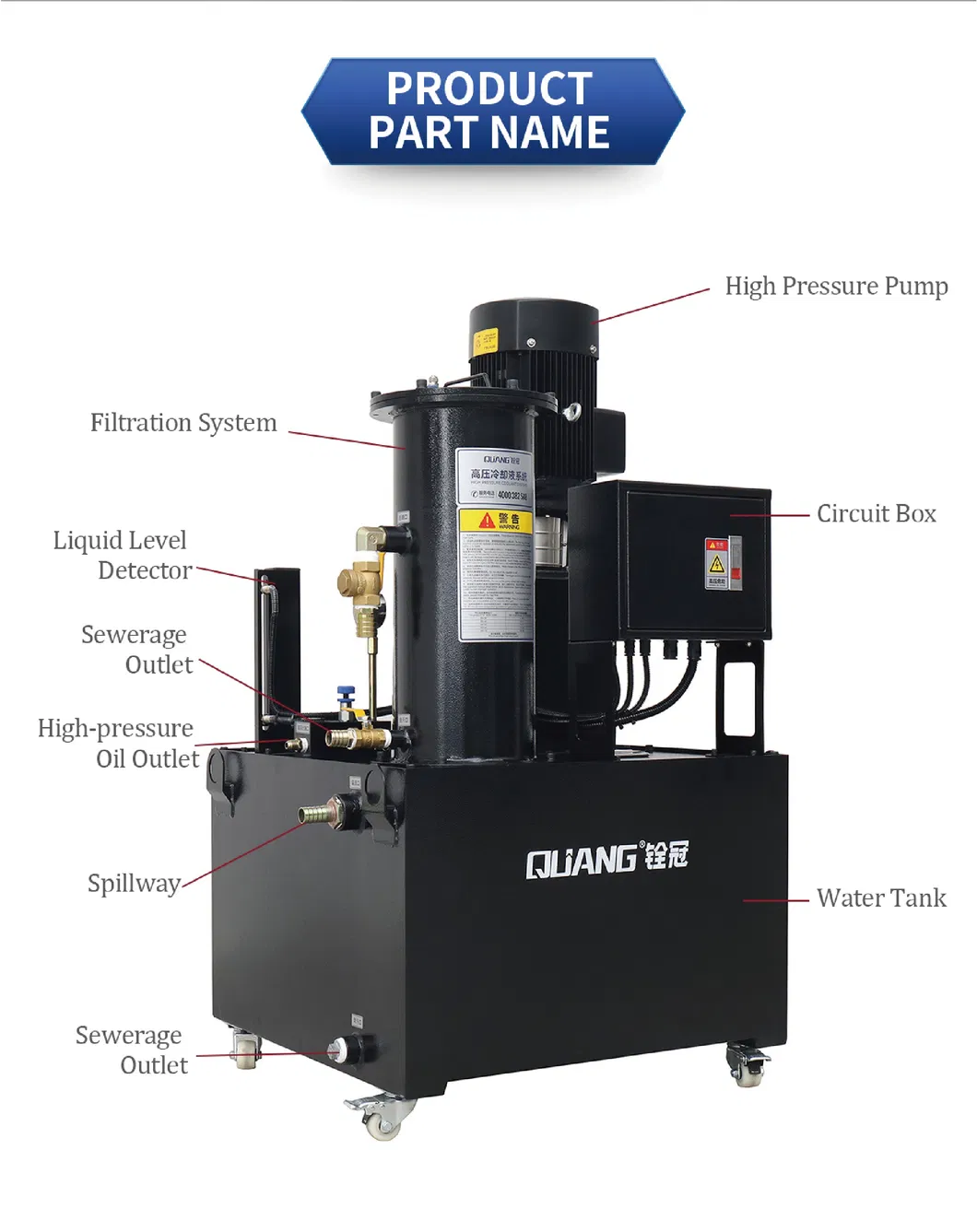

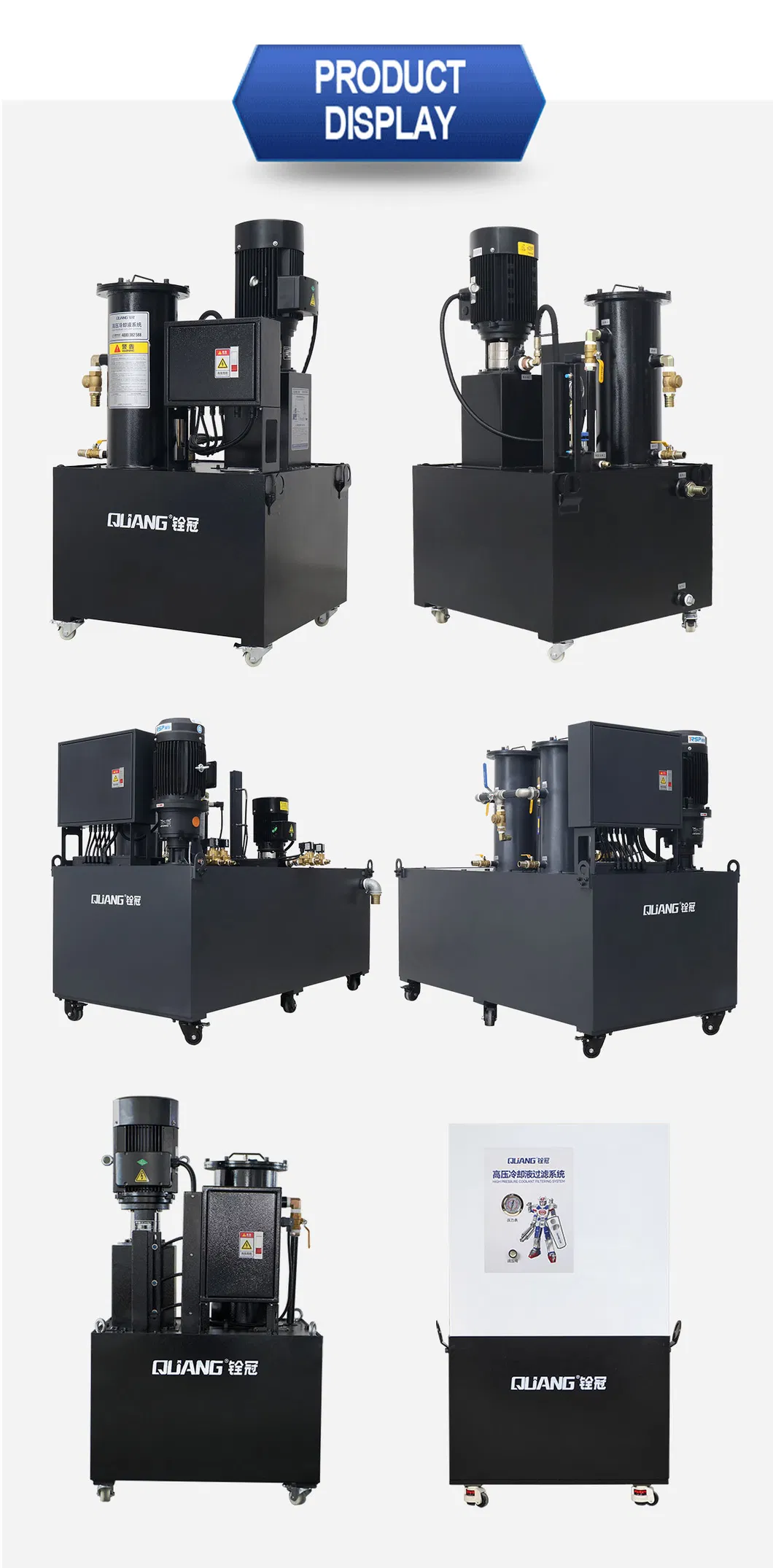

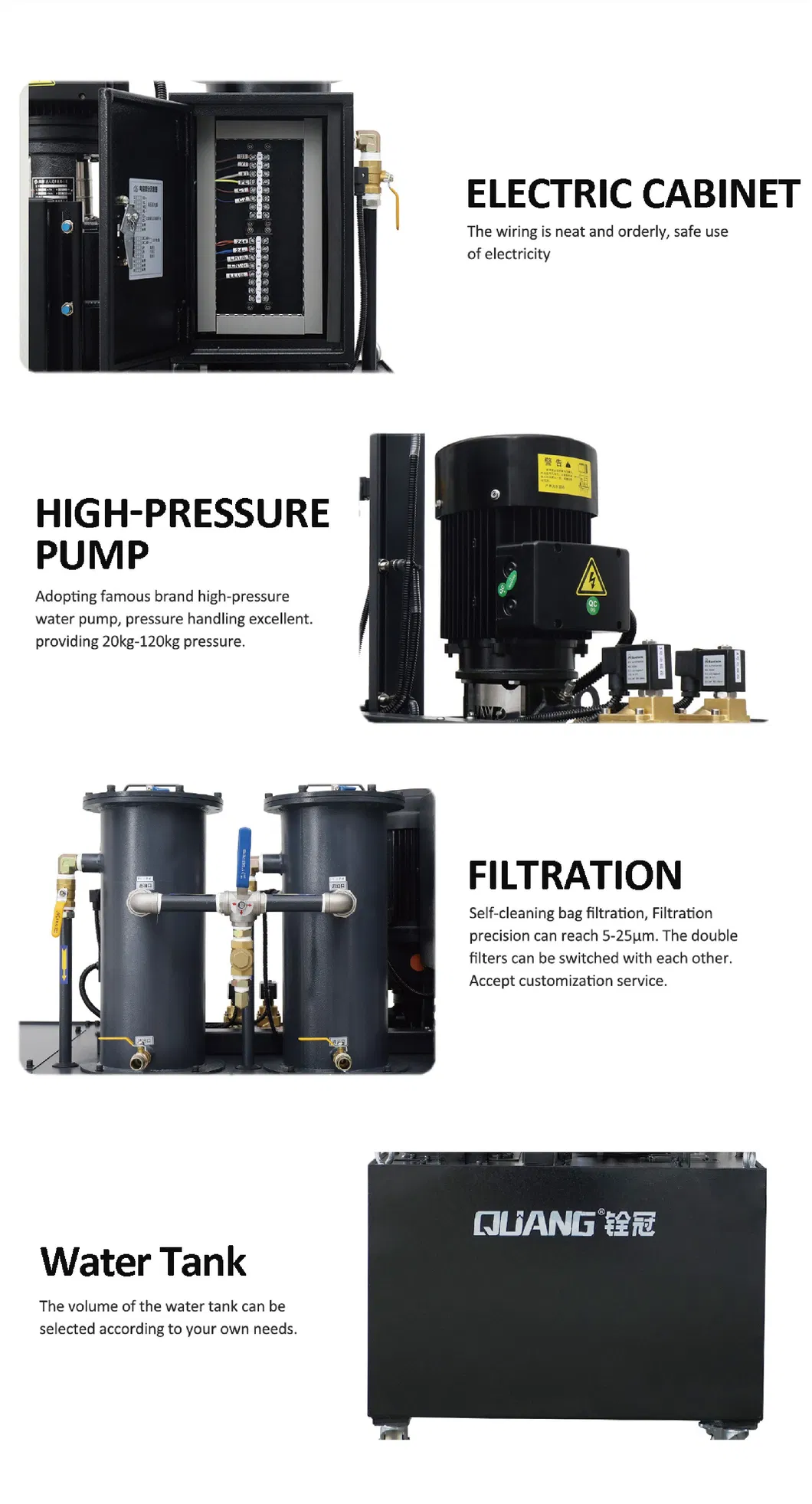

Pictures Showing

Product Features

✓

Eliminate the worry of entanglement in metal processing, avoid iron filings entangled on parts and tools, and ensure smoother production.

✓

Increase chip cutting speed and tap into more productivity in production.

✓

Reduced tool wear. Reduce the local temperature generated by high temperatures during machining and extend the tool life. Reduce the frequency of tool replacement and reduce tool usage.

✓

Improve quality stability and improve the qualification rate of parts processing.

✓

Improve the surface smoothness of parts, enhance their quality, and enhance their market competitiveness.

✓

Designed with an automatic cleaning filter element function, it is easy to disassemble and maintain, making it convenient and fast.

Applications

The spindle center water outlet system is mainly applicable to metal processing equipment, such as spindle water outlet CNC machining centers, deep hole drilling and milling machines, crankshaft grinders, gear grinding machines, CNC turning and milling composite machining machines, gantry drilling and milling machines, gantry machining centers, CNC lathes, deep hole boring and milling drilling machines, etc.

Always used in: automotive component manufacturing, precision mechanical processing manufacturing, batch intelligent production lines for workpiece and tool washing, cooling, lubrication, chip breaking, and chip removal, extending the service life of the tool, improving the machining accuracy and surface finish of the components.

Application of High Pressure Coolant System

Cutting process with high pressure coolant

Frequently Asked Questions (FAQ)

✦ What is a spindle center water outlet system?

It refers to direct transfer of coolant under high pressure through the spindle center straight to the cutting part of the tool. This provides direct cooling and helps wash away metal chips efficiently.

✦ What are the key benefits of using a high pressure coolant system?

The system eliminates metal chip entanglement, increases cutting speed, reduces tool wear by lowering local high temperatures, improves surface smoothness, and guarantees overall component quality stability.

✦ What kind of machining equipment can this system be applied to?

It is ideal for CNC machining centers, deep hole drilling and milling machines, crankshaft and gear grinders, CNC turning/milling composite machines, gantry machining centers, and CNC lathes.

✦ What is the filtration accuracy of the system?

The system provides efficient bag filtration with a minimum accuracy of 25μm. It also features an automatically cleaned filter element for effortless maintenance.

✦ Can customers choose the pump brand for this coolant system?

Yes. Depending on your choice between centrifugal or screw pumps, you can specify customer-preferred brands (such as Nanyuan for centrifugal pumps or Yellow Pump for screw pumps).

✦ How does it help extend tool service life?

By delivering high-pressure coolant directly to the cutting zone, it reduces localized friction-induced heat. This significantly slows tool wear, reduces replacement frequency, and lowers tool expenditures.
