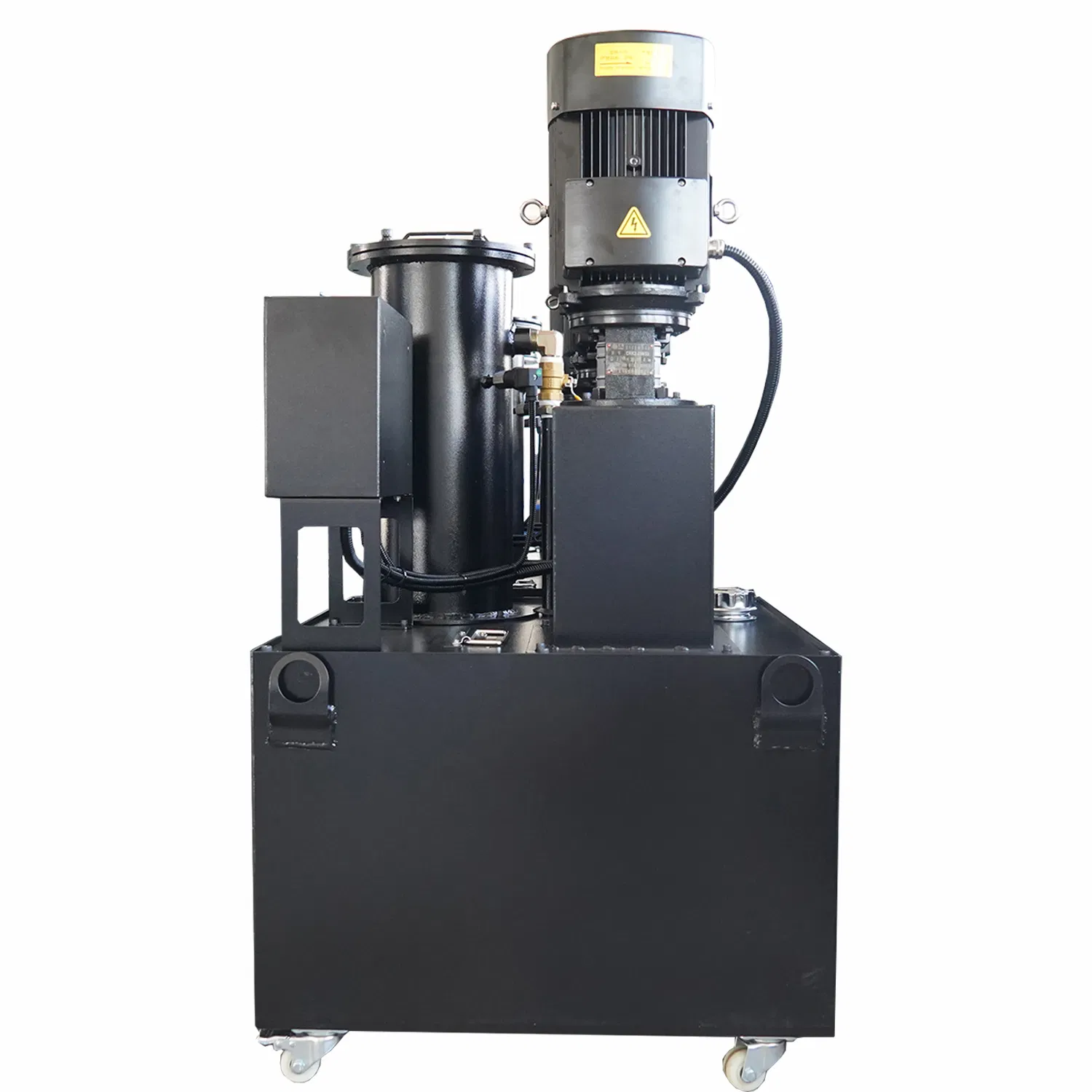

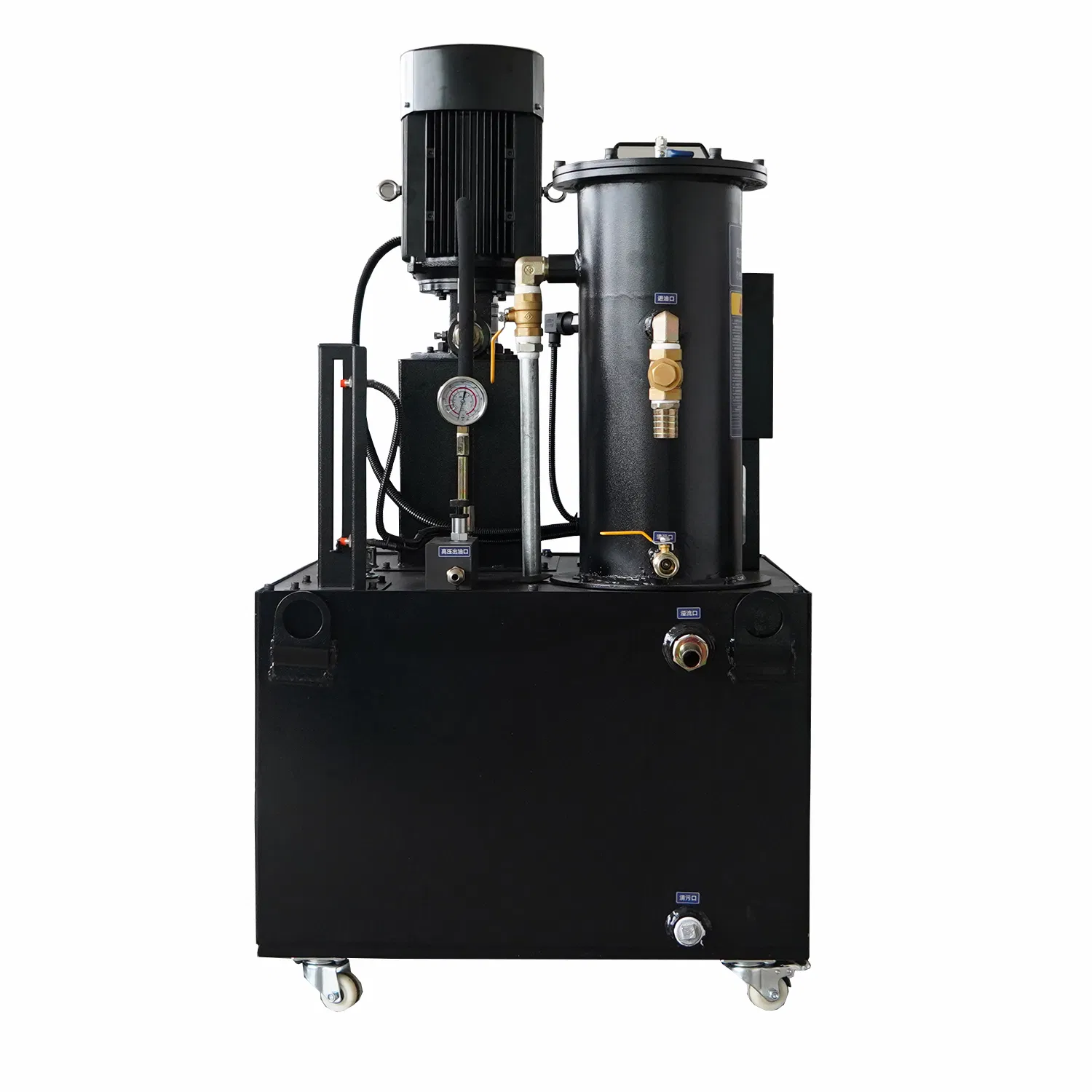

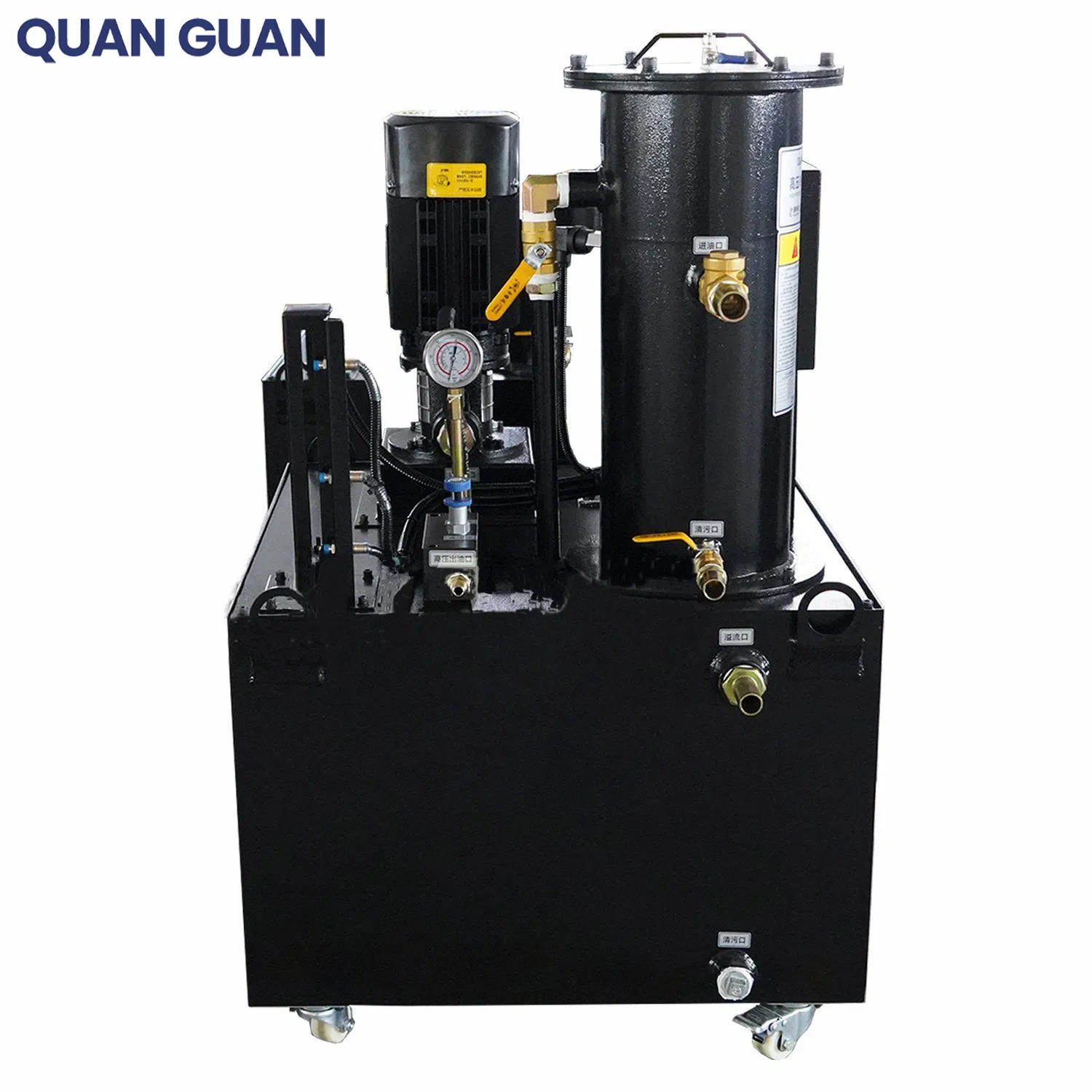

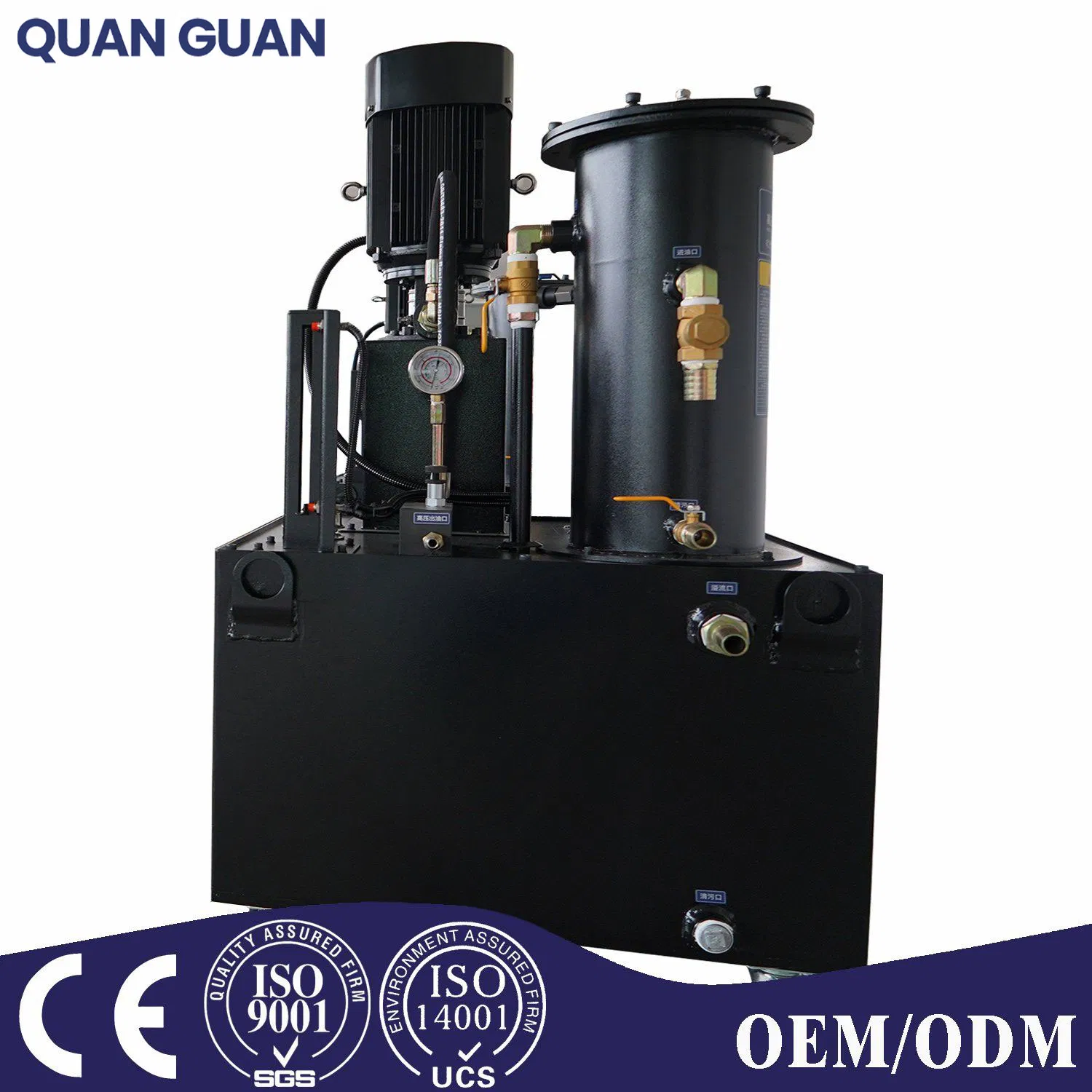

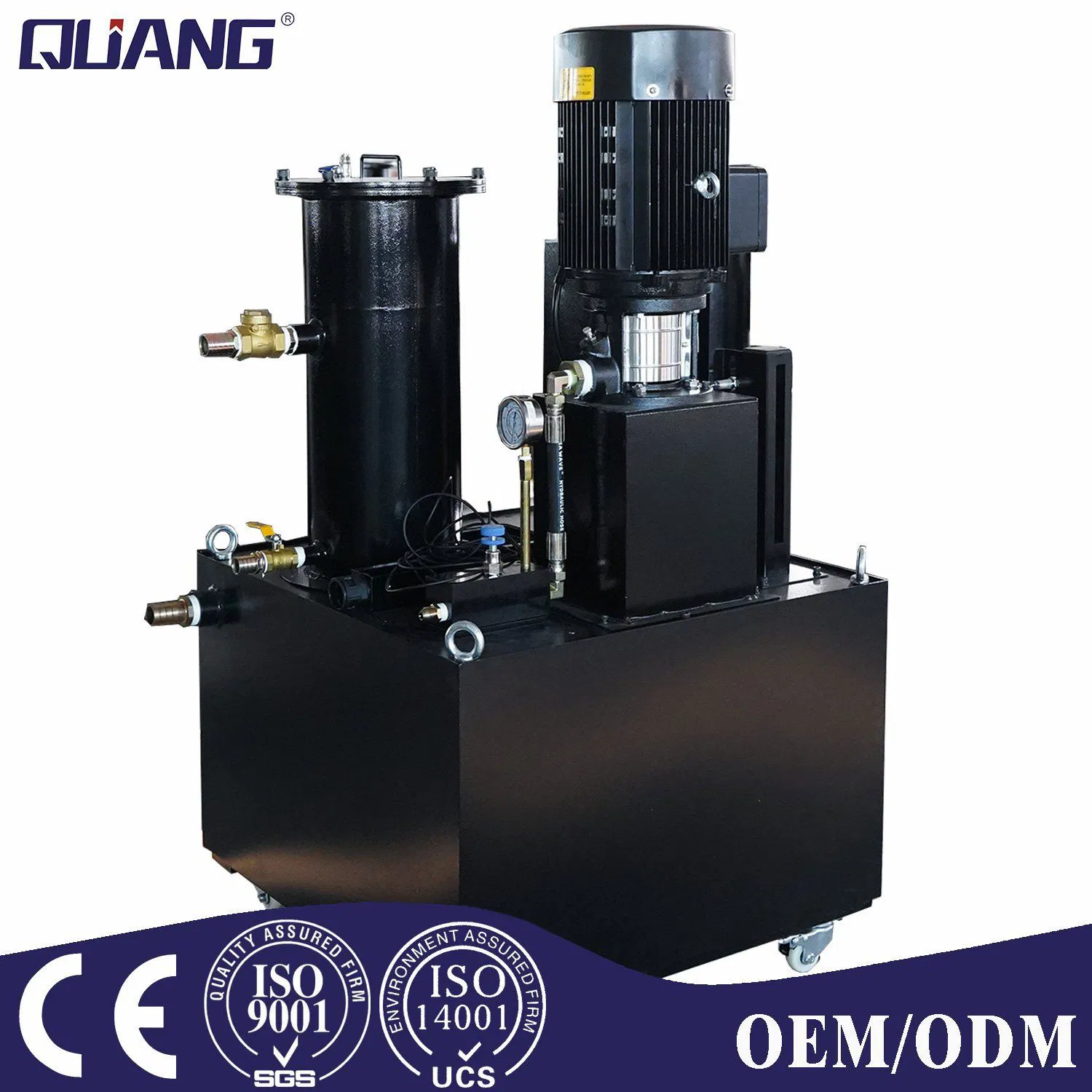

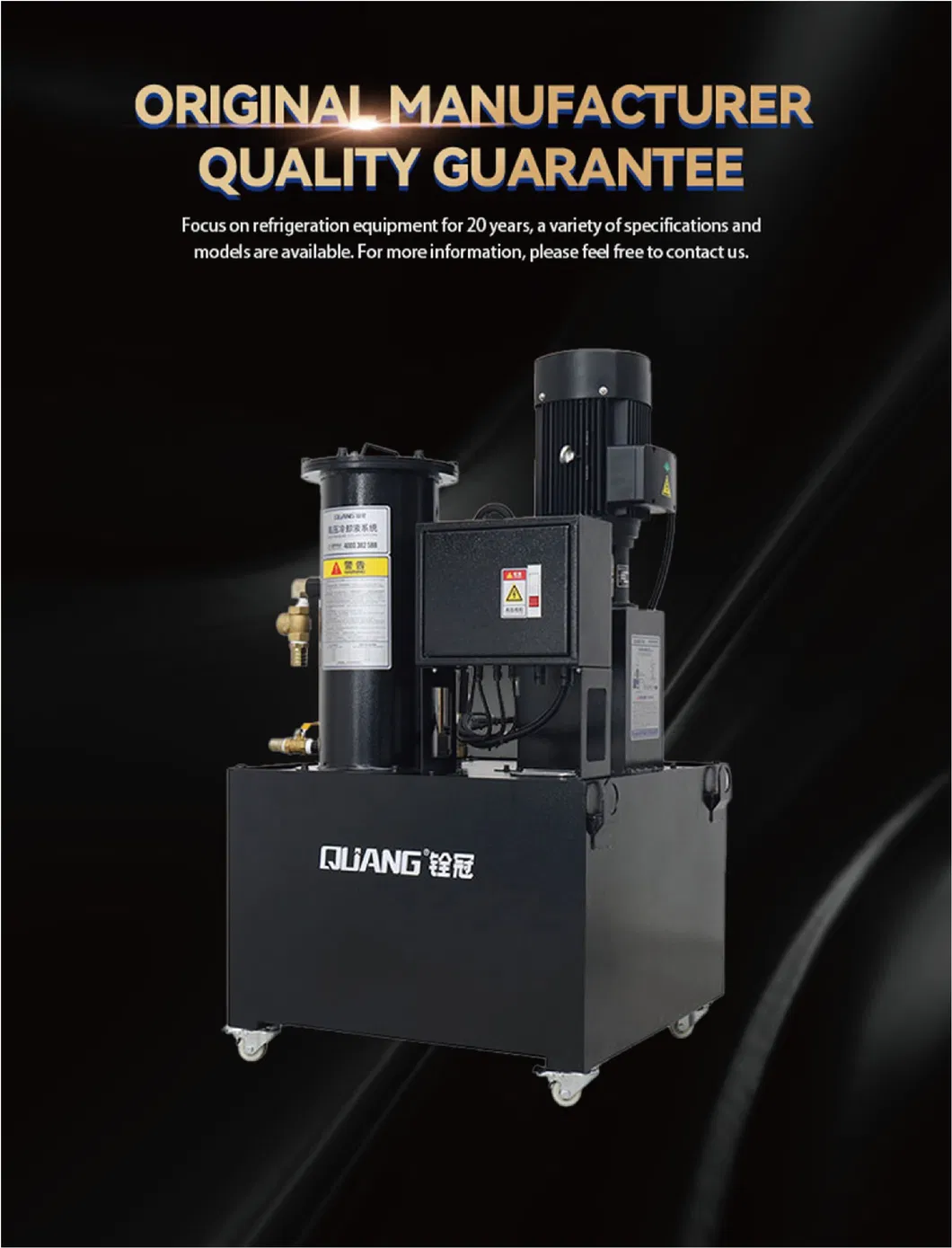

High Pressure Coolant System for Industry Cutting CNC Lathe Milling CNC Mechanical Spindle

1 / 5

High Pressure Coolant System for Industry Cutting CNC Lathe Milling CNC Mechanical Spindle

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Type Water-Cooled

Cooling Water Industrial Water

System Type Combined

Fans Species Frequency Fan

Noise Level Low

Application Fields Precision Machining, Turning, Milling and Drilling

Certification ISO, CE

Condition New

Flow Rate 35L/Min

Filter Accuracy Less 25um

Number of Water Outlets 1

Input Voltage AC220V/AC380V

Transport Package Wooden Box

Specification 700*700*1230mm

Origin China

Packaging & Delivery

Package Size 770.00cm * 880.00cm * 1390.00cm

Package Gross Weight 100.000kg

Product Description

The water outlet from the center of the spindle, also known as spindle internal cooling or tool internal cooling, refers to the direct transfer of coolant through the spindle through pressure to the cutting part of the tool. In addition to timely cooling of the tool, high-pressure coolant can also be used to vigorously wash the chips milled from the workpiece.

Product Parameters

Item	QG-HPC-2MP-33LA-LX-1	QG-HPC-3MP-33LA-LX-1	QG-HPC-5MP-40LA-LG-1	QG-HPC-7MP-40LA-LG-1
Outlet pressure	20Bar	30Bar	50Bar	70Bar
flow rate	33L/min	33L/min	40L/min	40L/min
Rated power	2.2KW	4.0KW	5.5KW	7.5KW
Input Power	220V/380V 50HZ/60HZ
Bag filtration	Min 25μm
Pump type	centrifugal pump	centrifugal pump/Screw pump	Screw pump	Screw pump
Pump brand	Customers can specify the water pump brand (centrifugal pump brand Nanyuan, screw pump brand yellow pump)
Size	7007001080mm	7007001080mm	7708801390mm	7708801390mm
Water tank capacity	220L	220L	350L	350L

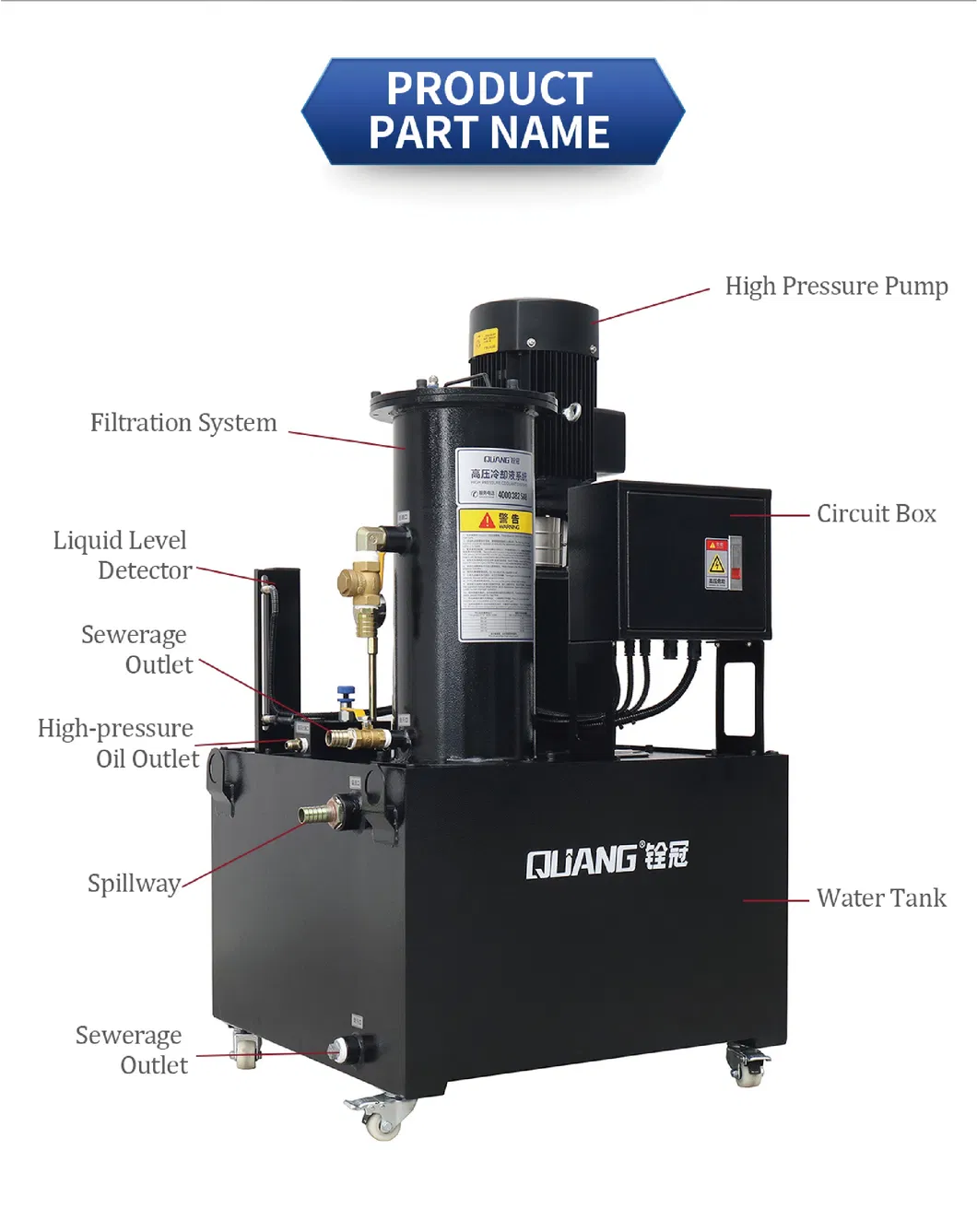

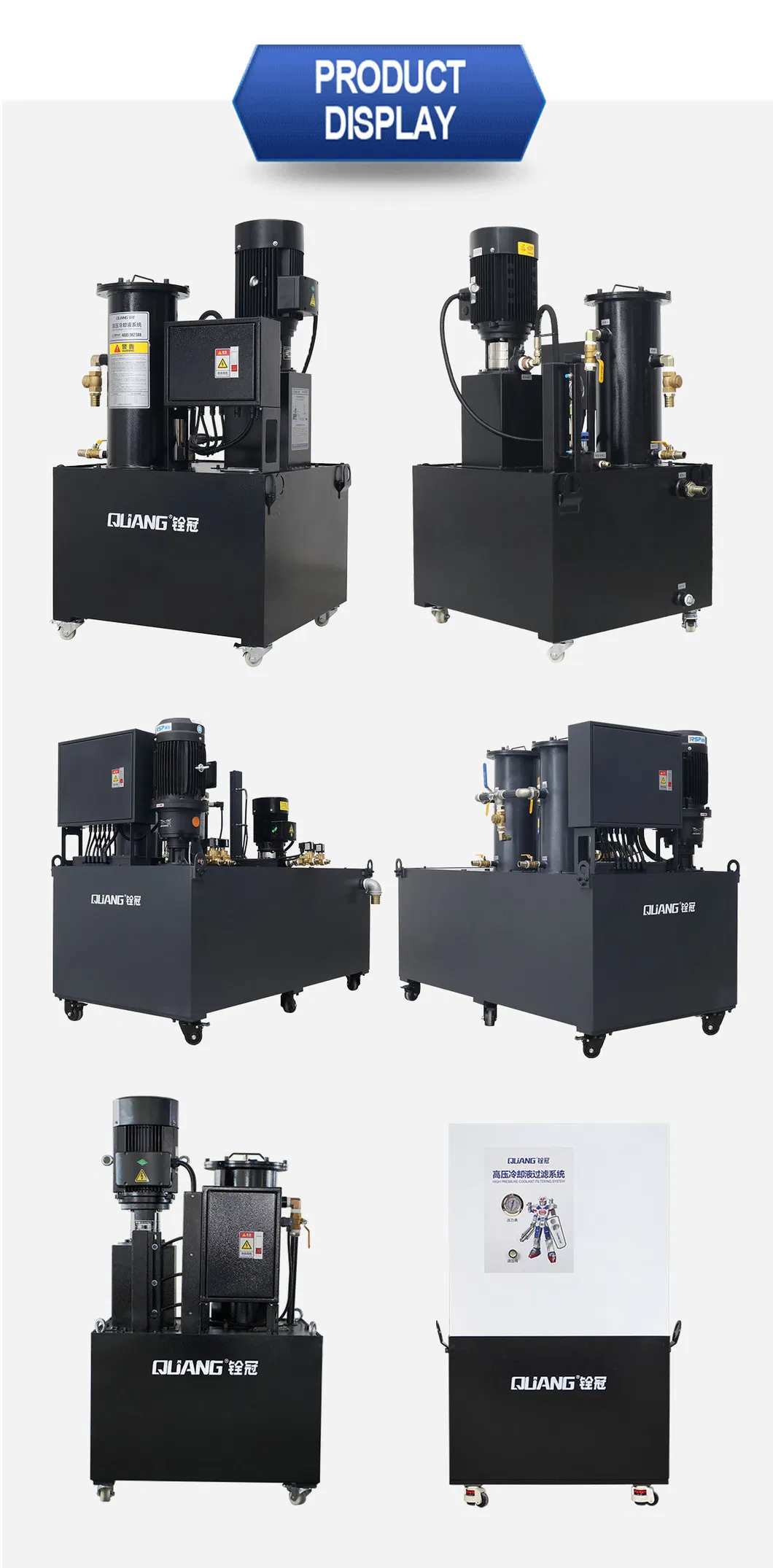

Pictures showing

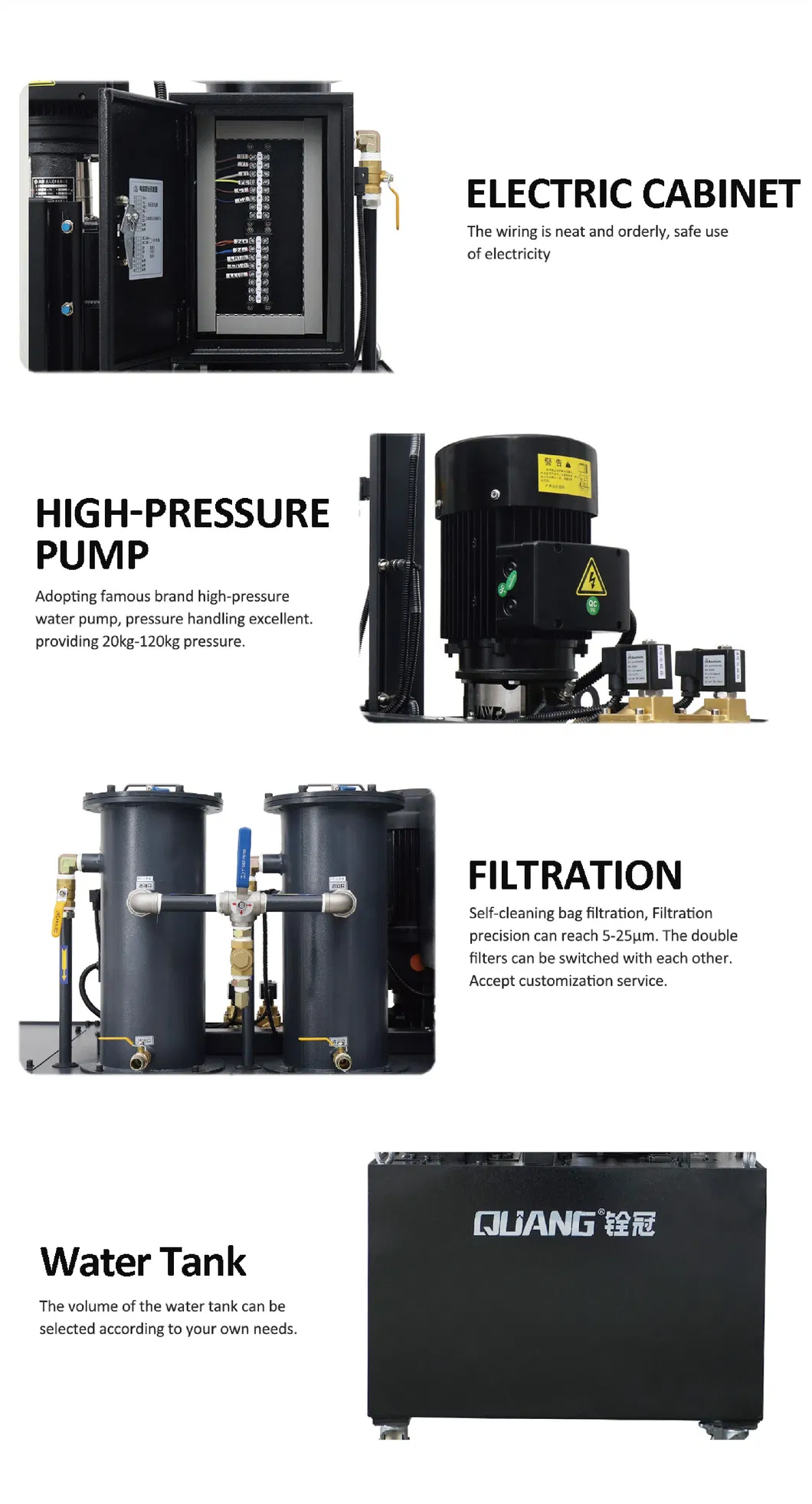

Product Features

✓ Eliminate the worry of entanglement in metal processing, avoid iron filings entangled on parts and tools, and ensure smoother production.
✓ Increase chip cutting speed and tap into more productivity in production.
✓ Reduced tool wear. Reduce the local temperature generated by high temperatures during machining and extend the tool life. Reduce the frequency of tool replacement and reduce tool usage.
✓ Improve quality stability and improve the qualification rate of parts processing.
✓ Improve the surface smoothness of parts, enhance their quality, and enhance their market competitiveness.
✓ Designed with an automatic cleaning filter element function, it is easy to disassemble and maintain, making it convenient and fast.

Applications

The spindle center water outlet system is mainly applicable to metal processing equipment, such as spindle water outlet CNC machining centers, deep hole drilling and milling machines, crankshaft grinders, gear grinding machines, CNC turning and milling composite machining machines, gantry drilling and milling machines, gantry machining centers, CNC lathes, deep hole boring and milling drilling machines, etc.

Always used in: automotive component manufacturing, precision mechanical processing manufacturing, batch intelligent production lines for workpiece and tool washing, cooling, lubrication, chip breaking, and chip removal, extending the service life of the tool, improving the machining accuracy and surface finish of the components.

Frequently Asked Questions (FAQ)

What is a spindle center water outlet system?

It is a system that delivers pressurized coolant directly through the center of the spindle to the cutting zone of the tool. This process provides optimal cooling and flushes metal chips away from the workpiece.

How does high-pressure coolant extend tool life?

By delivering coolant directly to the contact point of the cutting tool, it significantly reduces localized temperatures generated during high-speed machining, minimizing thermal stress and tool wear.

What is the filtration accuracy of this coolant system?

The system features high-precision bag filtration with a rating of less than 25μm (Min 25μm), protecting internal cooling channels and workpiece surfaces from fine particulates.

Can the coolant pump brand be specified?

Yes, customers can specify their preferred pump brands. Centrifugal configurations standardly use Nanyuan brands, while screw pump configurations utilize yellow pump brands.

What machinery applications is this system compatible with?

This system is designed for CNC machining centers, deep hole drilling and milling machines, crankshaft grinders, CNC lathes, gantry boring mills, and turning-milling composite machines.

How does the automatic cleaning filter function benefit production?

The self-cleaning feature prevents clogging and ensures constant coolant flow pressure. It reduces routine maintenance time and allows quick, tool-free disassembling.
