| Item | QG-HPC-2MP-33LA-LX-1 | QG-HPC-3MP-33LA-LX-1 | QG-HPC-5MP-40LA-LG-1 | QG-HPC-7MP-40LA-LG-1 |
| Outlet pressure | 20Bar | 30Bar | 50Bar | 70Bar |
| Flow rate | 33L/min | 33L/min | 40L/min | 40L/min |
| Rated power | 2.2KW | 4.0KW | 5.5KW | 7.5KW |
| Input Power | 220V/380V 50HZ/60HZ | |||
| Bag filtration | Min 25μm | |||
| Pump type | Centrifugal pump | Centrifugal pump/Screw pump | Screw pump | Screw pump |
| Pump brand | Customers can specify the water pump brand (centrifugal pump brand Nanyuan, screw pump brand yellow pump) | |||
| Size | 700*700*1080mm | 700*700*1080mm | 770*880*1390mm | 770*880*1390mm |
| Water tank capacity | 220L | 220L | 350L | 350L |
Eliminate the worry of entanglement in metal processing, avoid iron filings entangled on parts and tools, and ensure smoother production.
Increase chip cutting speed and tap into more productivity in production.
Reduced tool wear. Reduce the local temperature generated by high temperatures during machining and extend the tool life. Reduce the frequency of tool replacement and reduce tool usage.
Improve quality stability and improve the qualification rate of parts processing.
Improve the surface smoothness of parts, enhance their quality, and enhance their market competitiveness.
Designed with an automatic cleaning filter element function, it is easy to disassemble and maintain, making it convenient and fast.
The spindle center water outlet system is mainly applicable to metal processing equipment, such as spindle water outlet CNC machining centers, deep hole drilling and milling machines, crankshaft grinders, gear grinding machines, CNC turning and milling composite machining machines, gantry drilling and milling machines, gantry machining centers, CNC lathes, deep hole boring and milling drilling machines, etc.
Always used in: automotive component manufacturing, precision mechanical processing manufacturing, batch intelligent production lines for workpiece and tool washing, cooling, lubrication, chip breaking, and chip removal, extending the service life of the tool, improving the machining accuracy and surface finish of the components.

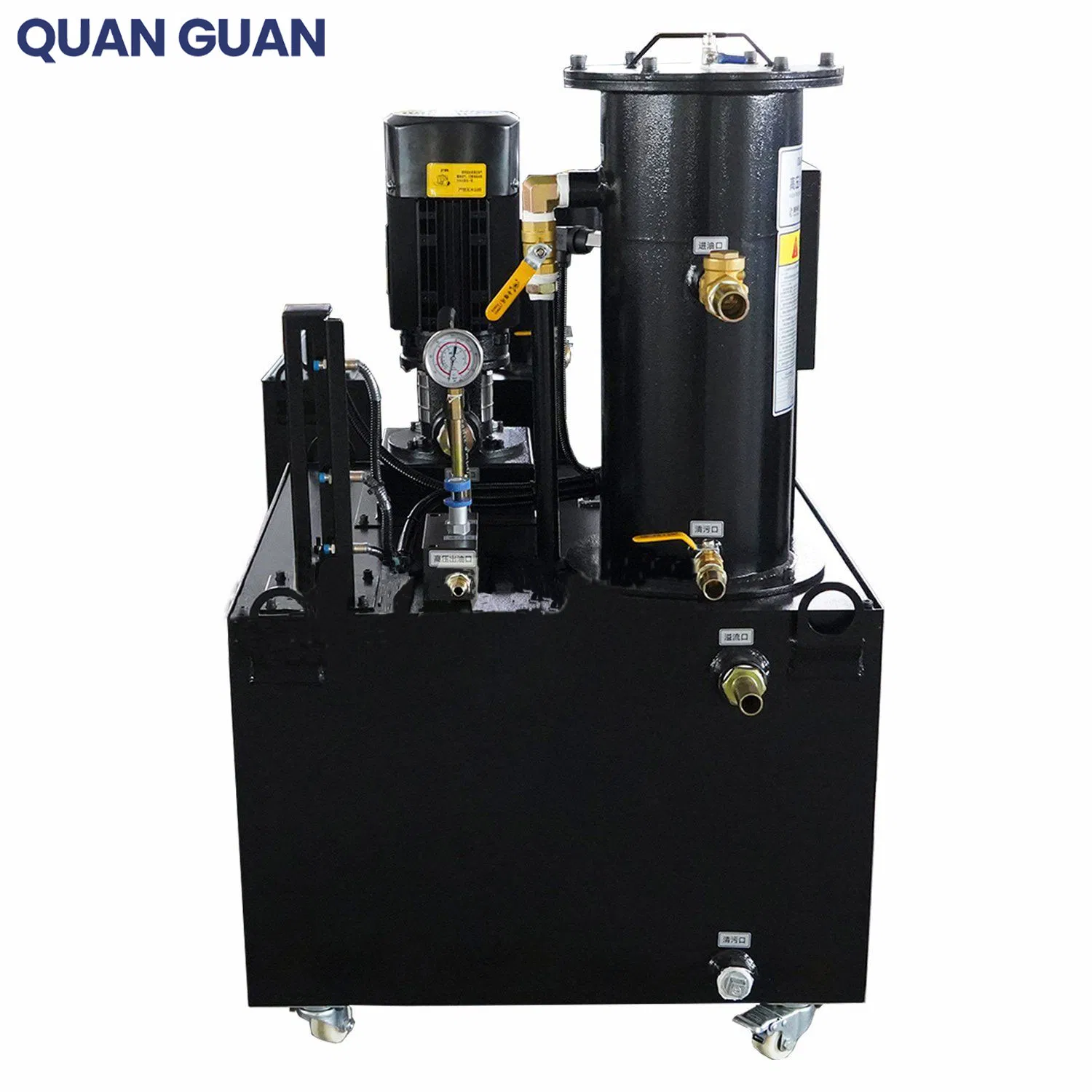

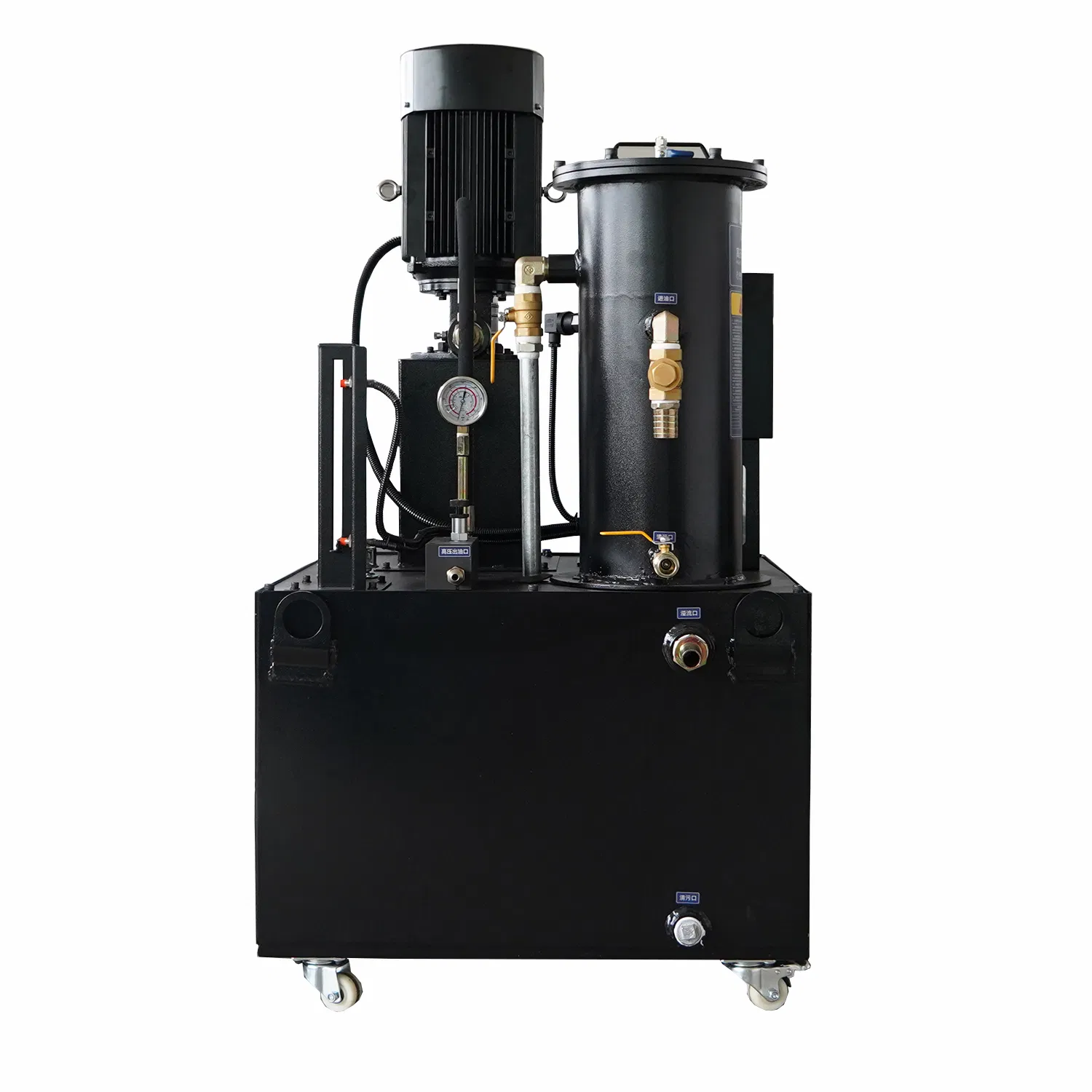

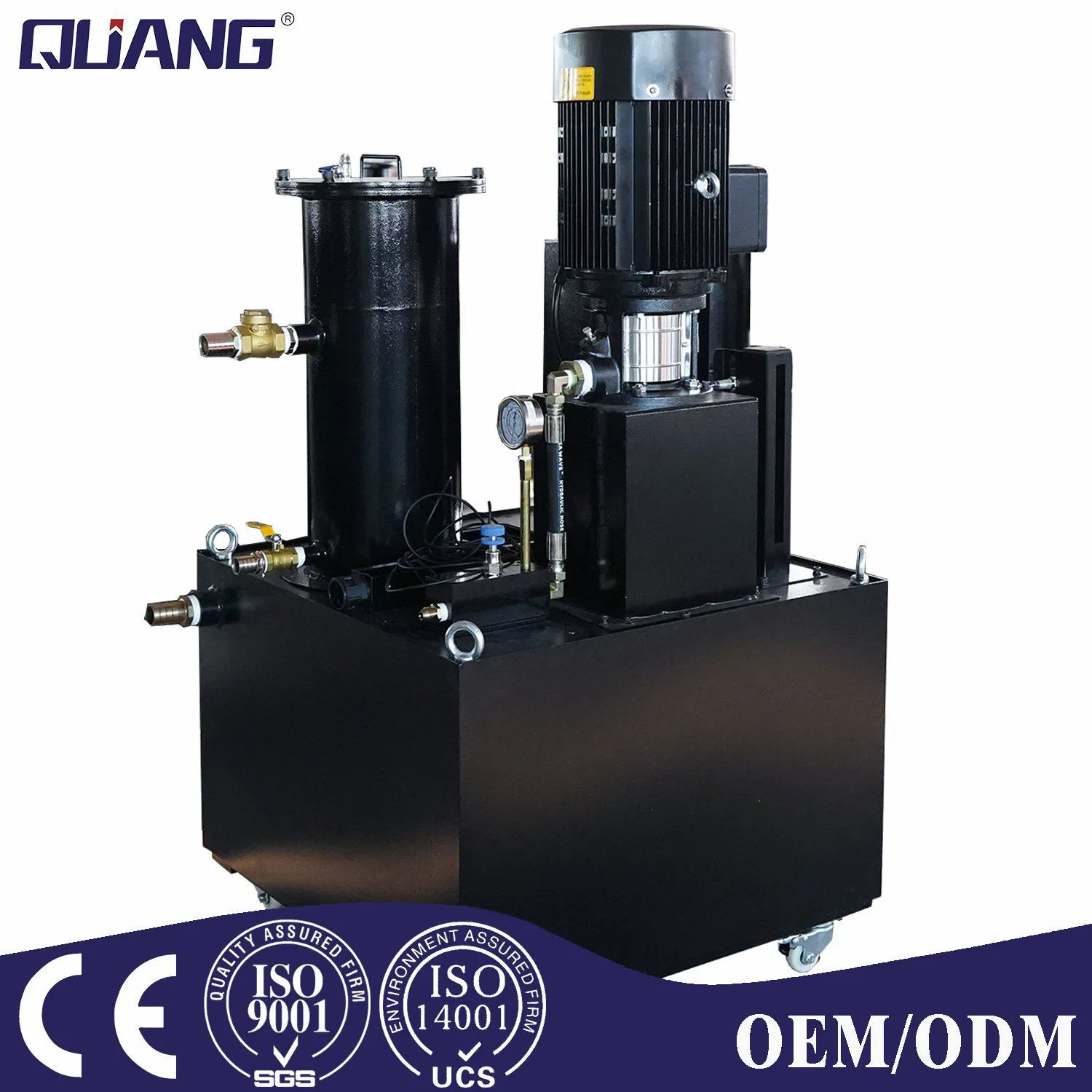

It refers to a system that directly transfers pressurized coolant through the spindle to the cutting part of the tool to provide immediate cooling and wash away milled chips from the workpiece.
By reducing the local heat generated during metal machining processes. This cooling effect lowers tool wear, extends overall tool life, and decreases the tool replacement rate.
Customers can specify the water pump brand they need. Standard options include Nanyuan for centrifugal pumps and Yellow Pump for screw pumps.

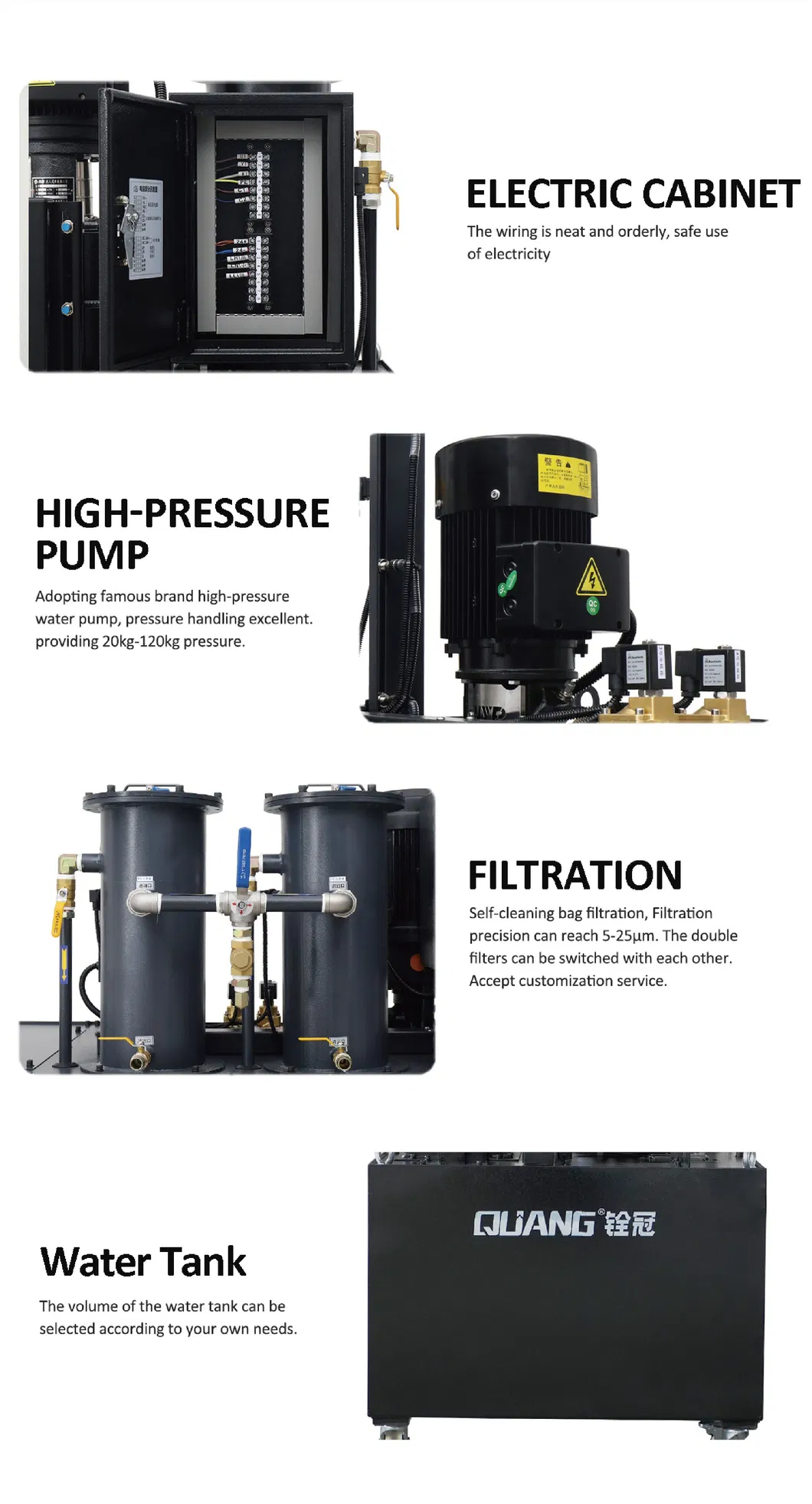

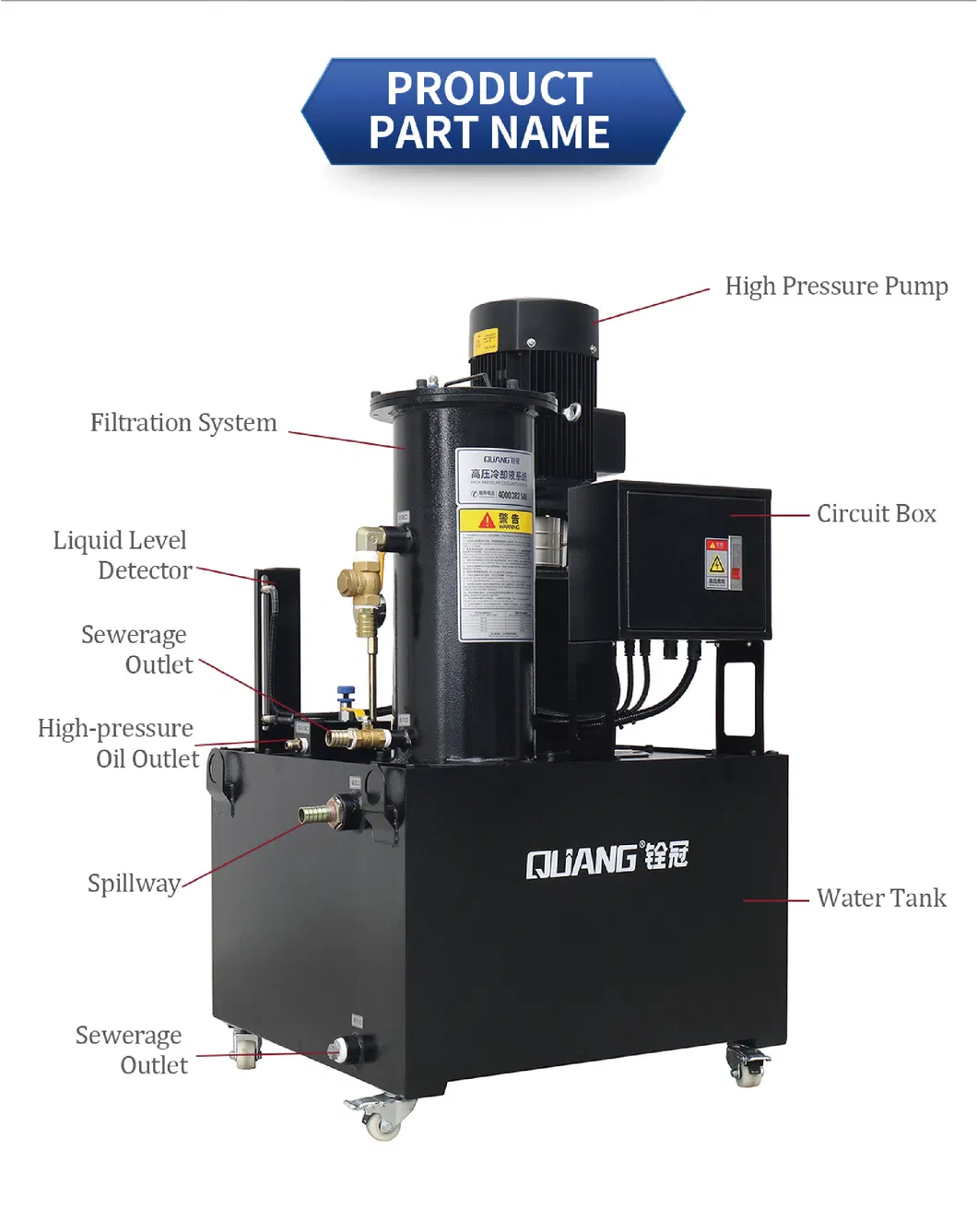

The system features bag filtration with a minimum filtration precision of 25μm, combined with an easily dismountable, automatic cleaning filter element design.
It is widely used in spindle water outlet CNC machining centers, deep hole drilling and milling machines, gear grinders, CNC lathes, and gantry machining centers, particularly in automotive and precision component manufacturing.
By quickly removing metal chips and reducing friction heat. It prevents chips from scratching the finished surface, thereby improving smoothness and overall component quality.
