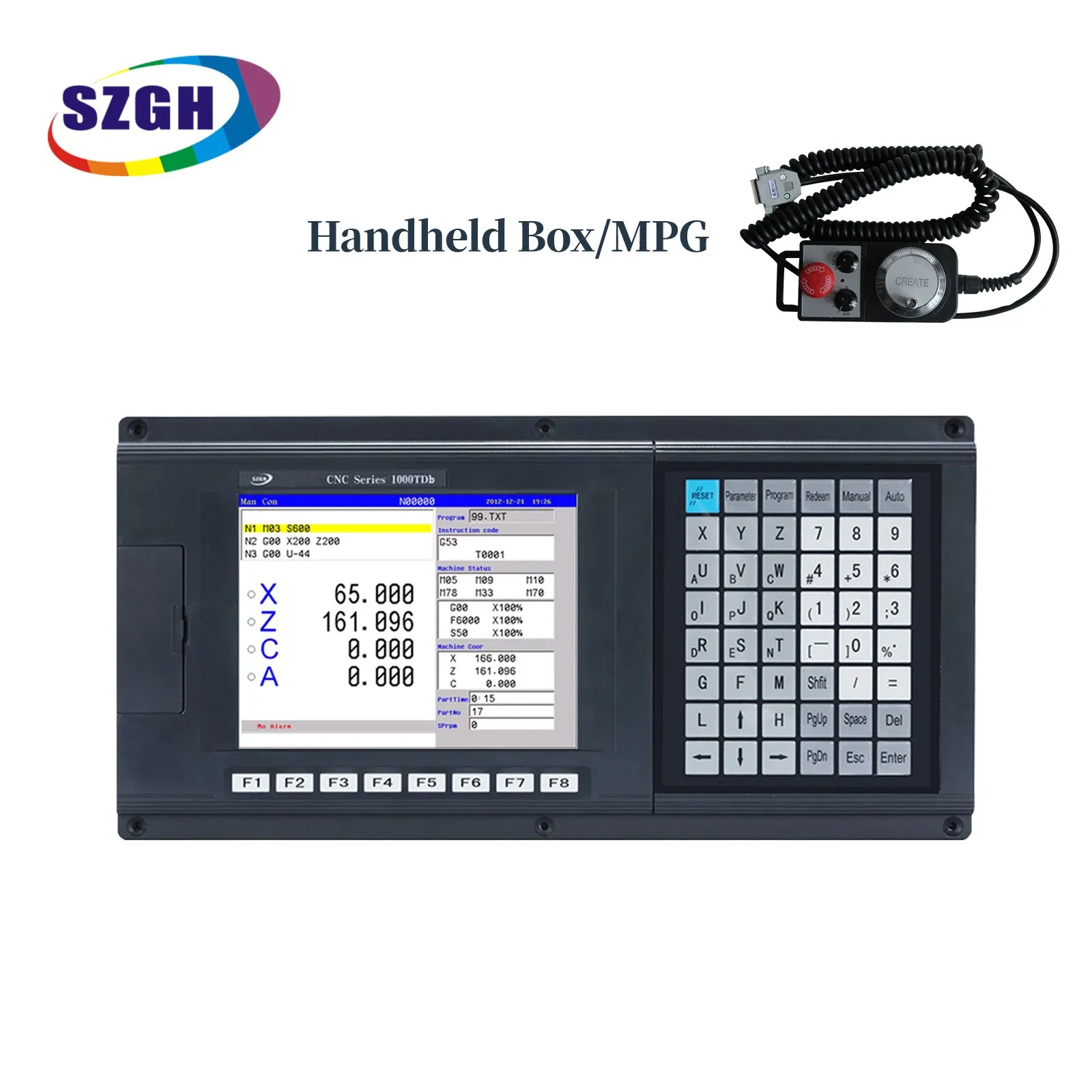

SZGH 2 Axis Turning Controller Motion Control System with AC Servo Motor Driver and Spindle Servo Motor Driver for CNC Machine

Customization:	Available
After-sales Service:	Supported
Warranty:	12 Months

Basic Information

Model NO.	CNC1000TDb-2
Type	Horizontal Lathe
Processing Accessory	Centre CNC Lathe
Guide Rail	Horizontal Guide Rail
Tool Holder	Double-tool Holder CNC Lathe
Power Source	Manual
Controlling Mode	CNC
Automatic Grade	Automatic
Setting Mode	Table
Precision	Normal Precision
Certification	CE
Condition	New
Axes	2 Axis
Displayer	8 Inch Real Color LCD Display
Function	PLC and Macrofunction
Panel	Touch Screen Main And sub Panel
Interface	RS232
Power	High Anti-Jammingswitch Power
User Store Room	100MB
Max Screw Processingthread Pitch	1000mm
Cutter Offset	C
Color	Black
CPU	32 Bits
Memory	128MB
Customation	Supported
After sale service	60 years
Transport Package	Carton
Specification	493238
HS Code	8537101101
Production Capacity	500sets /Month

Product Description

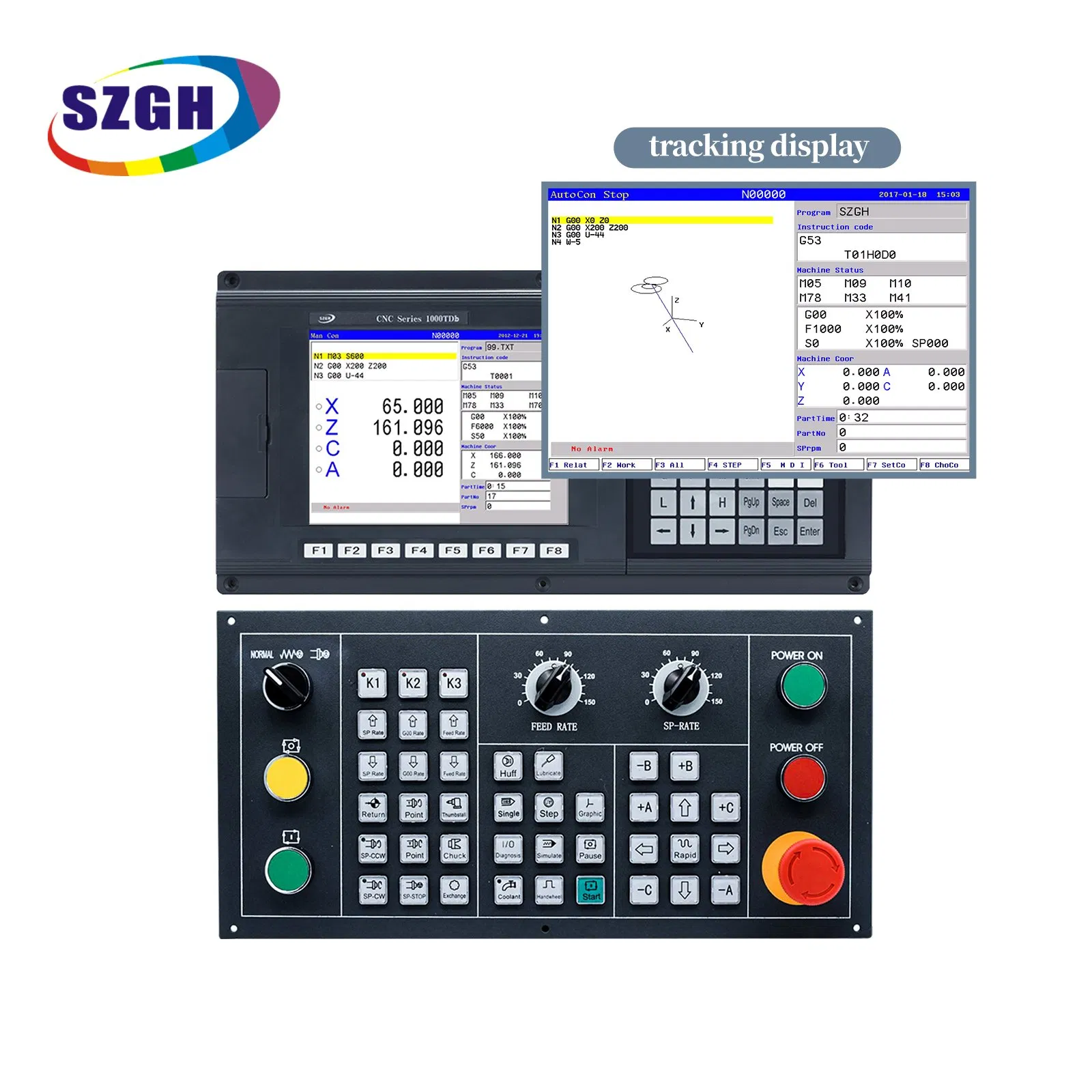

2 Axis Turning Controller Motion Control System with AC Servo Motor Driver and Spindle Servo Motor Driver for CNC Machine

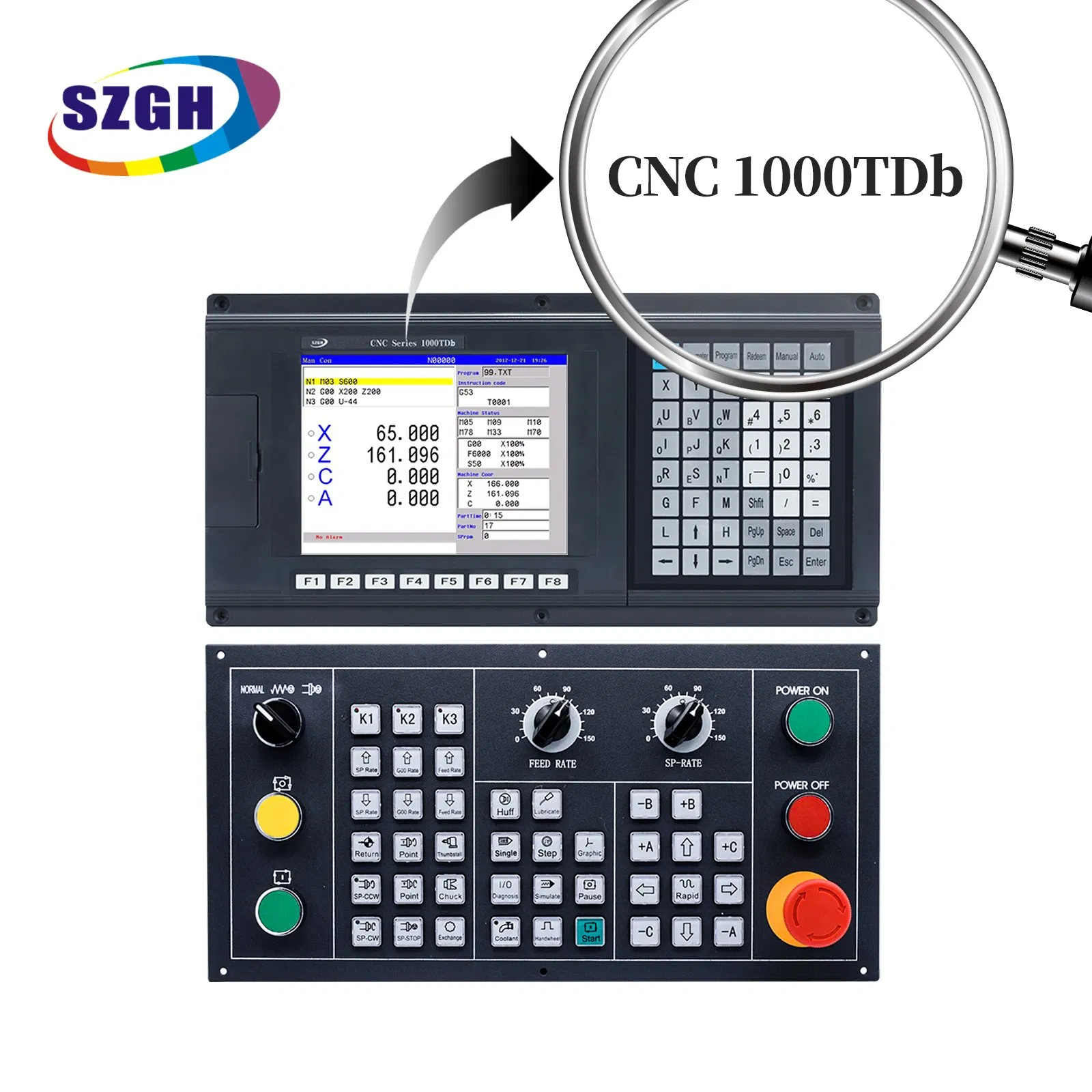

CNC1000TDb-2 is 2 Axis standard type Lathe CNC Controller, with 8.4 inches display (800x600), 2 analog spindle, 2ms interpolation in high speed, support ATC, PLC and macro function. which obviously improve the efficiency, precision and surface quality of parts processing. New USB interface, it supports the file operation and program running in flash disk.

Packing List

CNC1000TDb-2 main panel - 1pcs
B or A panel - 1pcs
5 meter cables - 1pcs
Manual - 2 pcs

Available Options upon Request:

Long cables
Servo motor and driver

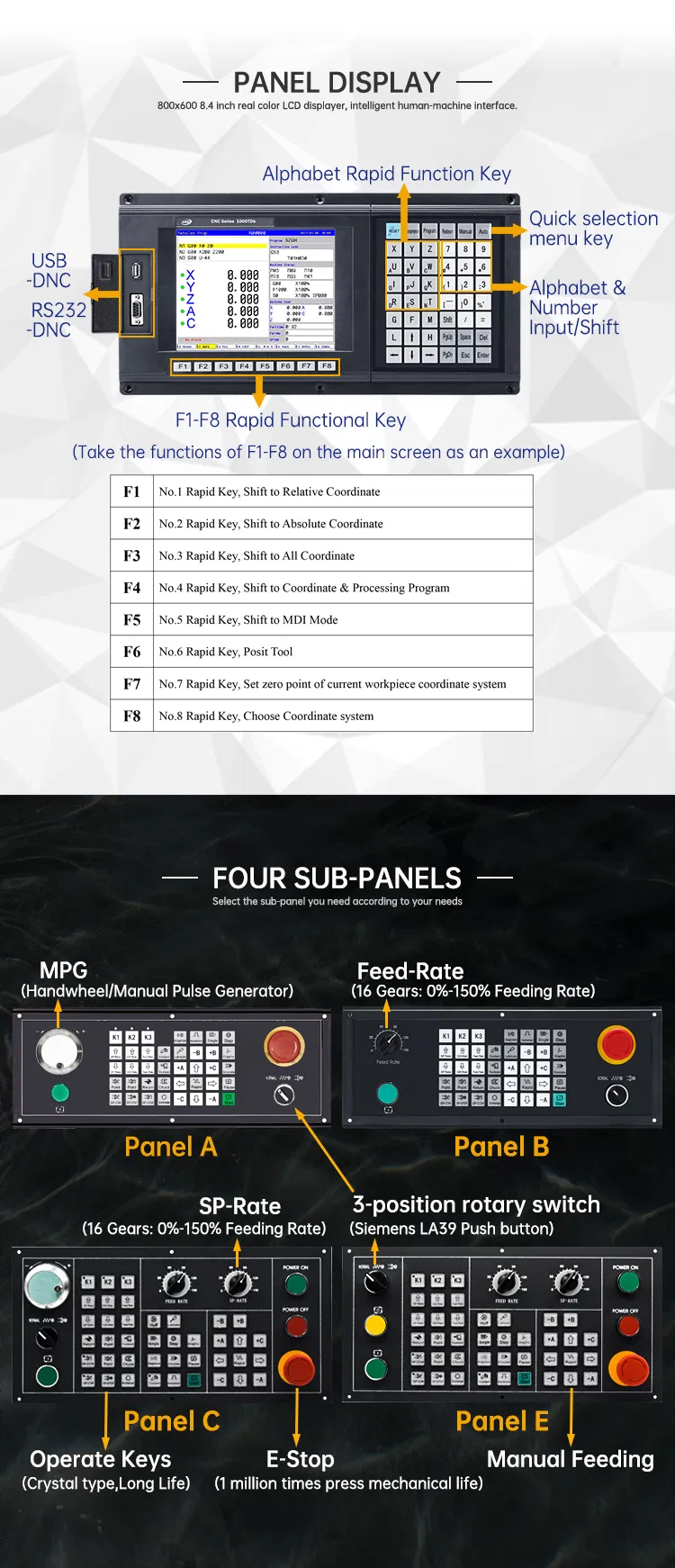

C or E panel

Specification	Details
Display	8.4 inch color screen
Interface	USB+RS232 Communication Port
Support	Built-in standard PLC Program, customized edits available on request
Basic I/O	56*32
Function	Support Macro function, PLC ladder function, support all types of turrets, max 99 tools
After Warranty Support	Video technical support, Online support

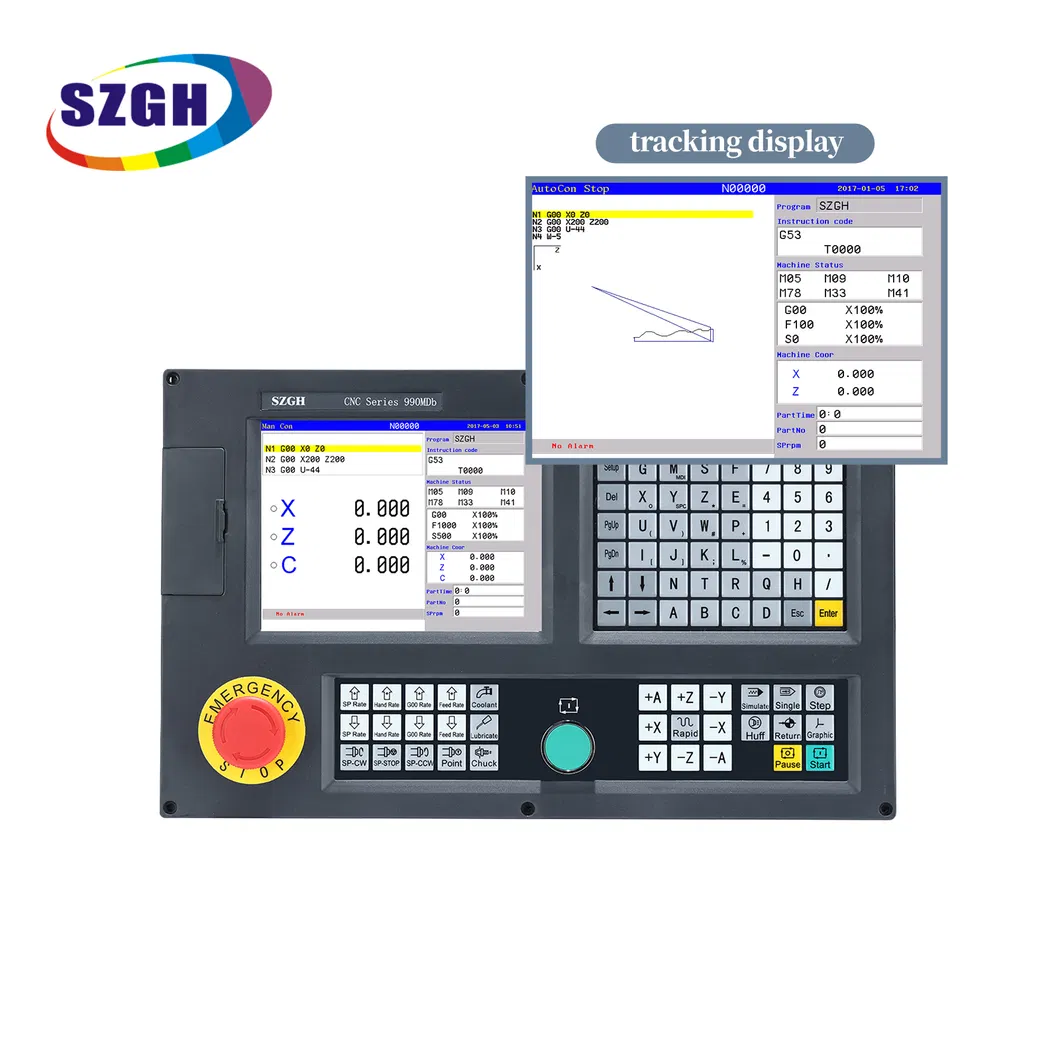

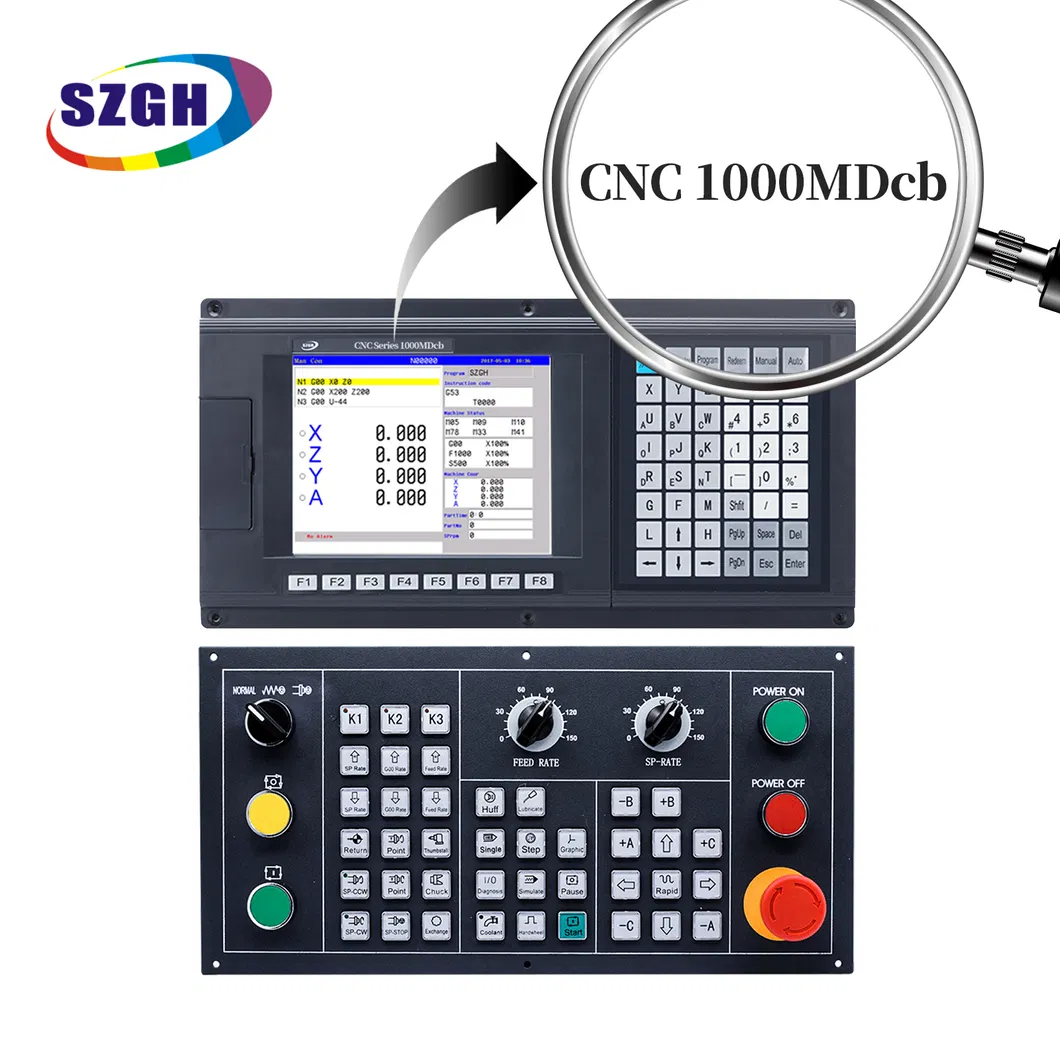

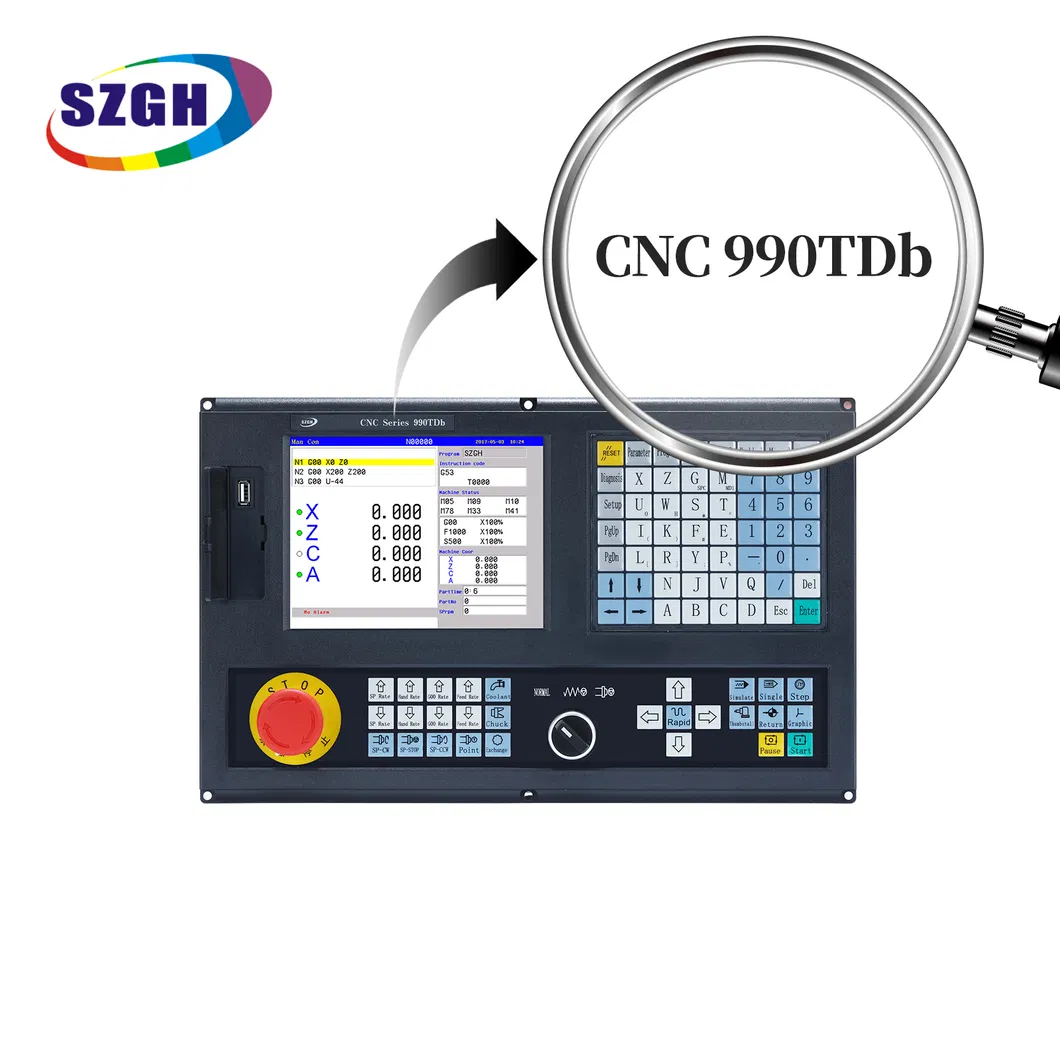

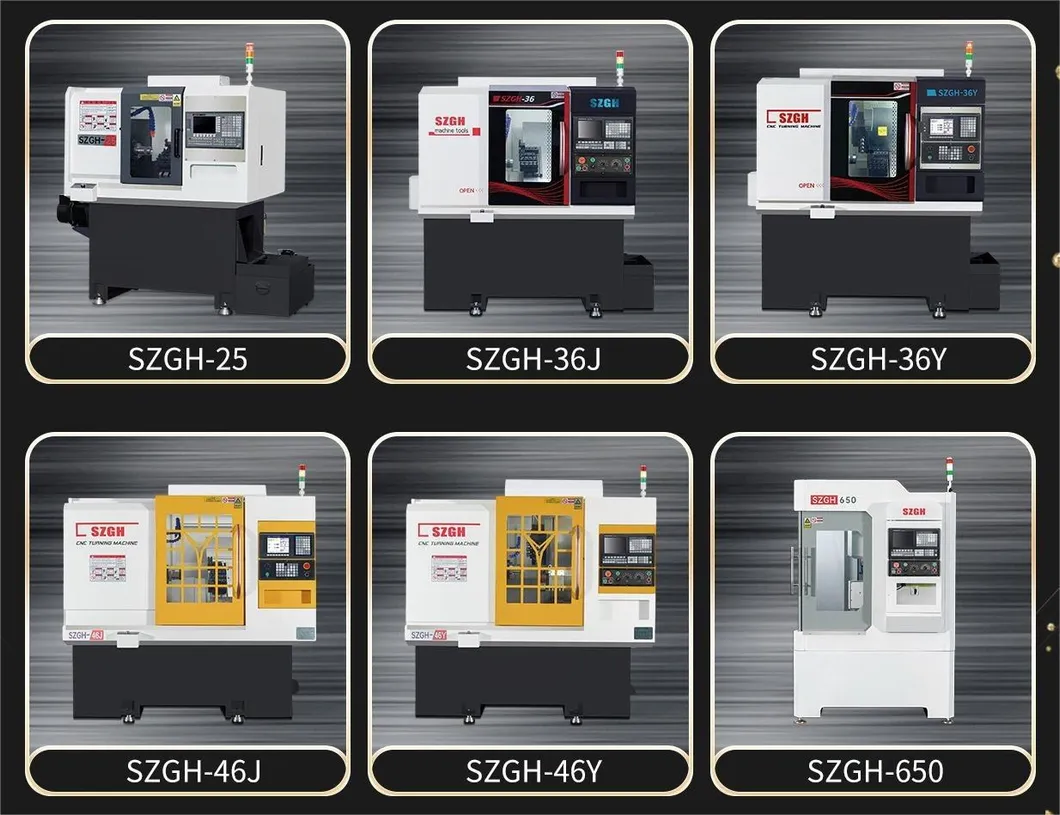

Related Models

Complete customized CNC kits can be provided for convenient and efficient setup.

Product Parameters

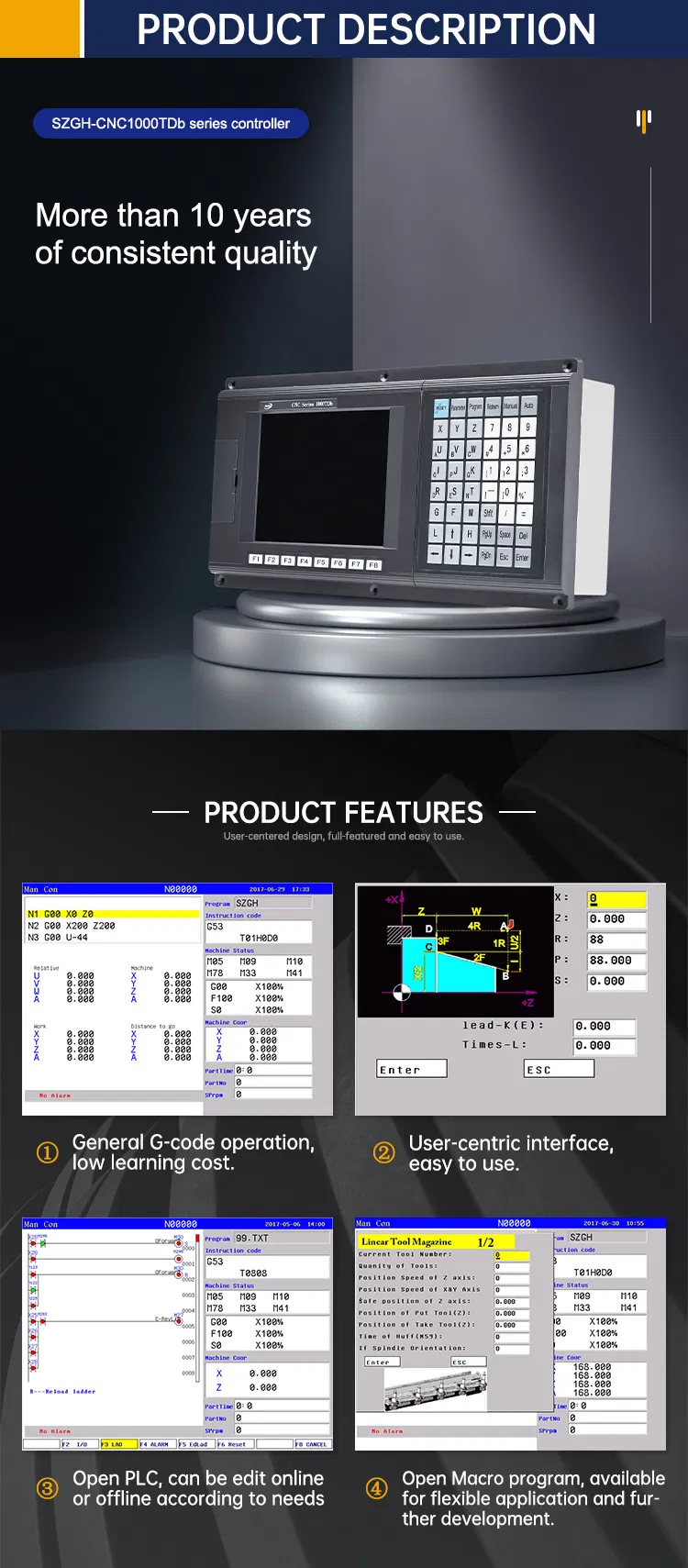

Features

Adopt ARM and DSP, FPGA and hardware interpolation technology.
The max speed is 20 m/min, feeding speed is 10 m/min.
32Mb user store room.
800x600 7.5 inch real color LCD displayer.
Touch screen main and sub panel.
High anti-jamming switch power.
USB movable U disc copy interface.
RS232 interface.
Spindle servo speed control/spindle frequency convenient speed control.
Max screw processing thread pitch is 1000MM.

Technical Specification

Two axis lathe liner, circular, spiral line interpolation instruction.
Min input unit: 0.001mm.
Program size range: ± 99999.999.
Feeding speed: 0.001-10m/min.
Max speed: 20 m/min.
Length Compensation & tool radius automatic compensation.
RS232 and U flash connection port.
I/O 56X32 input and output.

System Operation Conditions

Power Supplying: AC 220V(+10%/-15%), Frequency 50Hz±2%. Power: ≤ 200W. (Note: Must use isolation transformer to supply power, first input: 380V).
Climate Conditions: Operation: temperature 0~45°C, relative humidity 40-80%. Storage & transport: temperature -40~55°C, relative humidity <93%(40°C). Atmospheric pressure: 86-106kpa.
Operation Environment: No excessive flour dust, no acid, no alkali gas and explosive gas, no strong electromagnetic interference.

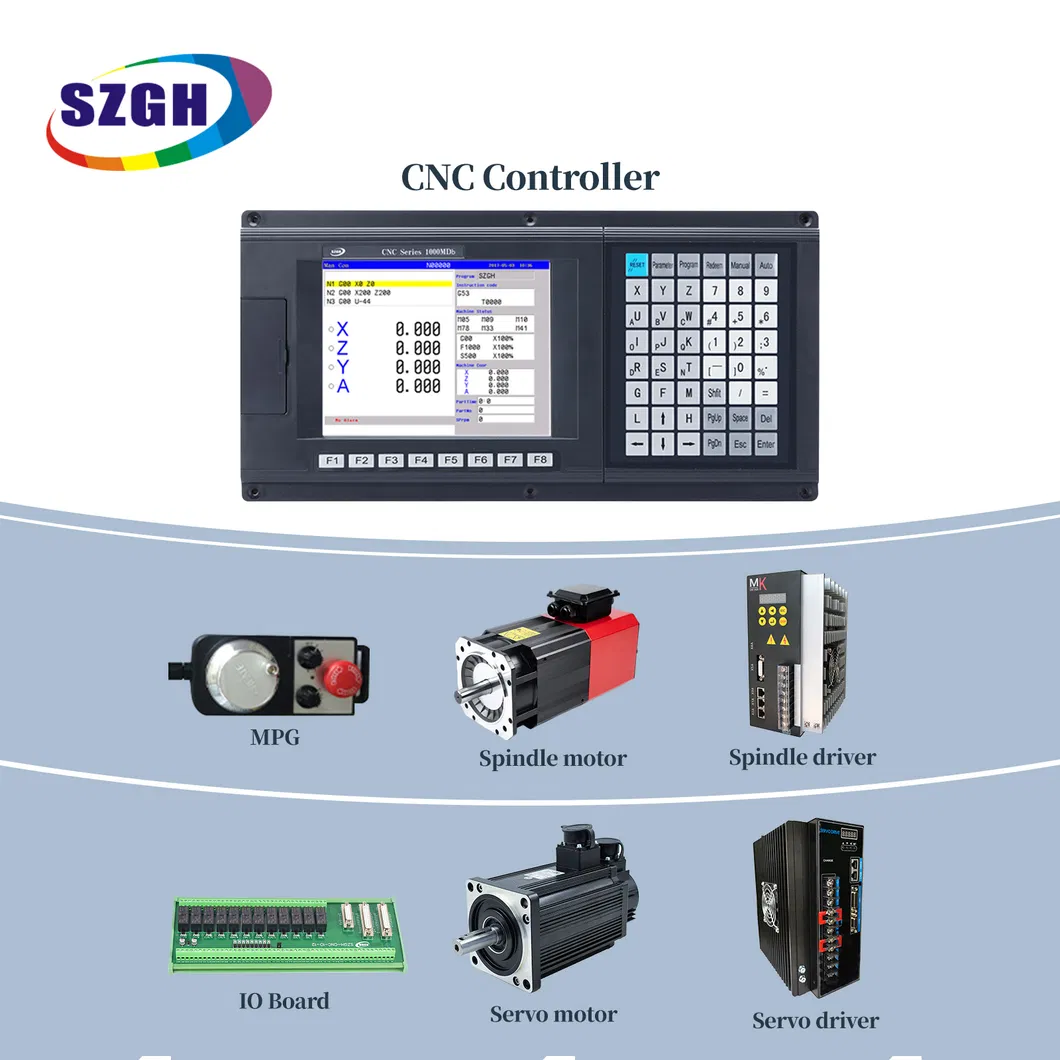

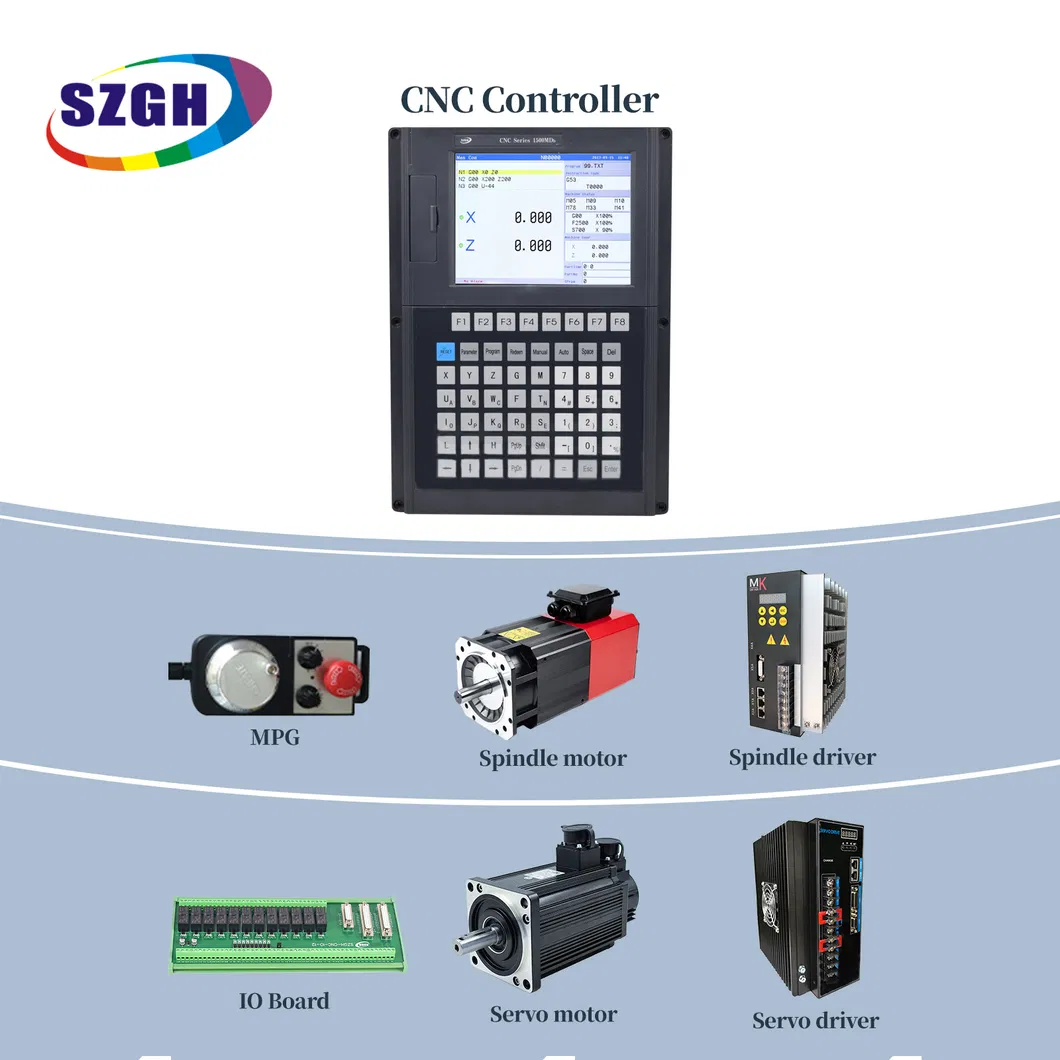

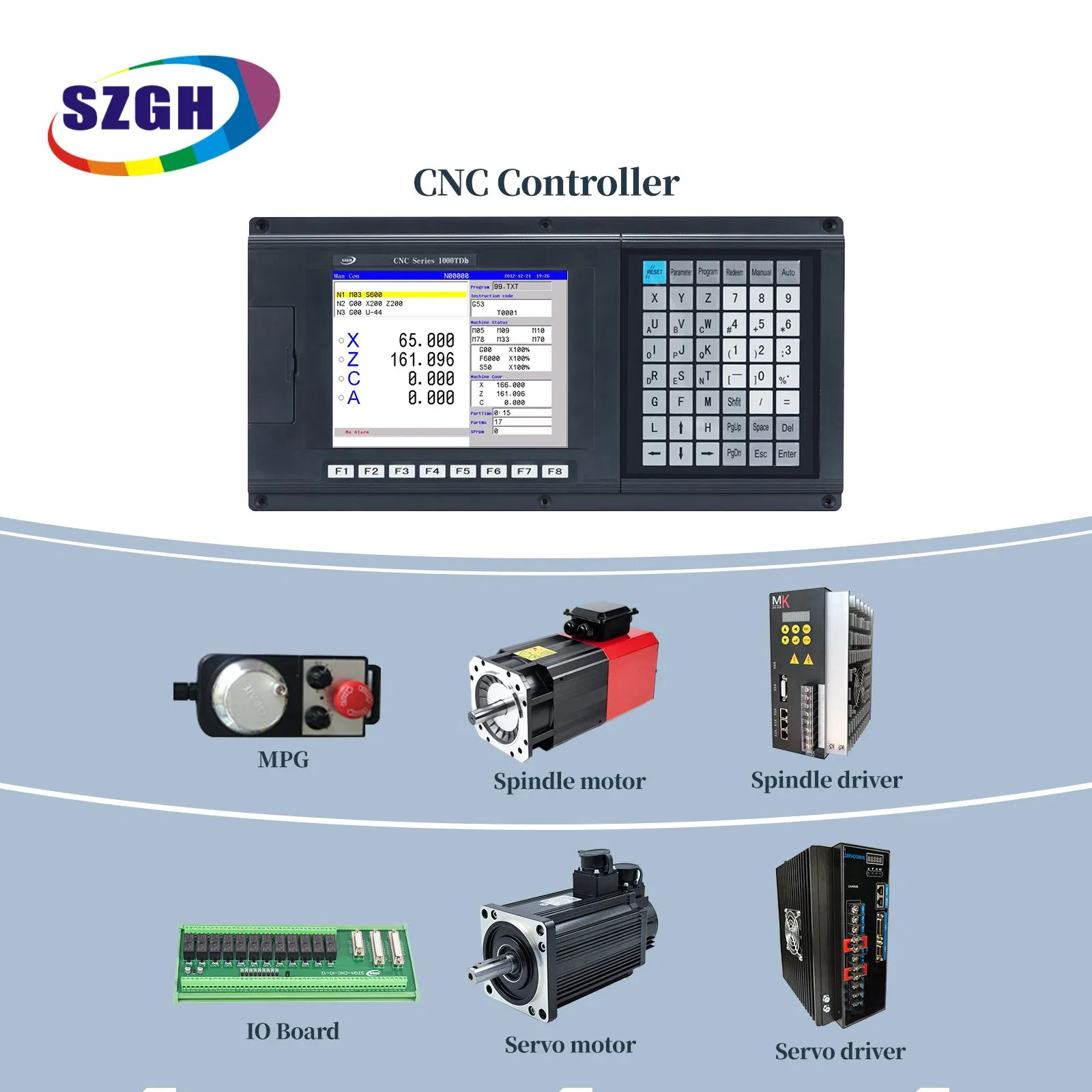

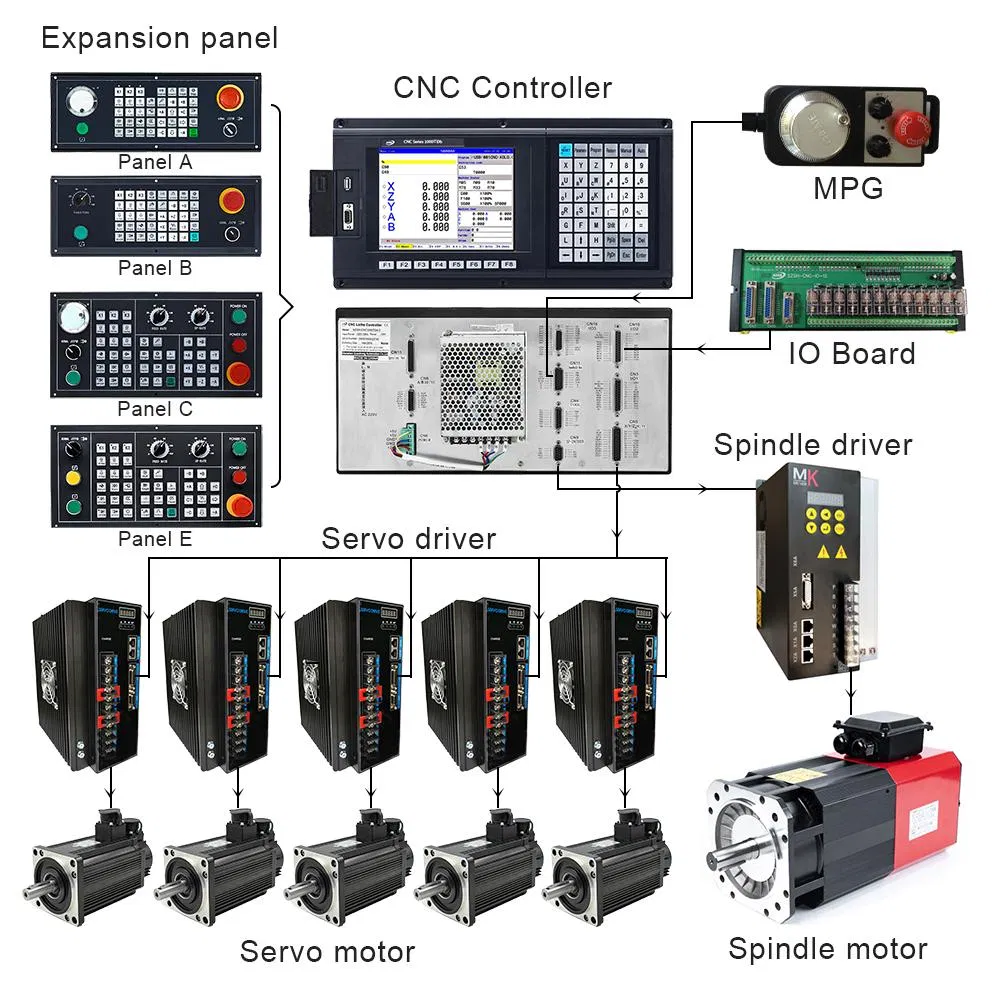

CNC Total Solutions Recommended

CNC Controller options:

Economic type
Standard & Modbus type
Absolute type
Dual channel type, Max 8+8 axes

AC Servo Motors:

2500PPR encoder
23bit encoder

Servo Drivers:

Incremental
Absolute
Ethercat and Modbus
AC spindle servo motors and drivers
Spare parts: MPG, IO board, rotary encoder

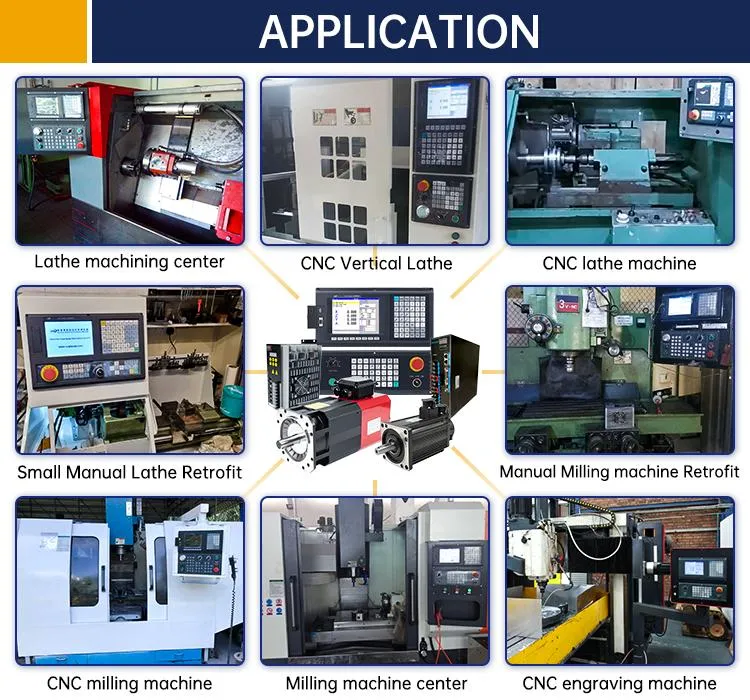

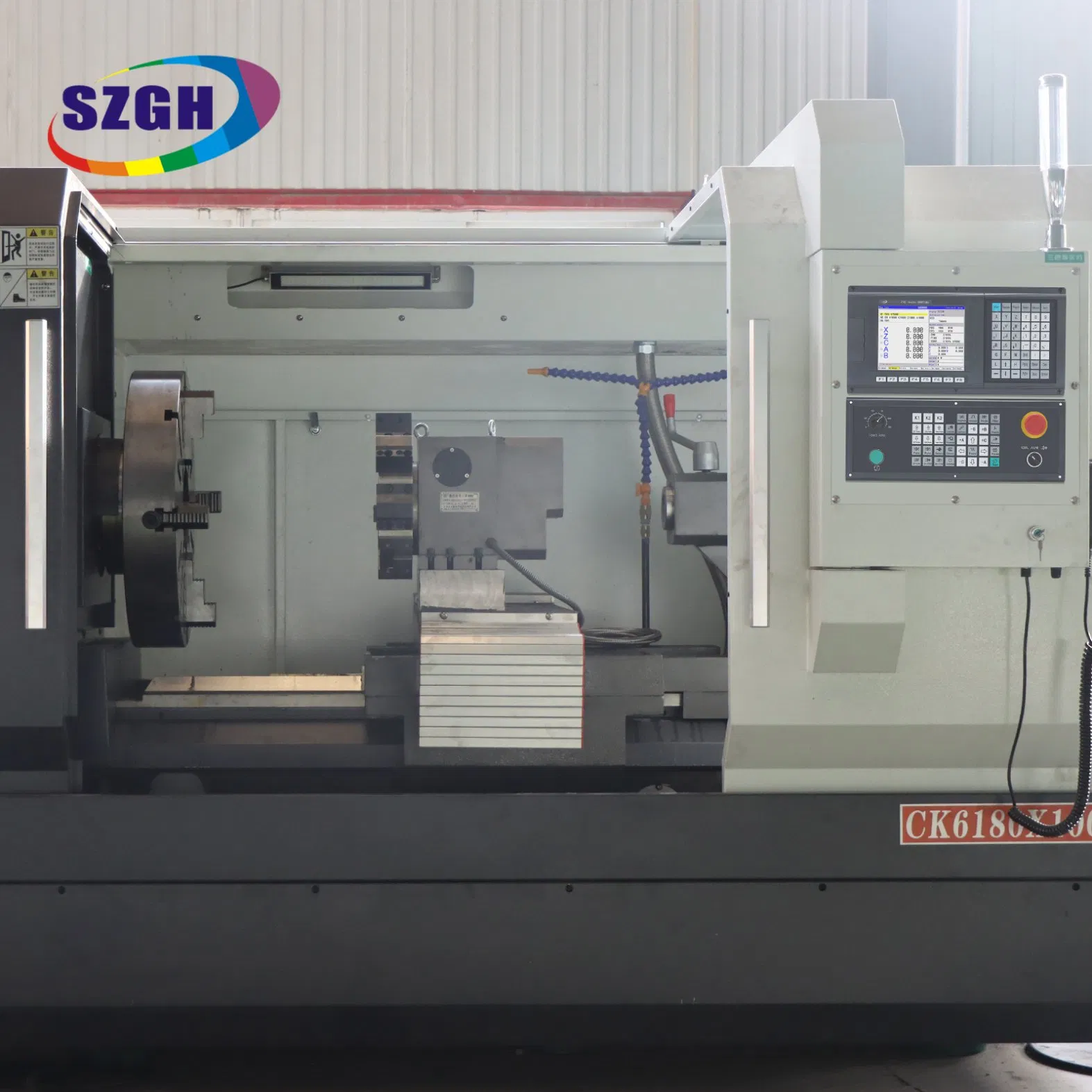

Applications

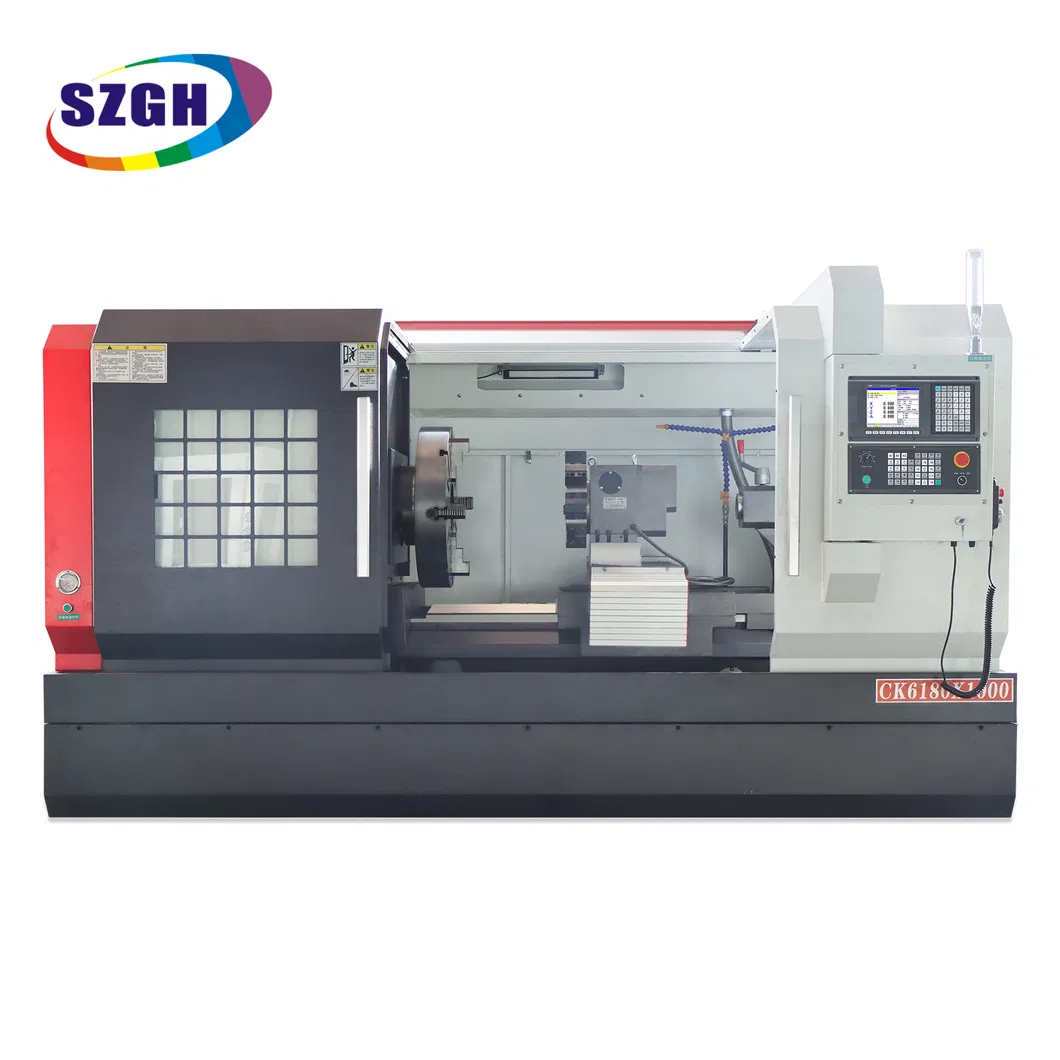

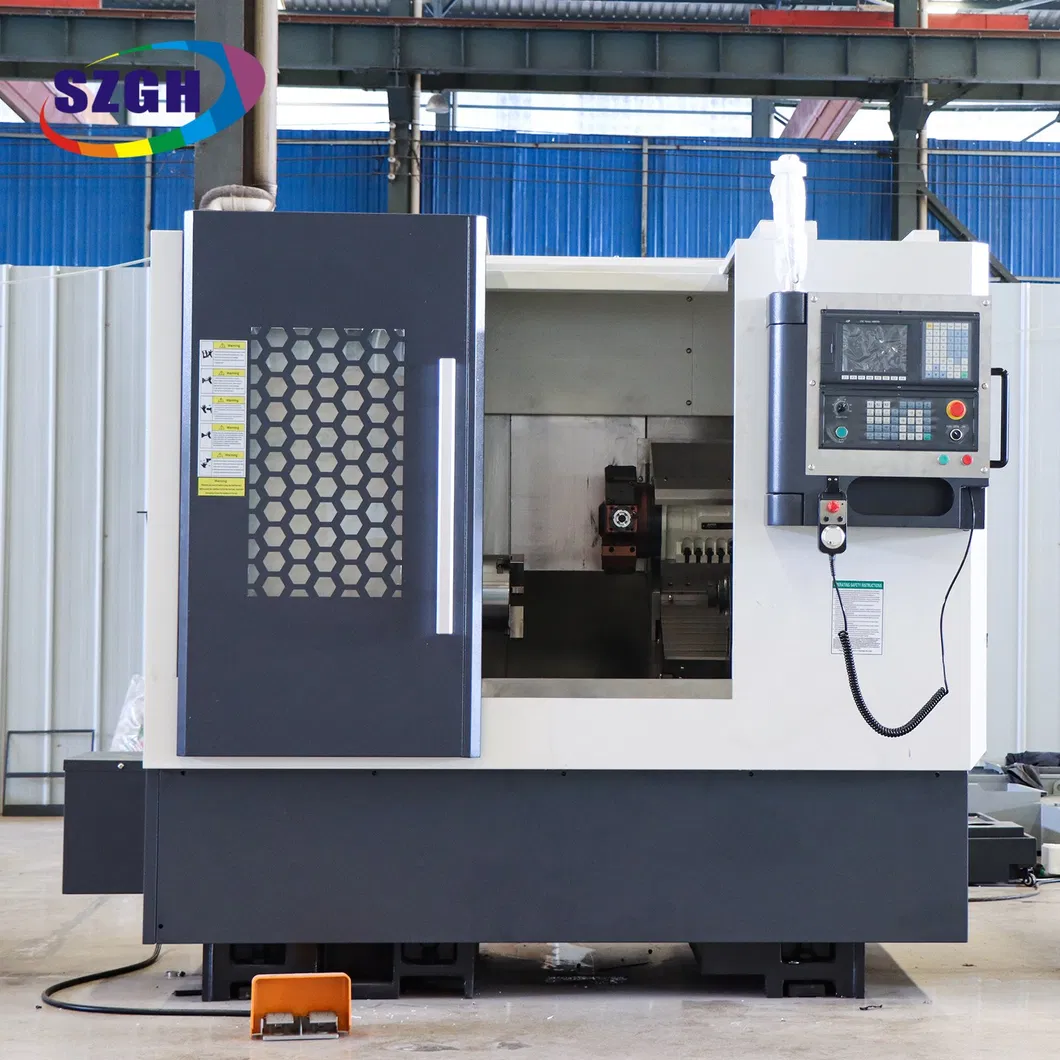

Mini-type special lathe machinery, CNC lathe machinery, hardware processing industry, and automatic equipment, etc.

Certifications

Company Profile

We are one of the leading CNC Automation providers, with over 8 years of industry experience. We specialize in providing comprehensive CNC solutions for milling machines, routers, turning, lathes, and grinding machines. Additionally, we have developed more than 25 models of robotic arms for mass production.

We have been recognized as a high-tech enterprise since 2018, backed by a strong Technical Center team, strict quality management, advanced software and hardware facilities, and first-class services.

With agents located worldwide (including the USA, Turkey, Morocco, Pakistan, South Africa, Moldova, etc.), our core principle remains: Customer First!

Frequently Asked Questions

Who are we and what do we offer?

We are a specialized CNC automation provider established in 2013, offering complete CNC system solutions, motors, drivers, and robotic arms to global markets including Europe, the Middle East, Southeast Asia, and the Americas.

How is product quality guaranteed?

Quality is guaranteed through complete and rigorous pre-testing performed by our professional engineers, followed by a final 100% inspection before shipment.

What can you purchase from our product range?

You can purchase CNC controllers, servo motors & drivers, spindle servo motors & drives, and robotic arms.

What makes our solutions better than other suppliers?

We offer customized design integration for CNC systems and matching motors/drivers. Our team provides reliable engineering support, competitive pricing, and honest business solutions designed to optimize your machines.

What delivery and payment options are accepted?

We accept delivery terms such as FOB, CFR, CIF, EXW, DDP, and DDU. Accepted payment methods include T/T, L/C, Credit Card, PayPal, and Western Union in multiple major currencies (USD, EUR, CNY, etc.).

What is the standard lead time for orders?

Standard products are manufactured and prepared within 5 to 7 working days. Custom configurations may require additional processing time.
