CNC Vertical Chuck Turning Machine Series

Description

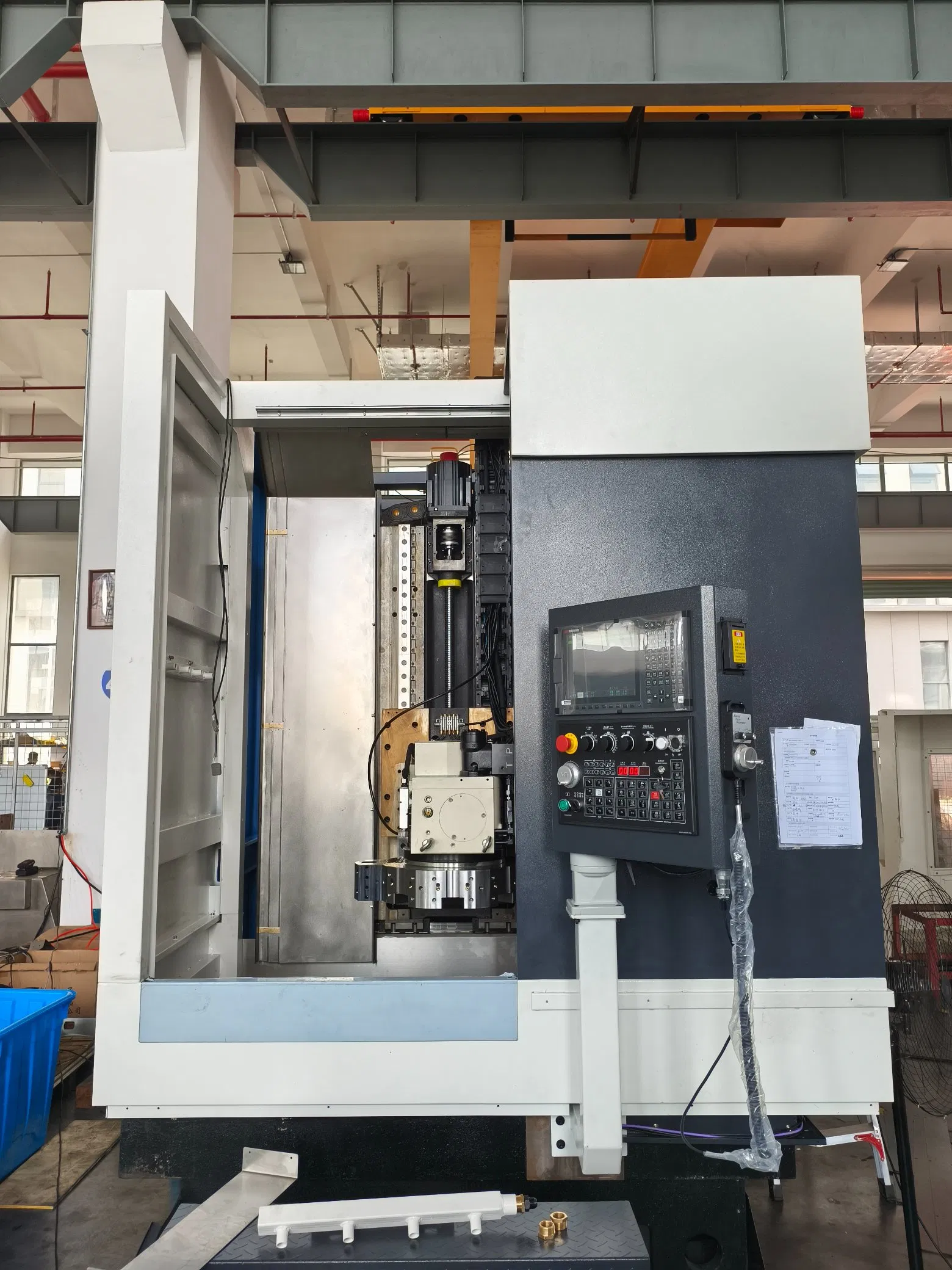

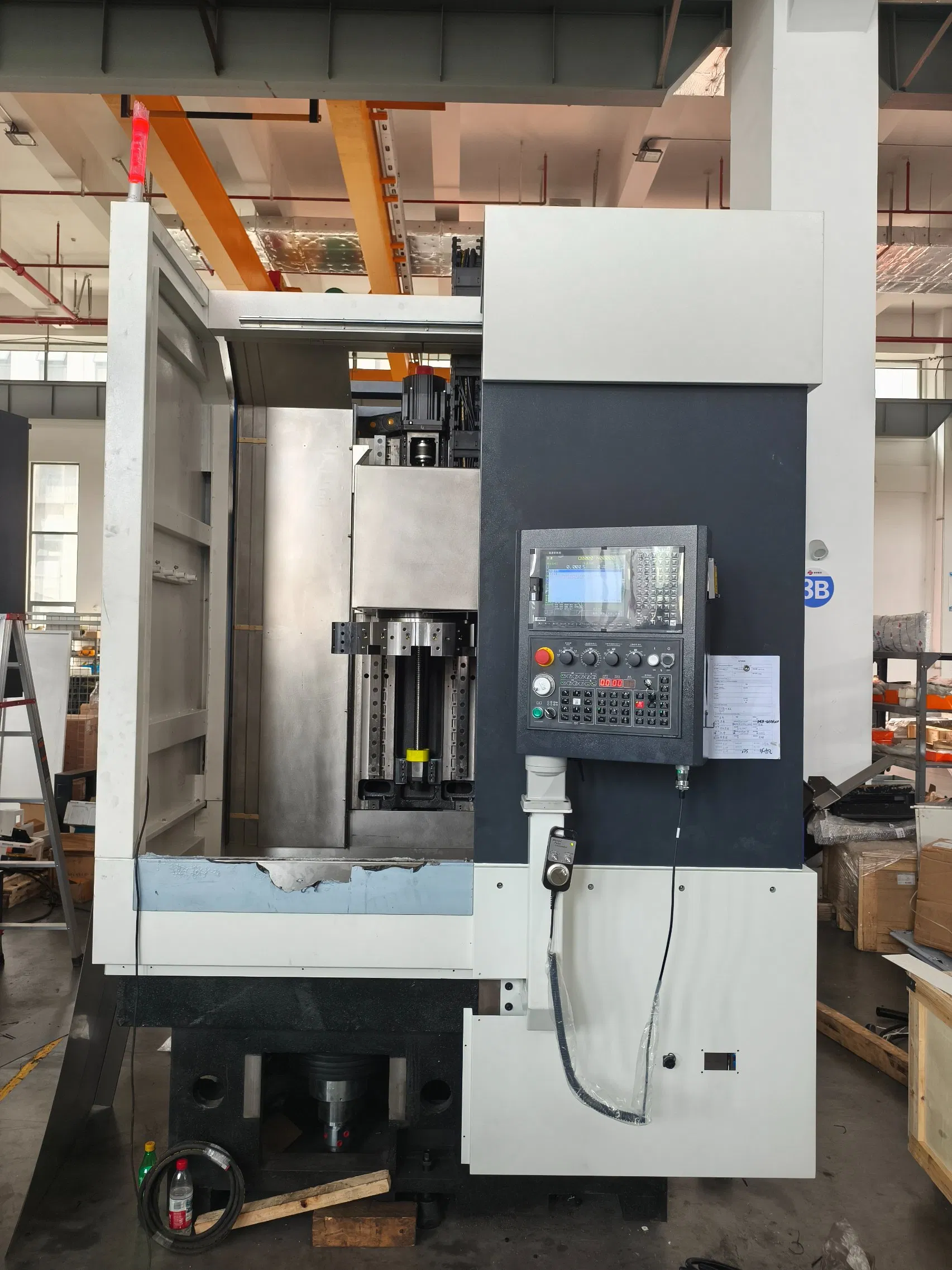

High-efficiency CNC vertical lathe, suitable for processing small and medium-sized discs and cover parts. High-strength cast iron base and column provide good stability and shock resistance. Features a vertical structure, convenient clamping of workpieces, small footprint, and oil-water separation structure. The cooling water is clean and environmentally friendly. The separated cooling water tank is easy to clean. The precise, high-rigidity cartridge-type spindle structure is easy to maintain. The spindle sleeve is fully symmetrical and suspended, which can better eliminate the impact of thermal deformation on machining accuracy. High-power AC spindle motor enhances the stability of the machine tool operation. The main shaft is lubricated with imported high-grade grease, fully enclosed, and maintenance-free. Tool holder features high rigidity, fast tool change, and reliable centralized machine tool operation panel, making operation more convenient and fast. X/Z axis adopts high-precision ball screw and special bearing for screw, ensuring good precision retention. Integral fully enclosed protection ensures environmental cleanliness.

Features

• The unique wall panel + moving column structure, plus the X-direction three-rail design, provides powerful cutting capabilities, exceeding your expectations.
• Verified by many customers, it is superior to the traditional fixed column structure in terms of rigidity, precision, speed, and stability.
• All structural parts are analyzed by finite element to optimize the structure to ensure the stability of the precision of the machine tool in the cutting state, and the mechanical rigidity is increased by 30% compared with the traditional design.

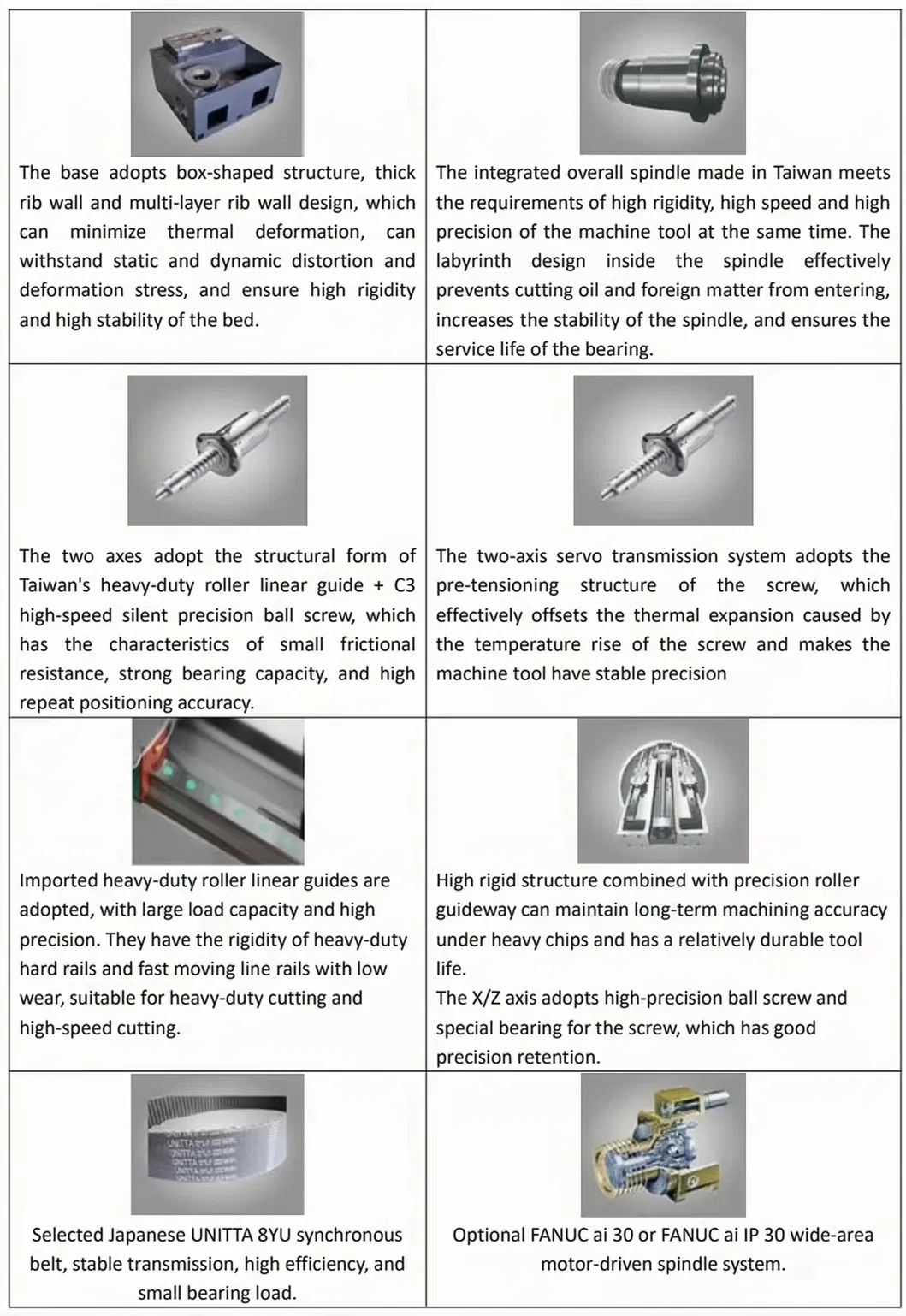

Schematic diagram of screw pre-tensioning mechanism

• Wide-area motor is used to drive the spindle system, which provides a high torque value twice that of ordinary motors, and can provide heavy-duty cutting capabilities in the lower-speed operation range.
• Low center of gravity structure design and 90° rotatable system control panel provide you with excellent convenience and humanized operation interface for loading and unloading workpieces.
• Fully protective sheet metal isolates turning chips and coolant in the machine tool, providing you with a safe and clean working environment.
• Ultra-simplified footprint, combined with rear-exit chip conveyor, not only improves the space utilization rate of your plant, but also facilitates your planning of iron chip conveying system.

Parameters

Working Condition & Service

Machine Tool Environment

Power supply: 3-AC 380V±10% 50Hz±1Hz  |  Altitude: ≤1500m
Ambient temperature: 5~45°  |  Relative humidity: ≤85%
Environment: No harmful and corrosive gas, liquid, dust; no strong vibration, strong magnetic field, strong radiation.

Machine Tool Acceptance Criteria and Procedures

• Precision of machining center: check and accept according to relevant national standards GB/T18400-2010 or Q/XZ03-2015 (for checking geometric accuracy, working accuracy, standard cutting test pieces, etc.).
• Check and accept according to the relevant technical agreement, factory documents and configuration list signed by both parties.
• For the machine tool with special configuration, the acceptance is divided into pre-acceptance and final acceptance. Pre-acceptance is conducted at the manufacturer's factory. Final acceptance takes place at the site of use by the user after installation and commissioning.

Training and Installation

The factory supplies the installation documents. If basic training is needed, video meetings can be arranged for free. If field installation and training are required, the factory will arrange engineers to go to the user's factory. The cost of round-trip air tickets, board and lodging will be covered by the user, alongside a salary of 100.00 USD/day for each engineer.

After Sales

• From the BL date, the manufacturer will implement the standard service for the product for one year. (If the user causes damage due to their own reasons, an appropriate cost fee will be charged).
• When the machine tool breaks down, the manufacturer can judge the cause of the failure and deal with it immediately after receiving feedback. If the cause cannot be determined at that time, a reply will be given within 24 hours. If engineers need to be sent to the scene, they will be dispatched within a week.

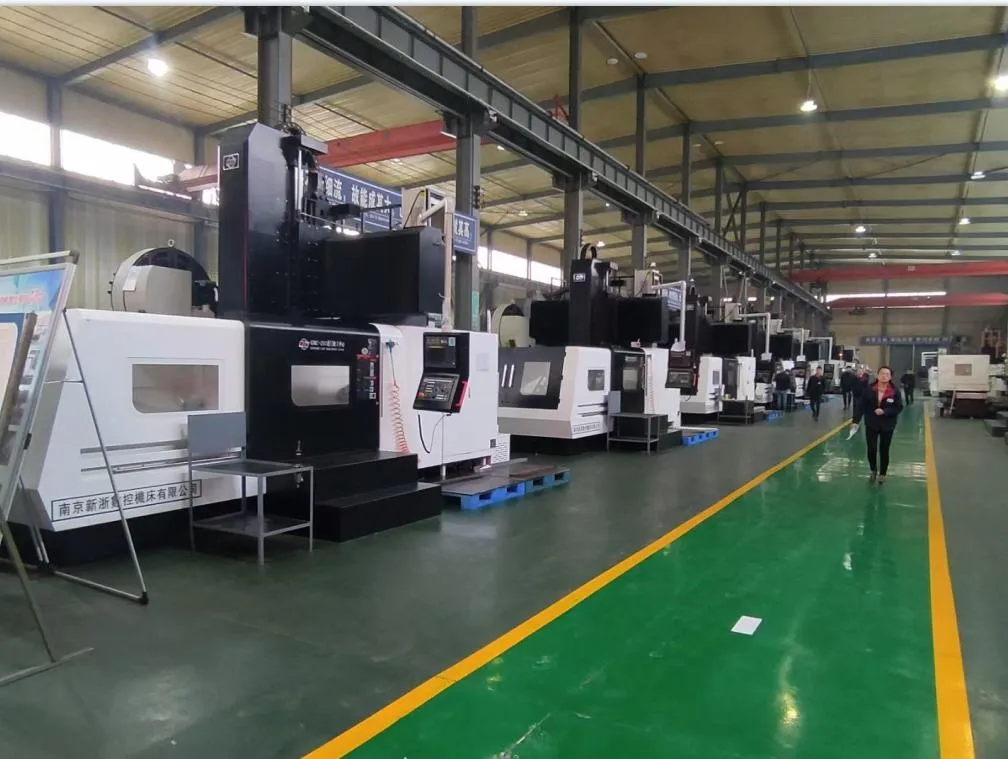

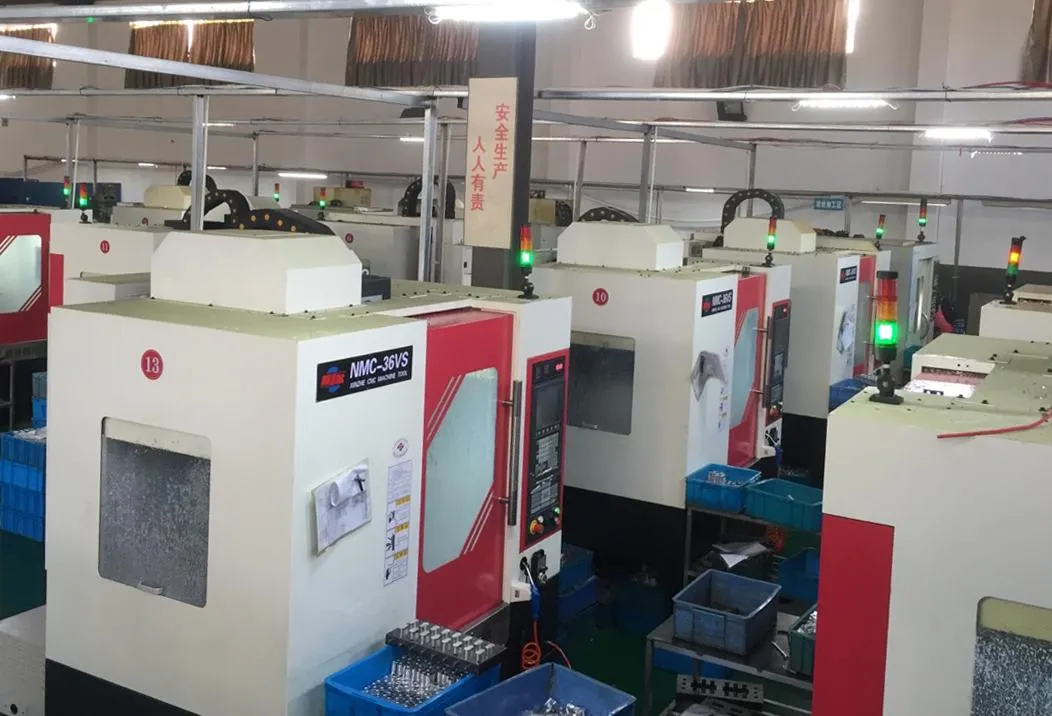

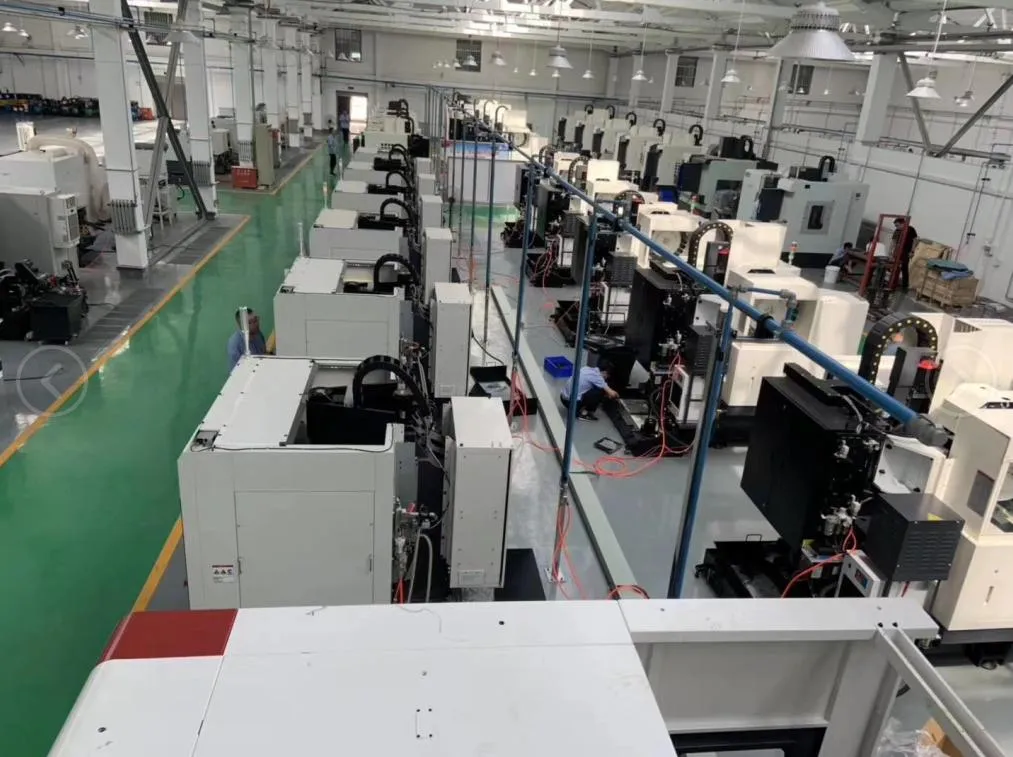

Factory Workshop

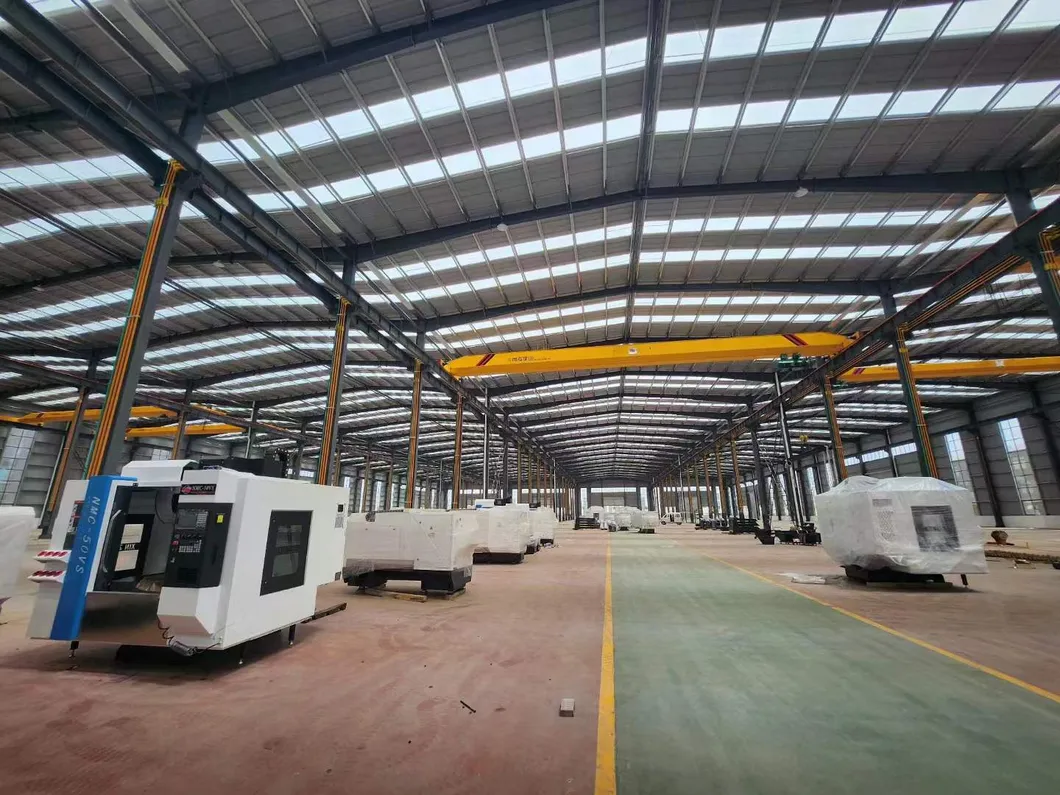

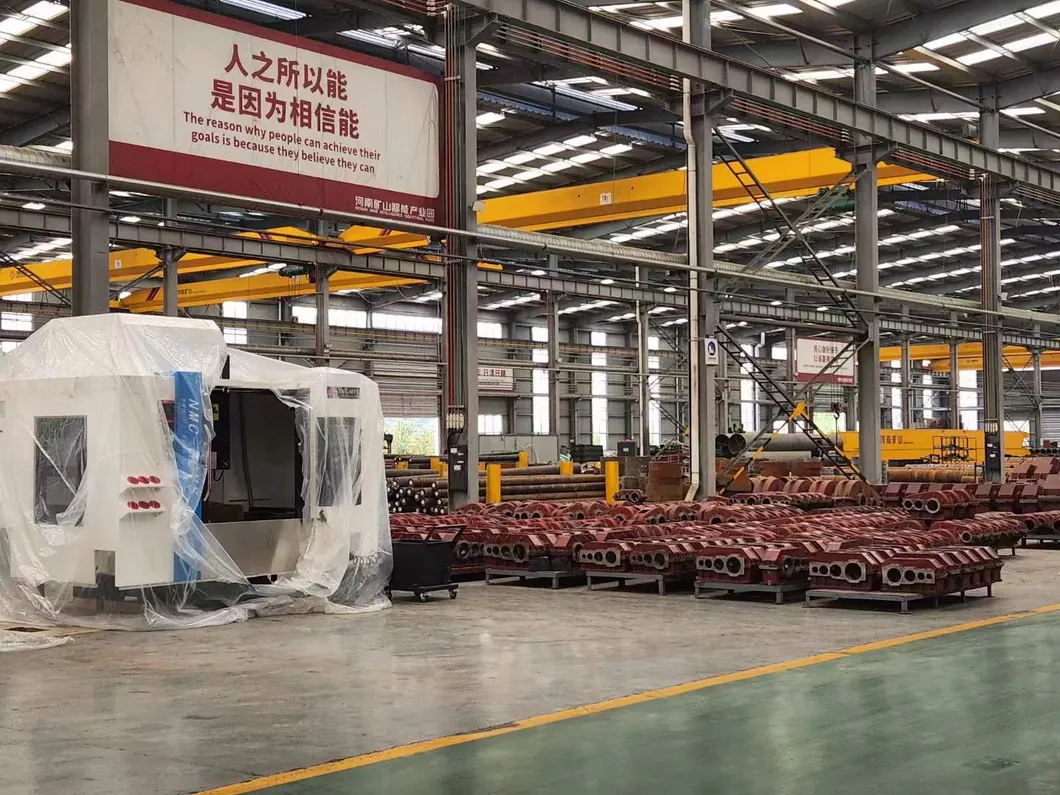

Customer Factory
