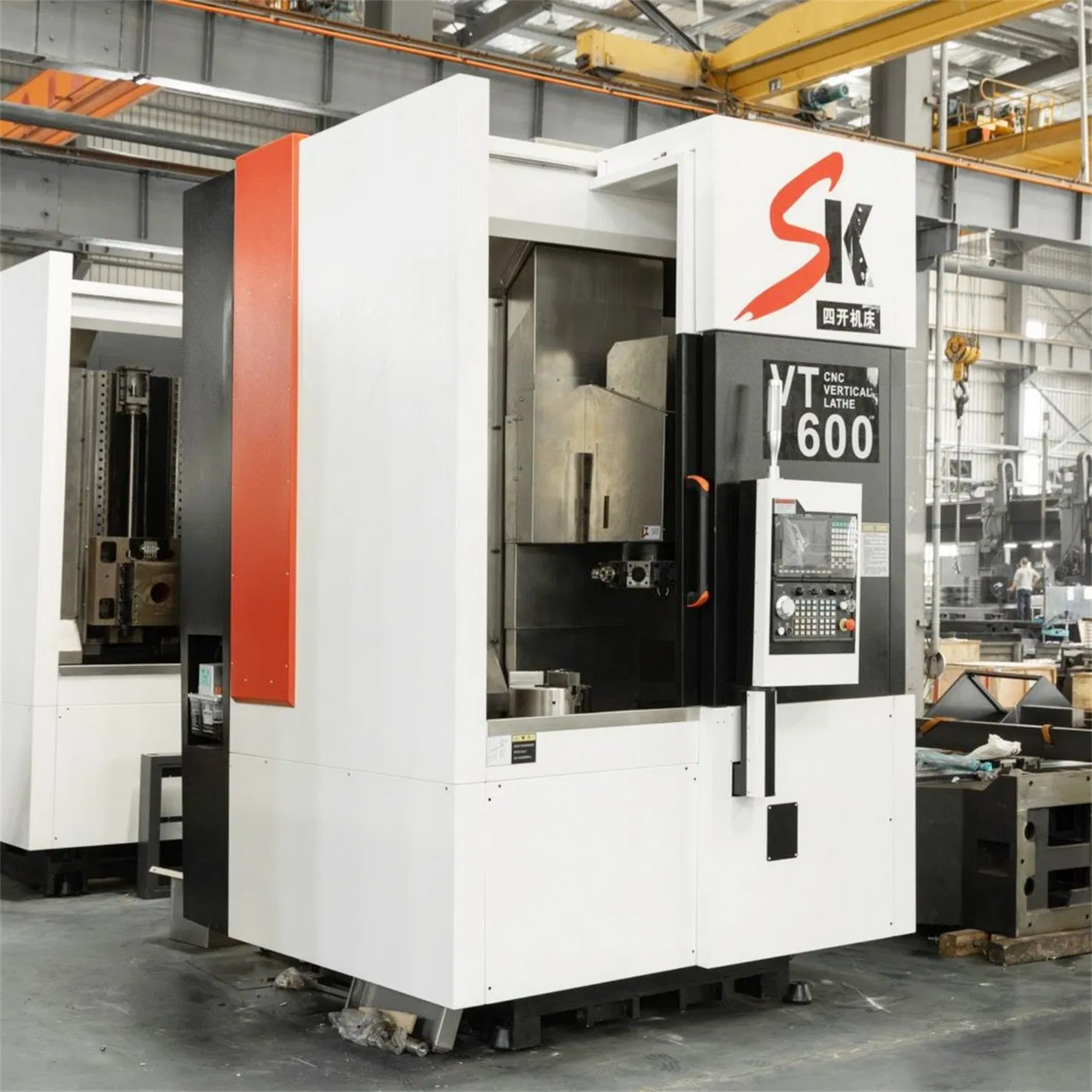

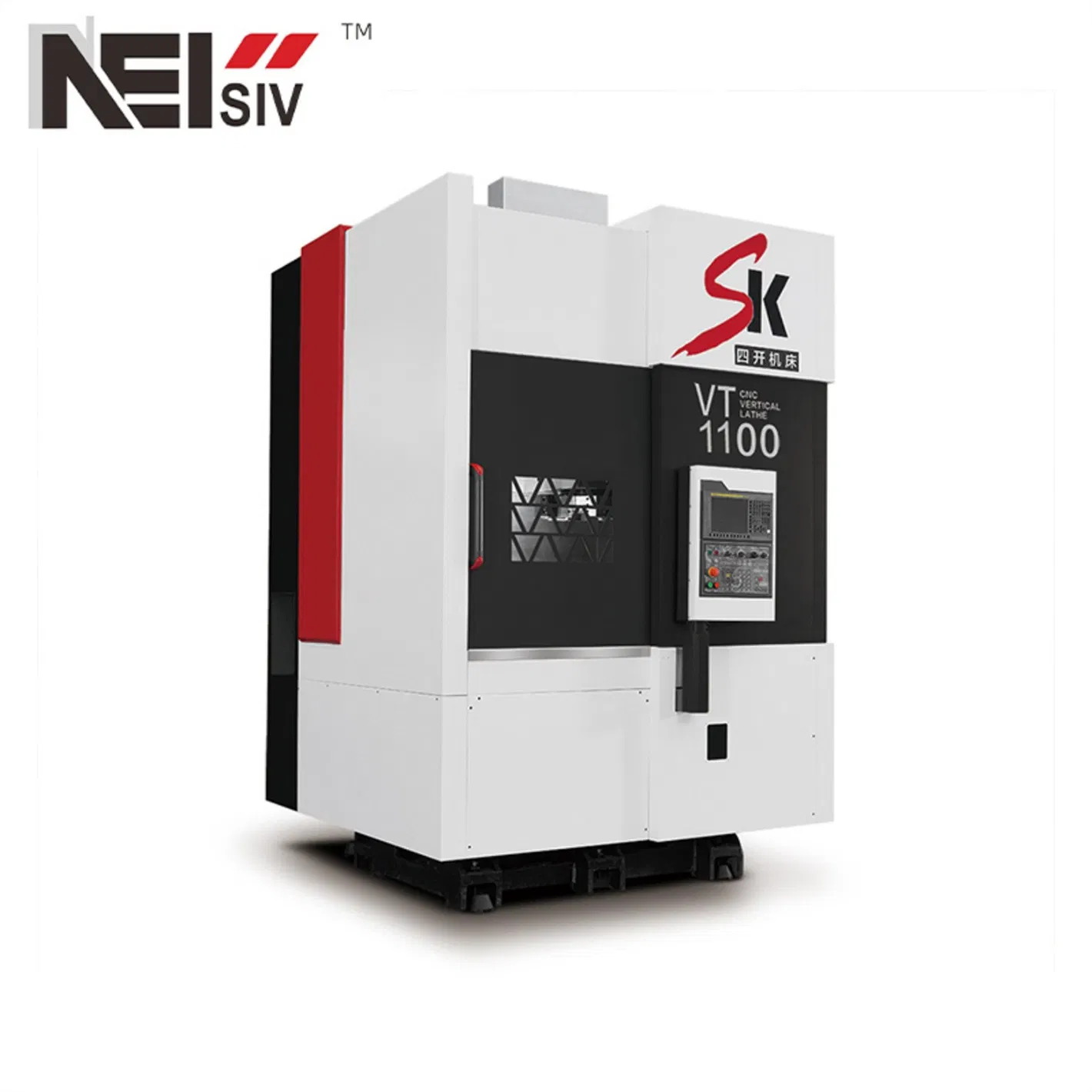

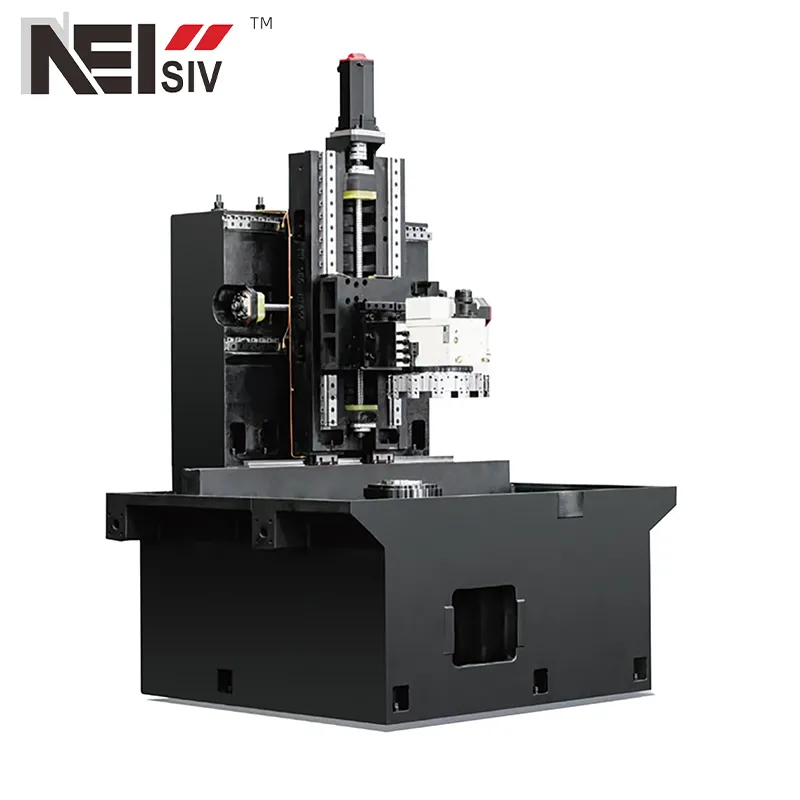

1. The unique wall panel + moving column structure, plus the X-direction three-rail design, provides powerful cutting capabilities. Rigidity, precision, speed, and stability exceed traditional fixed column structures.
2. All structural parts are analyzed by finite element to optimize the structure, ensuring precision stability during heavy cutting. Mechanical rigidity is increased by 30%.
3. The base adopts a box-shaped structure with a thick rib wall design to minimize thermal deformation and withstand static and dynamic distortion.
4. The integrated spindle meets high rigidity, speed, and precision requirements. The labyrinth design inside the spindle prevents cutting oil and foreign matter from entering.

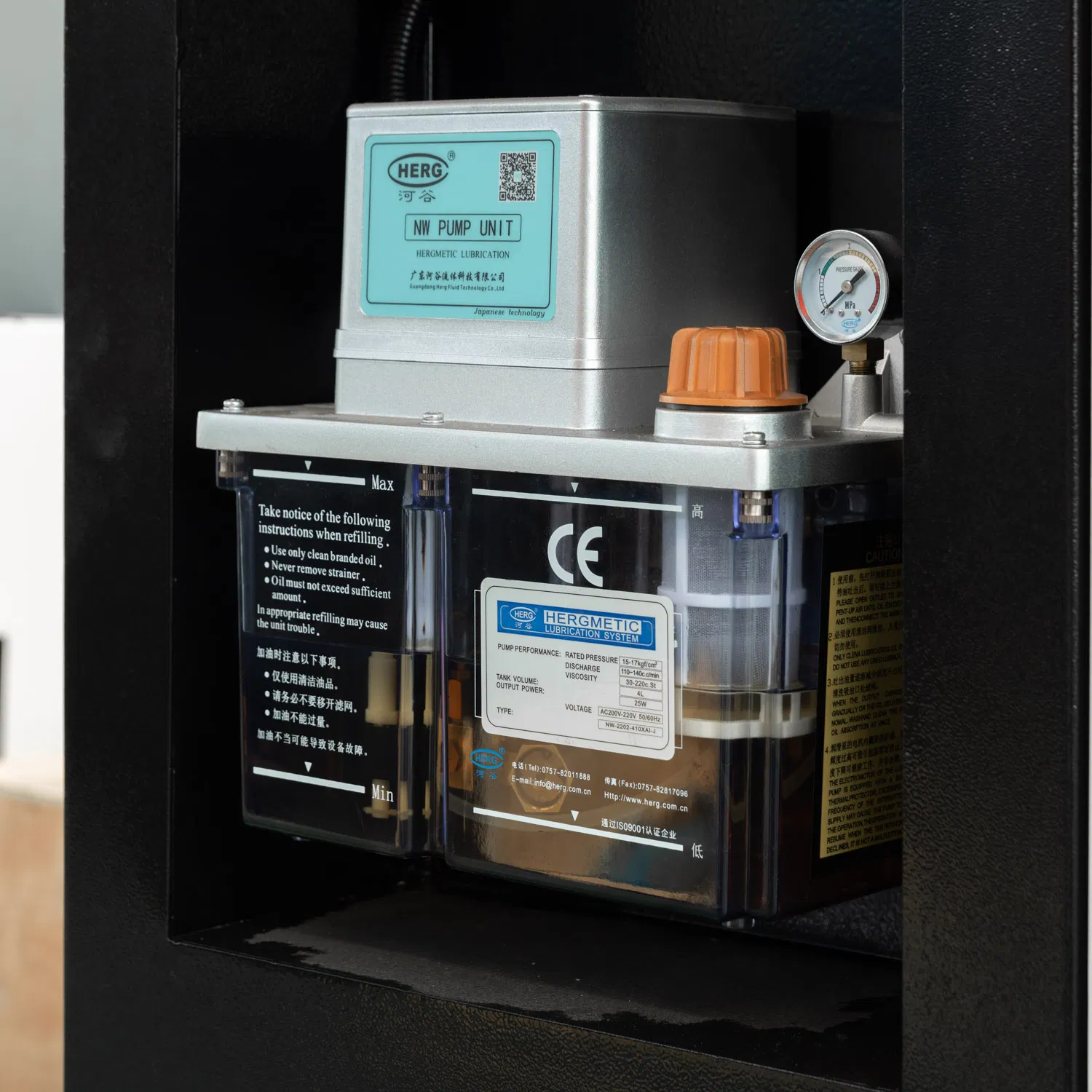

5. High-speed silent precision ball screws and roller linear guides provide low frictional resistance, strong bearing capacity, and high repeat positioning accuracy.
6. The two-axis servo transmission system adopts a pre-tensioned screw structure to offset thermal expansion.
7. Imported heavy-duty roller linear guides feature high load capacity, making the machine suitable for both heavy-duty and high-speed cutting operations.
8. High-precision ball screws and specialized bearings for the X/Z axis guarantee superior precision retention.
9. Low center of gravity design combined with a 90° rotatable control panel simplifies workpiece loading and unloading.
10. A compact footprint combined with a rear-exit chip conveyor maximizes plant space utilization.

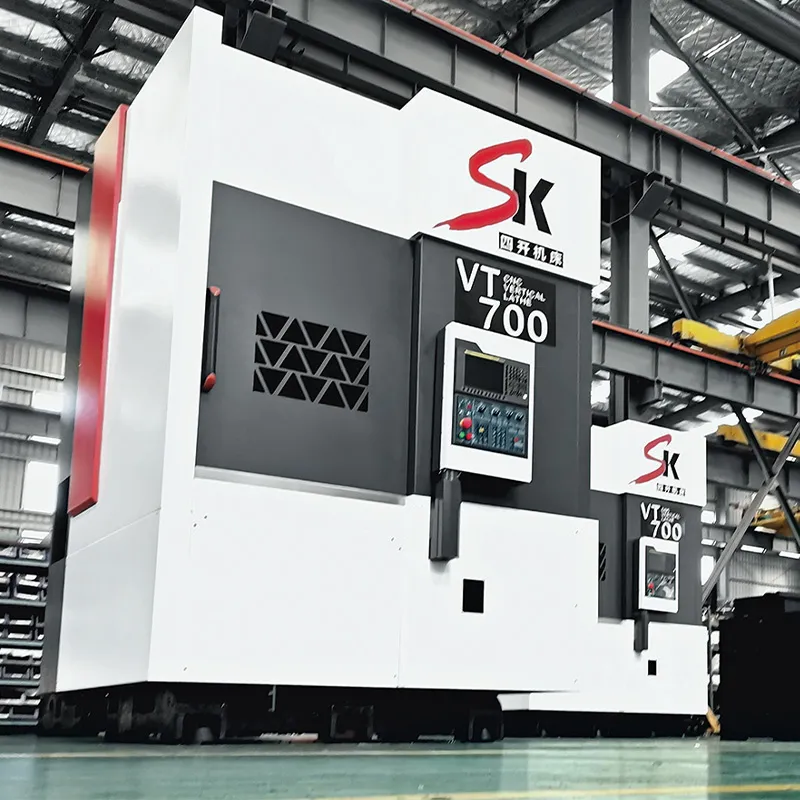

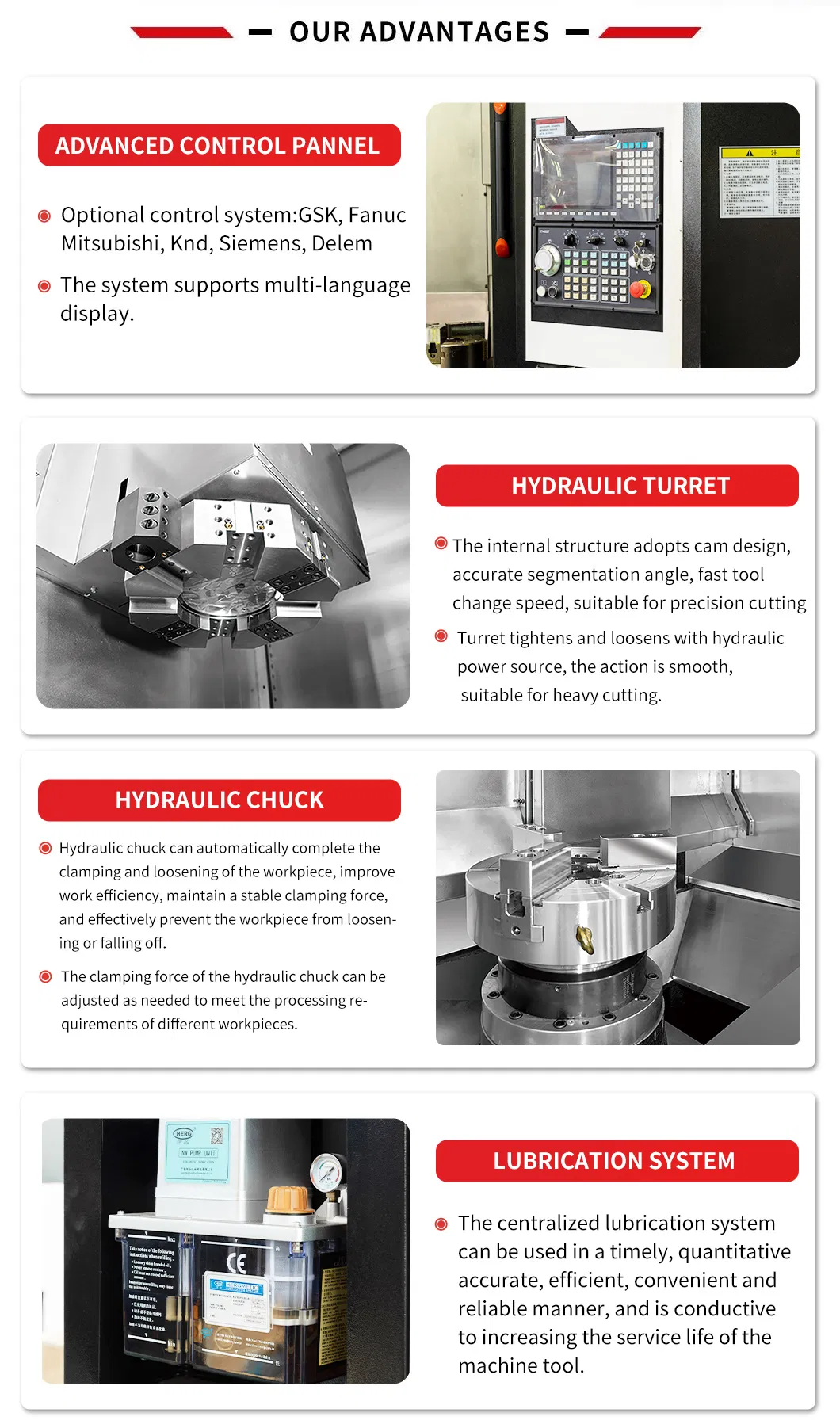

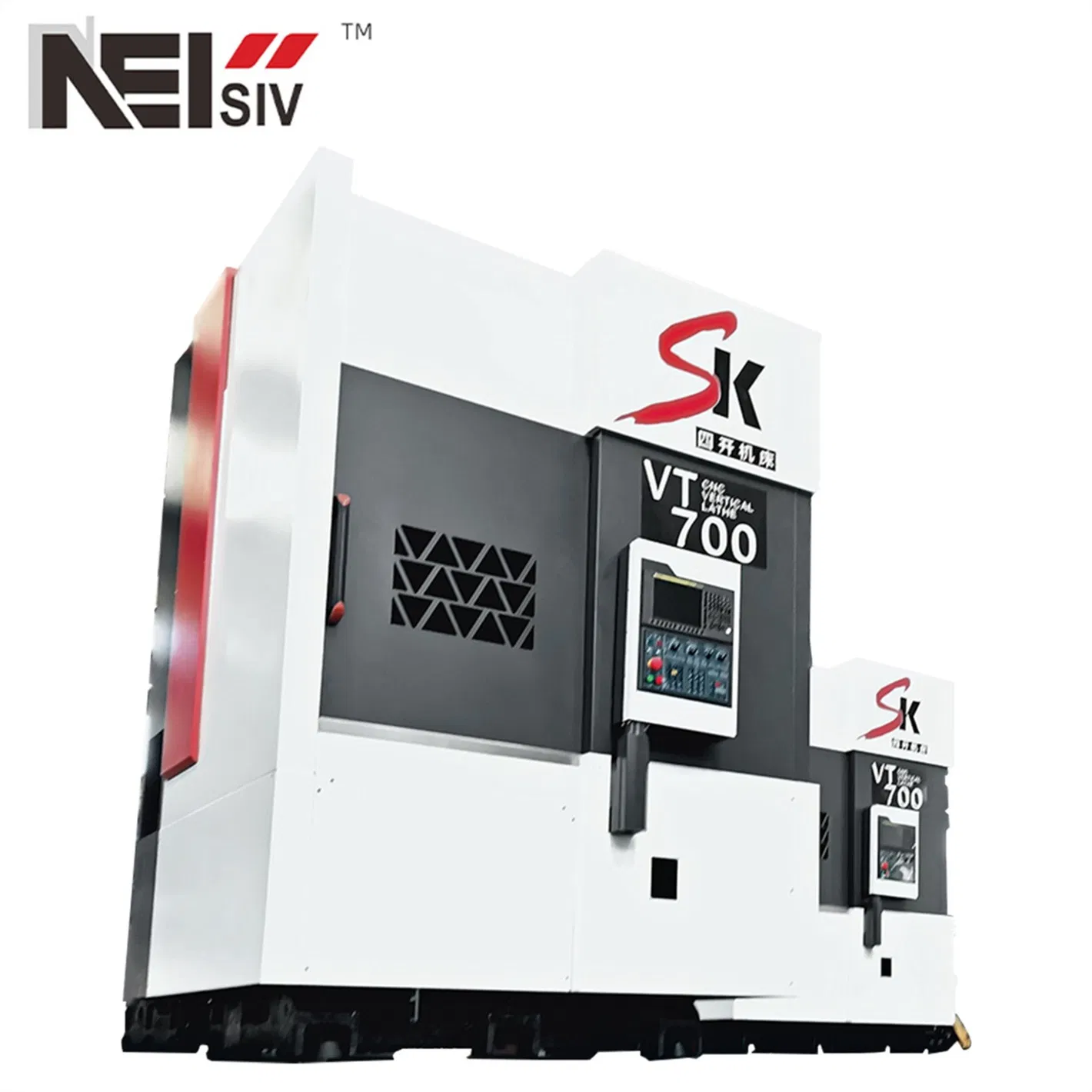

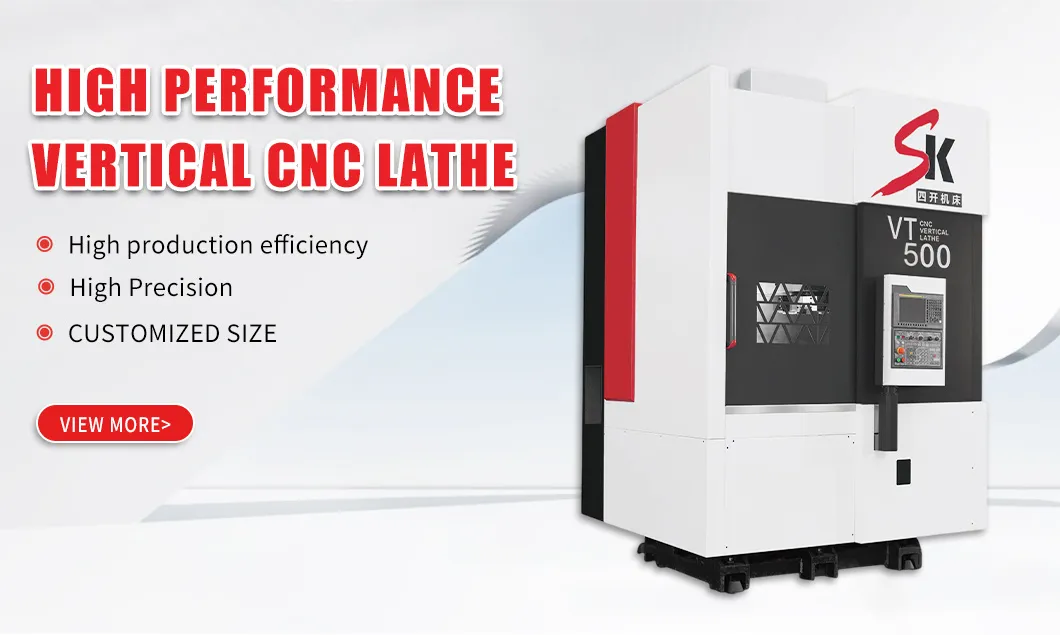

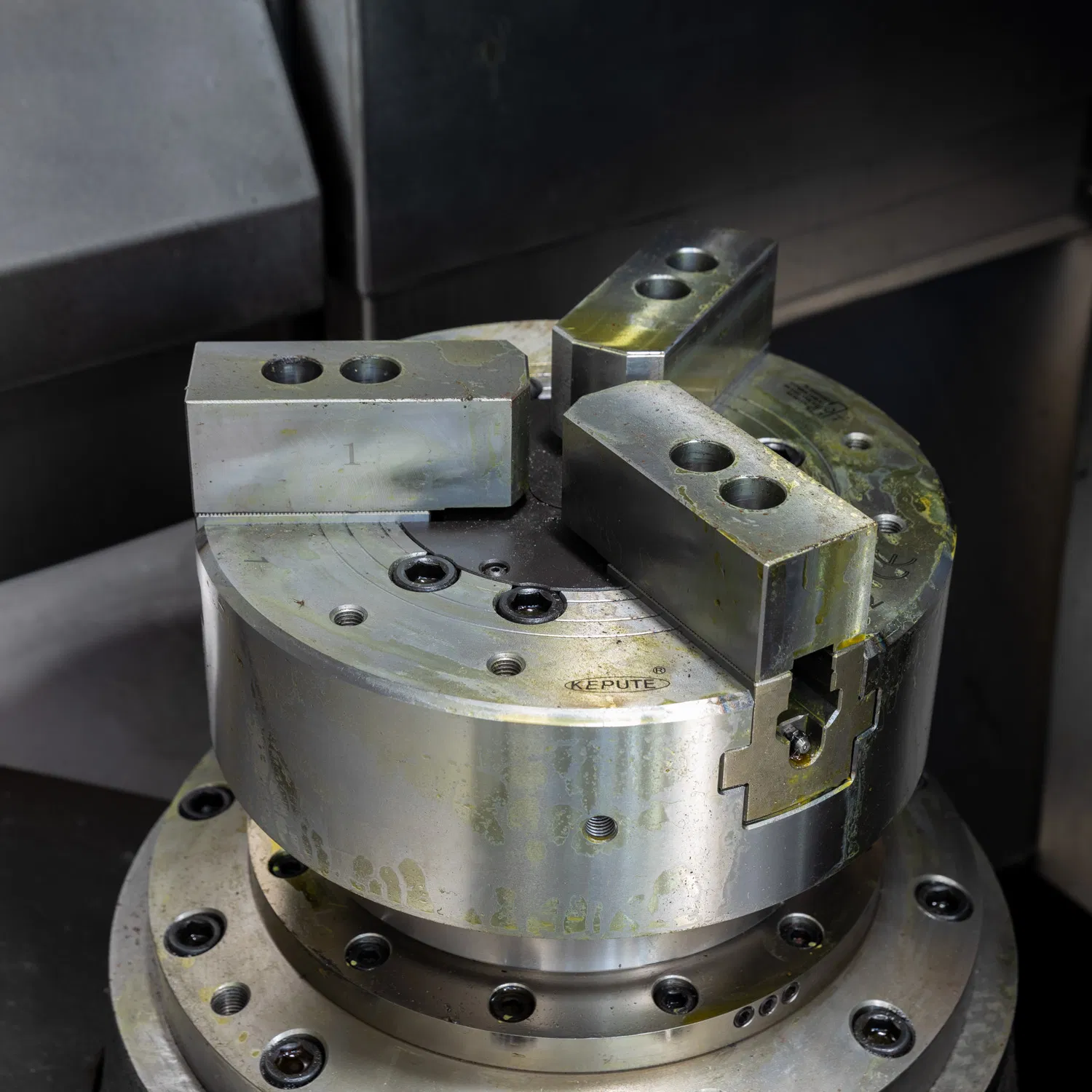

| Specification | Unit | VT-500 | VT-600 | VT-700 | VT-800 | VT-1100 |
|---|---|---|---|---|---|---|
| Max. swing diameter | mm | Φ650 | Φ700 | Φ800 | Φ900 | Φ1200 |
| Max. cutting diameter | mm | Φ500 | Φ600 | Φ700 | Φ800 | Φ1100 |
| Spindle nose | - | A2-8 | A2-11 | A2-11 | A2-11 | A2-15 |
| Spindle speed | rpm | 10-2500 | 10-2000 | 10-2000 | 10-1500 | 10-1000 |
| Chuck outer diameter | inch | 12 | 15 | 18 | 24 | 32 |
| Spindle bore | mm | Φ79 | Φ79 | Φ79 | Φ79 | Φ79 |
| Spindle motor (cont./30min) | kW | 15 / 18.5 | 18.5/22 | 18.5/22 | 22/25 | 22/30 |
| X-axis stroke | mm | 350 | 350 | 440 | 550 | 730 |
| Z-axis stroke | mm | 600 | 800 | 850 | 900 | 1000 |
| X/Z-axis rapid feed | m/min | 20 / 20 | 20 / 20 | 18/18 | 18/18 | 16/16 |
| Machine weight | kg | 7500 | 9000 | 10000 | 13000 | 18000 |
Embark on a journey through our extensive array of pioneering equipment, extending beyond our Vertical CNC Milling High Precision Gantry Metal Cutting Heavy Duty Center. Unveil groundbreaking solutions tailored to meet a myriad of industrial demands with unparalleled precision and exceptional performance.

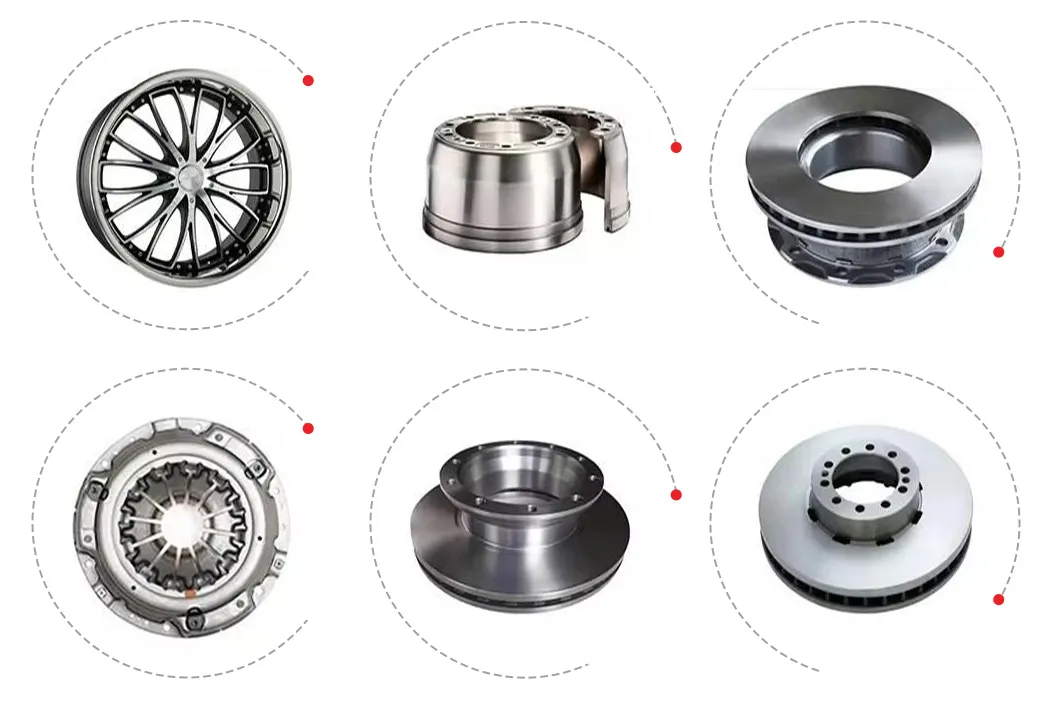

Application: Suitable for precision parts processing such as aerospace, automobile manufacturing, mold manufacturing, hardware processing, etc.
