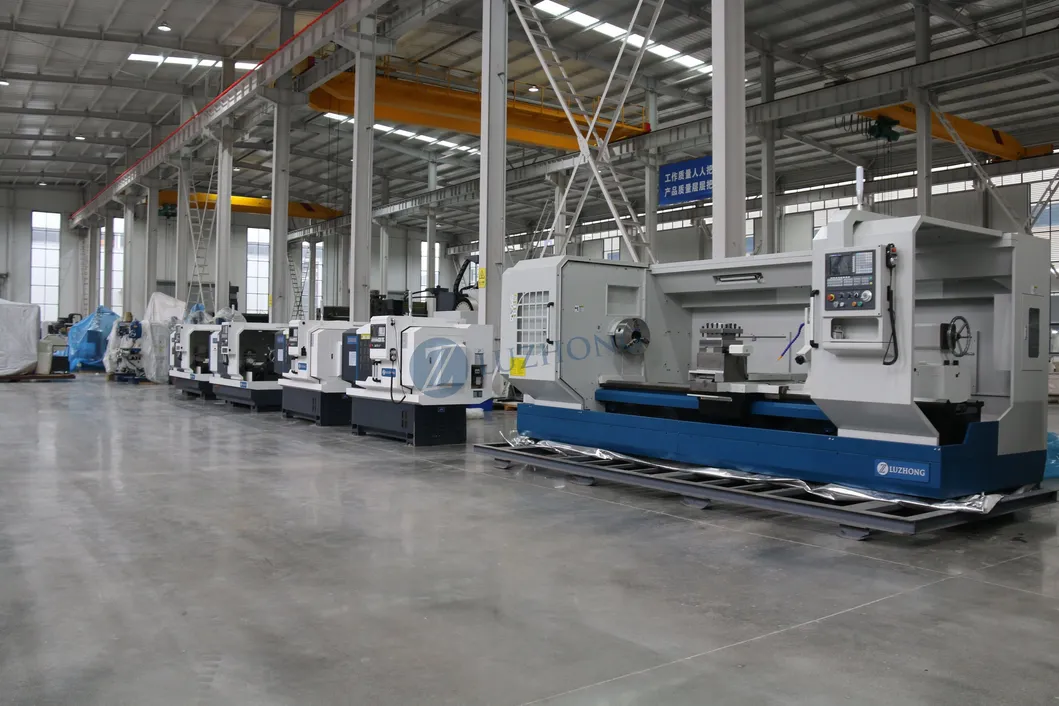

Application:

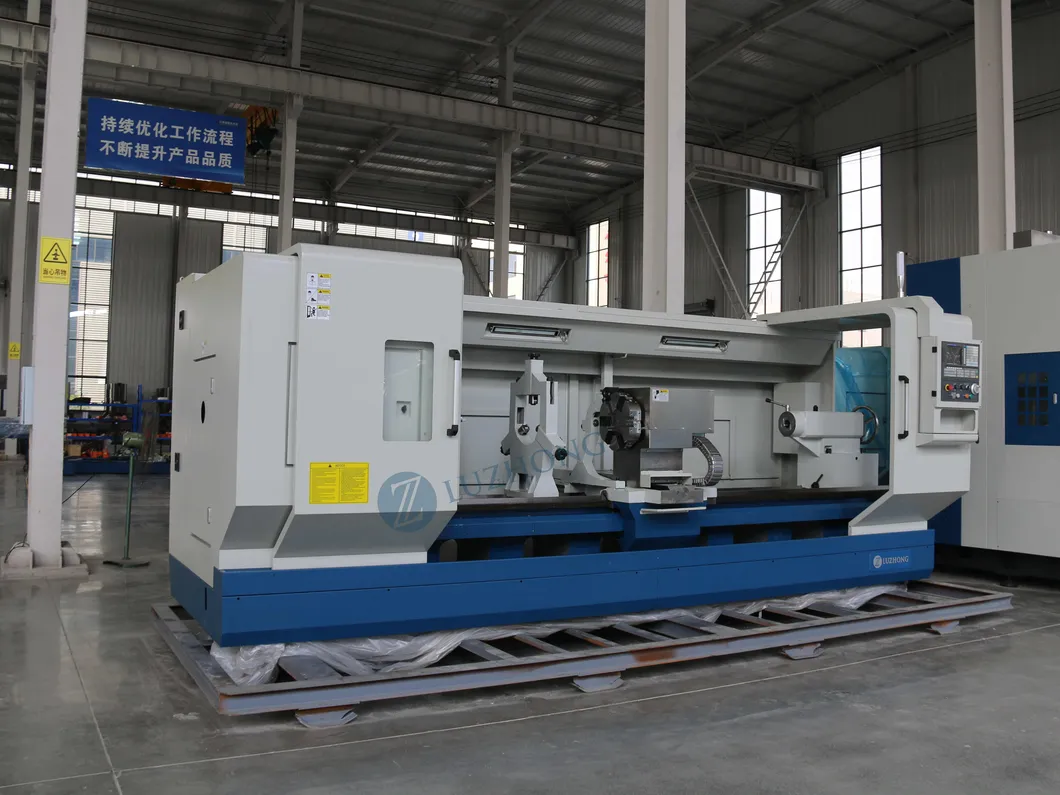

The machine can automatically process the inside cylinder surface, cone surface, circular arc surface, and end face. It is also designed to process single and multiple threads in metric, inch, and other standards.
Product main technical specifications:
| SPECIFICATIONS | Units | CK6180F (Manual / HYD.) | CK61100F (Manual / HYD.) |
|---|---|---|---|
| Swing over bed | mm | 800 | 1000 |
| Swing over cross slide | mm | 480 | 680 |
| Distance between centers | mm | 1000 - 10000 | 1000 - 10000 |
| Guideway width | mm | 600 | 600 |
| Max. load capacity | T | 4 | 4 |
| Spindle bore | mm | 105 | 105 |
| Spindle bore taper | - | Metric φ120/MT6 | Metric φ120/MT6 |
| Spindle nose type | - | C11 | C11 |
| Spindle speed steps | - | VF. 3 steps / HYD. 4 steps | VF. 3 steps / HYD. 4 steps |
| Spindle speed range | rpm | 20-800 / 17-800 | 20-800 / 17-800 |
| Chuck | mm | φ400 3-jaw manual | φ400 3-jaw manual |
| Turret/tool post | - | Electric 4 position | Electric 4 position |
| Tool shank size | mm | 40*40 | 40*40 |
| X axis travel | mm | 420 | 520 |
| Z axis travel | mm | 750 - 9750 | 750 - 9750 |
| X axis rapid traverse | mm/min | 4000 | 4000 |
| Z axis rapid traverse | mm/min | 6000 | 6000 |
| Tailstock quill diameter | mm | φ120 | φ120 |
| Tailstock quill taper | - | MT6 | MT6 |
| Tailstock quill travel | mm | 250 | 250 |
| Main spindle motor | kw | 15 | 15 |
| Coolant pump motor | kw | 0.25 | 0.25 |
| Overall dimension(W*H) | mm | 1950*1900 | 2100*2150 |
| Overall dimension(L) | mm | 3500 - 12500 | 3500 - 12500 |
| Machine weight | T | 5 - 11 | 5.5 - 11.5 |

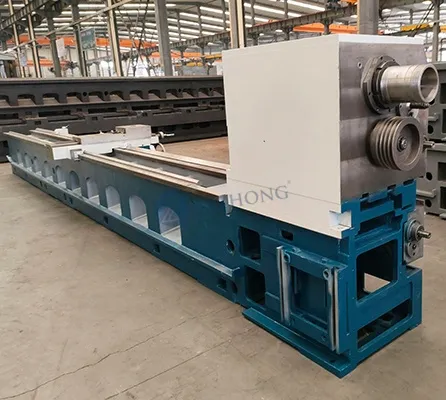

High stable one piece casting, designed for load weights up to 4T.

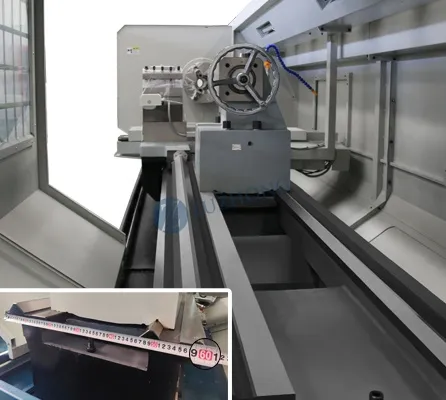

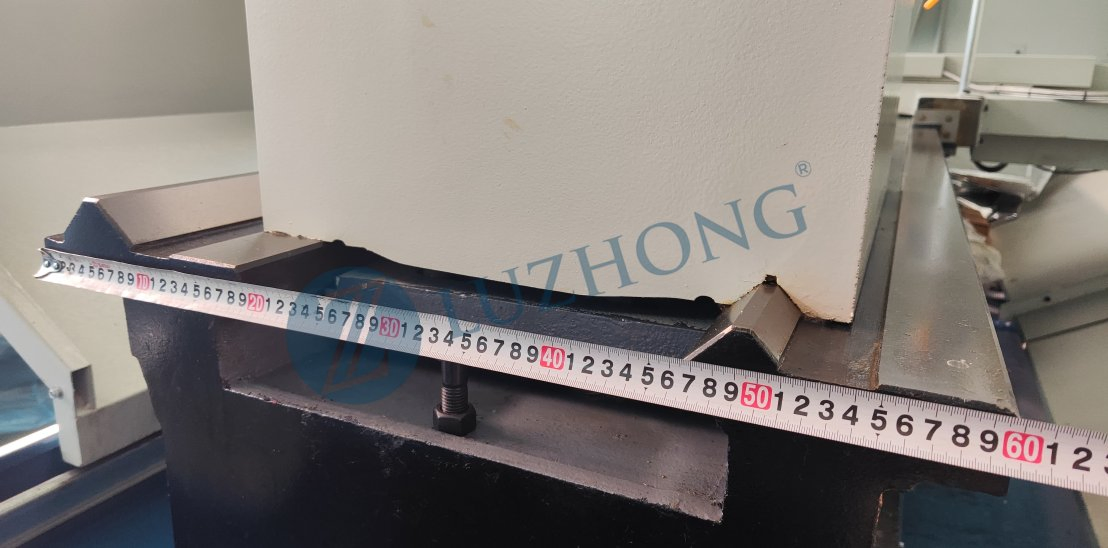

High frequency quenched guide rail with hardness over HRC 60. One-piece casting, 600mm width.

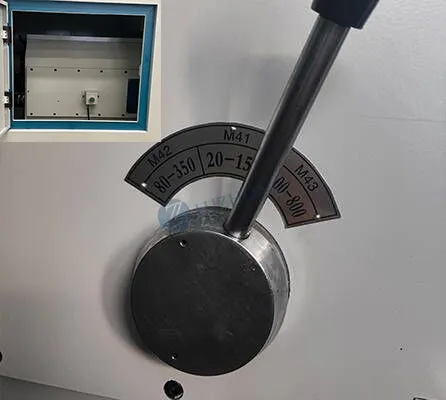

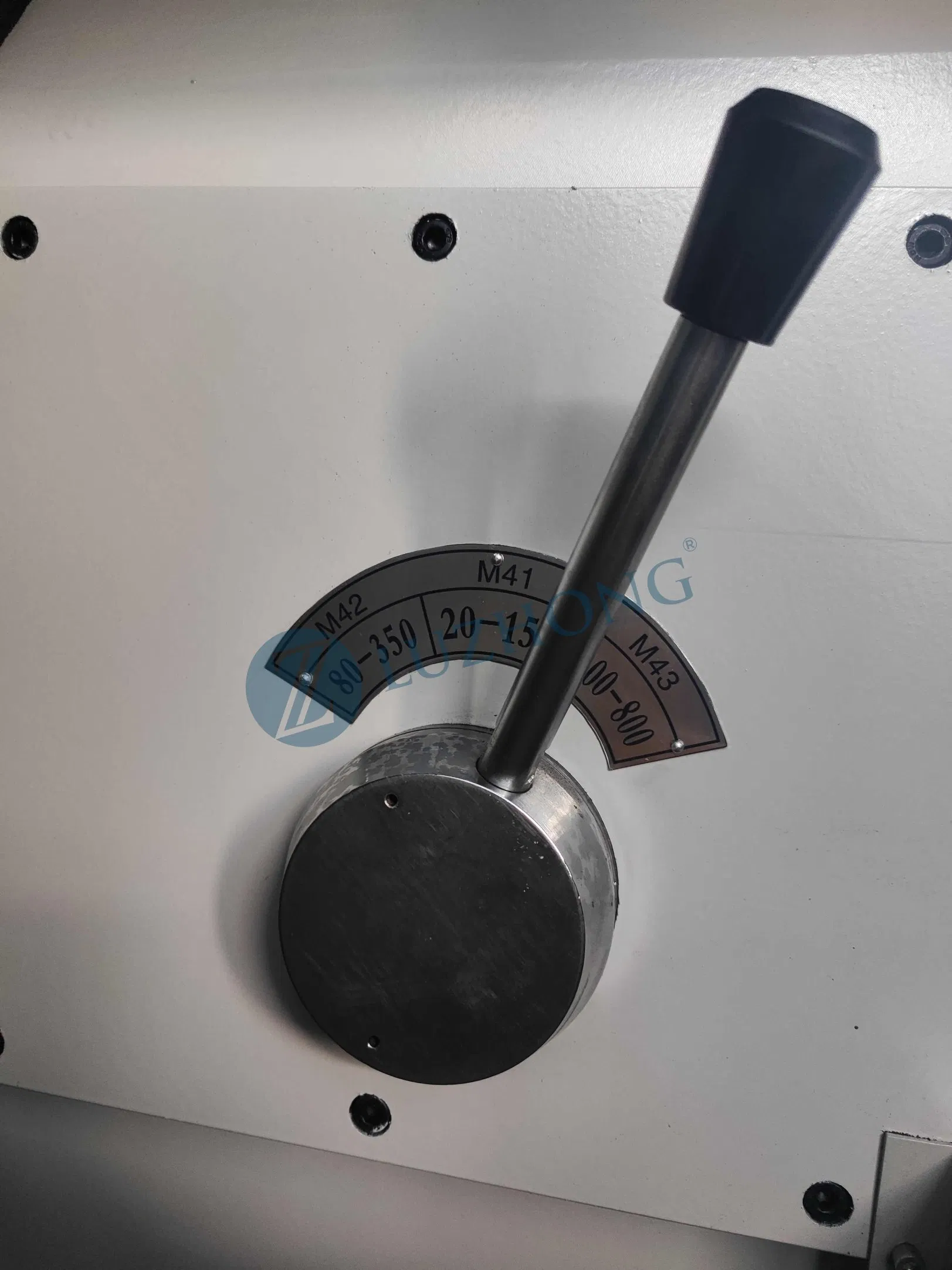

Standard VF with 3 steps. Hydraulic 4 steps option available.

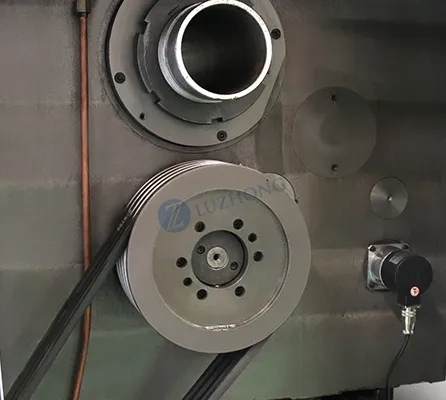

Generous spindle bore size of 105mm for handling larger workpieces.

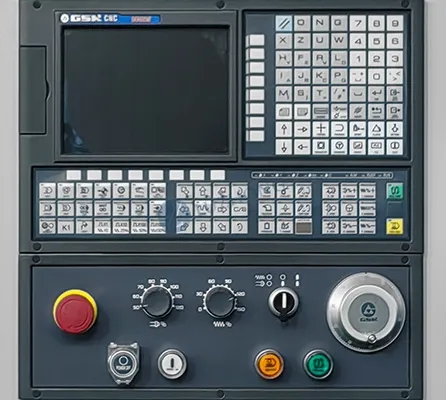

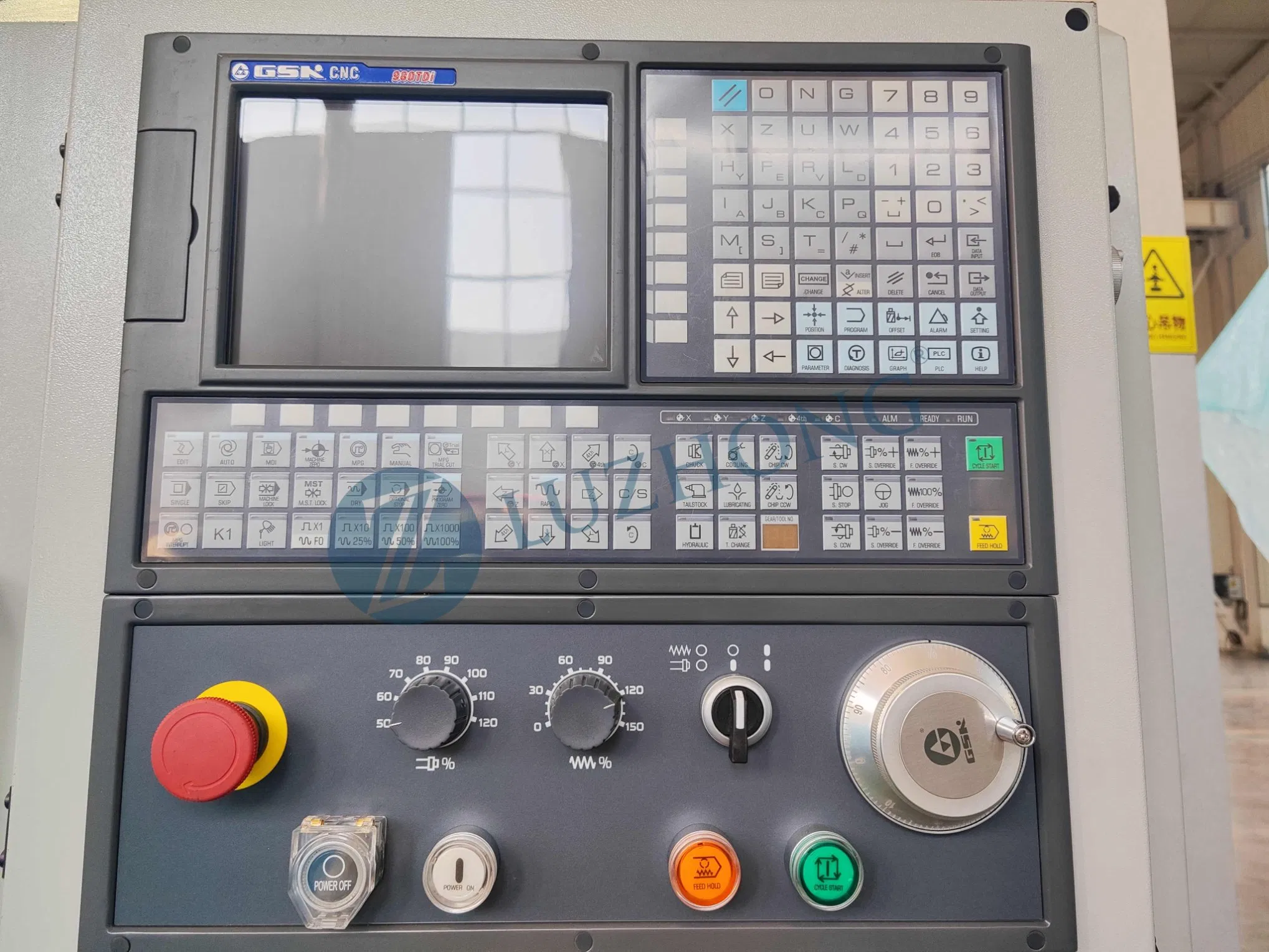

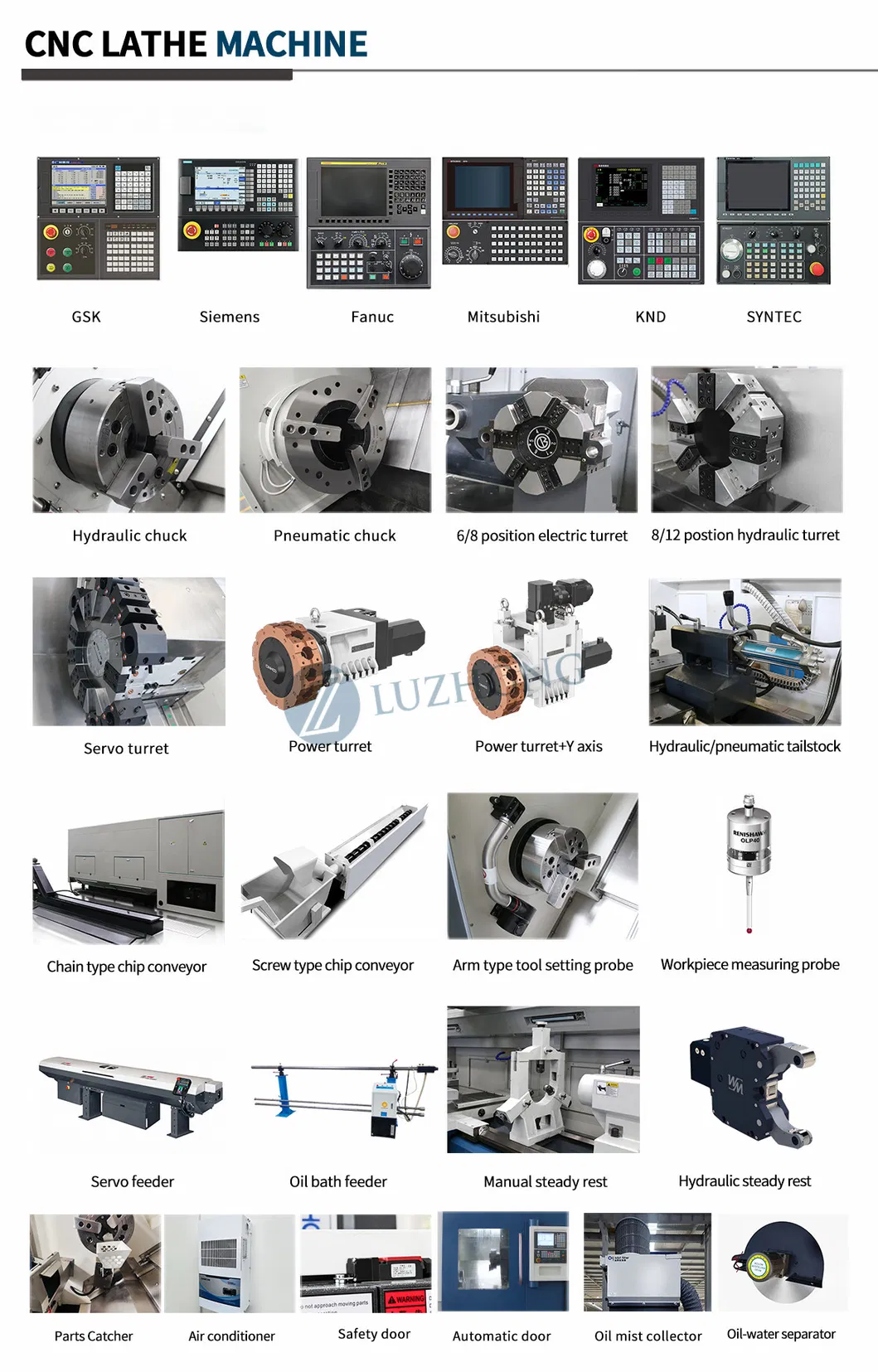

Standard: GSK 980 controller with manual pulse generator.
Standard: 400mm 3-jaw manual chuck for secure part clamping.

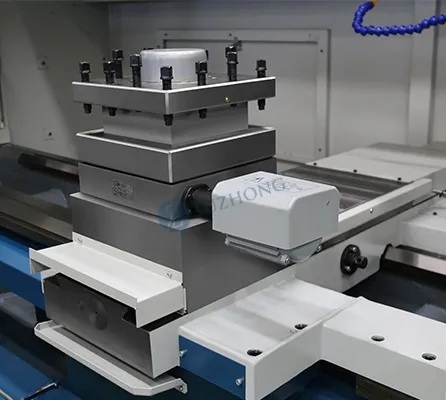

Standard: 4-position electric tool post for efficient tool indexing.

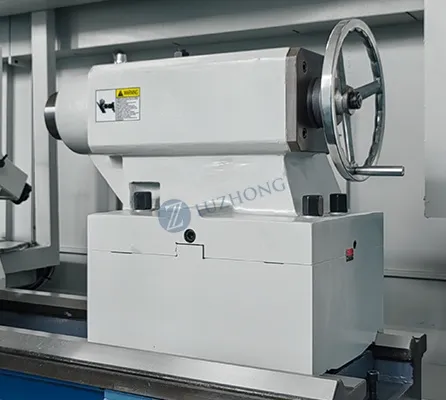

Standard: Manual tailstock for heavy duty support.

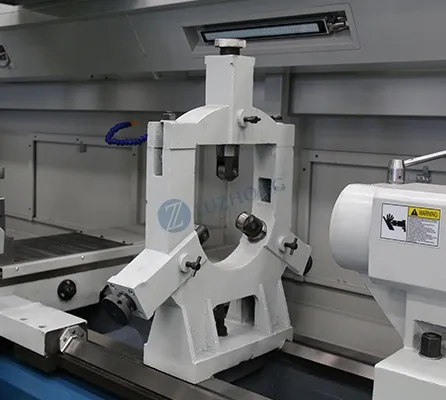

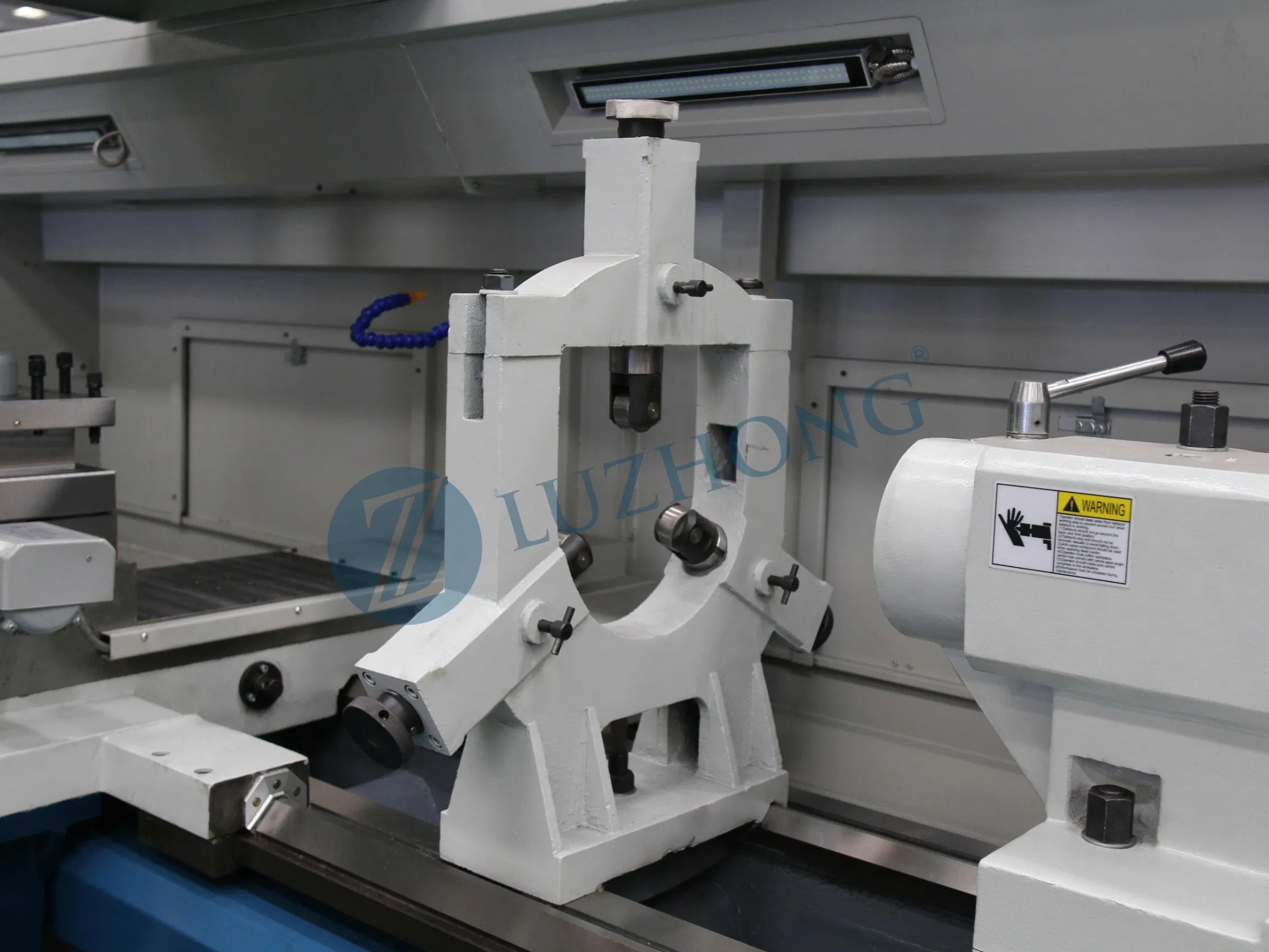

For DBC above 3m machines: 1 piece steady rest provided as standard.
Automatic centralized lubrication system for optimal component life.

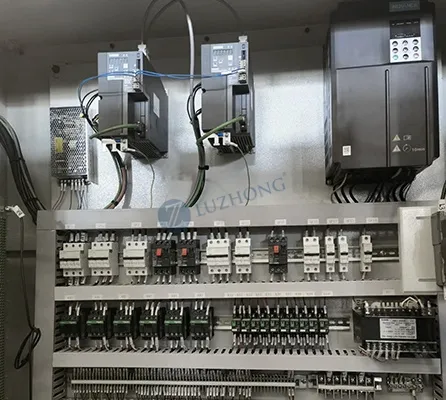

Standard: Equipped with Schneider electrical components for reliability.

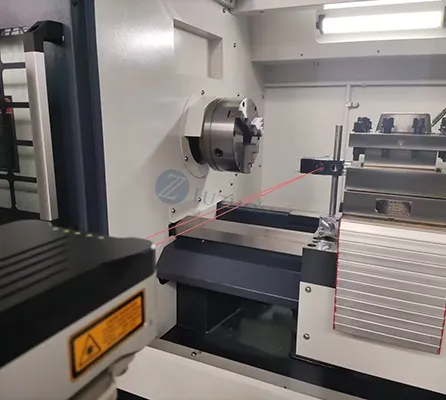

Each machine passes strict Renishaw laser interferometer testing.
