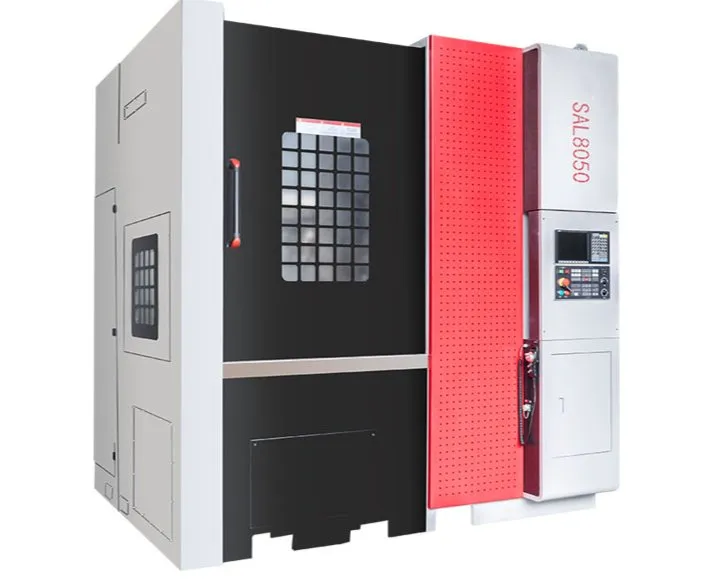

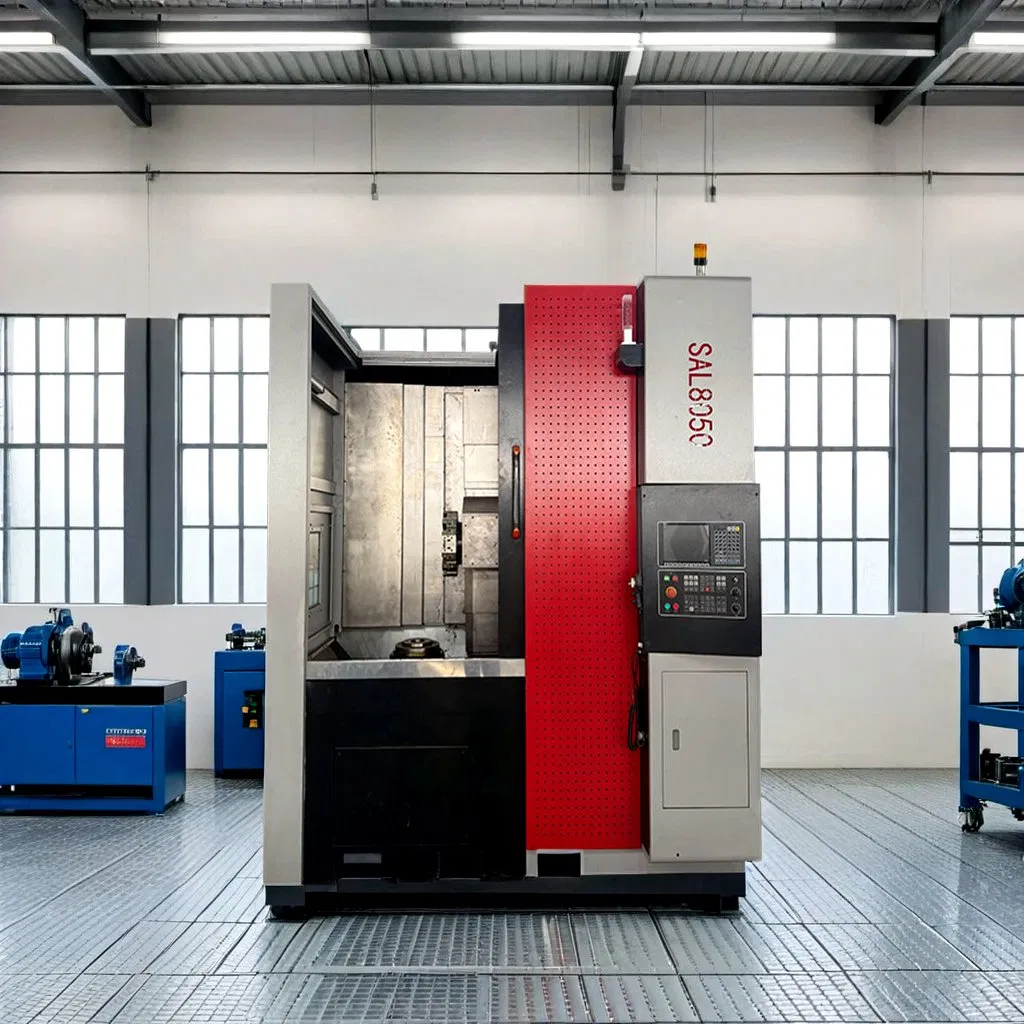

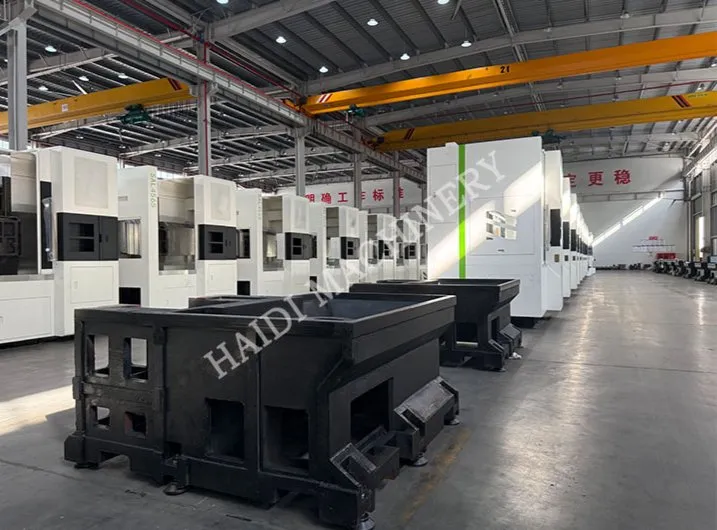

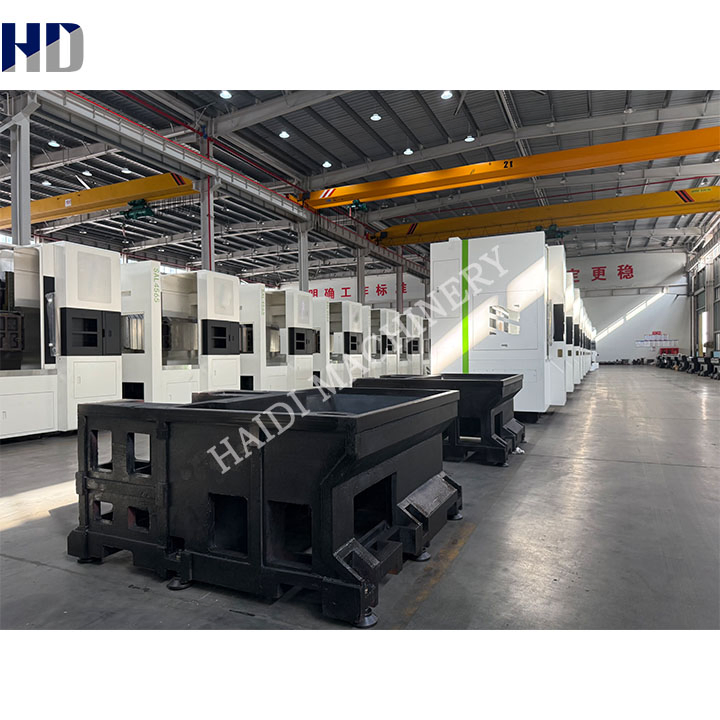

The SAL8050 vertical lathe stands as a high-speed, high-efficiency, and high-rigidity machining marvel. It integrates rough and finish machining and intensive processing, protected by a fully enclosed cover that shields components from dust corrosion. With imported parts and select domestic components, it offers enhanced stability and extended lifespan. Its elegant and stable design caters to automotive brake drums, wheel hubs, motor housings, and valve processing.

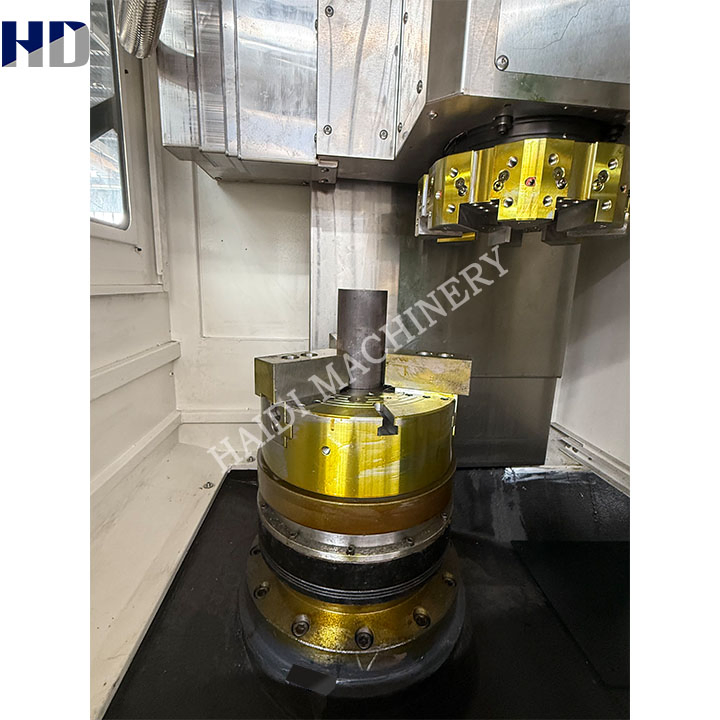

Fixtures: Outfitted with hydraulic chucks tailored for vertical lathes, offering waterproof and dustproof capabilities.
Drive: Powered by high-end precision ball screws, achieving a rapid traverse speed of 12m/min. It boasts superior motion accuracy and dynamic performance, significantly boosting machining efficiency.
Machine Control System: Utilizes the Huazhong 808D CNC system, famed for its reliability, stability, and adaptability to diverse environments.

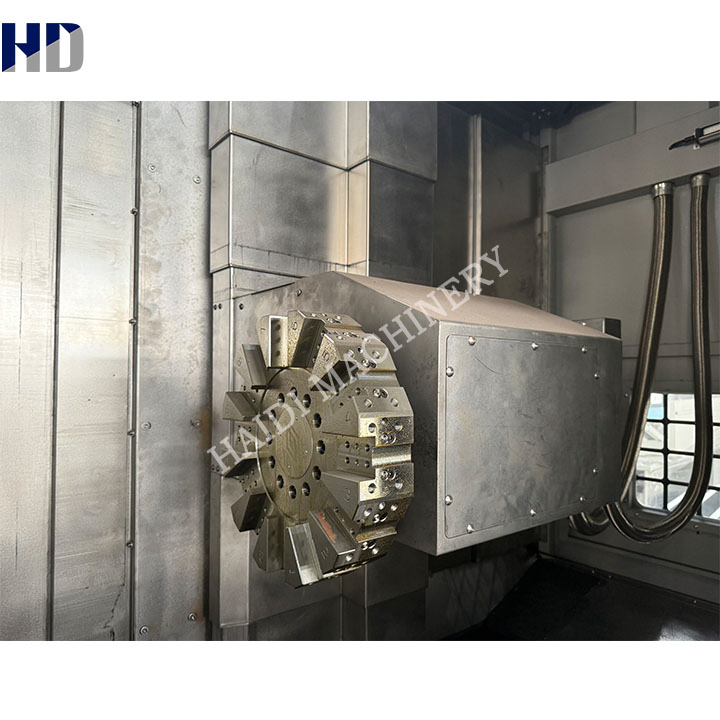

Tool Turret: Features a domestic Sanhe servo power turret with high-speed indexing of servo motors and precise gear plate positioning and a hydraulic locking structure.
Machine Tool: The X-axis and Z-axis employ linear guideway structures, specifically Taiwan HIWIN's RGW45 roller linear guideways, known for high precision and rigidity, ensuring product dimensional accuracy.
| Category | Item | Specification |
|---|---|---|
| Machine Structure | Guideway Structure | X, Z linear guideways |
| Feed Type | Fixed beam | |
| Machining Capacity | Max. Swing Diameter | Φ1000 mm |
| Max. Turning Diameter | Φ900 mm | |
| Max. Turning Height | 500 mm | |
| Max. Boring Height | 350 mm | |
| Travel | X-axis Travel | 710 mm |
| Z-axis Travel | 510 mm | |
| Rapid Traverse | X-axis Rapid Traverse | 16 m/min |
| Z-axis Rapid Traverse | 8 m/min | |
| Spindle | Spindle Speed Range | 60–700 r/min |
| Spindle Nose | A2-11 | |
| Accuracy | Repeatability | ±0.005 mm |
| Positioning Accuracy | ±0.004 mm | |
| Minimum Incremental Unit | 0.001 mm | |
| Chuck & Turret | Hydraulic Chuck | 24-inch, 3-jaw waterproof |
| Turret Stations | 8 | |
| Servo Tool Positions | 25 | |
| Control System | X-axis Servo Motor | 27 Nm / 2000 rpm |
| Z-axis Servo Motor (with brake) | 27 Nm / 2000 rpm | |
| Main Servo Motor | 15 kW / 1500 rpm | |
| Data Transfer | USB | |
| Cooling & Chip Removal | Coolant Pump Motor | 180 W |
| Pump Flow Rate | 50 L/min | |
| Coolant Tank Capacity | 220 L | |
| Chip Conveyor | Equipped | |
| Power Requirement | Power Supply | 380 V |
| Power Consumption | 15 kW | |
| Operating Conditions | Temp. 5–38 °C, Humidity <85% | |
| Hydraulic Station | 1.5 kW / 50 Hz – 50 L | |
| General Specifications | Machine Weight | Approx. 9 tons |
| Floor Space (L × W × H) | 2500 × 2245 × 2885 mm |
