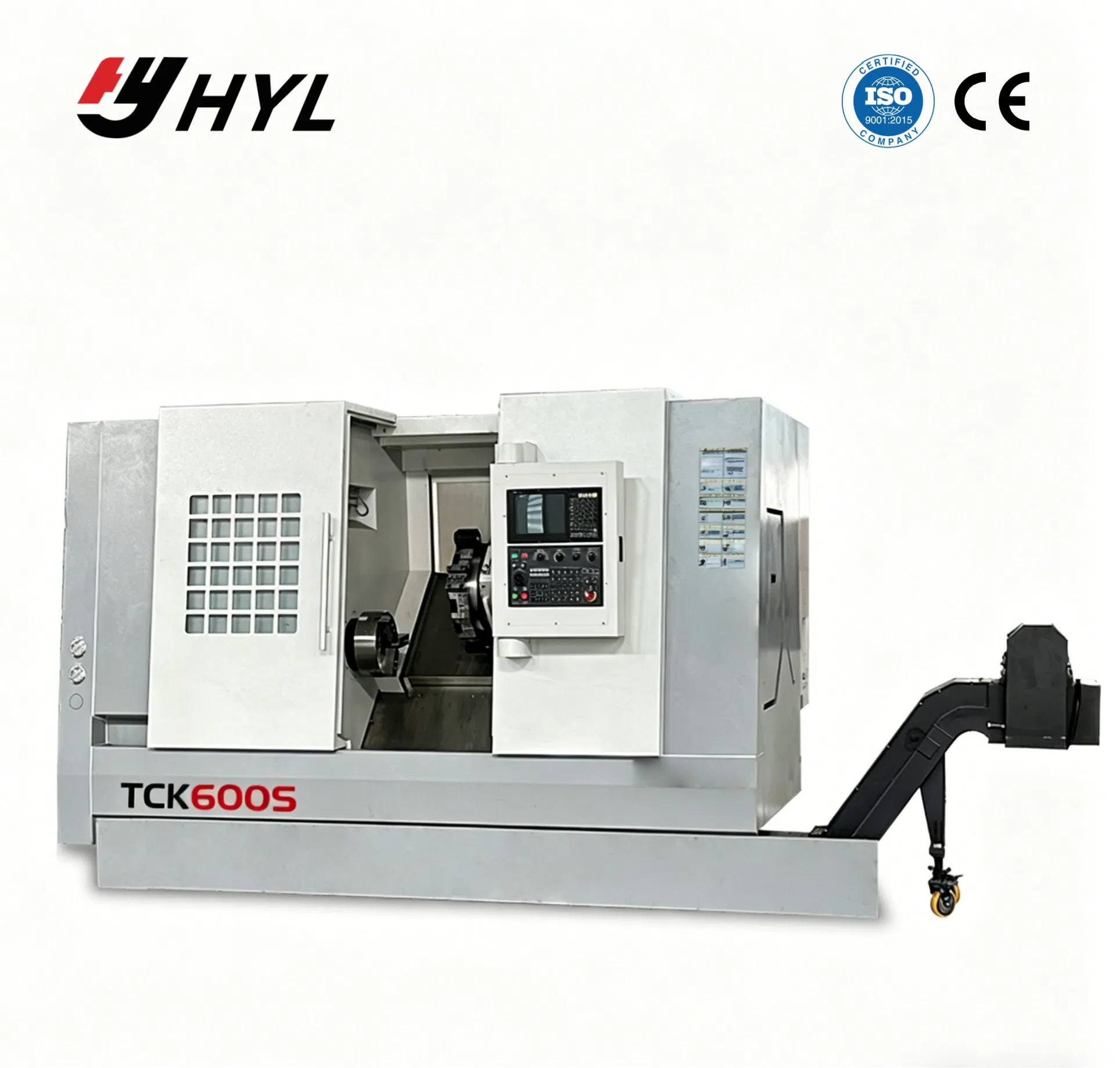

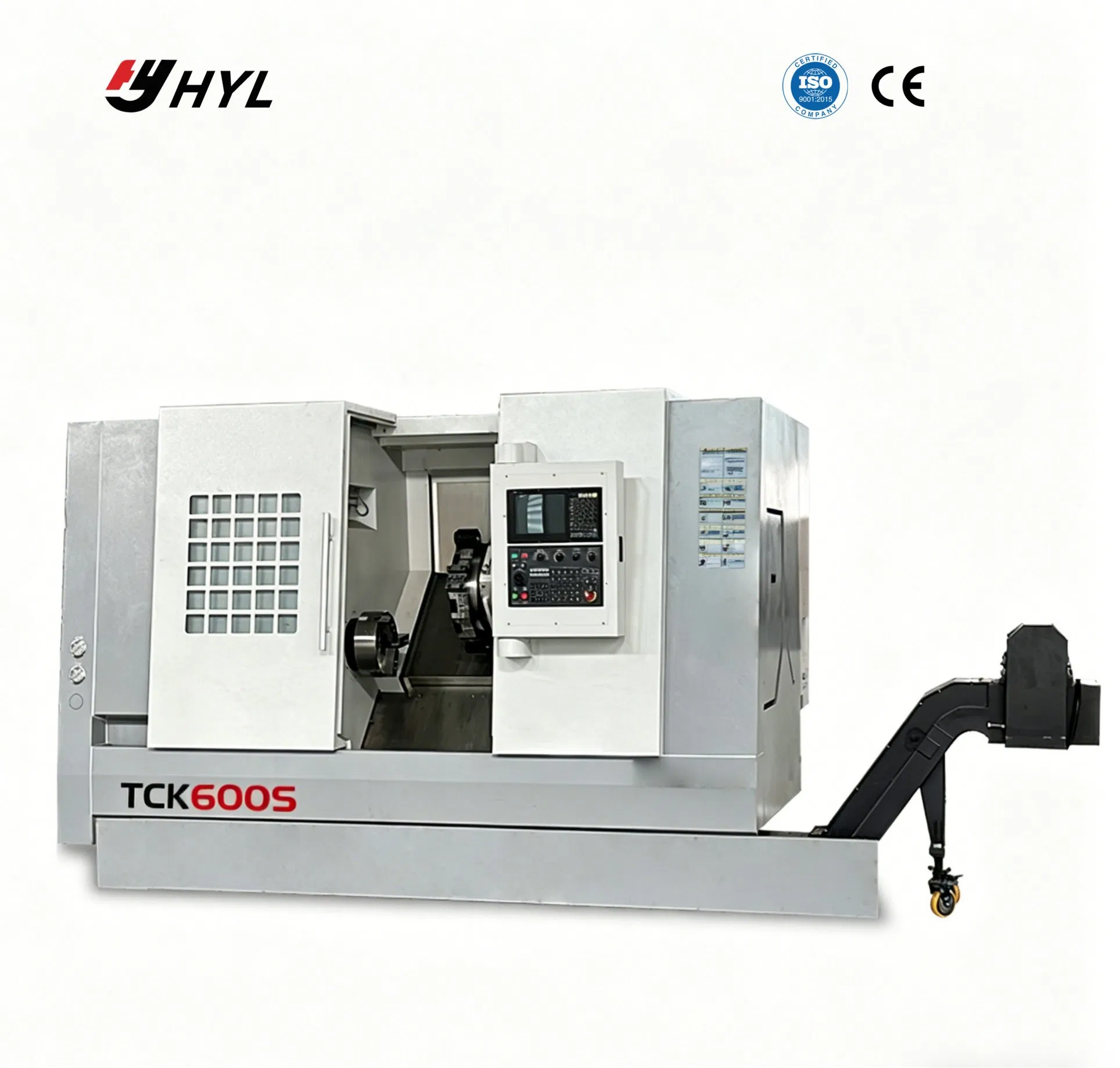

| project | unit | Specification | Remark | ||
|---|---|---|---|---|---|
| Maximum rotation diameter on the bed | mm | 600 | |||
| Maximum cutting length | mm | 500 | |||
| Maximum cutting diameter | mm | 550 | 12 stations (diameter of the opposite side of the cutter head is 450, the center height of the turret is 125) | ||
| Standard cutting diameter | mm | 430 | |||
| Maximum turning diameter on the slide | mm | 380 | |||

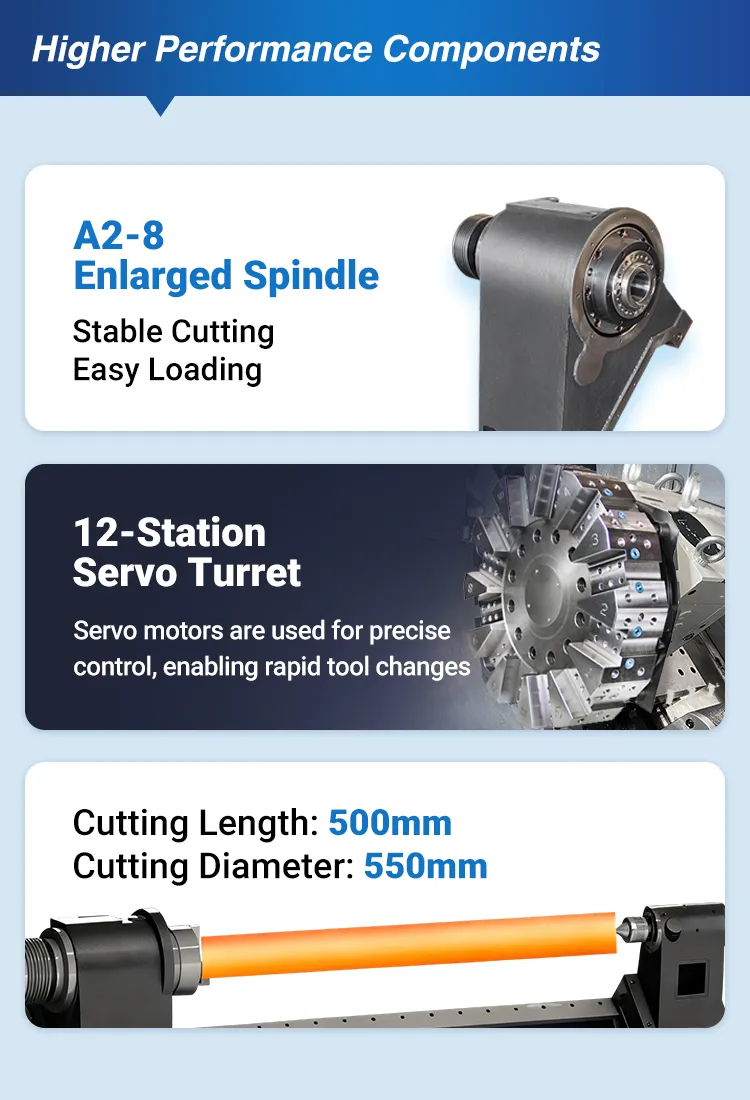

| Spindle end type and code | A2-8 | Spindle unit | |||
| Spindle hole diameter | mm | 80 | |||
| Maximum passing bar diameter | mm | 70 | |||
| Single spindle | Spindle speed range/spindle maximum output torque | r/min/Nm | 50~3500/215 | ||
| Headstock | |||||
| Main motor output power | 30 minutes/continuous | kW | 18.5/15 | ||
| Standard chuck | Chuck diameter | inch | 10² | ||
| X-axis travel | mm | 300 | |||
| Z-axis travel | mm | 550 | |||
| Standard tool holder | Horizontal 12-station servo | ||||
| Tool size | External circular knife | mm | 32×32 | ||
| Boring bar diameter | mm | Ф50 | |||
| End tool holder | mm | 32×32 | |||
| Can I choose the knife nearby? | Can | ||||
| Machine gross weight | Total weight | kg | 4300 | ||
| weight capacity | Disk Parts | kg | 350 (including chuck and other machine tool accessories) | ||
| Shaft parts | kg | 820 (including chuck and other machine tool accessories) | |||
| Machine tool dimensions (length × width × height) | mm | 2790×1900×1850 | |||
A: Please tell us your specifications, we can choose the best model for you, or you can choose the exact model. You can also send us the products drawing, we will choose the most suitable machines for you.
A: We specialize in all kinds of machines, such as CNC Lathe Machine, Vertical Machining Center, Lathe Machines and so on.
A: FOB, CFR and CIF all acceptable.
A: T/T, 30% initial payment when order, 70% balance payment before shipment; Irrevocable LC at sight.
A: 1 set. (Only some low cost machines will be more than 1 set)
A: Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free.
