High-Precision Manual Lathe, Lathe, Horizontal Lathe, Turning System

Customization:	Available
After-sales Service:	1 Year Since Running
Warranty:	One Year

Basic Info

Model NO.CS6250

TypeHorizontal Lathe

Processing AccessoryCentre CNC Lathe

Guide RailHorizontal Guide Rail

Tool HolderDouble-tool Holder CNC Lathe

Power SourceElectric

Controlling ModeArtificial

Automatic GradeSemiautomatic

Setting ModeFloor-type

PrecisionHigh Precision

CertificationCE, ISO 9001

ConditionNew

Weight (Kg)2300 Kg

Max. Turned Length (mm)1450 mm

Width of Bed (mm)390

Spindle Bore(mm)52

Machining CapacityMedium Duty

Warranty of Core Components1 Year

NameManual Lathe Machine

Key Selling PointsCompetitive Price

Spindle Motor Power(Kw)7.5

KeywordTurning Machine

Range of Spindle Speed(r.p.m)9 - 1600 r.p.m

Max. Length of Workpiece (mm)1500

Motor Power7.5kw

ApplicationMaterial Processing

Transport PackagePlywood Packaging

HS Code8458190000

Production Capacity300 Piece/Pieces Per Month

Product Description

High-Precision Manual Lathe, Lathe, Horizontal Lathe, Turning System

Product Parameters

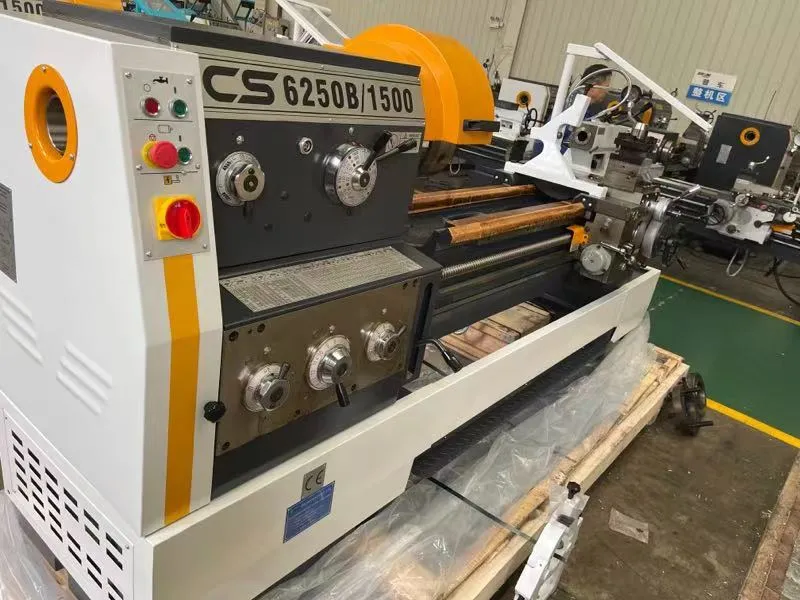

Item		Unit	CS6250B Parameter
Capacity	Max swing over bed	mm	Φ500
	Max swing in gap	mm	Φ710
	Effective length in gap	mm	240
	Max swing over slide	mm	Φ300
	Max workpiece length	mm	1000/1500/2000/3000
Spindle	Spindle thru-hole	mm	Φ82
	Spindle nose	-	ISO 702/II No.8 cam-lock type
	Spindle speed	r/min	24 step 9-1600
	Spindle motor	kW	7.5
Tailstock	Quill dia./travel	mm	φ75/150
Tailstock	Taper of center	MT	5
Tool post	Number of station / Tool section	-	4/25X25
Feed	Max X-axis travel	mm	145
	Max Z-axis travel	m/min	320
	X-axis feed	mm/r	93 sorts 0.012-2.73
	Z-axis feed	mm/r	93 sorts 0.028-6.43
	Metric thread	mm	48 sorts 0.5-224
	Inch thread	t.p.i	46 sorts 72-1/8
	Module thread	πmm	42 sorts 0.5-112
	DP thread	t.p.i. π	45 sorts 56-1/4
Others	Coolant pump motor	kW	0.12
	Machine length	mm	2632/3132/3632/4632
	Machine width	mm	975
	Machine height	mm	1270
	Machine weight	kg	2050/2200/2600/2900

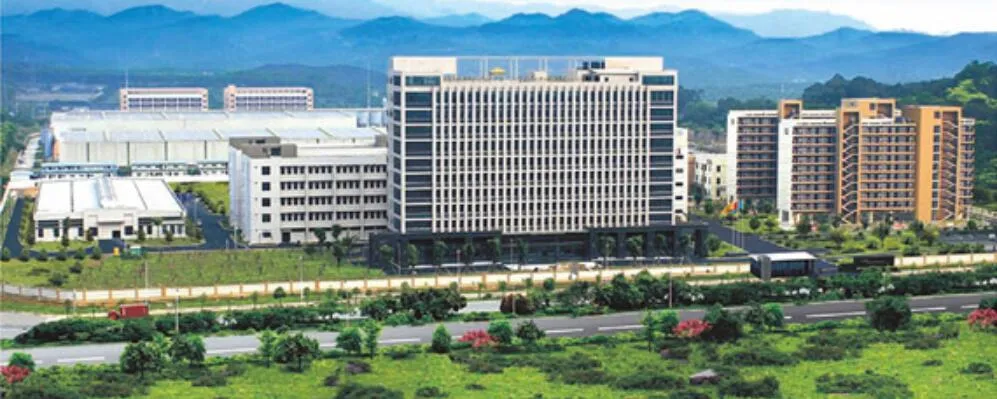

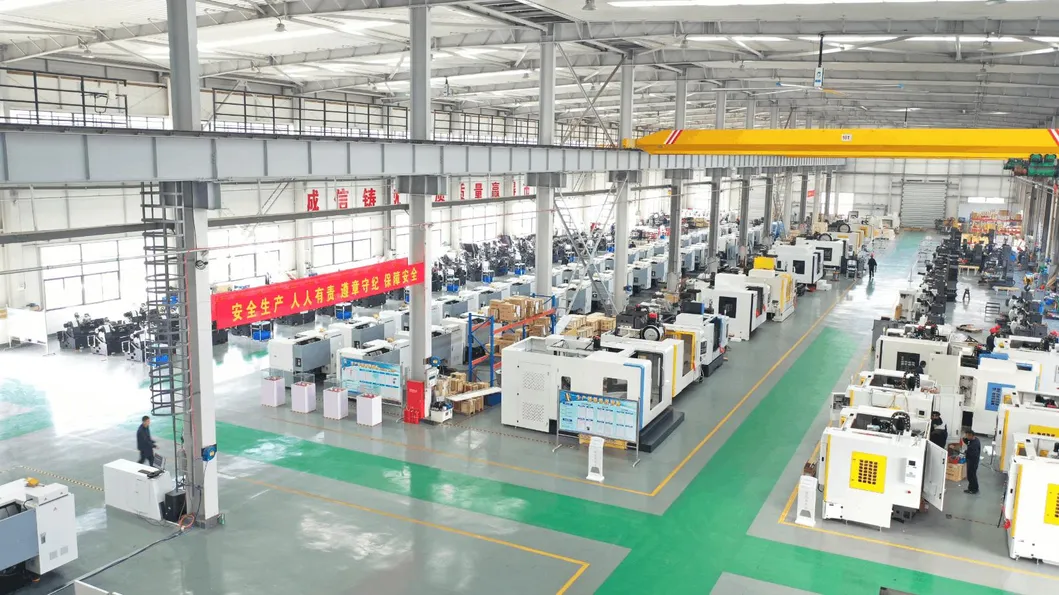

Profile Details

We stand at the forefront of the industrial lathe machinery and tooling machines market. Since the inception of our manufacturing journey, we have leveraged unparalleled production advantages to consistently introduce high-quality lathe machinery to the global stage. Our expansive reach extends to nearly 30 countries and numerous regions worldwide. Today, we proudly hold our ground among a myriad of competitors on the international front, driven by our commitment to excellence and precision.

Frequently Asked Questions (FAQ)

What are the primary applications of the CS6250 Manual Lathe Machine?

The CS6250 is a highly versatile horizontal lathe designed for medium-duty material processing. It is ideal for turning internal and external cylindrical surfaces, facing, parting, and cutting various kinds of standard threads in machine shops, maintenance facilities, and industrial manufacturing environments.

What types of threads can this lathe machine cut?

The CS6250 lathe is engineered to support a comprehensive selection of threading options, including Metric threads (48 sorts, 0.5-224 mm range), Inch threads (46 sorts, 72-1/8 t.p.i), Module threads (42 sorts, 0.5-112 πmm), and Diametral Pitch (DP) threads (45 sorts, 56-1/4 t.p.i. π).

What is the spindle speed configuration and motor power rating?

This turning machine is equipped with a powerful 7.5 kW spindle motor. It offers 24 adjustable speed steps ranging from 9 to 1600 r.p.m., allowing operators to select the optimal cutting speed based on the workpiece material and tooling setup.

What certifications does the CS6250 lathe comply with?

The lathe is designed and manufactured according to international standards, holding CE certification for European safety requirements and ISO 9001 standard compliance for quality management systems.

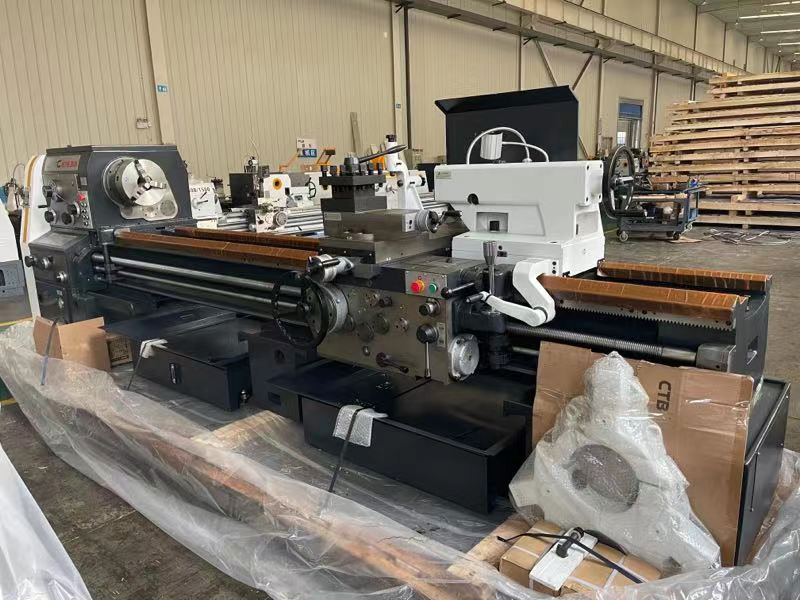

How is the lathe machine packaged for global transport?

To ensure maximum protection against physical impact, moisture, and corrosion during sea or land transit, the machine is securely enclosed in high-durability, export-standard plywood packaging.
