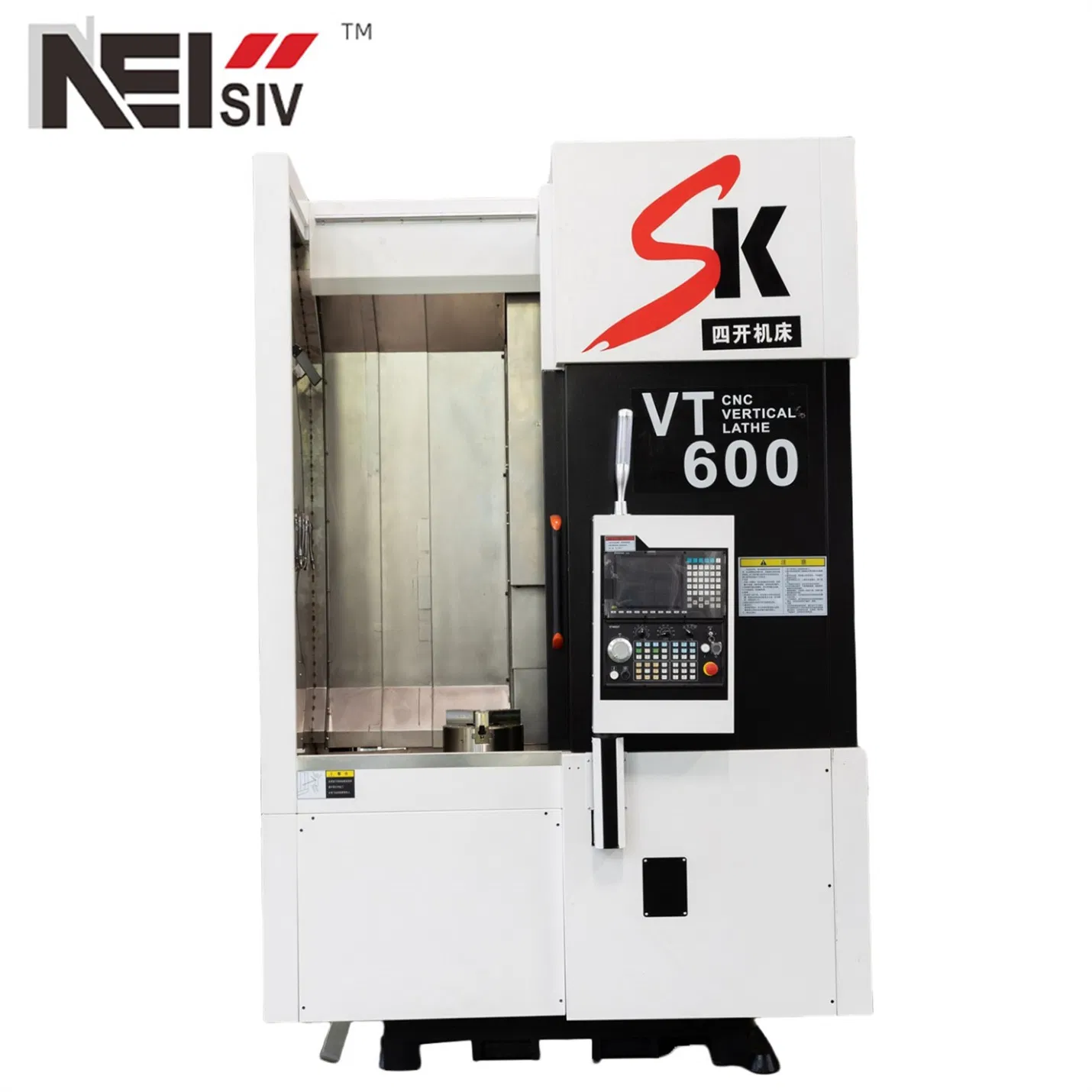

High Efficiency Metal Cutting CNC Lathe Flange Processing CNC Vertical Lathe Fanuc System

Product Description

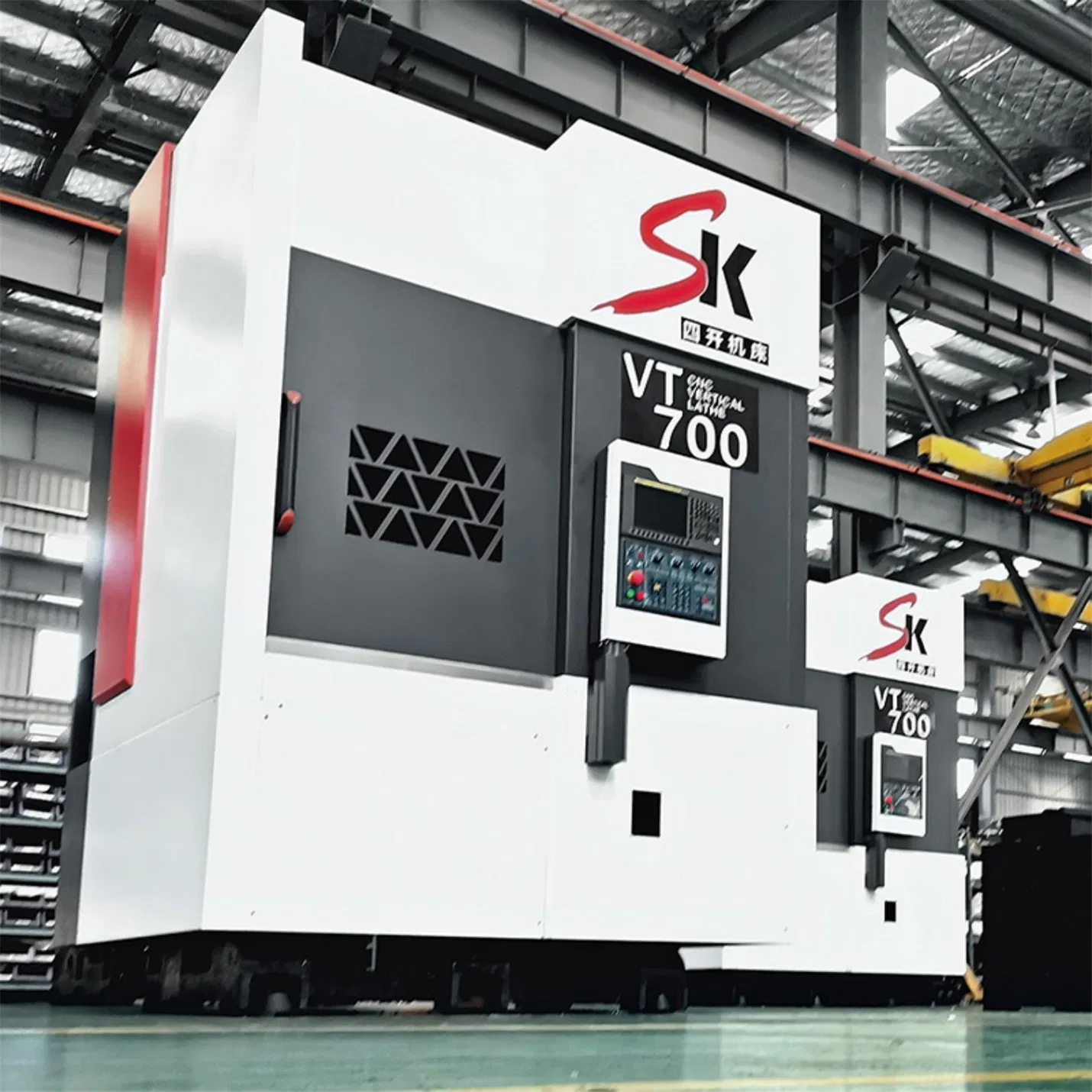

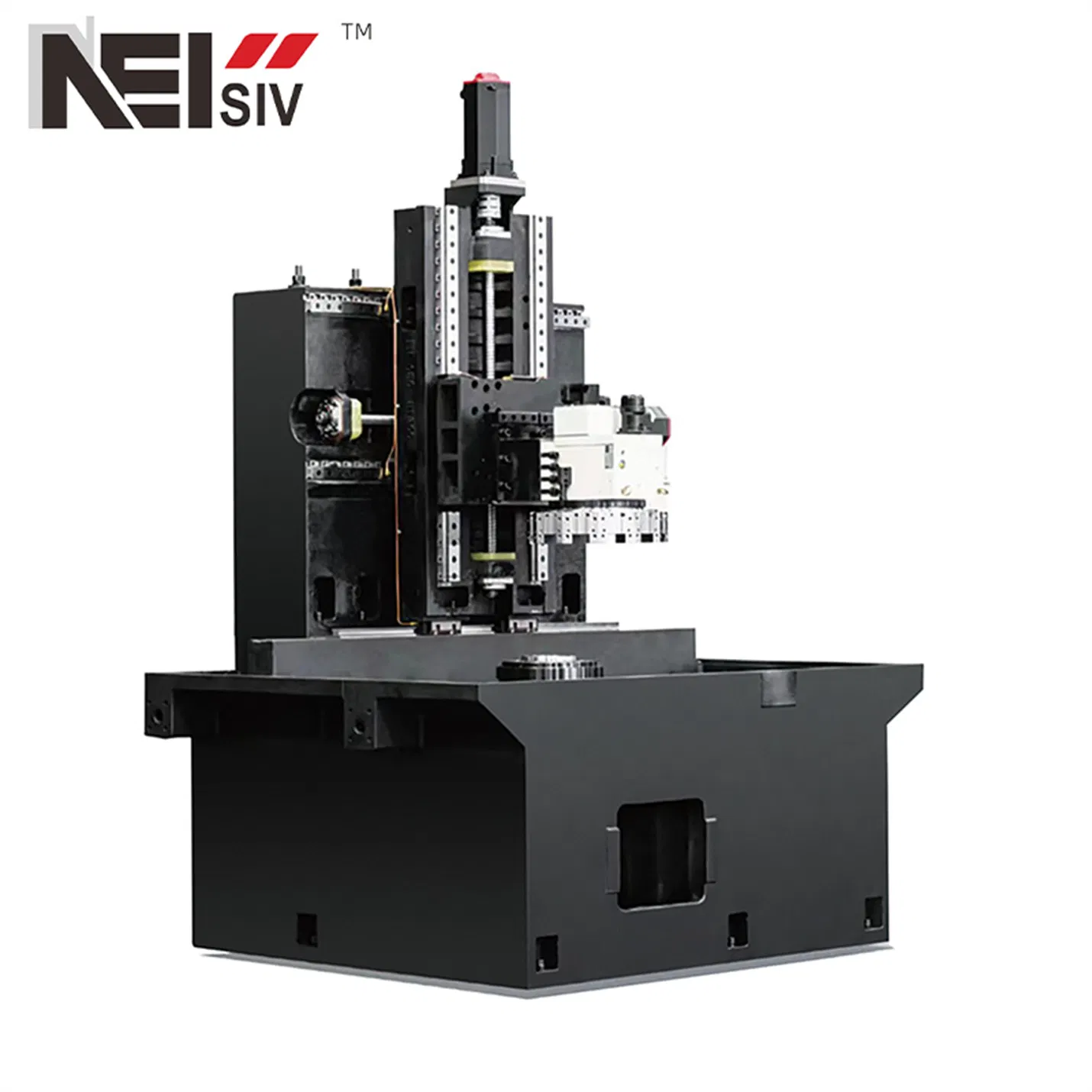

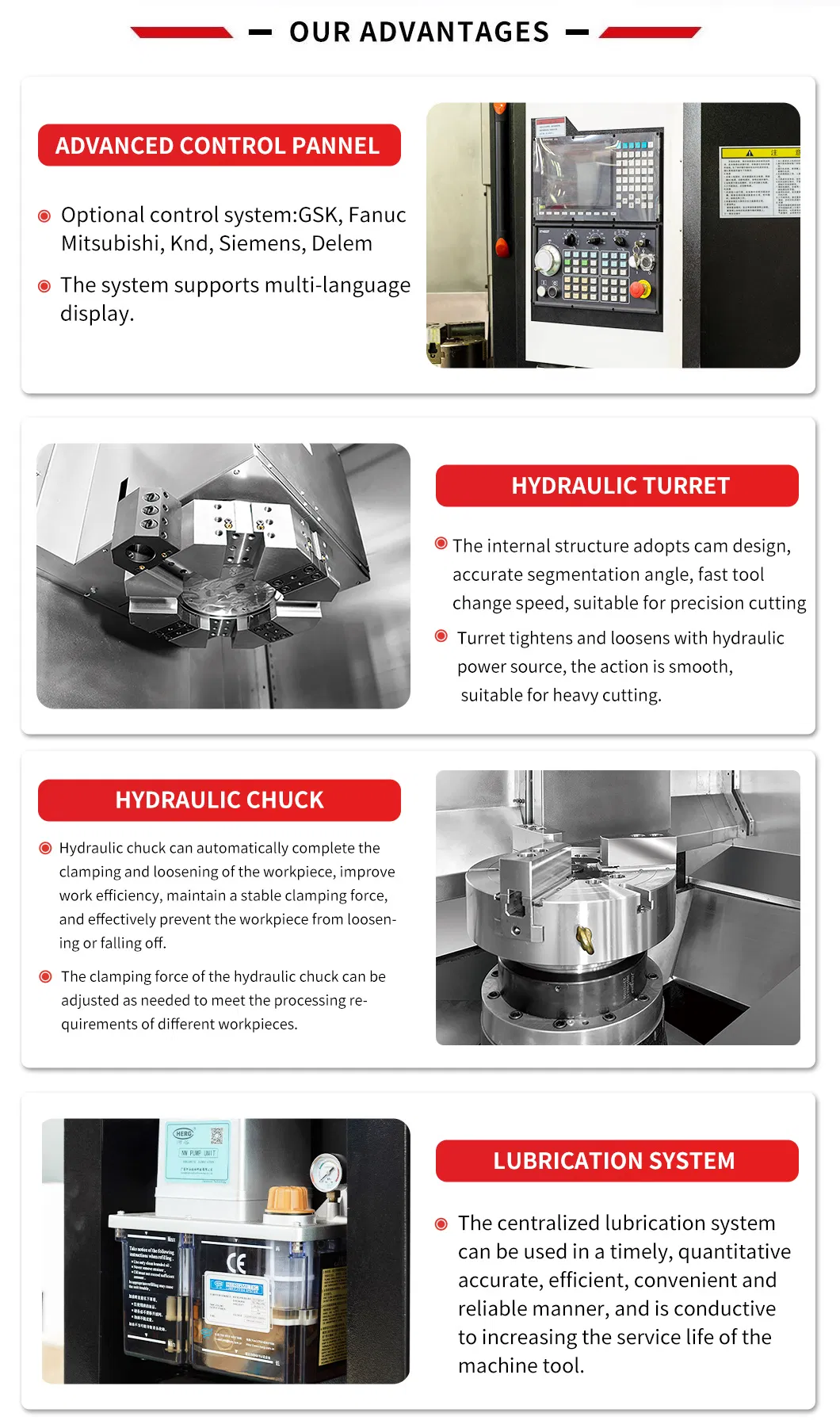

1 The unique wall panel + moving column structure, plus the X-direction three-rail design, provides powerful cutting capabilities, exceeding your expectations. Verified by many customers, it is superior to the traditional fixed column structure in terms of rigidity, precision, speed and stability.
2 All structural parts are analyzed by finite element to optimize the structure to ensure the stability of the precision of the machine tool in the cutting state, and the mechanical rigidity is increased by 30% compared with the traditional design.
3 The base adopts box-shaped structure, thick rib wall and multi-layer rib wall design, which can minimize thermal deformation, can withstand static and dynamic distortion and deformation stress, and ensure high rigidity and high stability of the bed.

4 The integrated overall spindle made in Taiwan meets the requirements of high rigidity, high speed and high precision of the machine tool at the same time. The labyrinth design inside the spindle effectively prevents cutting oil and foreign matter from entering, increases the stability of the spindle, and ensures the service life of the bearing.
5 The two axes adopt the structural form of Taiwan's heavy-duty roller linear guide + C3 high-speed silent precision ball screw, which has the characteristics of small frictional resistance, strong bearing capacity, and high repeat positioning accuracy.
6 The two-axis servo transmission system adopts the pre-tensioning structure of the screw, which effectively offsets the thermal expansion caused by the temperature rise of the screw and makes the machine tool have stable precision.

7 Imported heavy-duty roller linear guides are adopted, with large load capacity and high precision. They have the rigidity of heavy-duty hard rails and fast moving line rails with low wear, suitable for heavy-duty cutting and high-speed cutting.
8 The X/Z axis adopts high-precision ball screw and special bearing for the screw, which has good precision retention.
9 Low center of gravity structure design and 90° rotatable system control panel provide you with excellent convenience and humanized operation interface for loading and unloading workpieces.
10 Ultra-simplified footprint, combined with rear-exit chip conveyor, not only improves the space utilization rate of your plant, but also facilitates your planning of iron chip conveying system.

Specification Table

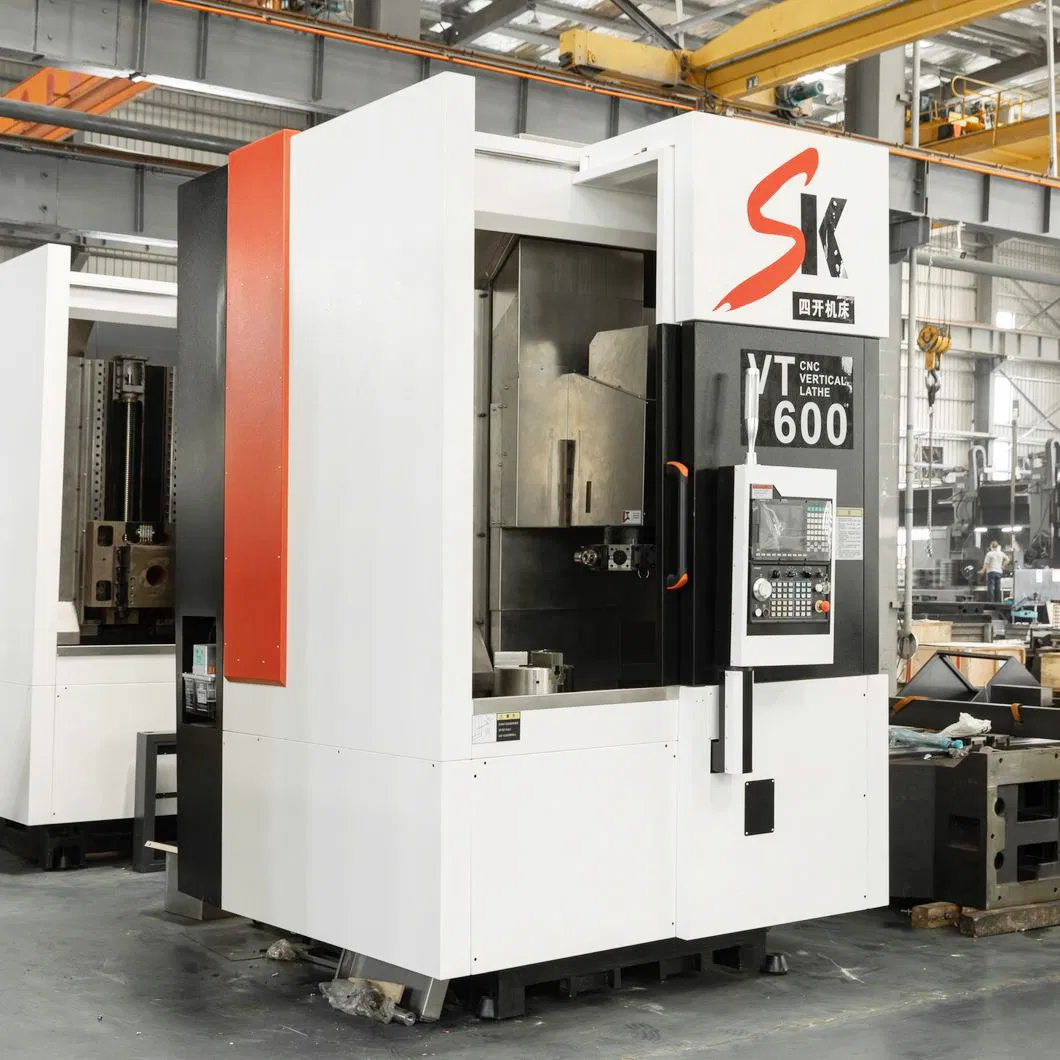

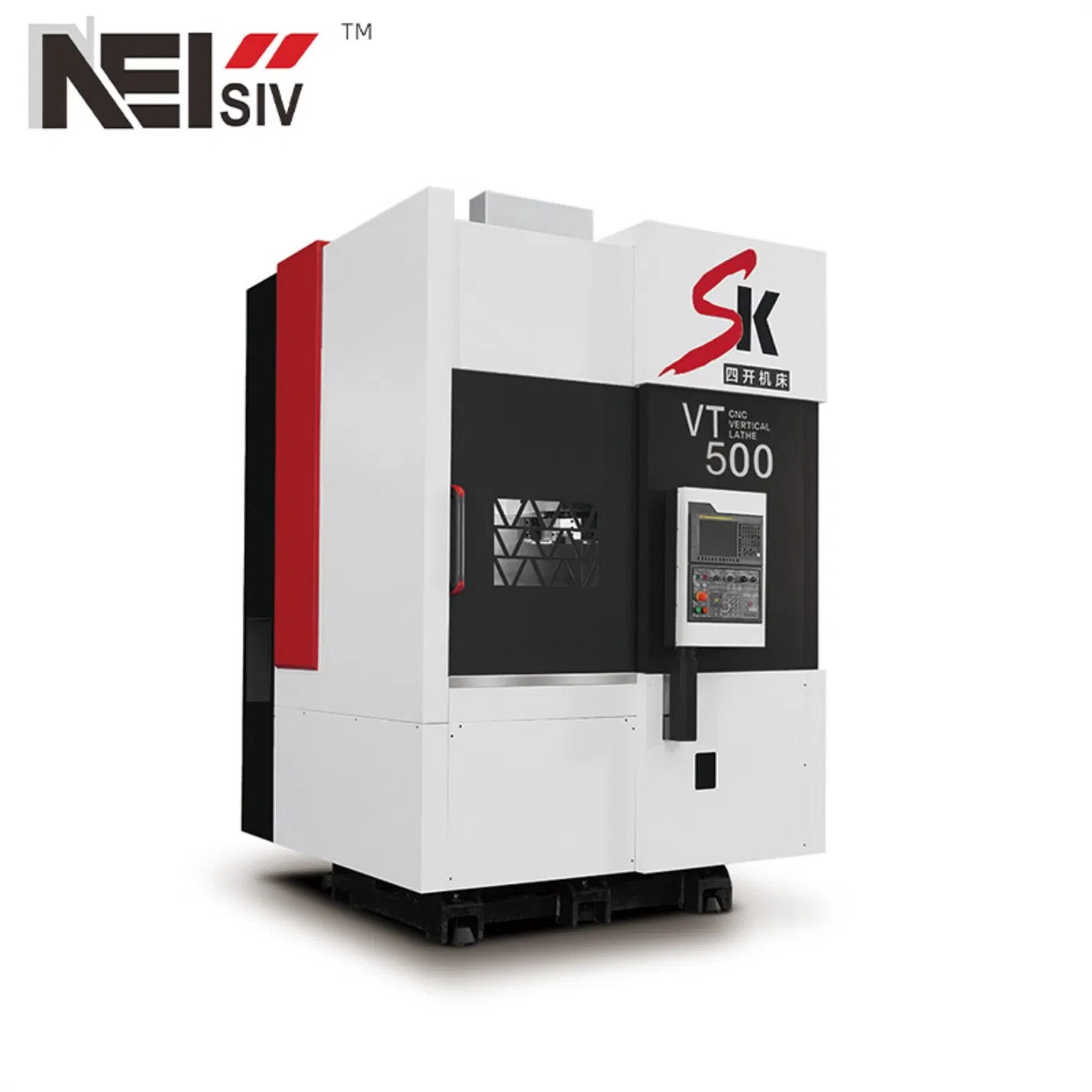

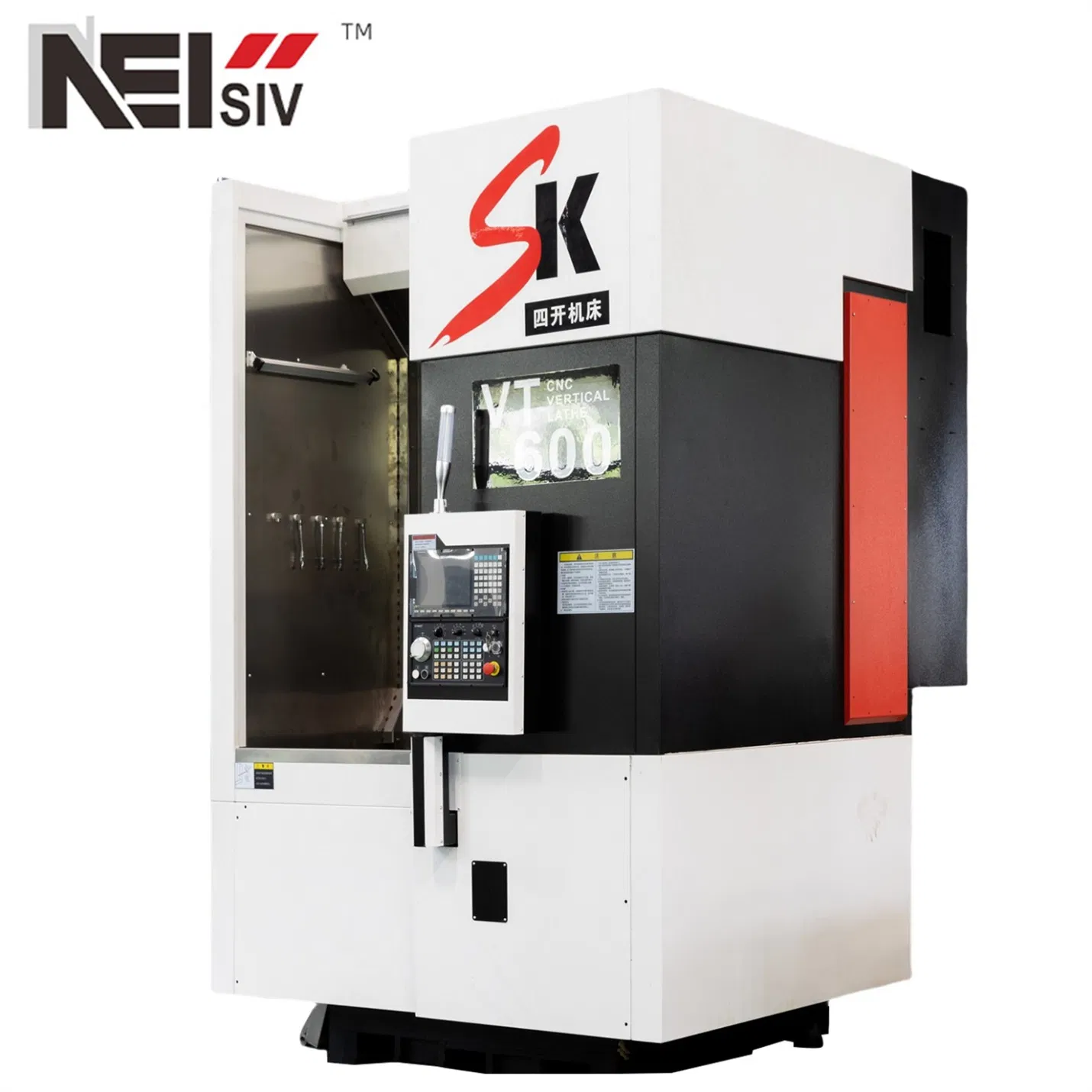

Specification	Unit	VT-500	VT-600	VT-700	VT-800	VT-1100
Max. swing diameter	mm	Φ650	Φ700	Φ800	Φ900	Φ1200
Max. cutting diameter	mm	Φ500	Φ600	Φ700	Φ800	Φ1100
Spindle nose	-	A2-8	A2-11	A2-11	A2-11	A2-15
Spindle speed	rpm	10-2500	10-2000	10-2000	10-1500	10-1000
Chuck outer diameter	inch	12	15	18	24	32
Spindle bore	mm	Φ79	Φ79	Φ79	Φ79	Φ79
Spindle front bearing bore	mm	Φ130	Φ150	Φ150	Φ160	Φ220
Spindle motor (continuous/30min)	kW	15 / 18.5	18.5/22	18.5/22	22/25	22/30
Tool capacity	pc	E type 8/12 optional power turret	E type 8/12 optional power turret	E type 8/12 optional power turret	E type 12 optional power turret	E type 12 optional power turret
External dia. toolholder	mm	32	32	32	32	32
Inner dia. toolholder	mm	Φ40	Φ50	Φ50	Φ50	Φ50
X-axis stroke	mm	350	350	440	550	730
Z-axis stroke	mm	600	800	850	900	1000
X/Z-axis rapid feed	m/min	20 / 20	20 / 20	18/18	18/18	16/16
X/Z axis servo motors	kW	3/ 3	3/3	4/4	7/7	7/7
Hydraulic tank capacity	L	30	30	30	30	30
Hydraulic motors	kW	2.2	2.2	2.2	2.2	2.2
Double stage pressure	-	Optional	Optional	Optional	Optional	Optional
Cooling water tank capacity	L	430	430	430	430	430
Cooling water motor	kW	1.53	1.53	1.53	1.53	1.53
Flushing motor	kW	1.53	1.53	1.53	1.53	1.53
Repositioning accuracy	mm	0.004	0.004	0.004	0.005	0.006
Positioning accuracy	mm	0.008	0.008	0.008	0.01	0.01
Machine size LWH	mm	1800x3000x2800	1900x3200x3100	2200x3200x3300	2500x3500x3500	2500x3500x3500
Machine weight	kg	7500	9000	10000	13000	18000

Main Products

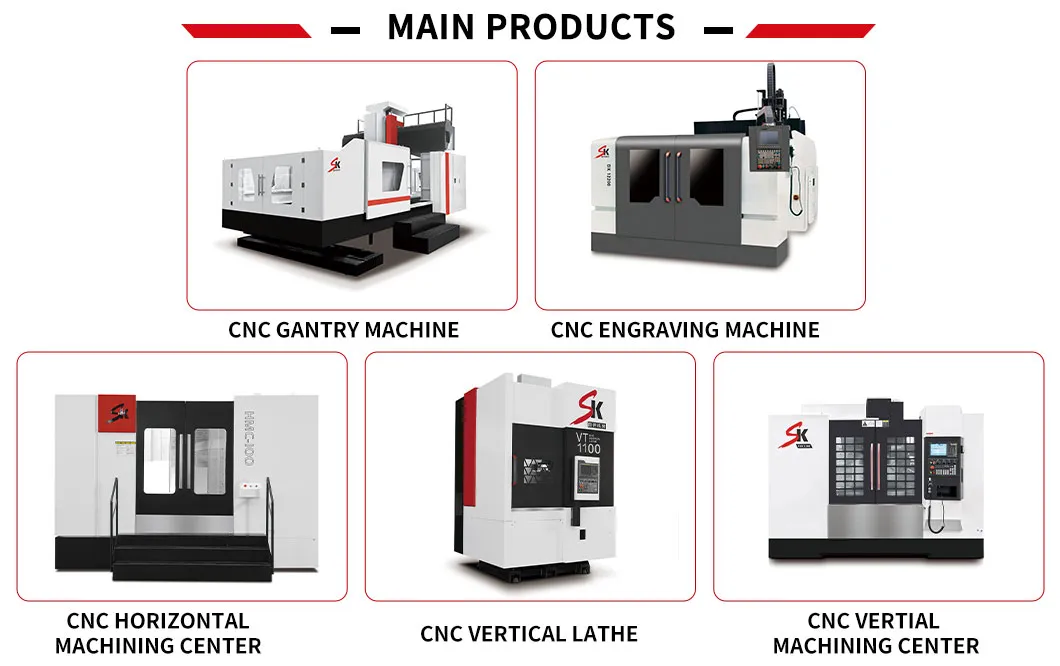

Embark on a journey through our extensive array of pioneering equipment, extending beyond our Vertical CNC Milling High Precision Gantry Metal Cutting Heavy Duty Center. Unveil groundbreaking solutions tailored to meet a myriad of industrial demands with unparalleled precision and exceptional performance.

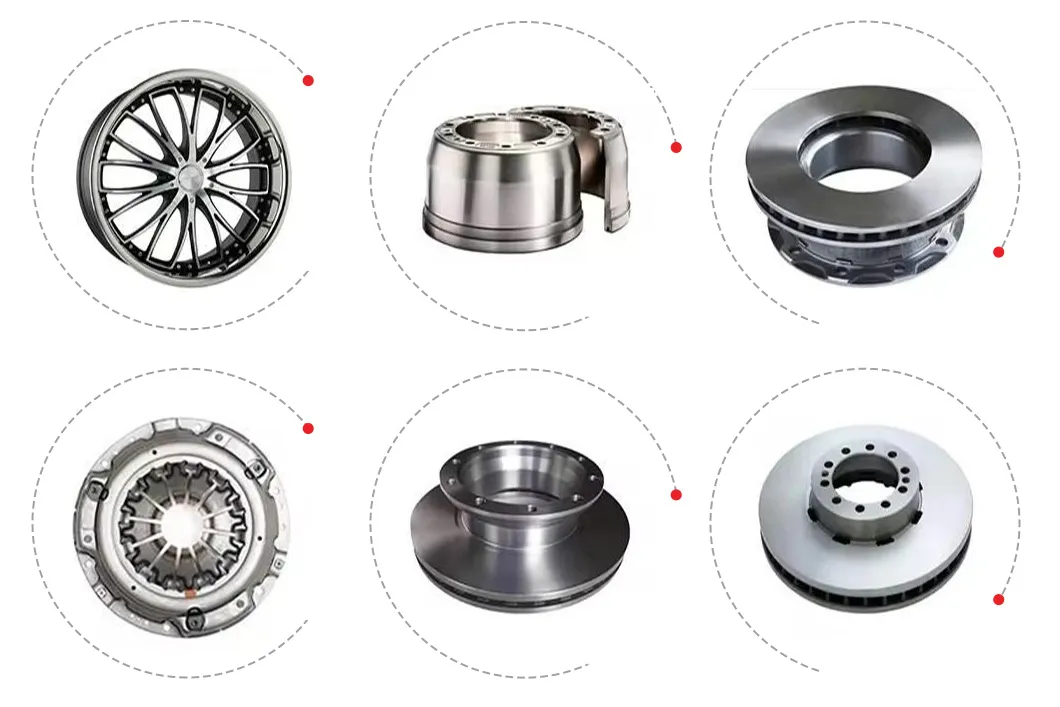

Application: Suitable for precision parts processing such as aerospace, automobile manufacturing, mold manufacturing, hardware processing, etc.
