High-Speed CNC Machine Tool Precision Clutch Processing CNC Vertical Lathe GSK CNC System Optional

Overview - Basic Info

Processing AccessoryChuck CNC Lathe

Guide RailInclined Guide Rail

Tool HolderSingle-tool Holder CNC Lathe

Power SourceElectric

Controlling ModeCNC

Automatic GradeAutomatic

Setting ModeFloor-type

PrecisionHigh Precision

CertificationGS, CE, RoHS, ISO 9001

ConditionNew

NameCNC Vertical Hydraulic Lathe CNC Vertical Lathe Tu

Machining CapacityHeavy Duty

Spindle Motor Power(Kw)18.5/22 Kw

No. of SpindlesSingle

Number of Axes2

Tool Post Stations4, 6, 8

Applicable IndustriesBuilding Material Shops, Machinery Repair Shops, M

Key Selling PointsMultifunctional

Showroom LocationEgypt, Canada, Turkey, United Kingdom, United Stat

Marketing TypeNew Product 2024

Machinery Test ReportProvided

Video Outgoing-InspectionProvided

Core ComponentsBearing, Motor, Pump

Voltage220V 380V

FunctionMetal Turning

Transport PackageSuitbale for International Transport

Specification2850X2760X1150mm

TrademarkSK

OriginNanjing China

HS Code8458911090

Production Capacity30sets/Month

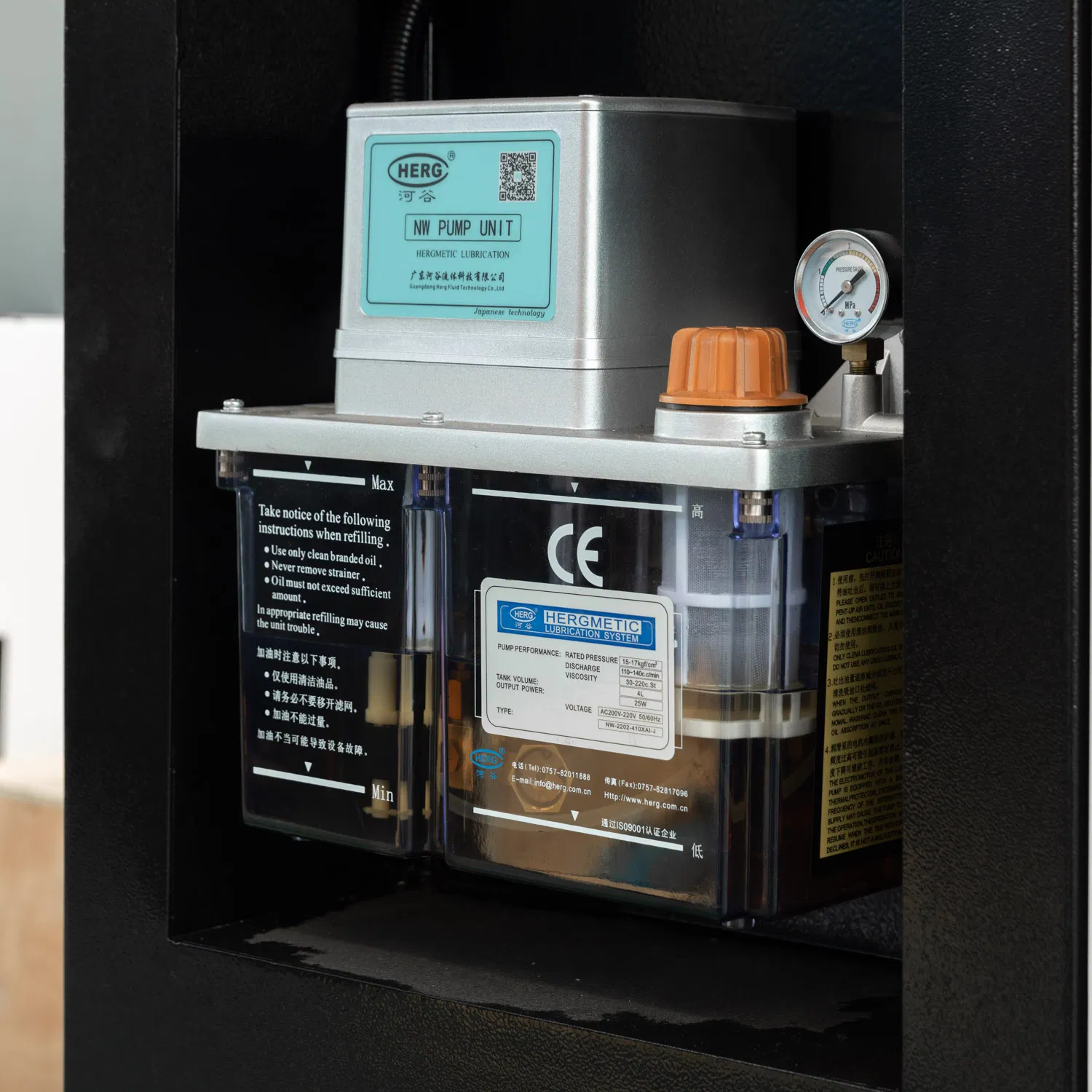

Product Description

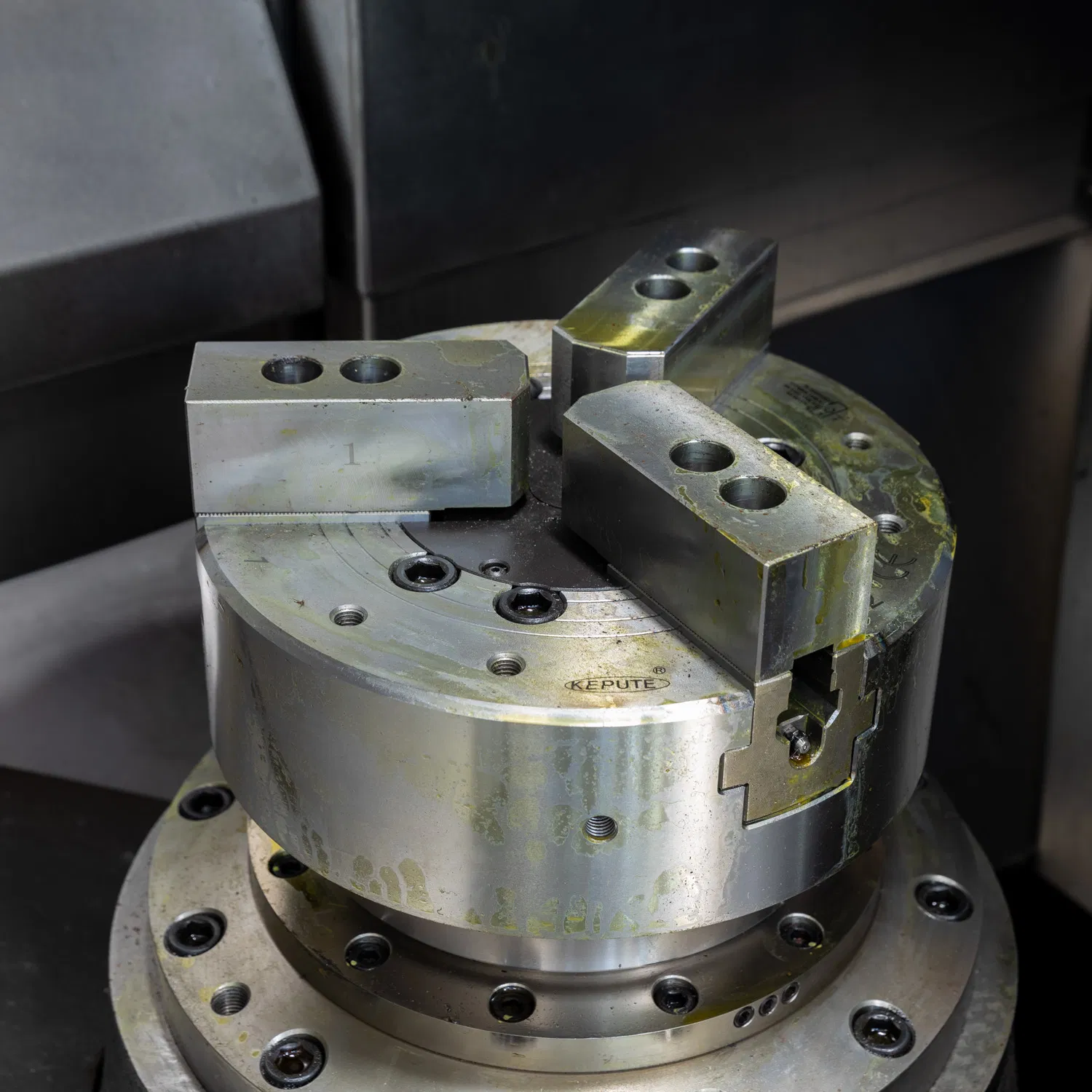

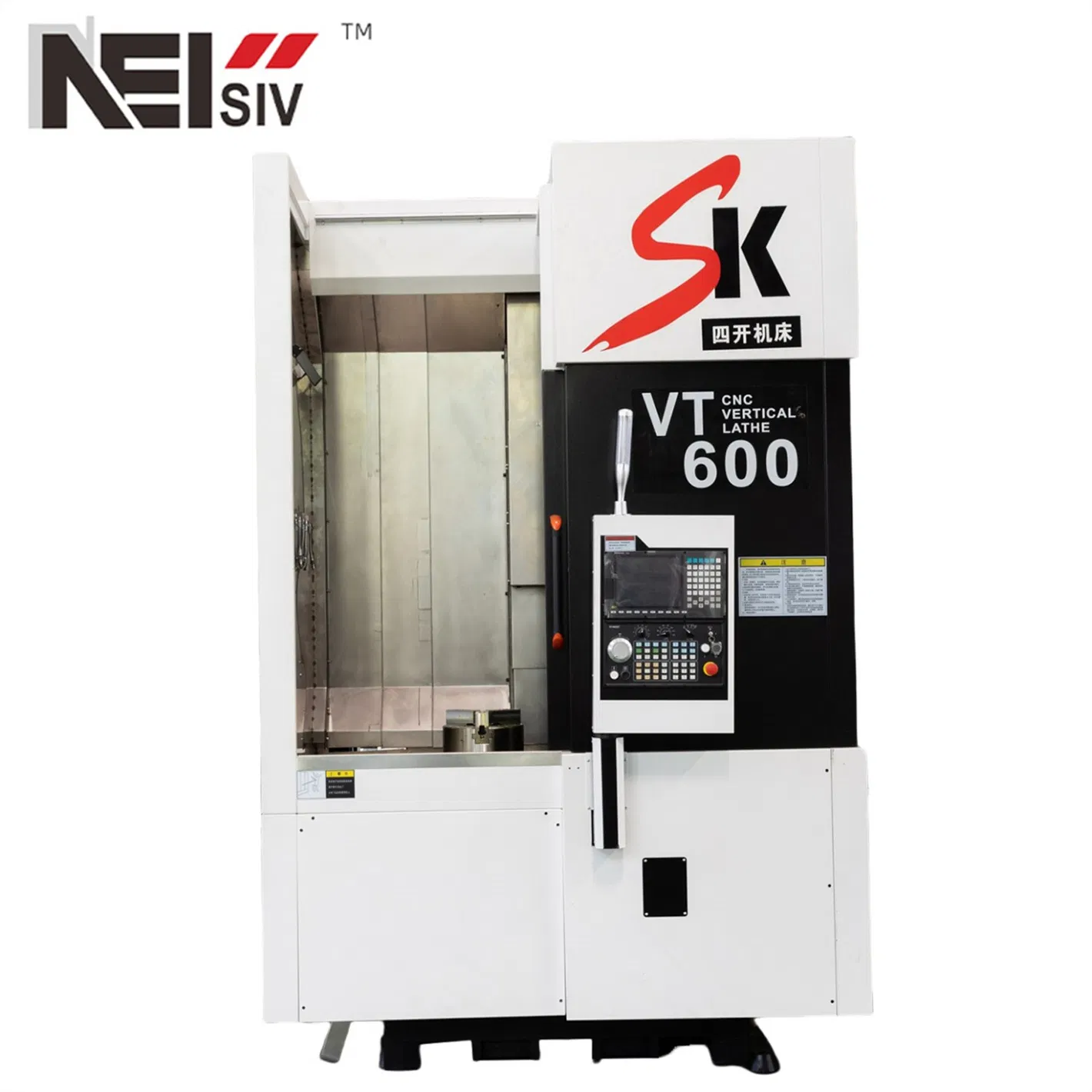

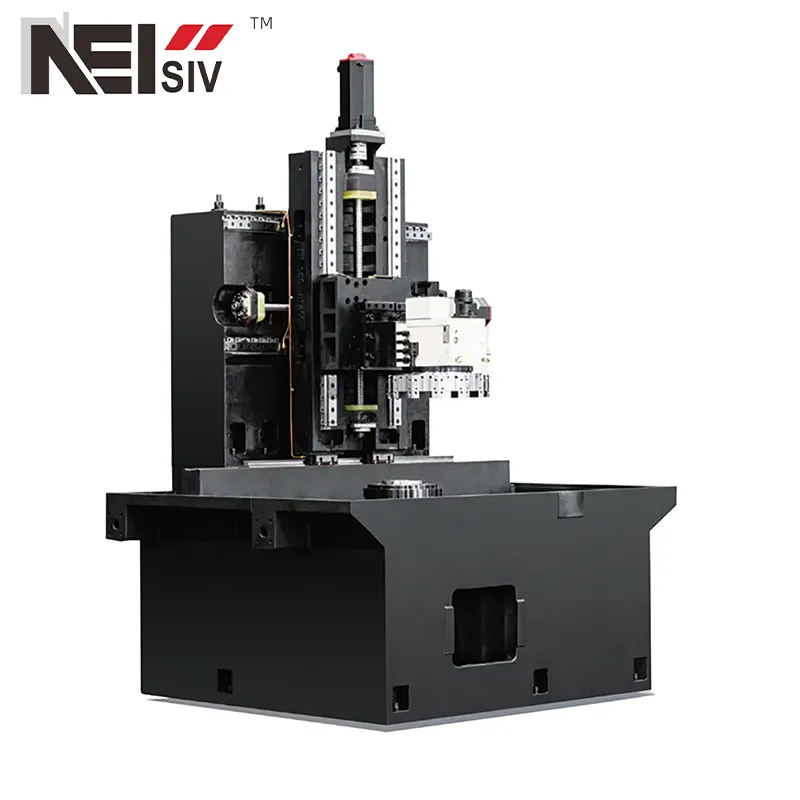

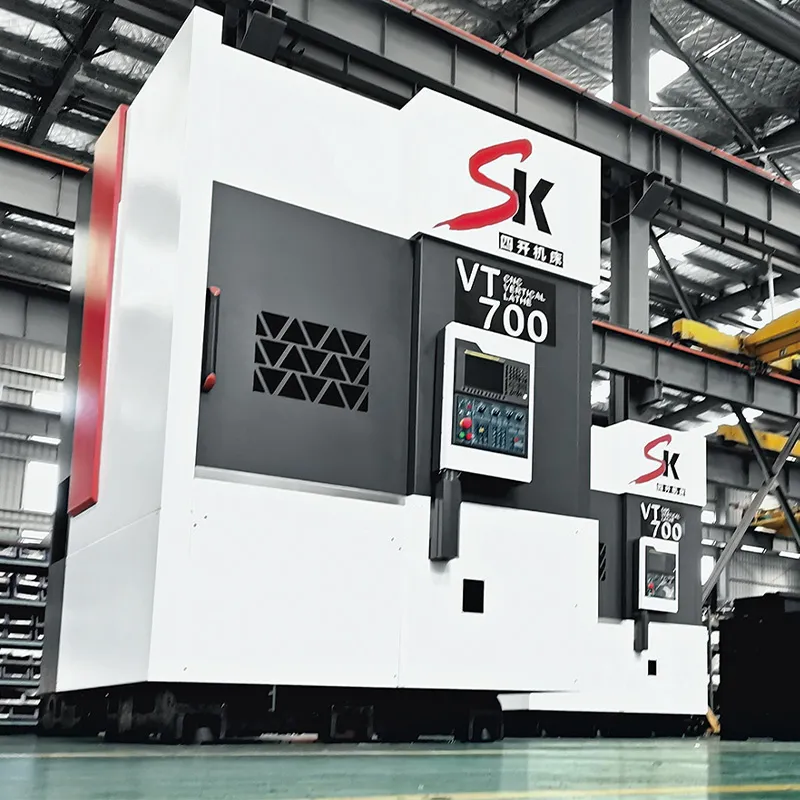

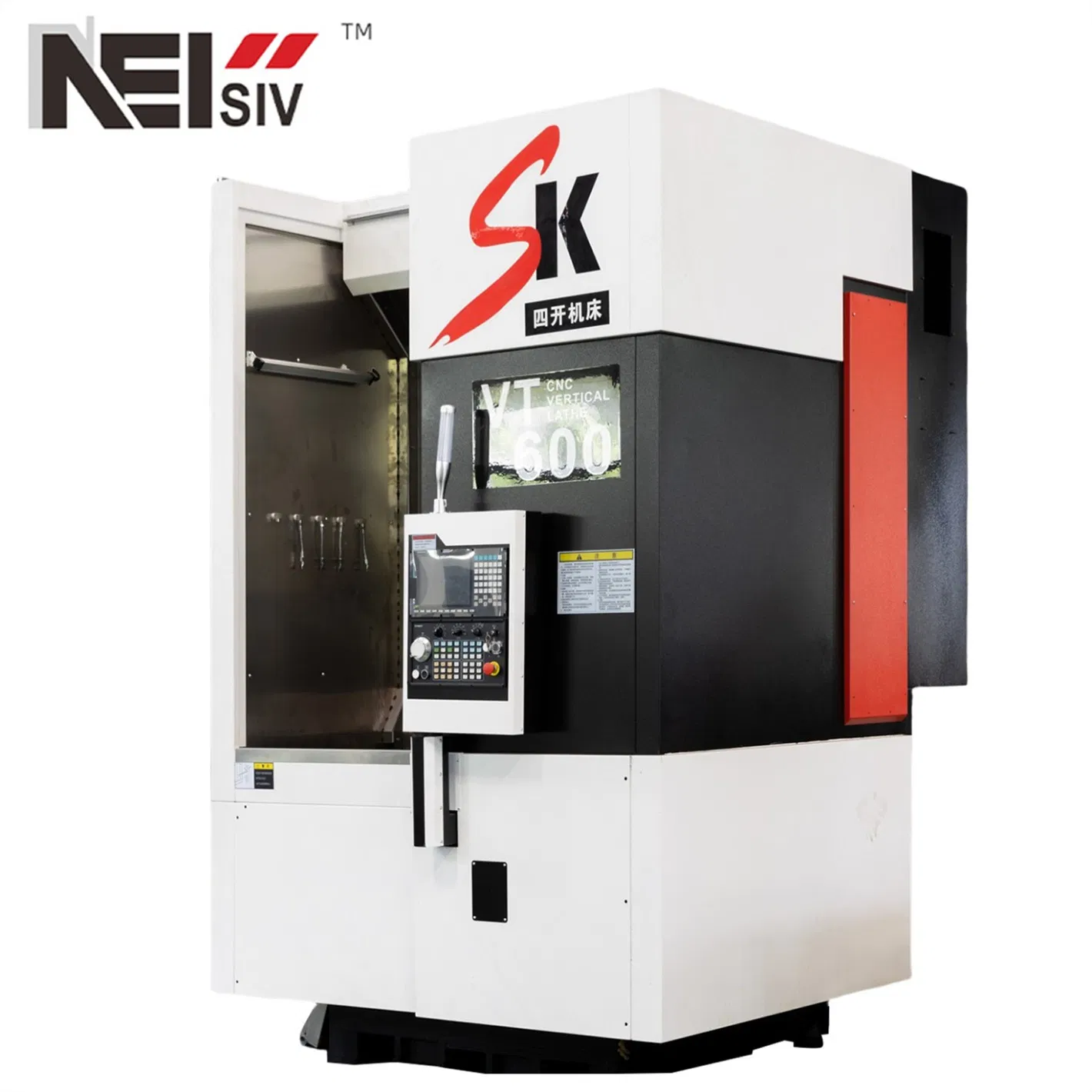

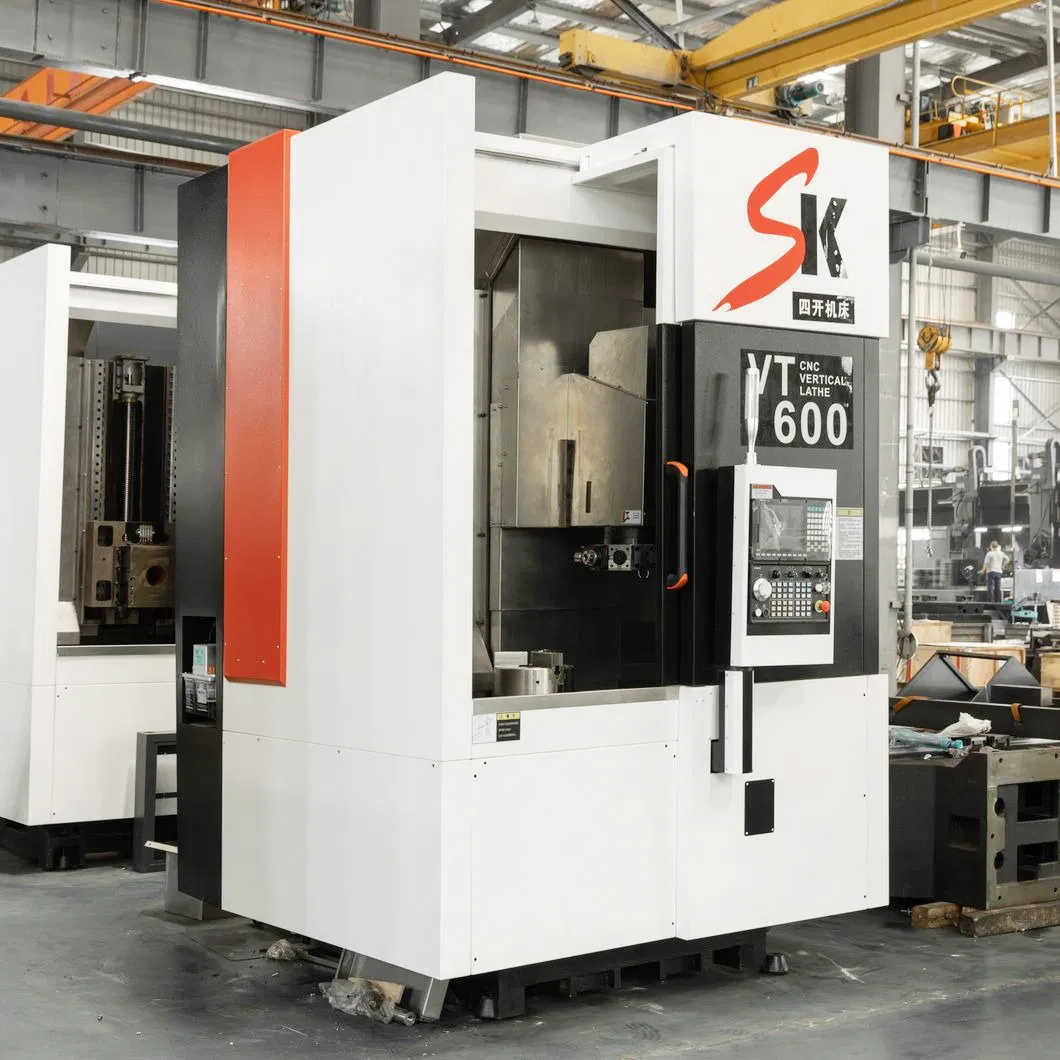

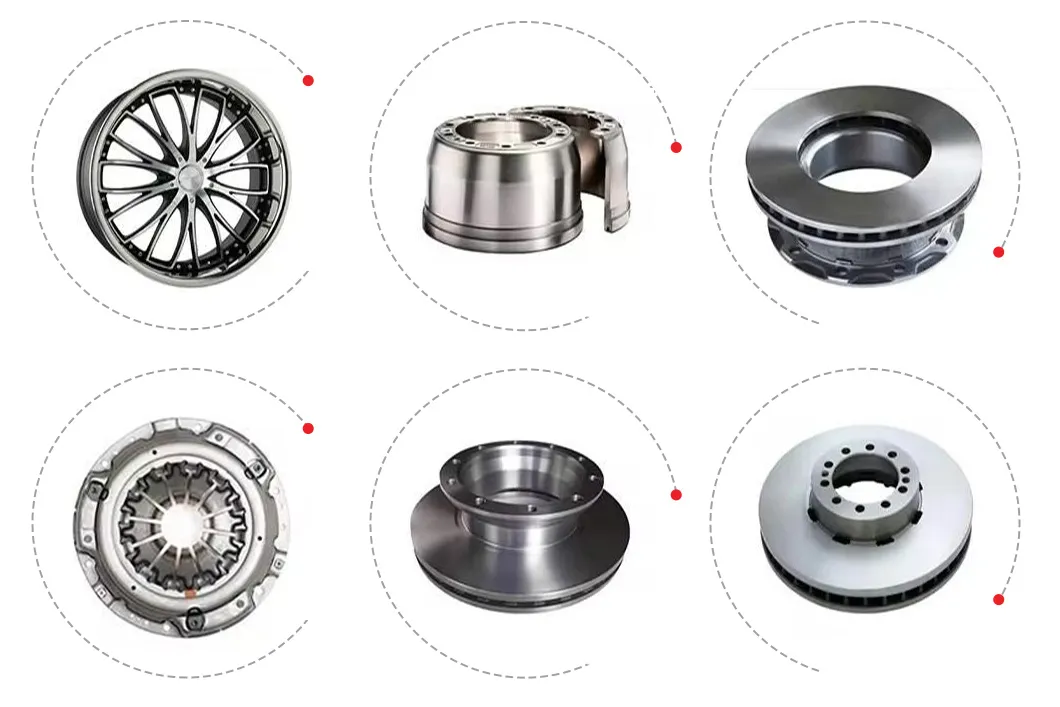

High-Speed CNC Machine Tool Precision Clutch Processing CNC Vertical Lathe GSK CNC System Optional

1. Unique Structure: Unique wall panel + moving column structure, plus X-direction three-rail design, provides powerful cutting capabilities, exceeding expectations. Rigidity, precision, speed, and stability superior to traditional fixed column structure.
2. Structural Integrity: Structural parts analyzed by finite element optimization to ensure precision stability. Mechanical rigidity increased by 30% compared to traditional designs.
3. Rigid Base: Box-shaped structure base, thick rib wall, and multi-layer rib design minimize thermal deformation and withstand static/dynamic distortion and deformation stress.

4. Taiwan Spindle: Integrated overall spindle made in Taiwan meets requirements for high rigidity, high speed, and high precision. Labyrinth design prevents cutting oil and foreign matter intrusion.
5. High-Precision Transmission: Two axes feature Taiwan heavy-duty roller linear guide + C3 high-speed silent precision ball screw, yielding small frictional resistance, strong bearing capacity, and high repeatability.
6. Servo Transmission: Two-axis servo system utilizes pre-tensioning screw structure, offsetting thermal expansion due to temperature rise and maintaining stable precision.

7. Heavy-Duty Guides: Imported heavy-duty roller linear guides with large load capacity, high rigidity, low wear, and suitability for heavy and high-speed cutting.
8. X/Z Axis Screw: High-precision ball screw and specialized bearing for the screw ensure excellent precision retention.

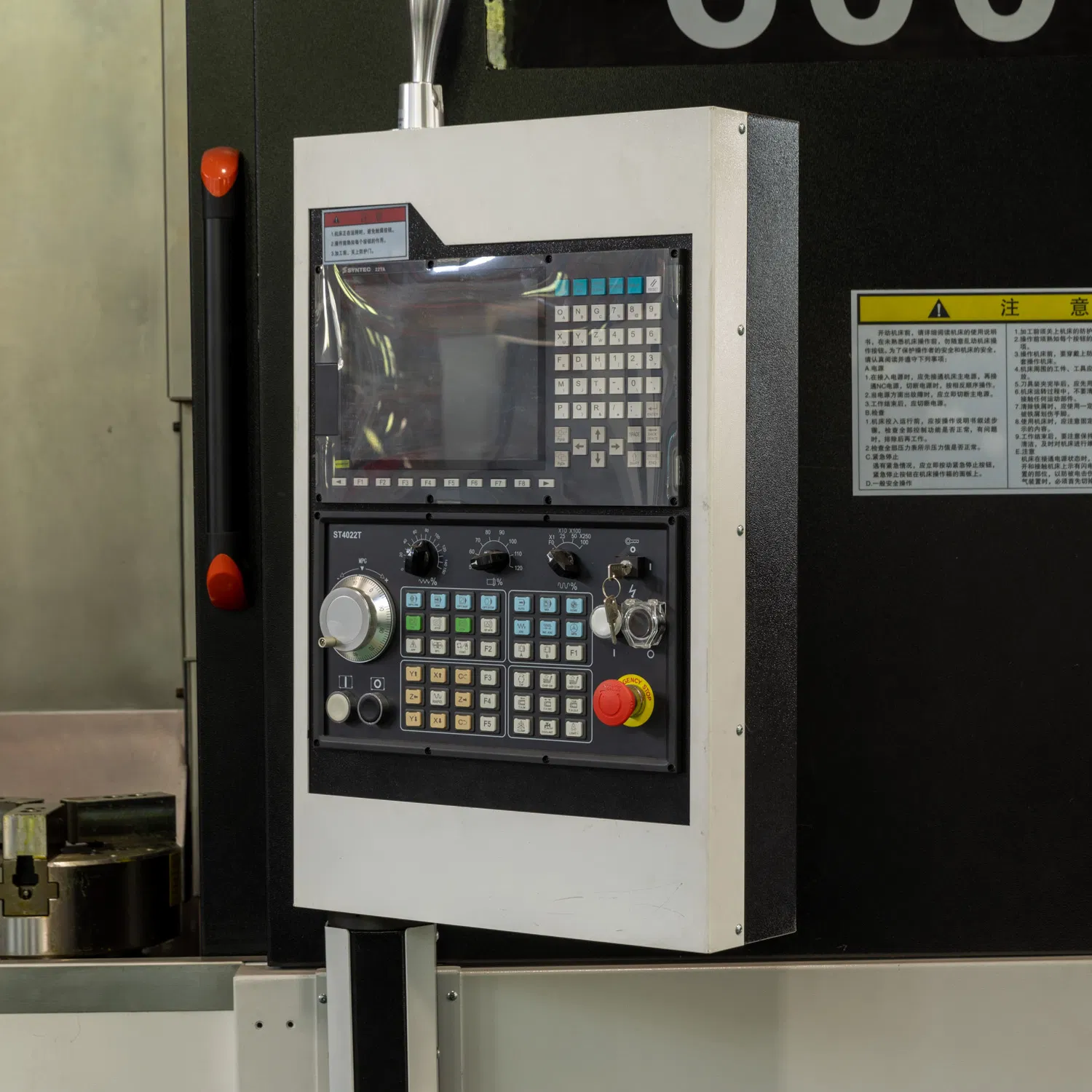

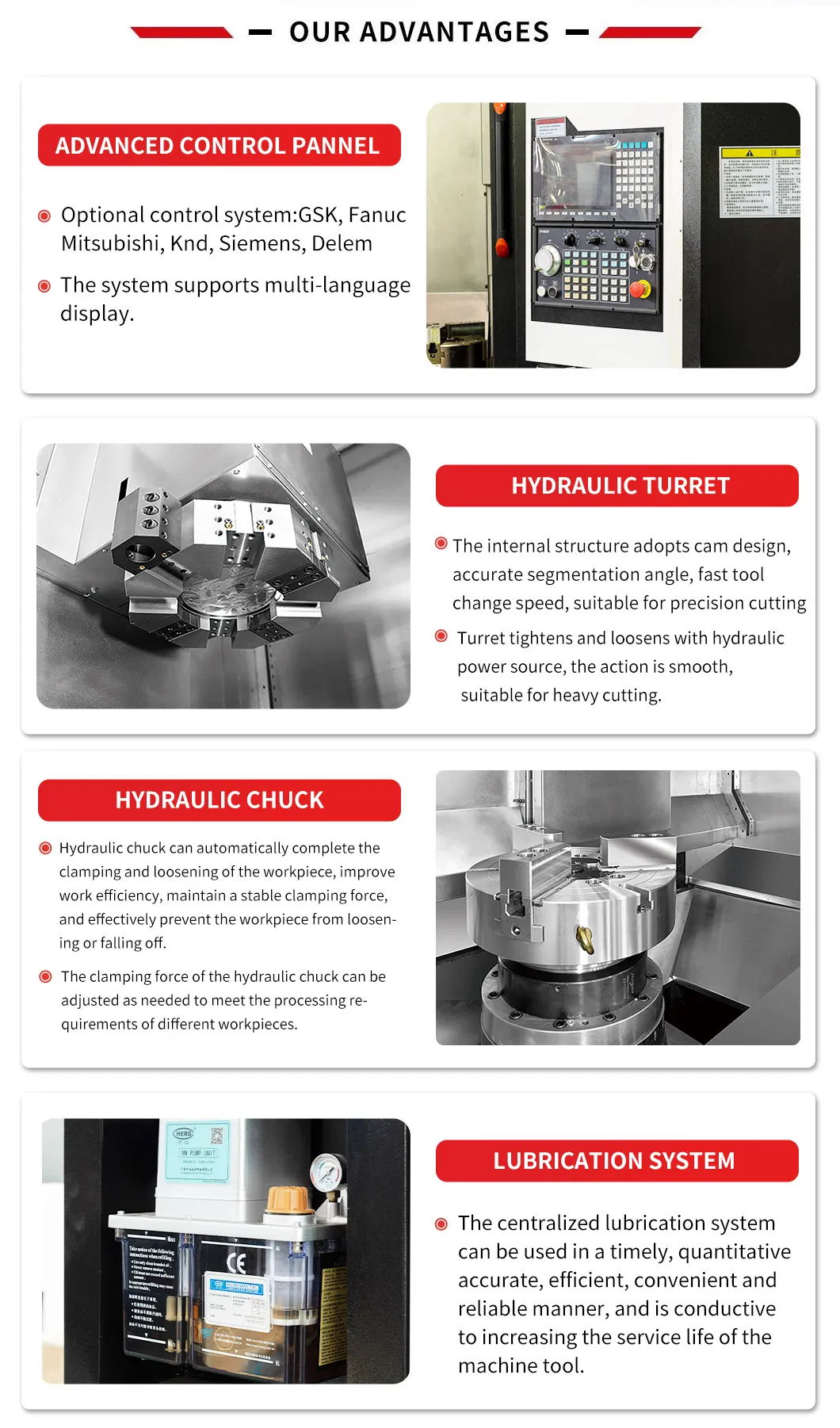

9. Ergonomic Design: Low center of gravity and 90° rotatable system control panel provide convenience and humanized operation interface.
10. Space Efficiency: Ultra-simplified footprint combined with rear-exit chip conveyor improves plant space utilization and planning.

Specification	Unit	VT-500	VT-600	VT-700	VT-800	VT-1100
Max. swing diameter	mm	Φ650	Φ700	Φ800	Φ900	Φ1200
Max. cutting diameter	mm	Φ500	Φ600	Φ700	Φ800	Φ1100
Spindle nose	-	A2-8	A2-11	A2-11	A2-11	A2-15
Spindle speed	rpm	10-2500	10-2000	10-2000	10-1500	10-1000
Chuck outer diameter	inch	12	15	18	24	32
Spindle bore	mm	Φ79	Φ79	Φ79	Φ79	Φ79
Spindle front bearing bore	mm	Φ130	Φ150	Φ150	Φ160	Φ220
Spindle motor (continuous/30min)	kW	15 / 18.5	18.5/22	18.5/22	22/25	22/30
Tool capacity	pc	E type 8/12 (optional power turret)	E type 8/12 (optional power turret)	E type 8/12 (optional power turret)	E type 12 (optional power turret)	E type 12 (optional power turret)
External dia. toolholder	mm	32	32	32	32	32
Inner dia. toolholder	mm	Φ40	Φ50	Φ50	Φ50	Φ50
X-axis stroke	mm	350	350	440	550	730
Z-axis stroke	mm	600	800	850	900	1000
X/Z-axis rapid feed	m/min	20 / 20	20 / 20	18 / 18	18 / 18	16 / 16
X/Z axis servo motors	kW	3 / 3	3 / 3	4 / 4	7 / 7	7 / 7
Hydraulic tank capacity	L	30	30	30	30	30
Hydraulic motors	kW	2.2	2.2	2.2	2.2	2.2
Double stage pressure	-	Optional	Optional	Optional	Optional	Optional
Cooling water tank capacity	L	430	430	430	430	430
Cooling water motor	kW	1.53	1.53	1.53	1.53	1.53
Flushing motor	kW	1.53	1.53	1.53	1.53	1.53
Repositioning accuracy	mm	0.004	0.004	0.004	0.005	0.006
Positioning accuracy	mm	0.008	0.008	0.008	0.01	0.01
Machine size LWH	mm	1800x3000x2800	1900x3200x3100	2200x3200x3300	2500x3500x3500	2500x3500x3500
Machine weight	kg	7500	9000	10000	13000	18000
