Economic Series 2 Axis 3 Axis Offline CNC Lathe Milling Turning Machine Controller 4 Axis CNC Control System for Grinder

Customization:	Available
Type:	Horizontal Lathe
Processing Accessory:	Chuck CNC Lathe

🛈Basic Info.

Model NO.

CNC990TDb-2

Guide Rail

Horizontal Guide Rail

Tool Holder

Single-tool Holder CNC Lathe

Power Source

Electric

Controlling Mode

CNC

Automatic Grade

Manual

Setting Mode

Floor-type

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Power

CNC990tdb-2

Input Voltage

2 Axes

Displayer

8 Inch Real Color LCD

CPU

32bits

User Store Room

128MB

Function

PLC, Atc and Macro Function

Analog

2-Channel Analog

Color

Gray Black

Feeding Speed

15m/Min

Max Screw Pitch

1000mm

Transport Package

Carton

Specification

49*32*28

📋Product Description

Economic Series 2 Axis 3 Axis Offline CNC Lathe Milling Turning Machine Controller 4 Axis CNC Control System for Grinder

Cheap 2 axis CNC lathe controller Lathe turning machine two axis control panel complete kit PLC system

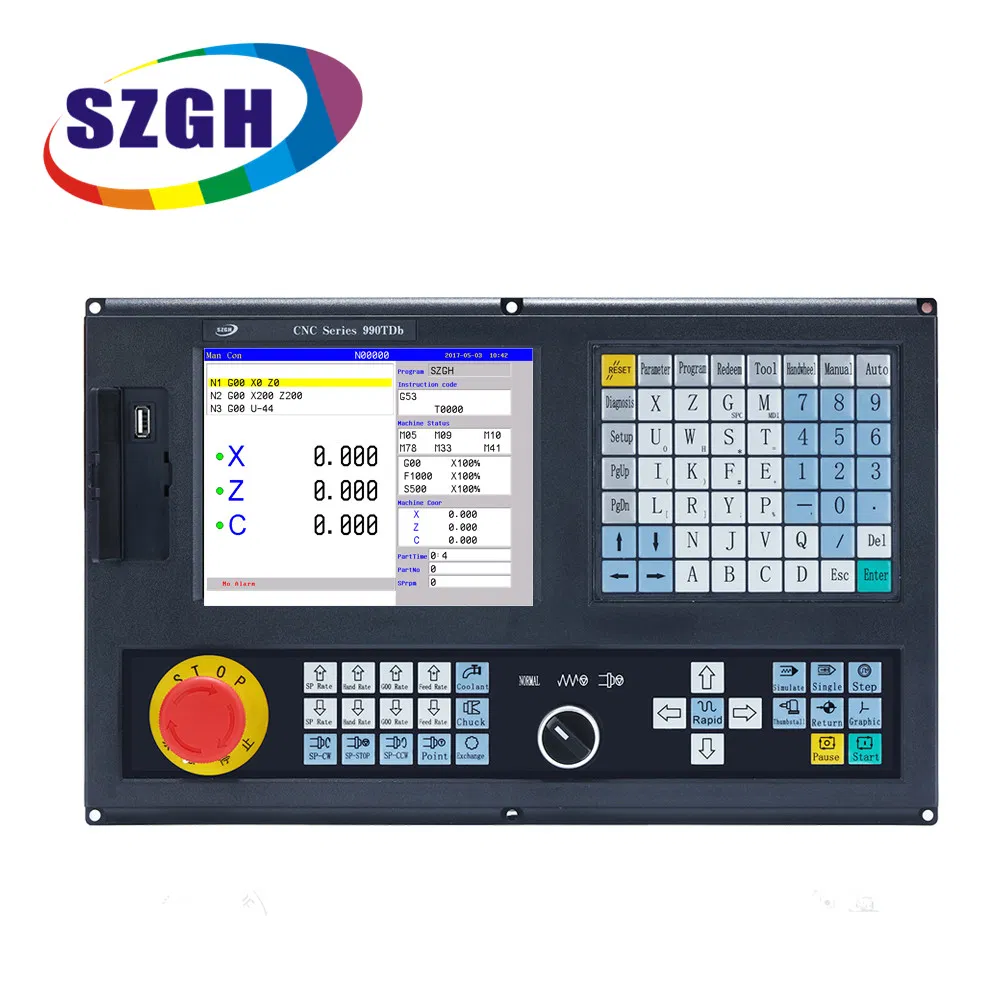

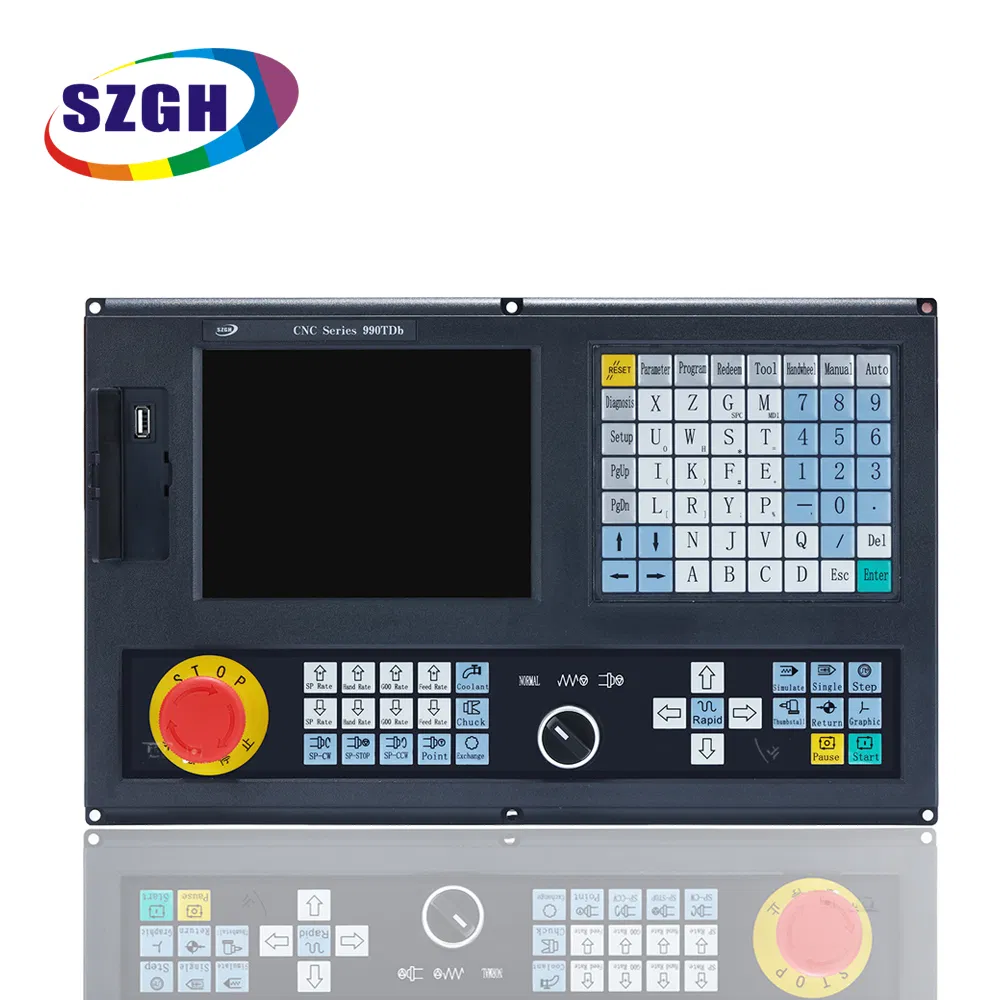

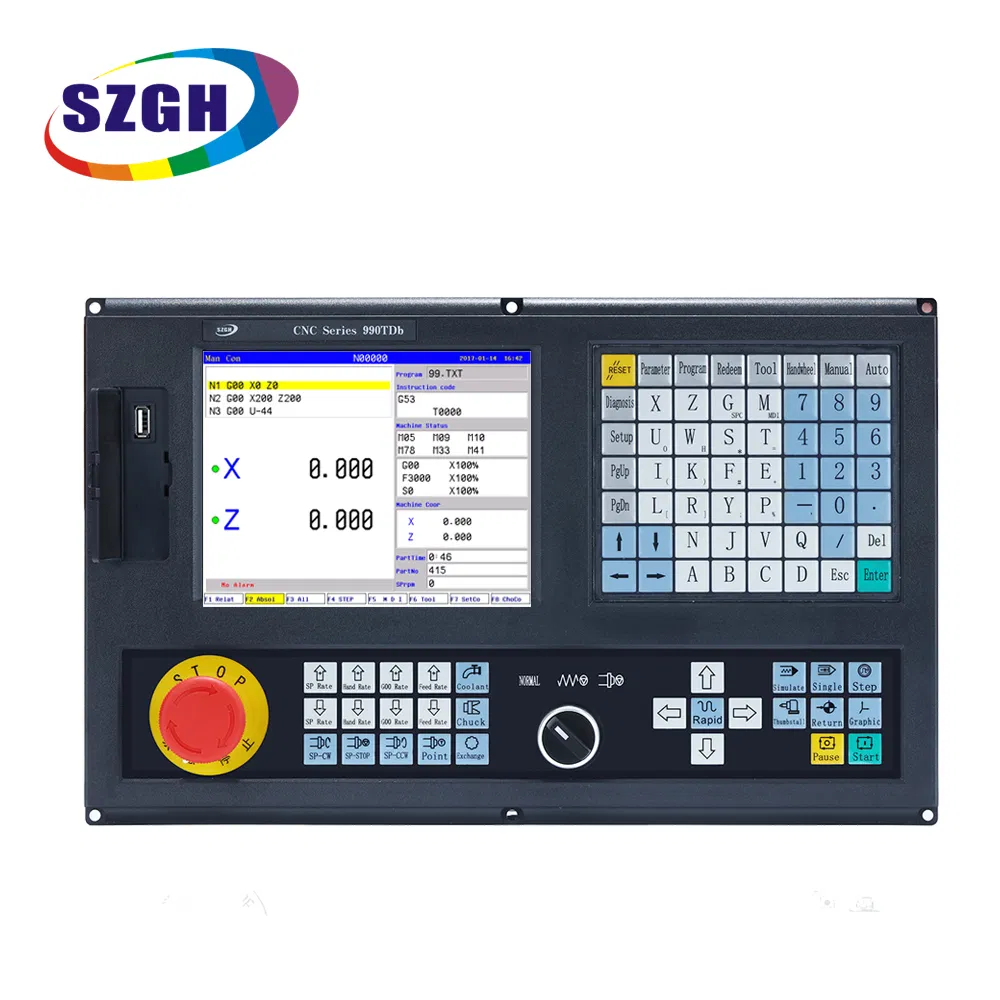

CNC990TDb-2 is 2 Axis(X Z) economic type Lathe CNC Controller, with 8.4 inches display(800x600), 2 analog spindle, 2ms interpolation in high speed, support ATC, PLC and macro function. which obviously improve the efficiency, precision and surface quality of parts processing. New USB interface, it supports the file operation and program running in flash disk.

Display	8.4 inch color screen
Interface	USB + RS232 Communication Port
Support	Built-in standard PLC Program, and can be customized edited according to customer's request
Basic I/O	40*24
Function	Support Macro function, PLC ladder function, support all type of the turret, max 99 tools
After Warranty	Video technical supports, Online supports

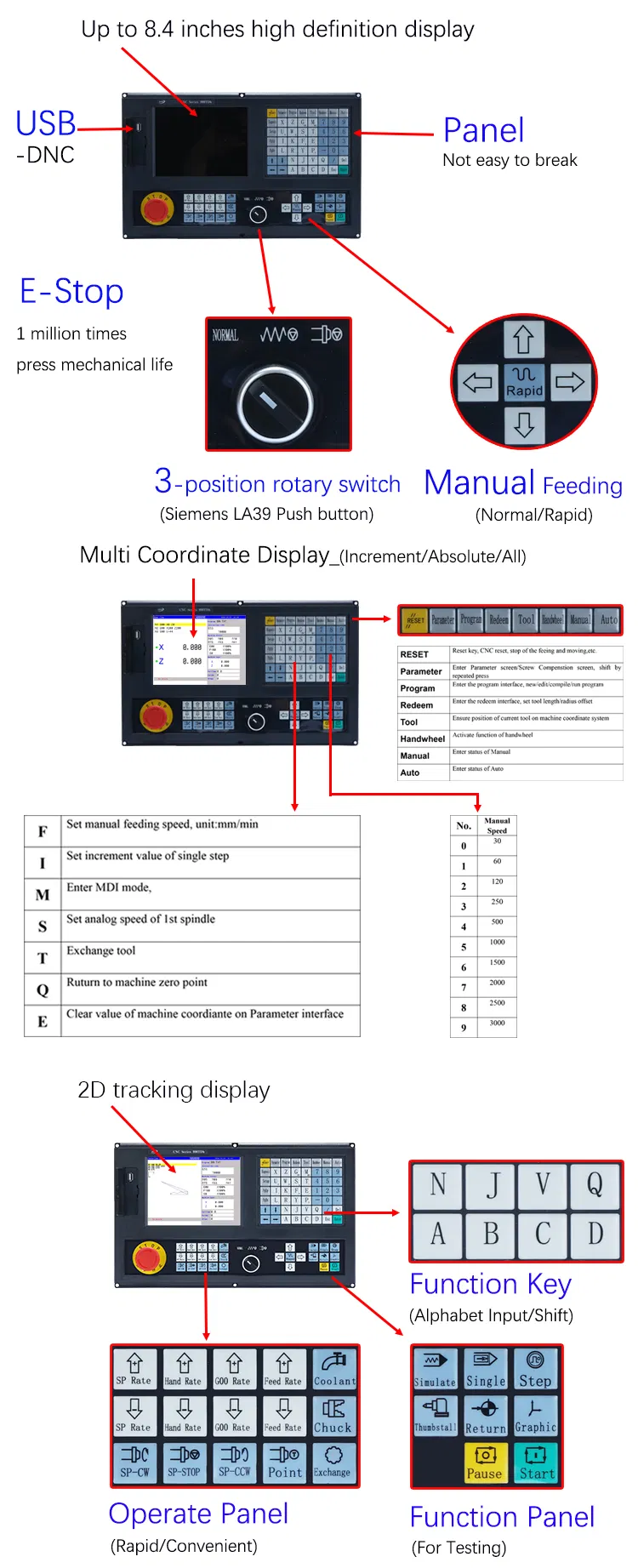

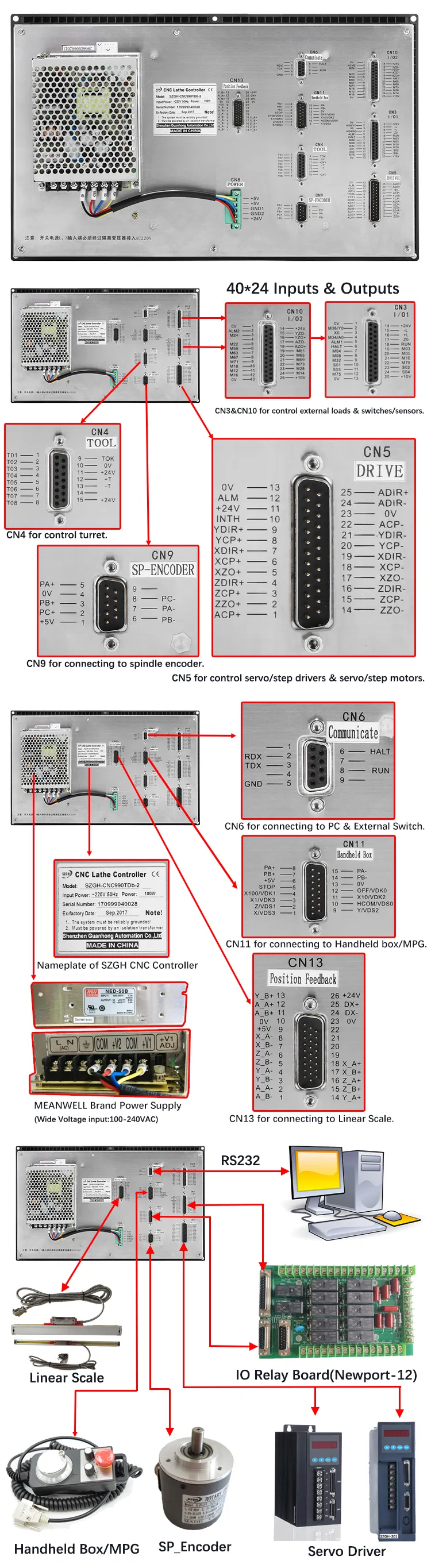

📷Detailed Photos

⚙️Product Parameters

Features:

Adopt ARM and DSP, FPGA and hardware interpolation technology.
The max speed is 20 m/min, feeding speed is 10 m/min.
32Mb user store room.
800x600 7.5 inch real color LCD displayer.
Touch screen main and sub panel.
High anti-jamming switch power.
USB movable U disc copy interface.
RS232 interface.
Spindle servo speed control/spindle frequency convenient speed control.
Max screw processing thread pitch is 1000MM.

Technical Specification:

X, Y, Z three axis lathe.
Linear, circular, spiral line interpolation instruction.
Min input unit: 0.001mm.
Program size range: ± 99999.999.
Feeding speed: 0.001-10m/min.
Max speed: 20 m/min.
Length Compensation.
Tool radius automatic compensation.
RS232 and U flash connection port.
Spindle servo speed control/spindle frequency convenient speed control.
Max screw processing thread pitch is 1000MM.
I/O 24X24 input and output.

System Operation Condition:

Power supplying: AC 220V(+10%/-15%), Frequency 50Hz±2%. power: ≤ 200W. (Note: it must use isolation transform to supply power, first input: 380V).
Climate condition: Operation condition: temperature 0~45°C, relative moisture 40-80%. Storage & transportation condition: temperature -40~55°C, relative moisture <93%(40°C). Atmosphere pressure: 86-106kpa.
Operation environment: No excessive flour dust, no acid, no alkali gas and explosive gas, no strong electromagnetic interference.

Application:

Mini-type special lathe machinery, CNC lathe machinery, hardware processing industry, and automatic equipment, etc.

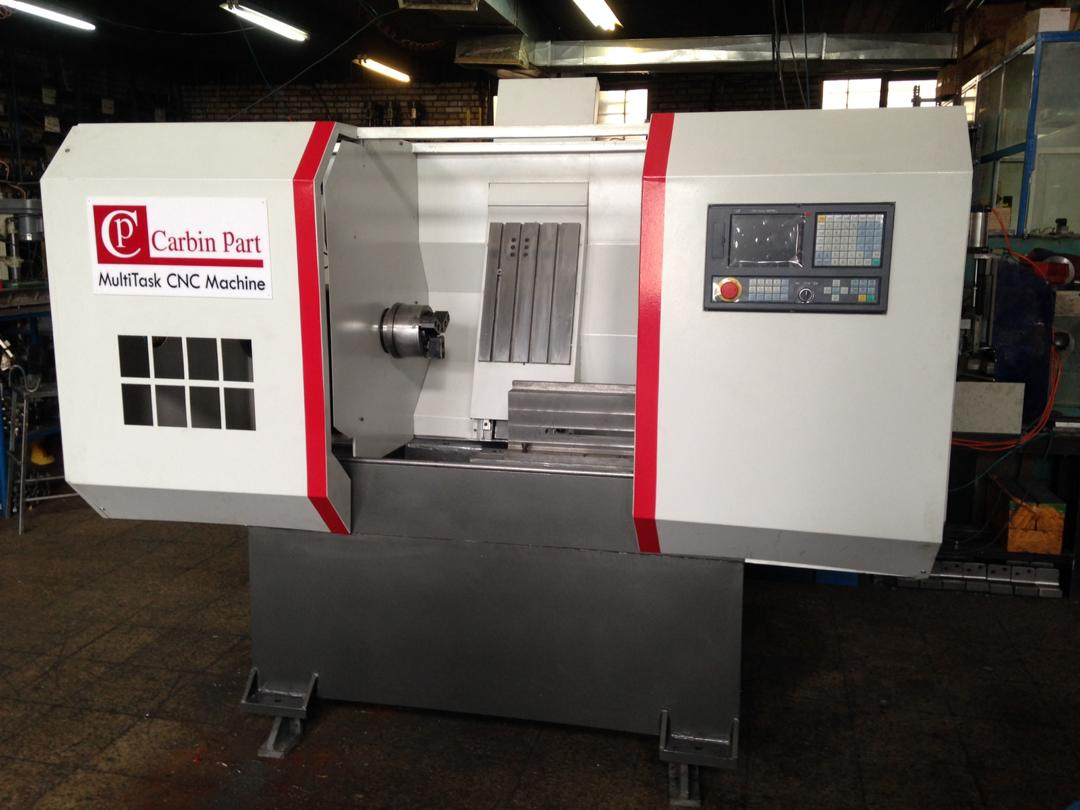

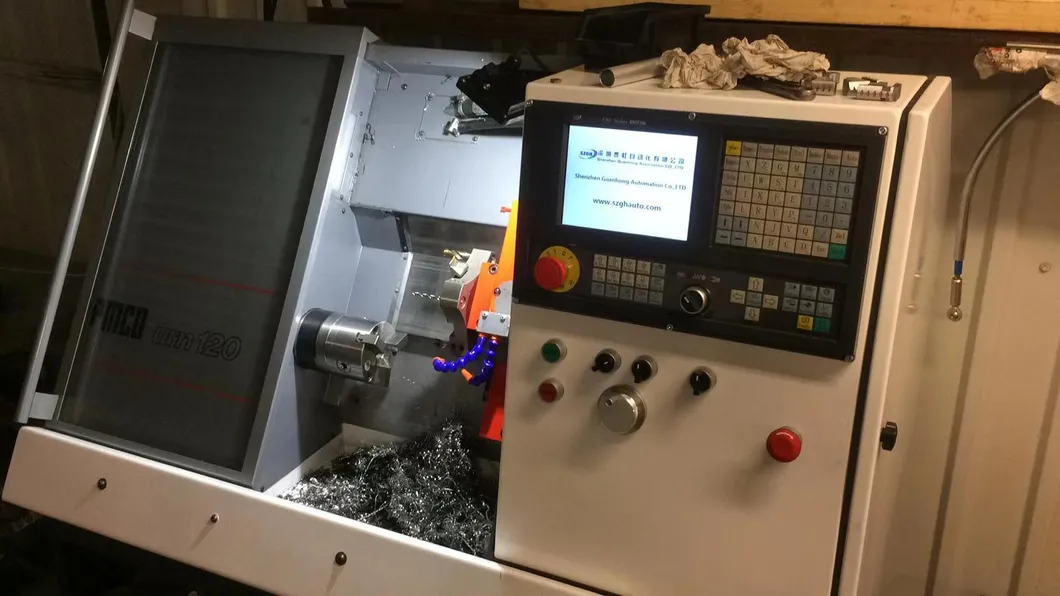

CNC Application

The application is from our client! It is with our CNC lathe controller.

Beautiful!
Powerful!
Stable!
It is easy to operate!

🏅Certifications

⭐Our Advantages

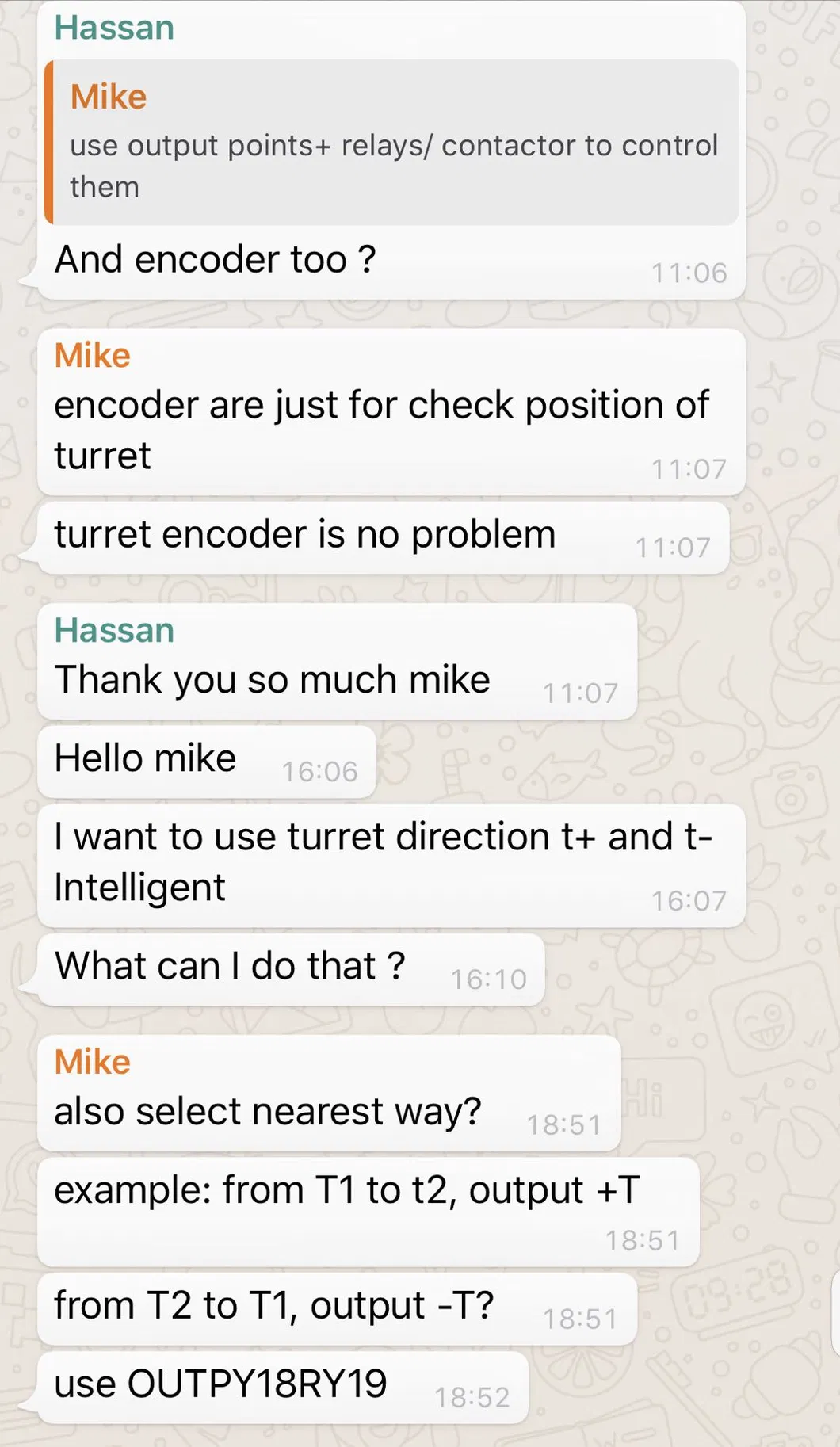

🛠️After Sales Service

Best & Professional After-sales Supports

Professional engineer teams are available;
Professional after-sales service is provided to all clients;
Dedicated engineer support is ready to solve customer problems;
Best support & quick replies guaranteed;
Buy at ease, use at ease!

❓Frequently Asked Questions (FAQ)

QDo you support customized manufacturing?

Yes, we can customize manufacturing according to customer's requirements. We support OEM services for custom display interfaces and logos.

QHow long is your delivery time?

Generally, it is 3-5 days if the goods are in stock, or 5-10 days if not in stock, depending on the order quantity. Customized manufacturing typically takes 10-20 days.

QDo you provide samples? Is it free or extra?

Yes, we can offer the sample with a sample price.

QWhat are your terms of payment?

For payments less than or equal to 2000 USD, 100% in advance is required. For payments greater than 1000 USD, 70% T/T in advance is required with the balance cleared before shipment.

QWhat is the maximum feeding speed and processing thread pitch?

The maximum feeding speed is 10 m/min (with a maximum speed of 20 m/min) and the maximum screw processing thread pitch is 1000mm.

QWhat are the climate conditions required for system operation?

The optimal operating temperature is 0~45°C with a relative moisture level of 40-80%. For storage and transport, the temperature should remain between -40~55°C.
