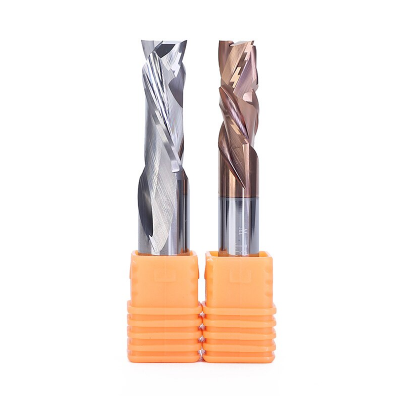

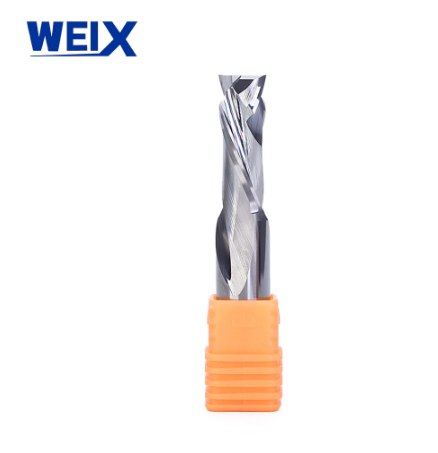

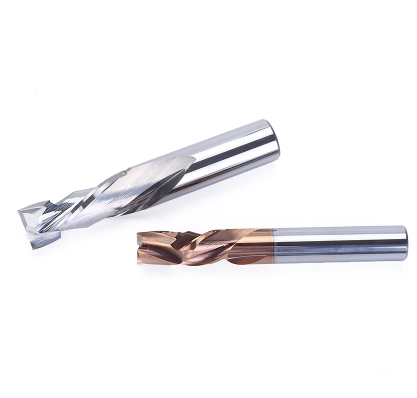

Application:

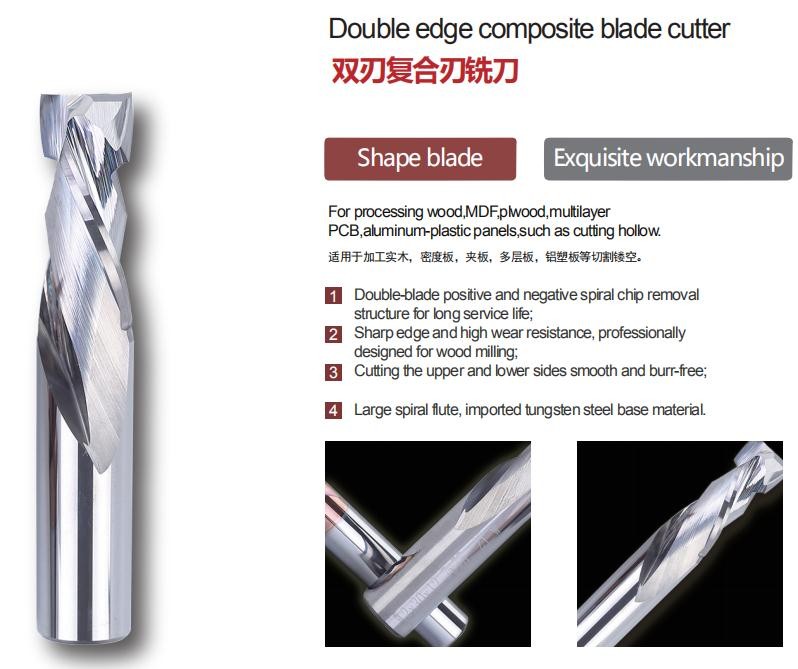

For processing wood, MDF, plywood, multilayer, PCB, aluminum-plastic panels, such as cutting hollow.
Features:
| Details | HRC 45 | HRC 55 | HRC 60 | HRC 65 |
|---|---|---|---|---|
| Grade | YG10X | YG10.2 & WF25(Taiwan) | K44 & K40(German) | H10F(Sweden) |
| Grain Size (µm) | 0.7 | 0.6 | 0.5 | 0.5 |
| Co content% | 10 | 10 | 12 | 10 |
| Flexural Strength N/mm2 | 3200 | 4000 | 4300 | 4300 |
| Details | TiN | TiAlN | AlTiN | CrN | TISIN | Nano Blue | DLC |
|---|---|---|---|---|---|---|---|
| Color | Golden yellow | Purple | Black | Silver lustre | antique brass | Dazzle blue | Dazzle black |
| HV | 2300 | 3200 | 3400 | 2000 | 3600 | 42(GPA) | 1000~4000 |
| Thickness/µm | 0.4 | 0.5 | 0.5 | 0.5 | 0.4 | 0.4 | 0.5-2.0 |
| Friction coefficient | 0.4 | 0.35 | 0.4 | 0.5 | 0.45 | 0.4 | 0.05 |
| MAX Temperature | 500 | 800 | 900 | 700 | 1000 | 1200 | 400 |
| Description | cost-effective | General | High speed Hige HRC |
Processing copper, titanium, mold | Processing copper, titanium, mold | General High Speed Cutting | non-ferrous metals graphite and plastics |
Packing Details: Standard export carton packing.
Delivery Details: 3-20 days after confirming order, detail delivery date should be decided according to production season and order quantity.
