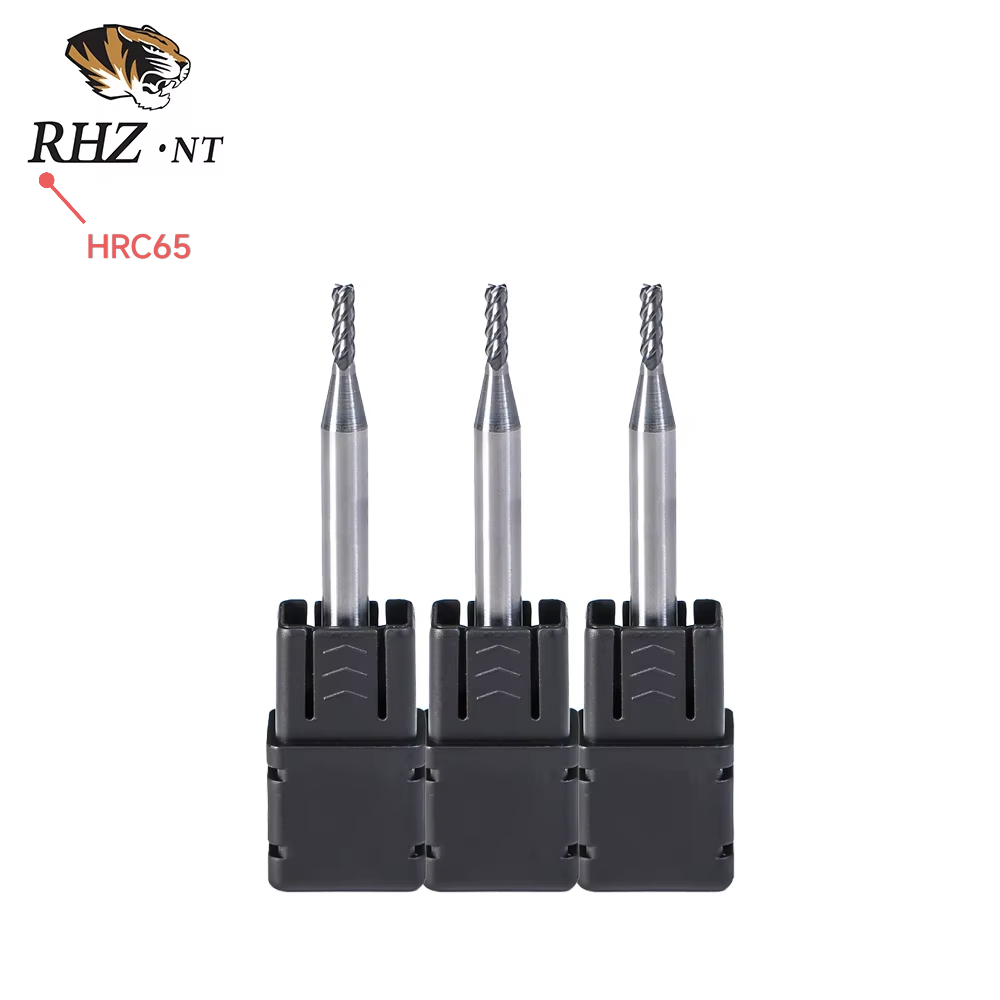

High Precision Hardness 65 4 Flute Carbide Milling Cutter TiAlN CrAlN Coating D2MM 4MM 8MM CNC Heat Resistant OEM ODM
High Precision Hardness 65 4 Flute Carbide Milling Cutter TiAlN CrAlN Coating D2MM 4MM 8MM CNC Heat Resistant OEM ODM
High Precision Hardness 65 4 Flute Carbide Milling Cutter TiAlN CrAlN Coating D2MM 4MM 8MM CNC Heat Resistant OEM ODM
High Precision Hardness 65 4 Flute Carbide Milling Cutter TiAlN CrAlN Coating D2MM 4MM 8MM CNC Heat Resistant OEM ODM
High Precision Hardness 65 4 Flute Carbide Milling Cutter TiAlN CrAlN Coating D2MM 4MM 8MM CNC Heat Resistant OEM ODM
1 / 5
High Precision Hardness 65 4 Flute Carbide Milling Cutter TiAlN CrAlN Coating D2MM 4MM 8MM CNC Heat Resistant OEM ODM
High Precision Hardness 65 4 Flute Carbide Milling Cutter TiAlN CrAlN Coating D2MM 4MM 8MM CNC Heat Resistant OEM ODM
High Precision Hardness 65 4 Flute Carbide Milling Cutter TiAlN CrAlN Coating D2MM 4MM 8MM CNC Heat Resistant OEM ODM
High Precision Hardness 65 4 Flute Carbide Milling Cutter TiAlN CrAlN Coating D2MM 4MM 8MM CNC Heat Resistant OEM ODM
High Precision Hardness 65 4 Flute Carbide Milling Cutter TiAlN CrAlN Coating D2MM 4MM 8MM CNC Heat Resistant OEM ODM

High Precision Hardness 65 4 Flute Carbide Milling Cutter TiAlN CrAlN Coating D2MM 4MM 8MM CNC Heat Resistant OEM ODM

Send Inquiry

Product Description

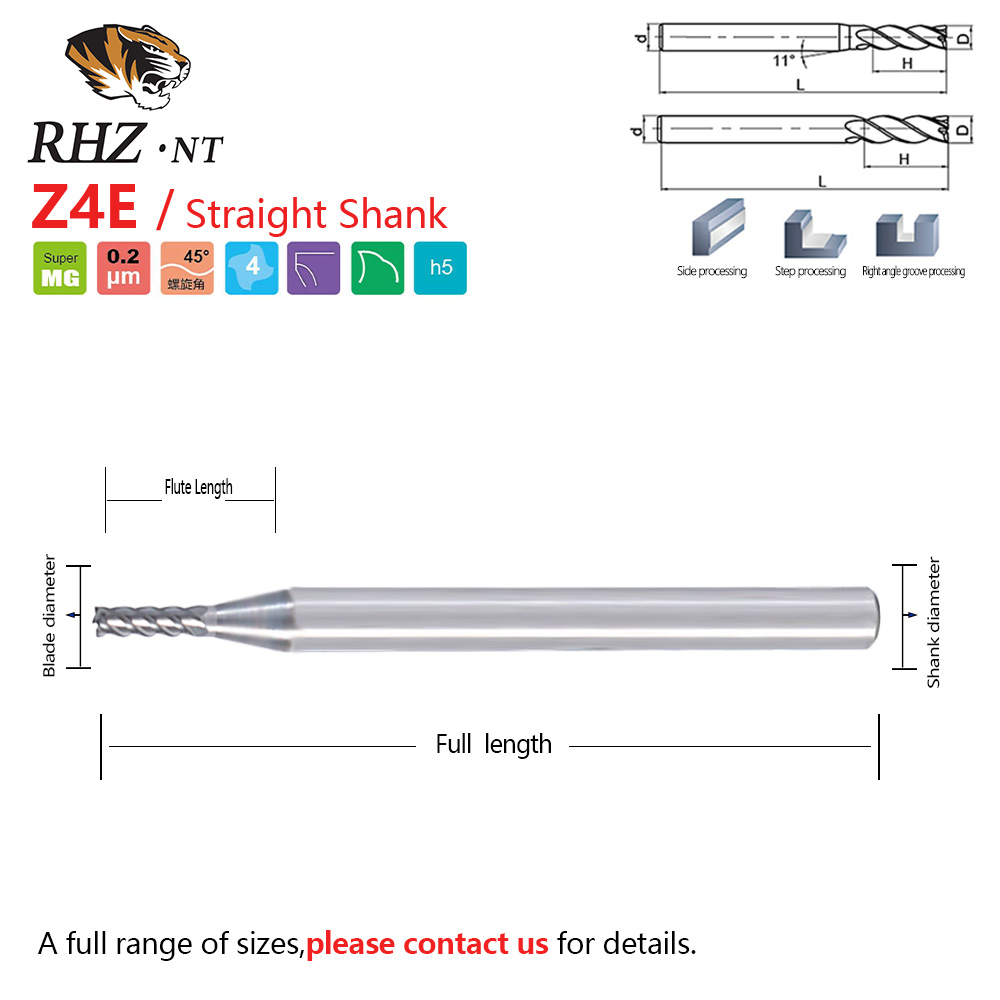

Specification
Material Carbide
Coating TiAlN+CrAlN Coated
Place of origin SuZhou,China
HRC 55/60/65
Warranty 1 years
Customized support OEM&ODM
Model number Z4E02006S
Flute 4-Flute
Suitable for <HRC 65
Packing 1ps/ Plastic Box
Transport DHL international express, SF Express
Diameter 4mm
Overall length 50mm
Blade Diameter 2mm
Type End Mill
Basic selling method Sale by piece
MOQ 1 Pieces
Product Description
Z-PLUS Series End Mill
Z-PLUS Series: High-Precision Die-Specific End Mill (High-Precision and High-Hardness Mold Tools)

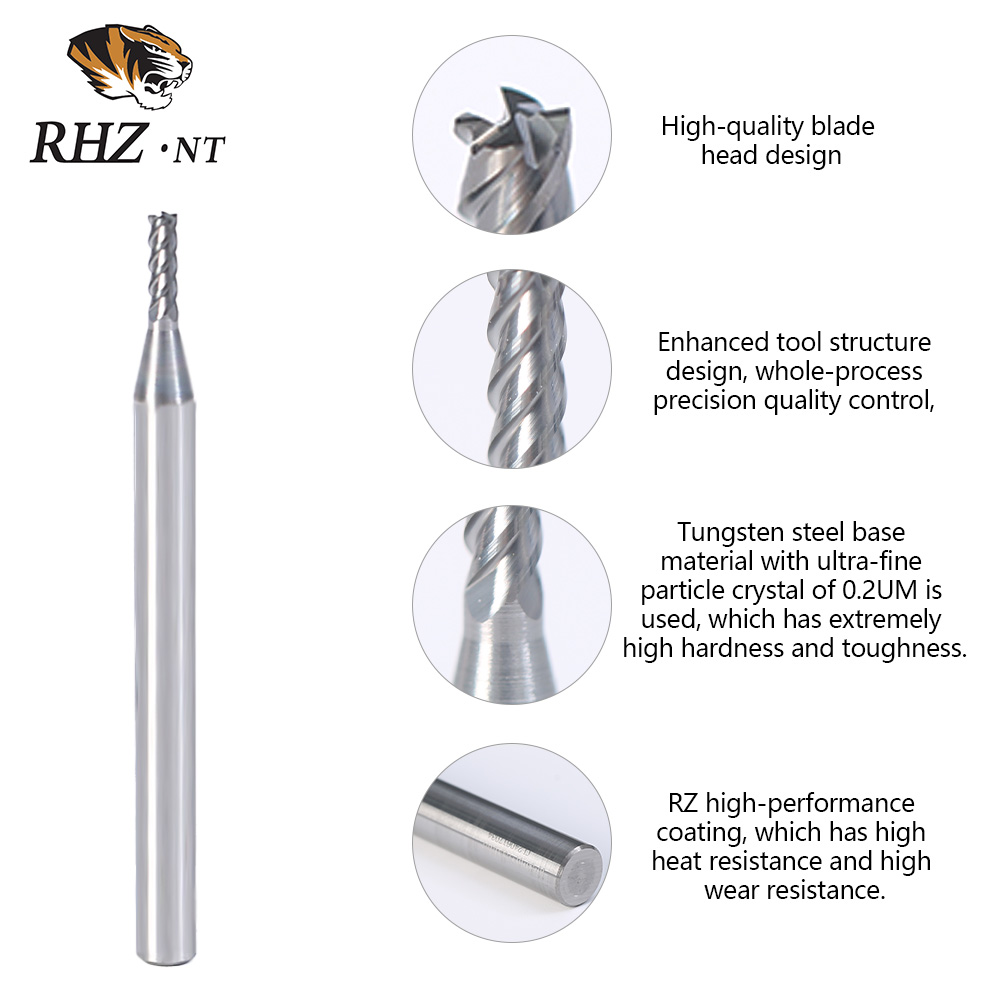

1. Further control of the arc accuracy of ball-end and round-nose cutters, with the R value of the ball-end cutter controlled within +/-0.005.

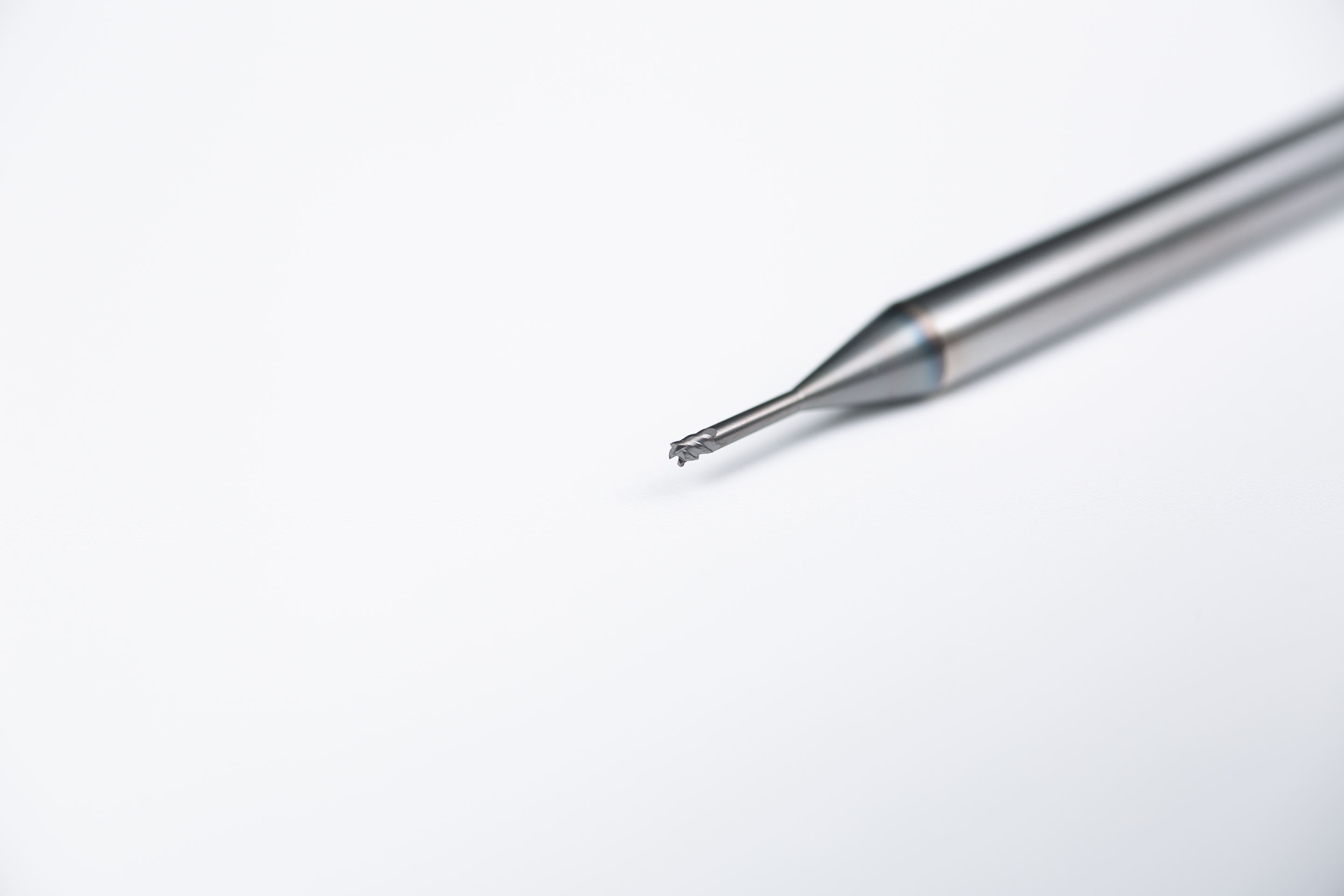

Precision Milling Cutters
2. The ball-end cutter features a variable negative rake angle design, effectively preventing chipping.
3. The round-nose milling cutter adopts a double butterfly unequal-tooth design, making the tool more stable during processing and effectively ensuring its service life.

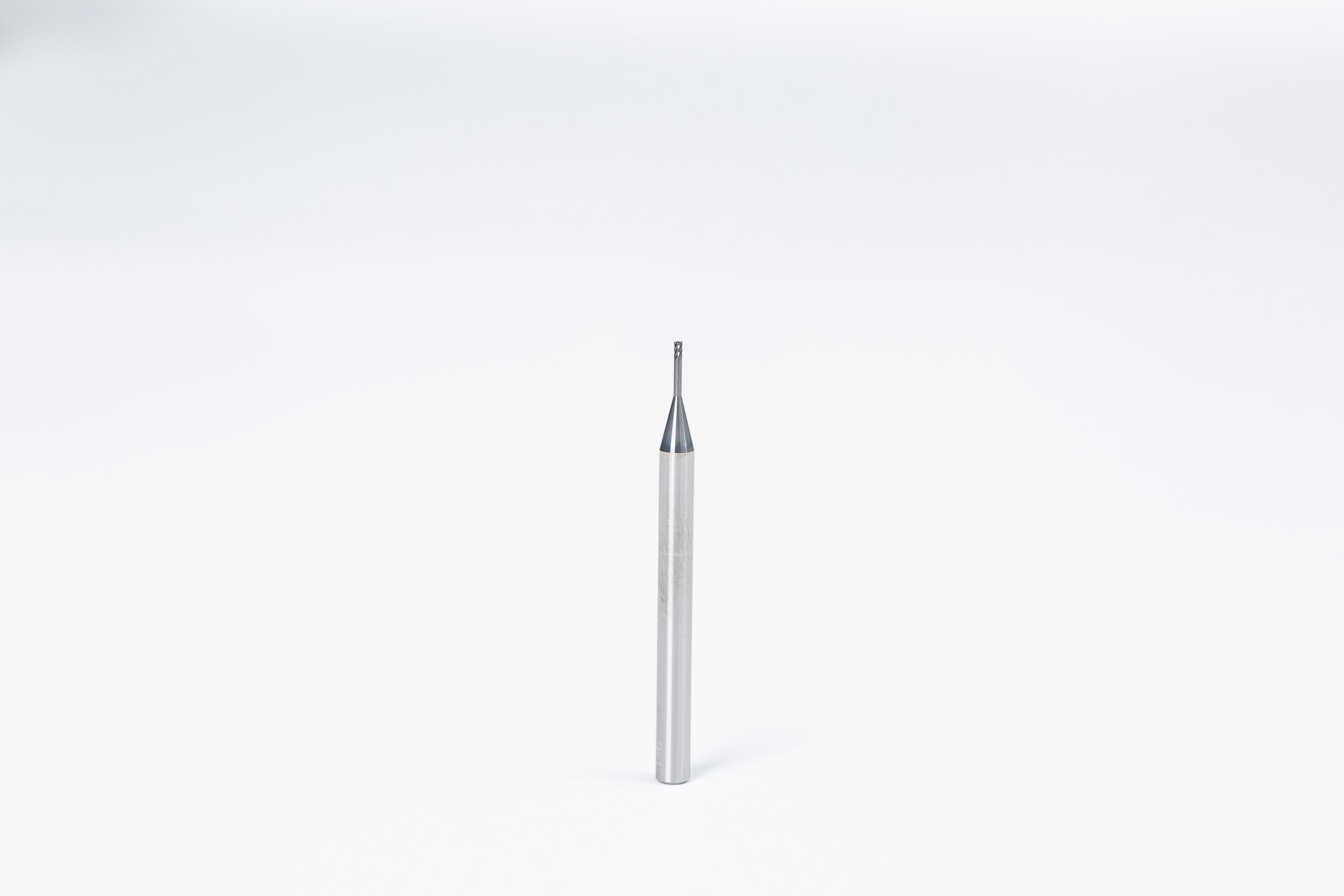

High Hardness Composite Coating
4. Made from imported ultra-fine 0.2-micron tungsten steel substrate and DUR high-hardness composite coating, further ensuring the tool's service life.

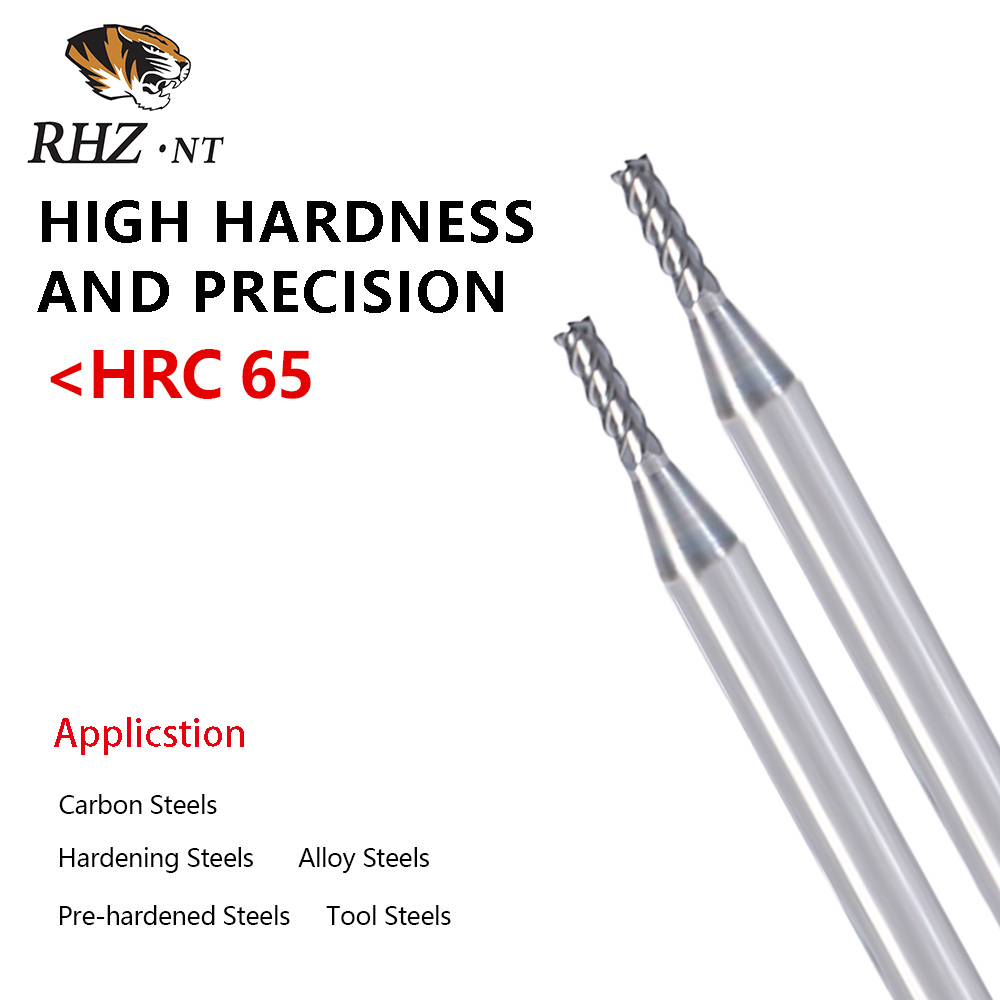

Application Fields:Mainly suitable for processing high-hardness materials with HRC 40-65.
Main materials: 718H, S136H, 2316, H13, SKD11, NAK80, 2344, H13, DC53, SKH51, Cr12MoV, SUJ2, D2, etc., for plastic and metal mold materials.

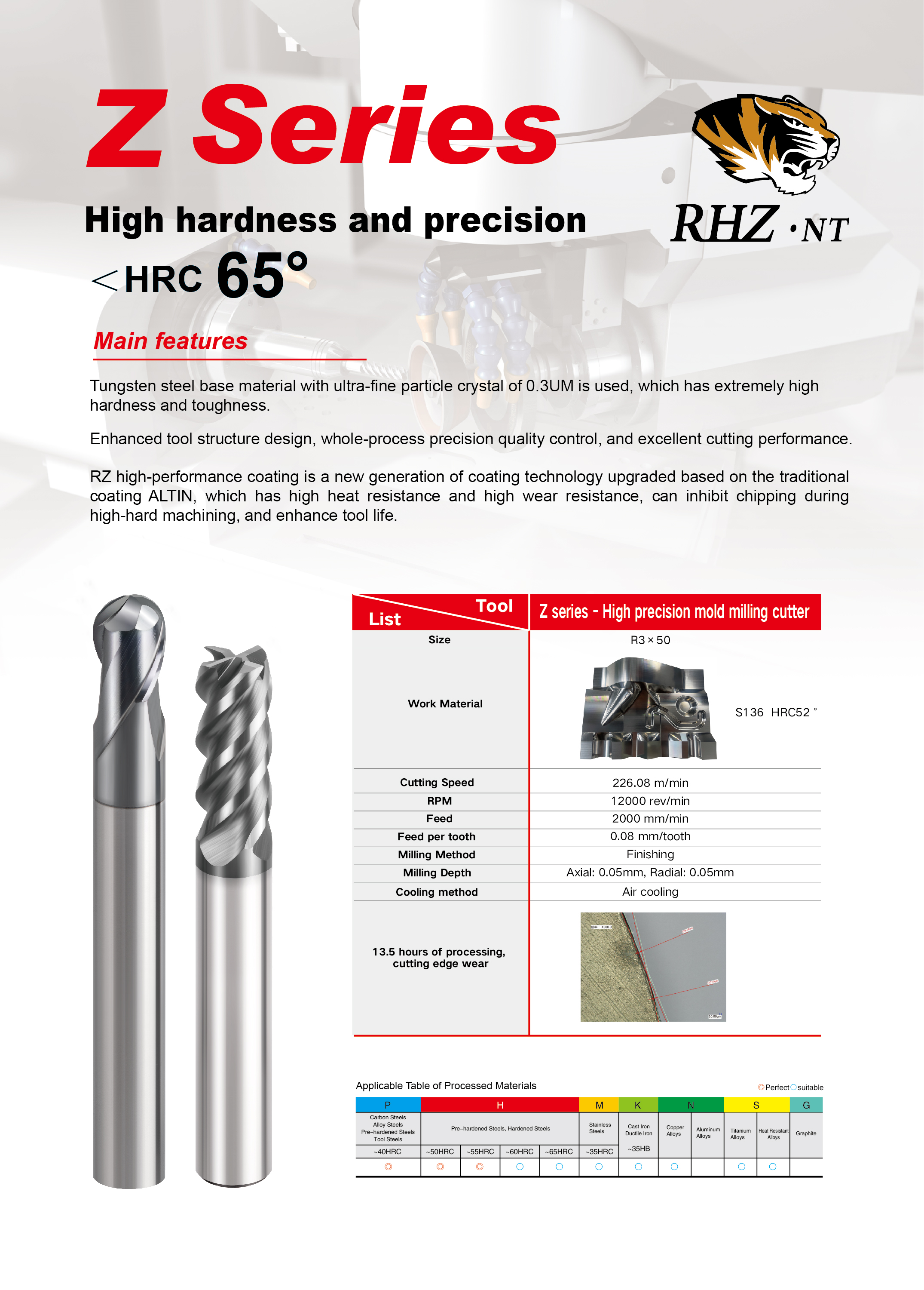

Product Detail Image 1

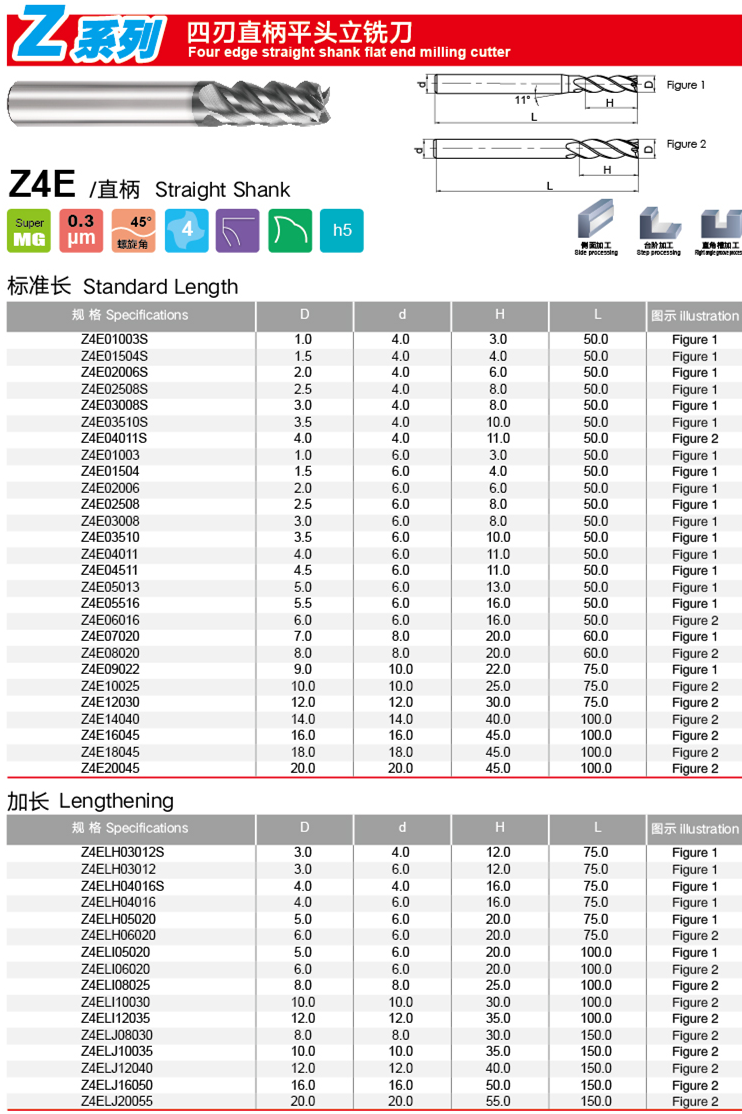

Product Detail Image 2

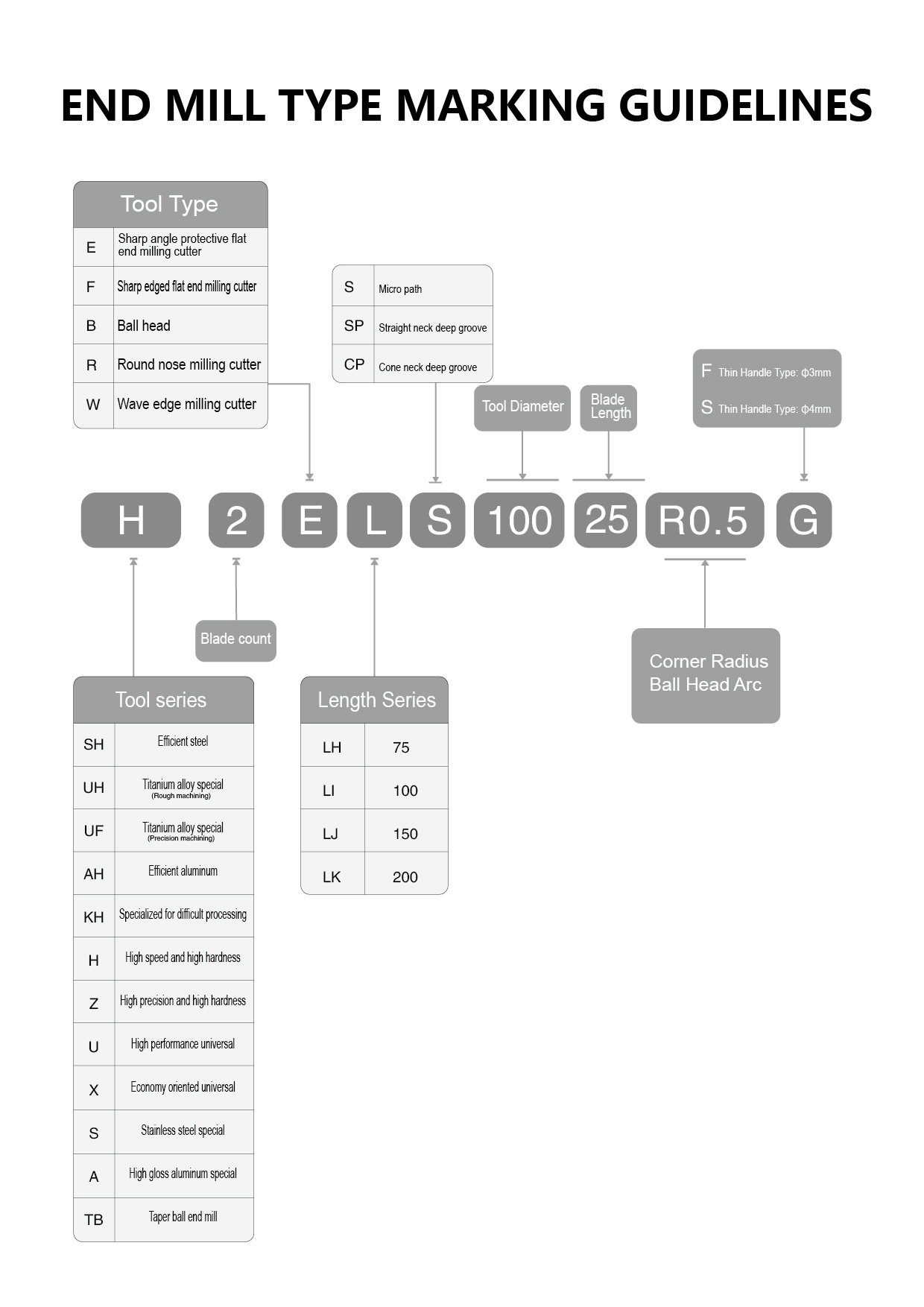

Product Detail Image 3
Company Profile

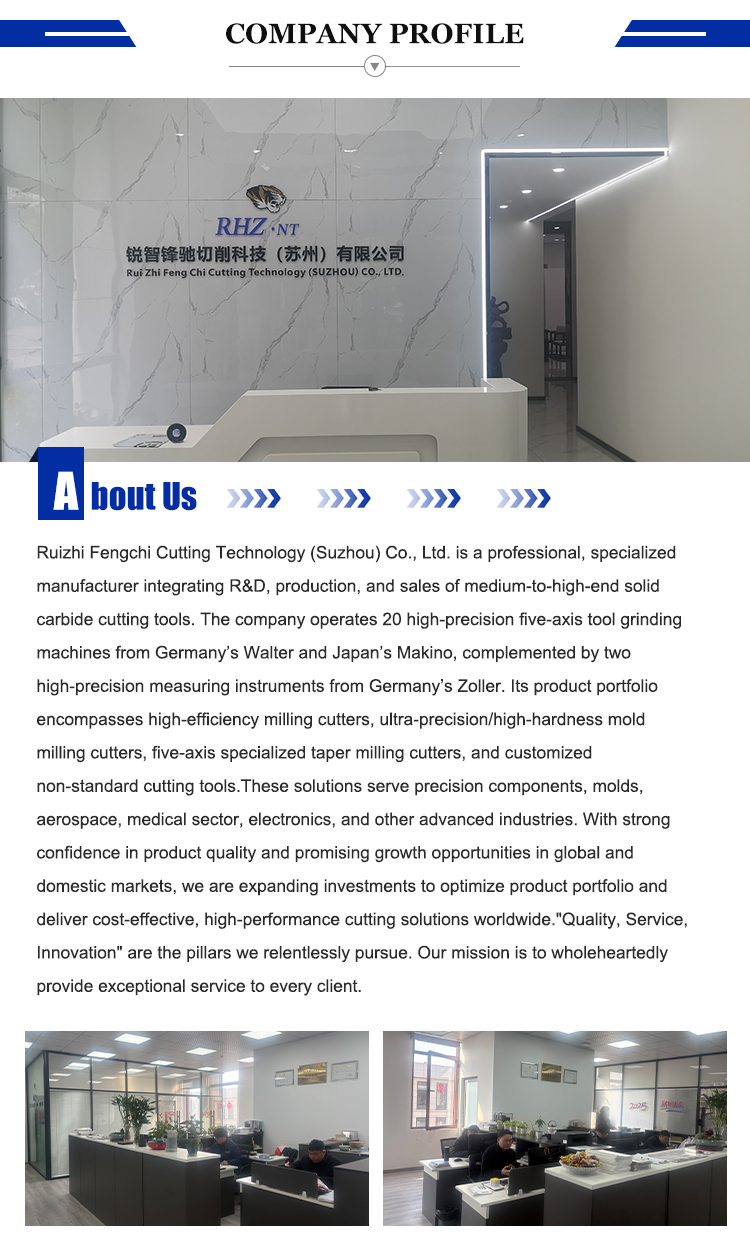

Manufacturing Facility 1

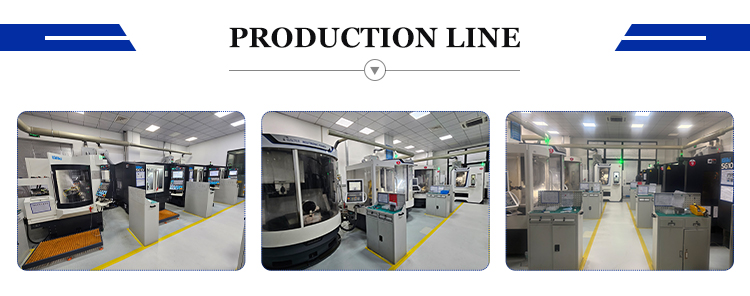

Manufacturing Facility 2
Our Advantages
Core Advantages
Certifications
Quality Certifications
Exhibition
Trade Exhibitions
Packing & Delivery
Secure Packing & Global Shipping
FAQ
Q1 How long is the delivery time for bulk orders?
Standard Products: 7-14 working days (MOQ 10 pcs). Custom OEM/ODM orders: 10 - 20 working days (MOQ 10 pcs). Expedited Service: +10% fee for 10-day delivery.
Q2 How do you guarantee quality?
We strictly control the raw materials to the finished products in accordance with the ISO9001 quality control system. We guarantee that all products are 100% qualified.
Q3 Are the tools compatible with 5-axis machining centers?
Yes. We use high-quality cemented carbide rods and imported OSG & Balzers coatings, while the grinding machines are Walter and Makino five-axis high-precision equipment, ensuring the tools meet stringent accuracy requirements for complex machining tasks.
Q4 Can recommended cutting parameters be provided?
Yes, we deliver process-engineered parameters within 24 hours. To generate your custom solution, please provide Material Specification.
Q5 What is the average tool lifespan?
Under standard conditions: Aluminum: 500-1000 hours; Stainless Steel: 24-48 hours; Titanium: 12-24 hours; Tool steel: 10-20 hours.
Q6 How are quality disputes resolved?
3-step process: Joint third-party lab testing (SGS/BV), Root cause analysis report within 72h, Refund or 120% credit for future orders.
