Precision Aerospace CNC Lathe Tck50A for Titanium Cutting

1 / 5

Precision Aerospace CNC Lathe Tck50A for Titanium Cutting

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Overview & Basic Info

Model NO.TCK50A

TypeHorizontal Lathe

Processing AccessoryChuck CNC Lathe

Guide RailInclined Guide Rail

Tool HolderSingle-tool Holder CNC Lathe

Power SourceHydraulic Pressure

Controlling ModeCNC

Automatic GradeAutomatic

Setting ModeFloor-type

PrecisionHigh Precision

CertificationCE

ConditionNew

Application FieldAutomotive Axis Machining

Spindle Power11kw

Ball Screw TypeC3 Grade

Efficiency PerformanceHigh

Transport PackagePacking in Seaworthy Wooden Cases

Specification2500*1700*1890

OriginChina

Production Capacity500

Packaging & Delivery

Package Size382.00cm * 224.00cm * 250.00cm

Package Gross Weight4720.000kg

Product Description

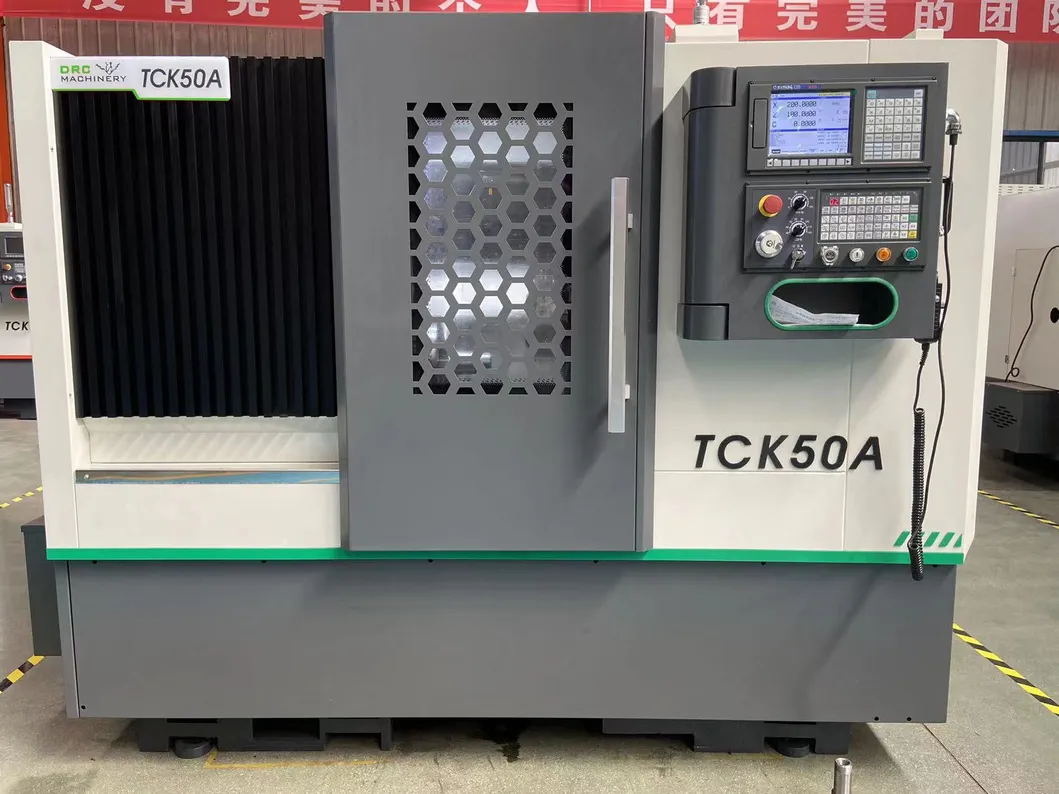

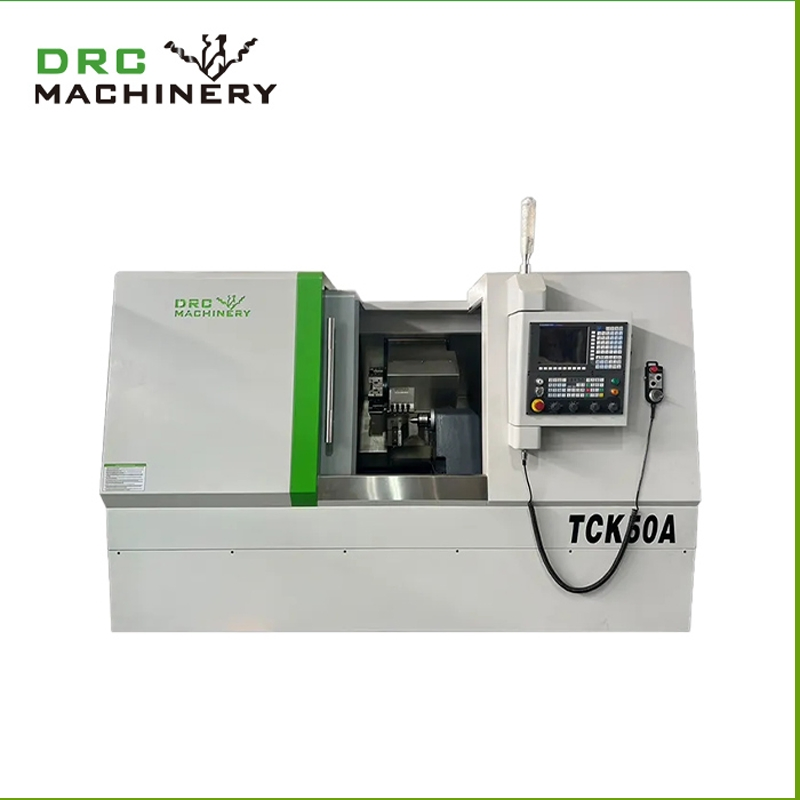

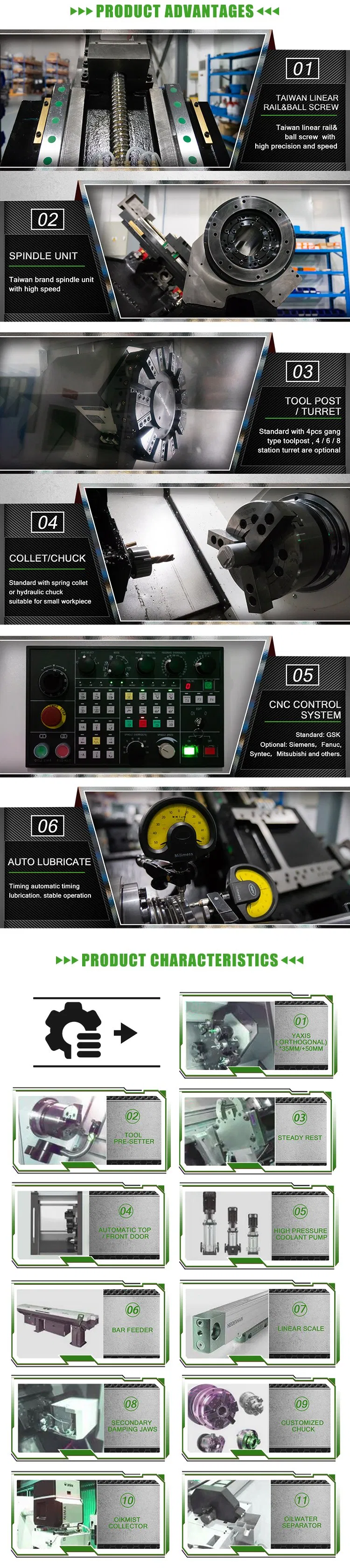

TCK50A*500 GSK CNC servo motor metal cnc lathe slant bed lathe machine with live tool

Model	TCK 50A (GSK 980TC3 system)
Standard accessories	Unit ( mm )
Maximum turning diameter of bed	Φ560
Maximum turning diameter of cross slide	Φ260
Maximum processing length	350
Maximum machining diameter (disk type)	Φ400
Standard chuck specifications	10 inch Bedford/Taiwan
Hydraulic knife tower	8 station(Optional)12
X axis maximum stroke	240
Z axis maximum stroke	400
Spindle speed	3000rpm
Spindle speed stage	stepless
Spindle end code	A2-6
Spindle through hole	Φ66
Pull tube through hole	Φ55
Maximum diameter of boring tool	Φ40
Cutting feed rate	1-15000mm/min
X/Z motor torque	7.5/7.5/NM(X direction with brake)
X/Z axis rapid movement rate	18/18m/min
Tool body size of turning tool	25*25
Spindle motor power	7.5KW
Turret center high dimensions	100
Sleeve diameter	70
Sleeve stroke	80
Spindle unit	Φ200
Screw bearing	35/35/PMI/HIWIN/Taiwan
X/Z Ball Screw	7206B/DB/P5/PMI/HIWIN/NSK
The X/Z axis screw specifications	3210/4010
Taper hole of tailstock sleeve	MT5#
Maximum stroke of tailstock	200
Dimensions (length × width × height)	250017001890
Total Weight	2800KG
Main accuracy index of machine tool
Test items	Standard tolerance(mm)
Periodic axial movement of the spindle	0.005
Radial runout of the positioning cone of the	0.005
Position	X:±0.003 Z:±0.003
Repeat positioning accuracy A	X:±0.003 Z:±0.003
Diameter consistency	0.01/150
Flatness	0.02/φ200
Thread pitch product error	0.010/50
Surface roughness	Ra1.6μm

Frequently Asked Questions

Q1: What CNC system does the TCK50A lathe use?

A1: The machine standard model comes equipped with a reliable GSK 980TC3 system, paired with high-performance GSK CNC servo motors.

Q2: What is the maximum spindle speed and power of this lathe?

A2: The spindle power is rated at 7.5KW (with option up to 11kw) and features a stepless speed configuration up to 3000rpm.

Q3: What are the layout configuration and structural highlights of the bed?

A3: The TCK50A features an inclined guide rail (slant bed) design which provides superior rigidity, easier chip removal, and highly stable cutting performance.

Q4: What is the positioning and repeat positioning accuracy for the X/Z axes?

A4: The machine achieves a high precision repeat positioning accuracy of ±0.003 mm for both X and Z axes.

Q5: What are the packaging dimensions and shipping weight?

A5: For shipping, the packaging size measures 382.00cm * 224.00cm * 250.00cm, with a gross weight of approximately 4720.000kg. It is securely packed in seaworthy wooden cases.
