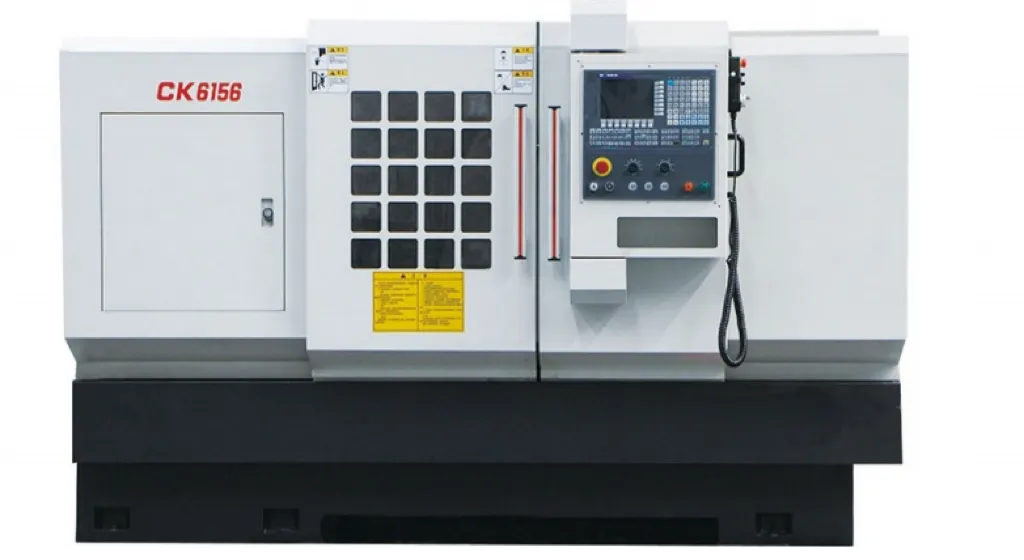

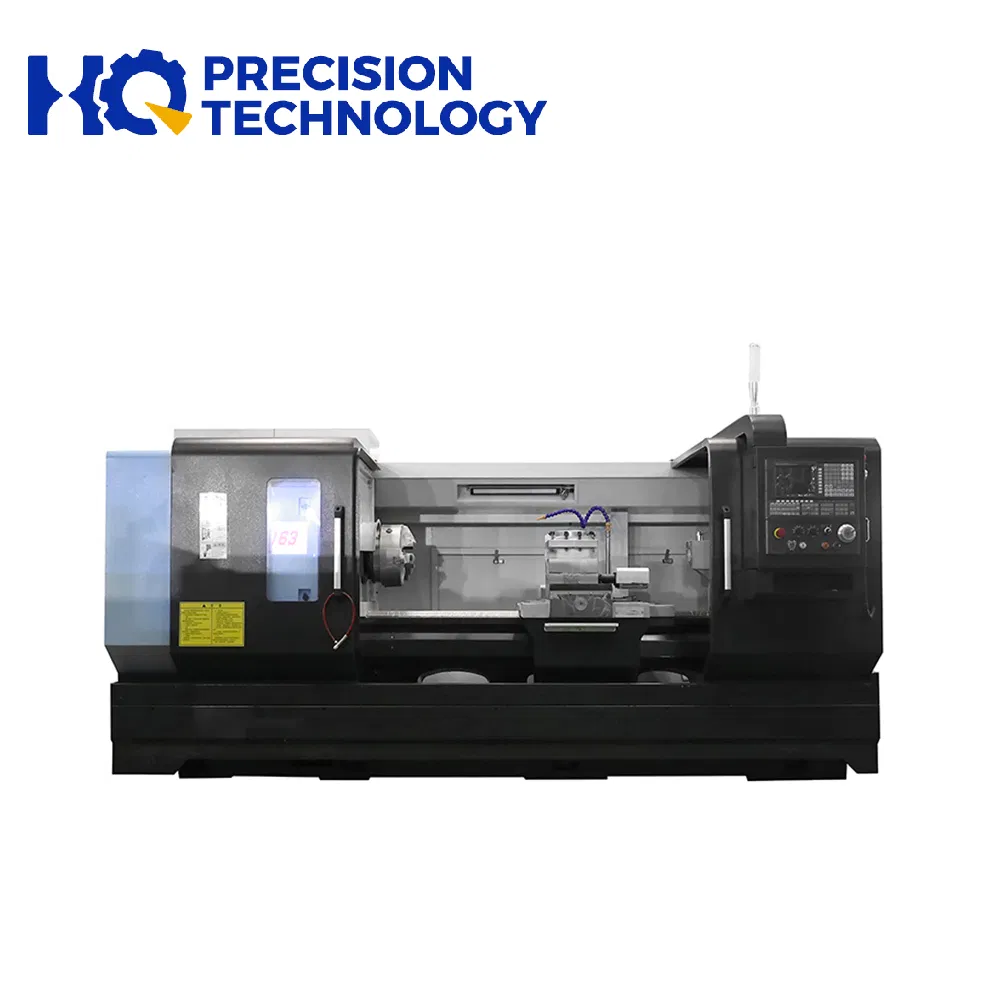

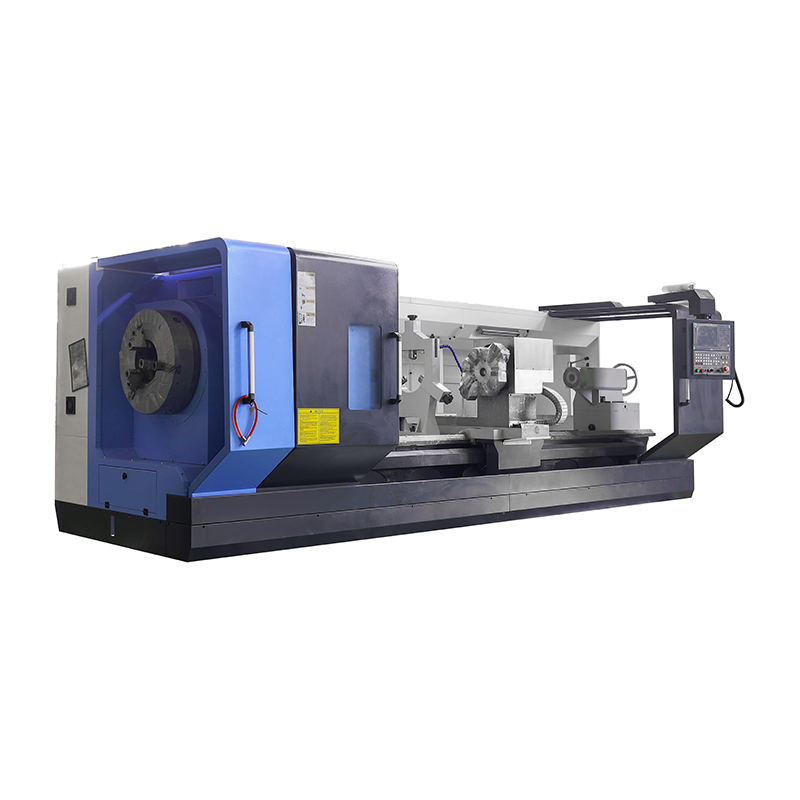

This series of CNC lathes are economical light CNC machining machines. They are automated metal machining equipment controlled by a CNC system. They can perform semi-finishing and finishing of light workpieces. They are suitable for turning various internal and external cylindrical surfaces, conical surfaces, arc surfaces and other rotating surfaces, and for turning various threads. They are commonly used CNC machining equipment in the machining field.
| SPECIFICATION | UNIT | CK6150 (Manual) | CK6156 (Manual) | |
|---|---|---|---|---|
| Capacity | Swing over bed | mm | 500 | 560 |
| Swing over cross slide | mm | 270 | 300 | |
| Distance between centers | mm | 1000/1500/2000/3000 | 1000/1500 | |
| Guideway width | mm | 400 | 460 | |
| Max. load capacity | T | 1 | 2 | |
| Spindle | Spindle bore | mm | 82 | 82 |
| Spindle bore taper | - | Metric Φ 90/MT5 | Metric Φ90/MT5 | |
| Spindle nose type | - | C8 | C8 | |
| Spindle speed steps | - | 3/VF. 3 steps | 3/VF. 3 steps | |
| Spindle speed range | rpm | 80-1500 | 80-1400 | |

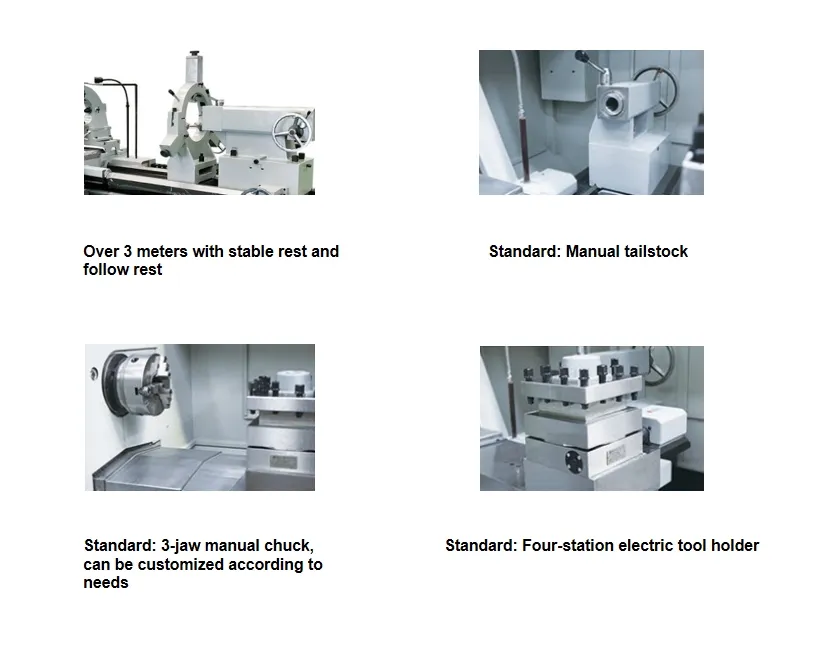

| Chuck | mm | Φ250 3-jaw manual | Φ250 3-jaw manual | |

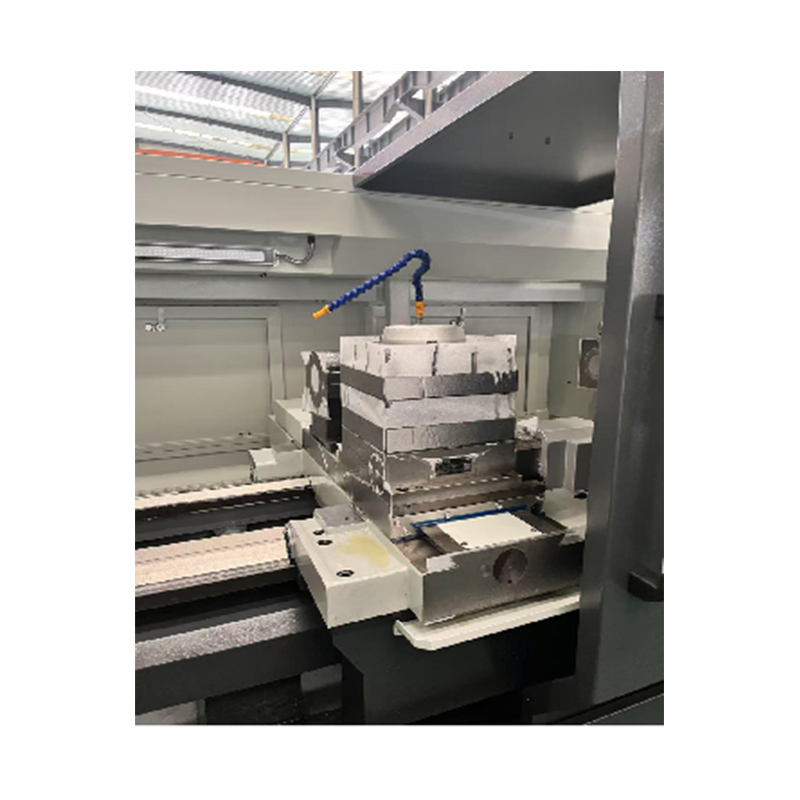

| Turret | Turret/tool post | - | 4/NC turret 4 position | 4 /NC turret 4 position |
| Tool shank size | mm | 25x25 | 25x25 | |
| Feed | X axis travel | mm | 270 | 320 |
| Z axis travel | mm | 750/1250/1750/2750 | 750/1250/1750/2750 | |
| X axis rapid traverse | mm/min | 4000 | 6000 | |
| Z axis rapid traverse | mm/min | 6000 | 8000 | |
| Tailstock | Tailstock quill diameter | mm | Φ75 | Φ75 |
| Tailstock quill taper | - | MT5 | MT5 | |
| Tailstock quill travel | mm | 150 | 150 | |
| Motor | Main spindle motor | kW | 7.5 | 7.5 |
| Coolant pump motor | kW | 0.25 | 0.25 | |
| Dimension | Width x Height | mm | 1600x1600 | 1750x1850 |
| Length | mm | 2700/3200/3700/4700 | 3000/3500 | |
| Weight | Net weight | T | 2.7/3.0/3.4/4.2 | 3.1/3.4 |

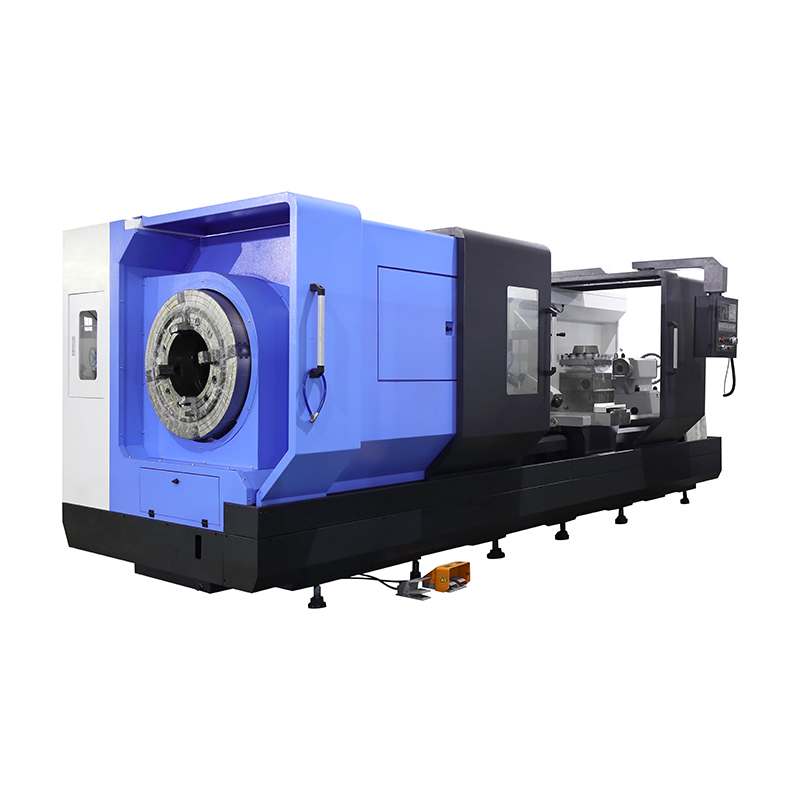

| Please note: swing diameter and bed length can customize according to real work demand, machine can choose servo motor direct driving structure turning center with C axis. | ||||

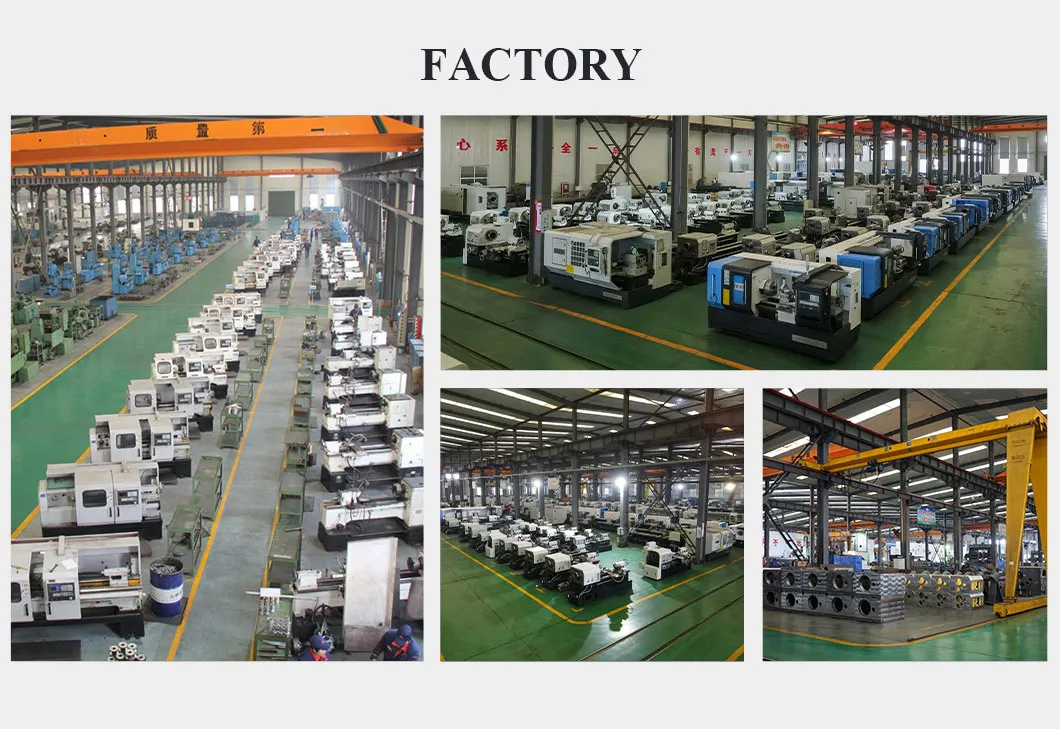

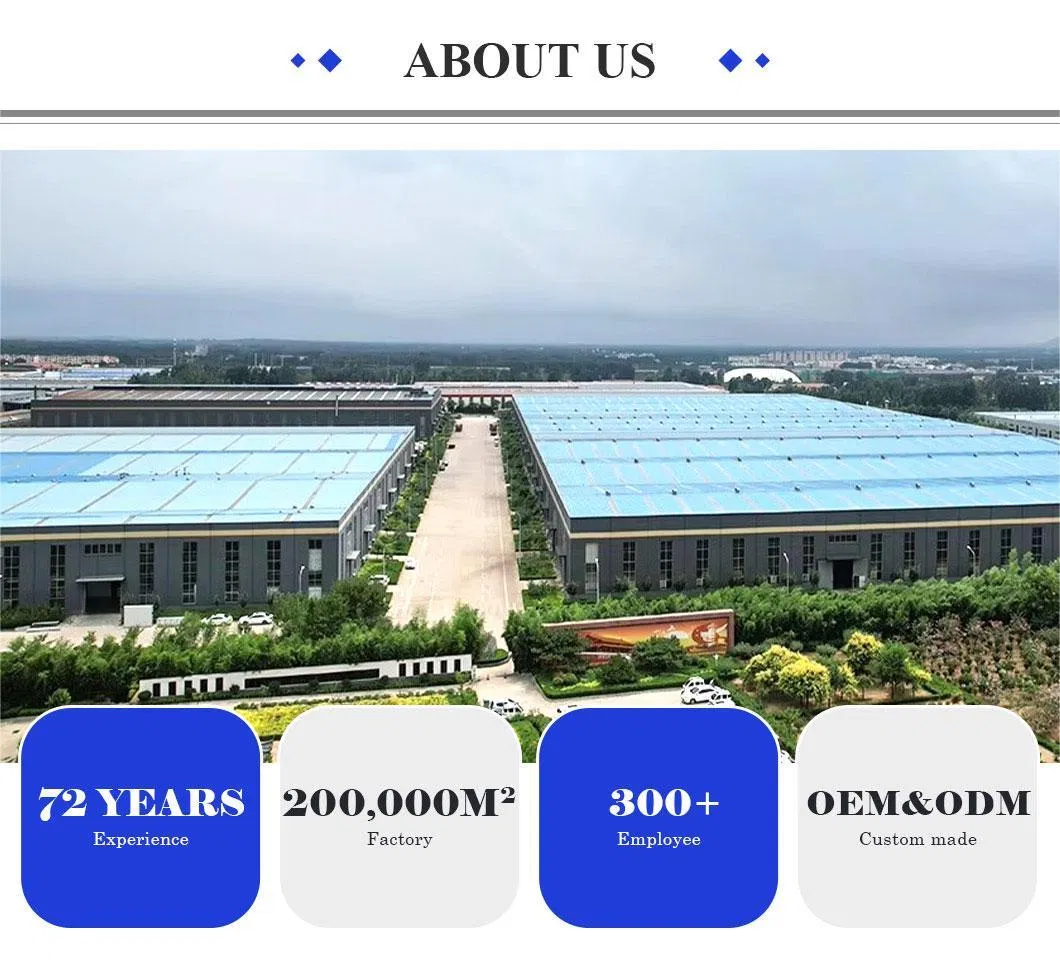

We are a professional manufacturer of medium and large lathe series products in China. It is a national high-tech enterprise. Our factory was founded in 1952. It was a designated manufacturer of pipe thread lathes of the former Ministry of Machinery Industry. The factory covers an area of about 300 acres, with a construction area of 200,000 square meters and more than 300 employees.

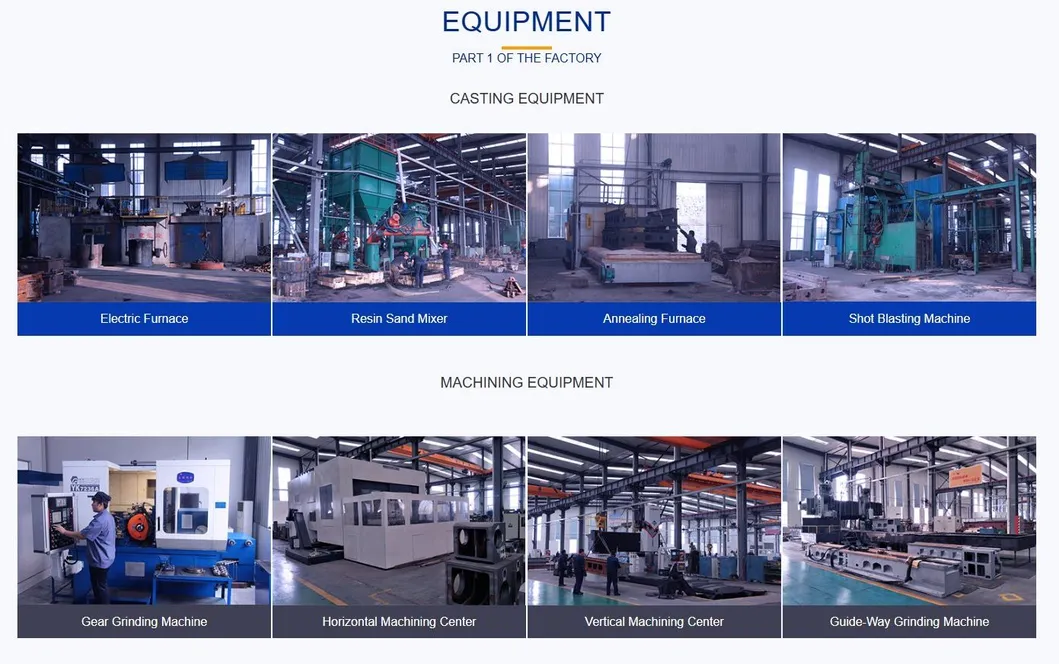

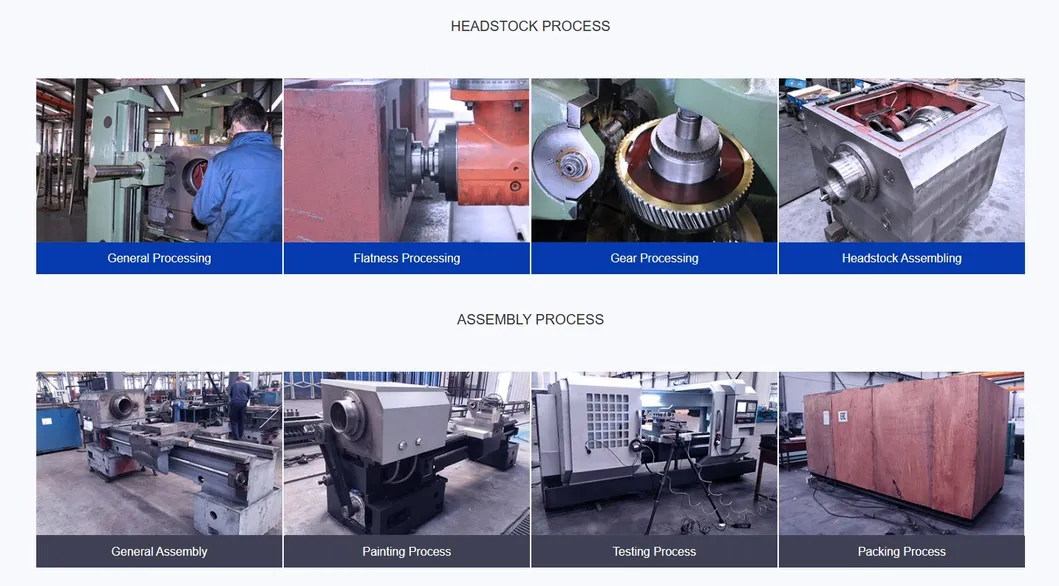

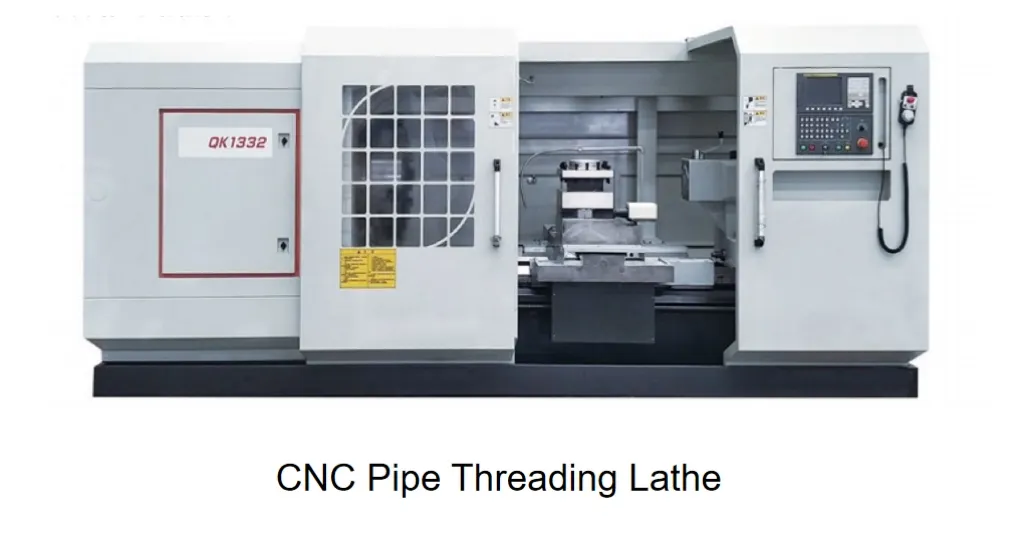

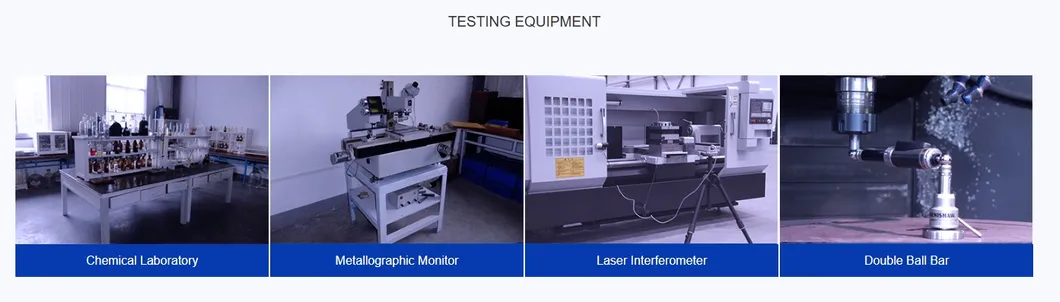

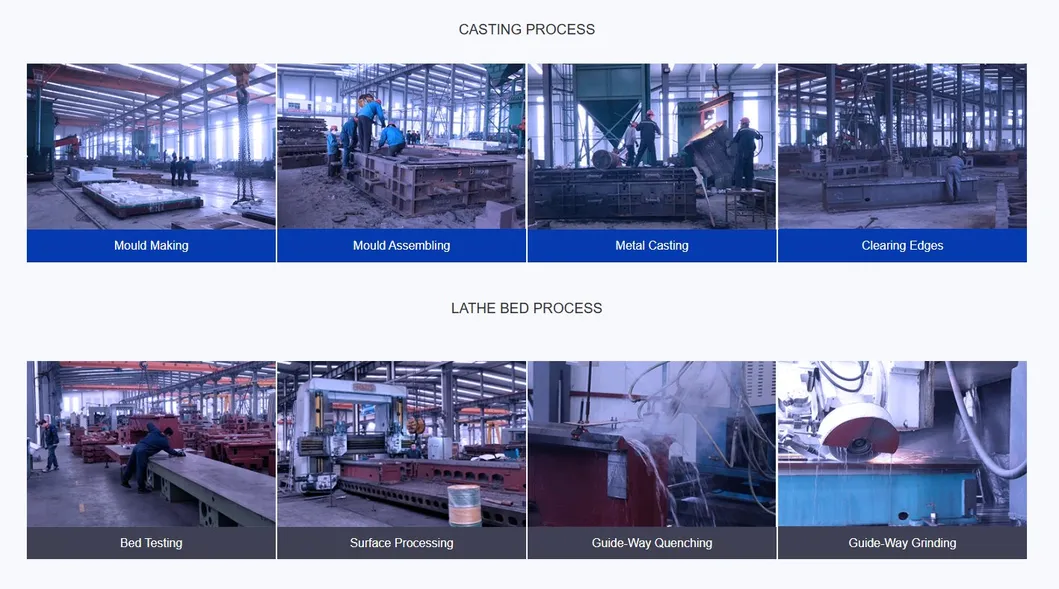

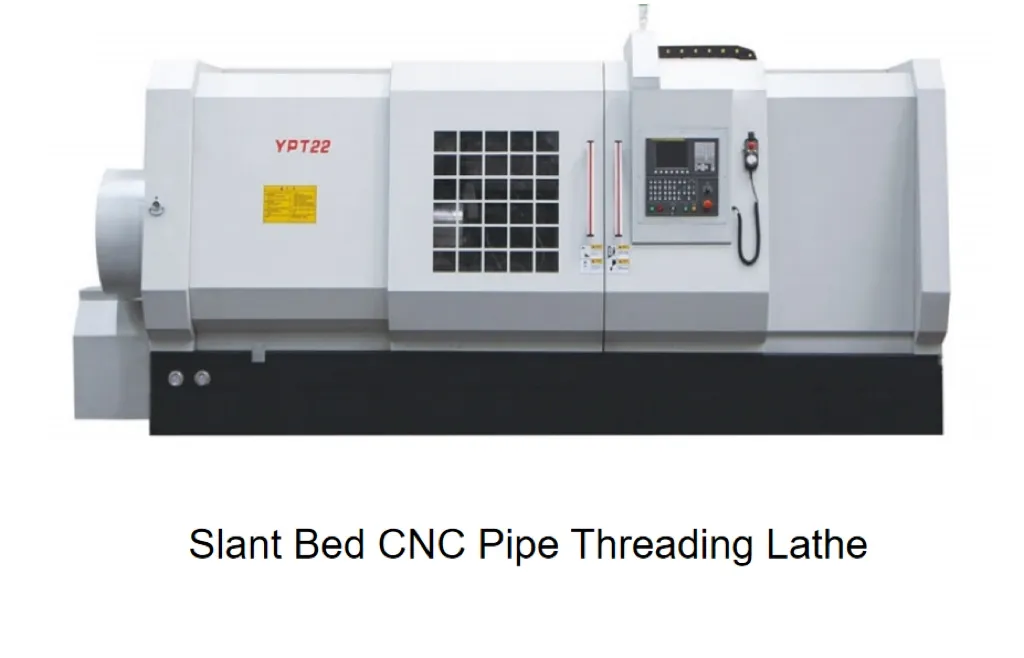

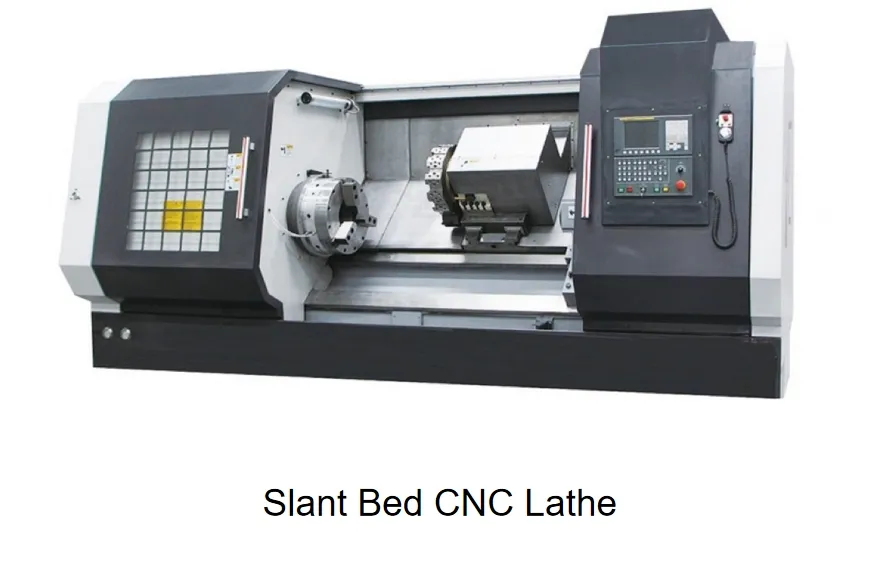

The company is equipped with more than 500 sets of professional production equipment such as casting, forging, machining, heat treatment, etc. The main products are general CNC lathe series, pipe thread lathe series, cylinder special lathe series, heavy lathe series, milling compound, machining center and various industry special machines. The annual production capacity of various lathe series with flat bed and inclined bed structure is more than 1,000 sets; the products are sold well all over the country and exported to more than 30 countries and regions. They are widely used in oil extraction, geological exploration, mineral mining engineering machinery, chemical smelting, pipeline construction, machinery manufacturing and shipbuilding in various countries around the world.
We will always adhere to the cooperation principle of "quality-oriented, integrity and win-win", wholeheartedly provide our customers with high-quality products and thoughtful services, and look forward to cooperating with you sincerely to create a better tomorrow!

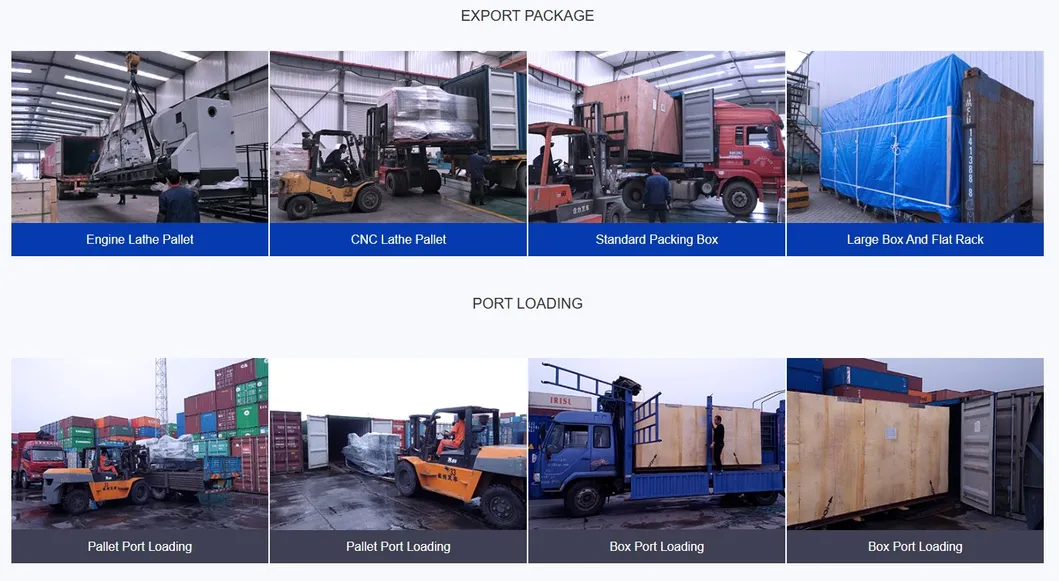

We are committed to providing customers with a full range of foreign trade services.
