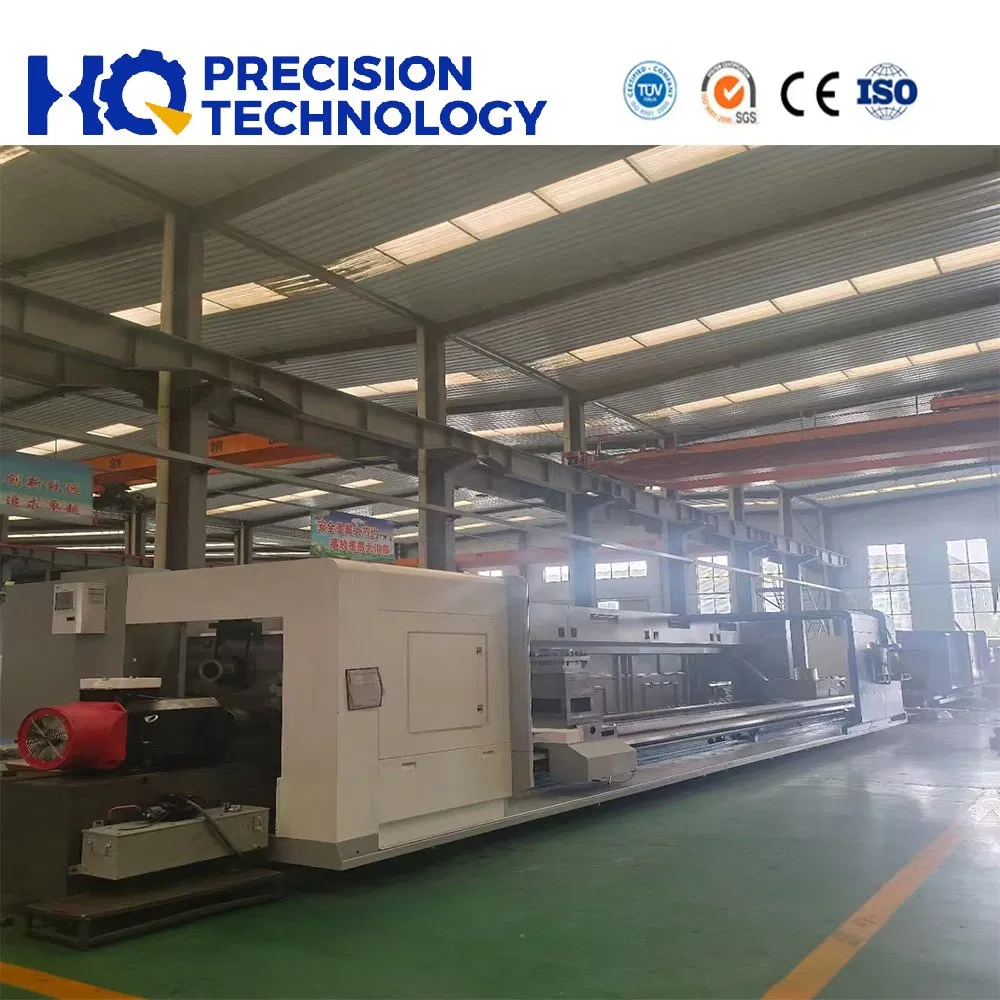

Mission-Critical CNC Lathe with Sub-100nm Tolerance for Aerospace-Grade Threaded Component Fabrication

Product Description

LATHE INTRODUCTION The lathe machine is a universal metal machining equipment for metal processing, mainly used for turning internal and external cylindrical surfaces, conical surfaces, and other rotating surfaces. It is capable of turning internal and external pipe threads such as metric, inch, module, DP threads, etc. Meanwhile, this series is also used to drill holes in bar material and make oil grooves. This series lathe is able to process metal materials including cast iron, steel, and non-ferrous metals.

Mission-Critical CNC Lathe with Sub-100nm Tolerance for Aerospace-Grade Threaded Component Fabrication

Specifications

Specification	Unit	CW6163B / CW6263B
Swing over bed	mm	630
Swing over gap	mm	800
Swing over cross slide	mm	350
Distance between centers	mm	1500 / 2000 / 3000
Guideway width	mm	550
Max. load capacity	T	3
Spindle bore	mm	105
Spindle bore taper	-	Metric 120 / MT6
Spindle nose type	-	C11
Spindle speed steps	-	Forward 18 steps
Spindle speed range	rpm	7.5 - 1000
Chuck	mm	φ315 3-jaw manual
Turret tool post	-	Manual turret 4 position
Tool shank size	mm	30 × 30
X axis travel	mm	320
Z axis travel	mm	1350 / 1850 / 2850
X axis feed range	mm/r	64 / 0.05 - 12.15
Z axis feed range	mm/r	64 / 0.1 - 24.3
X axis rapid traverse	mm/min	2300
Z axis rapid traverse	mm/min	4000
Metric thread range	mm	50 / 1 - 240
Inch thread range	T.P.I	26 / 14 - 1
Module thread range	mm	53 / 0.5 - 120
DP thread range	DP	24 / 28 - 1
Tailstock quill diameter	mm	φ100
Tailstock quill taper	-	MT6
Tailstock quill travel	mm	250
Main spindle motor	kW	11
Rapid traverse motor	kW	1.1
Coolant pump motor	kW	0.125
Width × Height	mm	1400 × 1450
Length	mm	3800 / 4300 / 5300
Net weight	T	3.8 / 4.2 / 4.9 (CW6163B) \| 3.7 / 4.1 / 4.8 (CW6263B)

Please Note: Swing diameter, bed length, and saddle gap can be customized according to your real working demand.

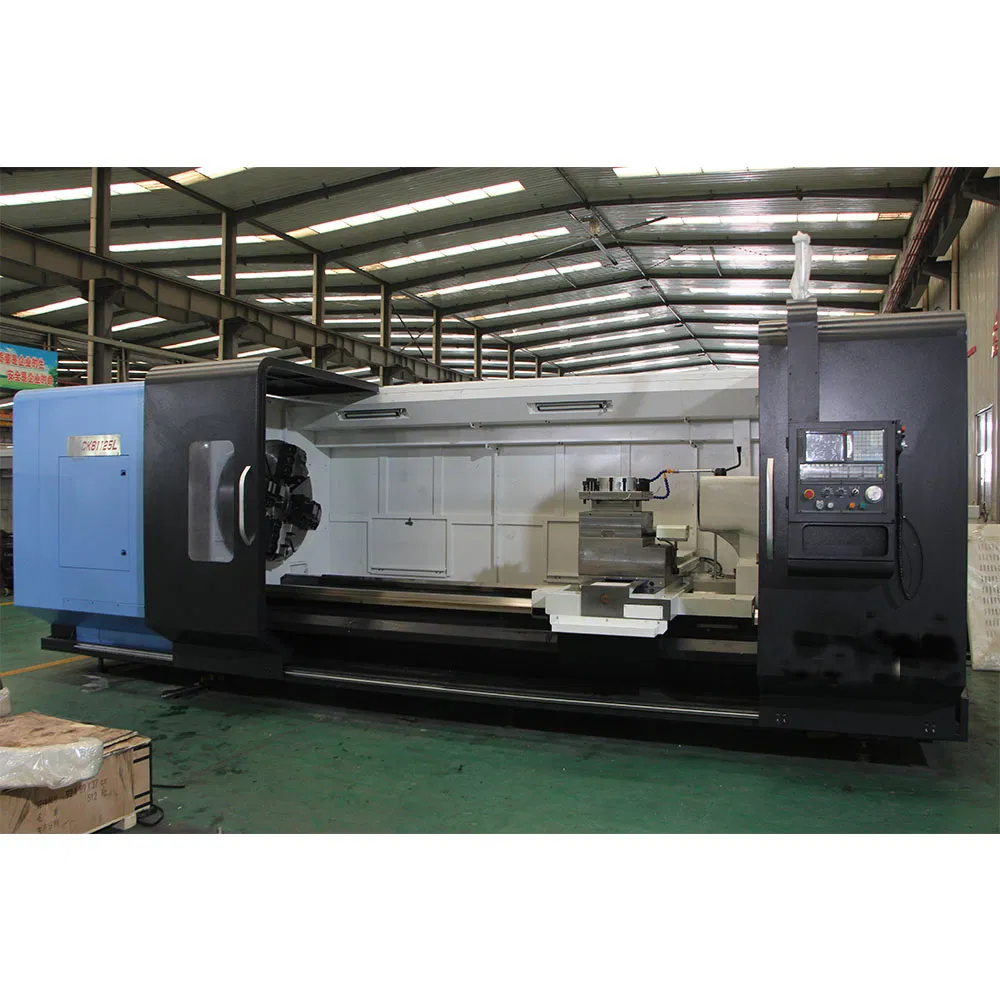

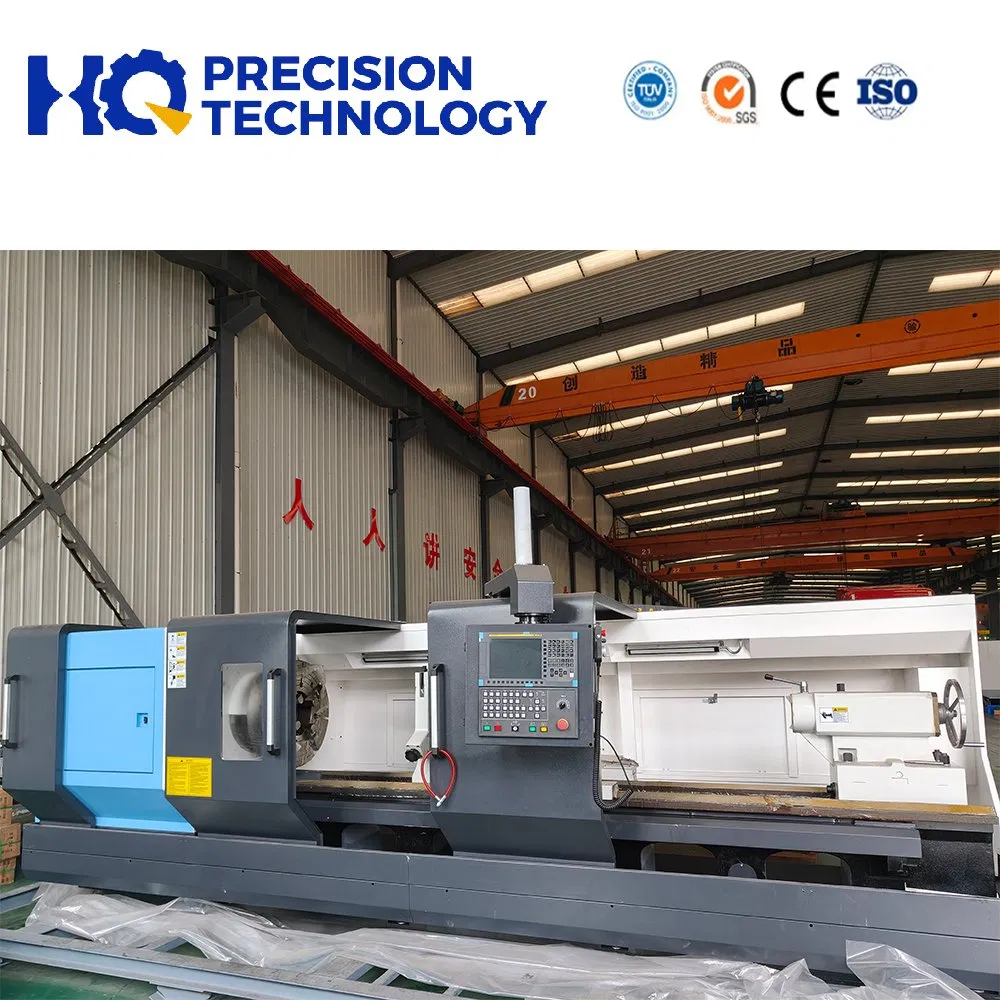

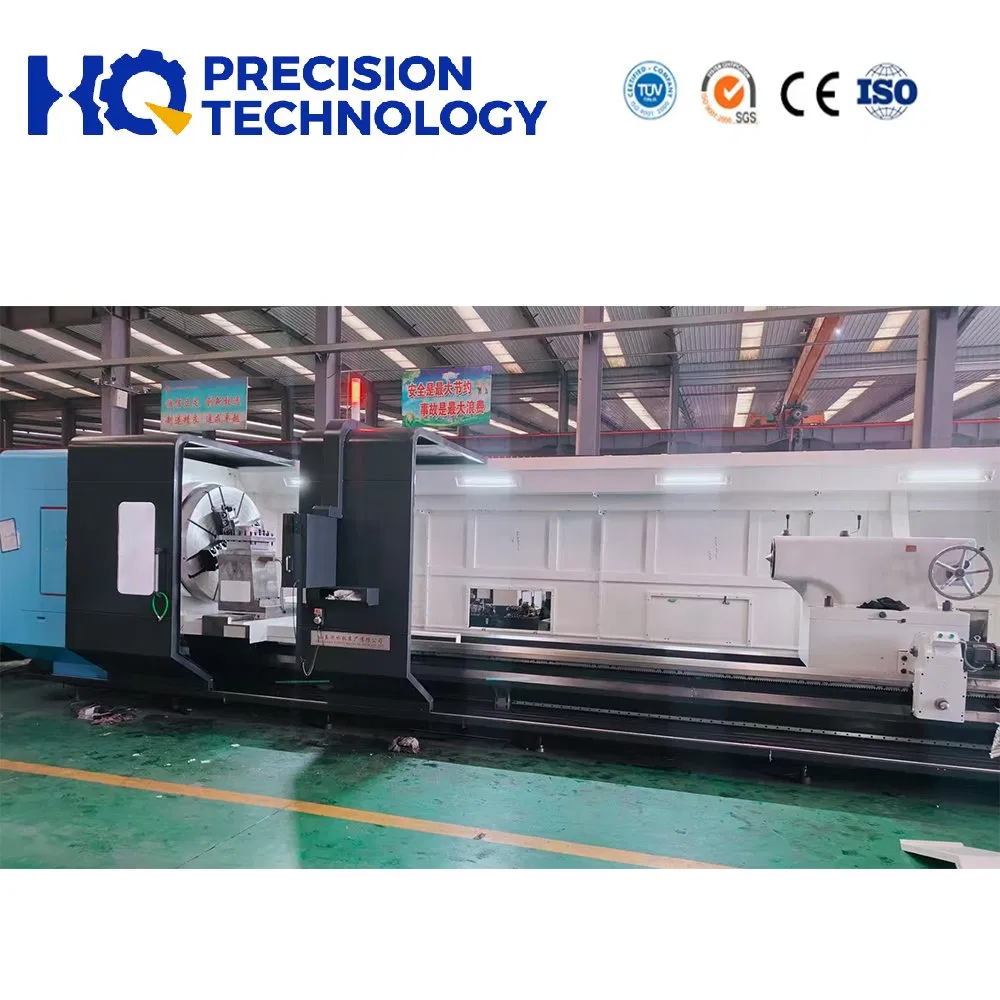

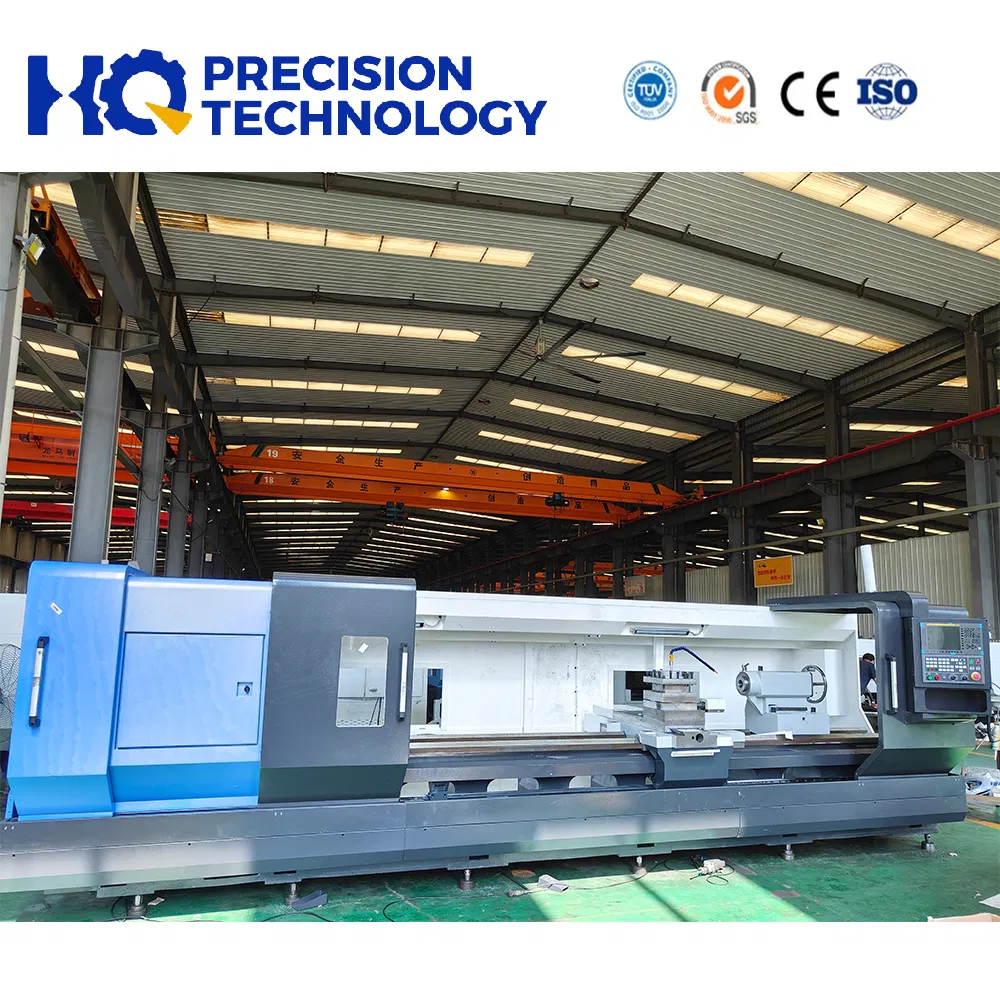

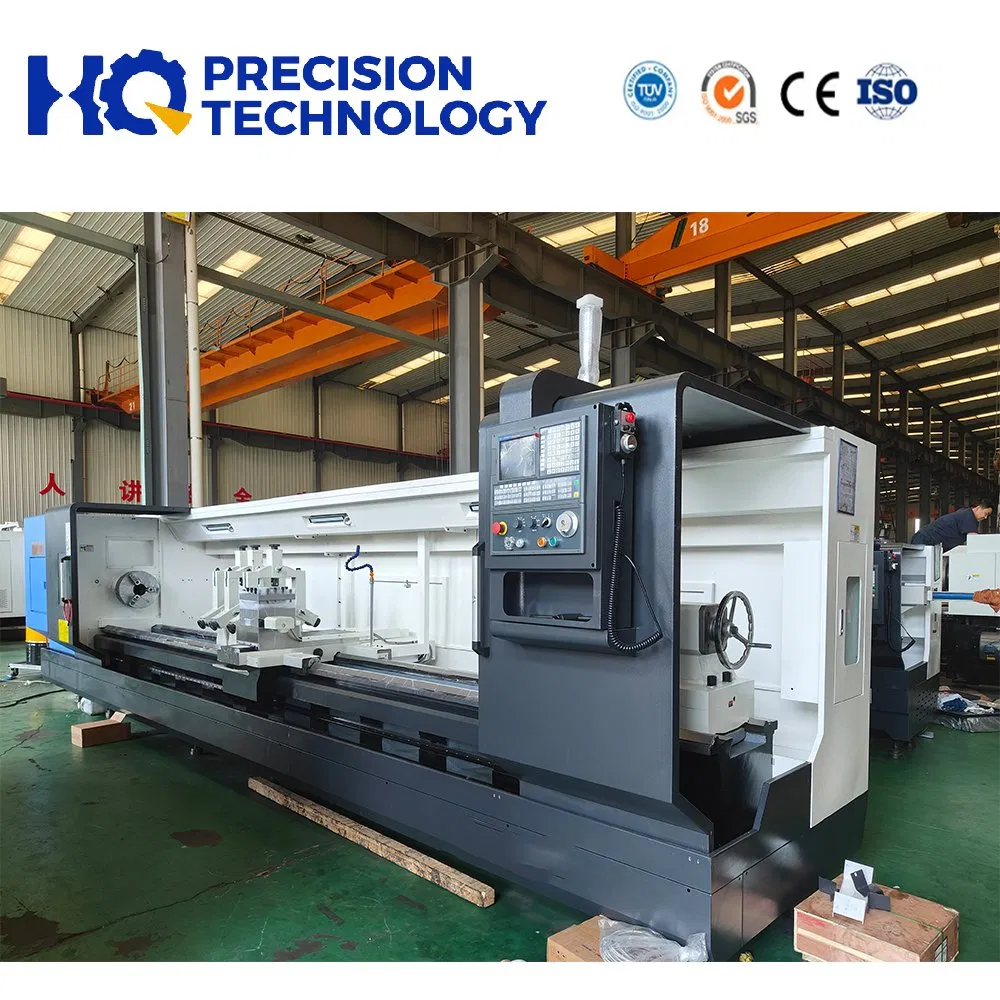

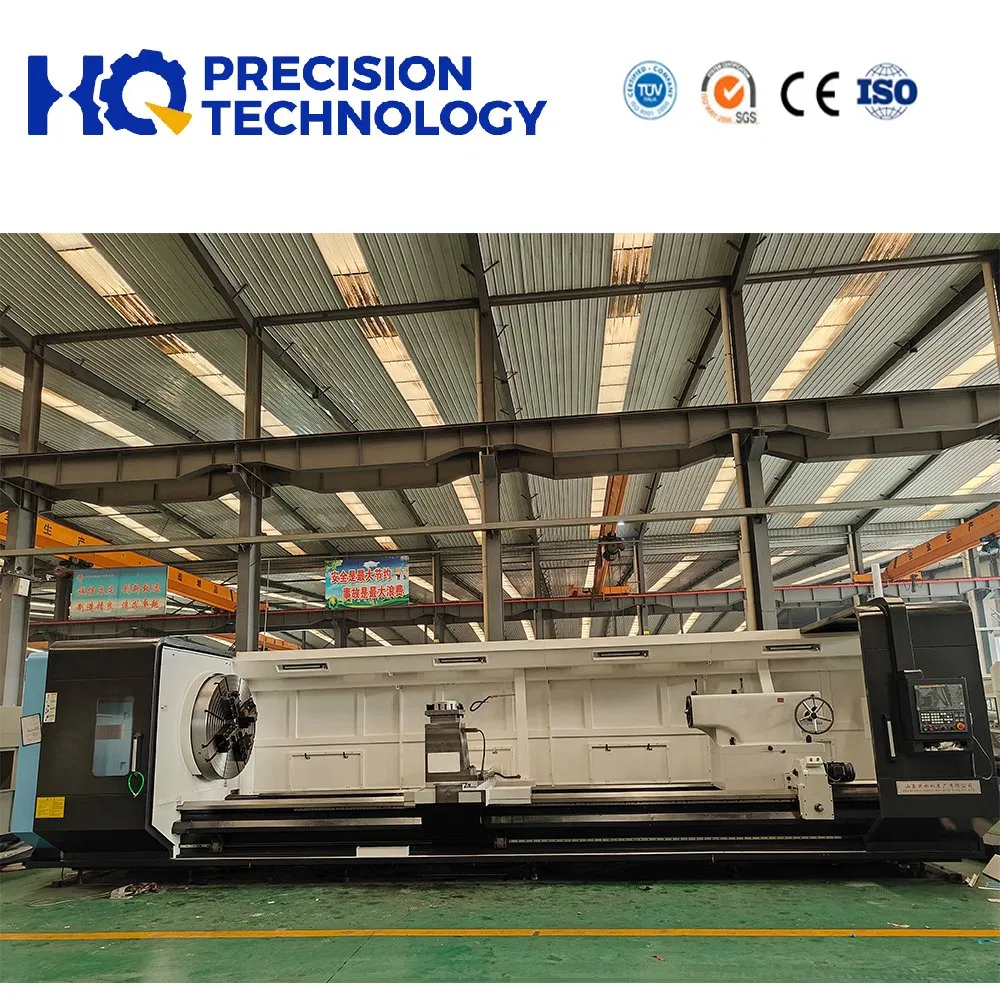

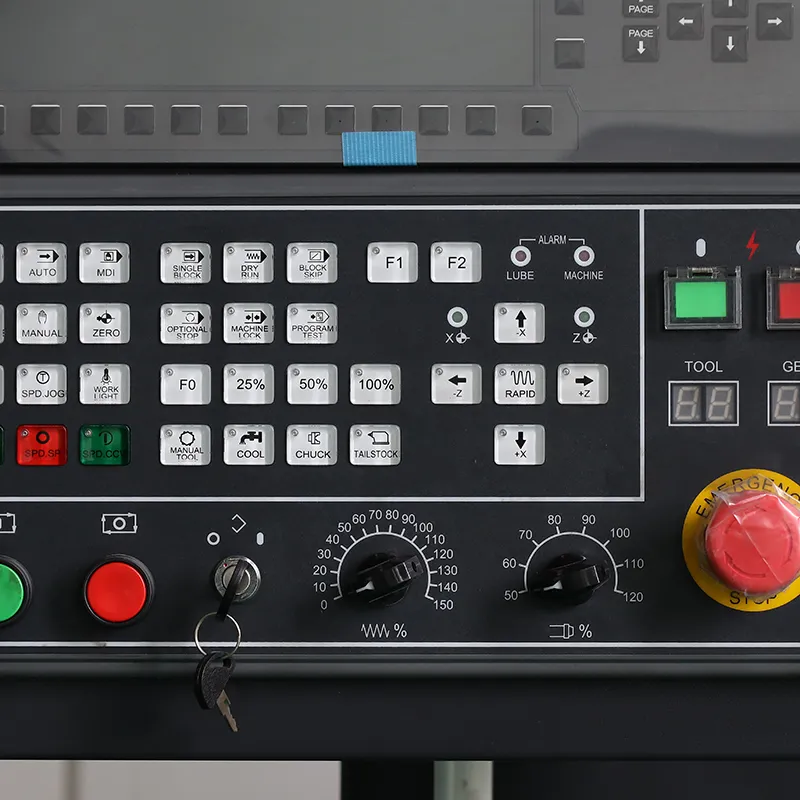

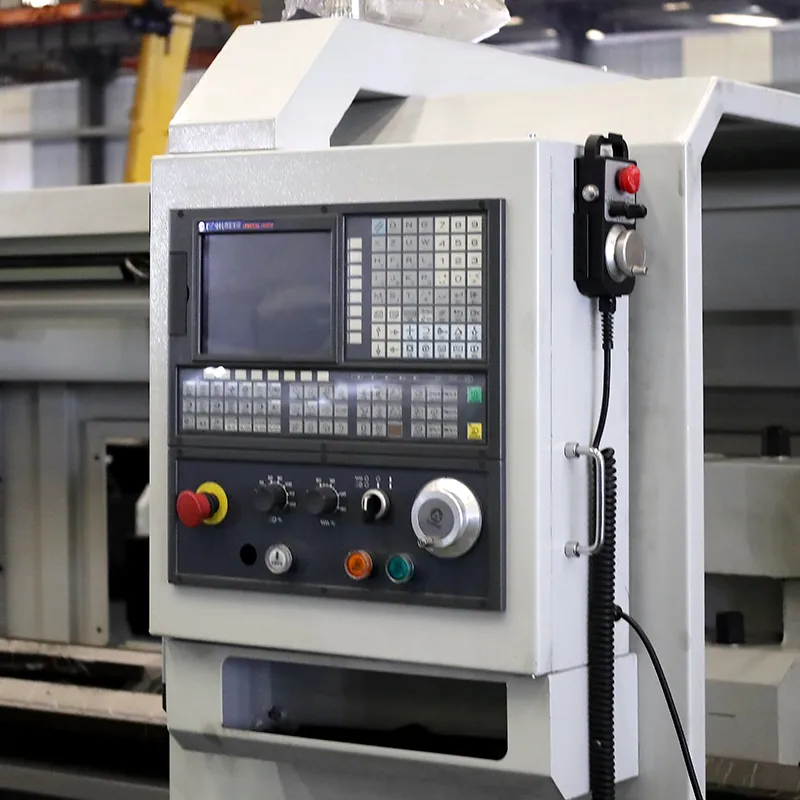

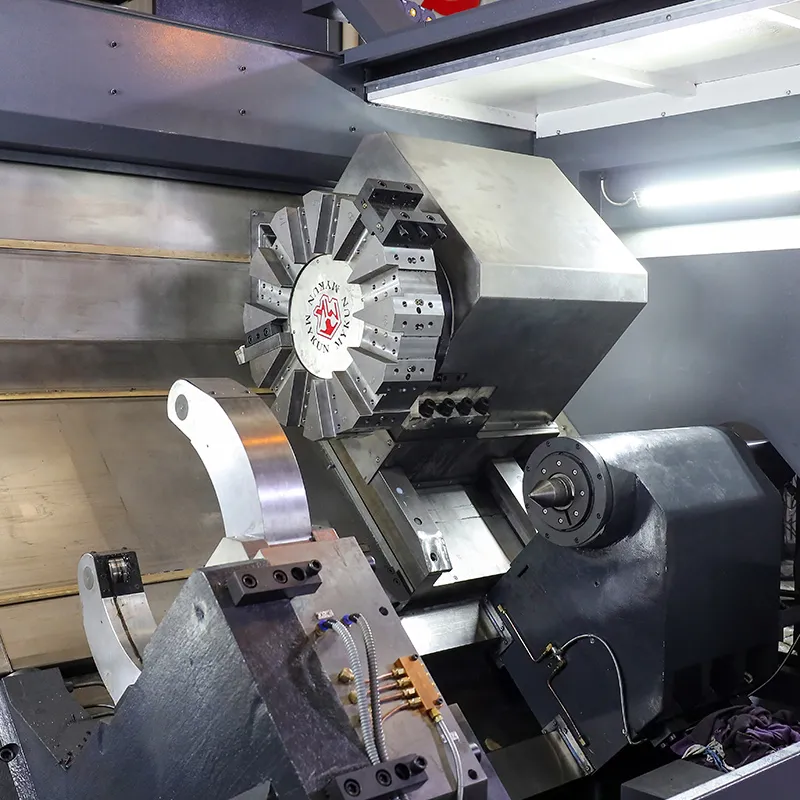

Detailed Photos

Our wide range of accessories is sure to meet your choice.

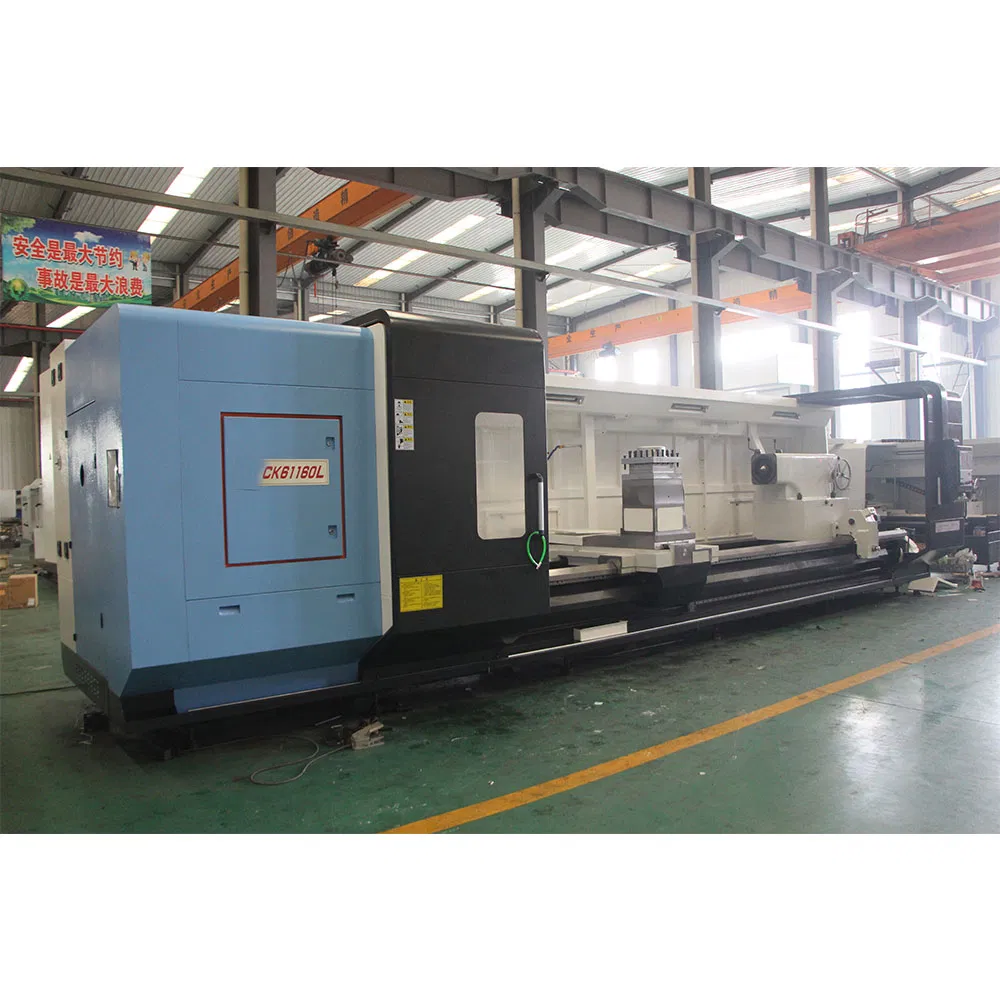

Related Product Recommendation

Our company has a variety of products, you are welcome to know more.

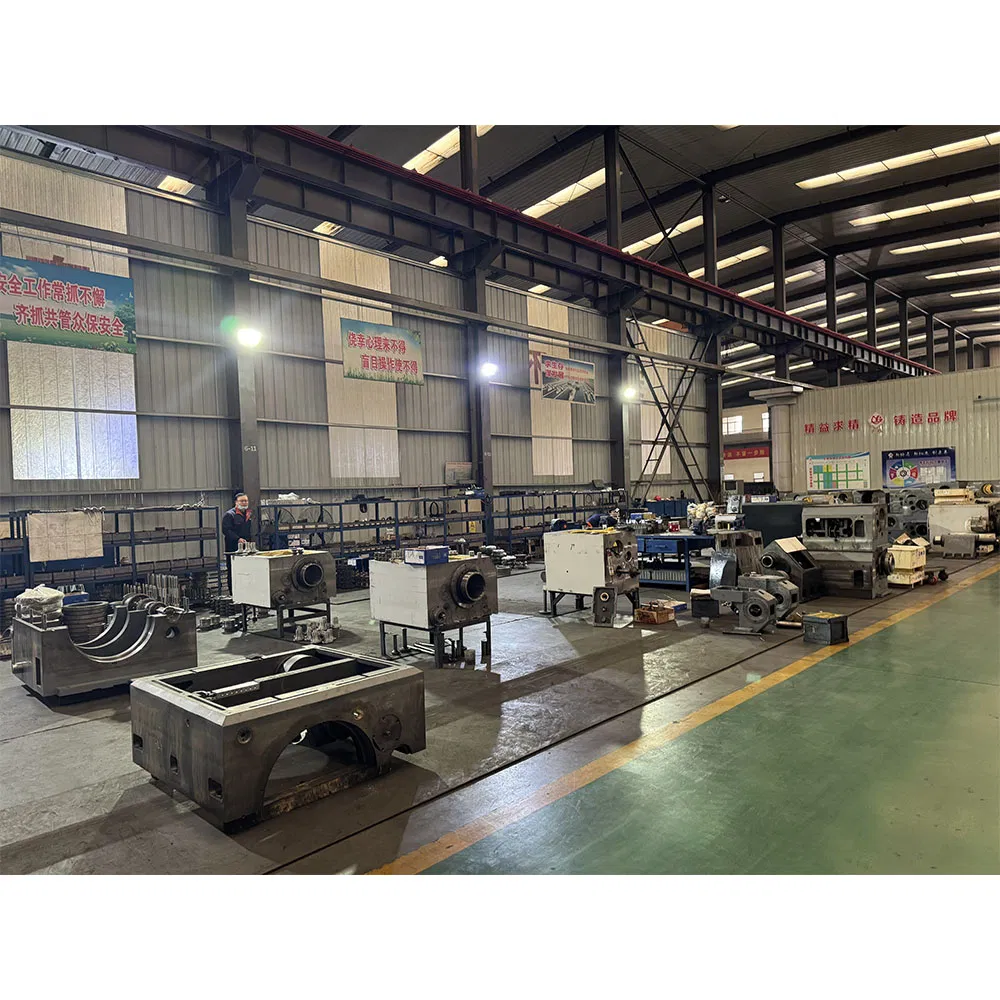

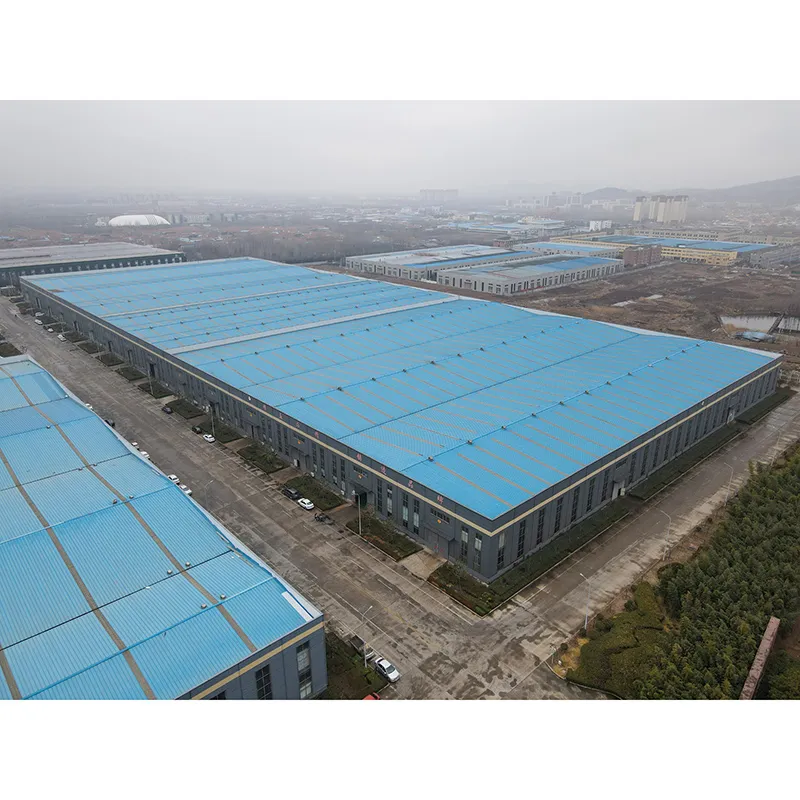

Company Profile

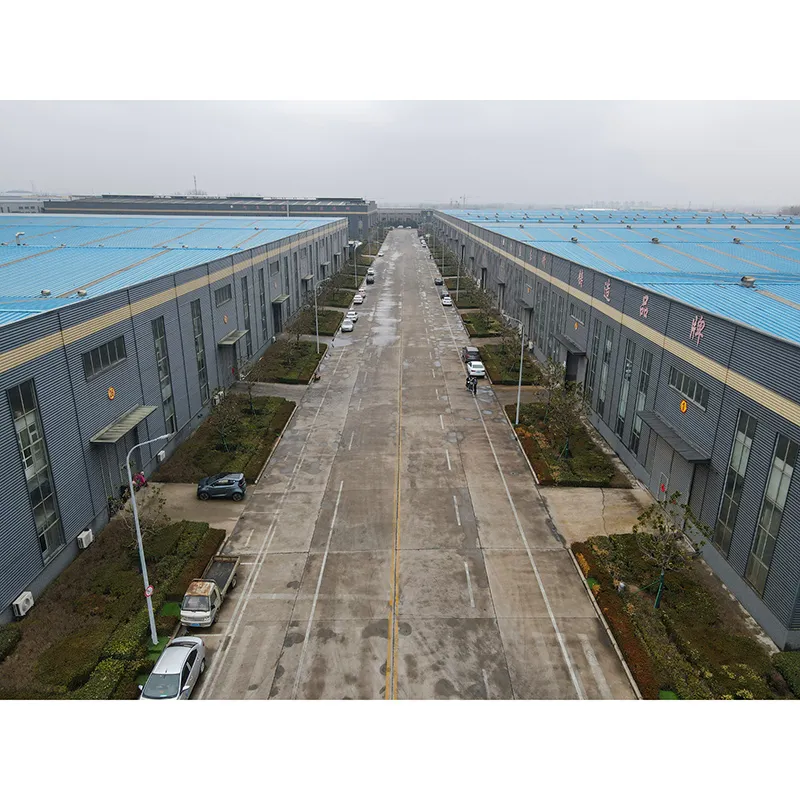

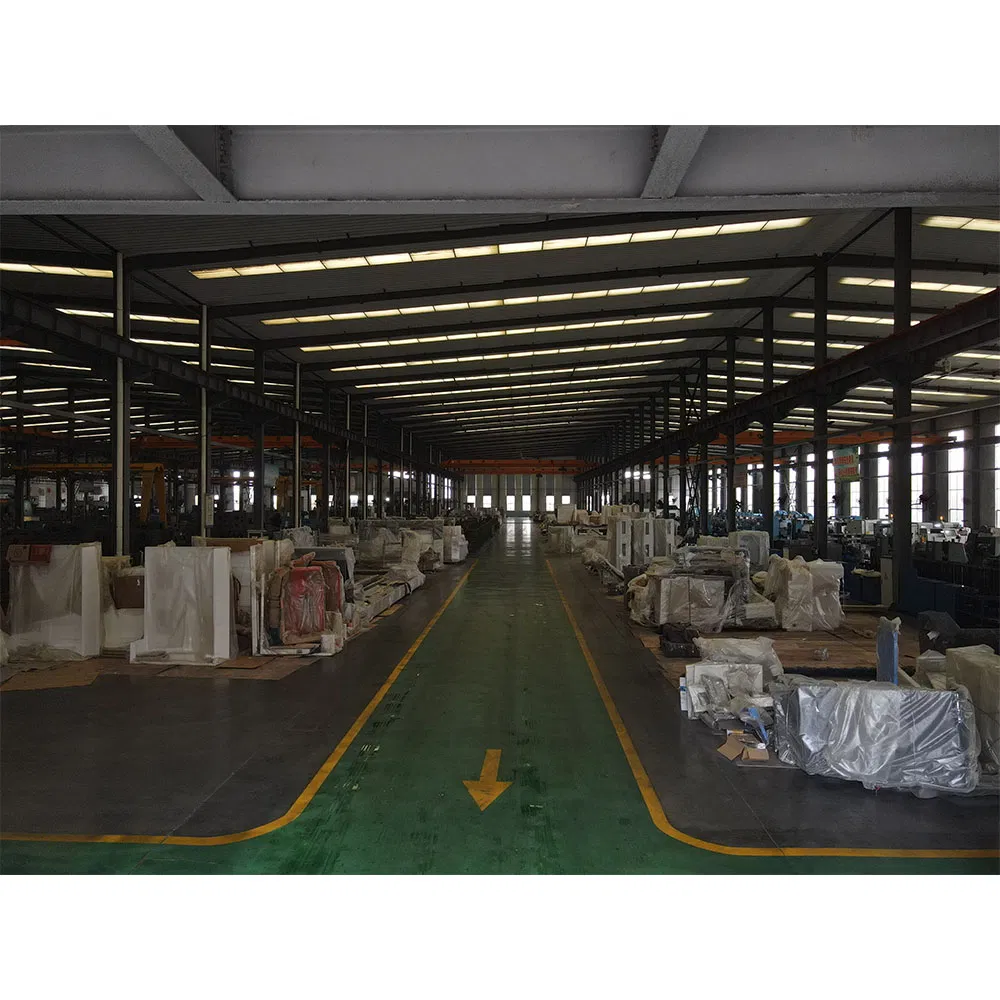

Our factory stands as a paragon of industrial might, a true testament to our unrivaled strength. Spanning an impressive 200,000 square meters, its vast footprint not only offers ample space for seamless operations but also symbolizes our far-reaching ambitions.

Our factory boasts a rich legacy of years of establishment, having been deeply rooted in the industry for a long time. With each passing year, we have continuously amassed invaluable experience, which serves as the solid foundation for our operations. Our manufacturing process is a testament to our unwavering commitment to excellence. We spare no effort in refining every detail, constantly striving to achieve perfection. From the selection of raw materials to the final product output, each step is carried out with the utmost care and precision. Our dedicated team of experts is always on the lookout for innovative ways to enhance the craftsmanship, ensuring that our products meet the highest standards in the market. This unceasing pursuit of improvement in our craftsmanship has enabled us to maintain a leading position in the industry and gain the trust and recognition of our customers.

Certifications

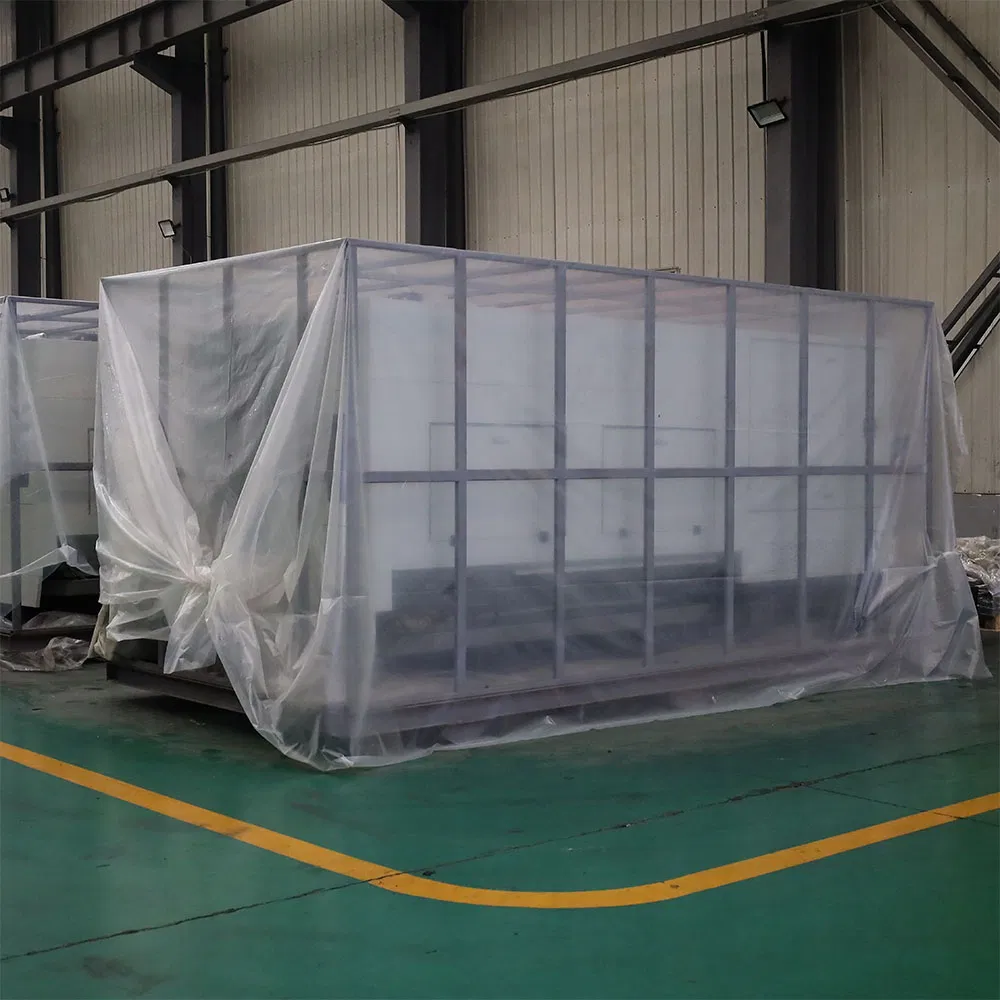

Packaging & Shipping

During the shipping process, we will initiate in-depth consultations with customers. We will first listen carefully to their specific requirements, such as delivery time frames (whether they need expedited shipping for time-sensitive items or are flexible with a more economical, slower option), shipping destinations (taking into account any potential customs or regional shipping restrictions), and the nature of the goods being shipped (fragile items may require special handling and shipping methods). Based on this comprehensive understanding, we will work together with them to determine the most suitable shipping method, ensuring that the shipping solution not only meets their expectations but also optimizes cost-effectiveness and delivery reliability.

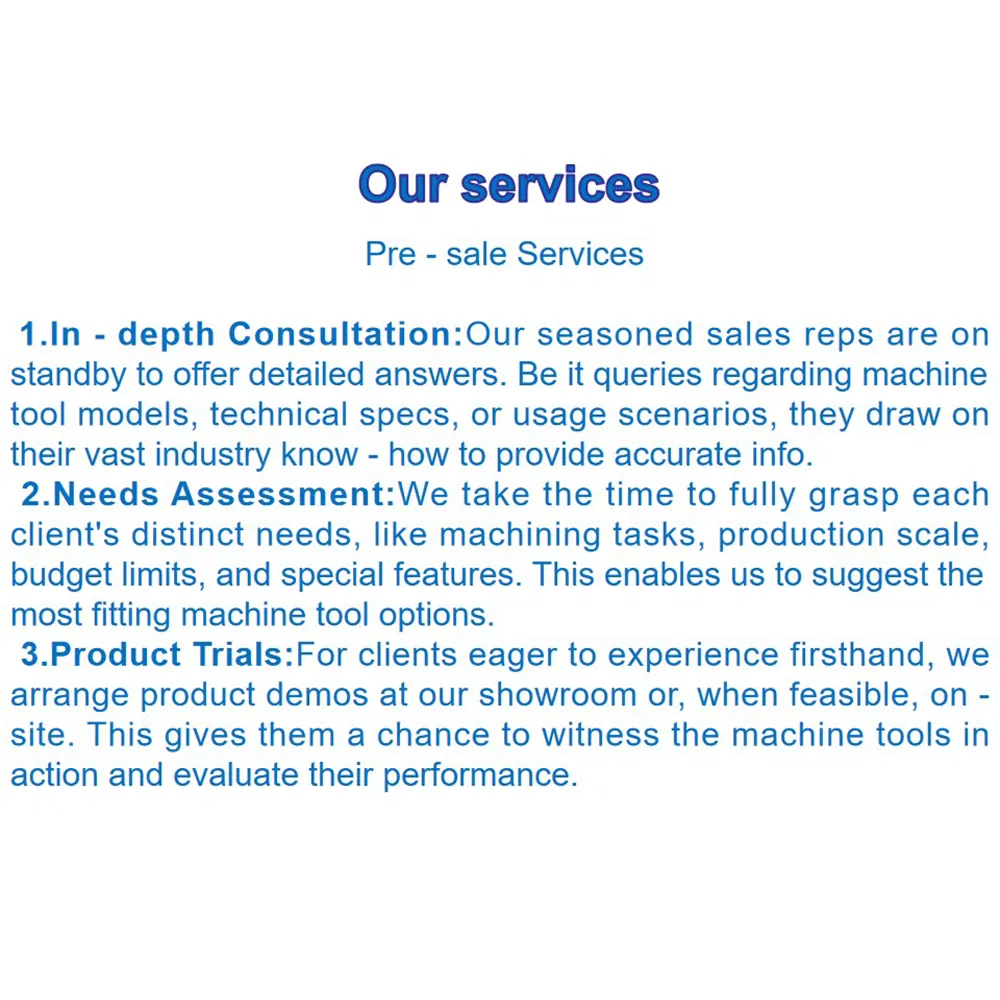

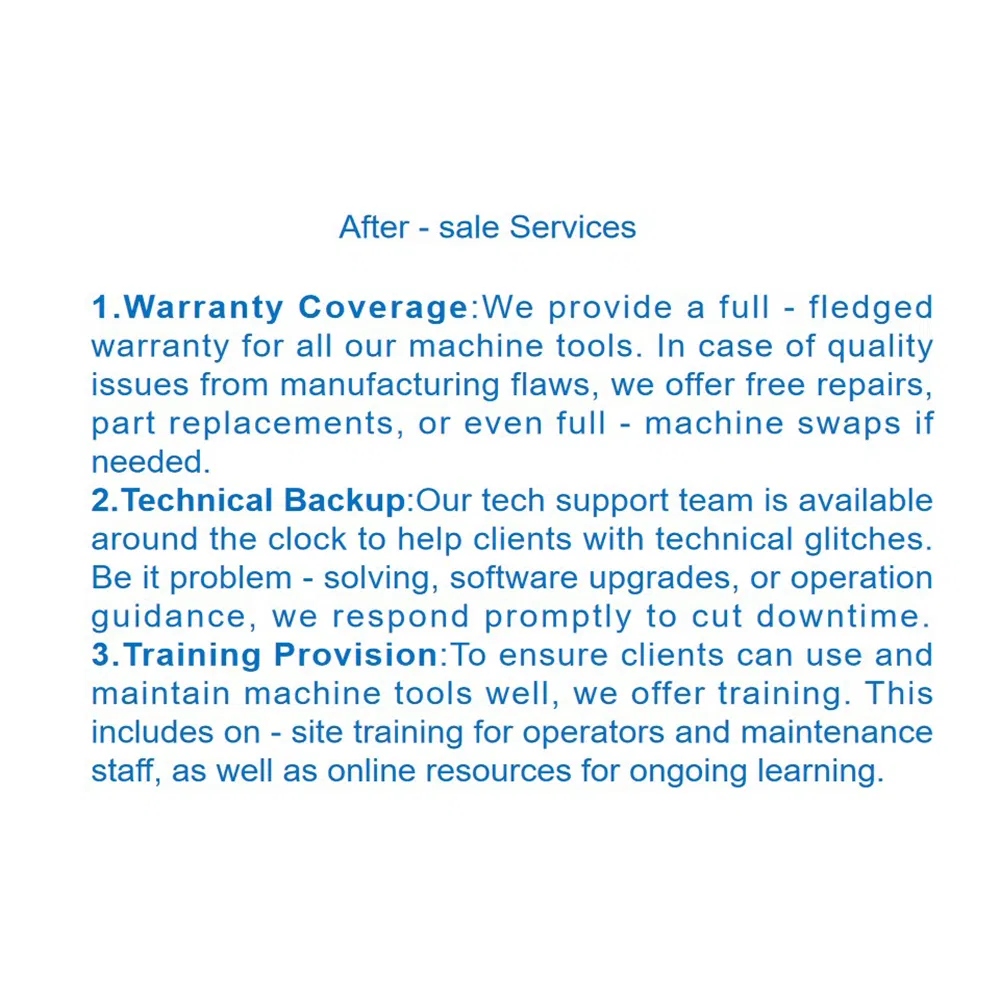

Our Services

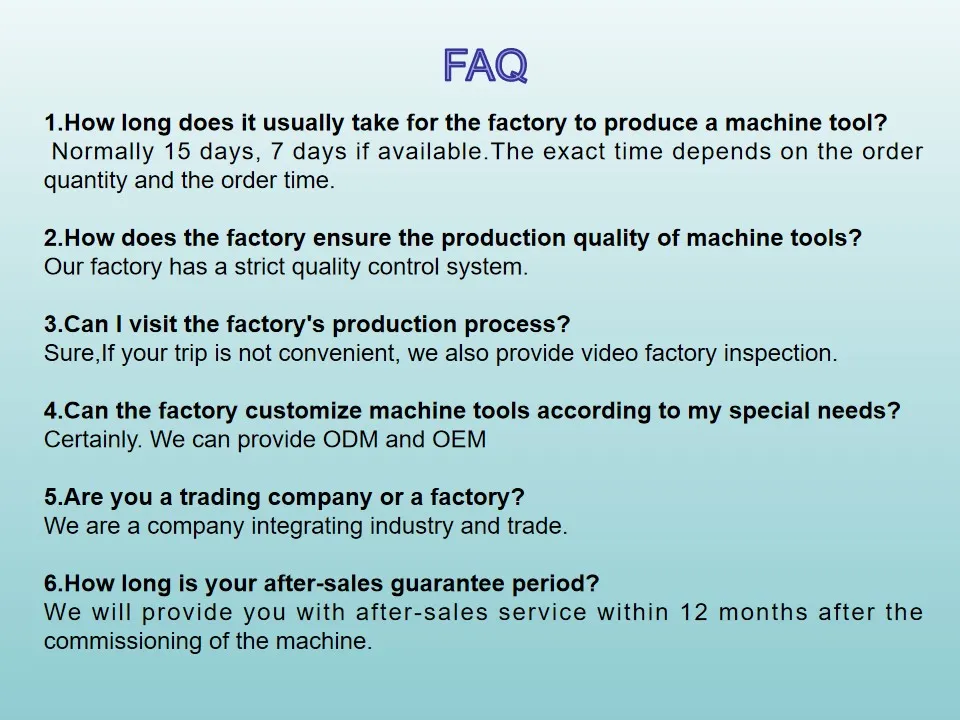

FAQ

What types of metal materials can this lathe machine process?

This universal machining equipment is designed to process a variety of metal materials, including cast iron, steel, and non-ferrous metals.

What kinds of thread turning operations does the machine support?

The machine is fully capable of turning internal and external pipe threads, including Metric, Inch, Module, and DP threads.

Can the specifications of the lathe be customized?

Yes. We can customize the swing diameter over bed, bed length, and saddle gap according to your specific machining and operational requirements.

What is the maximum load capacity for the CW6163B / CW6263B models?

The maximum load capacity of the machine bed for this series of lathe is 3 tons (3T).

How are shipping options determined for delivery?

We consult extensively with each customer regarding their delivery timelines, target destinations, and special product handling needs to establish the most cost-effective and reliable shipping method.

What other capabilities does this lathe center feature?

In addition to turning cylindrical and conical surfaces and threading, this series is also utilized to drill holes in bar material and make oil grooves.
