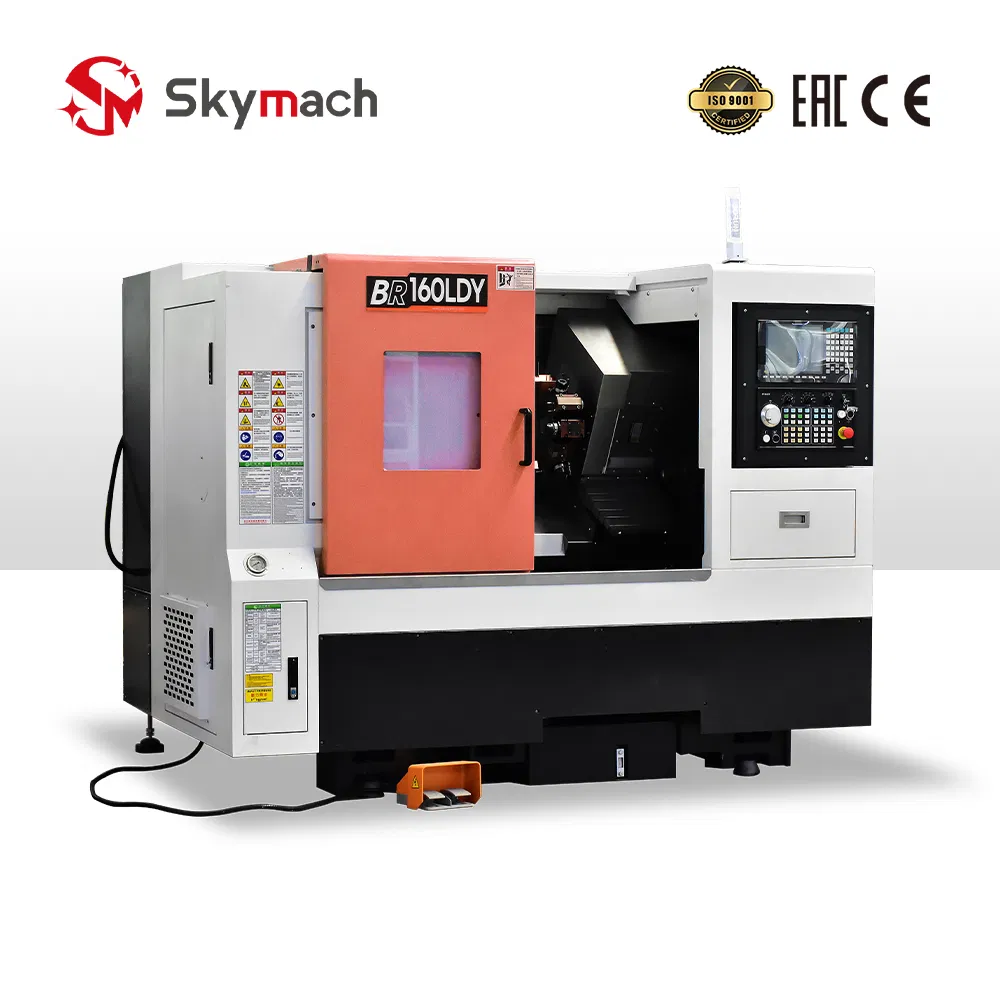

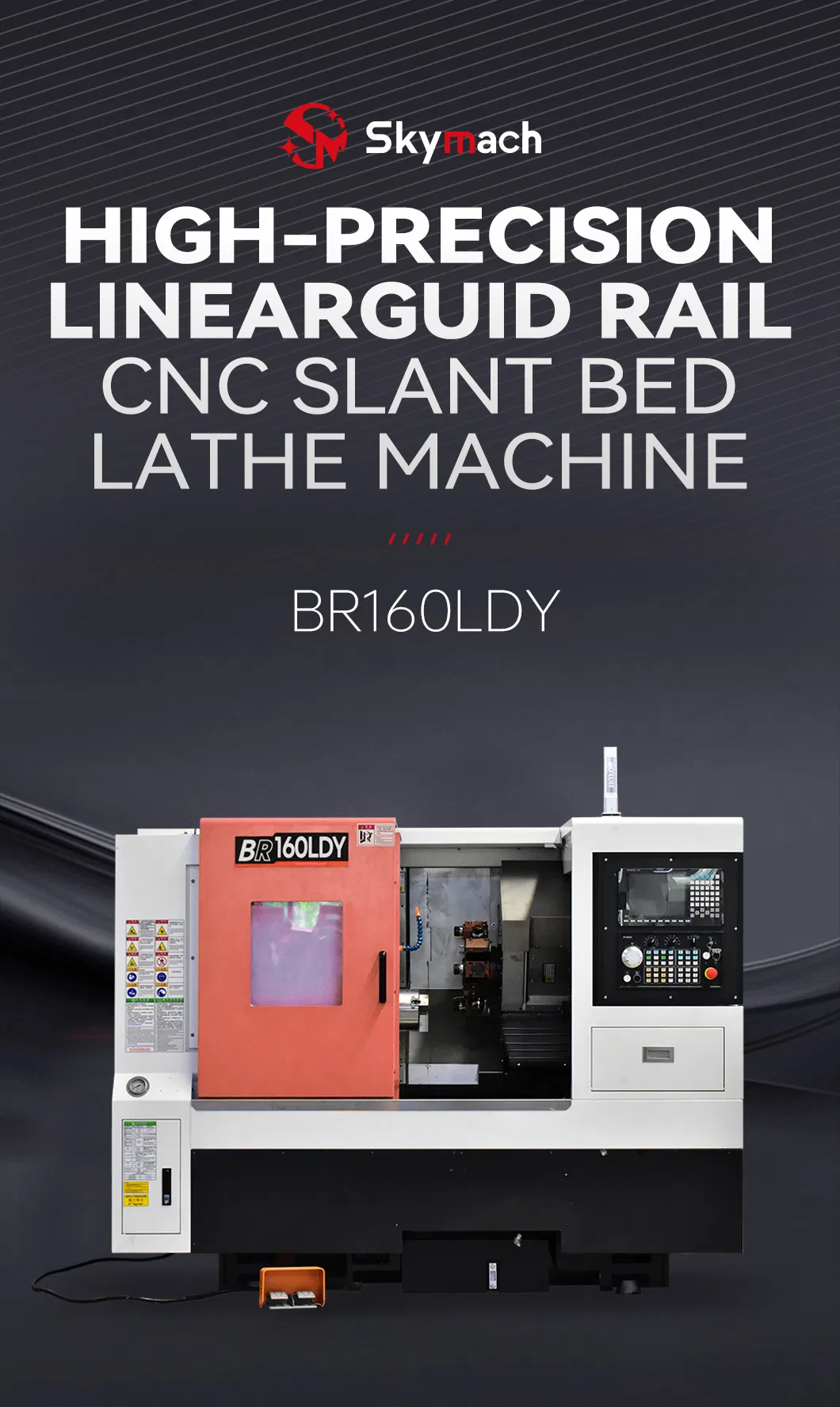

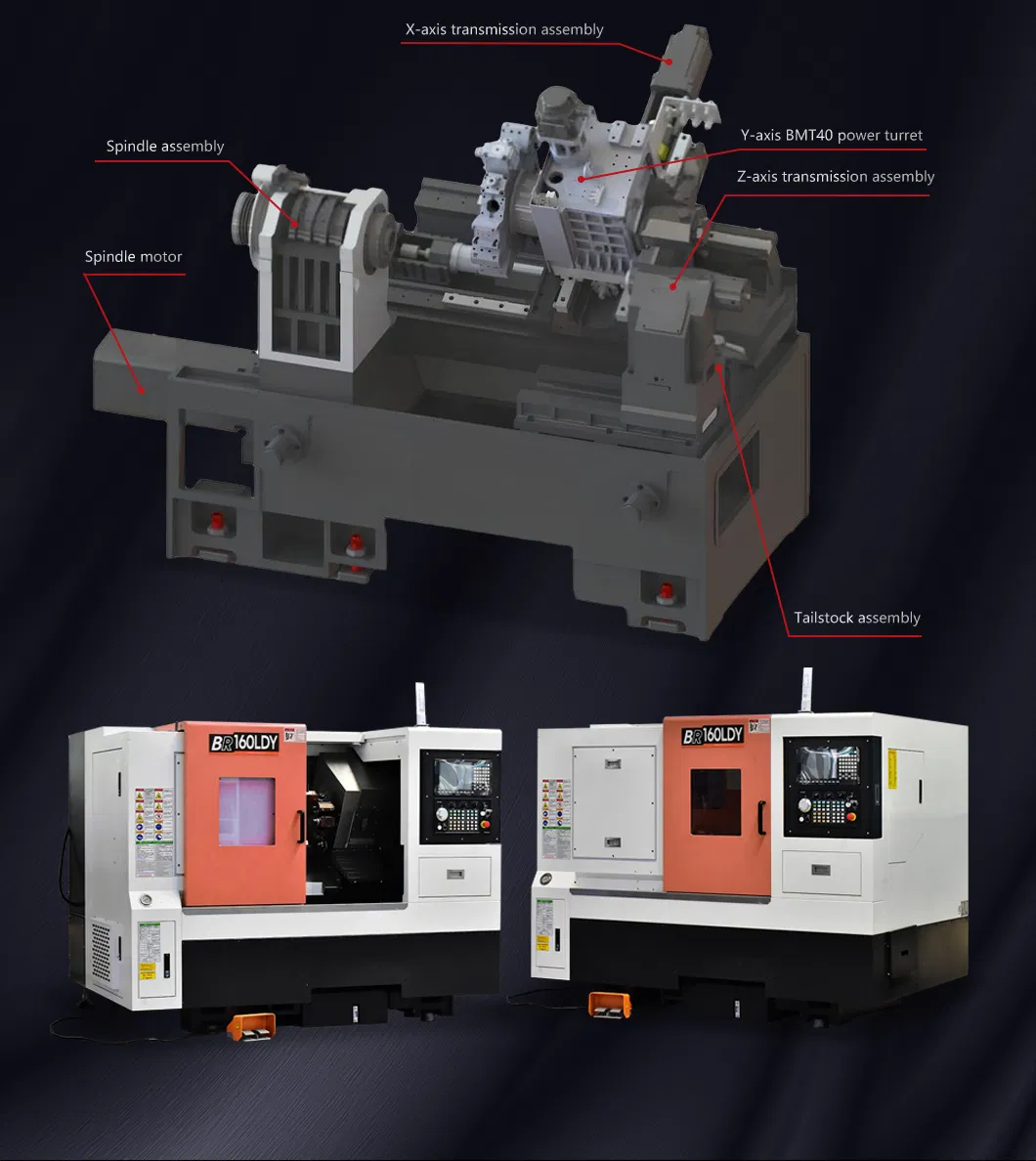

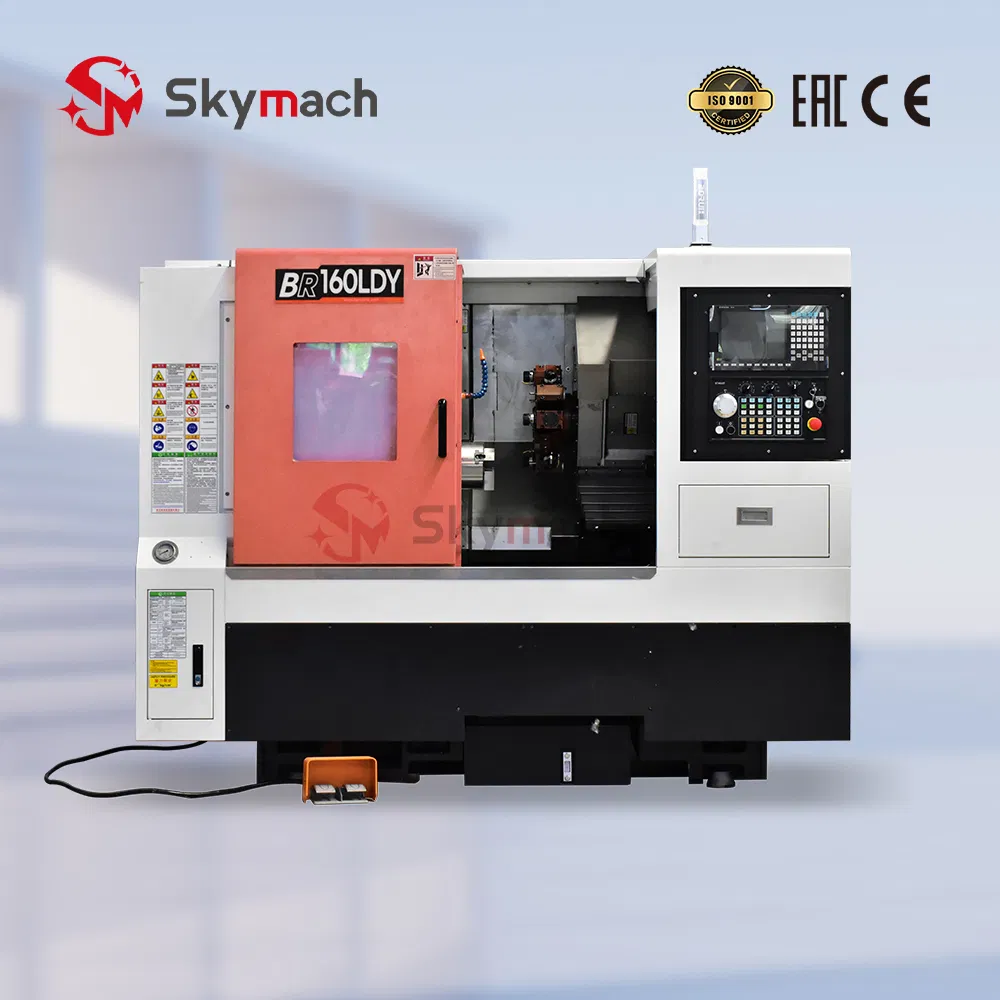

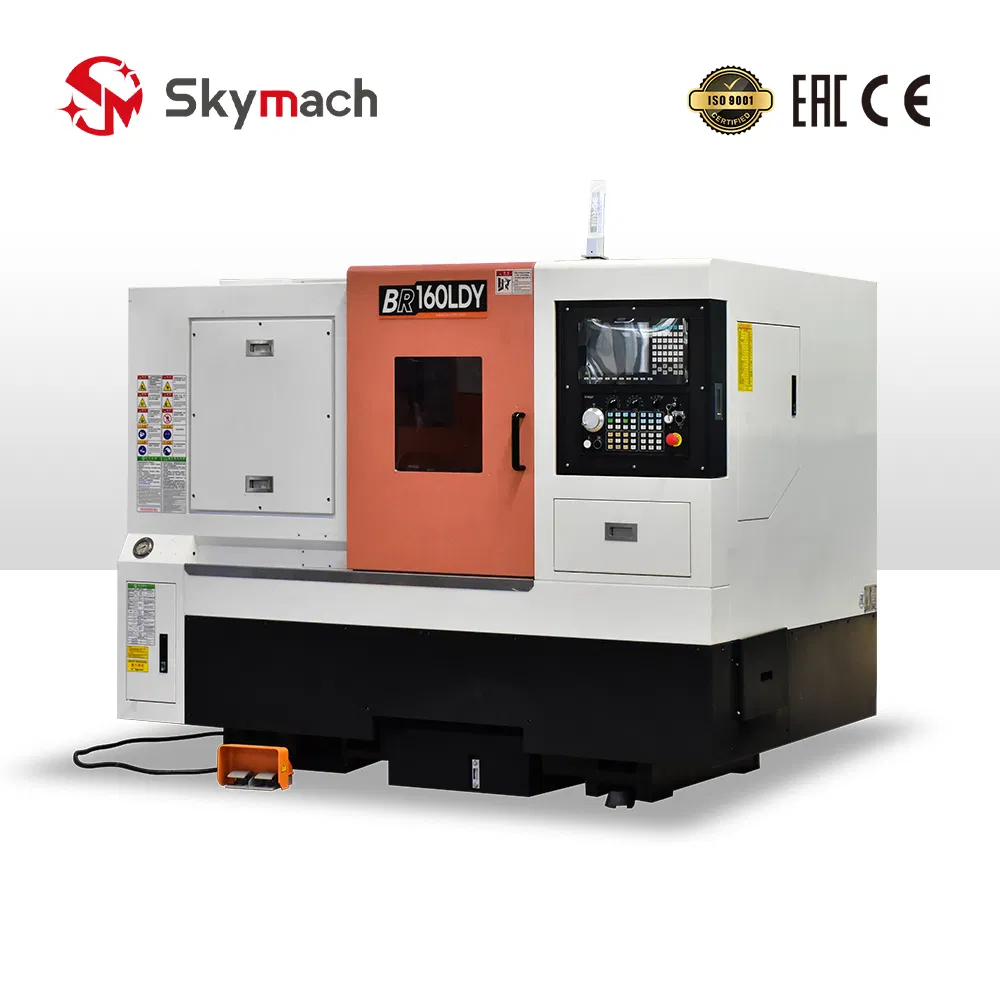

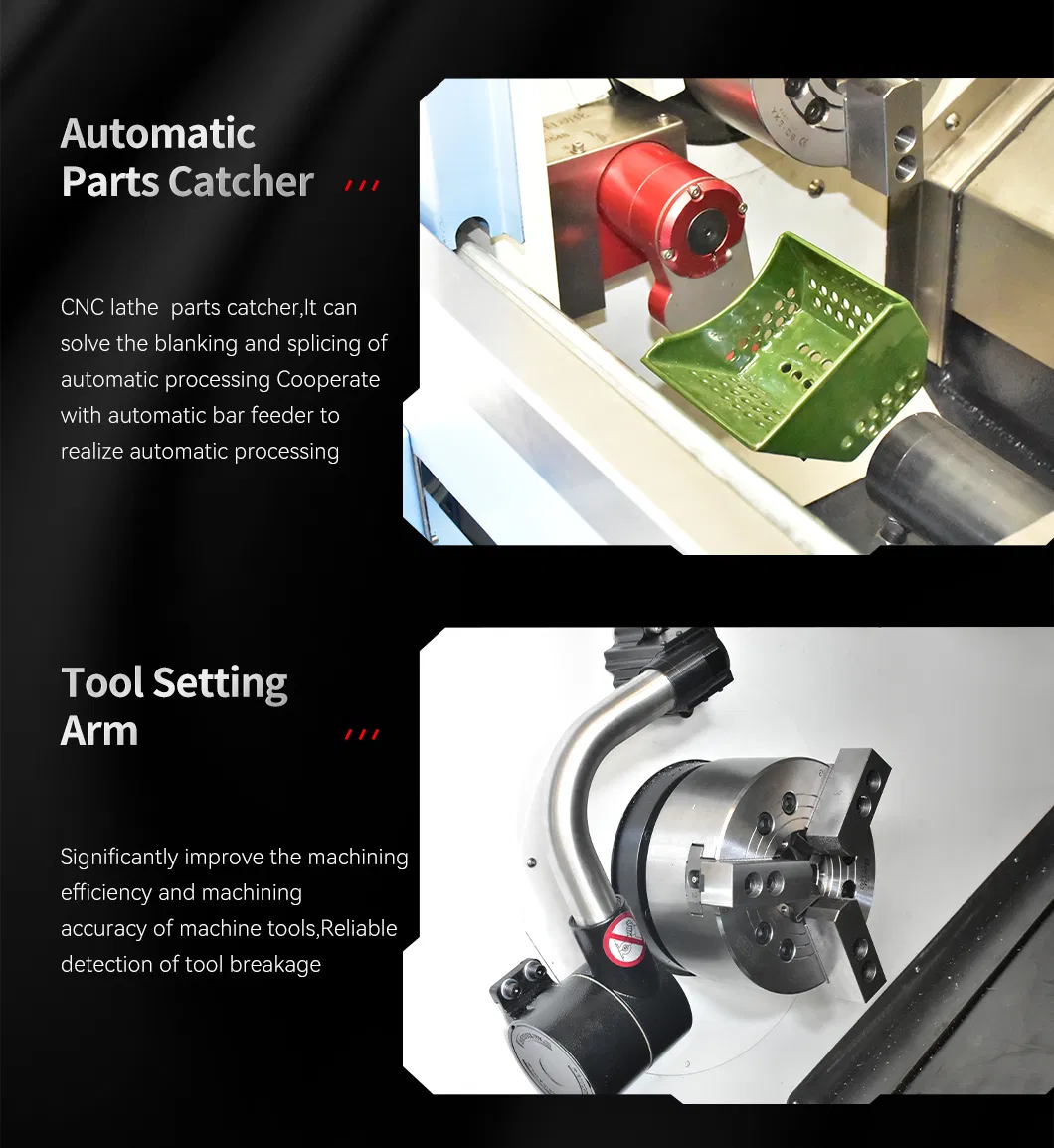

Slant Bed CNC Lathe machine is mainly used for processing all kinds of shaft parts, disk parts. You can turn a variety of threads, arcs, cones and rotary body inside and outside the surface, to meet the ferrous metal and nonferrous metal high-speed cutting speed demand. Suitable for automotive, motorcycle, electronics, aerospace and other industries on the rotary parts for efficient, high-volume, high-precision processing.

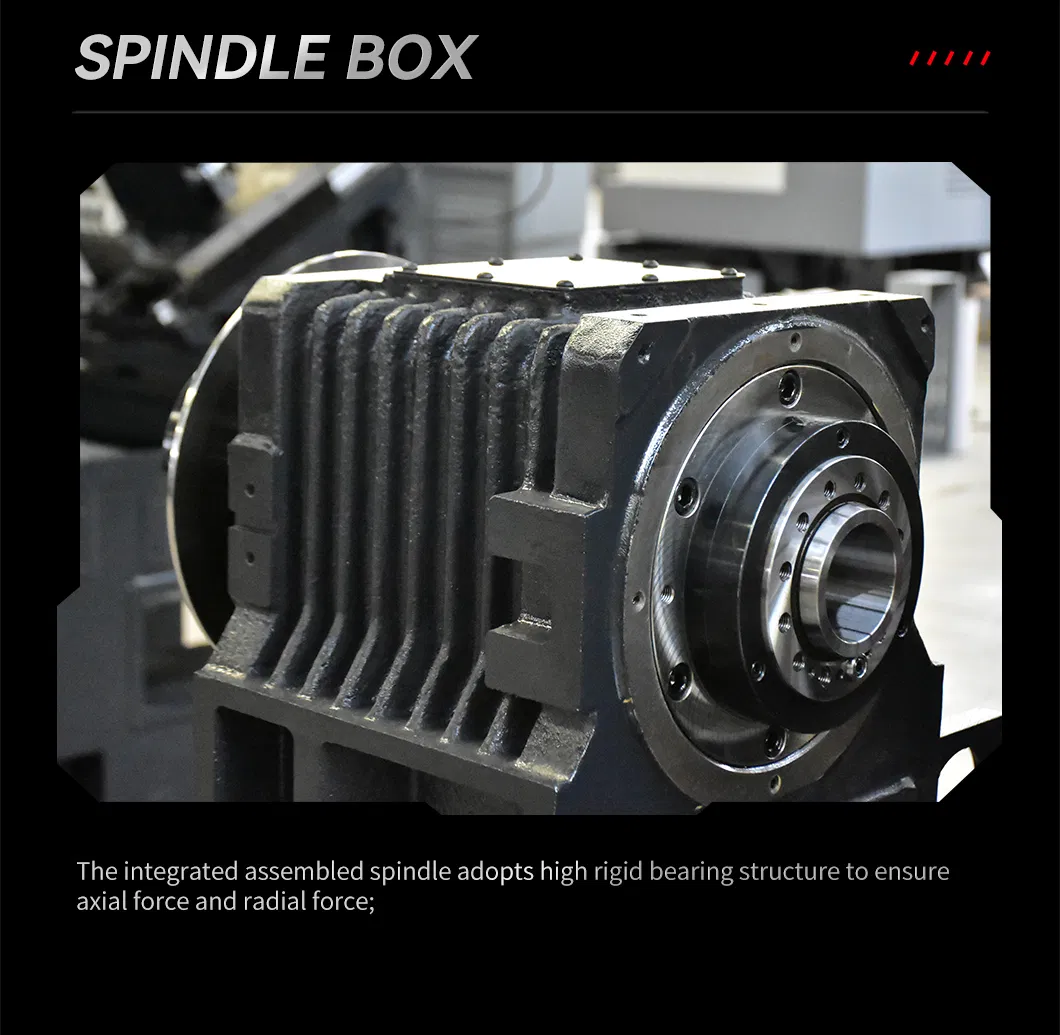

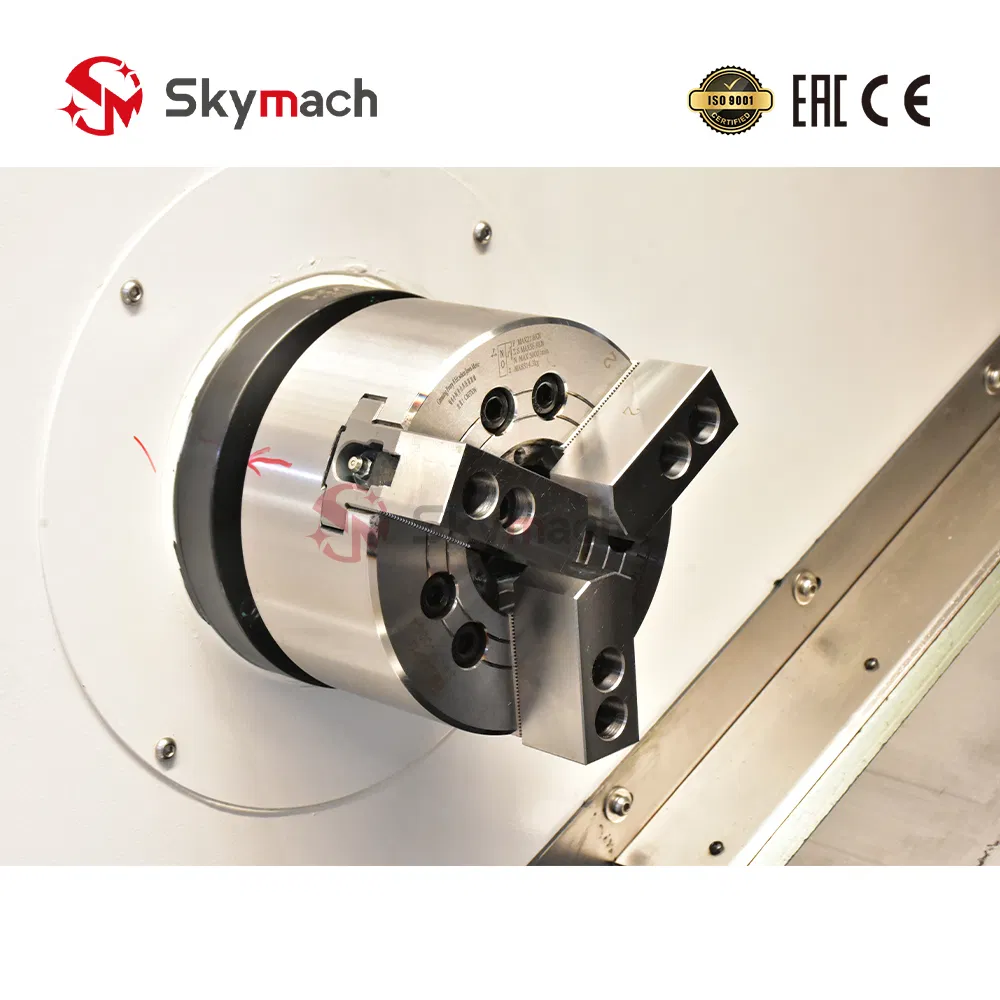

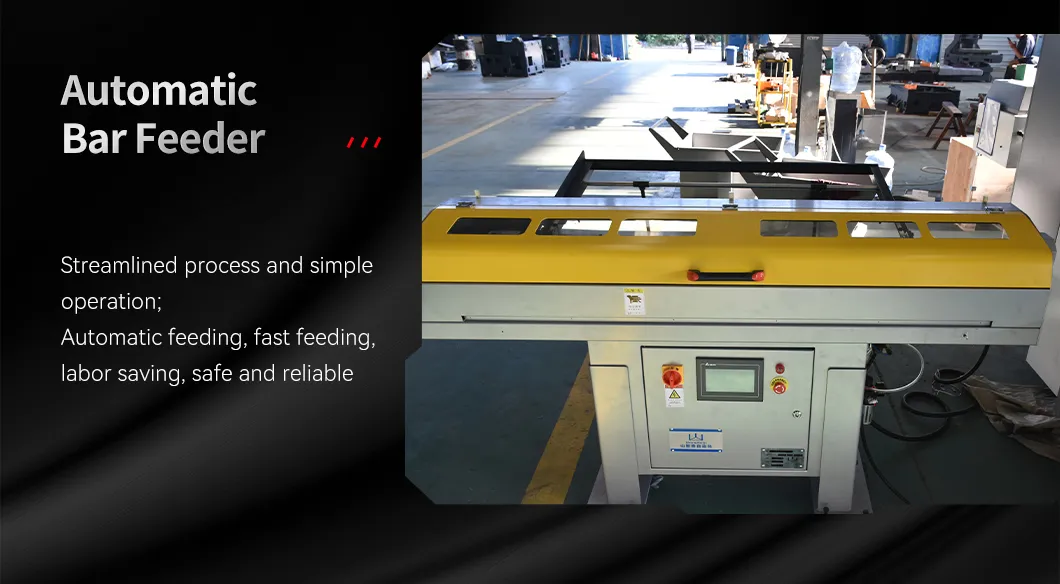

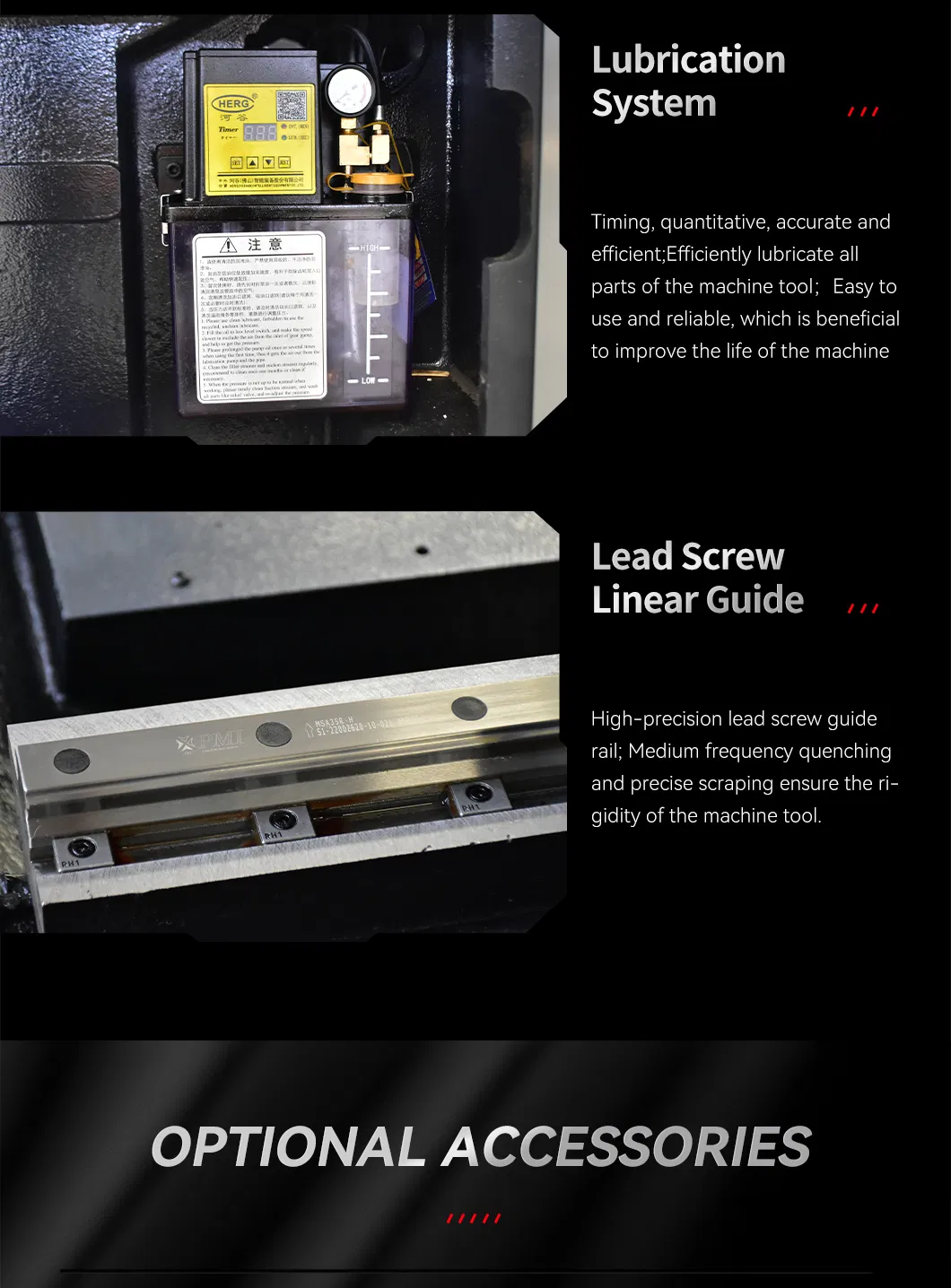

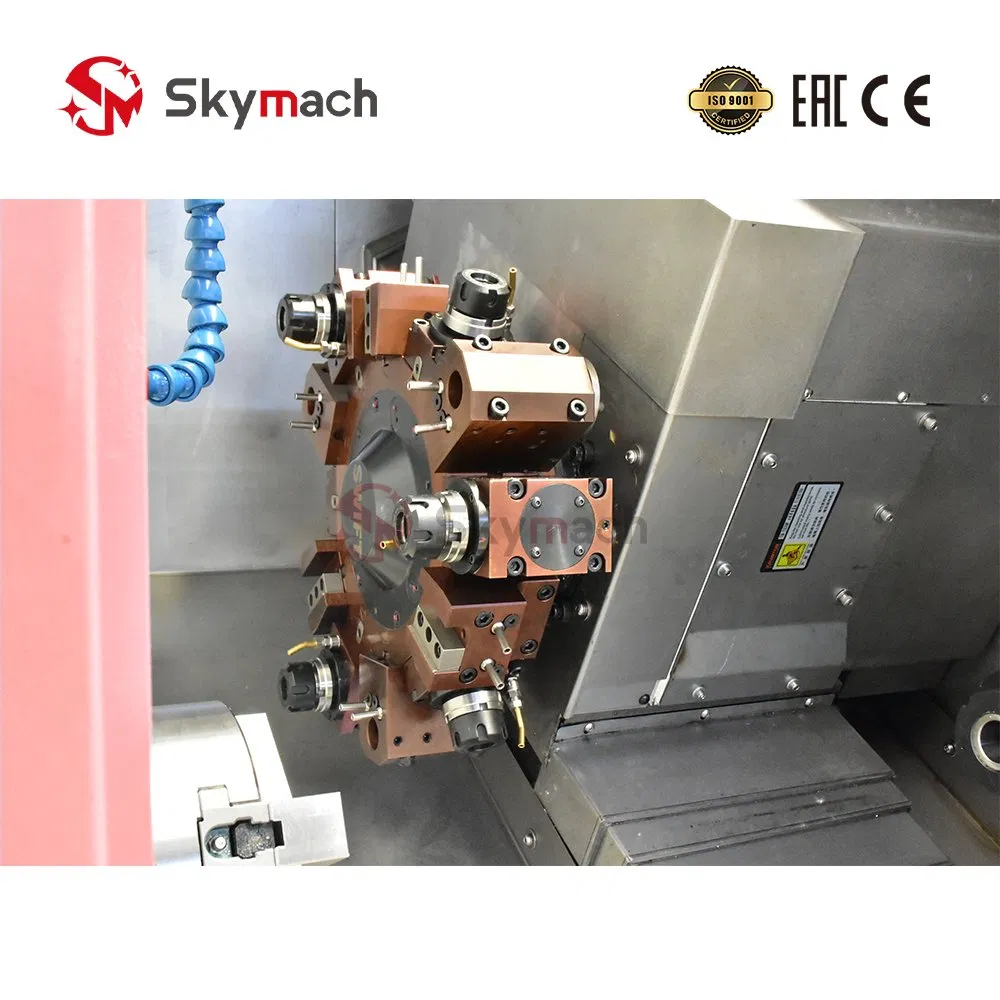

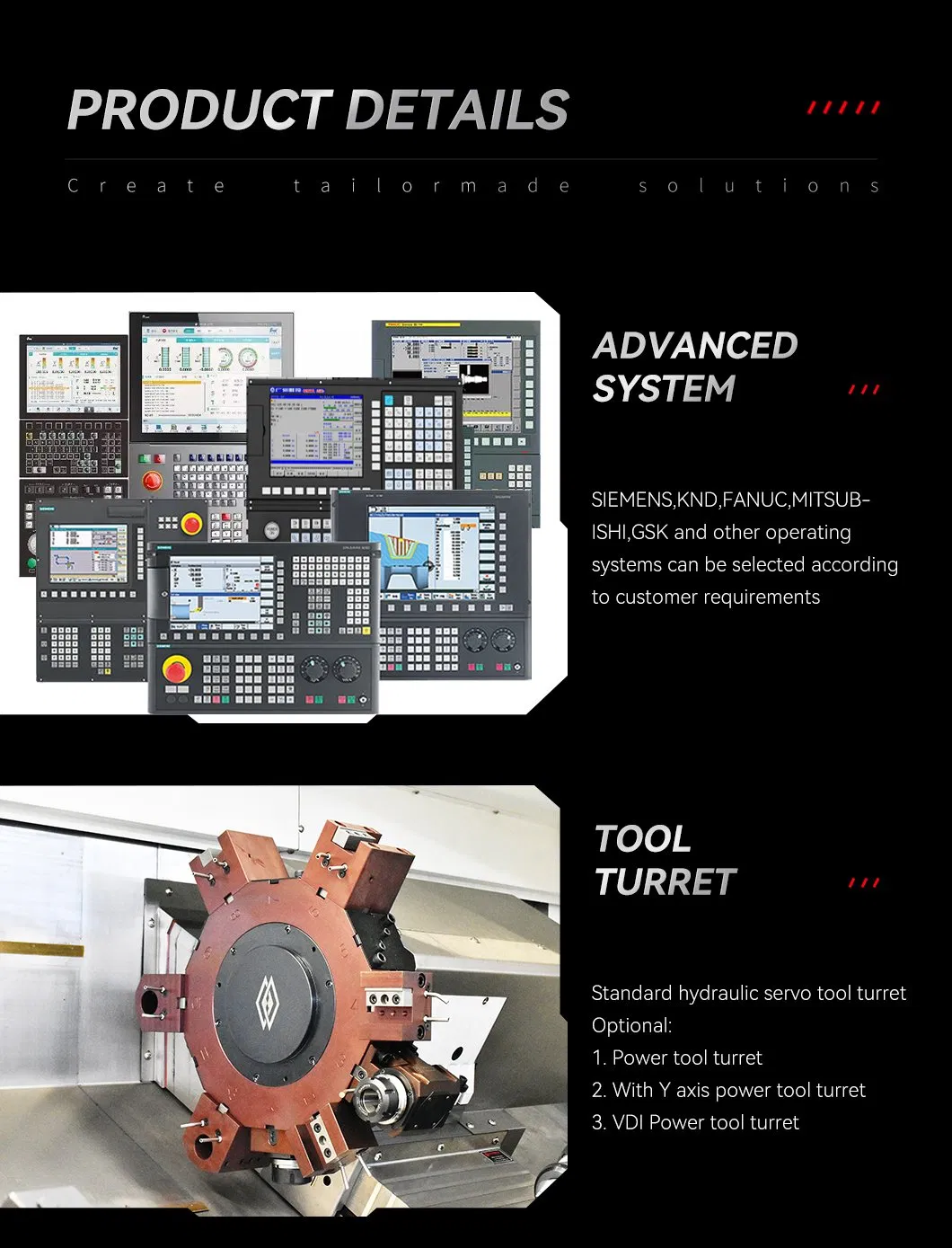

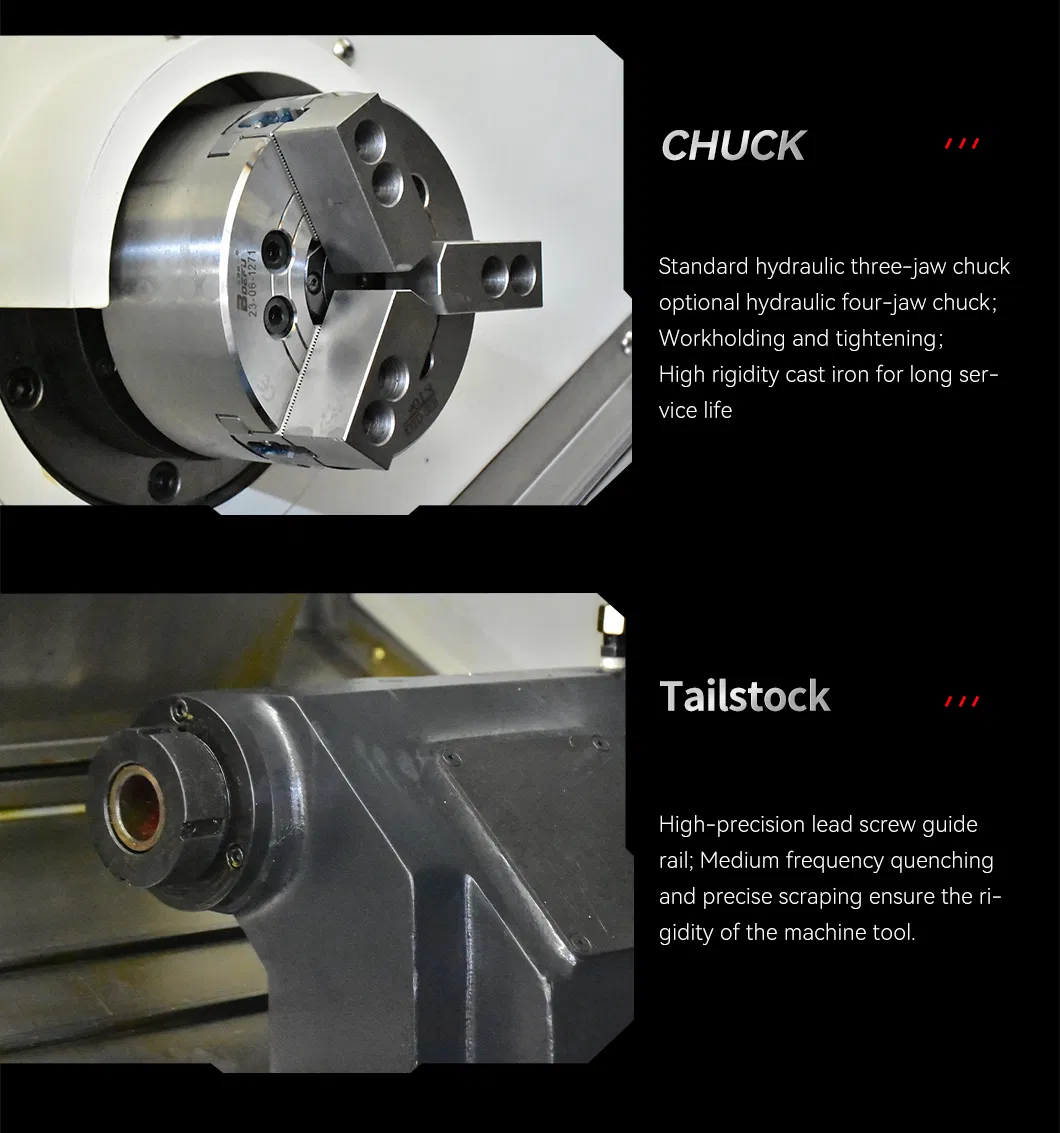

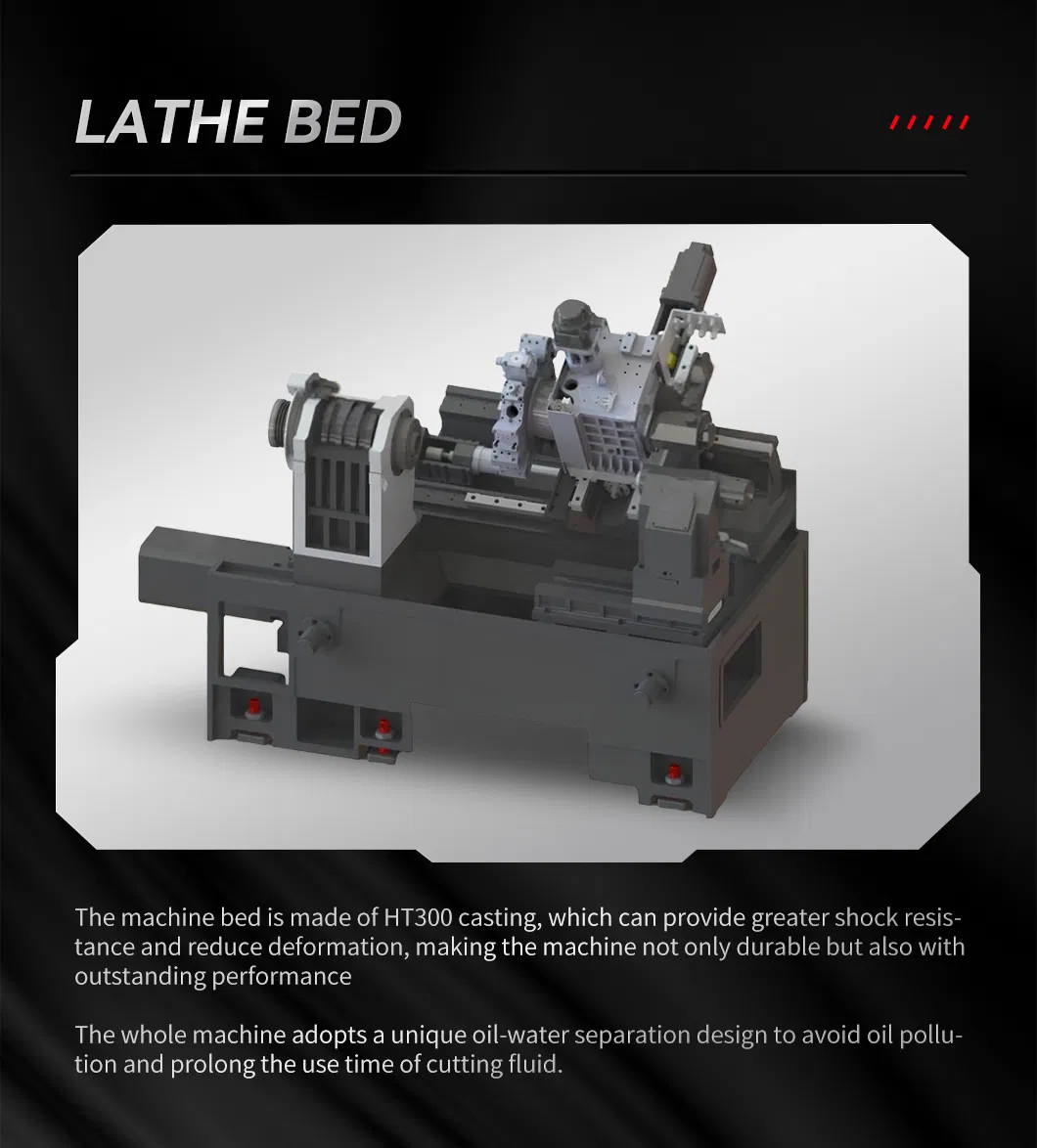

| Specification | Unit | BR-160LDY |
|---|---|---|
| Max. swing diameter over bed | mm | Φ500 |
| Max. machining diameter | mm | Φ400 |
| Max. swing diameter over cross slide | mm | Φ200 |
| Max. processing length | mm | 370 |
| Spindle nose type | - | A2-5 (6″) |
| Spindle motor power | kW | 7.5 |
| Spindle speed | rpm | 4500 |
| Spindle through hole diameter | mm | Φ56 |
| Through the bar diameter | mm | Φ45 |
| X/Z axis lead screw specification | - | 3210/3210 |
| Y axis lead screw specification | - | 2508 |
| X/Z axis linear guide specifications | - | 35/35 |
| Y axis linear guide specifications | mm | 25 |
| X/Z axis limit travel | mm | 210/475 |
| Y axis limit travel | mm | 60(±30) |
| X/Z axis motor torque | N.M | 11/11 |
| Y axis motor torque | N.M | 7 |
| X/Z axis connection type | - | Direct connection |
| Tower turret station | - | 12T Y-axis power tower |
| Power head specification | - | BMT40/ER20 |
| Power head speed | rpm | 4500 |
| Power head motor | kW | 2.5 |
| Power head to motor transmission ratio | - | 1∶1 |
| Tailstock quill diameter | mm | 65 |
| Tailstock quill stroke | mm | 80 |
| Tailstock quill taper | - | MT4 |
| Tailstock stroke | mm | 300 |
| Bed type and inclination | - | Integrated/30° |
| Machine size (L * W * H) | mm | 3700*1980*2200 |
| Weight | kg | 3230 |
