Vacuum Sintering System and Sinteirng Furnaces for Sinter Process

Customization:	Available
After-sales Service:	24 Hours on Line
Warranty:	1 Year

Overview

Model NO. RVS Series

Type Stainless Steel Heating Equipment

Certification CE, ISO

Structure Horizontal Type

Transport Package Sea/Truck Standard Export Packing

Specification As model

Origin China

HS Code 8514101000

Production Capacity 50 sets/Year

Vacuum Sintering System & Sintering Furnaces

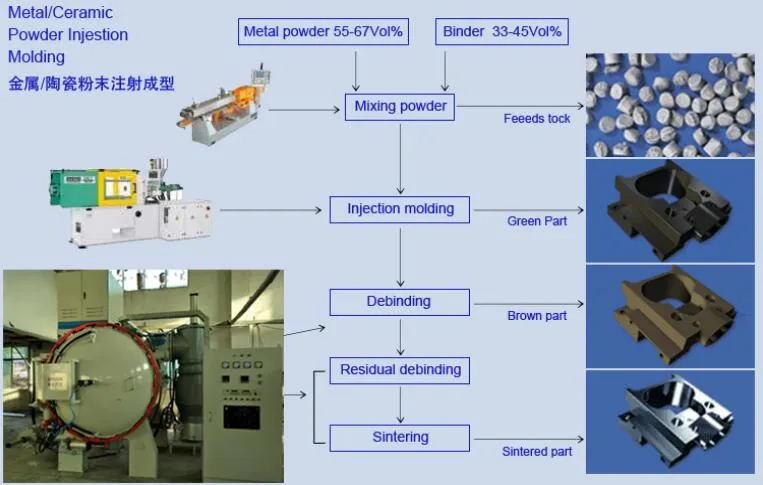

This system is mainly applied for the dewaxing and sintering process of cemented carbide, ceramic, stainless steel, powder metallurgy, iron base, titanium alloy, alloy steel, high-speed steel, and other materials in the MIM (Metal Injection Molding) process.

Specification

Applications

Automotive Industry: Sintering of carbide or cermets cutting and wear tools (e.g. indexable inserts, drills, milling cutters).
Machine Tool Industry: Sintering of carbide cutting and wear tools.
Aerospace Industry: Sintering of cutting and milling tools for composite materials.
Medical Industry: Sintering of fine metal components for joint implants.
Electronic Packaging Industry: Sintering of micro drills or micro cutters made of carbide for printed circuit boards.
Mining/Road Construction/Oil & Gas: Sintering of large drill bits and the hardened edge of demolition and excavation tools.

Vacuum Sintering System and Sintering Furnaces for Sinter Process

Key Configurations

Stainless steel sintering
BAF feedstocks
Sic sintering
B4C sintering
Tungsten carbide

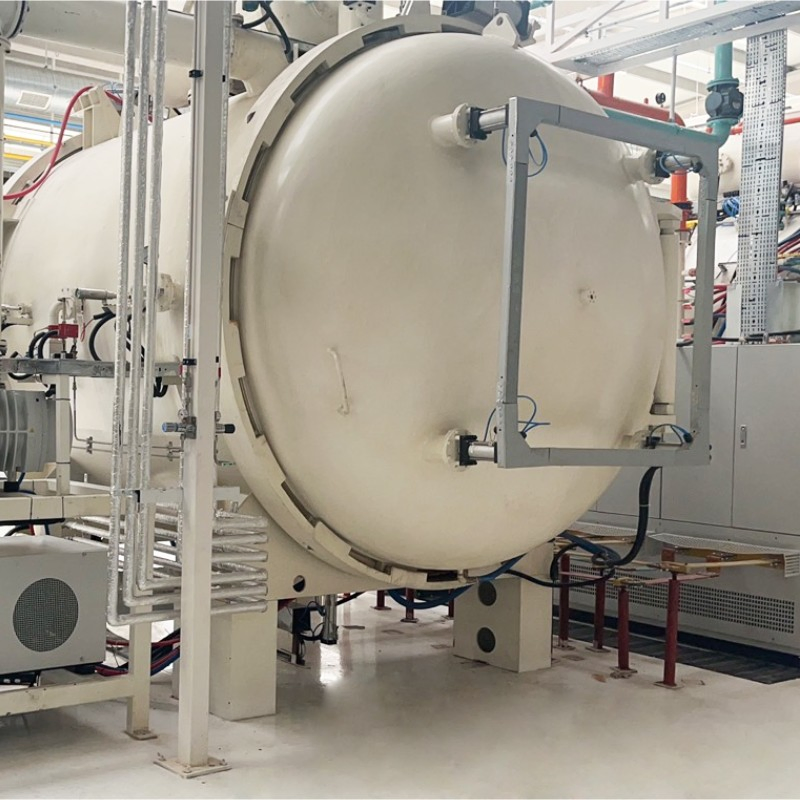

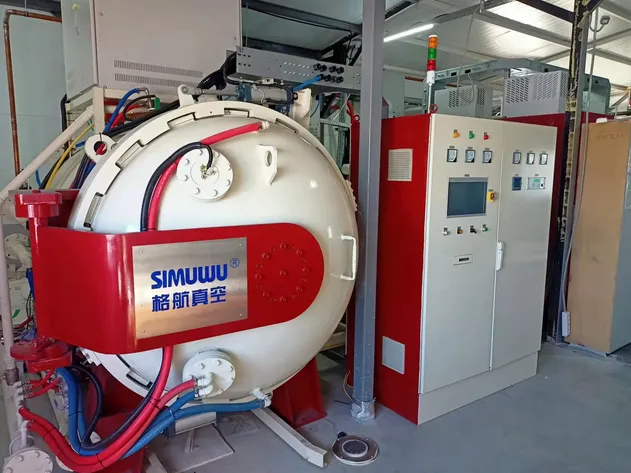

Left View

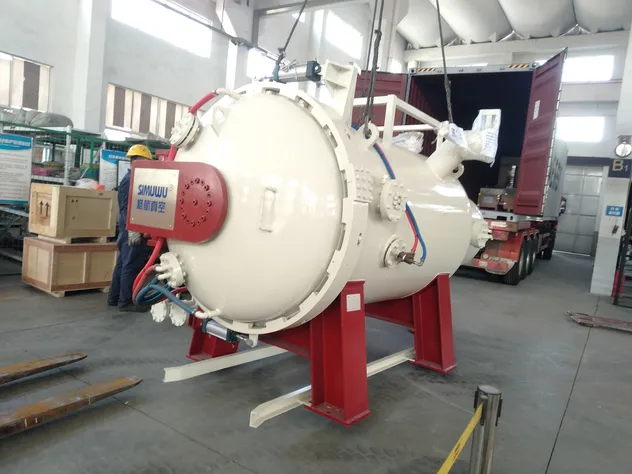

Right View

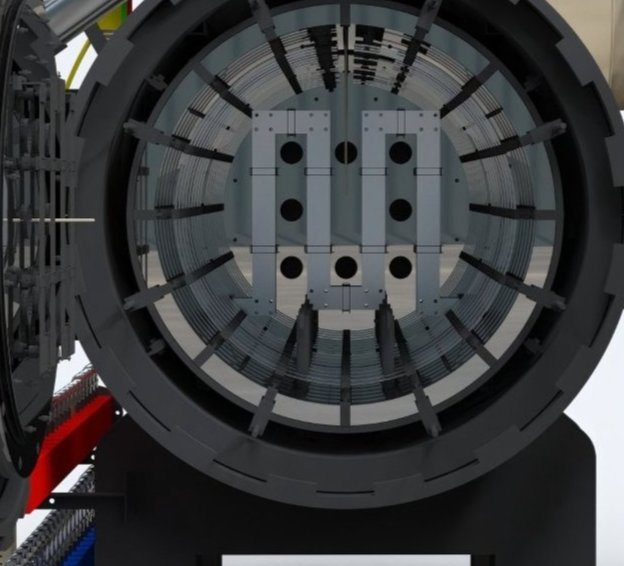

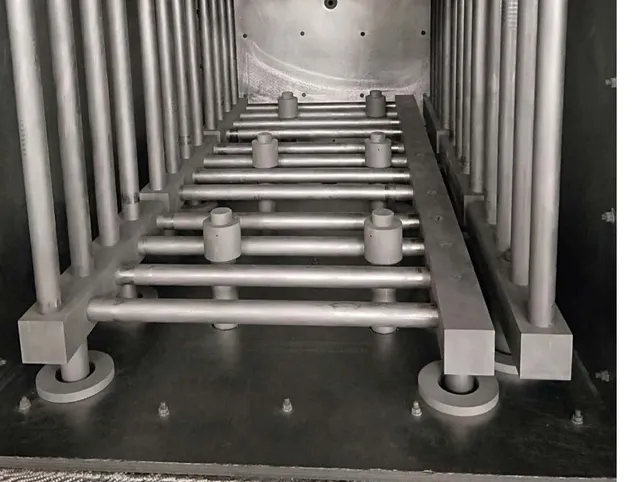

Heating Chamber

Technical Specifications

Customized according to client requirements. Working zone size and vacuum degree can be configured accordingly.

Model	RVS-4411-D	RVS-5512-D	RVS-7710-D
Temperature Uniform Size (mm)	400 * 400 * 1100 mm	500 * 500 * 1200 mm	700 * 700 * 1000 mm
Loading Capacity	300 kgs	500 kgs	800 kgs
MAX Temperature	1300 - 2400 °C	1300 - 2400 °C	1300 - 2400 °C
Cooling Gas Pressure	1.8 bar	1.8 bar	1.8 bar
Vacuum Degree	10-1 Pa	10-1 Pa	10-1 Pa
Temperature Uniformity	±5 °C	±5 °C	±5 °C

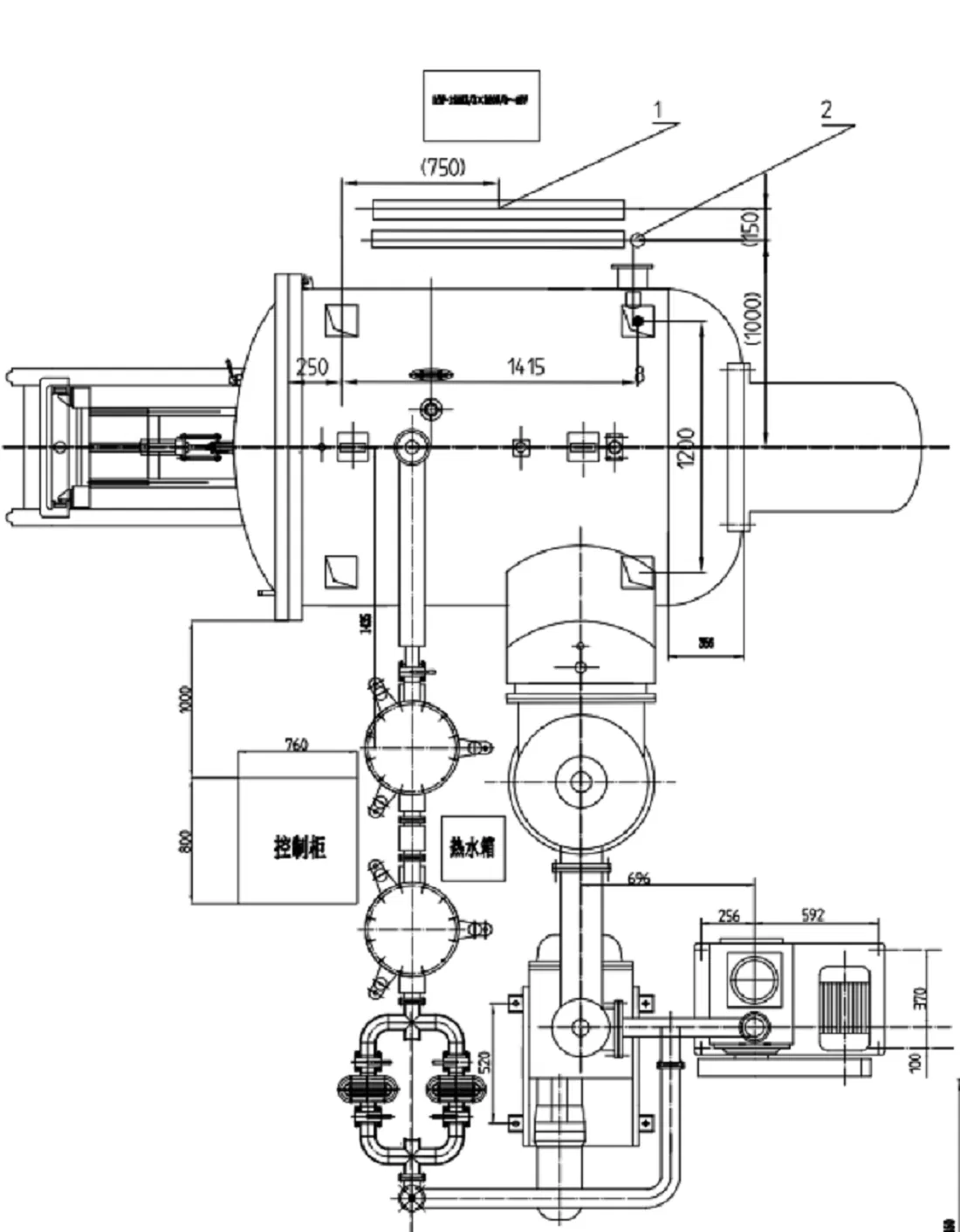

Drawings & Dimensions

The following drawing is for reference purposes:

After Sales Service

Standard Warranty 12 months or after the SAT test report is signed.

Extended Warranty Optional coverage up to 24 months.

Global Support 24/7 technical assistance and spare parts supply.

Training On-site or remote operation and maintenance training.

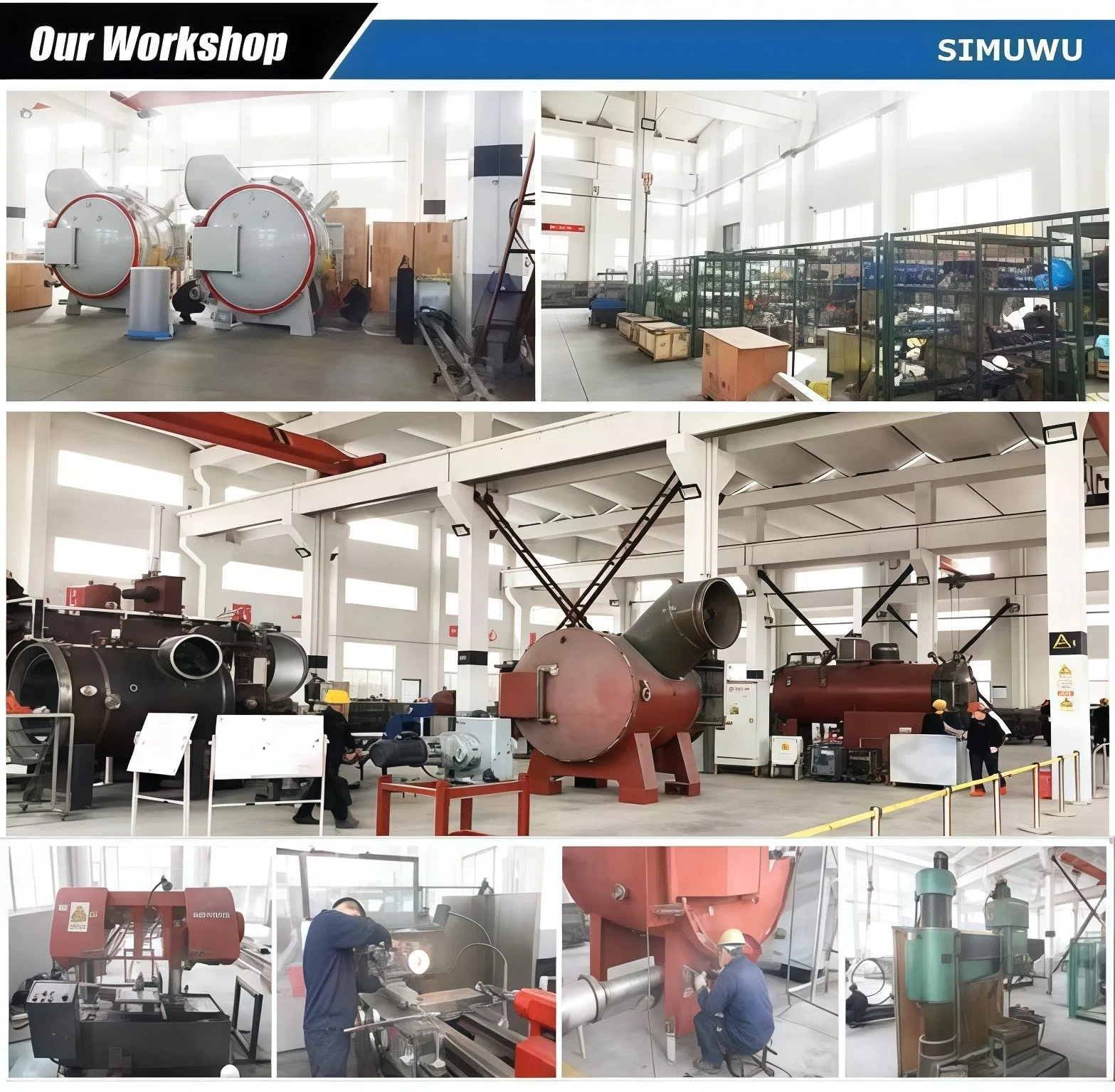

Company Profile

We are a professional manufacturer and supplier specializing in the research, production, and sales of high-performance vacuum equipment. We provide standard and customized premium vacuum systems and services to meet the advanced thermal processing needs of customers around the world.

FAQ

What's the lead time for orders?

For standard models, the lead time is 4-5 months. If a new furnace is in stock, delivery can be arranged within 1 month.

Do you provide after-sales service overseas?

Yes, we have partnered service centers in many countries and regions to provide local support.

Can I request a customized chamber size?

Absolutely! We offer tailored and customized equipment configurations matching your specific load size requirements.

What documents do you provide for export?

We supply a complete export documentation package including the Commercial Invoice, Packing List, Bill of Lading, Certificate of Conformity (COC), and other required regional certificates.

How do I place an order?

Please reach out to us with your process requirements, and we will guide you through the process from specification confirmation to placing an official order.

Are your sintering furnaces certified for global markets?

Yes, all our heating equipment and vacuum systems comply with CE and ISO certifications to meet international safety and performance standards.
