33mm Dts (ejector) Drilling System with Factory Price

Customization:	Available
Customized:	Customized
Length:	Stub-length

Basic Info.

Model NO. 33mm

Type Core Drill Bit

Material Solid Carbide

Usage Metal Drilling

BTA Ejector BTA Drill Head

Inner Hole Diameter 32mm

Insert Method Replaceable

Color White or Black

Guide Pad Indexable

Transport Package International Express

Specification size

Production Capacity 10000

Product Description

33mm DTS (ejector) drilling system with factory price

DTS BTA Deep Hole Drilling Head - BTA DRILL HEAD

Feature: short lead time, high quality, cutting tool body is Aviation pre hardening material!

Production Characteristics

Double Tube BTA Drill Head Ejector System Ejector Drills BTA & Ejector Drills Two Pipe Deep Hole Ejector Drill Double Tube System Ejector and BTA Drill Bits

It's our manufactured S type BTA deep hole drilling head.
It adopts high quality alloy steel material, with super coating inserts.
Carbide guide pads, high efficiency, easy install and low cost.
Widely machining for different material.

Detailed Photos

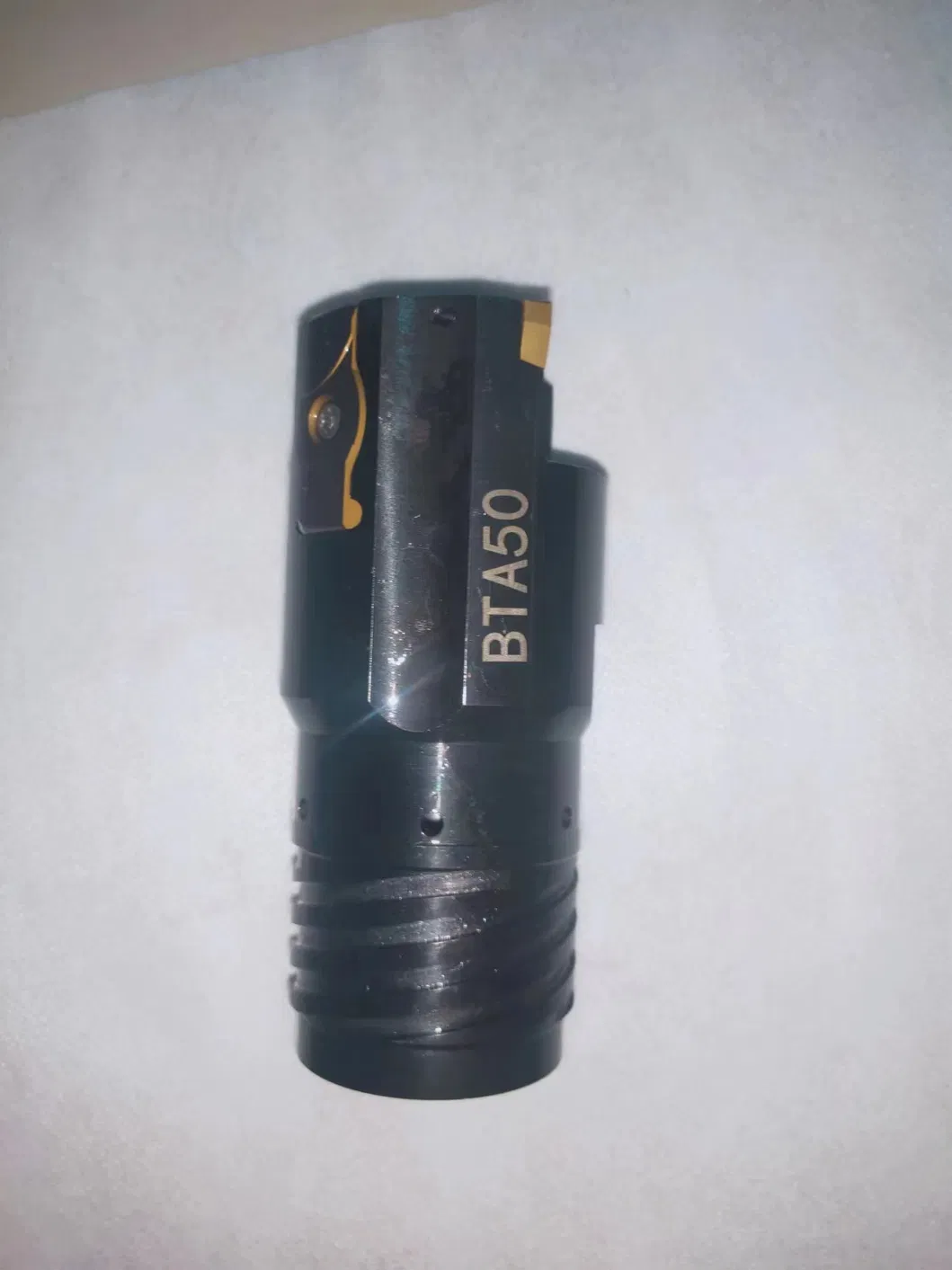

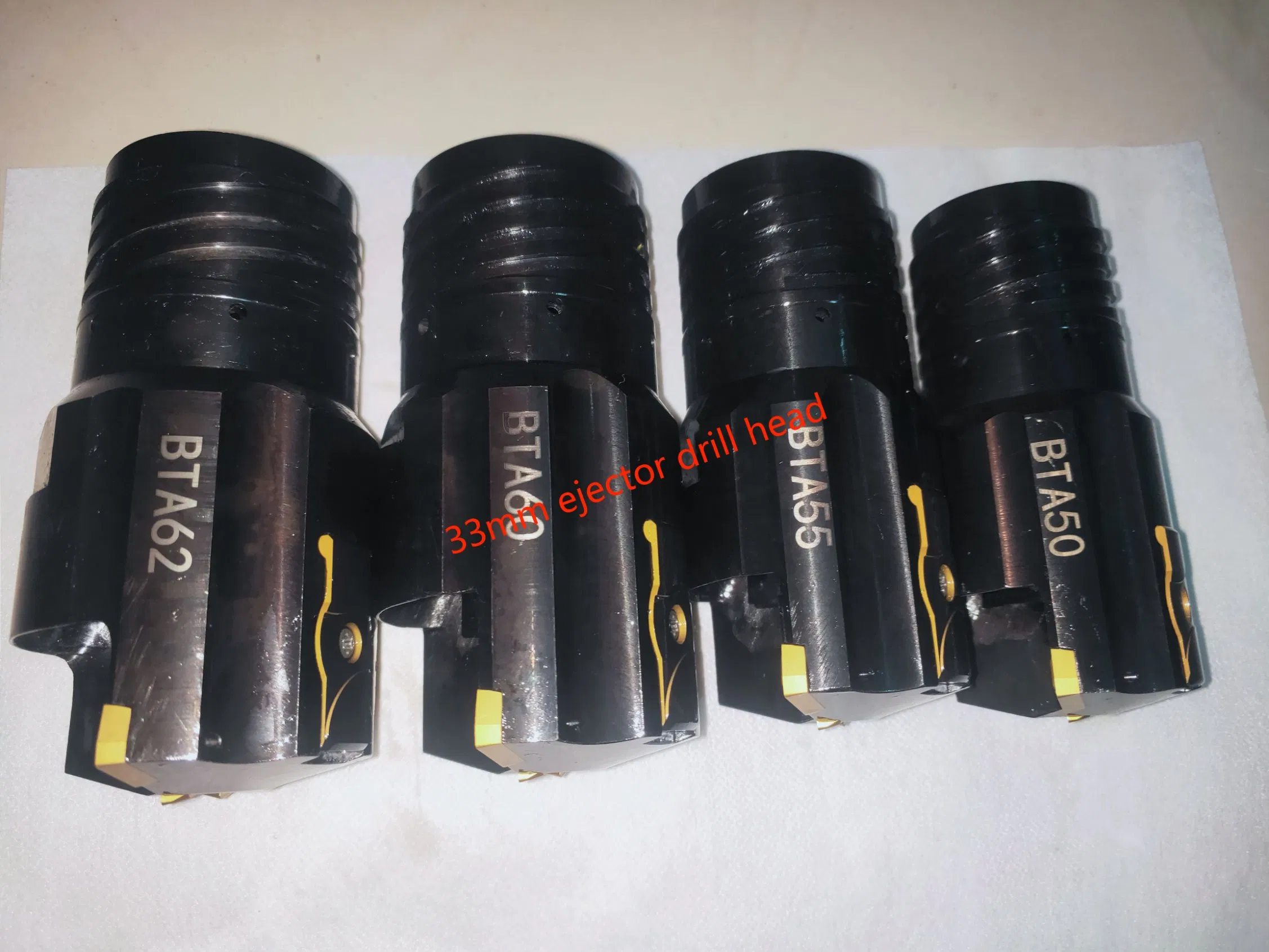

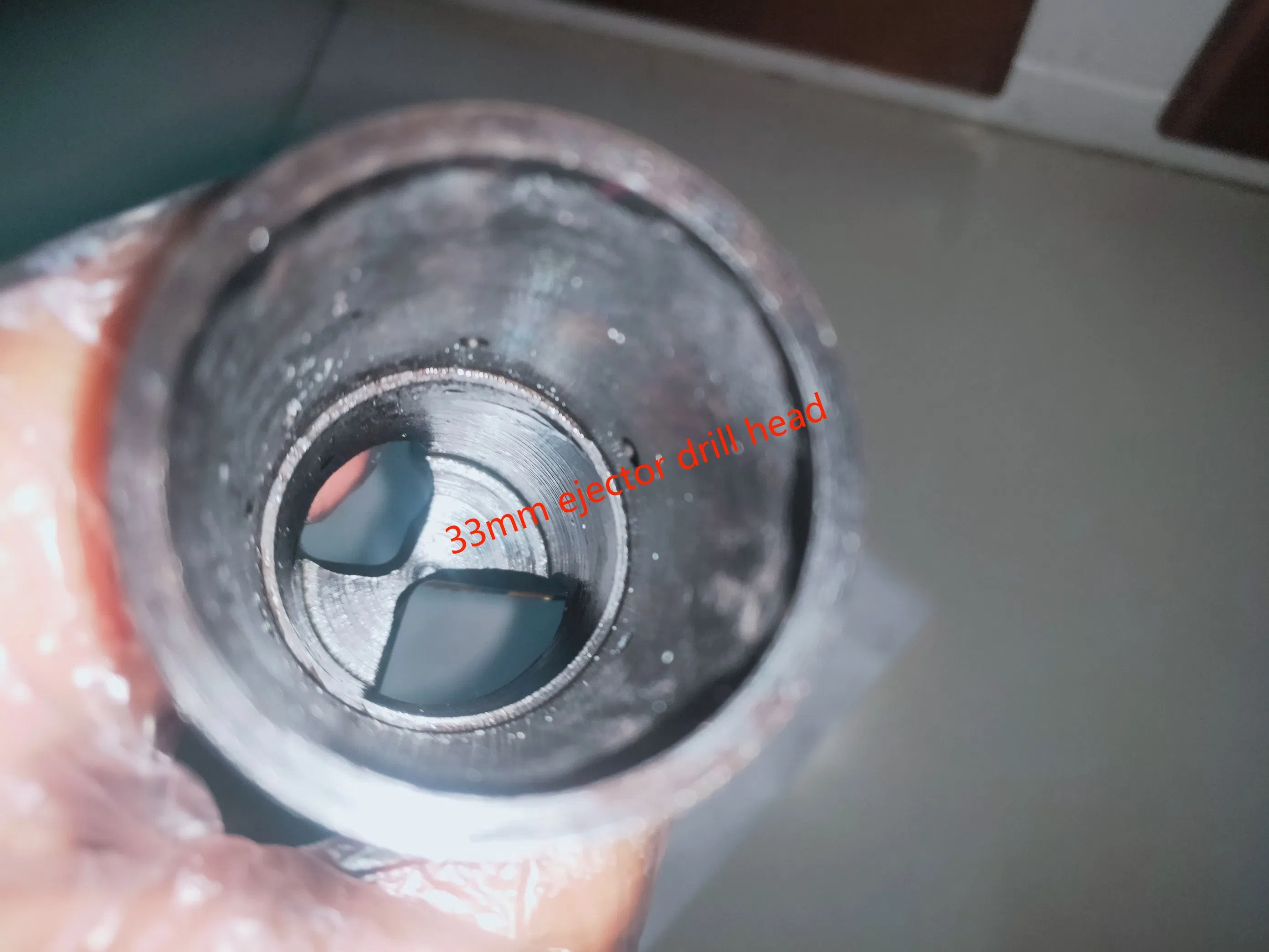

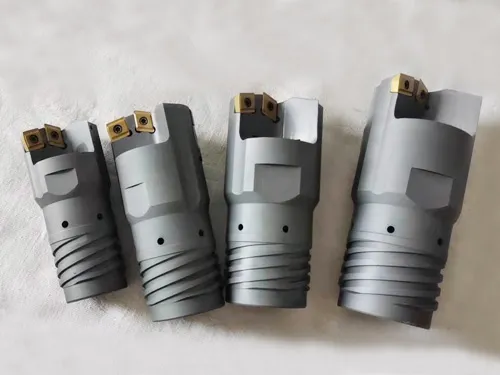

DRILL HEAD

33mm Dts (ejector) Drilling System with Factory Price

Drill bar

Solid carbide guide pad

Inserts

Product Parameters

Example 25-65mm list

Drilling head diameter	Central inserts	Qty	Intermiddle insets	Qty	Peripheral inserts	Qty	Guide pad	Qty
25~28.7	800-050308M-C-G	1	800-050308M-I-G/L	1	800-060308H-P-G/L	1	800-06A	2
28.71~31.00	800-06T308M-C-G	1	800-050308M-I-G/L	1	800-060308H-P-G/L	1	800-06A	2
31.01~33.30	800-06T308M-C-G	1	800-060308M-I-G/L	1	800-08T308H-P-G/L	1	800-07A	2
33.31~36.20	800-08T308M-C-G	1	800-06T308M-I-G/L	1	800-08T308H-P-G/L	1	800-07A	2
36.21~39.6	800-08T308M-C-G	1	800-08T308M-I-G/L	1	800-08T308H-P-G/L	1	800-07A	2
39.61~43	800-08T308M-C-G	1	800-08T308M-I-G/L	1	800-09T308H-P-G/L	1	800-08A	2
43.01~47.00	800-10T308M-C-G	1	800-08T308M-I-G/L	1	800-09T308H-P-G/L	1	800-08A	2
47.01-51.7	800-10T308M-C-G	1	800-08T308M-I-G/L	1	800-11T308H-P-G/L	1	800-10A	2
51.71-56.2	800-10T308M-C-G	1	800-12T308M-I-G/L	1	800-11T308H-P-G/L	1	800-10A	2
56.21-59	800-10T308M-C-G	1	800-12T308M-I-G/L	1	800-11T308H-P-G/L	1	800-12A	2
60-65	800-12T308M-C-G	1	800-12T308M-I-G/L	1	800-11T308H-P-G/L	1	800-12A	2

Frequently Asked Questions

What materials are used to manufacture the DTS BTA drill head body?

The cutting tool body is constructed using high-quality Aviation pre-hardening material and alloy steel, ensuring structural integrity and a long service life under heavy load deep-hole drilling conditions.

How does the insert setup function on this BTA drilling head?

The drilling system utilizes a replaceable insert method, featuring center, intermediate, and peripheral carbide inserts with a super coating layout to optimize chip division and improve drilling efficiency.

What are the benefits of the double tube (ejector) system?

The double tube (ejector) system is designed for high-efficiency deep hole metal drilling. It helps facilitate smoother chip evacuation, easy installation, and lowers overall operational costs.

Are the guide pads indexable?

Yes, this drilling head features indexable solid carbide guide pads, which provide robust guide support, maintain drilling accuracy, and are easily replaceable when worn.

What size ranges does this drilling head system support?

The standard model featured is 33mm (with a 32mm inner hole diameter). The parameter grid supports configurations ranging from 25mm up to 65mm to match various drilling machine requirements.
