| Product Details | |
|---|---|

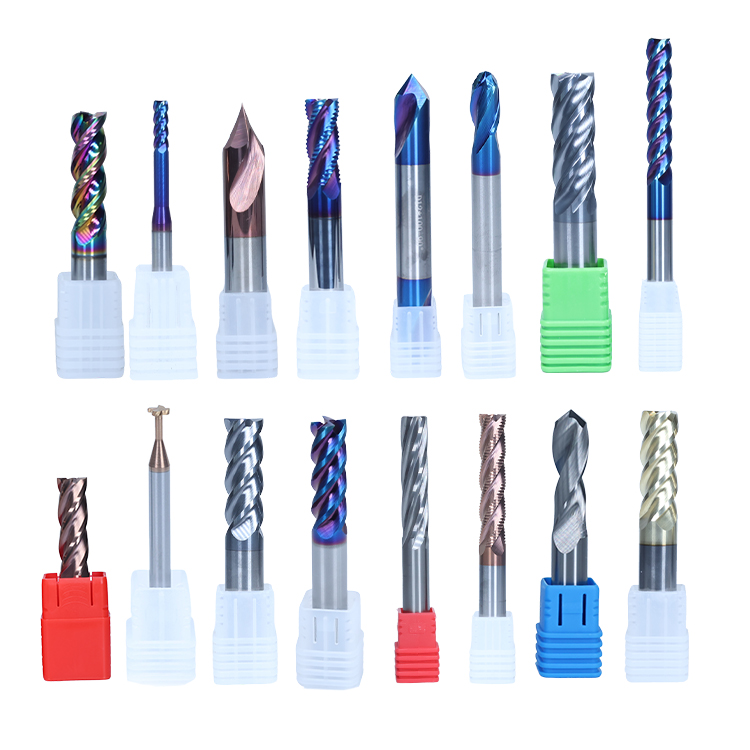

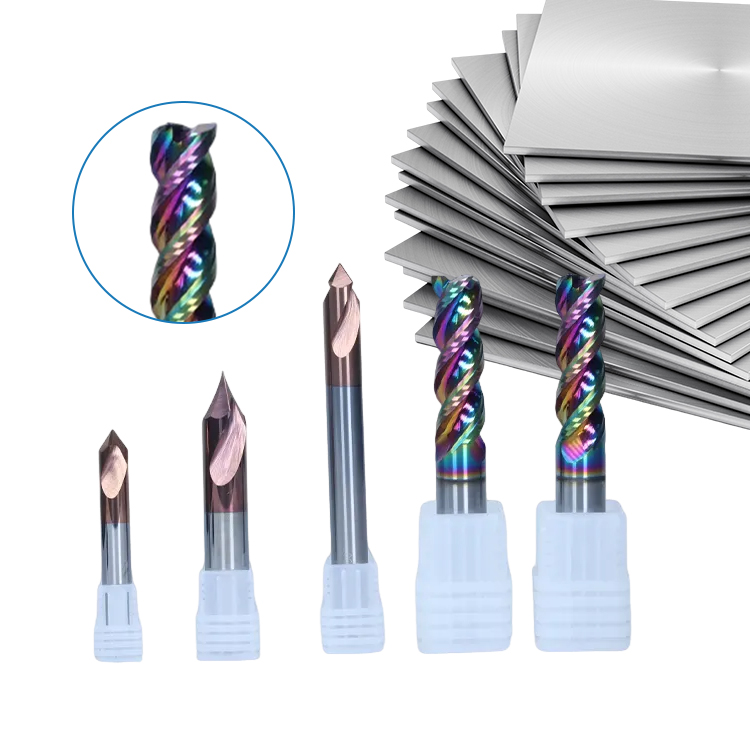

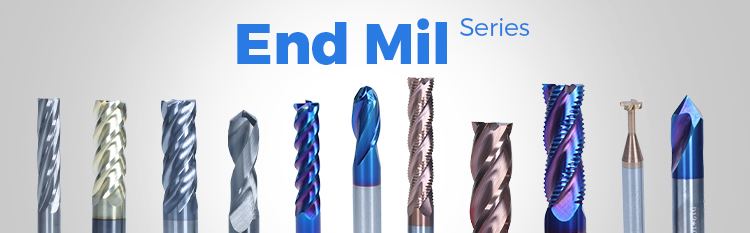

| Product Name | HRC45 HRC55 HRC65 4 Flute Flat Fresa End Mill |
| Material | Tungsten carbide |
| Model | Standard or your requirement |
| Flutes | 2/3/4 flutes |

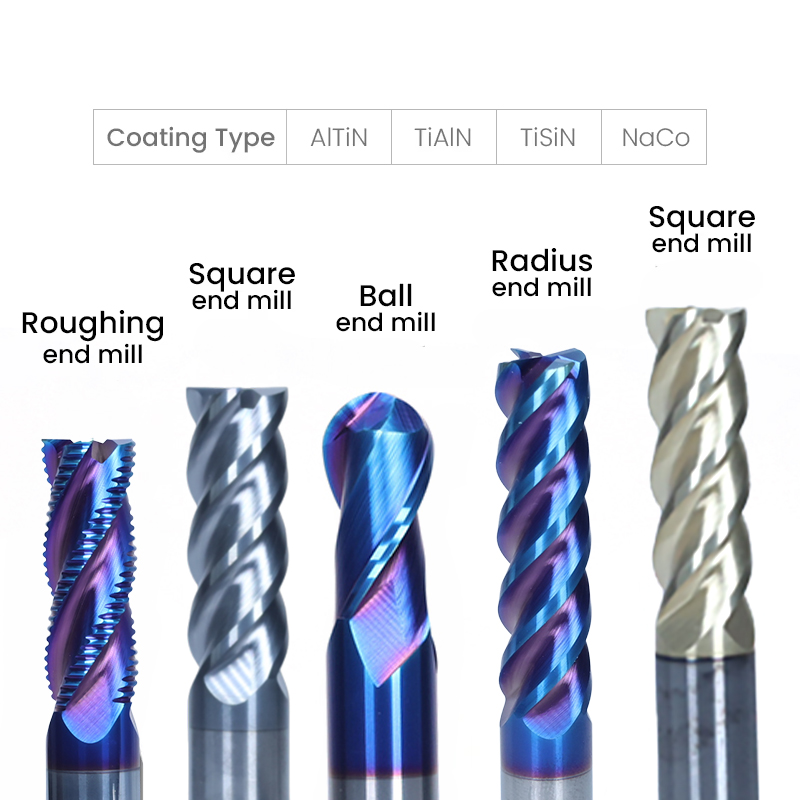

| Coating | AlTiN, TiAlN, TiSiN, TiN, Nano blue, DLC or your requirement |
| Standard | ISO |
| HRC | 45/55/60/65 |
| Shank Diameter | 1mm~20mm |
| Overall Length | 50mm-200mm |
| Helix Angle | 30/35/45 degree |
| Application | Cast iron, mould steel, carbon, alloy steel, copper, aluminium etc |
| Machine Type | CNC machine, engraving machine, etc |
| Specification | Flute Dia(φ) | Flute Length (C) | Shank Dia(D) | Overall Length(L) |
|---|---|---|---|---|
| Φ1x3Cx4x50L | 1.0 | 3 | 4 | 50 |
| Φ2x6Cx4x50L | 2.0 | 6 | 4 | 50 |
| Φ3x8Cx4x50L | 3.0 | 8 | 4 | 50 |
| Φ4x10Cx4x50L | 4.0 | 10 | 4 | 50 |
| Φ5x13Cx6x50L | 5.0 | 13 | 6 | 50 |
| Φ6x15Cx6x50L | 6.0 | 15 | 6 | 50 |
| Φ8x20Cx8x60L | 8.0 | 20 | 8 | 60 |
| Φ6x20Cx6x75L | 6.0 | 20 | 6 | 75 |
| Φ8x25Cx8x75L | 8.0 | 25 | 8 | 75 |
| Φ10x25Cx10x75L | 10.0 | 25 | 10 | 75 |
| Φ12x30Cx12x75L | 12.0 | 30 | 12 | 75 |
| Φ10x40Cx10x100L | 10.0 | 40 | 10 | 100 |
| Φ12x45Cx12x100L | 12.0 | 45 | 12 | 100 |
| Φ14x40Cx14x100L | 14.0 | 40 | 14 | 100 |
| Φ16x40Cx16x100L | 16.0 | 40 | 16 | 100 |
| Φ18x40Cx18x100L | 18.0 | 40 | 18 | 100 |
| Φ20x45Cx20x100L | 20.0 | 45 | 20 | 100 |
Tips: The above specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 4F, 5F, 6F, 8F and the logo could be customized. (Unit: mm)
Q1: What is the delivery time for production?
Usually you can receive the products in 10-15 working days, it depends on the availability of stock and the distance.
Q2: Are you a factory or trading company?

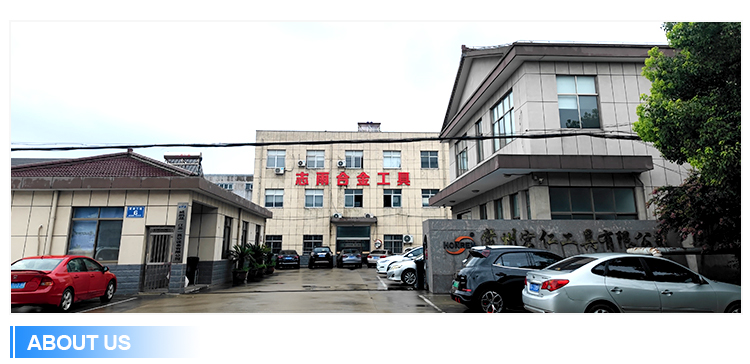

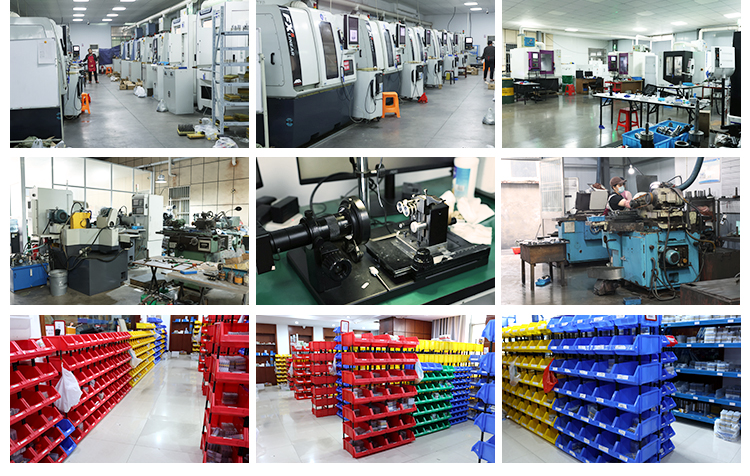

We are a factory and trading company, owning 2 different factories with 100 workers in total. Welcome to visit our factory.
Q3: How about the Shipping Method?
DHL/UPS/TNT/Fedex and other air shipments and sea shipments are all workable. In a word, we could do any shipments you wanted.
Q4: How to place an order?
1. Fill your Order List in our online Inquiry System.
2. Directly contact our sales team.
We will respond to you ASAP after receiving your order list.
Q5: What is your payment terms?
T/T, Paypal, Western Union, Alibaba assurance for different circumstances.
Q6: Do you offer OEM?
Yes, we do. We have laser machines to engrave your logo and tool specifications on the body of tools. Also, we can print customized designs on plastic boxes.
