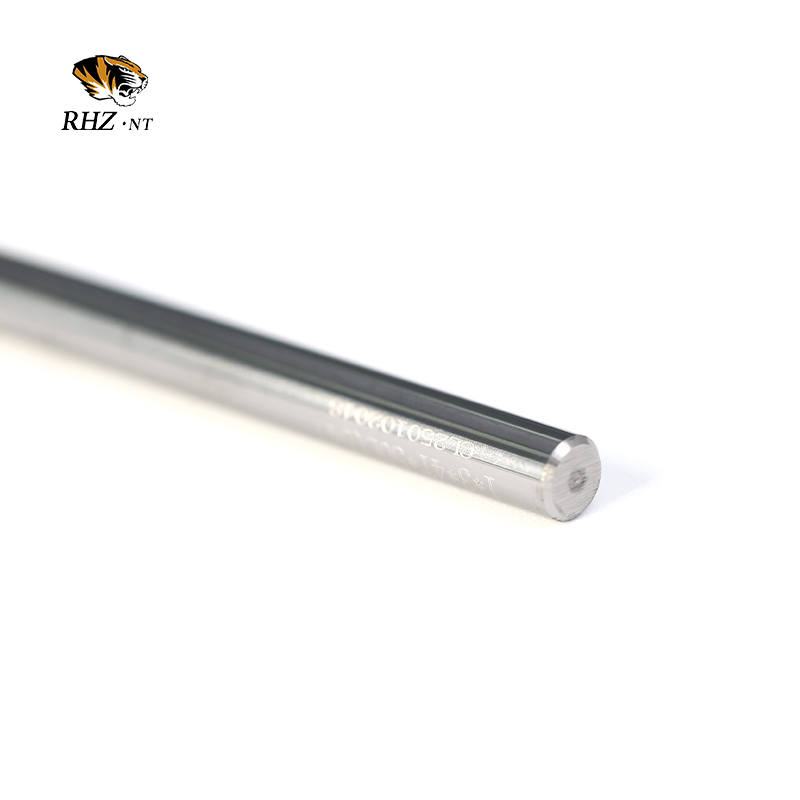

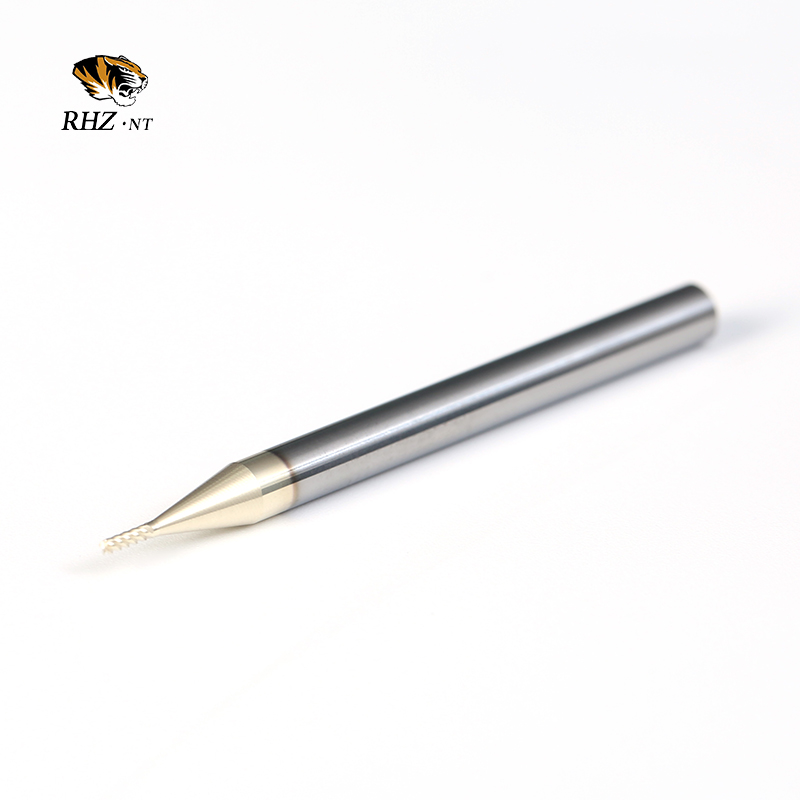

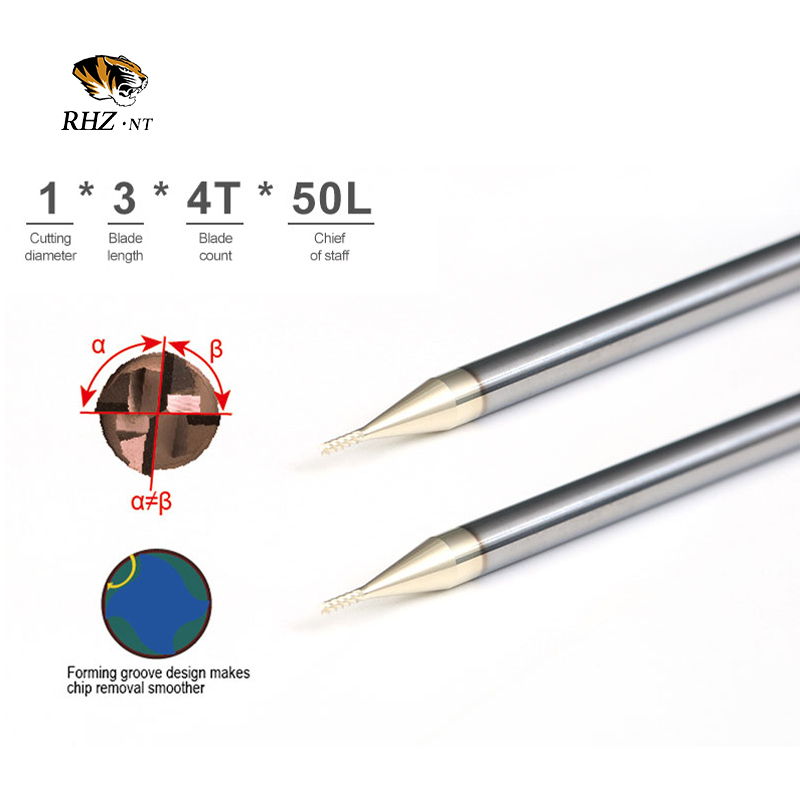

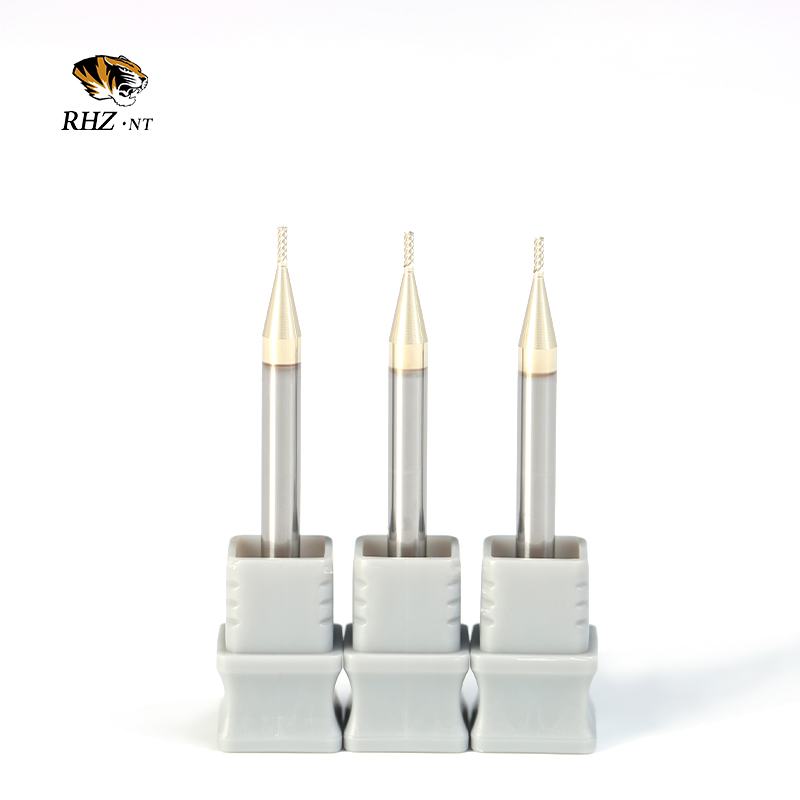

Factory Customization ODM/OEM 35 Helix Angle 4 Flutes Carbide Flat End Milling Cutter for Heat Resistant Alloys

Product Description

Product Presentation Banner

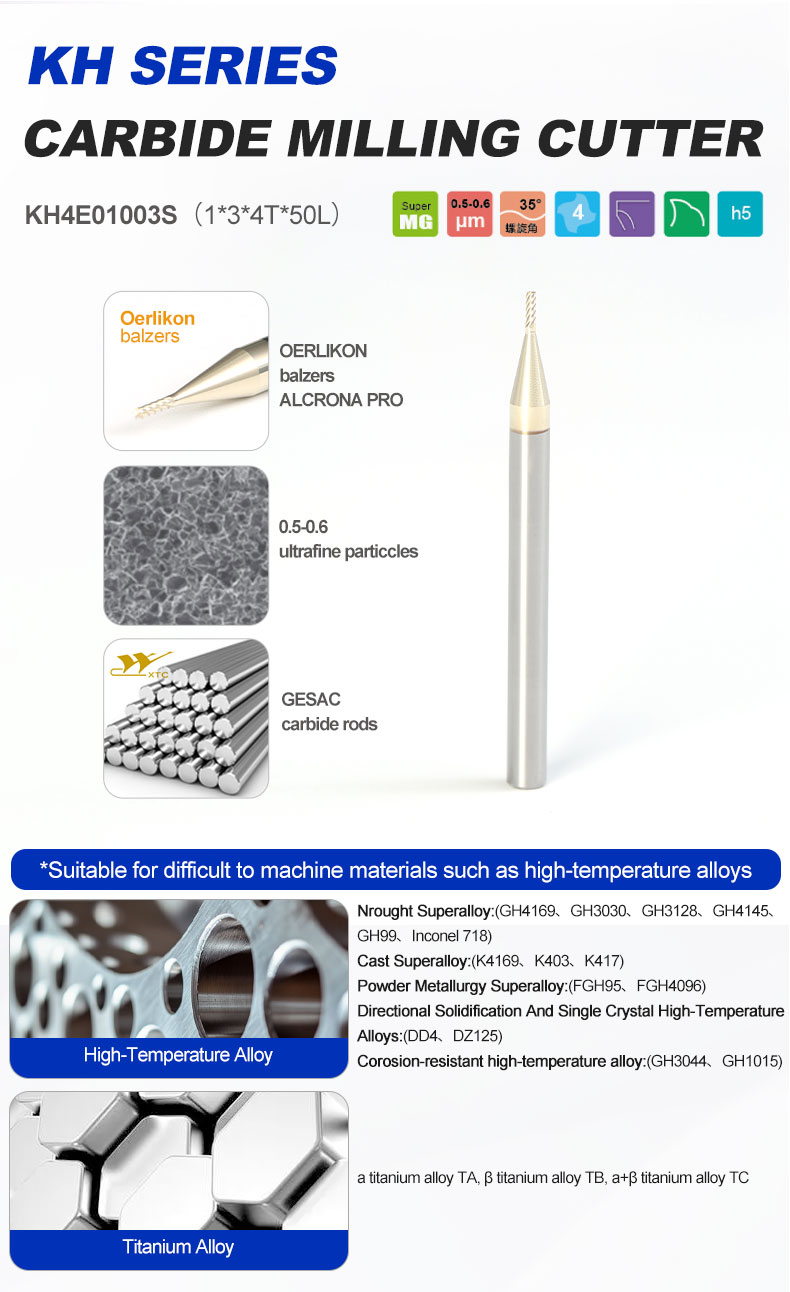

Product Detail 1

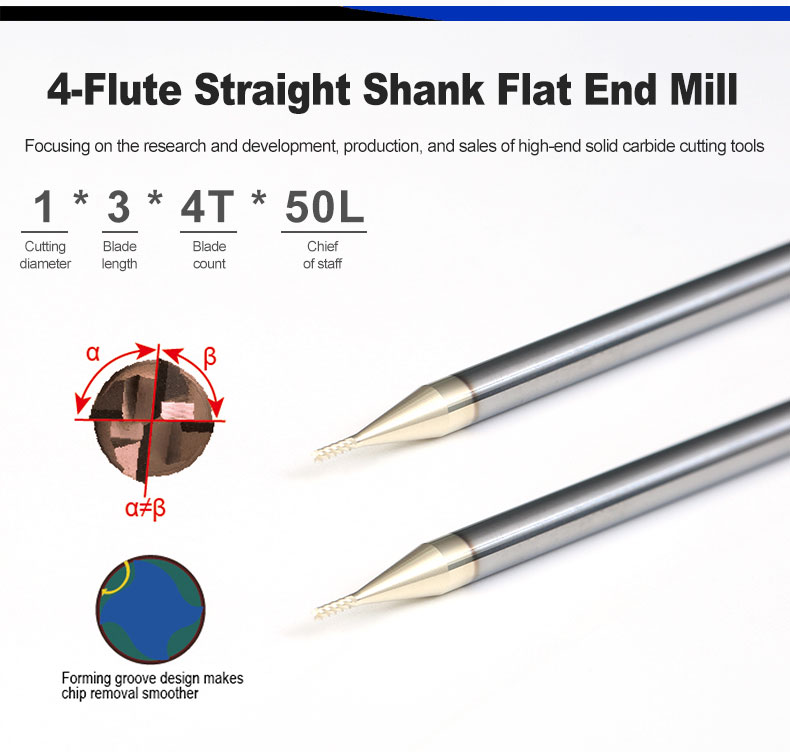

Product Detail 2
Product Detail 3
Technical Specifications
Material Carbide
Coating TiSin+X
HRC 30/50
Warranty 1 years
Customized support OEM & ODM
Model number KH4E01003S
Flute 4-Flute

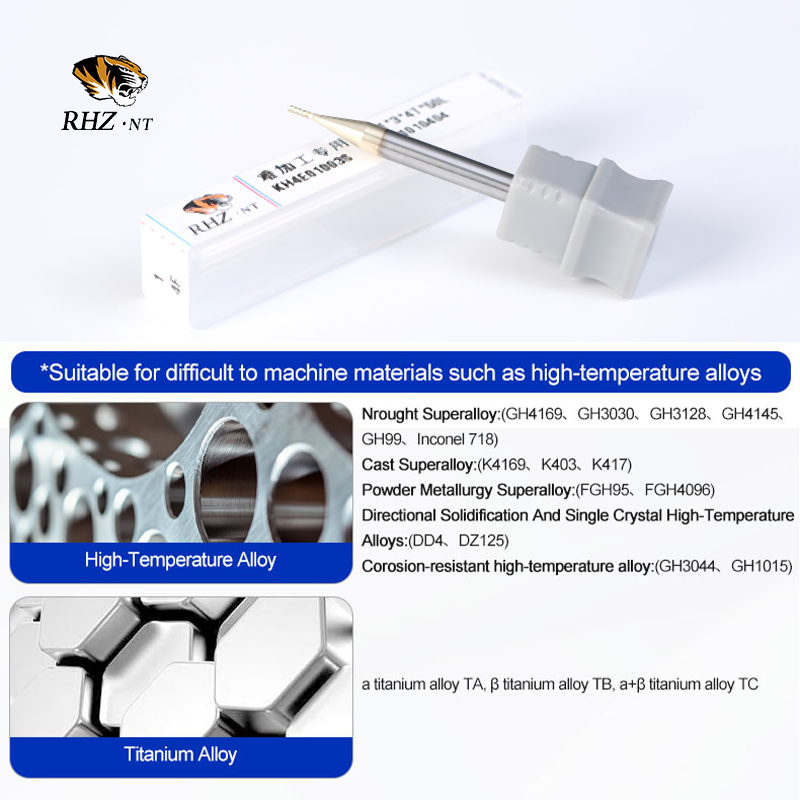

Suitable for High temperature alloy / Wrought Superalloy / Cast superalloy / Powder Metallurgy superalloy / Directional solidification & single crystal high temperature alloys
Packing 1pcs / Plastic Box
Transport DHL international express, SF Express
Diameter 4mm
Overall length 50mm
Blade Diameter 1mm
Type End Mill
Basic selling method Sale by piece
MOQ 1 Piece

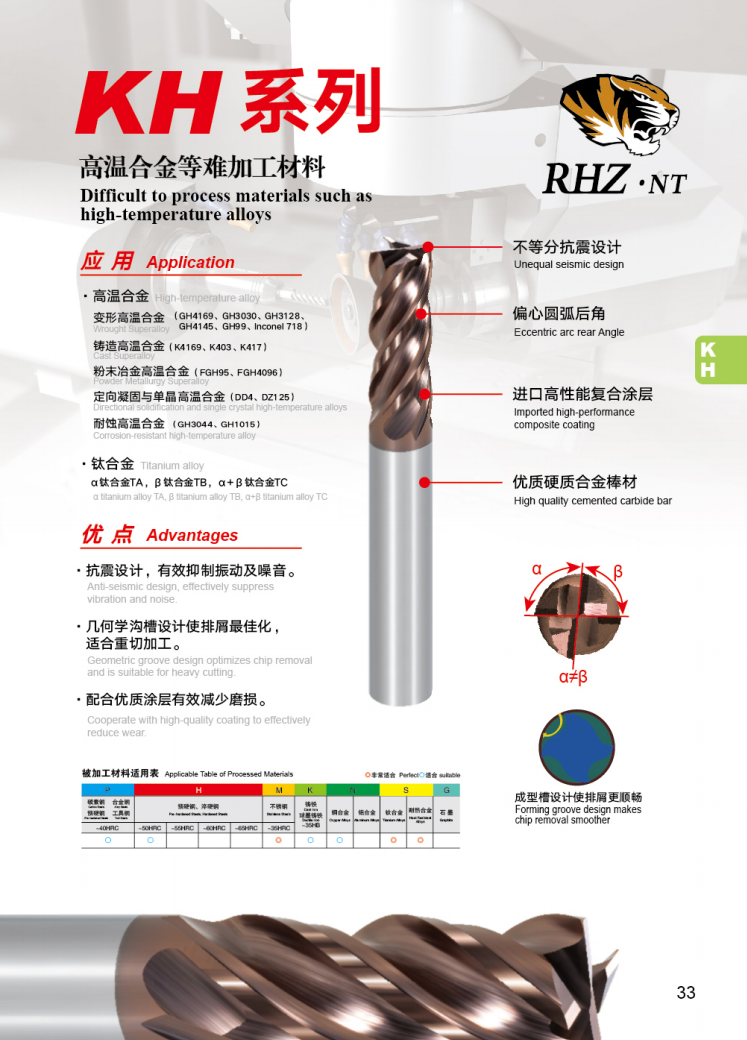

Technical Drawing Specifications
Standard Length & Dimensions Model List
Specifications D (mm) d (mm) H (mm) L (mm) Illustration
KH4E01003S1.04.03.050.0Figure 1
KH4E01504S1.54.04.050.0Figure 1
KH4E02006S2.04.06.050.0Figure 1
KH4E02508S2.54.08.050.0Figure 1
KH4E03008S3.04.08.050.0Figure 1
KH4E03510S3.54.010.050.0Figure 1
KH4E04011S4.04.011.050.0Figure 2
KH4E050135.06.013.050.0Figure 1
KH4E060166.06.016.050.0Figure 2
KH4E080208.08.020.060.0Figure 2
KH4E1002510.010.025.075.0Figure 2
KH4E1203012.012.030.075.0Figure 2
KH4E1404014.014.040.0100.0Figure 2
KH4E1604516.016.045.0100.0Figure 2
KH4E2004520.020.045.0100.0Figure 2
KH4E2505025.025.050.0110.0Figure 2

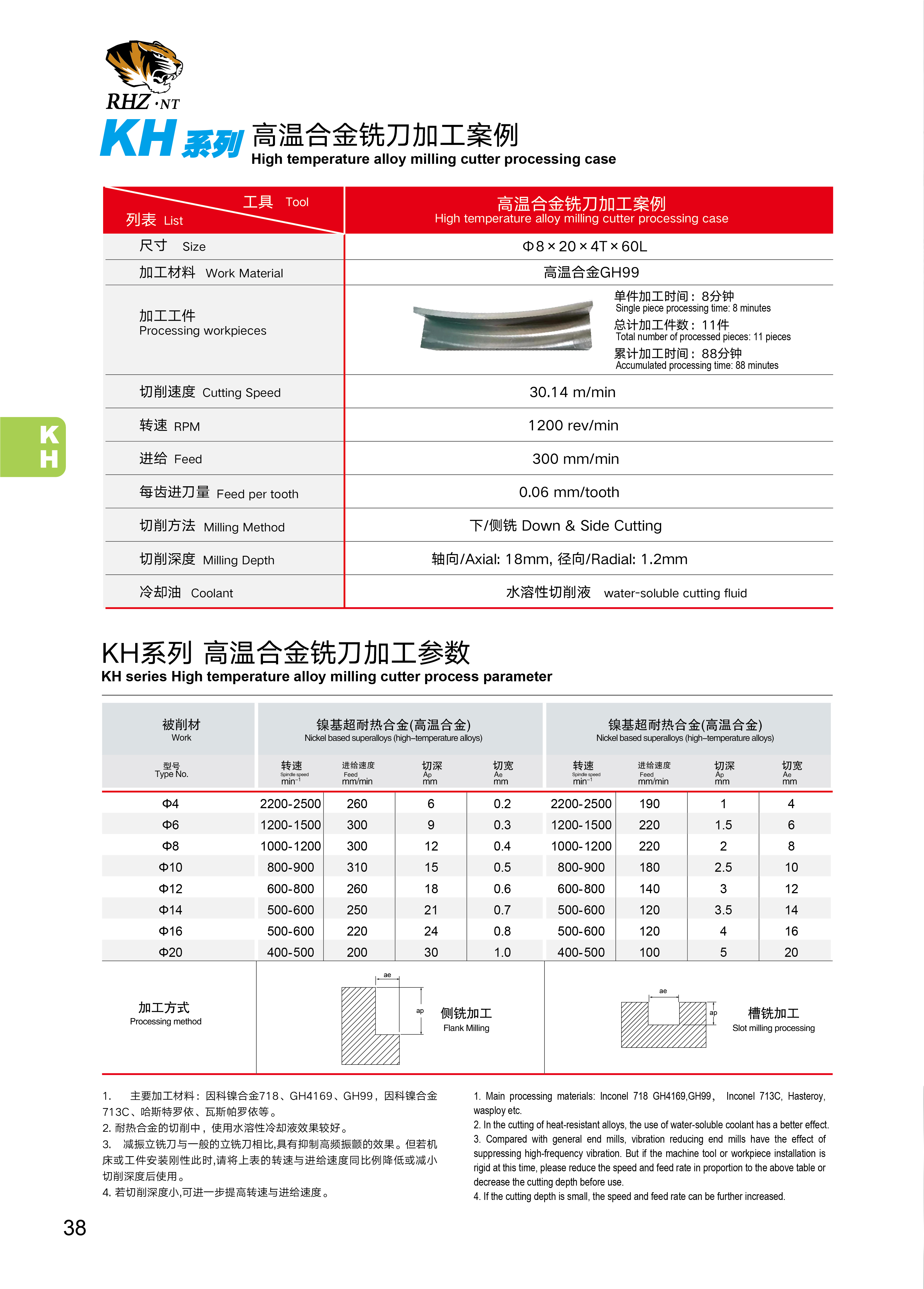

Production Process
Quality Check
Product Catalog Options Part 1
Product Catalog Options Part 2
Warehouse and Stock
Precision Testing Equipment
Manufacturing Line
Packaging Box Detail
Frequently Asked Questions
Q: Are you a manufacturer or trading company?
A: We are a professional tool manufacturer with 8 years of production experience, specializing in high-precision carbide tooling solutions.
Q: How long is the delivery time for bulk orders?
A: Standard Products take 7-14 working days (MOQ 10 pcs). Custom OEM/ODM orders take 10-20 working days (MOQ 10 pcs). An expedited service is available for a +10% fee to achieve a 10-day delivery.
Q: How do you guarantee the quality of your tools?
A: We strictly control quality from raw materials to finished products in accordance with the ISO9001 quality control system. We guarantee that all products are 100% qualified before shipment.
Q: Are your tools compatible with 5-axis machining centers?
A: Yes. We use high-quality cemented carbide rods and imported OSG & Balzers coatings. Our tools are ground on Walter and Makino five-axis high-precision equipment, ensuring they meet stringent accuracy requirements for complex machining tasks.
Q: Can you provide recommended cutting parameters for machining?
A: Yes, we can deliver process-engineered parameters within 24 hours. To generate your custom speed and feed parameters, please provide your raw material specifications.
Q: What is the average tool lifespan under standard operation?
A: Under standard operating conditions, expected tool life spans are: Aluminum: 500-1000 hours; Stainless Steel: 24-48 hours; Titanium: 12-24 hours; Tool Steel: 10-20 hours.
