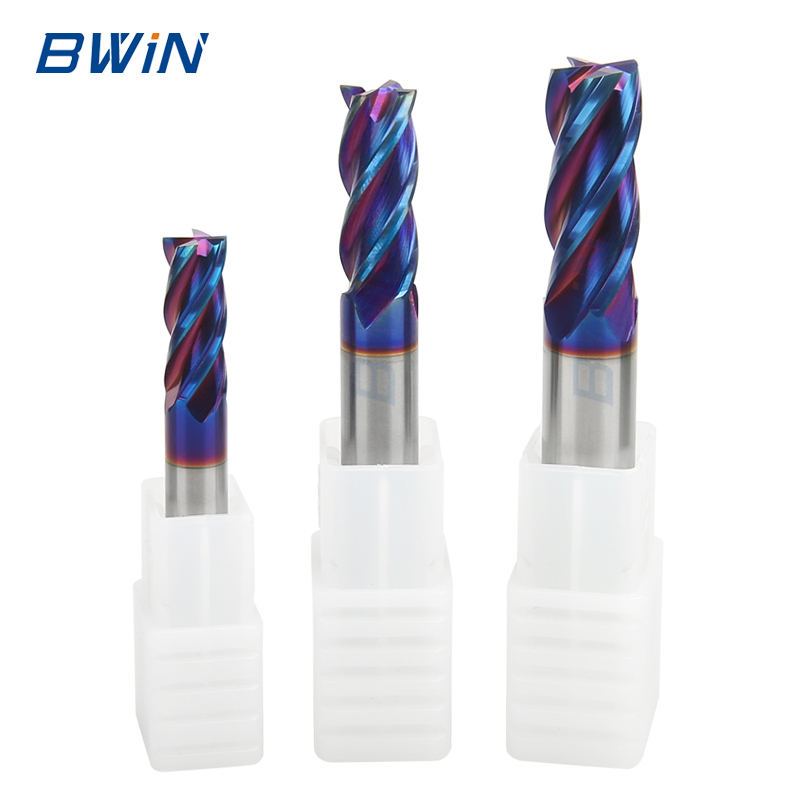

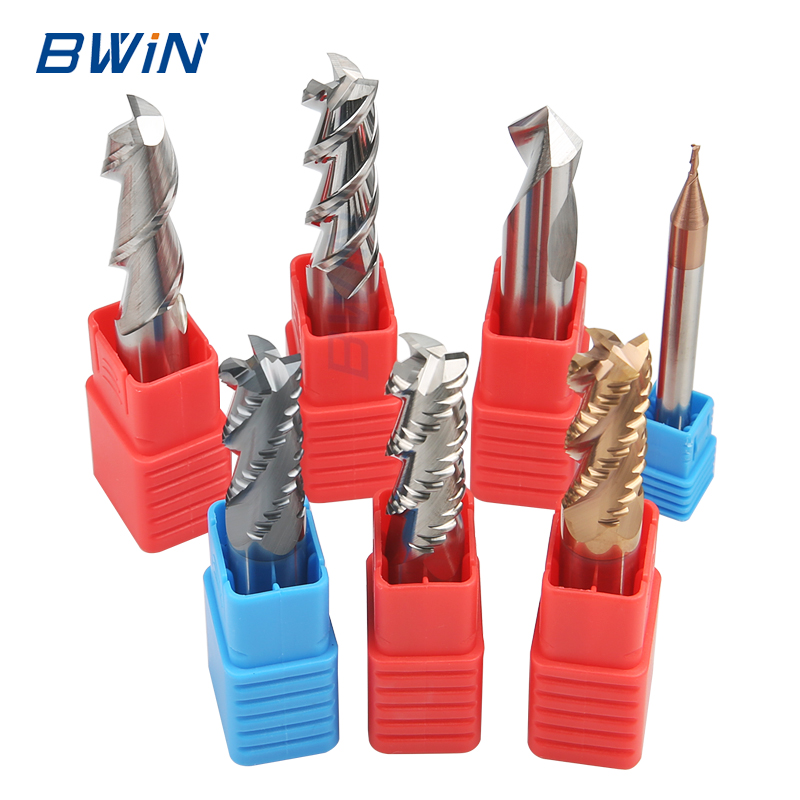

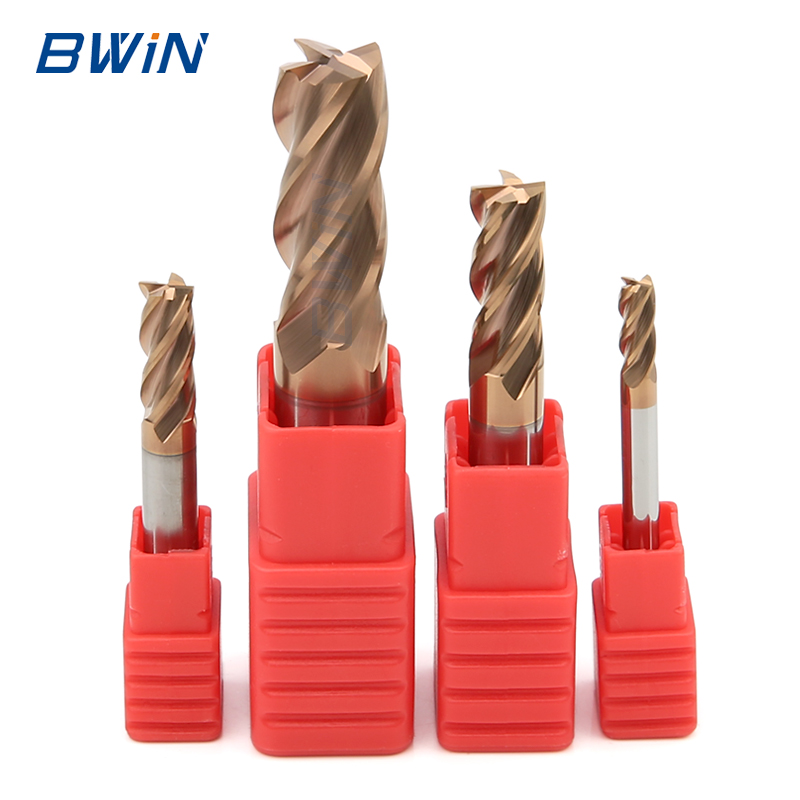

| Product Name | CNC milling cutter for metal |
|---|---|
| Material | Tungsten carbide |
| Flutes | 2/3/4 Flutes |
| HRC | 45/55/50/65 degree |
| Coating | AlTiN, TiAlN, TiSiN, AlTiSiN, TiN, Nano, or your requirements |
| Shank Diameter | 3mm-20mm |
| Overall Length | 50mm-150mm |
| Suitable for | Cast iron, Stainless steel, mould steel, carbon steel, titanium alloy, tool steel, heat-treated steel, wood, etc |
| Machine Type | CNC machine, milling machine, etc |
| Usage | High speed cutting |
| Customization | All the specs can be customized. |
All cutting materials are from international famous brands, high hardness, long tool life.
| Grade | HRC45 | HRC55 | HRC60 | HRC65 |
|---|---|---|---|---|
| Materials | YG10X | ZK30UF | ZK40SF | GU25UF |
| Details | Grain size: 0.8um Co: 10% Flexural strength: 3320N/mm² |
Grain size: 0.7um Co: 10% Flexural strength: 4000N/mm² |
Grain size: 0.5um Co: 12% Flexural strength: 4300N/mm² |
Grain size: 0.4um Co: 10% Flexural strength: 4300N/mm² |

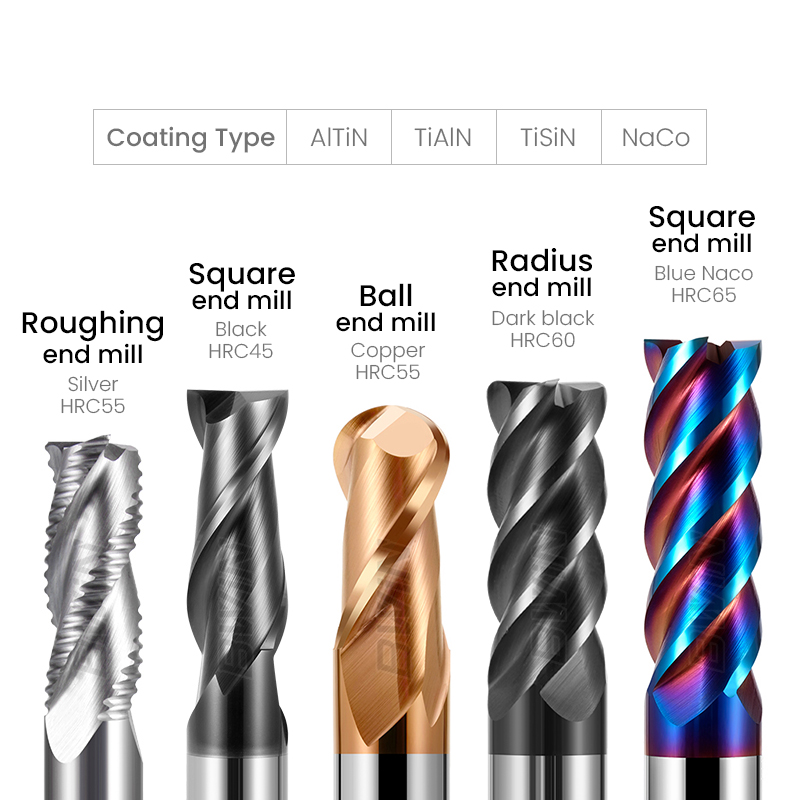

Good coating can improve tools life and production efficiency, and we provide professional suggestions according to your cutting requirements.
| Item | Color | Hardness (HV) | Thickness (UM) | Oxidation Temp.(℃) | Friction Coefficient |
|---|---|---|---|---|---|
| AlTiN | Black | 3300 | 2.5-3 | 900 | 0.3 |
| TiAlN | Violet | 2800 | 2.5-3 | 800 | 0.3 |
| TiSiN | Bronze | 3600 | 3 | 1000 | 0.45 |
| AlTiSiN | Blue | 4000 | 4 | 1200 | 0.4 |
| Nano | Blue | 42(GPA) | 3 | 1200 | 0.4 |

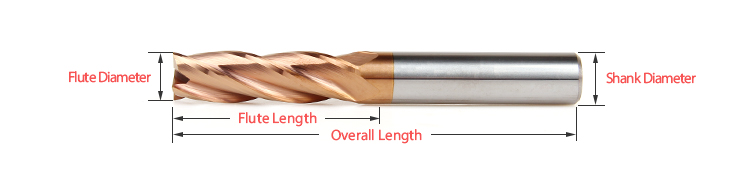

| Specification | Flute Dia(φ) | Flute Length (C) | Shank Dia(D) | Overall Length(L) |
|---|---|---|---|---|
| Φ1x3Cx4x50L | 1.0 | 3 | 4 | 50 |
| Φ2x6Cx4x50L | 2.0 | 6 | 4 | 50 |
| Φ3x8Cx4x50L | 3.0 | 8 | 4 | 50 |
| Φ4x10Cx4x50L | 4.0 | 10 | 4 | 50 |
| Φ5x13Cx6x50L | 5.0 | 13 | 6 | 50 |
| Φ6x15Cx6x50L | 6.0 | 15 | 6 | 50 |
| Φ8x20Cx8x60L | 8.0 | 20 | 8 | 60 |
| Φ6x20Cx6x75L | 6.0 | 20 | 6 | 75 |
| Φ8x25Cx8x75L | 8.0 | 25 | 8 | 75 |
| Φ10x25Cx10x75L | 10.0 | 25 | 10 | 75 |
| Φ12x30Cx12x75L | 12.0 | 30 | 12 | 75 |
| Φ10x40Cx10x100L | 10.0 | 40 | 10 | 100 |
| Φ12x45Cx12x100L | 12.0 | 45 | 12 | 100 |
| Φ14x40Cx14x100L | 14.0 | 40 | 14 | 100 |
| Φ16x40Cx16x100L | 16.0 | 40 | 16 | 100 |
| Φ18x40Cx18x100L | 18.0 | 40 | 18 | 100 |
| Φ20x45Cx20x100L | 20.0 | 45 | 20 | 100 |
