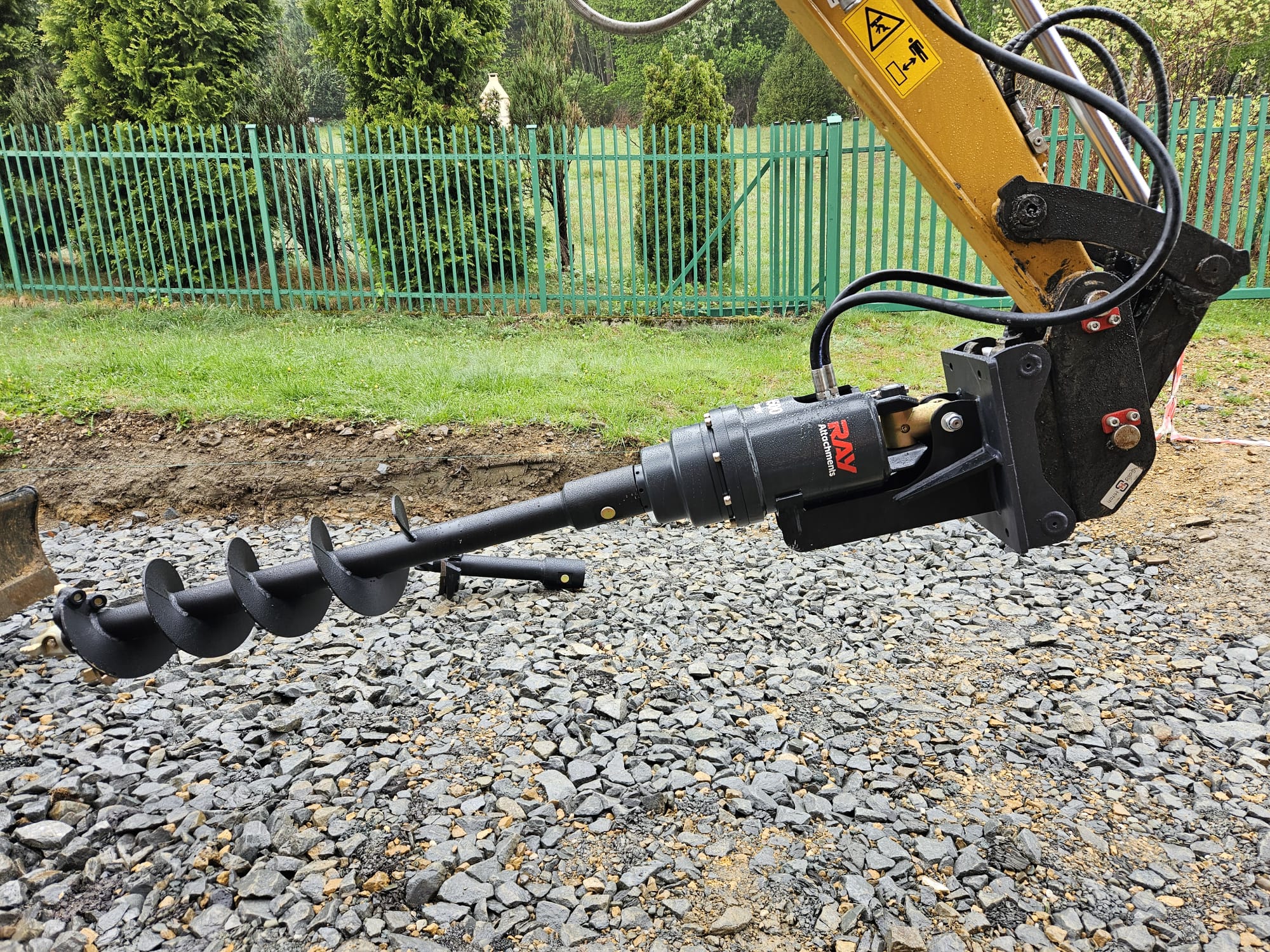

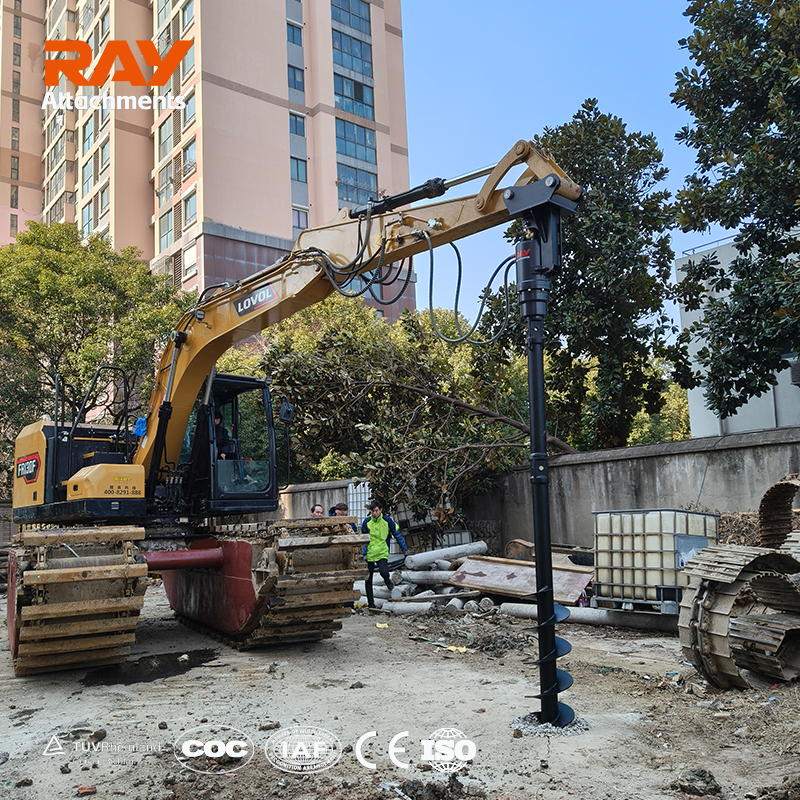

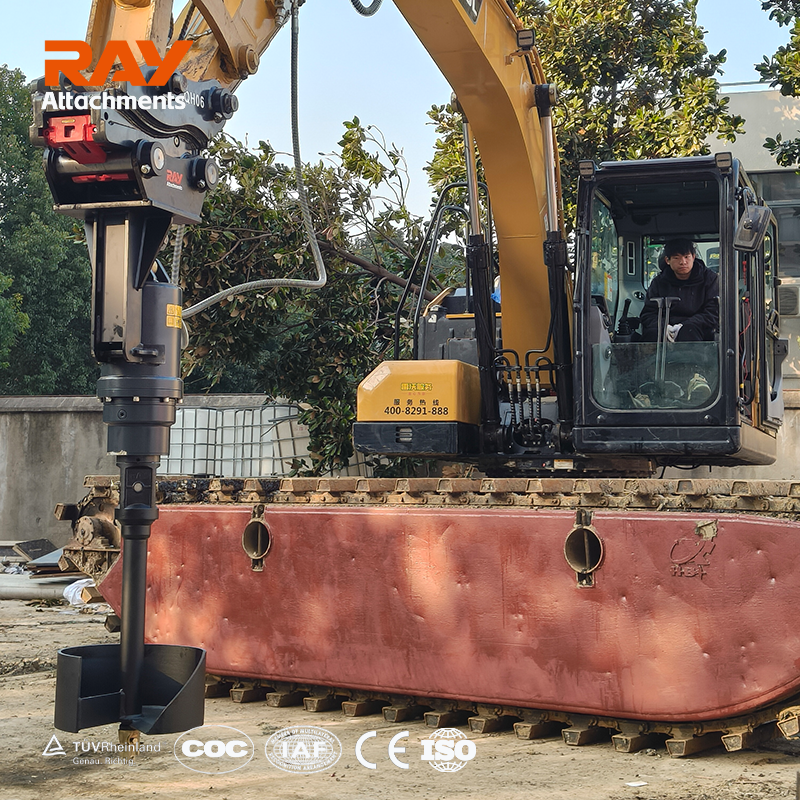

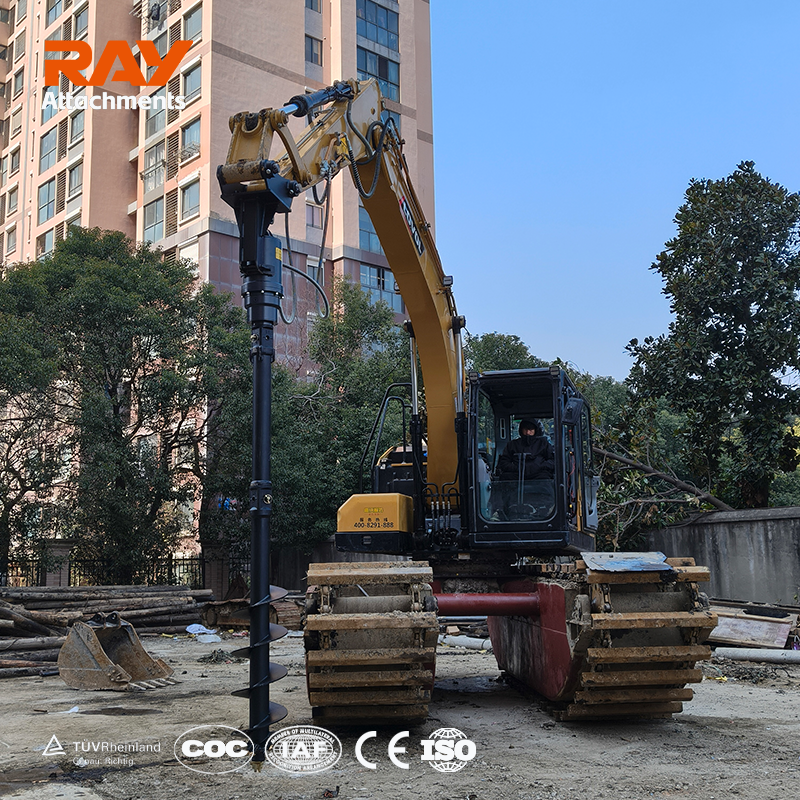

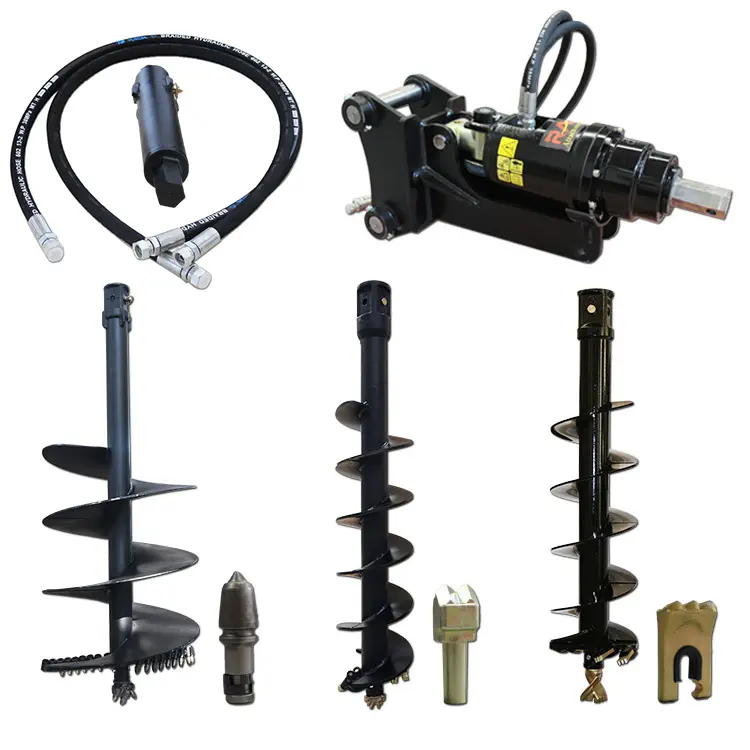

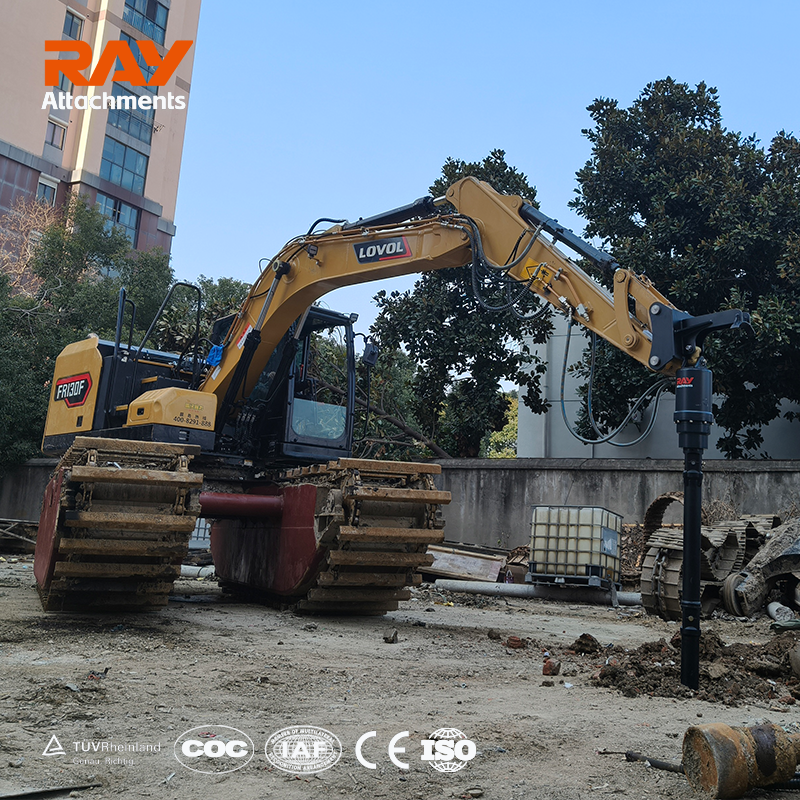

Earth Auger will give you the long, reliable service life you need. Auger Drives are built for the toughest conditions, featuring high-quality hydraulic motors and output shaft bearings up to 50% larger than competitors.
Manufactured with premium materials and advanced techniques, they set the standard for durability and reliability. Compatible with all makes and models of parent machines, our range offers unmatched flexibility with a variety of attachments for any task. Whether drilling, anchoring, or mixing, these earth drills deliver consistent performance and maximum efficiency.
We are proud to have a committed and dedicated dealer and distributor network, serving the earthmoving, construction, and agriculture markets across the world.
Combining our dealers' market expertise and high-quality products makes for a formidable partnership.
High-margin attachments recommendation list in your market! Contact us for free details!

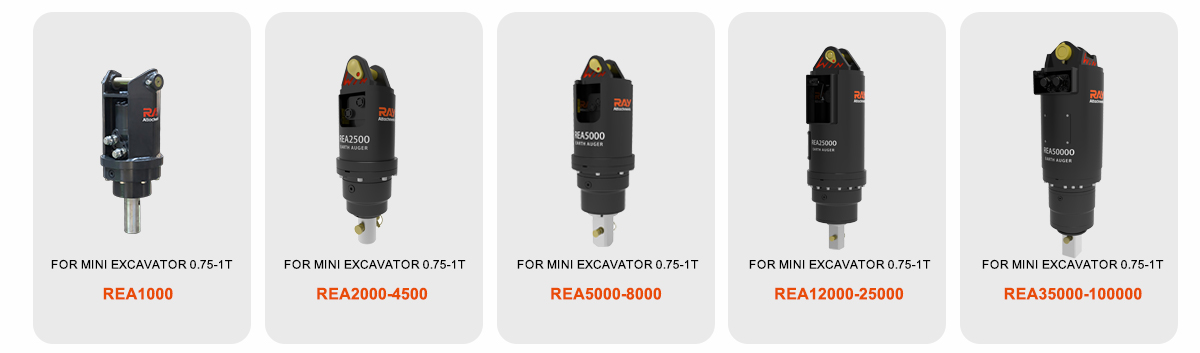

Applicable for 1-50 Tons Excavators.
| Model | Unit | REA1000 | REA2000 | REA2500 | REA3500 | REA4500 | REA5000 |
|---|---|---|---|---|---|---|---|
| Carrier Weight | T | 0.75-1 | 1 ~ 2.5 | 1.5 ~ 3 | 2.5 ~ 4.5 | 3 ~ 5 | 4.5 ~ 7 |
| Working Pressure | Bar | 30~150 | 70~205 | 70~205 | 80~240 | 80~240 | 80~240 |
| Working Oil Flow | L/min | 15 ~ 32 | 23 ~ 53 | 30 ~ 61 | 30~68 | 38 ~ 76 | 38 ~ 76 |
| Torque | N.m | 189~950 | 638~1871 | 830~2432 | 1205~3614 | 1500~4499 | 1685~5056 |
| Rotary Speed | rpm | 38~81 | 40 ~ 92 | 40 ~ 82 | 32~72 | 32 ~ 64 | 29 ~ 58 |
| Hydraulic Hose | Inch | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| Output Shaft | mm | Φ50 | Φ65 | Φ65 | Φ65 | Φ65 | ■75 |
| Unit Weight | Kg | 35 | 54 | 54 | 71 | 71 | 108 |
| Unit Height | mm | 507 | 595 | 595 | 700 | 700 | 780 |
| Unit Max Dia. | mm | 194 | 200 | 200 | 244 | 244 | 269 |
| Auger Series | - | S2 | S4 | S4 | S4 | S4 | S5 |
| Auger Length | mm | 900 | 1200 | 1200 | 1200 | 1200 | 1500 |
| Auger Dia. Range | mm | 100 ~ 300 | 100 ~ 400 | 100 ~ 500 | 100 ~ 750 | 100 ~ 900 | 150 ~ 600 |
| Model | Unit | REA6000 | REA7000 | REA8000 | REA12000 | REA15000 | REA20000 |
|---|---|---|---|---|---|---|---|
| Carrier Weight | T | 5 ~ 7 | 7 ~ 10 | 8 ~ 12 | 13 ~ 17 | 13 ~ 17 | 13 ~ 20 |
| Working Pressure | Bar | 80~240 | 80~240 | 80~240 | 80~240 | 80~240 | 80~240 |
| Working Oil Flow | L/min | 45 ~ 83 | 61 ~ 121 | 61 ~ 136 | 70 ~ 150 | 80 ~ 170 | 80 ~ 170 |
| Torque | N.m | 1970~5910 | 2310~6931 | 2717~8152 | 3992~11976 | 5015~15046 | 6520~19560 |
| Rotary Speed | rpm | 28 ~ 50 | 37 ~ 72 | 29 ~ 64 | 22 ~ 48 | 20 ~ 43 | 16 ~ 33 |
| Hydraulic Hose | Inch | 1/2 | 3/4 | 3/4 | 1 | 1 | 1 |
| Output Shaft | mm | ■75 | ■75 | ■75 | ■75 | ■75 | ■75 |
| Unit Weight | Kg | 108 | 112 | 115 | 167 | 167 | 270 |
| Unit Height | mm | 780 | 850 | 850 | 930 | 930 | 1150 |
| Unit Max Dia. | mm | 269 | 269 | 269 | 290 | 290 | 345 |
| Auger Series | - | S5 | S5 | S5 | S6 | S6 | S6 |
| Auger Length | mm | 1500 | 1500 | 1500 | 1750 | 1750 | 1750 |
| Auger Dia. Range | mm | 150 ~ 750 | 150 ~ 900 | 150 ~ 900 | 150 ~ 900 | 150 ~ 1200 | 150 ~ 1200 |
| Model | Unit | REA25000 | REA35000 | REA42000 | REA50000 | REA65000 | REA100000 |
|---|---|---|---|---|---|---|---|
| Carrier Weight | T | 15 ~ 23 | 20 ~ 45 | 20 ~ 45 | 20 ~ 45 | 20 ~ 50 | 20 ~ 50 |
| Working Pressure | Bar | 80~240 | 155~310 | 155~310 | 160~320 | 165~350 | 165~350 |
| Working Oil Flow | L/min | 80 ~ 170 | 80 ~ 170 | 80 ~ 170 | 100-280 | 100-280 | 100-280 |
| Torque | N.m | 8316~24949 | 17632~35265 | 21159~42318 | 23694~47389 | 29321~62197 | 48797~103509 |
| Rotary Speed | rpm | 12 ~ 26 | 9 ~ 24 | 9 ~ 20 | 11~30 | 9~25 | 5~13 |
| Hydraulic Hose | Inch | 1 | 1 | 1 | 1.25 | 1.25 | 1.5 |
| Output Shaft | mm | ■75 | ■110 | ■110 | ■110 | ■110 | Hex 150 / ■130 |
| Unit Weight | Kg | 270 | 440 | 440 | 470 | 490 | 1350 |
| Unit Height | mm | 1150 | 1410 | 1410 | 1410 | 1450 | 2010 |
| Unit Max Dia. | mm | 345 | 406 | 406 | 406 | 406 | 675 |
| Auger Series | - | S6 | PA | PA | PA | PA | PA |
| Auger Length | mm | 1750 | 2300 | 2300 | 2300 | 2300 | 2300 |
| Auger Dia. Range | mm | 150 ~ 1200 | 300 ~ 1500 | 300 ~ 1500 | 300-1800 | 300-1800 | 300-1800 |

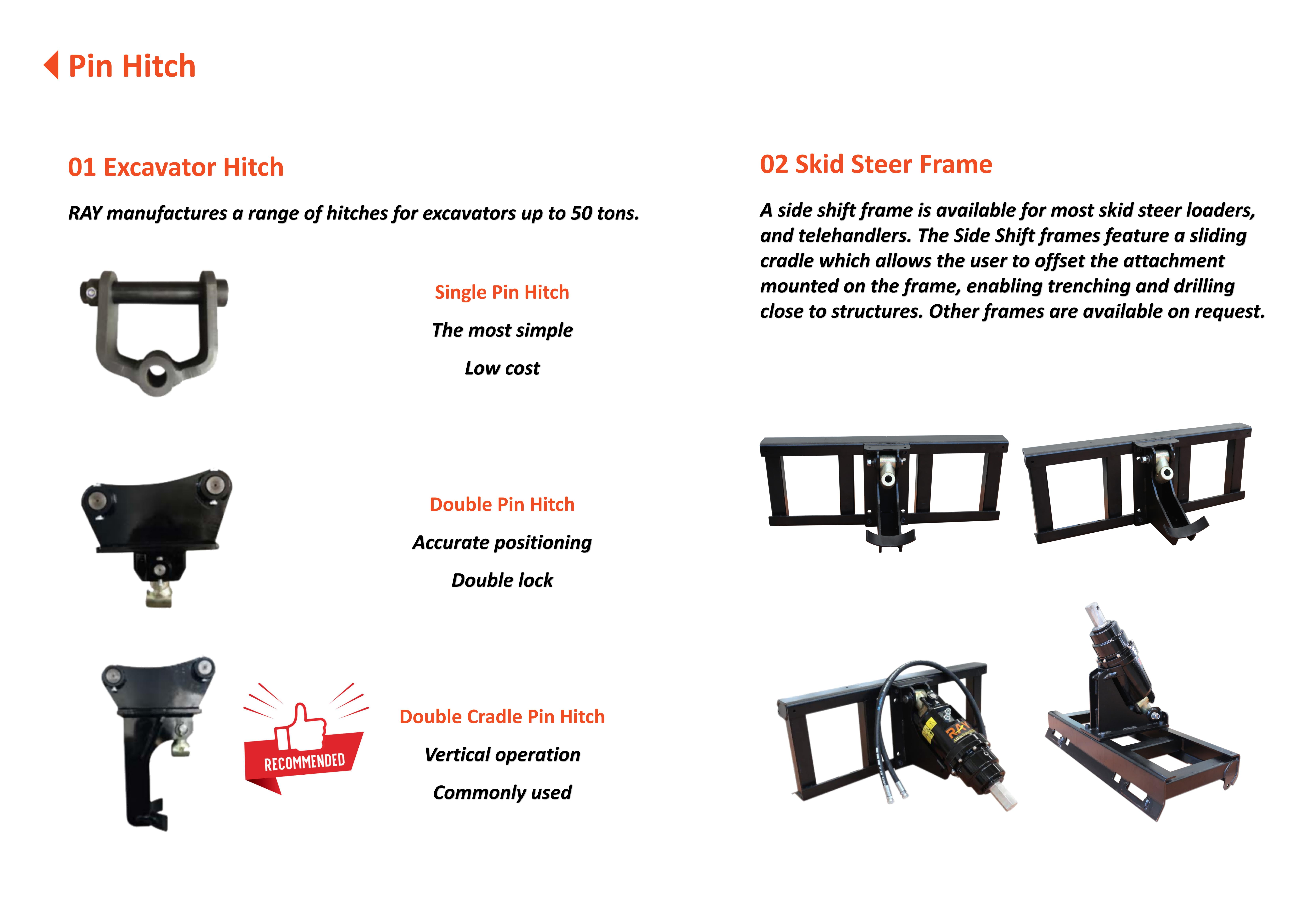

Hitch size database for all excavators! Contact us for details!
We manufacture a range of hitches for excavators up to 50 tons.
A side shift frame is available for most skid steer loaders and telehandlers. The Side Shift frames feature a sliding cradle which allows the user to offset the attachment mounted on the frame, enabling trenching and drilling close to structures. Other frames are available on request.

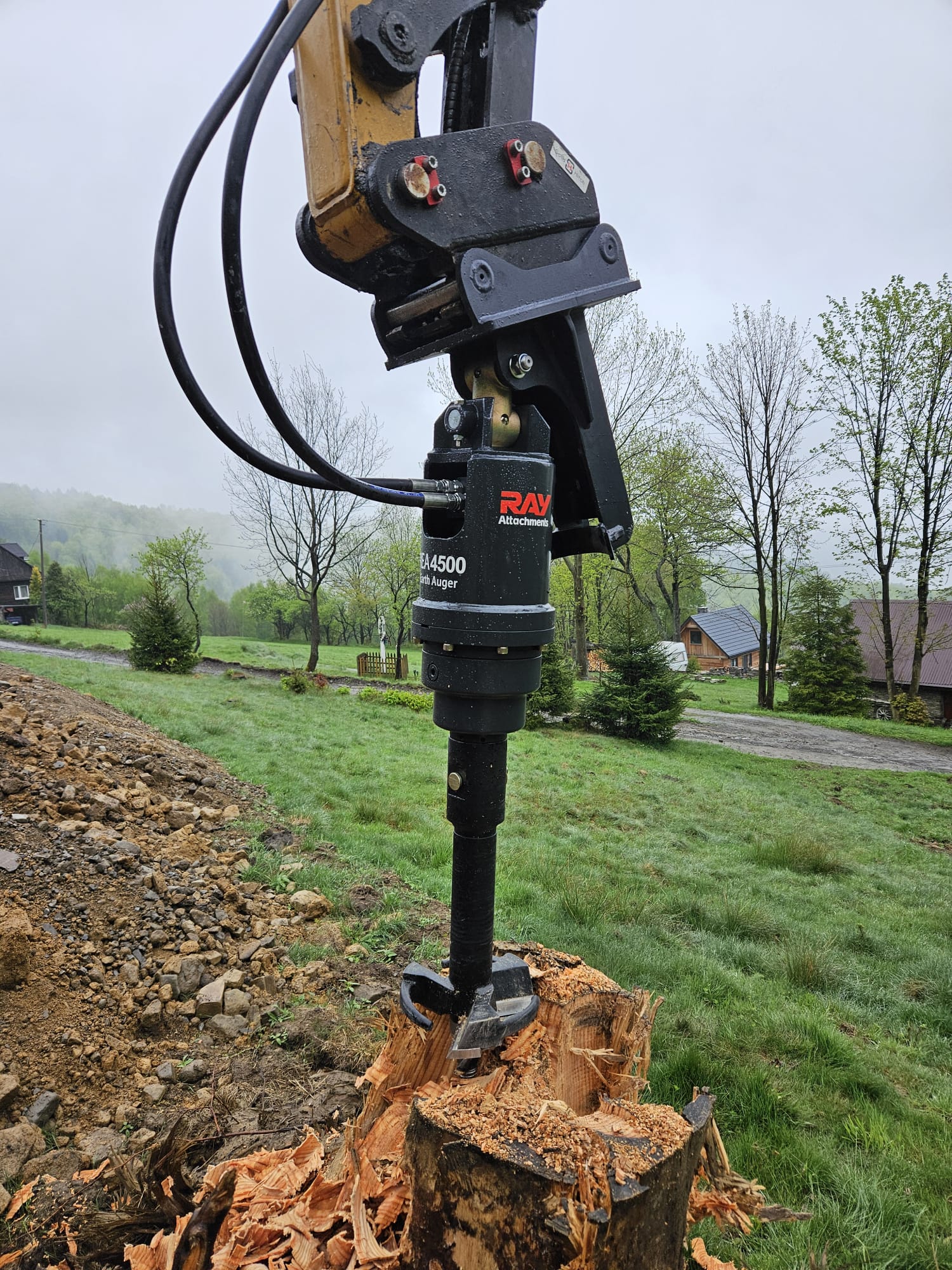

Stumps can be removed quickly and quietly in a very short period of time.
| Model | RSP-250 | RSP-350 |
|---|---|---|
| Suitable Excavator | REA2500-4500 | REA5000-8000 |
| Diameter (mm) | 250 | 350 |
| Length (mm) | 635 | 675 |
| Output Shaft | 65mm Round & 2" Hex | 75mm Square |

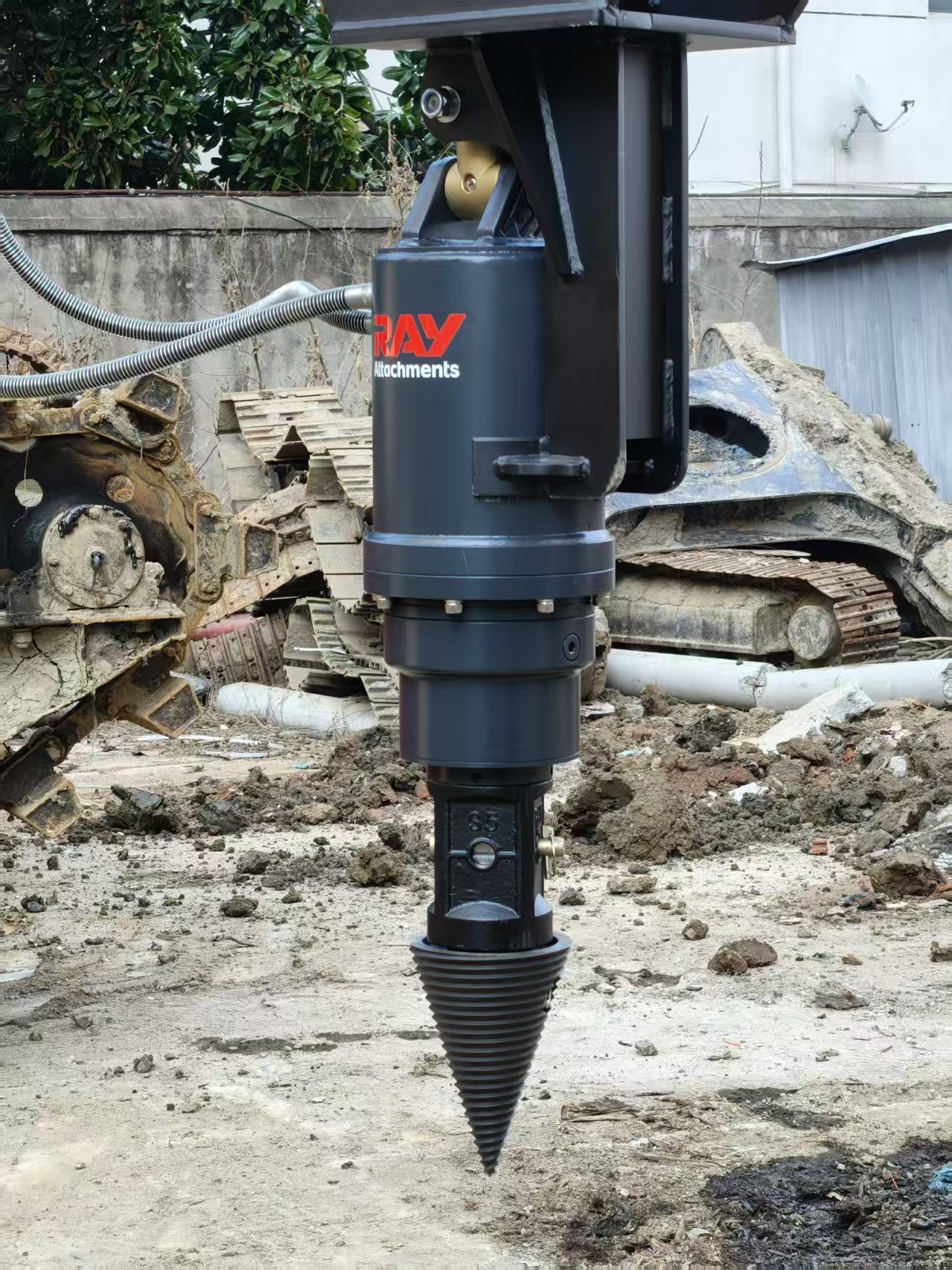

Handles and recovers wood easily. Processes felled trees into usable splinters quickly.
| Model | RLS-180 | RLS-200 | RLS-250 |
|---|---|---|---|
| Suitable Excavator | 2-12t | ||
| Diameter (mm) | 180 | 200 | 250 |
| Length (mm) | 260 | 360 | 445 |
| Output Shaft | 65mm Round & 2" Hex & 75mm Square | ||

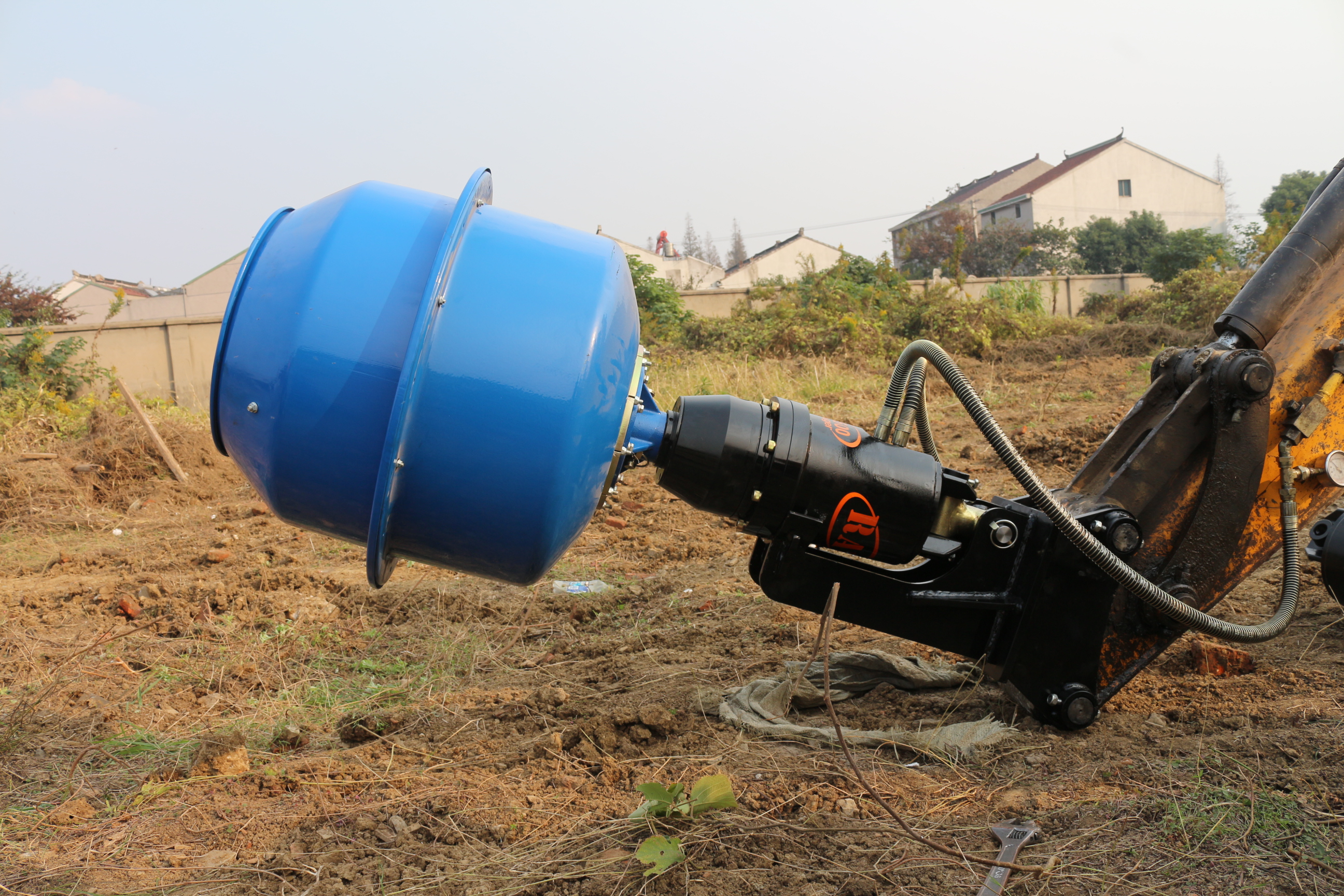

Thoroughly mix a small amount of cement.
| Auger Drill Range | REA2000-3500 | REA3500-8000 |
|---|---|---|
| Bowl Capacity (L) | 140 | 180 |
| Unit Depth (mm) | 600 | 690 |
| Unit Diameter (mm) | 675 | 724 |
| Unit Weight (kg) | 28 | 33 |

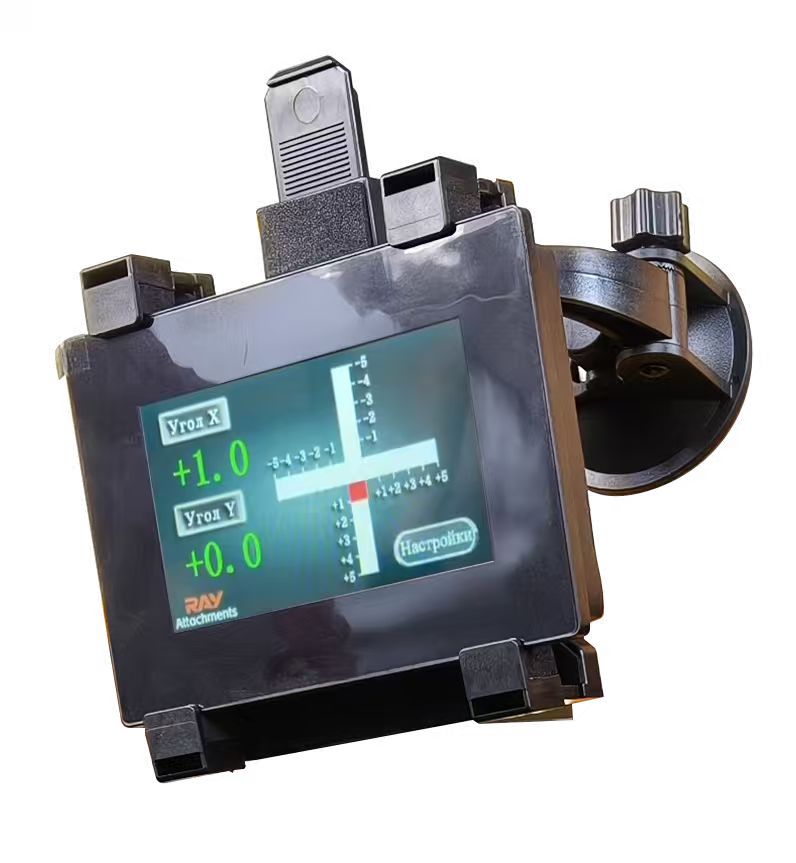

| Model | Unit | RVI20 |
|---|---|---|
| Angle Sensor Accuracy | ° | ±0.1 |
| Sensor Dimensions | mm | 55*37*24 |
| Viewable Dimensions | mm | 140*98*22 |
| Weight | Kg | 1.14 |
| Voltage | V | 12/24 |
| Wire Length | M | 10/15/20 |

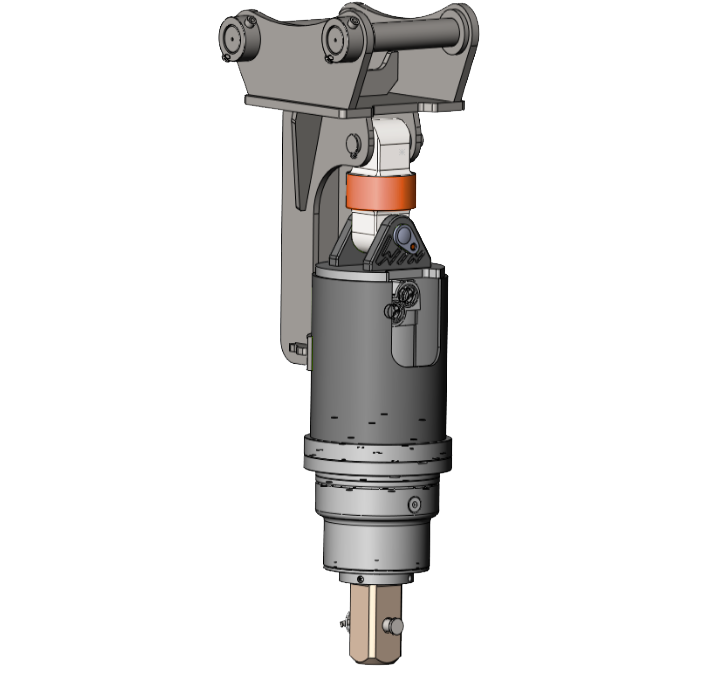

| Parameter | Value / Capability |
|---|---|
| Torque Range | Up to 10000 N.m |
| Earth Drill Range | REA5000 - REA8000 |
| Hitch Connection | Single Pin |
| Pin Diameter | 30mm |

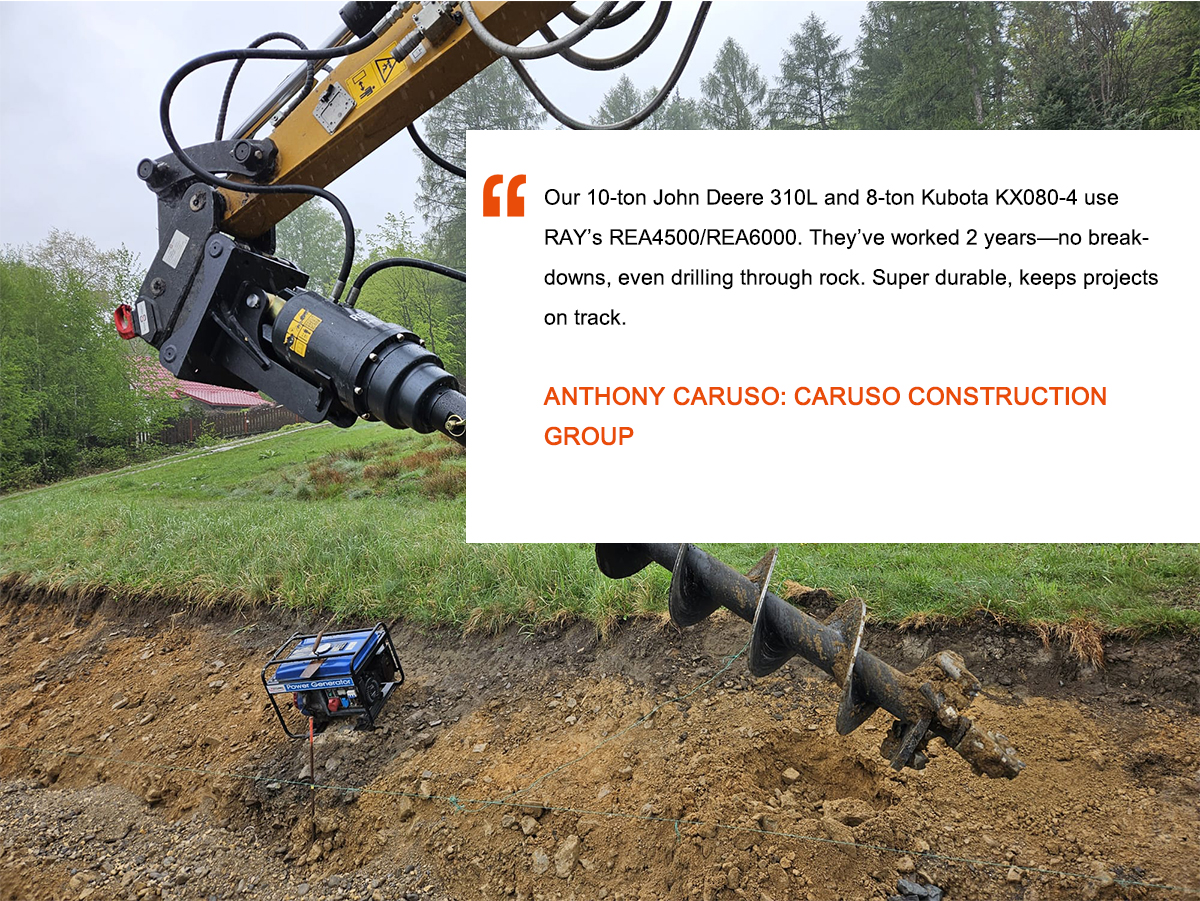

"Our 10-ton John Deere 310L and 8-ton Kubota KX080-4 use REA4500/REA6000. They've worked 2 years without break-downs, even drilling through rock. Super durable, keeps projects on track."
Inquire now for distributor-exclusive wholesale pricelist + tiered rebate policy details!

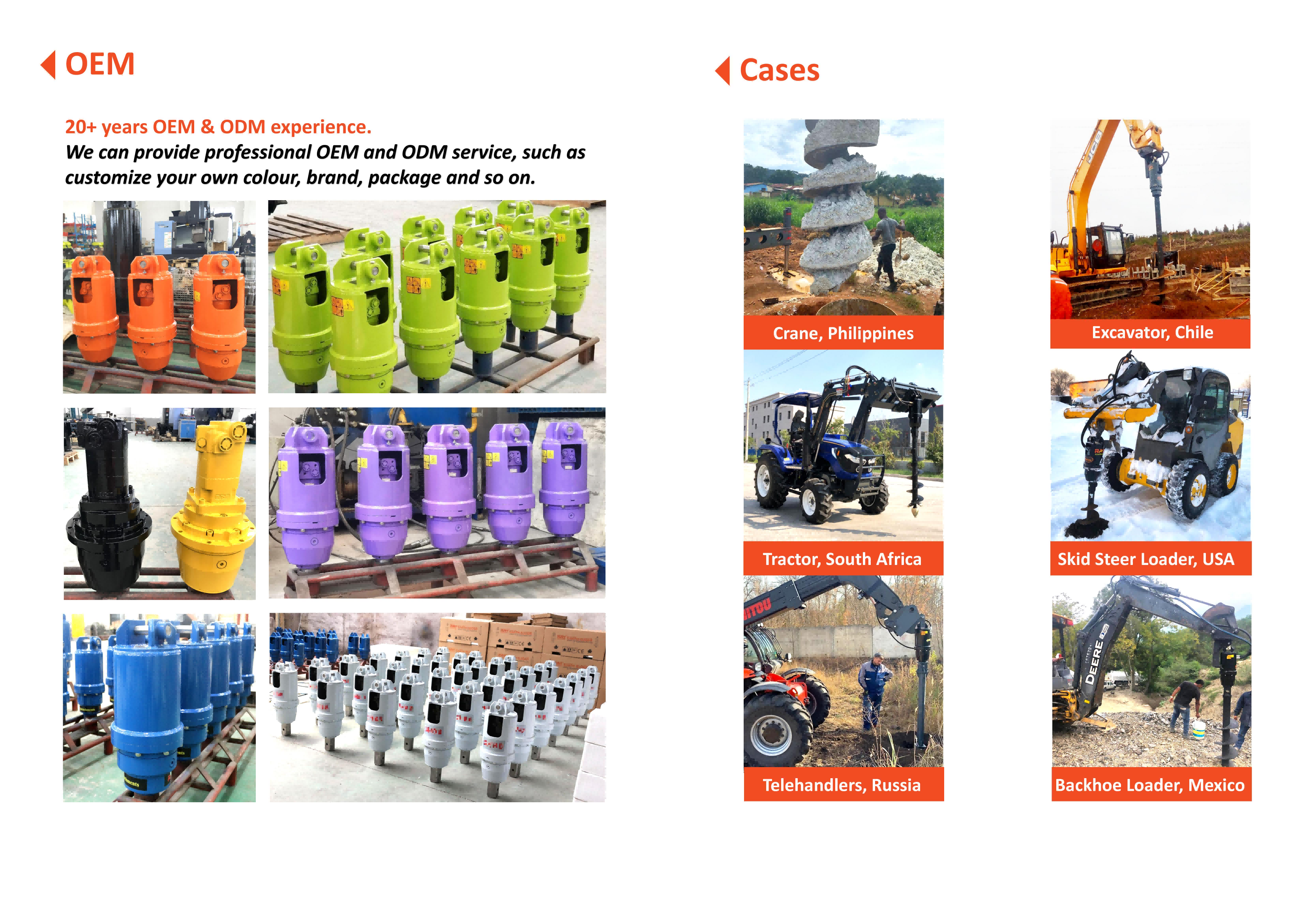

We provide professional OEM and ODM service, including customize your own colour, brand, package, and more configurations to align with your market needs.

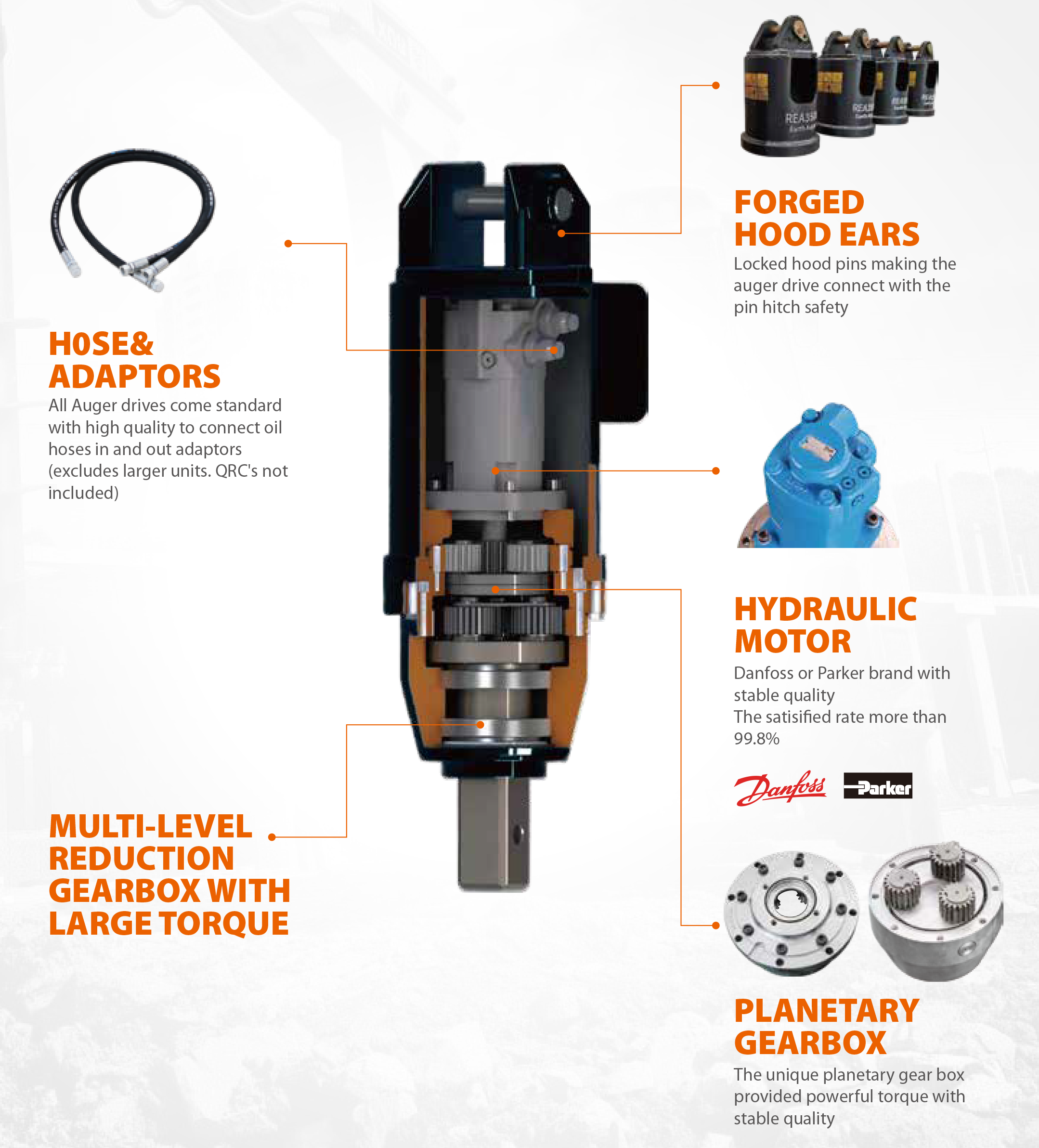

A: We use 100% top brand hydraulic motors, specifically from high-quality manufacturers like Danfoss or Parker, to ensure stable quality and performance.
A: The auger drives come with a comprehensive warranty which includes 18 months of coverage for the motor and a 3-year plus 6-year warranty structure for the gearbox.
A: We manufacture hitches for excavators up to 50 tons, including Single Pin Hitches (low cost), Double Pin Hitches (accurate positioning with double lock), and Double Cradle Pin Hitches (vertical operation).

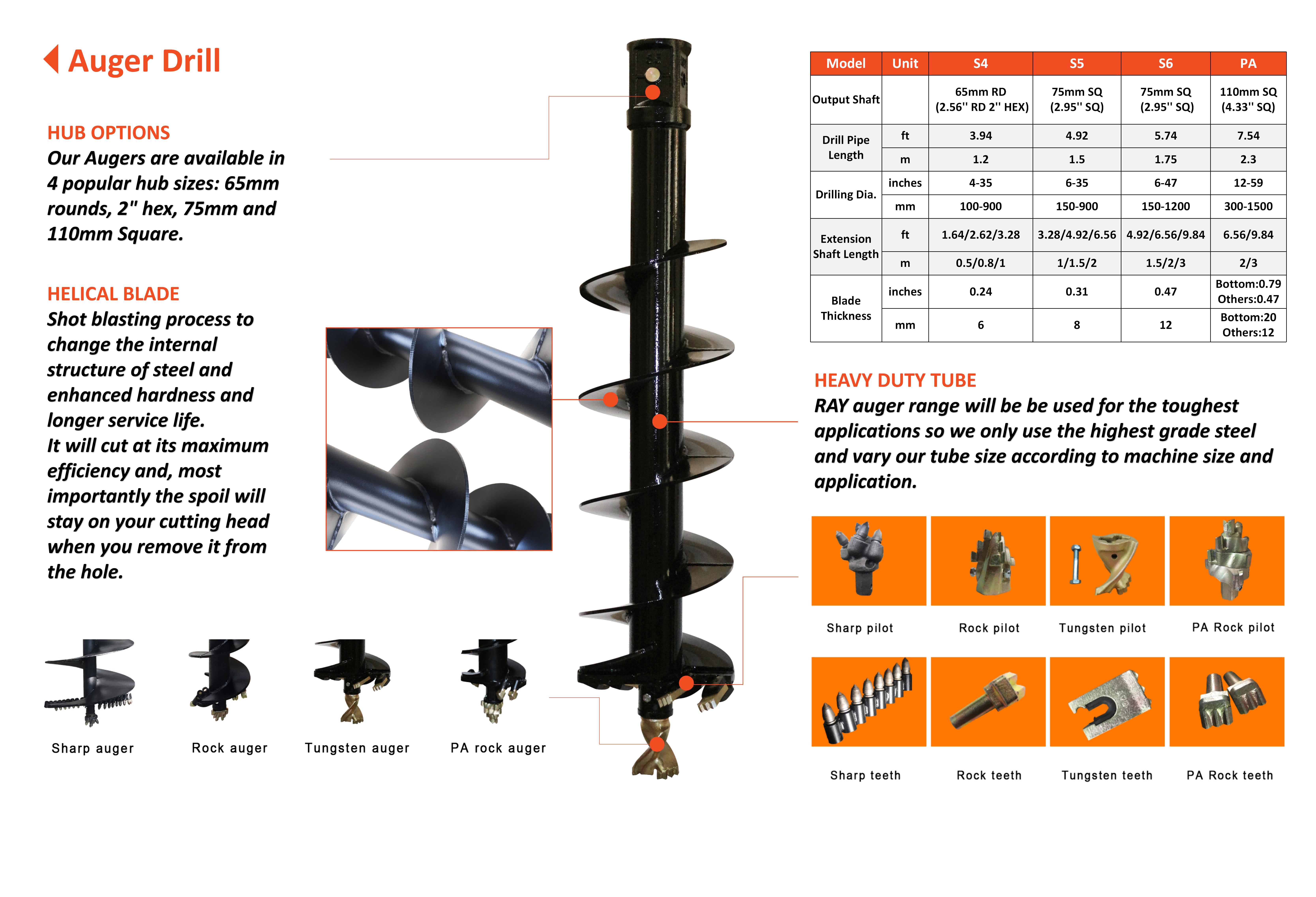

A: The helical blades undergo a shot blasting process to modify the internal structure of the steel. This enhances hardness, extends the service life, and ensures that spoil stays on the cutting head when removed from the hole.
A: Yes. With over 20 years of OEM & ODM experience, we provide customized services including unique colours, brand layouts, customized packaging, and specific specifications.
A: Yes, our equipment is highly compatible. We provide side shift frames suitable for most skid steer loaders and telehandlers, featuring a sliding cradle to allow attachment offset.
