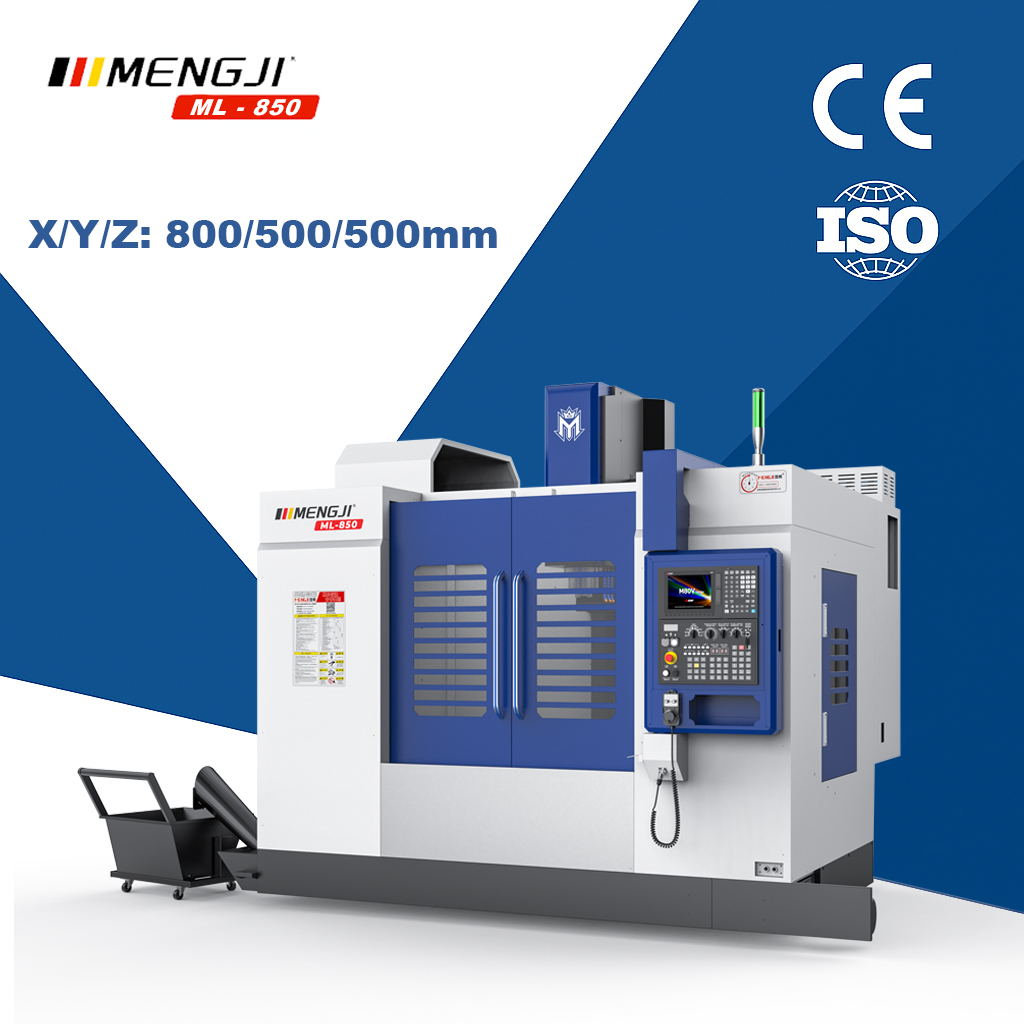

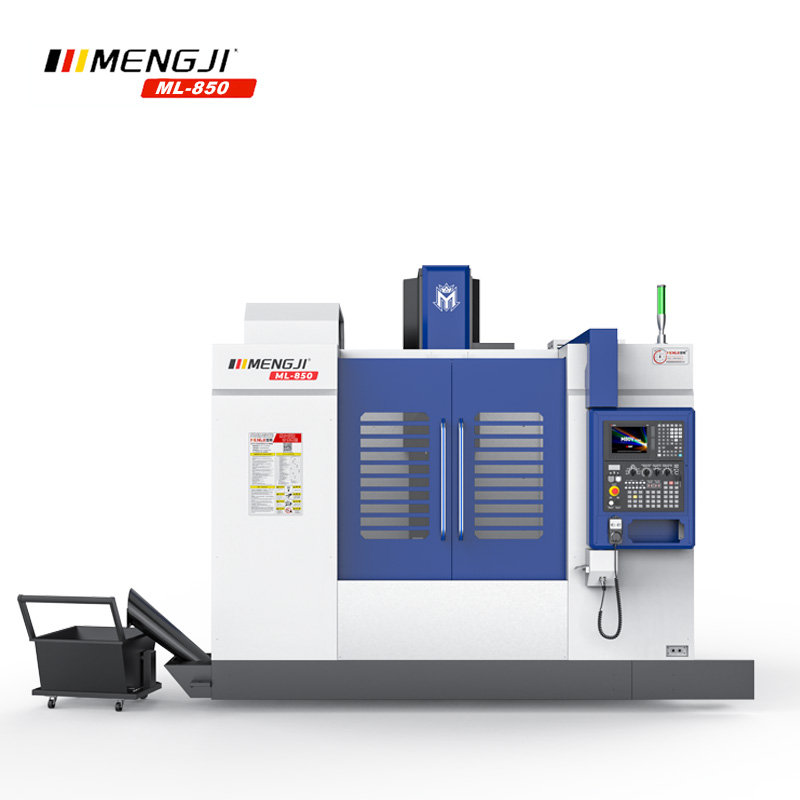

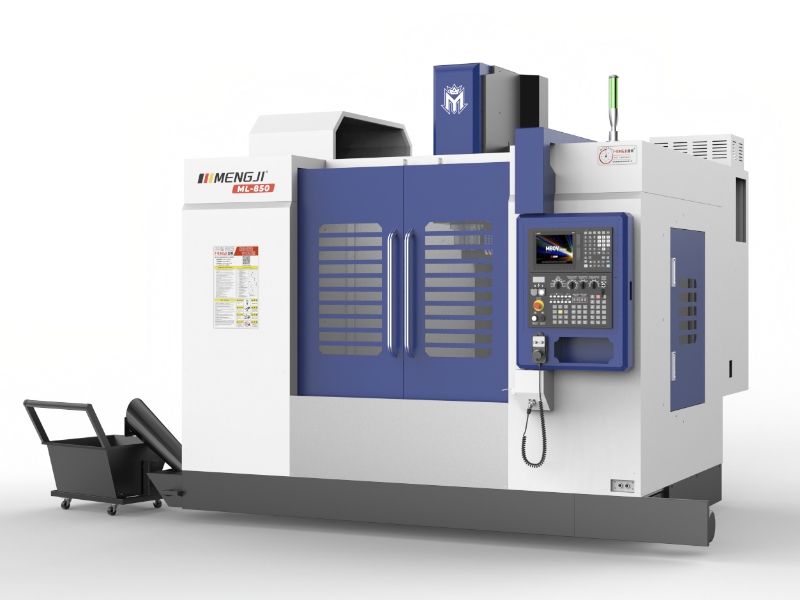

| Model | ML-850 |
|---|---|
| Machine size (mm) | 2560*2230*2035 |
| Worktable size (mm) | 1000*500 |
| Table Travel (X) (mm) | 800 |
| Table Travel (Y) (mm) | 500 |
| Table Travel (Z) (mm) | 500 |

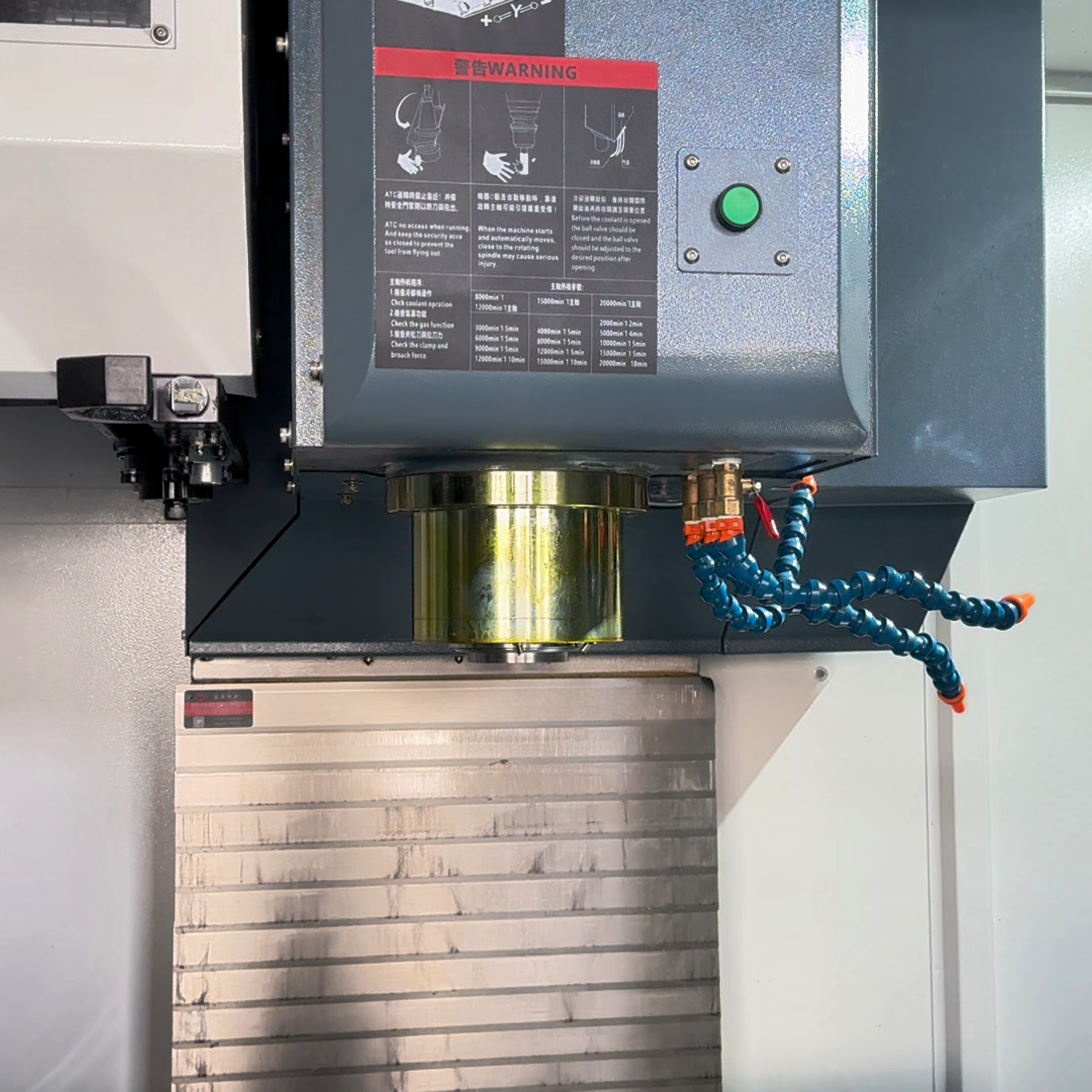

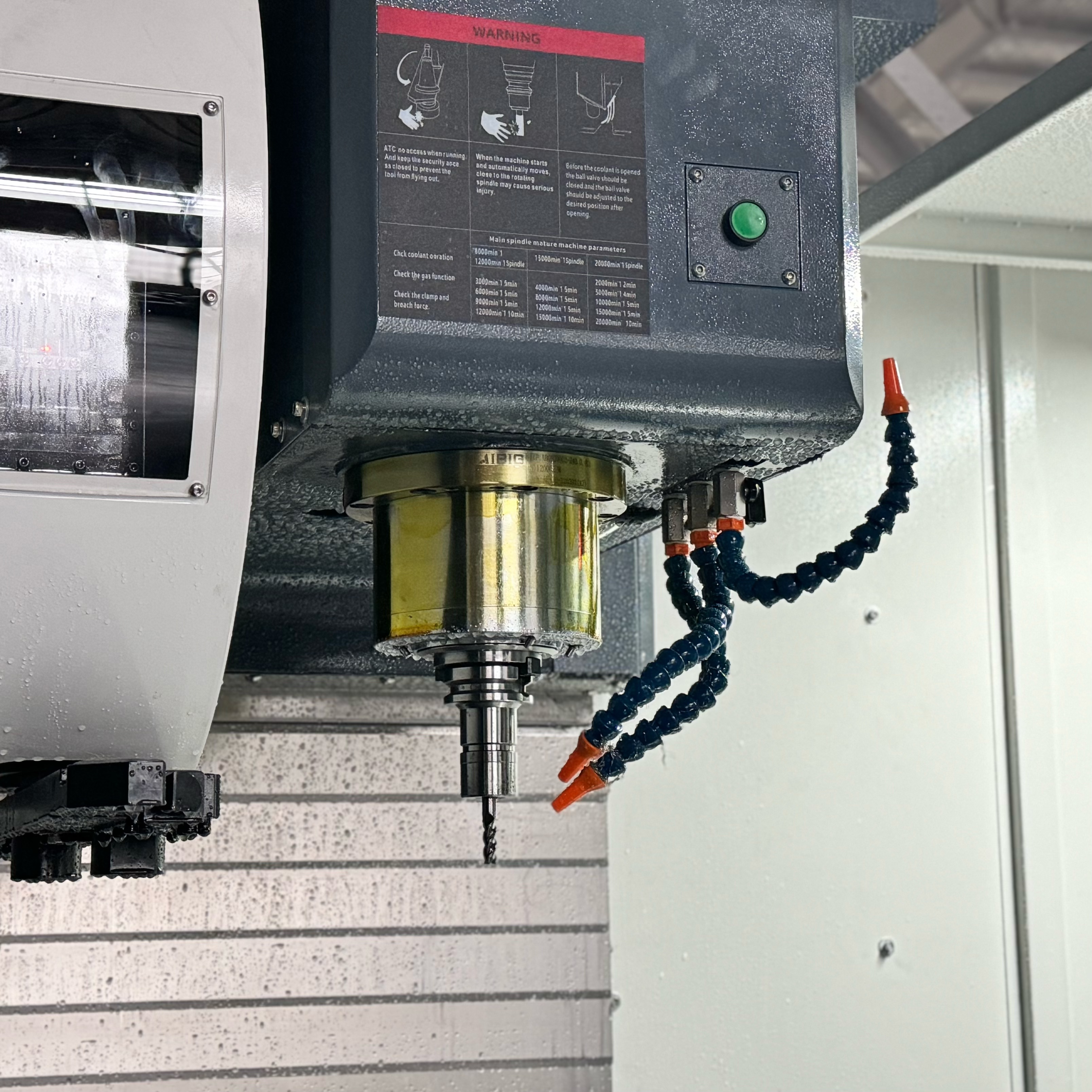

| Spindle specifications | BT-40Φ150 |
| Positioning accuracy (X/Y/Z) mm | 0.008/0.008/0.008 |
| Repeatability positioning accuracy (X/Y/Z) mm | 0.006/0.006/0.006 |
| Spindle speed | 8000r.p.m |

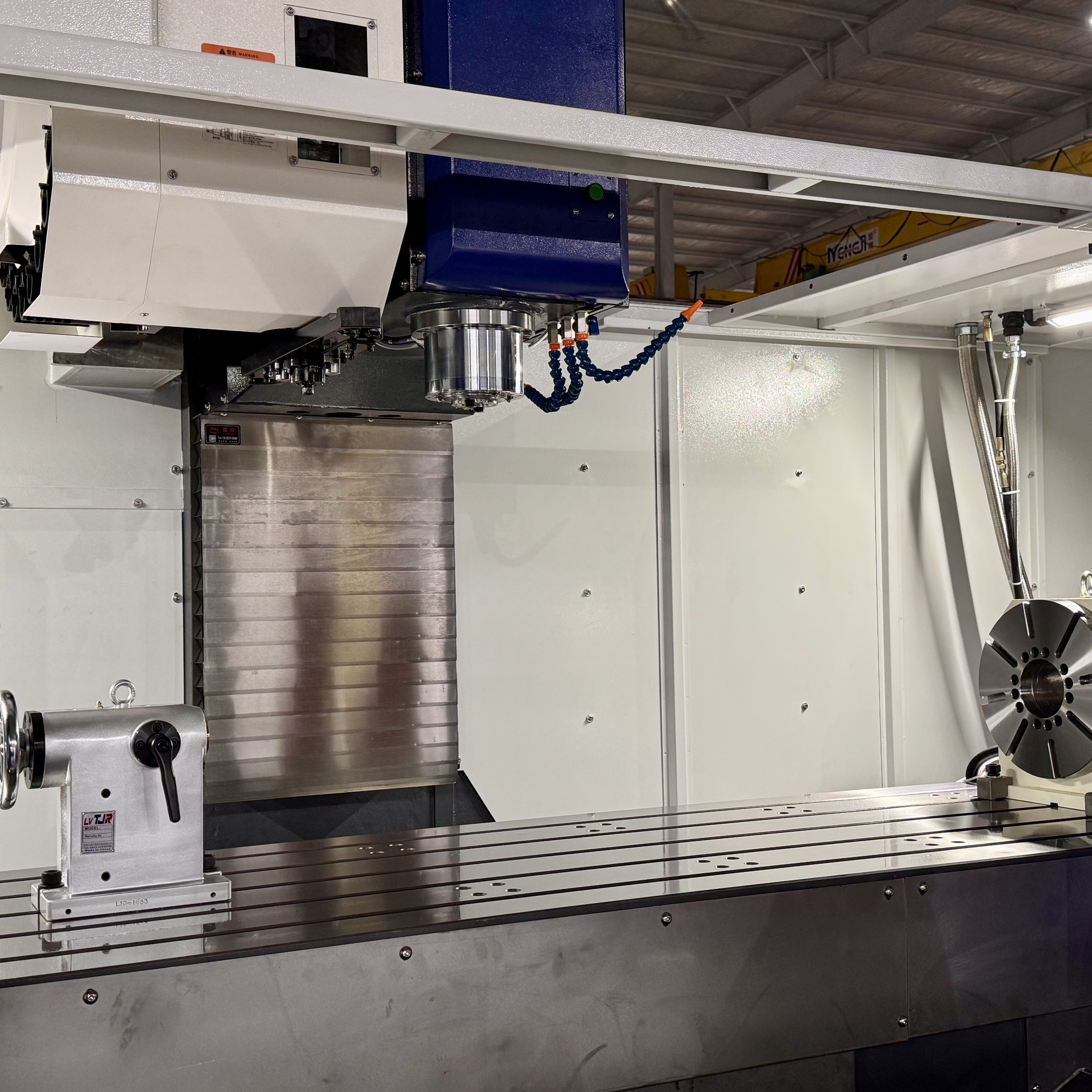

| Spindle Drive Type | Belt-Driven Spindle |
| Spindle Brand | Aibeco / Jian Chun |
| Maximum worktable load capacity (KG) | 450 |

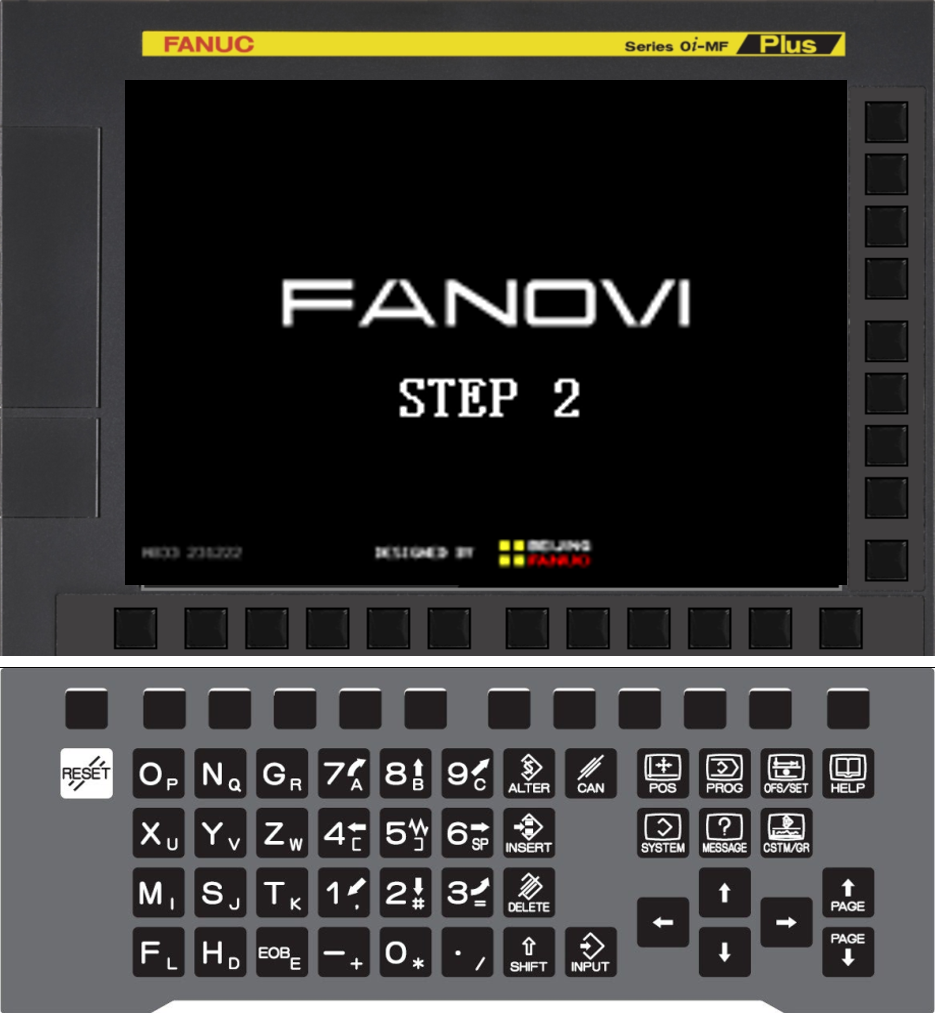

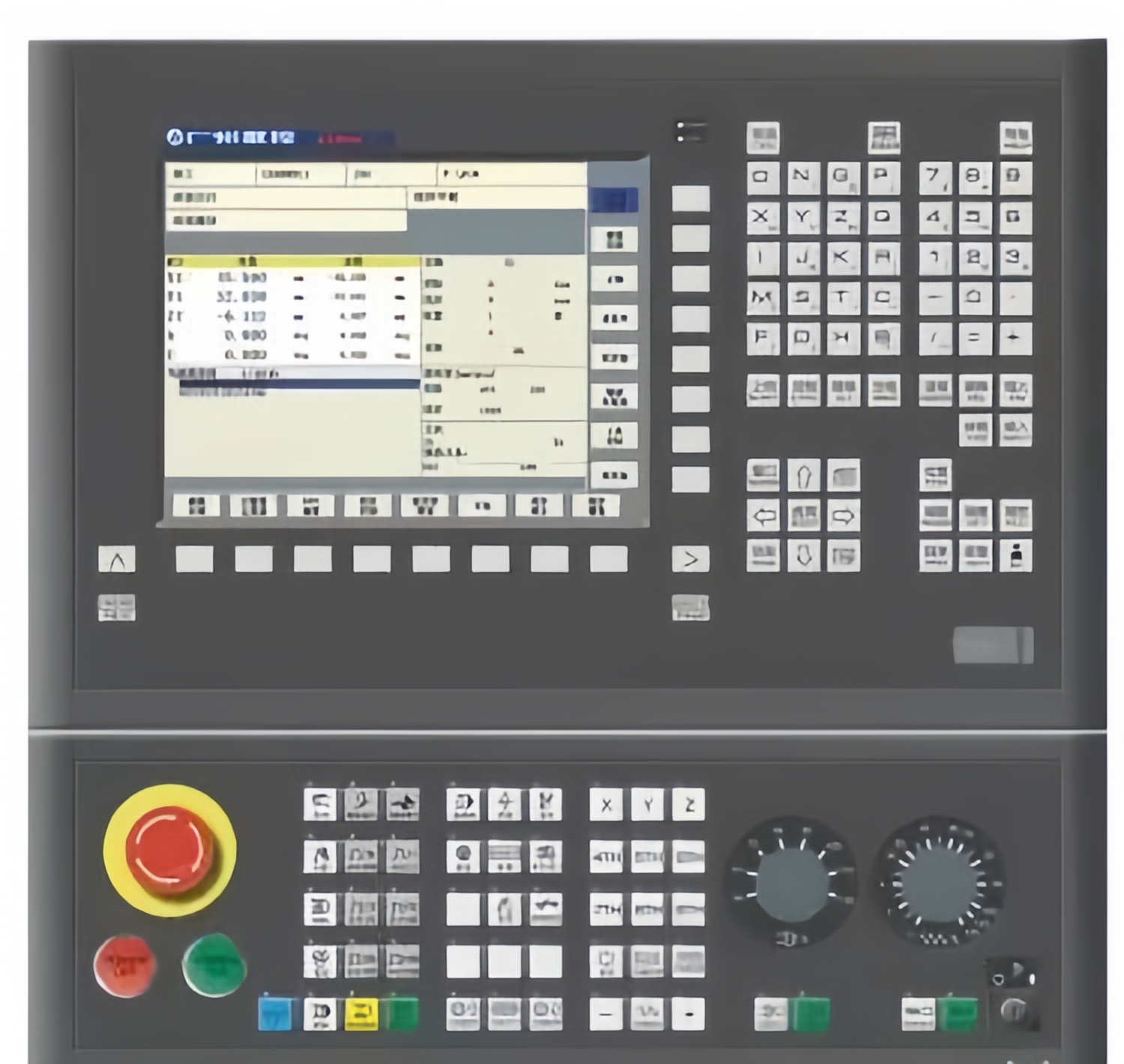

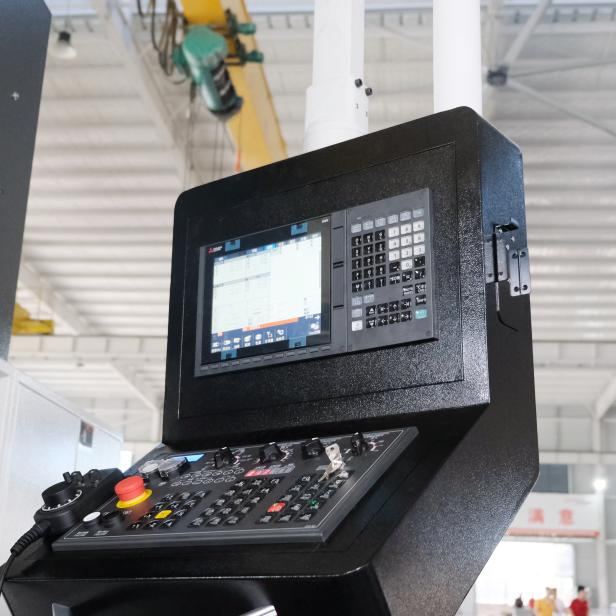

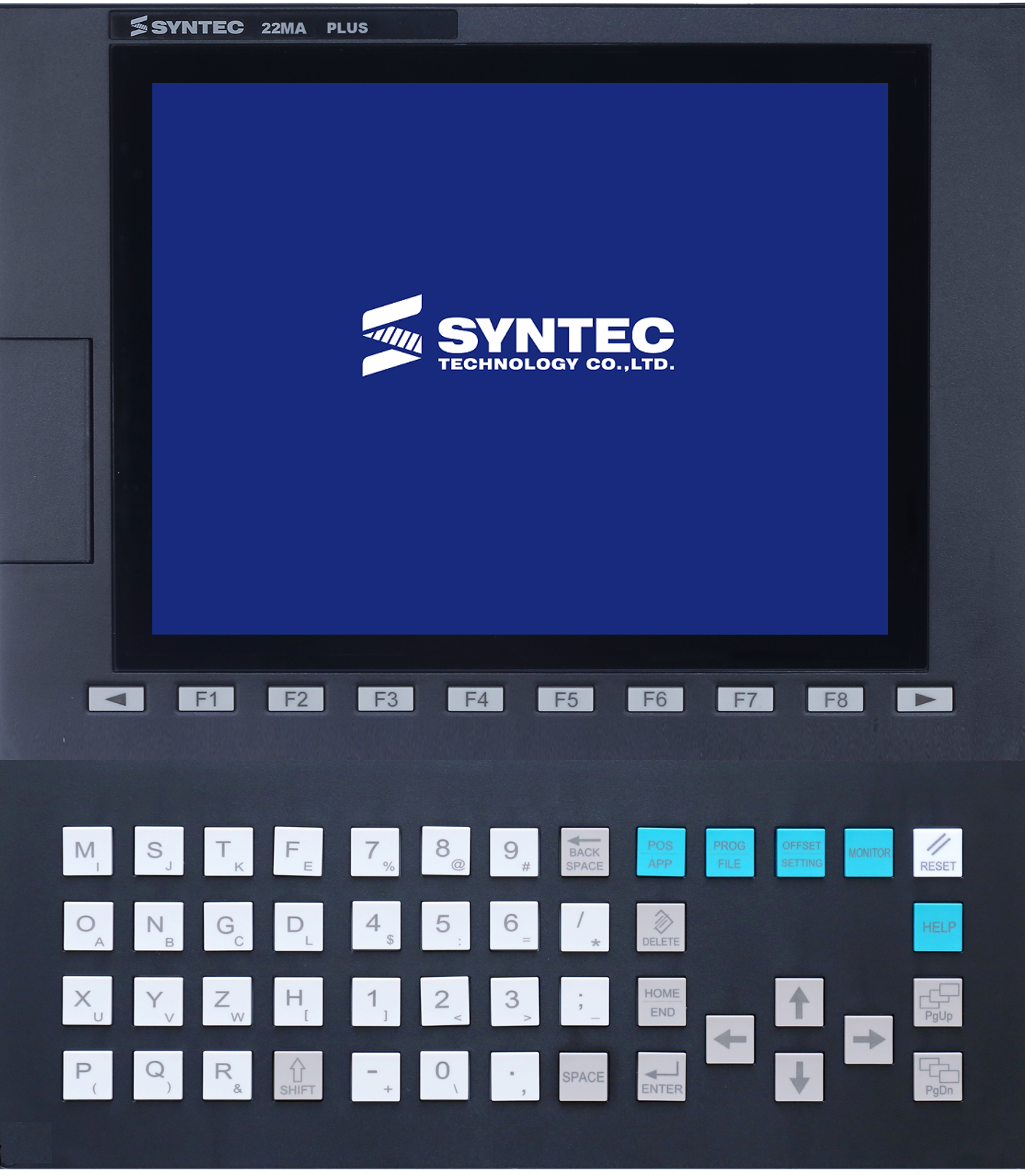

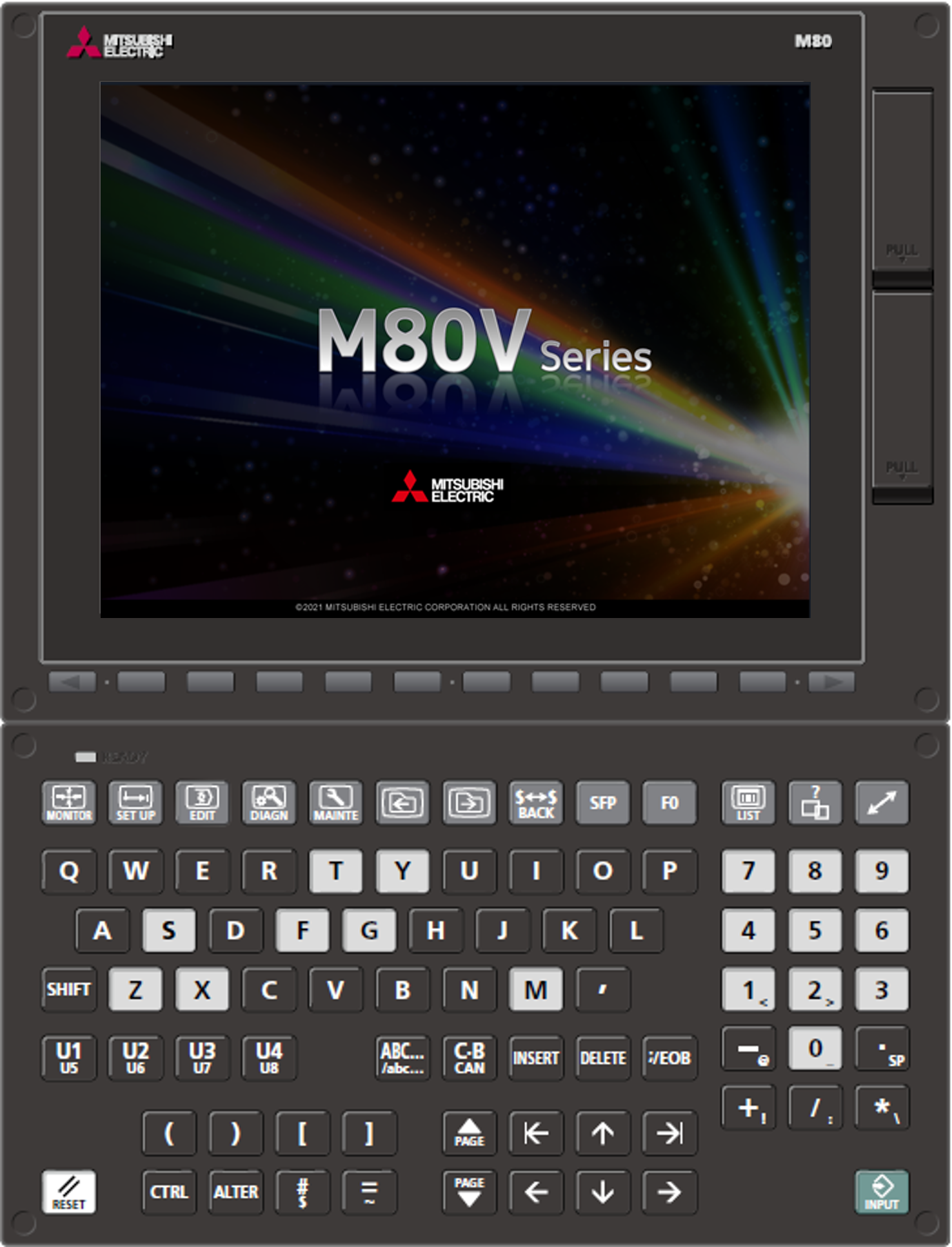

| Numerical control system | GSK/Mitsubishi/ FANUC |

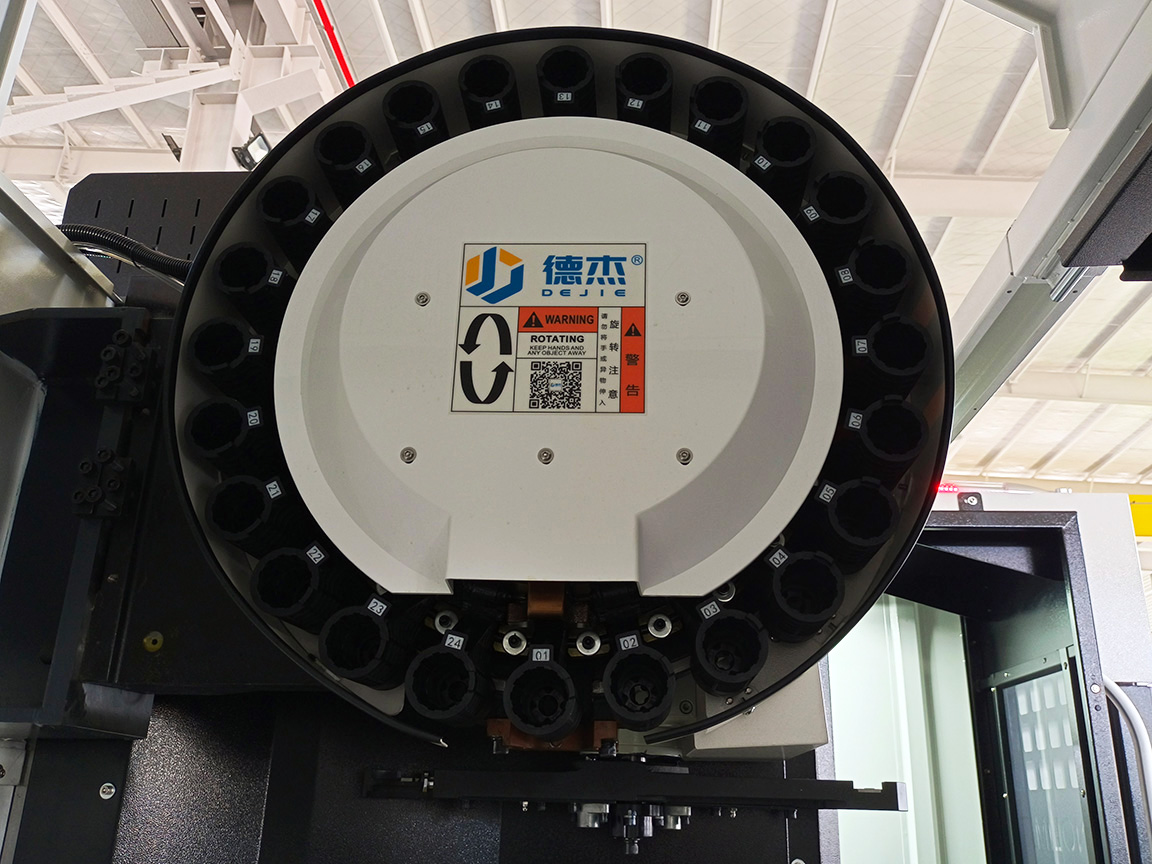

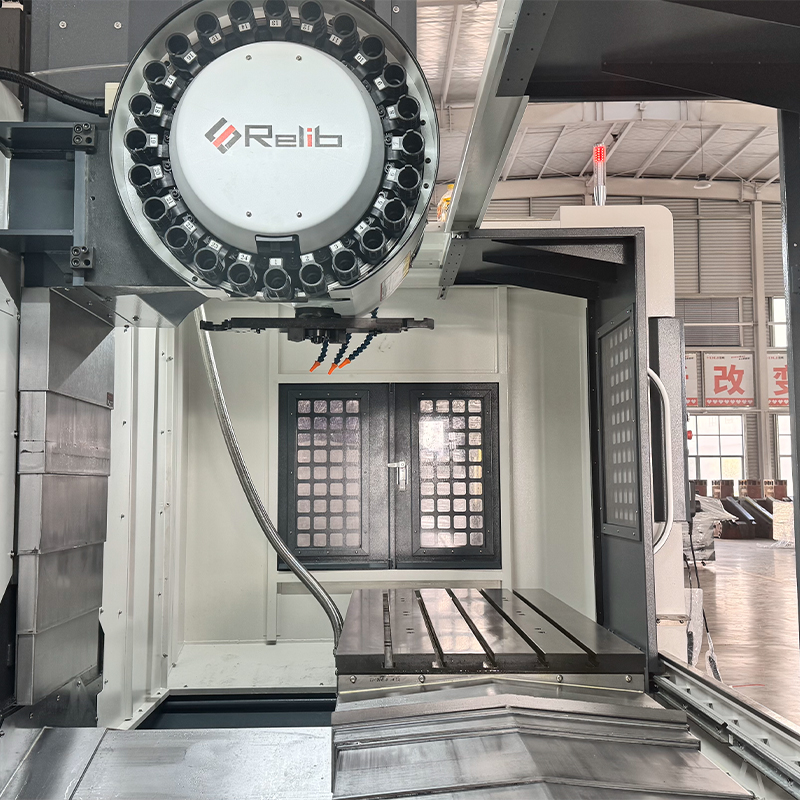

| Standard number of tool magazines | 24 |
| Voltage | 380V-50HZ |
| Processing Capability | High Rigidity processing |
| X/Y/Z Axis Fast Feed Speed m/Min | 24/24/18 |
| Distance From Spindle End to Worktable Surface (mm) | 110-610 |
| Distance From Spindle Centerline to Column Guide Surface (mm) | 560 |
| T-slots (Number of slots - Width × Pitch) (mm) | 5-18*90 |
