Customization: Available
After-sales Service: One Year
Warranty: One Year
Send Inquiry

Product Description

Basic Info
Model NO.
HPM-L
Classification
Single-blade Cutter
Driven Type
Hydraulic
Type
Industrial Cutter
Blade Material
HSS
Computerized
Computerized
Productivity
4tons/Hour
Full Touch Screen
22inch
Cutting Height
210mm
Transport Package
Standard Wooden Case
Specification
HPM137G
Trademark
HPM
Origin
China
HS Code
8441100000
Production Capacity
1000 Unit/Year
Heavy Duty High Accuracy Automatic Ccomputerized Paper Cutting System for Industrial
Heavy Duty High Accuracy Automatic Ccomputerized Paper Cutting System for Industrial
System Overview
Heavy Duty High Accuracy Automatic Ccomputerized Paper Cutting System for Industrial
Heavy Duty High Accuracy Automatic Ccomputerized Paper Cutting System for Industrial
Heavy Duty High Accuracy Automatic Ccomputerized Paper Cutting System for Industrial
Heavy Duty High Accuracy Automatic Ccomputerized Paper Cutting System for Industrial
Heavy Duty High Accuracy Automatic Ccomputerized Paper Cutting System for Industrial
Heavy Duty High Accuracy Automatic Ccomputerized Paper Cutting System for Industrial
Heavy Duty High Accuracy Automatic Ccomputerized Paper Cutting System for Industrial

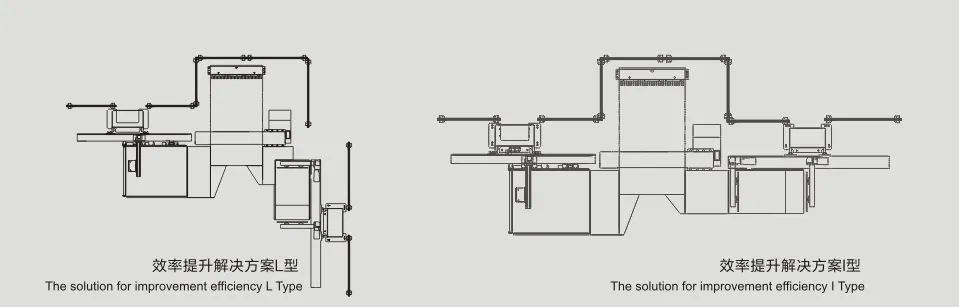

Cutting System HPM-L
The solution for efficiency improvement

Increase the production of individual cutter from 1 ton/hour to 4 ton/hour.

Paper Cutter Loader Unloader Size (L type) Size (I type)
S137G QZ1450 XZ1050 7488 * 6321mm 9654 * 3738mm
S137G QZ1450 XZ1450 7538 * 6548mm 10195 * 3738mm
S168G QZ1650 XZ1650 8872 * 7654mm 11169 * 4397mm
S168G QZ1650 XZ1450 8517 * 7172mm 10981 * 4377mm
S168G QZ1650 XZ1650 8558 * 7556mm 11047 * 4343mm
Heavy Duty High Accuracy Automatic Ccomputerized Paper Cutting System for Industrial

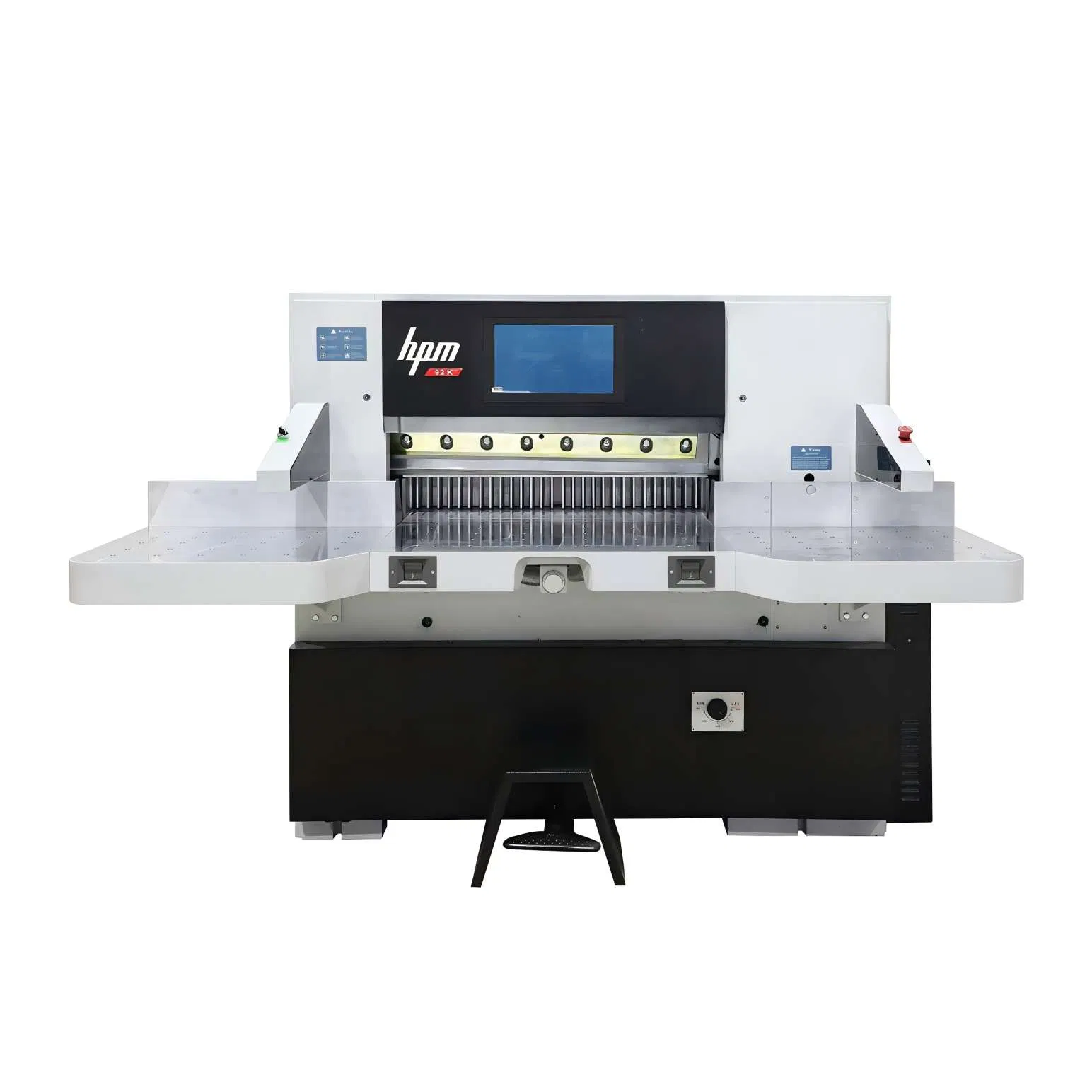

HPM S22 Program Control Paper Cutter

Computer System

  • The up-to-date 22" Widescreen LCD, full touch screen.
  • Eight languages to choose.
  • Metric system and British system two units, show the dimensions of the front knife and the back knife.
  • Step less speed adjustment function with latest technology, to make the cutting speed from 30 to 48 times within 1 minute, no need to change knife angle for different cutting material.
  • Position resolution of backgauge is 0.01mm, closed-loop control, the locating error is less 0.01mm; No need to adjust locating error. Max. backgauge speed is 30-38m/min, 20-30 m/min, 15-20 m/min, 12-15 m/min (four class to adjust).
  • The program storage capacity is 300 programs. Every program can store 299 items cutting sizes. The storage memory has a maximum of 40 years.
  • With USB, transmit data, to convenient operator make programming and arrangement via PC.
  • Equipped with fault diagnostics and non-repeat safety guards. It can detect all the position switch state and dynamic prompt switch failure, making the machine more convenient for maintenance.
  • The backgauge is driven by a Panasonic servo-motor with four speed levels.
  • Use Italy oil pump and hydraulic system.
  • With automatic pushing paper function, the distance can be adjusted.
  • Adjustable time delay for knife activation, accurate and convenient.
  • Uses icons to show operational functions, which are simple and user friendly.
  • With full automatic cutting function. The backgauge and knife movements can be monitored on the screen.

Machine Performance

  • Knife-seat guiding structure with sliding block type, cam type for adjusting-knife mechanism.

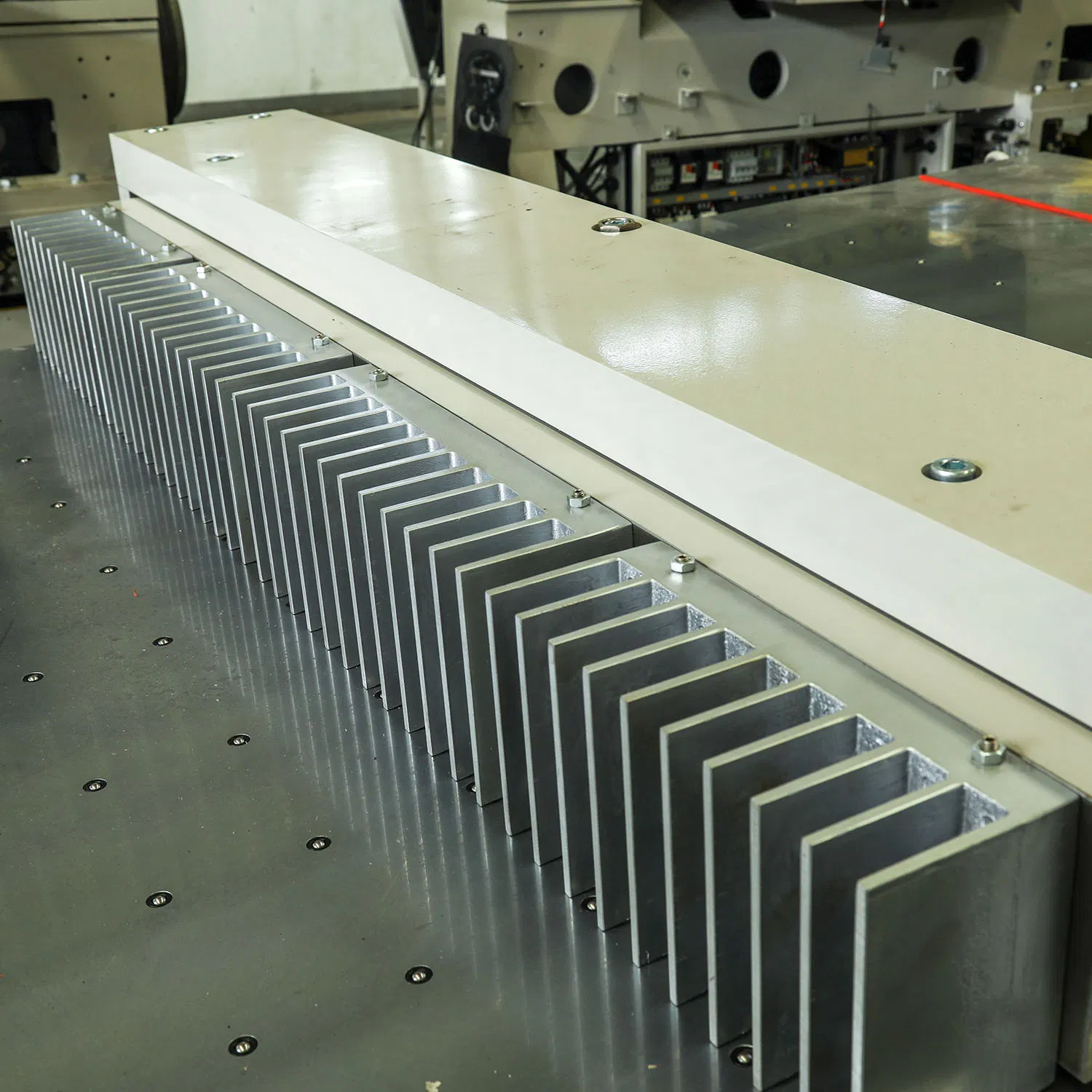

  • Clamp press paper stack through hydraulic system, the spring re-position.
  • Worm gear drive mechanism, hydraulic clutch, mechanical brake.
  • Hydraulic system adopts Germany advanced technology, the hydraulic units are ISO approved, Italy oil pump.
  • One-piece, slot less and chrome-plated cast iron work table is sturdy and easy to maintain.
  • Import ball screw with double linear guides to drive backgauge.

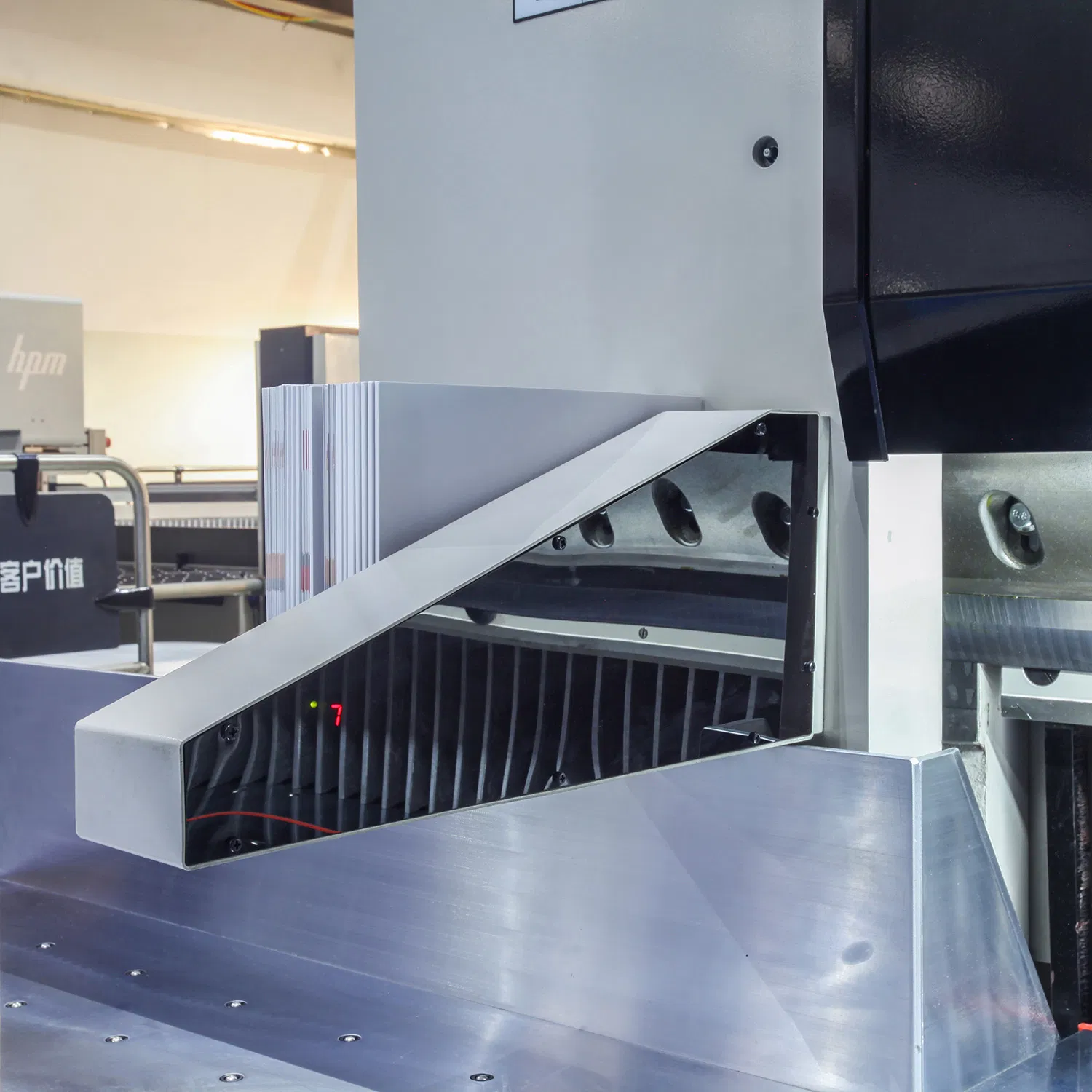

  • High safety infrared protection device according to CE standard.
Frequently Asked Questions
Q1: What is the cutting height capacity and maximum productivity of the HPM-L system?
The cutting height of the HPM-L system is 210mm. By integrating a loader and unloader, the productivity is significantly optimized from 1 ton/hour to 4 tons/hour.
Q2: How accurate is the backgauge positioning on the HPM S22?
The position resolution of the backgauge is 0.01mm with a closed-loop control system, ensuring the locating error stays under 0.01mm. There is no need for operators to adjust locating errors manually.
Q3: How many cutting programs can the computerized control system store?
The S22 program control computer system has a storage capacity of up to 300 programs. Each program can store up to 299 individual cutting size items, and the storage memory lasts for a maximum of 40 years.
Q4: What driven type and mechanical system technologies does the HPM S22 utilize?
The machine utilizes a hydraulic driven type. Its hydraulic system adopts advanced German technology with ISO-approved hydraulic units and an Italian oil pump. Mechanically, it features a worm gear drive, hydraulic clutch, and mechanical brake.
Q5: Does the computer system support speed adjustment for different cutting materials?
Yes, it features a step-less speed adjustment function. This allows the cutting speed to vary from 30 to 48 times within 1 minute, eliminating the need to adjust the knife angle for different materials.
Q6: What safety configurations are built into the paper cutting machine?
The machine features high-safety infrared protection devices according to the CE standard. Additionally, it is equipped with real-time fault diagnostics and non-repeat safety guards that detect all position switch states to assist in maintenance and operations.
