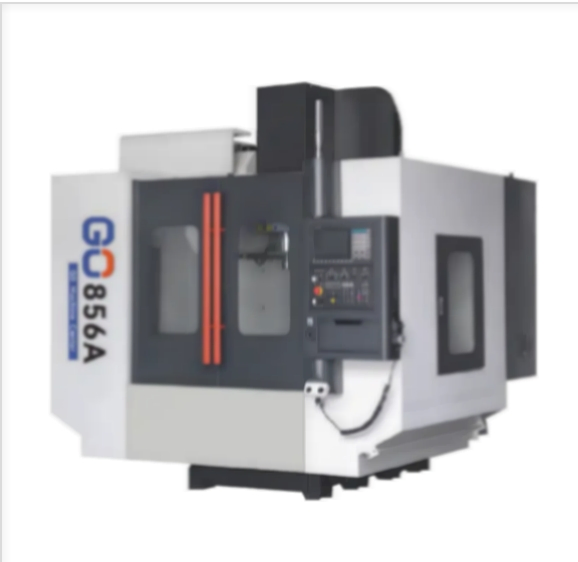

Product Description
The core of a milling centre machine is an automatic tool changer integrated into a CNC milling machine. This system enables continuous multi-process machining, specializing in high-precision and efficient processing of complex flat and three-dimensional parts. It is a key piece of equipment for flexible manufacturing in machining.
Core Product Features
- Highly Integrated Configuration: Standard automatic tool changer (typically with a tool magazine capacity of 16-60 tools) automatically switches between milling cutters, drills, taps, and other tools without manual intervention.
- Multi-Axis Mobility: Mainstream models offer 3 axes (X/Y/Z), while mid-range and high-end models support 4 axes (with additional A/C axis indexing) or 5 axes (fully linked), enabling machining of complex curved and inclined surfaces.
- High-Precision Structural Design: Utilizing a rigid bed, high-precision ball screws and linear guides, driven by servo motors, achieves positioning accuracy of up to 0.001mm, meeting precision machining requirements. Intelligent Adaptation: Equipped with mainstream CNC systems (such as FANUC, Siemens, and Mitsubishi), it supports program pre-reading, tool life management, and machining error compensation. Some models can be integrated with MES systems for intelligent production.
Main Functions
- Basic Milling: Performs core operations such as plane milling (rough and fine milling), contour milling (external and internal contours), groove milling (right-angle slots, T-slots, dovetail slots), and step milling.
- Holemaking: Through automatic tool change, it performs various hole types, including drilling, reaming, tapping (internal and external threads), and countersinking, without changing equipment.
- Complex Feature Machining: 4/5-axis models can machine curved surfaces (such as mold cavities and impeller blades), inclined surfaces, and spatial hole systems, meeting the machining needs of irregular parts. Auxiliary Features: Equipped with a coolant (cutting fluid) system for cooling and chip removal, some models feature a spindle center water outlet function; support for automatic workpiece coordinate setting (e.g., probe measurement), reducing manual tool setting time.
Typical Applications
- Mold Manufacturing: Machining precision components such as cavities, cores, and mold bases for plastic and stamping molds, as well as electrodes.
- Automotive Parts: Machining complex structural parts such as engine cylinder heads, transmission housings, chassis brackets, and steering knuckles.
- Aerospace: Machining parts made of difficult-to-machine materials such as aluminum and titanium alloys, such as aircraft frames, engine blades, and sensor housings.
- Electronics and Medical Devices: Machining small, high-precision parts such as precision connectors, mobile phone midframes, and surgical instruments.
Core Advantages
- Significantly Improved Production Efficiency: The automatic tool changer reduces tool change time. Multiple processes can be completed on the same machine, eliminating workpiece transfer between multiple machines. This reduces machining cycle times by 30%-50% compared to conventional milling machines. Ensure consistent machining accuracy: Reduce workpiece clamping times (typically, all steps are completed in a single clamping), minimize positioning errors, and minimize part precision fluctuations during mass production.
- Reduced labor reliance and costs: The CNC system enables automated machining, with operators only responsible for loading, unloading, and equipment monitoring, allowing one person to manage multiple machines.
- High machining flexibility: Quickly switch between machining part models by modifying the CNC program, eliminating the need for extensive fixture replacement or equipment configuration adjustments, accommodating high-variety, small-batch production needs.

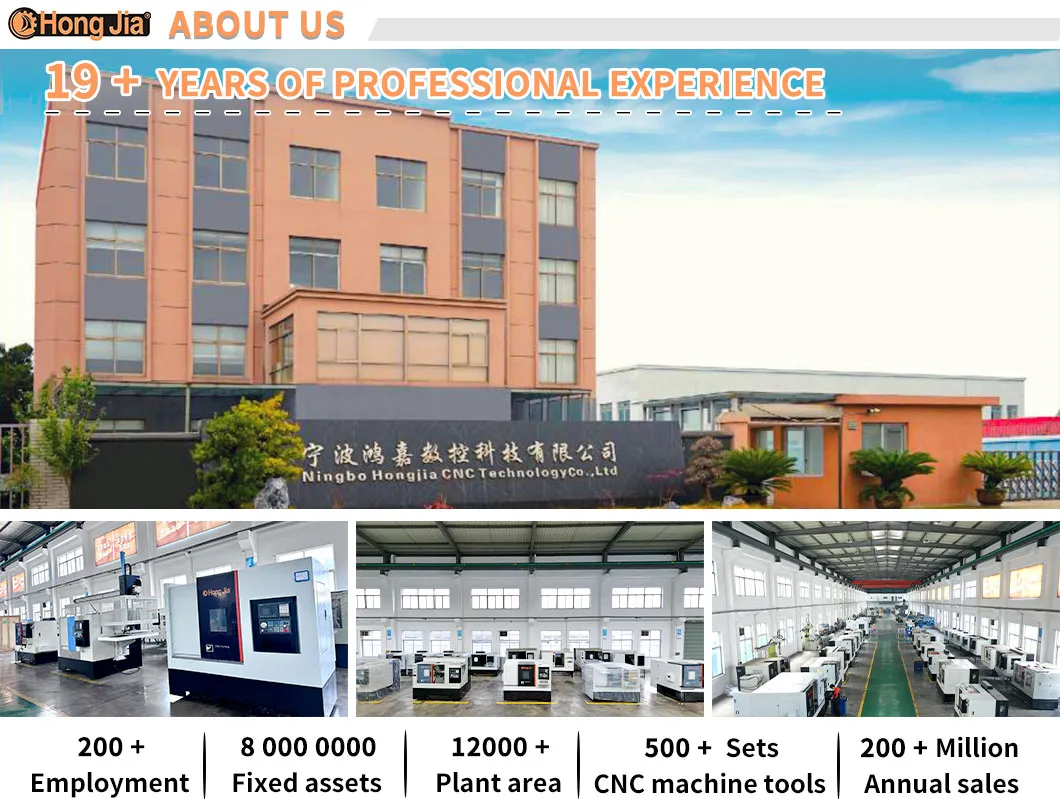

Company Profile
A high-tech enterprise specializing in the R&D, production, and sales of CNC metal-cutting equipment. As an innovative entity integrating research, manufacturing, sales, and service in the field of CNC technology, we prioritize technological innovation, align with market demands, and leverage robust technical expertise and extensive industry experience to provide global customers with efficient, stable, and reliable CNC equipment and tailored solutions.
FAQ
How can I choose the most suitable machine?
Please provide us with your specific requirements or product drawings, and our engineering team will help you select the best model. Alternatively, you can choose the exact model yourself based on your operational specifications.

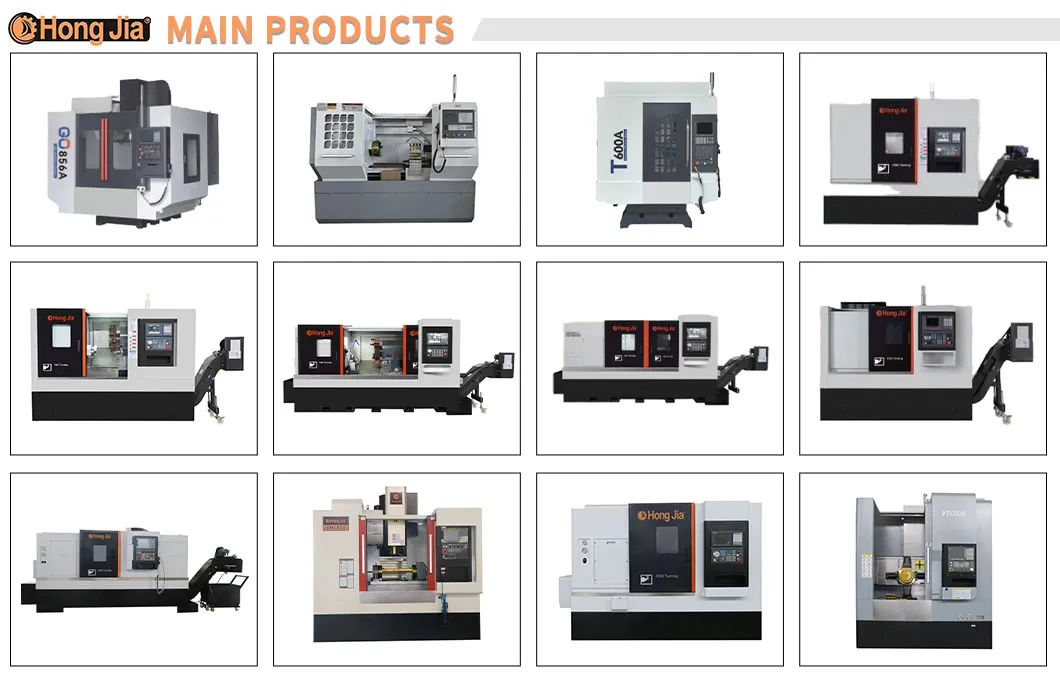

What are the main products you specialize in?
We specialize in a comprehensive range of CNC machines, including CNC Lathe Machines, CNC Milling Machines, CNC Turning Machines, Vertical Machining Centers, Horizontal Machining Centers, and Turning-milling composite processing systems.
What is the typical processing precision of the Lathe Milling Centre Machine?
Our high-end CNC machine tools achieve a processing precision of 0.01 to 0.02 mm, making them ideal for high-precision manufacturing.

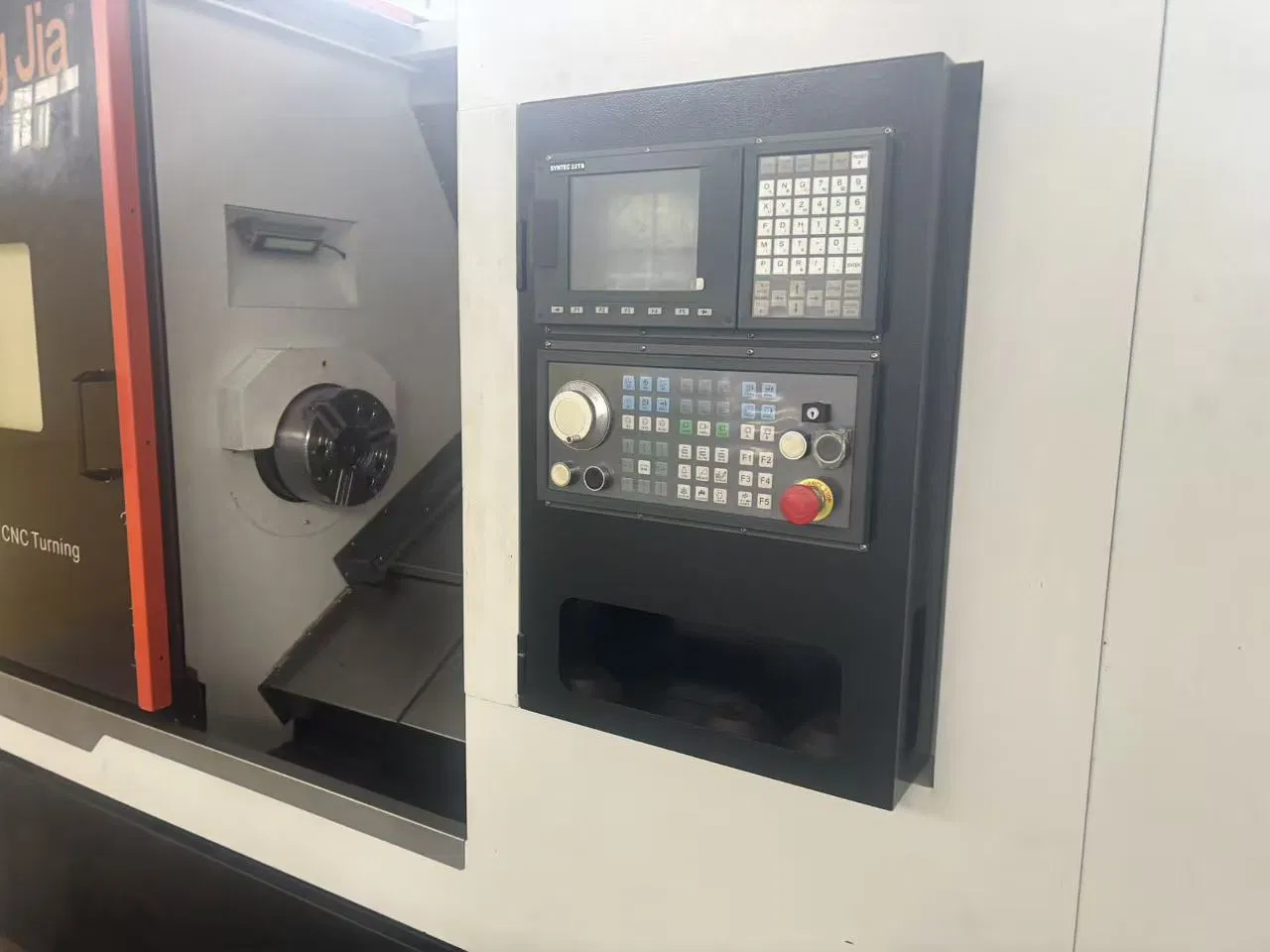

What control systems are integrated with these machines?
The machines are equipped with industry-leading CNC control systems, such as the Taiwan Syntec system, which ensures stable processing, tool life management, and highly integrated multi-axis mobility.
What are the core advantages of using an automatic tool changer?
An automatic tool changer significantly reduces cycle times by 30%-50% compared to conventional milling. It allows multi-process machining in a single clamping, minimizing positioning errors and lowering labor reliance.
What is the MOQ and delivery time?
The Minimum Order Quantity (MOQ) is 1 unit. Standard machines can typically be delivered within 30 days.
