Deep Hole Drilling-Indexable Counterbore Drills- Drill Head-Jk40

1 / 5

Deep Hole Drilling-Indexable Counterbore Drills- Drill Head-Jk40

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

JK40

Customized

Material

Steel

Application

Metal Cutting Machine, Metal Processing Machinery Parts, Deep Hole Drilling Machine

Surface Treatment

Heat Treatment

Machining Purpose

Deep Hole Drilling

Transport Package

One in Single Plastic Box

Specification

JK-d40

HS Code

82075090

Production Capacity

500PCS/Month

Product Description

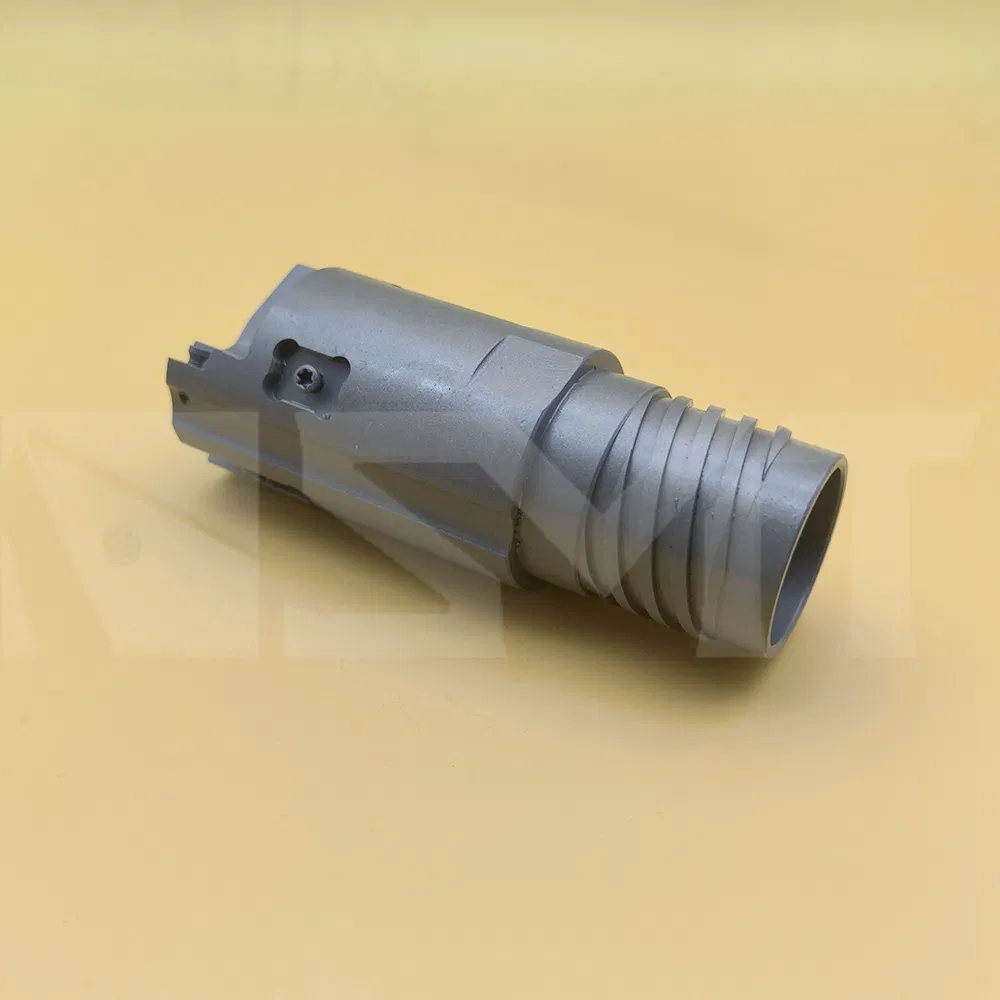

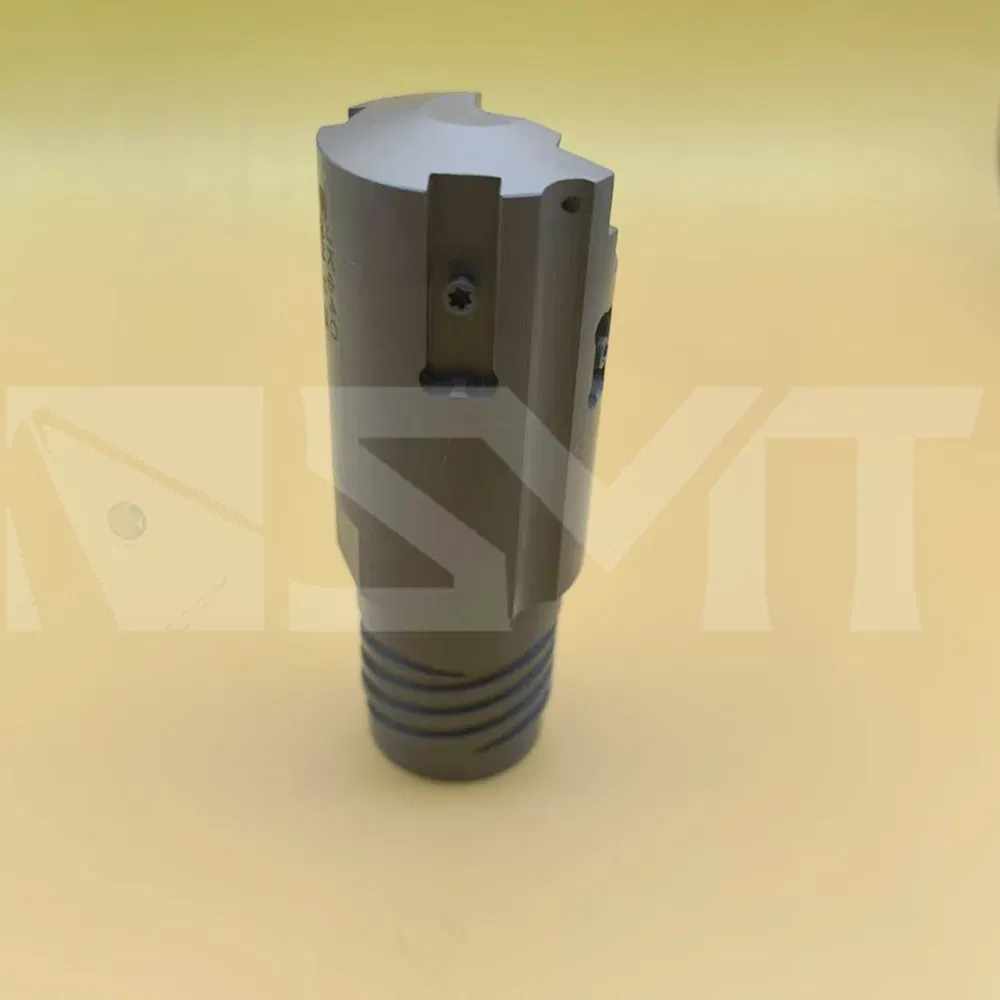

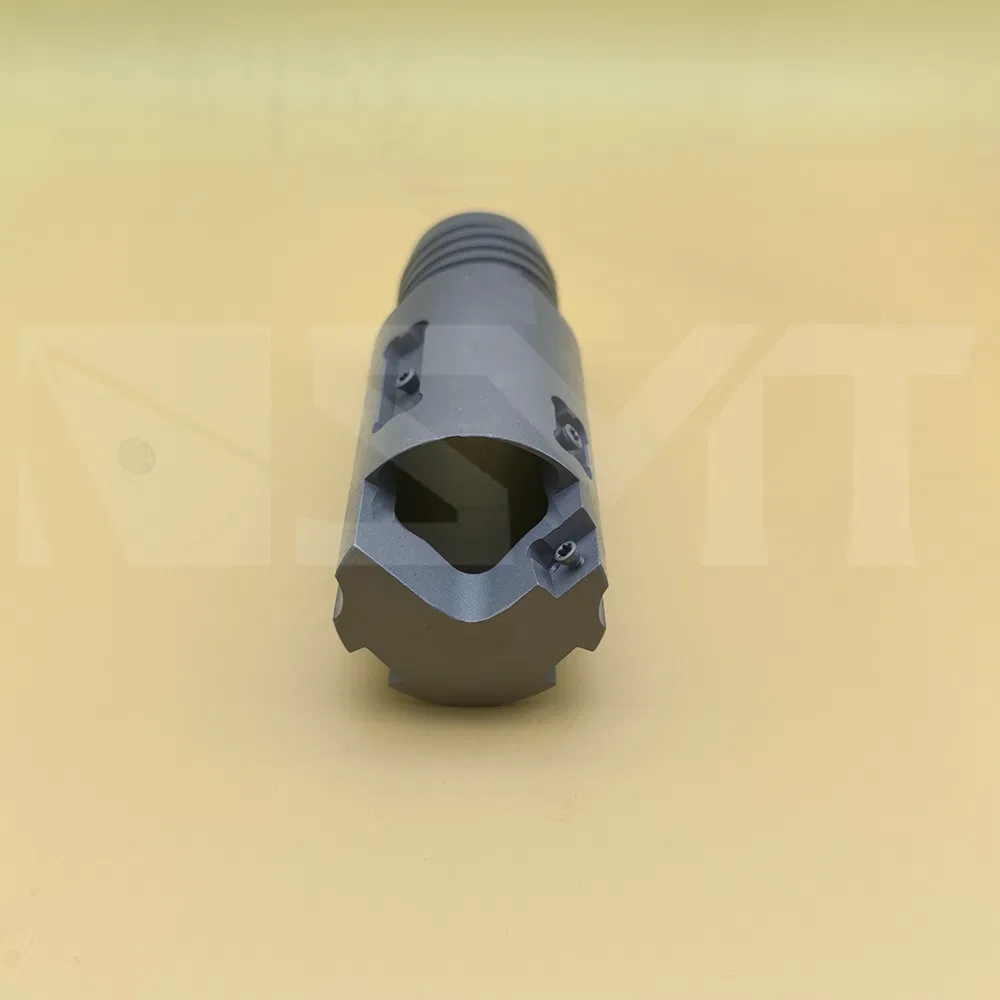

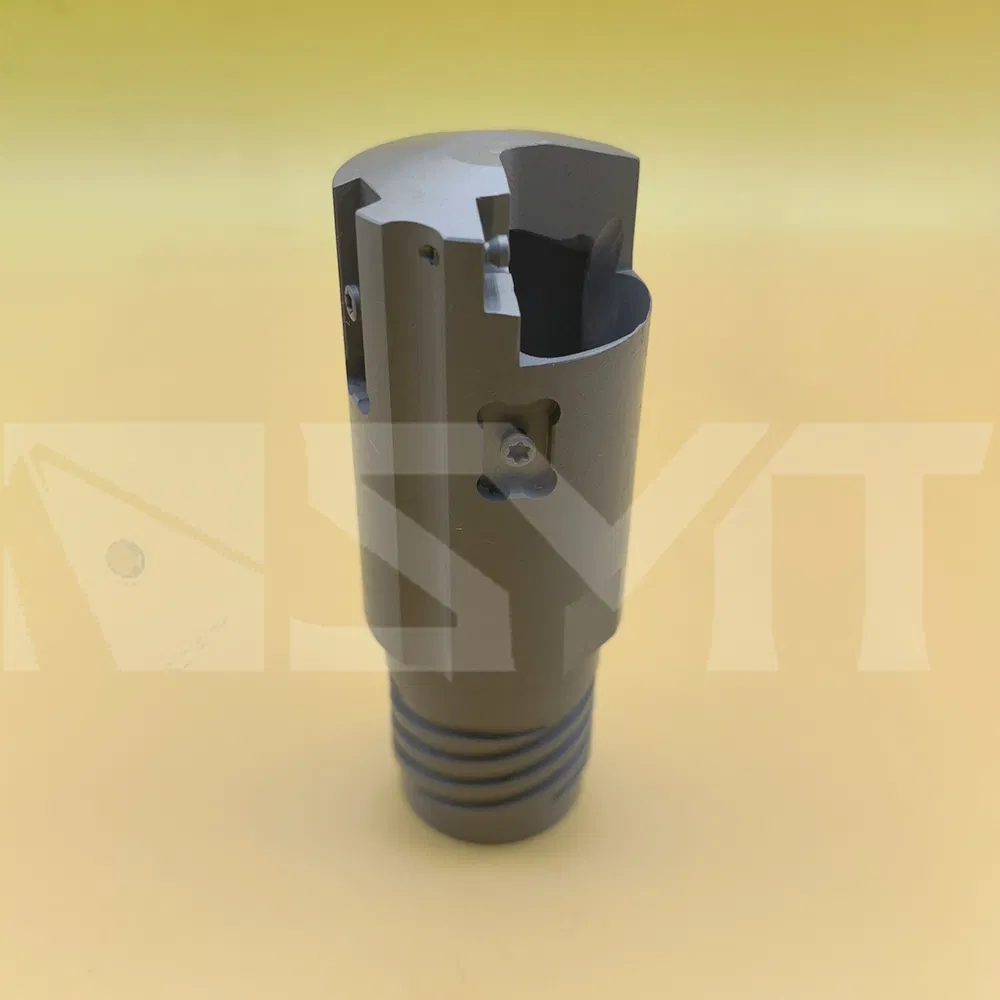

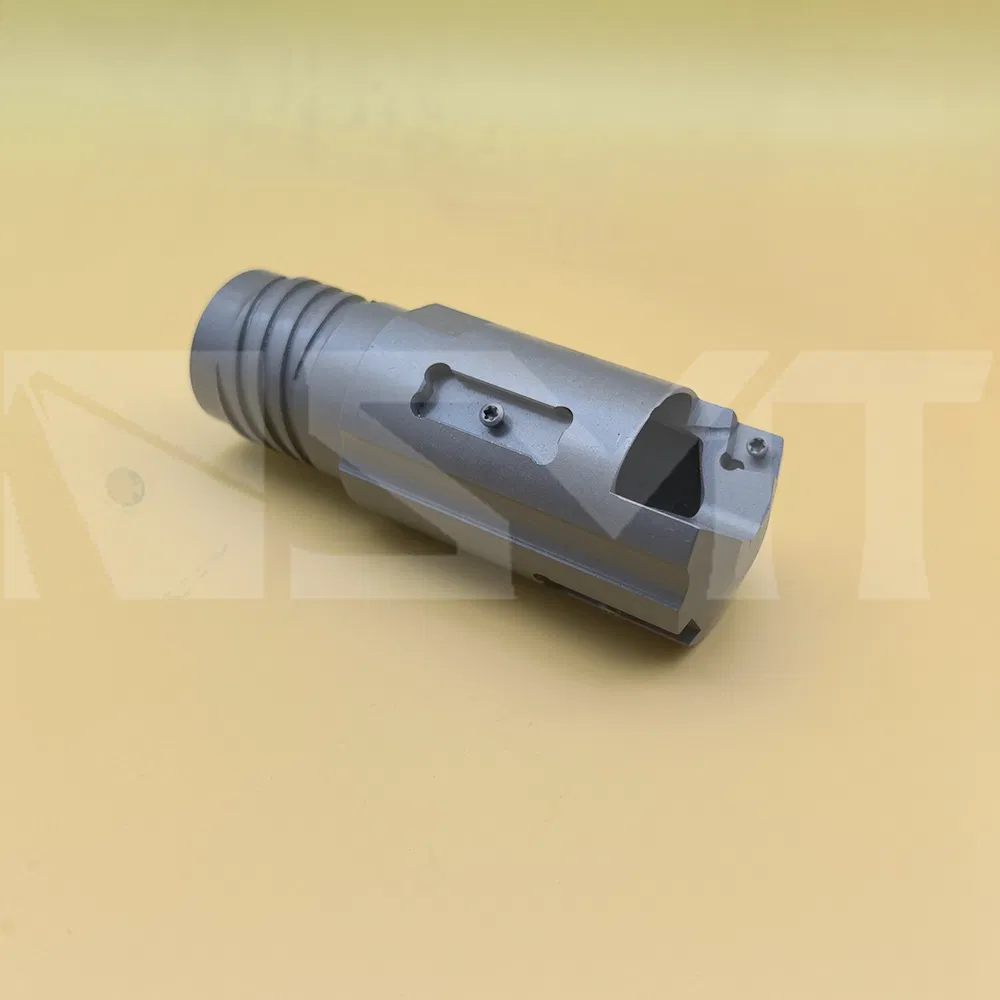

Indexable Deep Hole drills - STS Counterbore drill head - JK-series - JK Φ40
Drilling Diameter: 40 mm with inserts and guide pads. Inserts are available in three grades to suit different applications. Guide pads are available in solid carbide coated, uncoated, or bakelite configurations.

JK-series Indexable Deep Hole Drills feature drilling diameters ranging from ΦJK25 to Φ180.00, optionable with or without cartridges.

Description	Specification	Qty Req.
Drill Head	JKΦ40	1

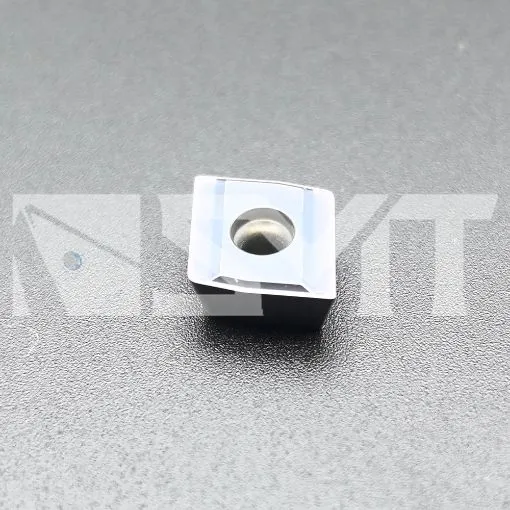

Peripheral Insert	P09T0308-G	1

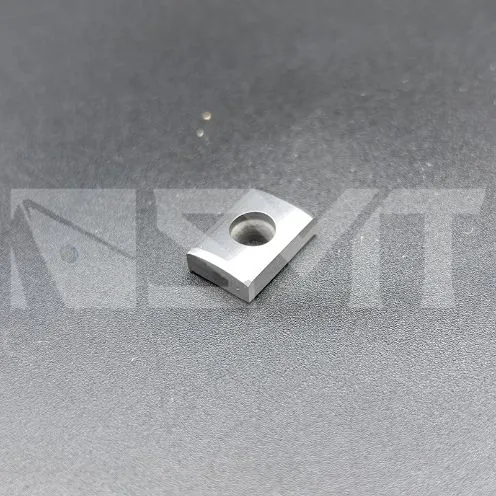

Guide Pad	DQ8625	2

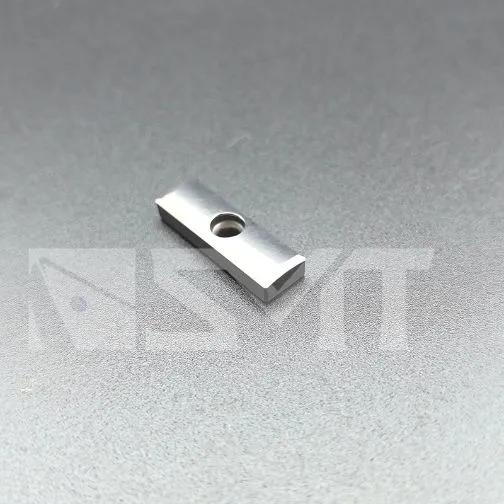

Sub-Guide Pad	FDQ0812	1

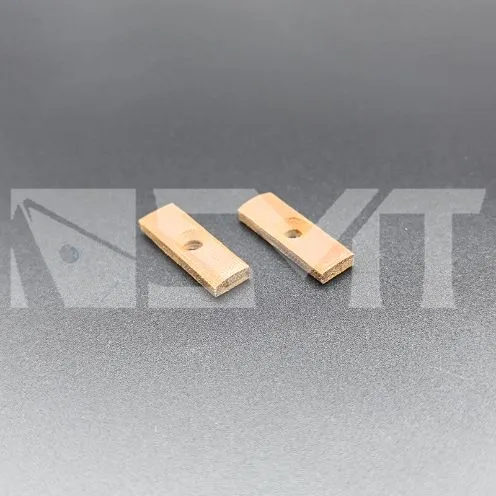

Guide Pad (Bakelite)	DQ0825JM	1

Specialized solutions in indexable BTA drills, indexable ejector drills, and indexable gun drills are provided, alongside carbide inserts, cartridges, guide pads, and other deep hole drilling accessories.

Different series of drill heads are available for deep hole drilling operations, spanning diameters from D25 to D300 with diverse insert options, as well as D14 to D32 drill heads fitted with a single carbide insert.

Frequently Asked Questions

What is the drilling diameter of the JK40 drill head?

The JK40 model has a specific drilling diameter of 40 mm. However, the wider JK-series indexable deep hole drills accommodate diameters ranging from Φ25 mm up to Φ180.00 mm.

What types of guide pads can be used with this system?

Guide pads are available in solid carbide (with coated or uncoated options) as well as bakelite materials, allowing you to choose the configuration that best suits your machining needs.

What materials and surface treatments are applied to the JK40?

The drill head is constructed from high-quality steel and undergoes a specialized heat treatment process to ensure durability and high performance during demanding deep hole drilling tasks.

Can the JK40 drill head setup be customized?

Yes, the JK40 drill head supports customization. The indexable deep hole drills in the JK series can be configured with or without cartridges to fit specific application parameters.

What components are included in a standard JKΦ40 drill head configuration?

A typical setup includes 1 drill head (JKΦ40), 1 peripheral insert (P09T0308-G), 2 guide pads (DQ8625), 1 sub-guide pad (FDQ0812), and 1 bakelite guide pad (DQ0825JM).

How is the product packaged, and what is the production capacity?

Each drill head is individually packed in a single plastic box for secure transport. The monthly production capacity for this line is 500 pieces.
