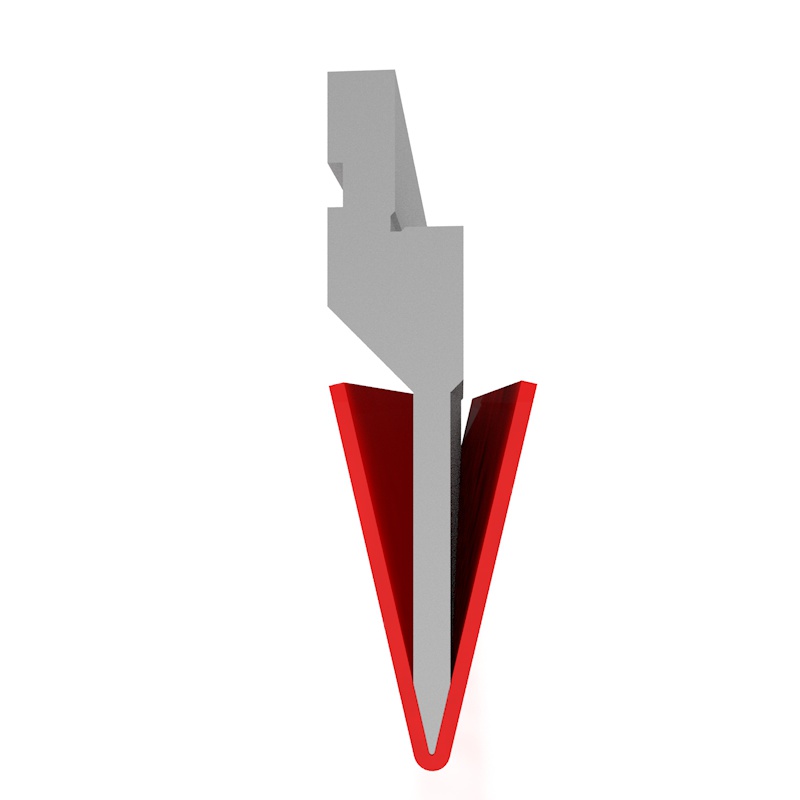

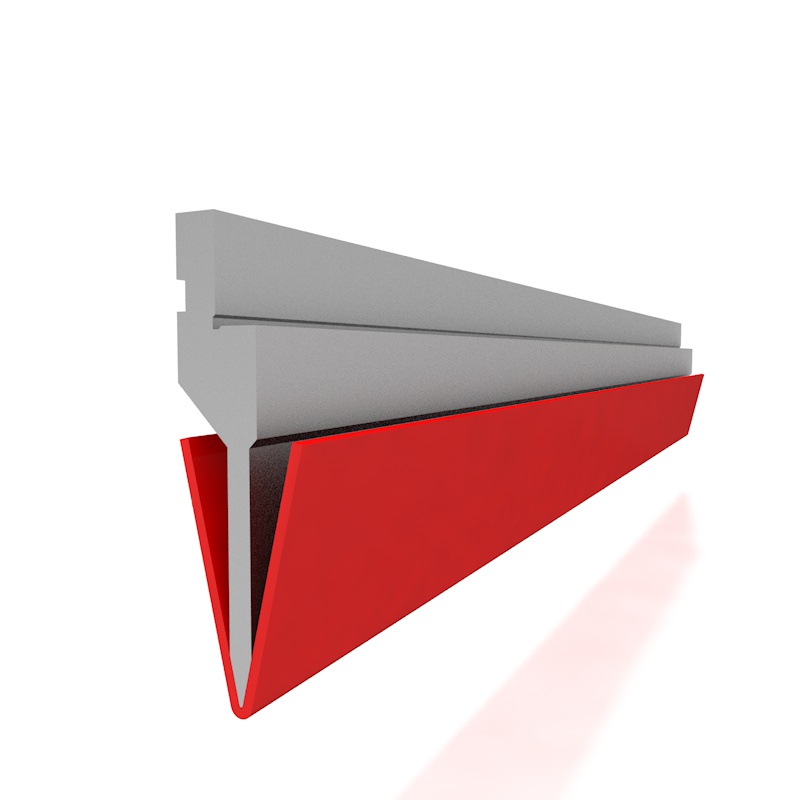

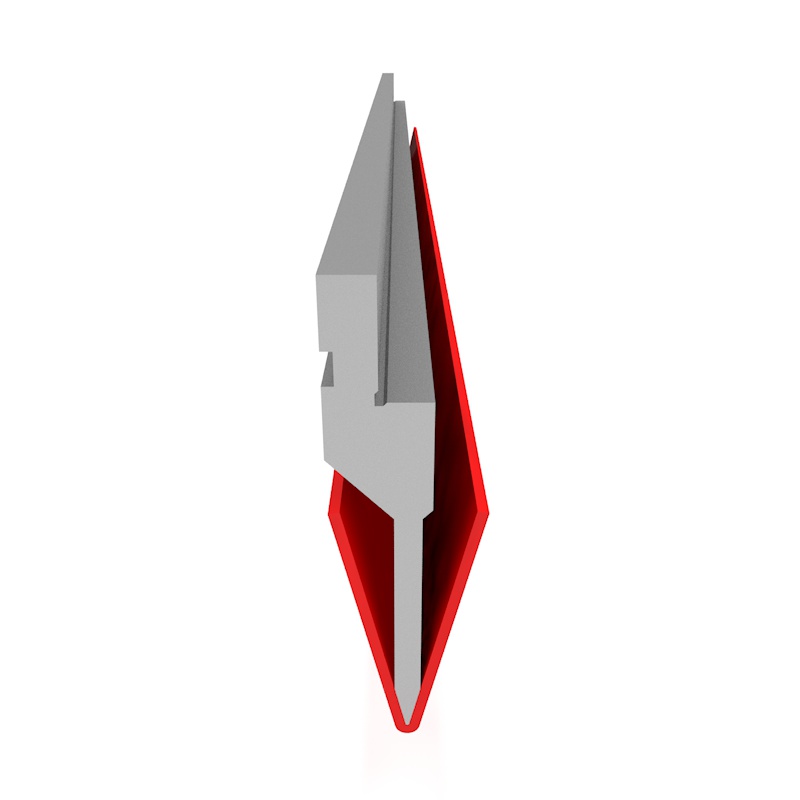

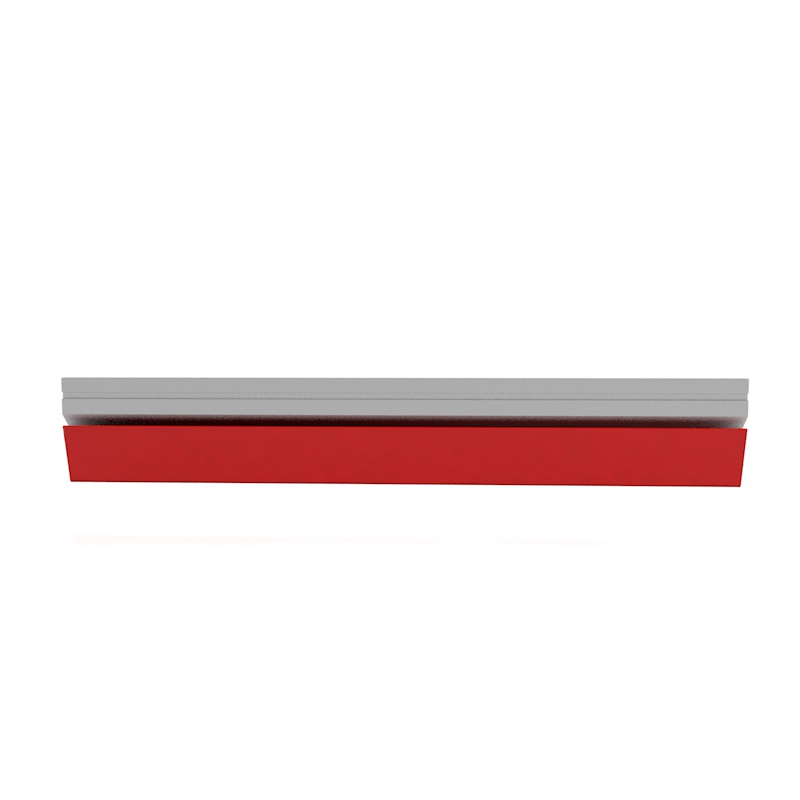

Tooling Molds Die for CNC Sheet Metal Bending Press Brake Machine
Tooling Molds Die for CNC Sheet Metal Bending Press Brake Machine
Tooling Molds Die for CNC Sheet Metal Bending Press Brake Machine
Tooling Molds Die for CNC Sheet Metal Bending Press Brake Machine
Tooling Molds Die for CNC Sheet Metal Bending Press Brake Machine
1 / 5
Tooling Molds Die for CNC Sheet Metal Bending Press Brake Machine
Tooling Molds Die for CNC Sheet Metal Bending Press Brake Machine
Tooling Molds Die for CNC Sheet Metal Bending Press Brake Machine
Tooling Molds Die for CNC Sheet Metal Bending Press Brake Machine
Tooling Molds Die for CNC Sheet Metal Bending Press Brake Machine

Tooling Molds Die for CNC Sheet Metal Bending Press Brake Machine

Send Inquiry

Product Description

Our Factory

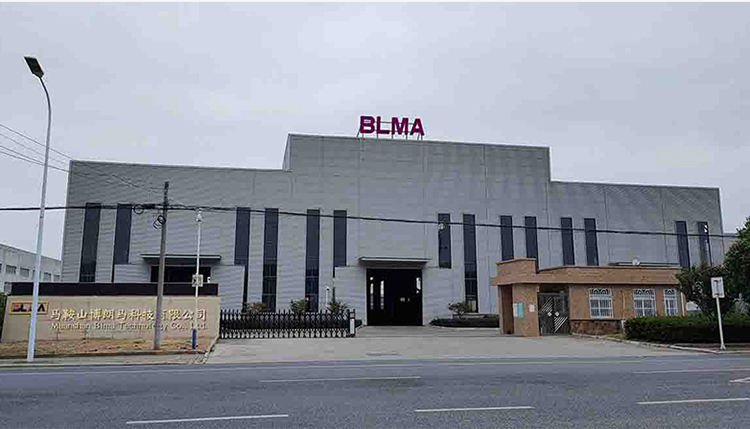

Factory Workshop View 1

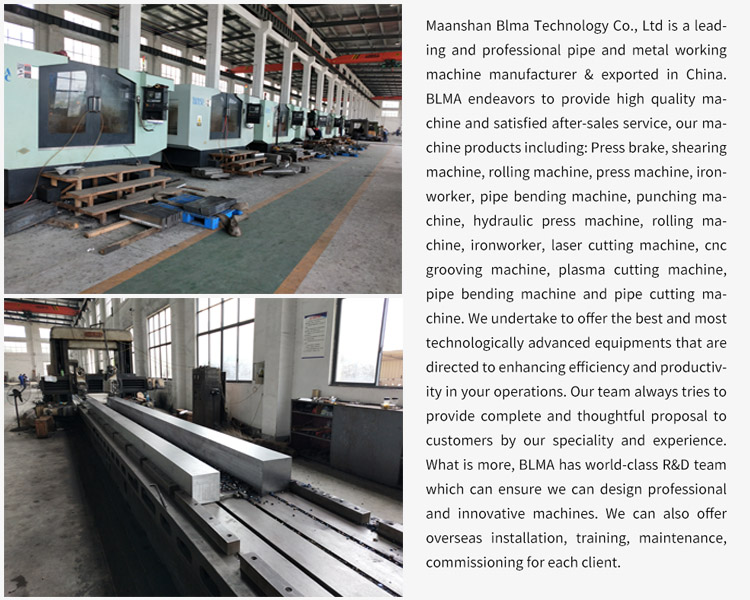

Factory Workshop View 2
Factory Warehouse View
Bending Moulds
Hot Selling Press brake Moulds
Standard die
Used for bending 90°-180° angle. Advantages: universal for thick and thin plates.
Sharp mold
Used for bending 20°-180° angle. Advantages: can be bent at small angles and sizes, the R arc after bending is small, beautiful, and sharp.
Large bending die
Used for bending 30°-180° angle. Advantages: used for "U"-shaped products that cannot be completed by standard and sharp dies.
Flattening die
It is used to shoot dead edges. It is suitable for use with sharp molds. First use the sharp mold to bend the workpiece to an angle less than 45°, and then use flattening die to press the dead edges.
Differential mode
(Also known as "Z" type) is mainly used for the bending of small-size "Z" type workpieces, which are divided into two types: fixed and adjustable.
Forming molds
(Including arc molds, door frame forming molds, U-shaped forming molds, light pole molds, etc.) are usually more complex product bending, while including a variety of bending angles and styles, so as to design the bending mold, High bending accuracy and efficiency.
Co-core mold
Usually refers to the lower mold used for the CNC bending machine, which is composed of a mold holder and a segmented lower mold. The same core refers to the need to re-center the upper and lower mold positions when changing the notch, and the mold change is very convenient. High processing accuracy.

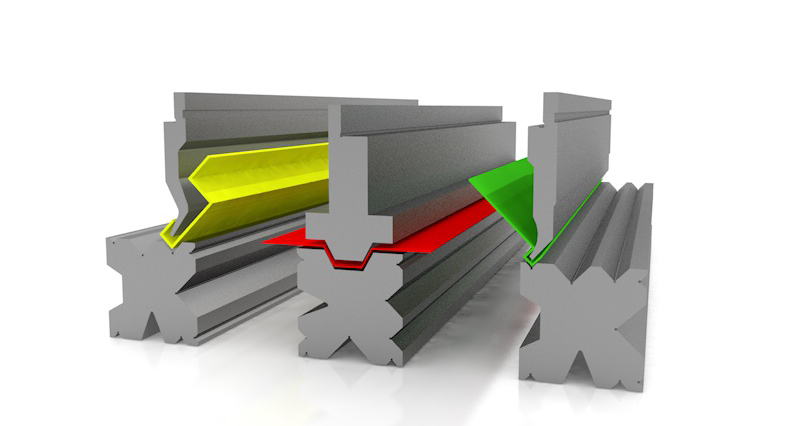

Press Brake Moulds Collection
Product Parameters
Product Name Press Brake Die
Material 42CrMo
Color Metallic
Size Customizable sizes
Hardness 45-50HRC
Application Used on press brake machine
Certification ISO9001
Products Sizes

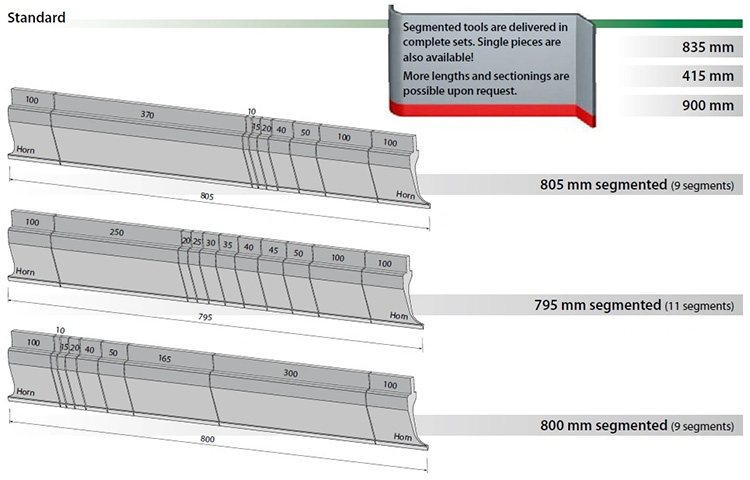

Product Size Specifications Chart

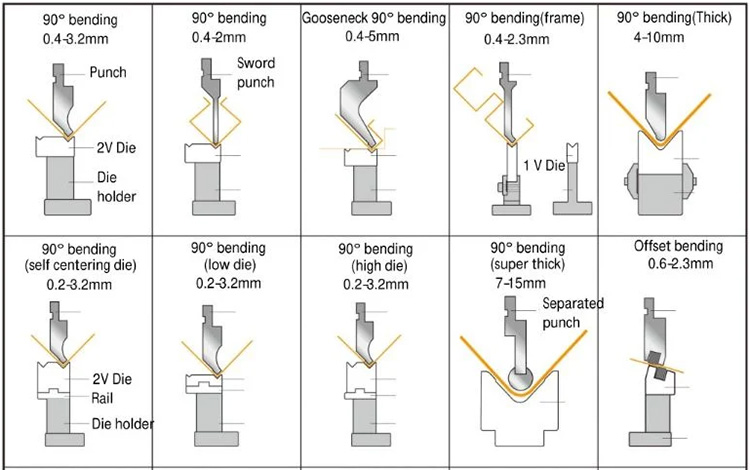

Bending Mold Drawings
Technical Drawing 1

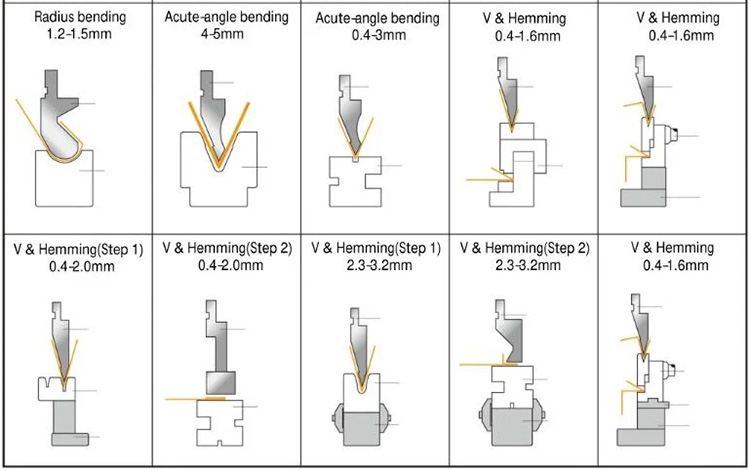

Technical Drawing 2
Related Products

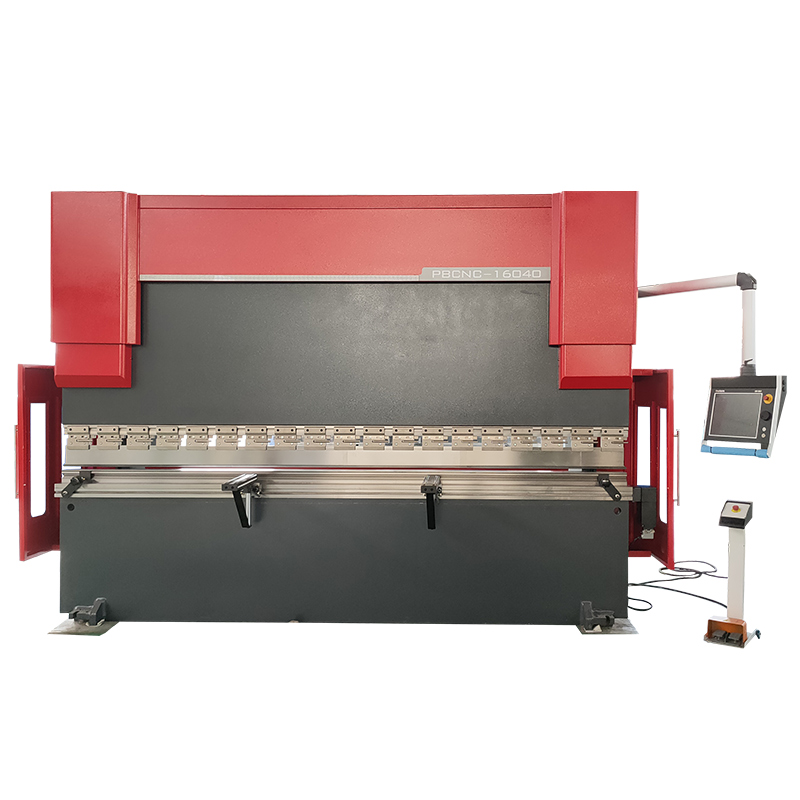

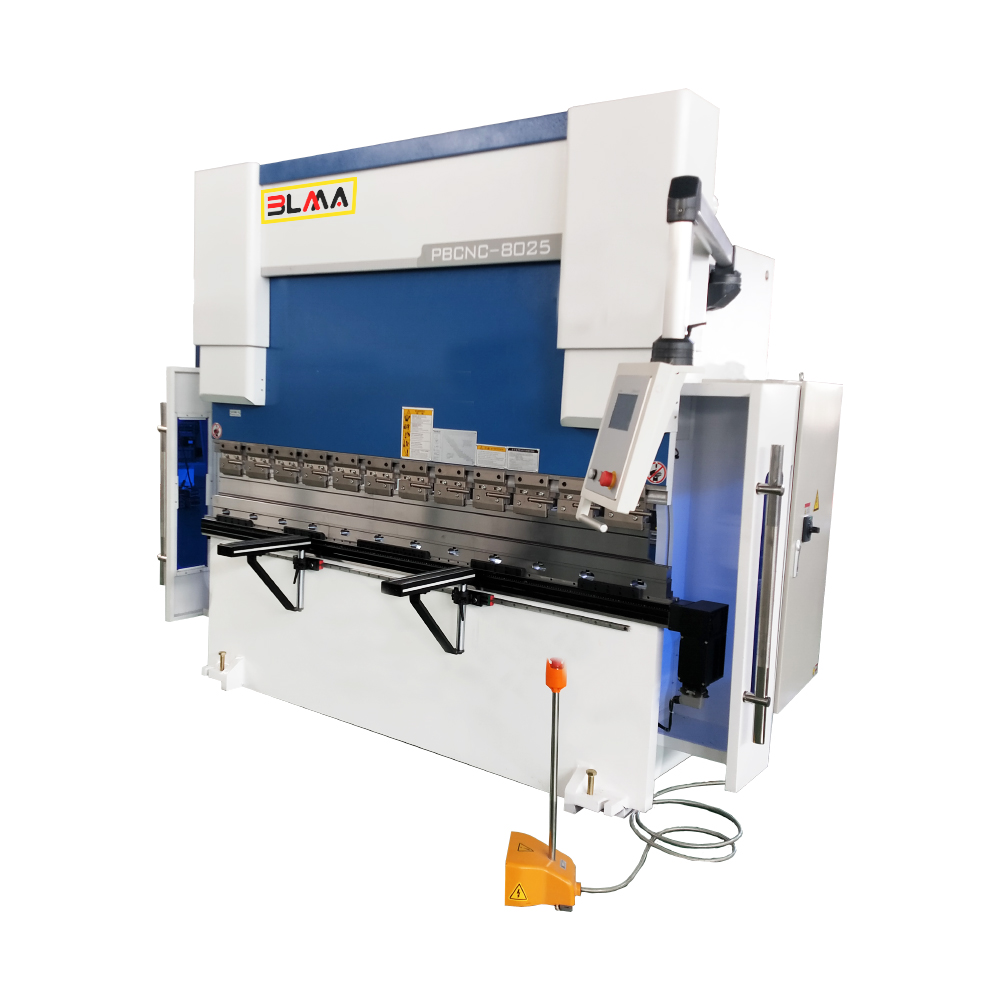

Related Product 1

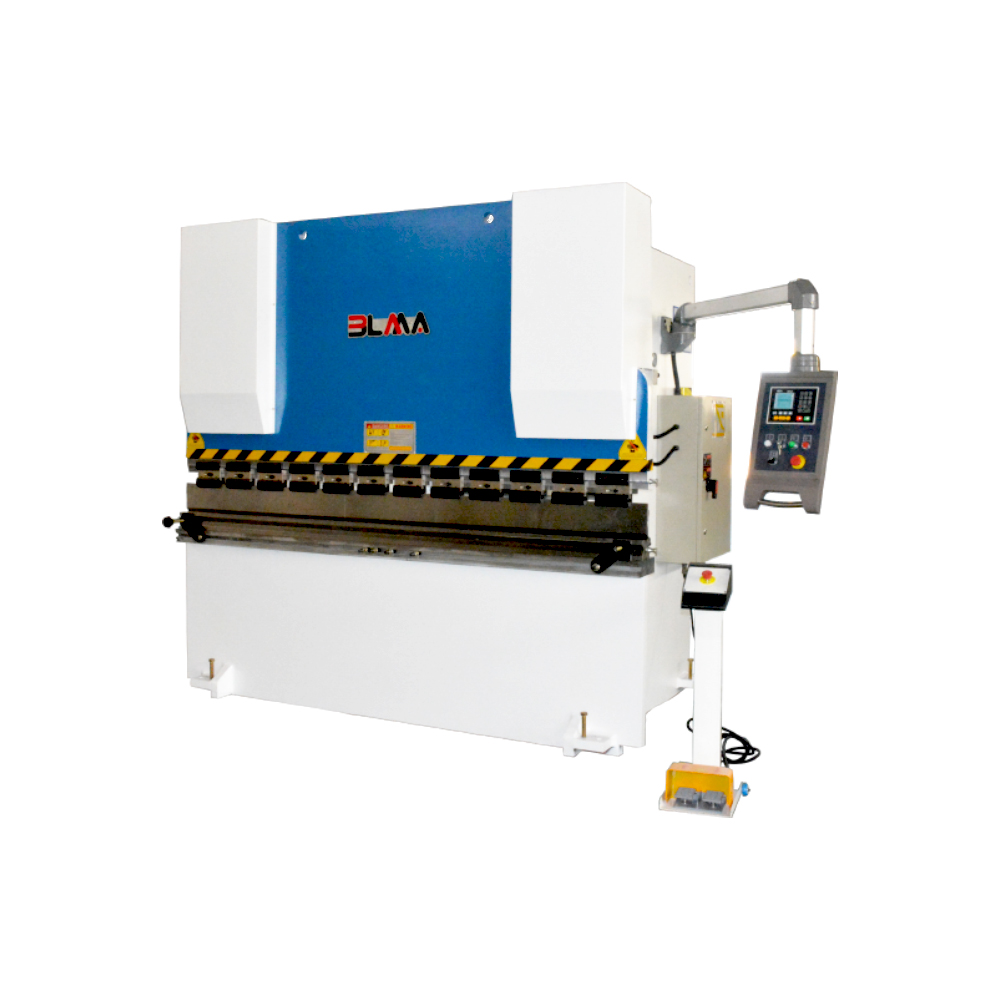

Related Product 2
Related Product 3
Certifications

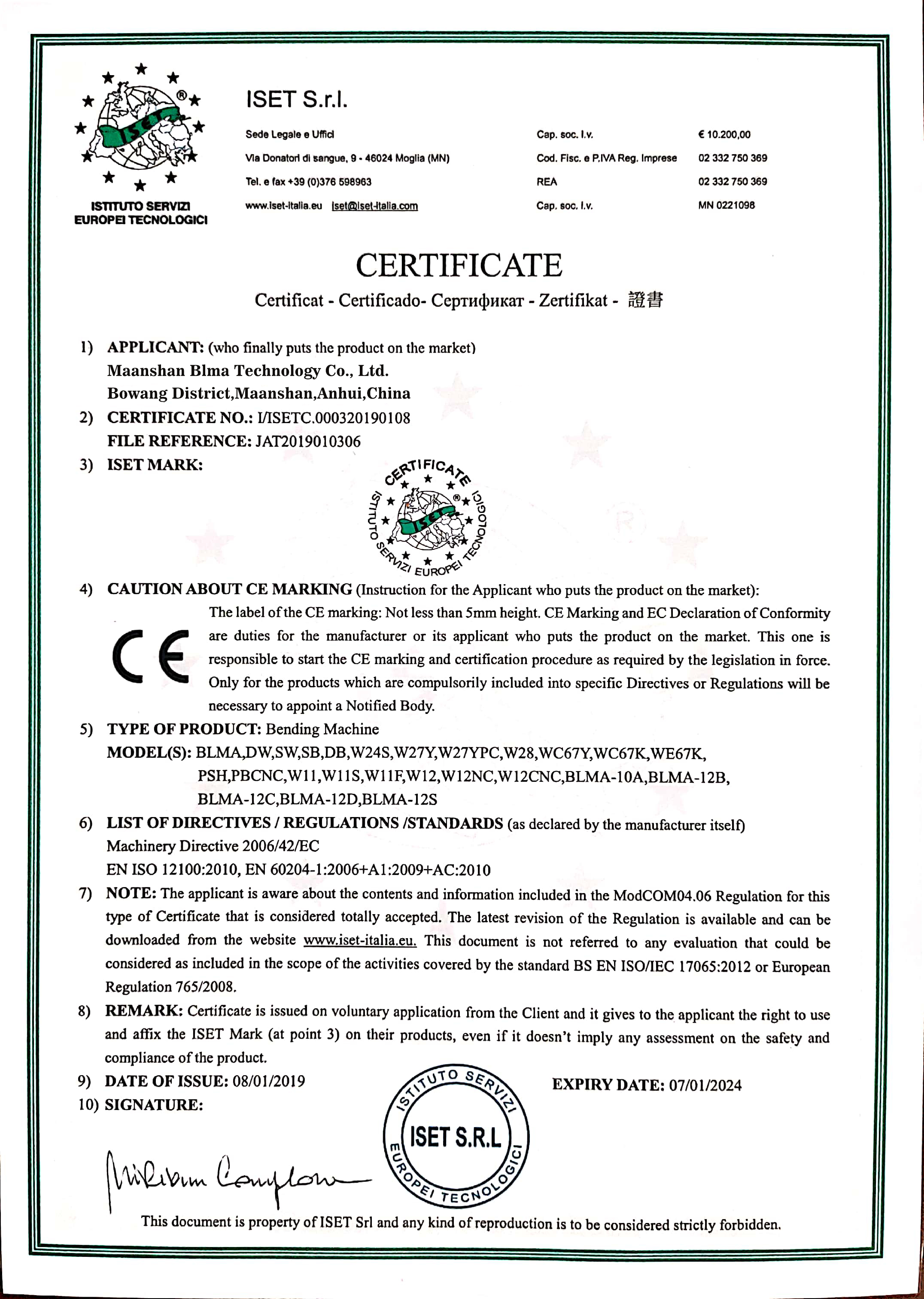

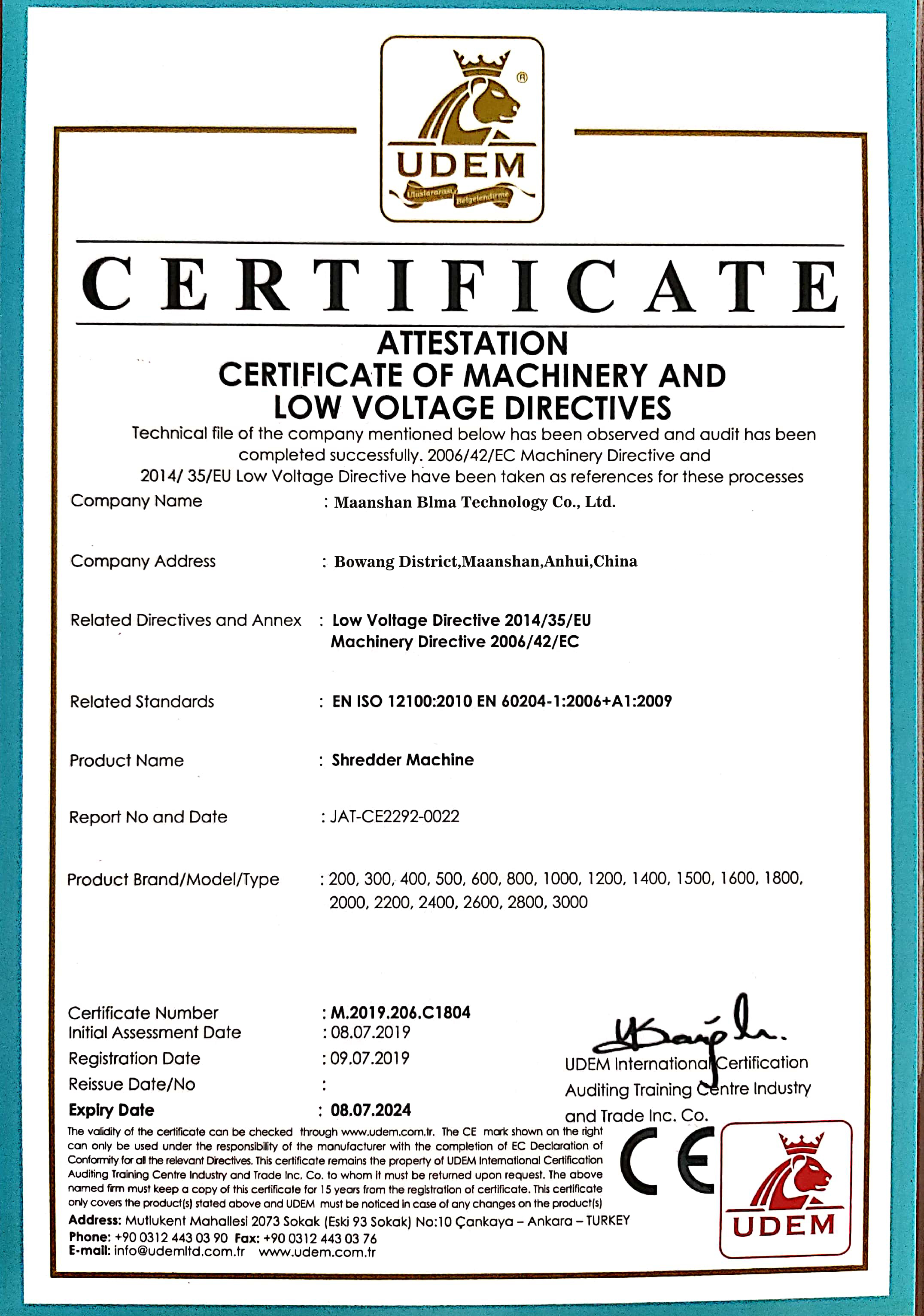

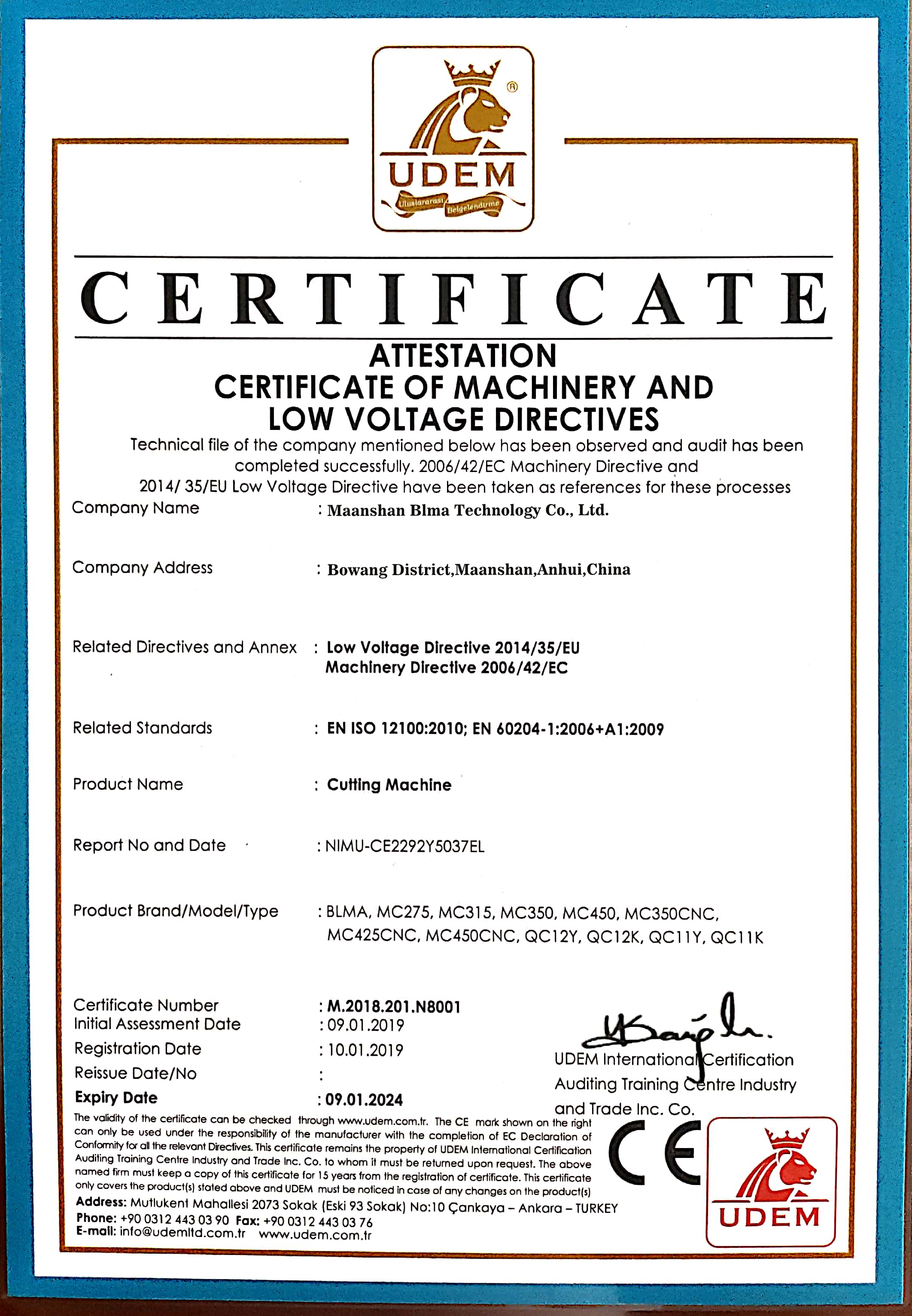

ISO Certification Page 1
ISO Certification Page 2

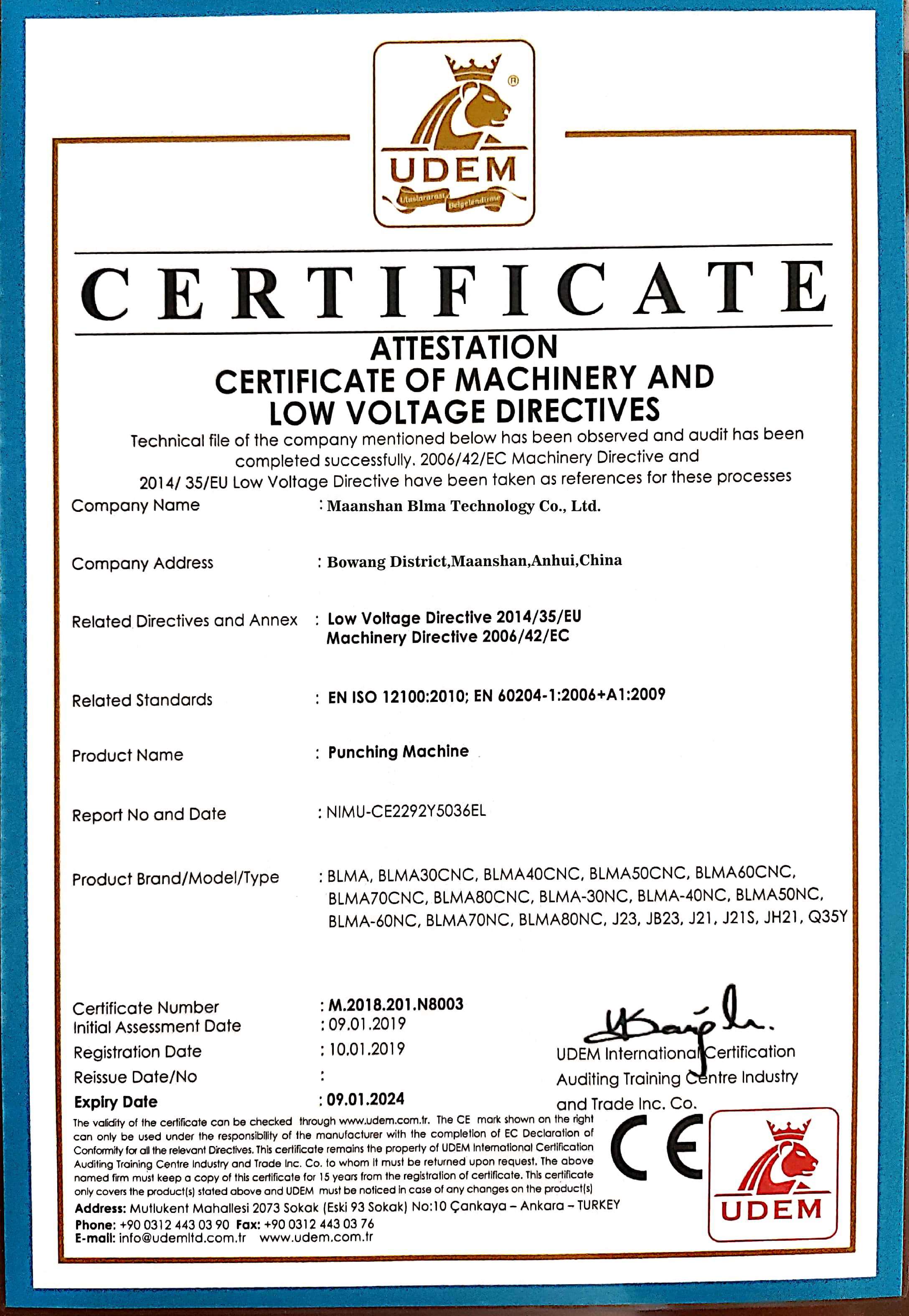

ISO Certification Page 3
ISO Certification Page 4
Product Delivery
Product Packaging and Delivery Options
Frequently Asked Questions
What materials are used to manufacture these press brake moulds?
We primarily use high-grade 42CrMo alloy steel for our press brake dies. This material provides exceptional wear resistance, durability, and a hardness rating of 45-50HRC after heat treatment.
Are custom sizes and shapes available for your bending dies?
Yes, we offer fully customizable sizes. We can manufacture tools to suit your drawings, target bending profiles, or specific press brake machine dimensions.
What is the advantage of using a CNC co-core lower mould?
CNC co-core lower moulds consist of a unified mould holder and segmented lower dies. This allows operators to change the V-grooves without having to manually re-center the alignment of the upper and lower toolings, saving time and increasing accuracy.
What standards or certifications do your products comply with?
Our manufacturing processes and quality systems are certified under the ISO9001 standard. This ensures consistency, high tolerance control, and durability in all the moulds we deliver.
How do I choose between standard dies and sharp molds?
Standard dies are ideal for general bending requirements ranging from 90° to 180° on both thick and thin plates. Sharp molds are optimized for tighter, smaller bending angles (from 20° up to 180°) and produce a smaller, sharper R arc at the bend.
