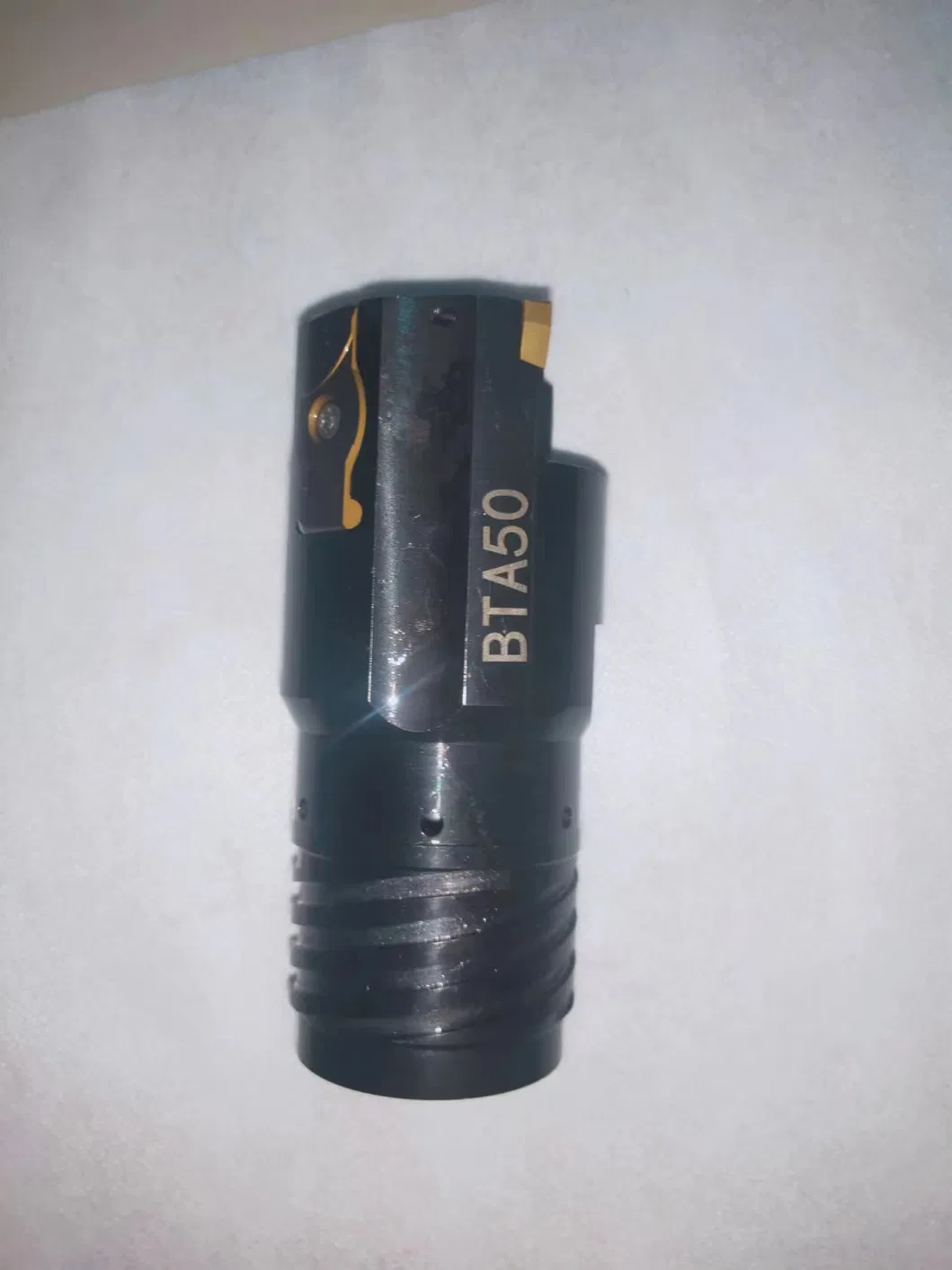

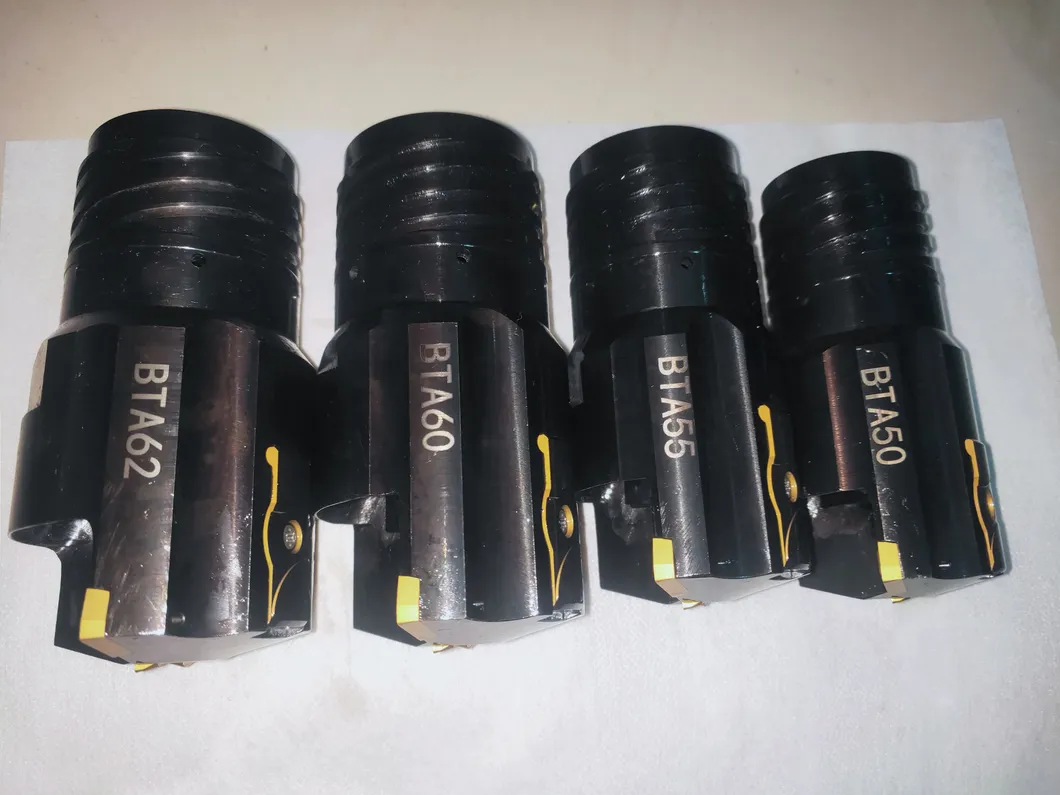

DTS BTA Deep Hole Drilling Head - BTA DRILL HEAD
| Drilling Head Diameter | Central Inserts | Qty | Intermediate Inserts | Qty | Peripheral Inserts | Qty | Guide Pad | Qty |
|---|---|---|---|---|---|---|---|---|
| 25~28.7 | 800-050308M-C-G | 1 | 800-050308M-I-G/L | 1 | 800-060308H-P-G/L | 1 | 800-06A | 2 |
| 28.71~31.00 | 800-06T308M-C-G | 1 | 800-050308M-I-G/L | 1 | 800-060308H-P-G/L | 1 | 800-06A | 2 |
| 31.01~33.30 | 800-06T308M-C-G | 1 | 800-060308M-I-G/L | 1 | 800-08T308H-P-G/L | 1 | 800-07A | 2 |
| 33.31~36.20 | 800-08T308M-C-G | 1 | 800-06T308M-I-G/L | 1 | 800-08T308H-P-G/L | 1 | 800-07A | 2 |
| 36.21~39.6 | 800-08T308M-C-G | 1 | 800-08T308M-I-G/L | 1 | 800-08T308H-P-G/L | 1 | 800-07A | 2 |
| 39.61~43 | 800-08T308M-C-G | 1 | 800-08T308M-I-G/L | 1 | 800-09T308H-P-G/L | 1 | 800-08A | 2 |
| 43.01~47.00 | 800-10T308M-C-G | 1 | 800-08T308M-I-G/L | 1 | 800-09T308H-P-G/L | 1 | 800-08A | 2 |
| 47.01-51.7 | 800-10T308M-C-G | 1 | 800-08T308M-I-G/L | 1 | 800-11T308H-P-G/L | 1 | 800-10A | 2 |
| 51.71-56.2 | 800-10T308M-C-G | 1 | 800-12T308M-I-G/L | 1 | 800-11T308H-P-G/L | 1 | 800-10A | 2 |
| 56.21-59 | 800-10T308M-C-G | 1 | 800-12T308M-I-G/L | 1 | 800-11T308H-P-G/L | 1 | 800-12A | 2 |
| 60-65 | 800-12T308M-C-G | 1 | 800-12T308M-I-G/L | 1 | 800-11T308H-P-G/L | 1 | 800-12A | 2 |
The cutting body is manufactured using Aviation pre-hardened material with solid carbide guide pads and high-quality alloy steel for extreme durability and long-term metal drilling applications.

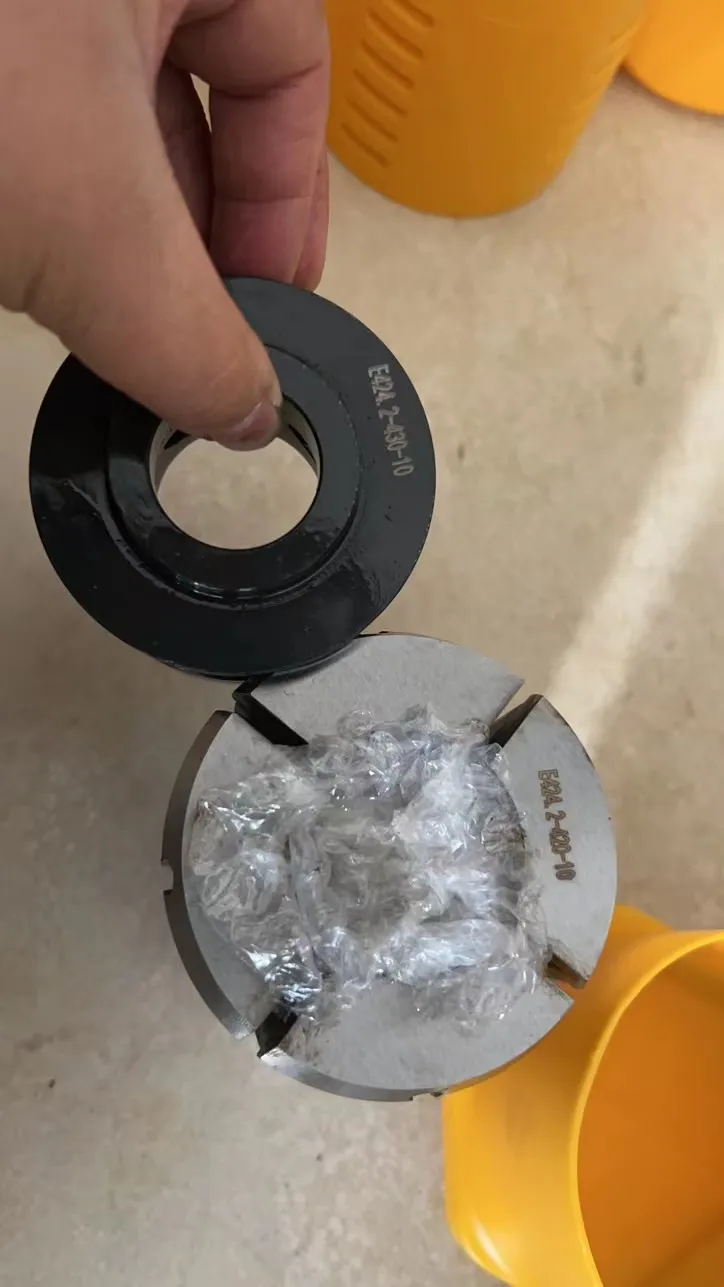

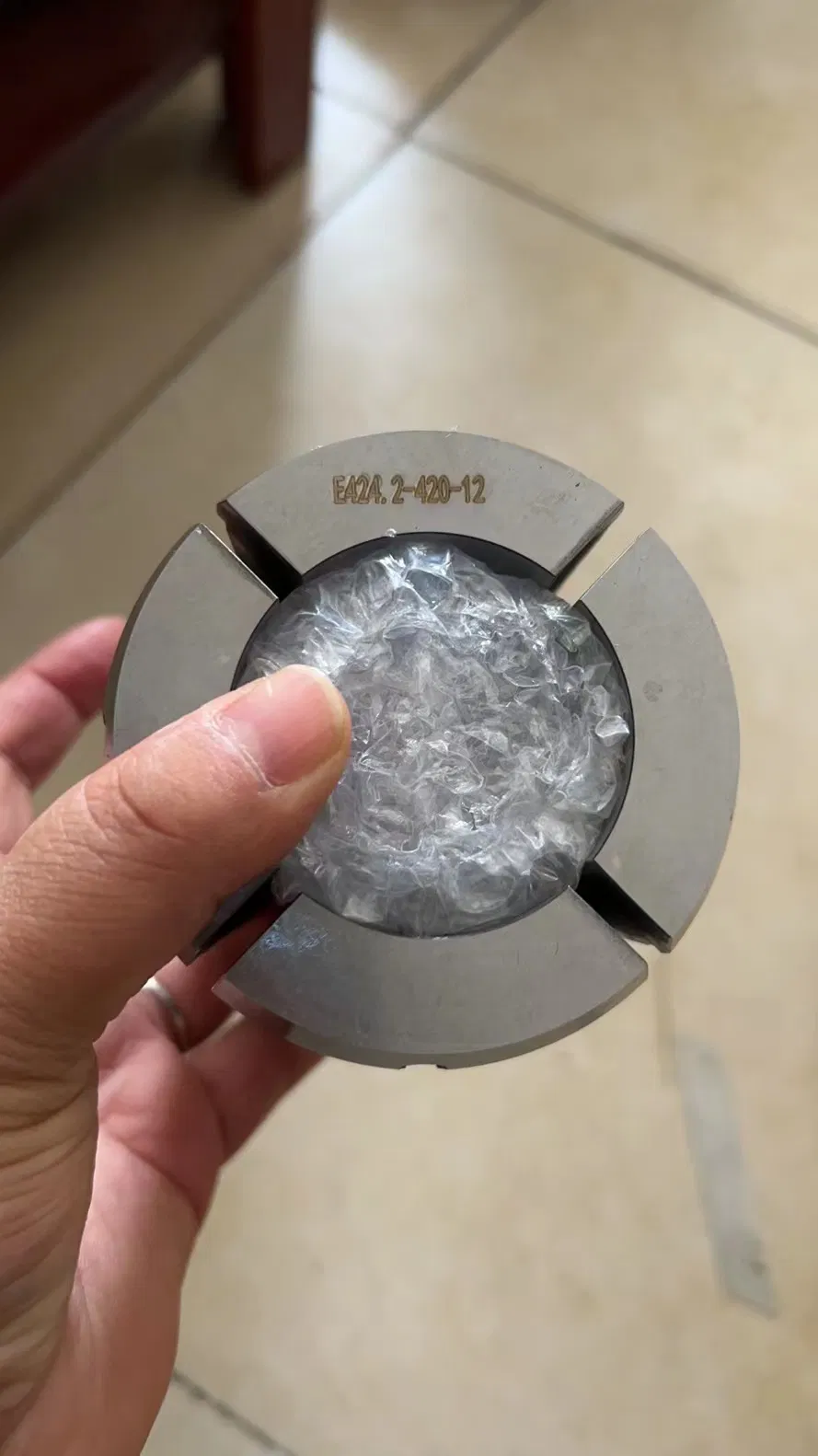

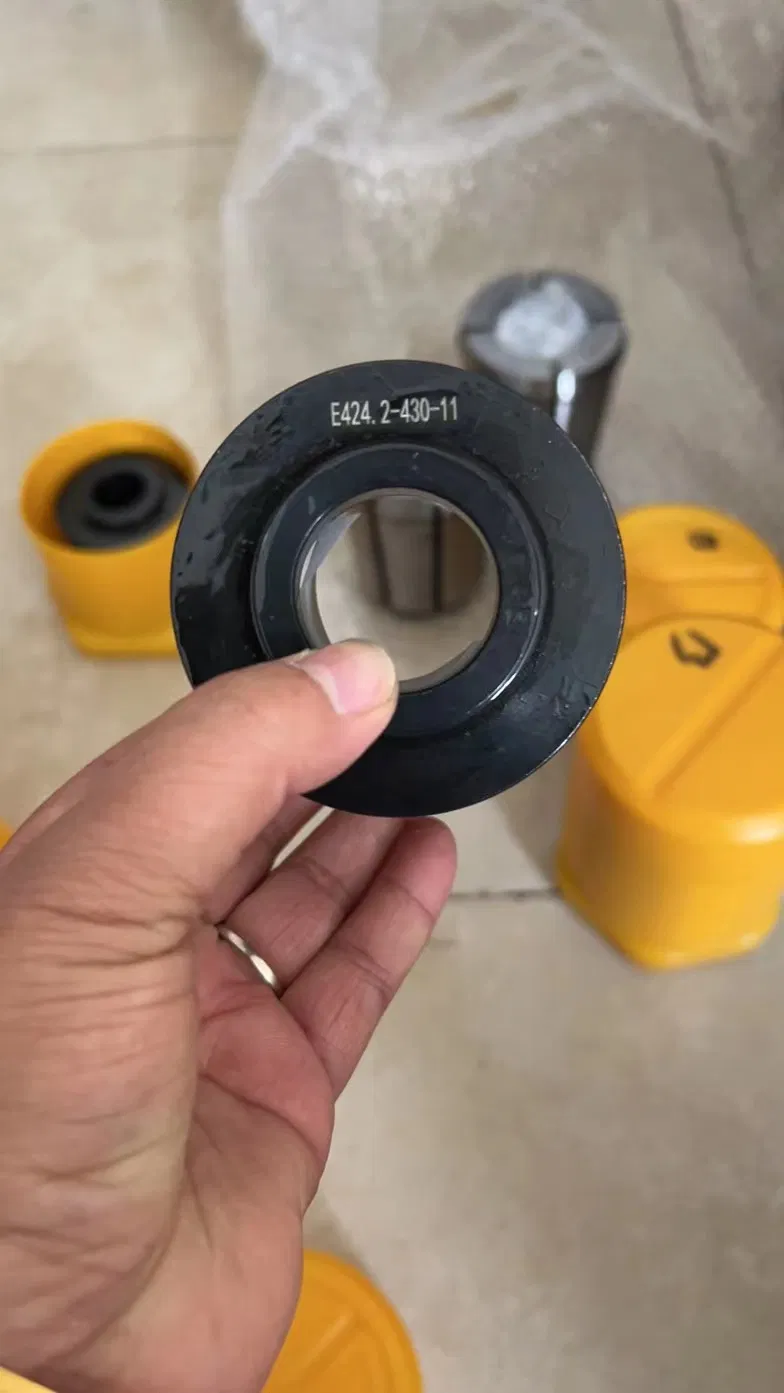

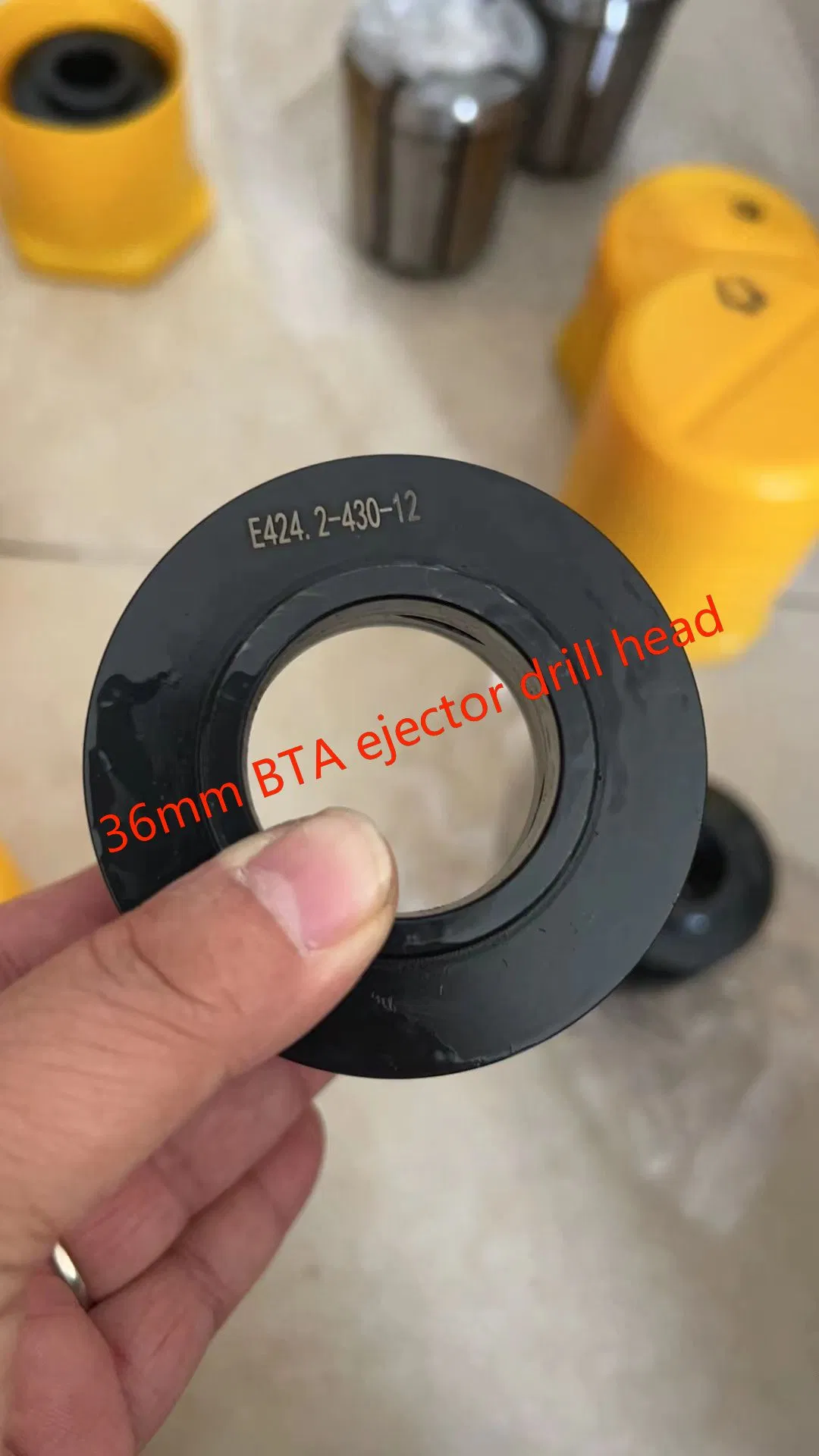

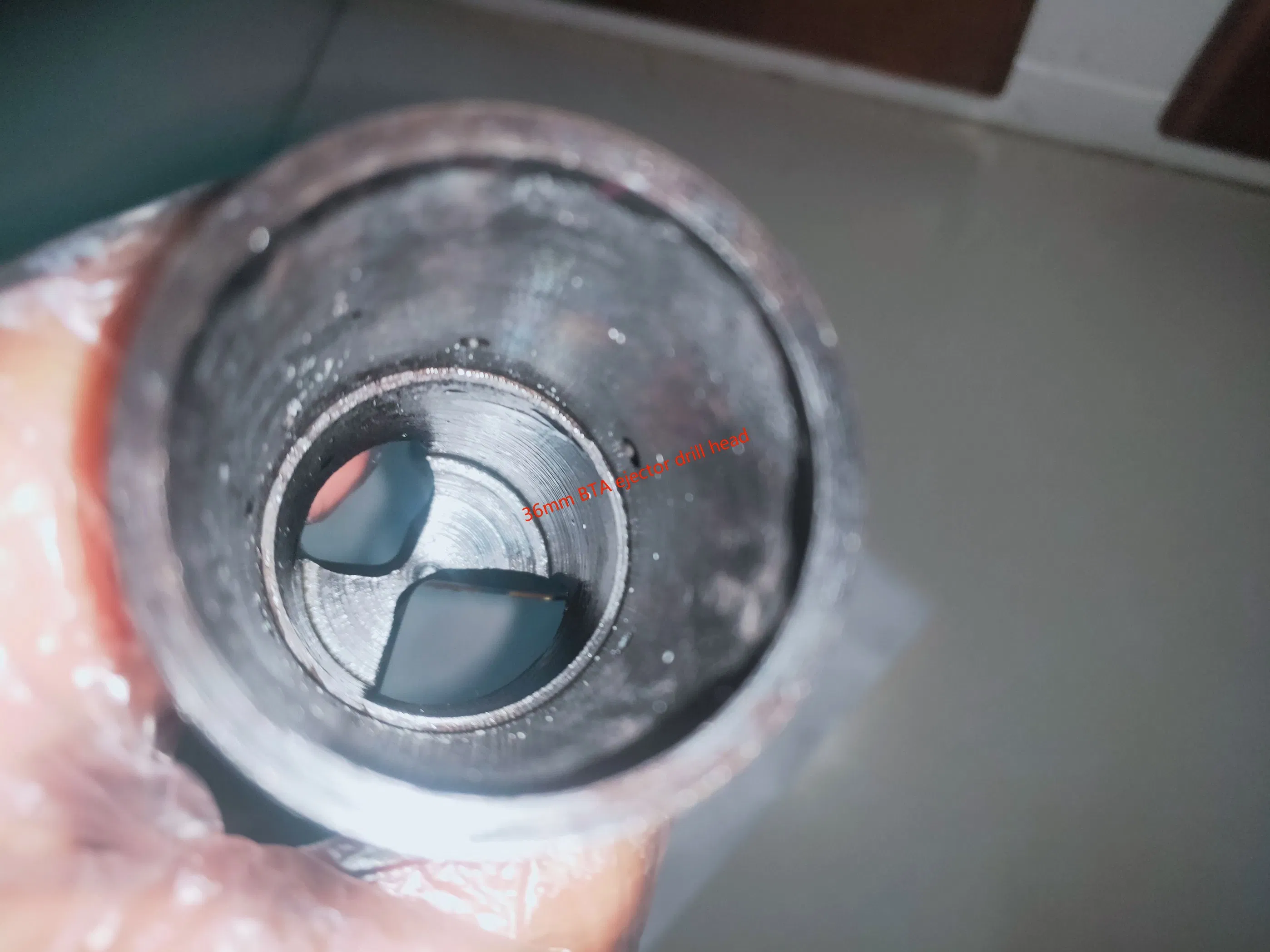

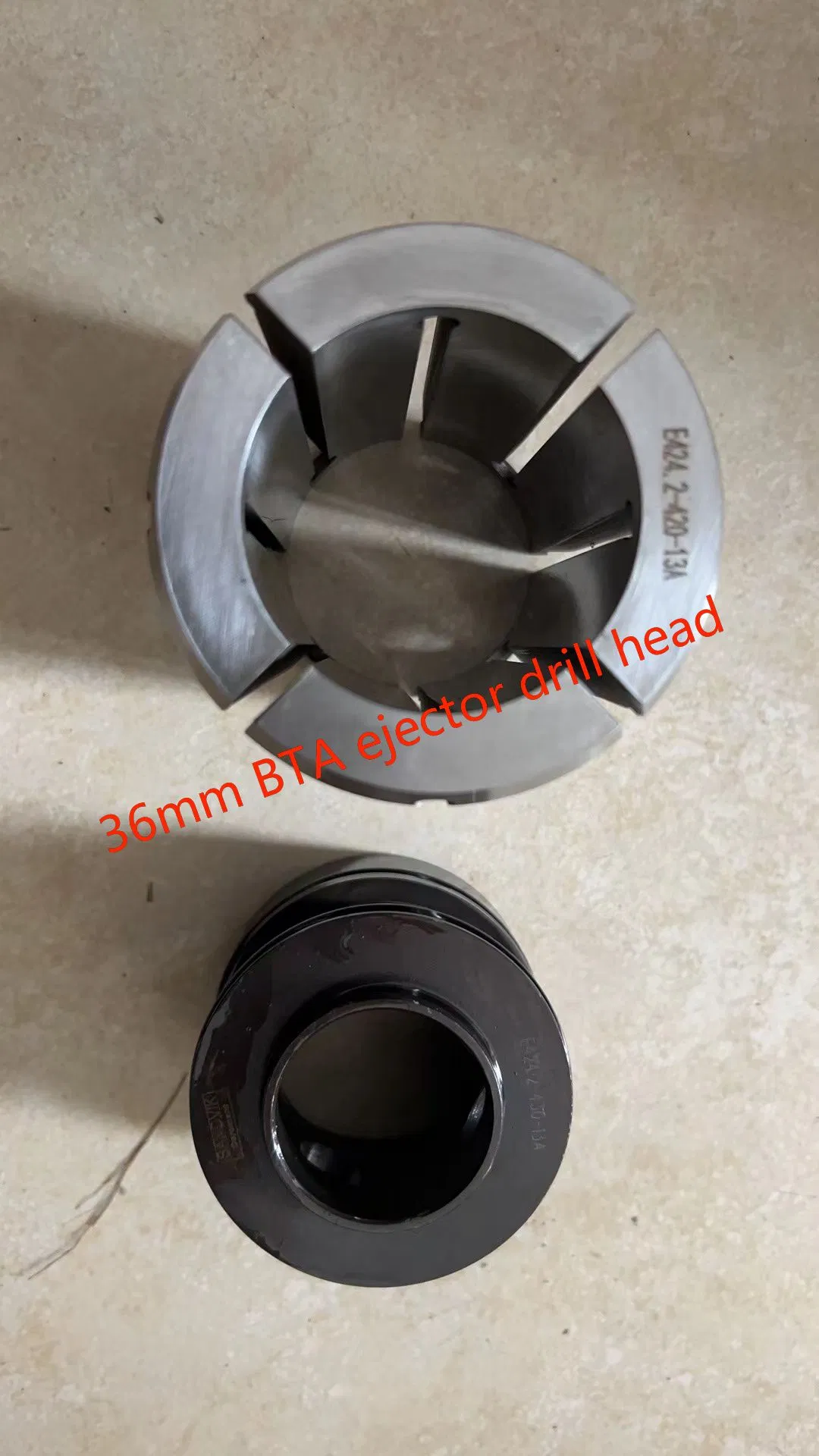

The double tube system works by feeding high-pressure coolant through the connector gap between the inner and outer tubes to flush out metal chips through the inner tube, making it highly efficient for deep hole drilling.

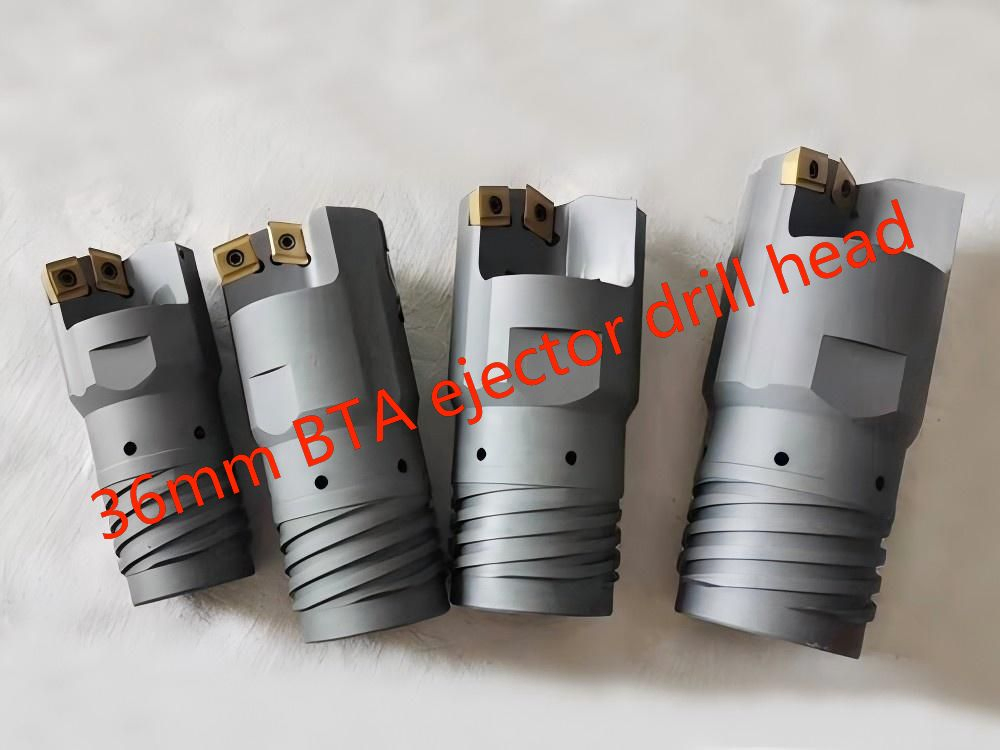

Yes, this drill head features indexable and replaceable central, intermediate, and peripheral inserts, which drastically reduces overall maintenance cost and machine downtime.
This system supports a drilling head diameter range of 25mm to 65mm. Specific models come with optimized insert layouts tailored for different diameter ranges.
Absolutely. The solid carbide construction and S-type design are specifically optimized for heavy-duty metal drilling across various industrial machining materials.
