Polycrystalline Diamond (PCD) Blanks:
PCD Blank (Polycrystalline Diamond Blank) is a high-performance super-hard material manufactured by sintering high-purity diamond powder with a high-strength metallic binder under extreme high temperature and high pressure (HPHT).
It combines diamond hardness with the toughness of a tungsten carbide substrate, offering exceptional wear resistance, ultra-high hardness, excellent thermal conductivity, and outstanding chemical stability.
These properties make PCD blanks an ideal material for manufacturing high-precision cutting, grinding, and drilling tools, especially for machining non-ferrous metals (aluminum, copper, magnesium alloys), non-metallic materials (stone, glass, ceramics, and composites such as CFRP/GFRP), as well as wood.

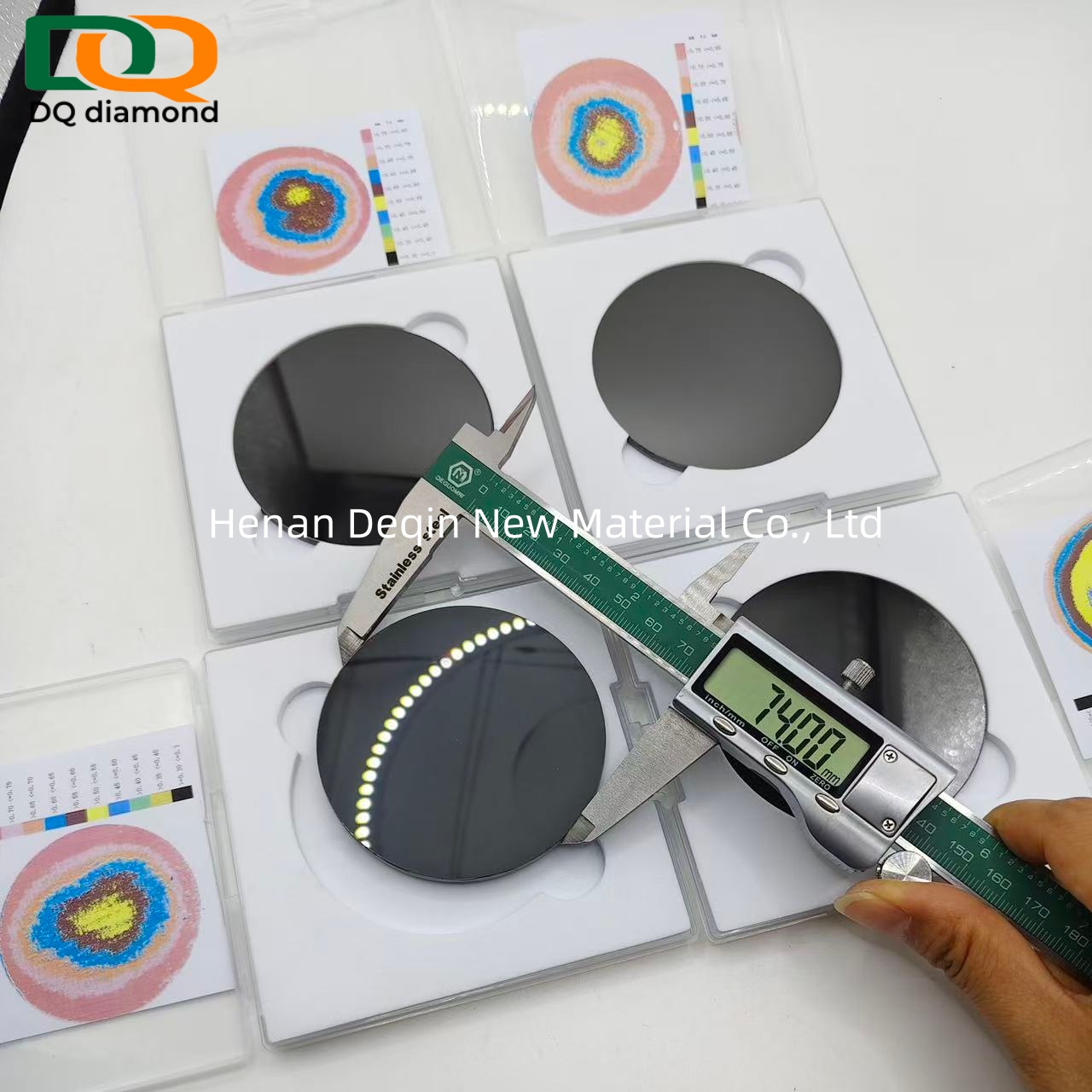

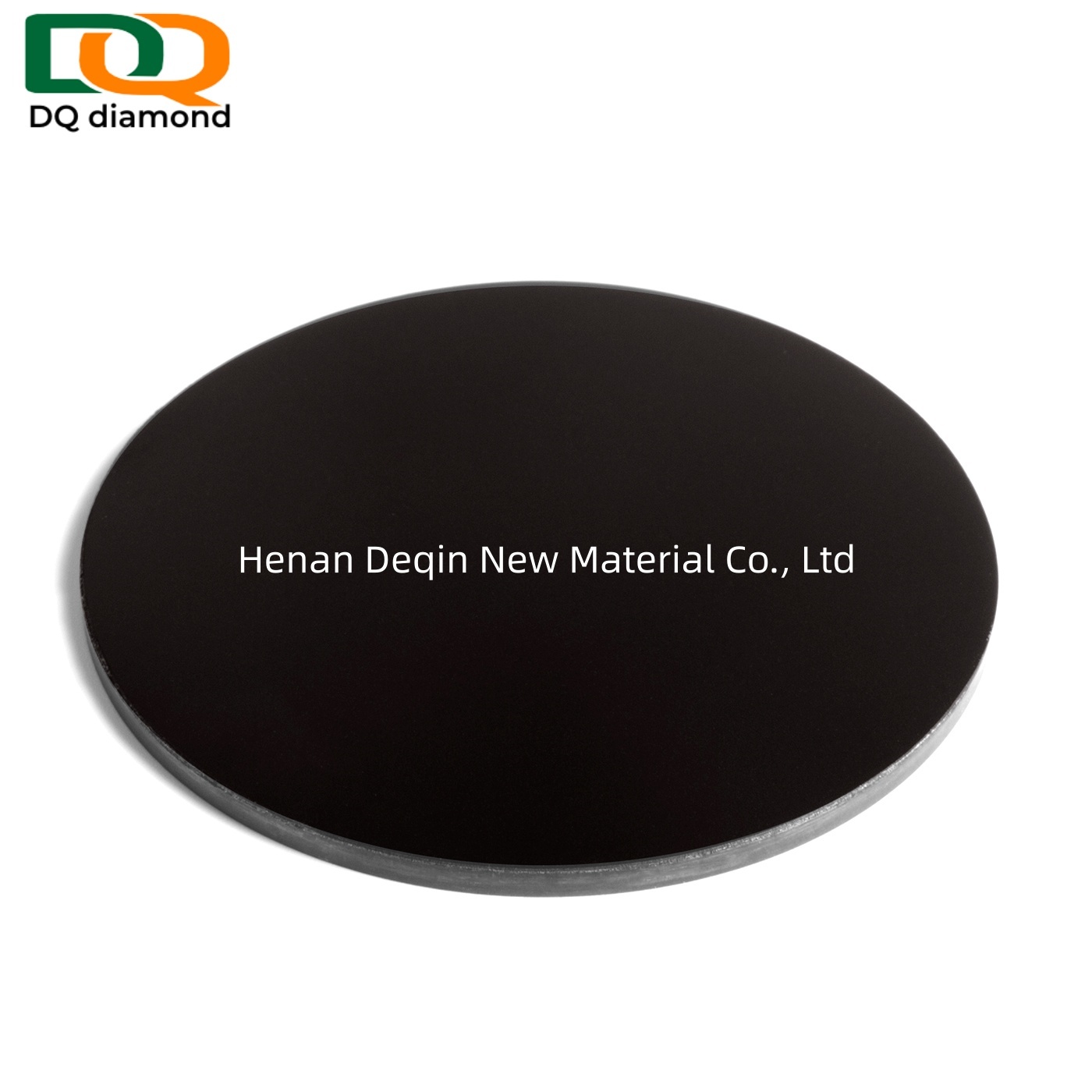

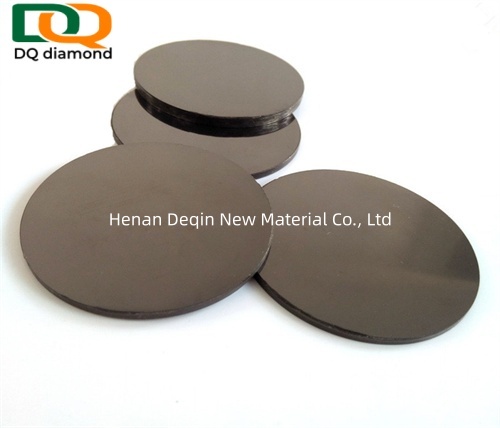

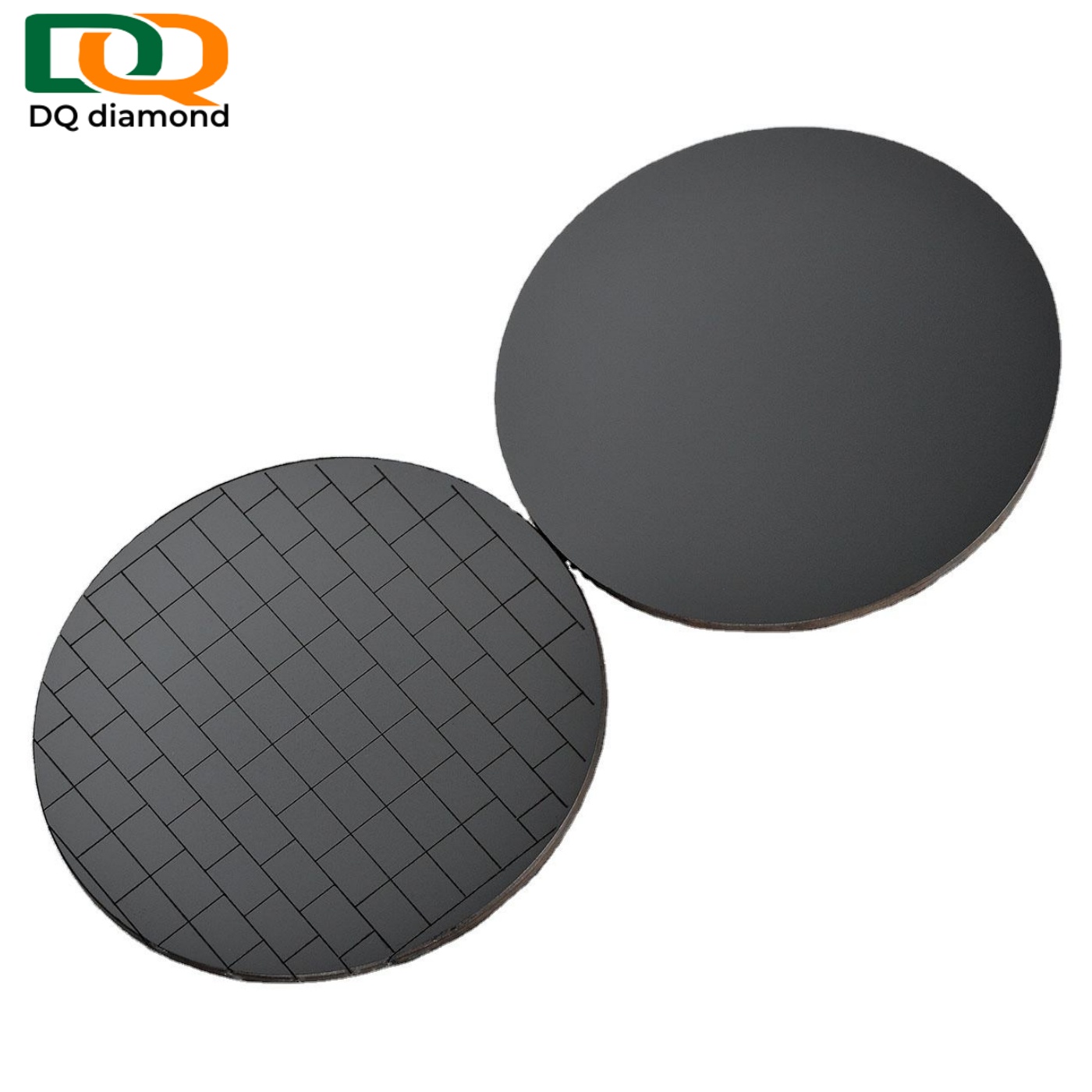

| PCD Full-Round Blanks | ||||
|---|---|---|---|---|
|
D (mm) | T (mm) | t (mm) | Grain size (μm) |
| 74, 63, 60, 58 | 1.0 / 1.2 / 1.6 / 2.0 / 3.2 / 4.5 / 8.0 |
0.5 - 1.0 | 2 / 5 / 10 / 25 / 302 | |
| Tolerances: | ||||
| D = +/- 0.1mm T = +/- 0.05mm |
||||
| Surface condition: Polished with Mirror-like diamond surface | ||||

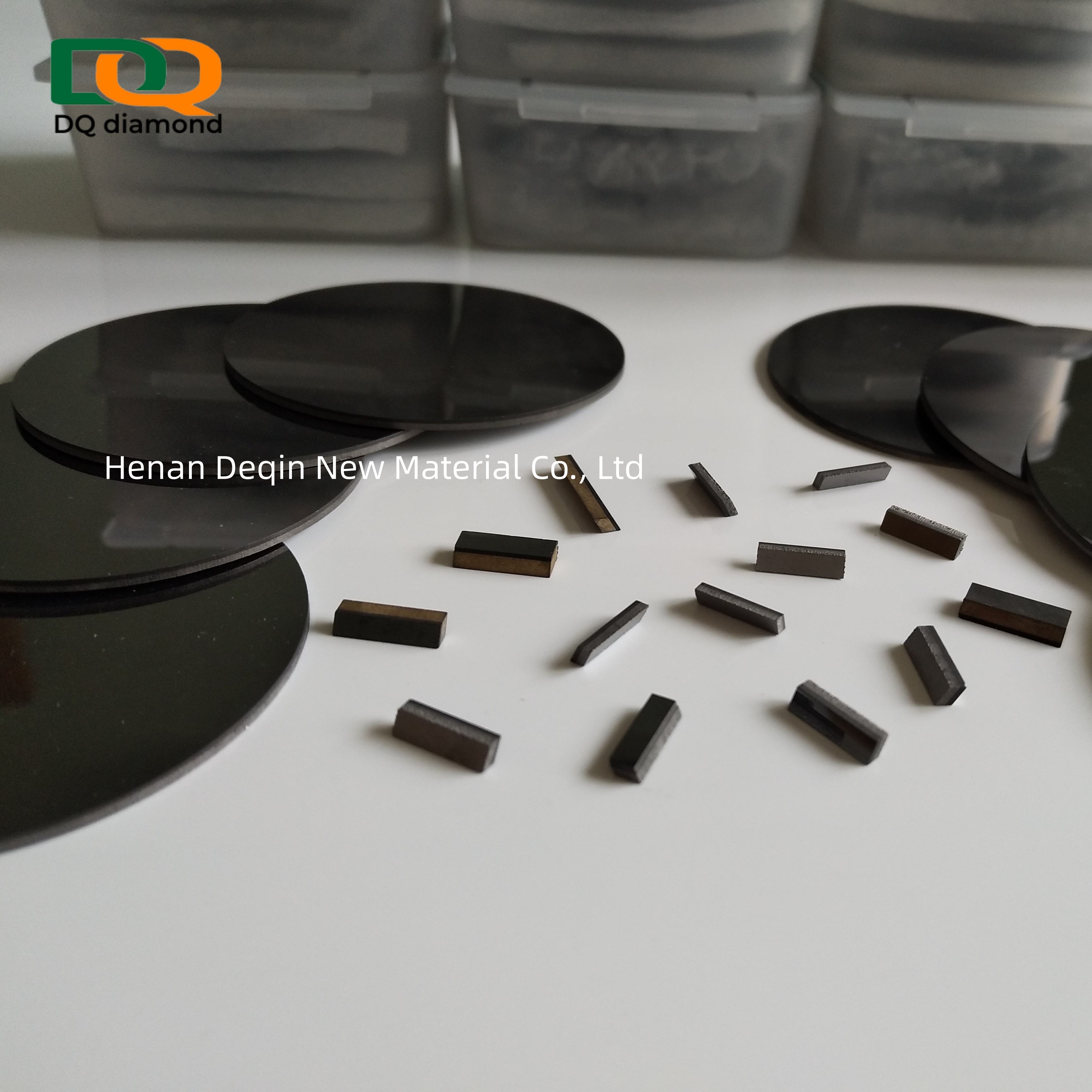

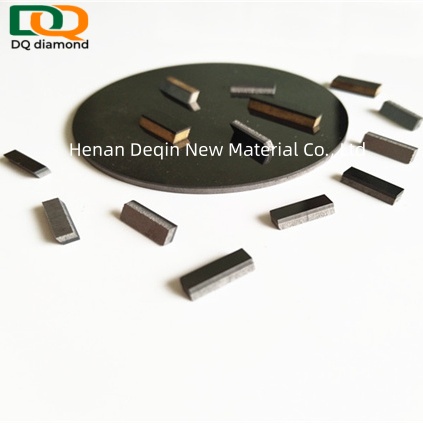

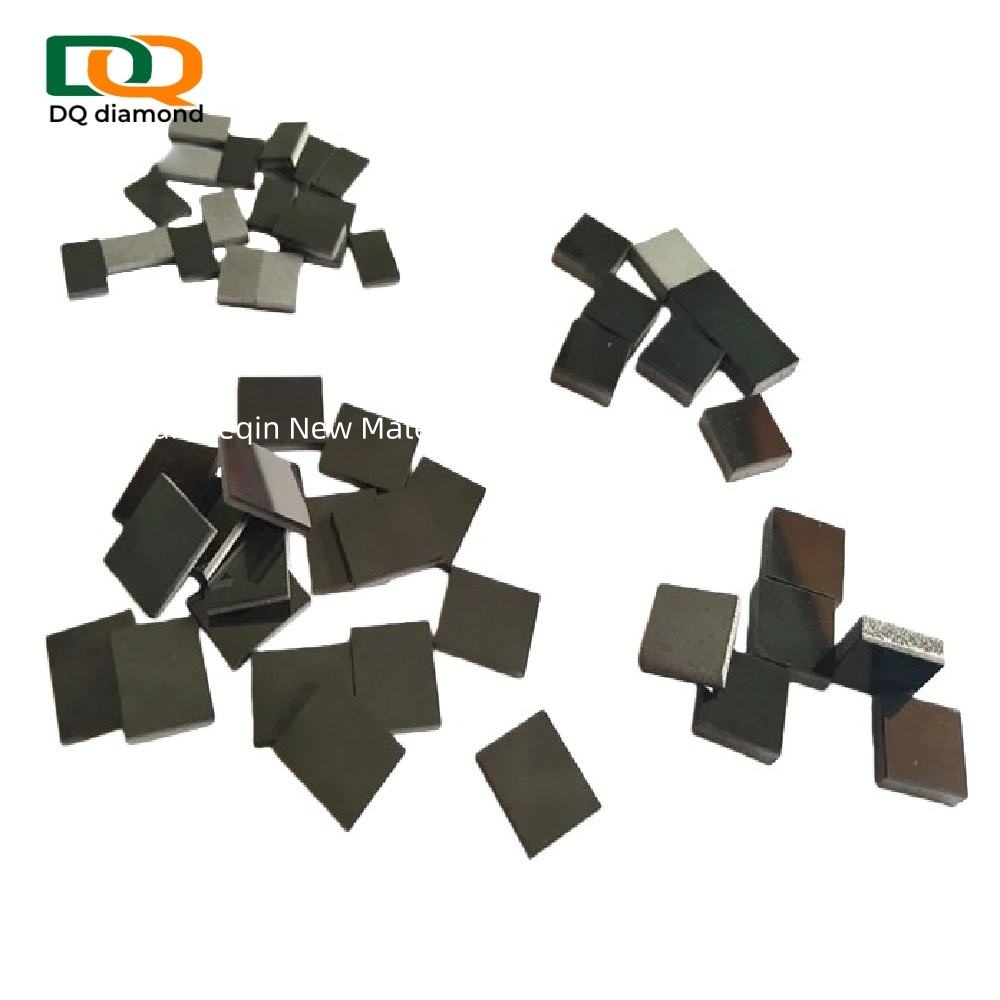

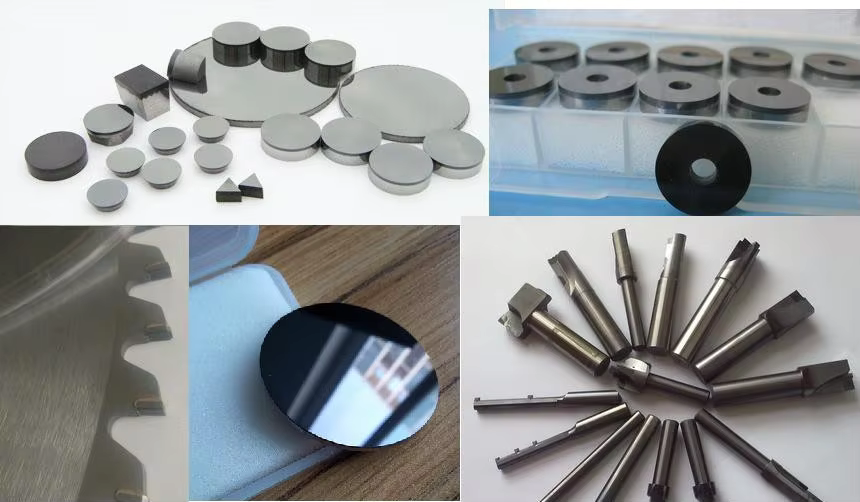

| Different shape of PCD Blanks / Tips | |||
|---|---|---|---|
|
|
|
Custom shapes and sizes available. Tolerance, surface finish, and grain size can be fully customized to meet different application requirements. OEM & ODM supported. |
| PCD Cutting Tool Blanks Application Recommendation | |||
|---|---|---|---|
| Grades | Key Properties | Applications | Advantages |
| W2–W5 Fine Grain | 1. Average grain size: 2–5 μm 2. Diamond content: >90% 3. Support laser cutting / wire EDM |
Aluminum, brass/copper, precious metals, wood composites, plastic | Superior surface finish & high precision, perfect for finishing operations |
| W10 Medium Grain | 1. Average grain size: 10 μm 2. Diamond content: >90% 3. Support laser cutting / wire EDM |
<14% Si/Al alloys, copper alloys, graphite & composites, green ceramics, carbides | Excellent wear resistance & good surface finish, balanced performance for semi-finishing |
| W20-W25 Coarse Grain | 1. Average grain size: 20–25 μm 2. Diamond content: >90% 3. Support laser cutting / wire EDM |
>14% Si/Al alloys, MMC, bi-metals, sintered ceramics, carbides | Ultra-long tool life & outstanding wear resistance, ideal for heavy-duty rough machining |
As a high-performance superhard material, PCD blanks are widely used in the manufacturing of high-performance cutting, grinding, and drilling tools for machining non-ferrous metals and non-metallic materials.
They are especially suitable for:
With excellent wear resistance and ultra-long tool life, PCD blanks significantly boost machining efficiency and surface quality in high-volume production, helping customers reduce overall manufacturing costs.

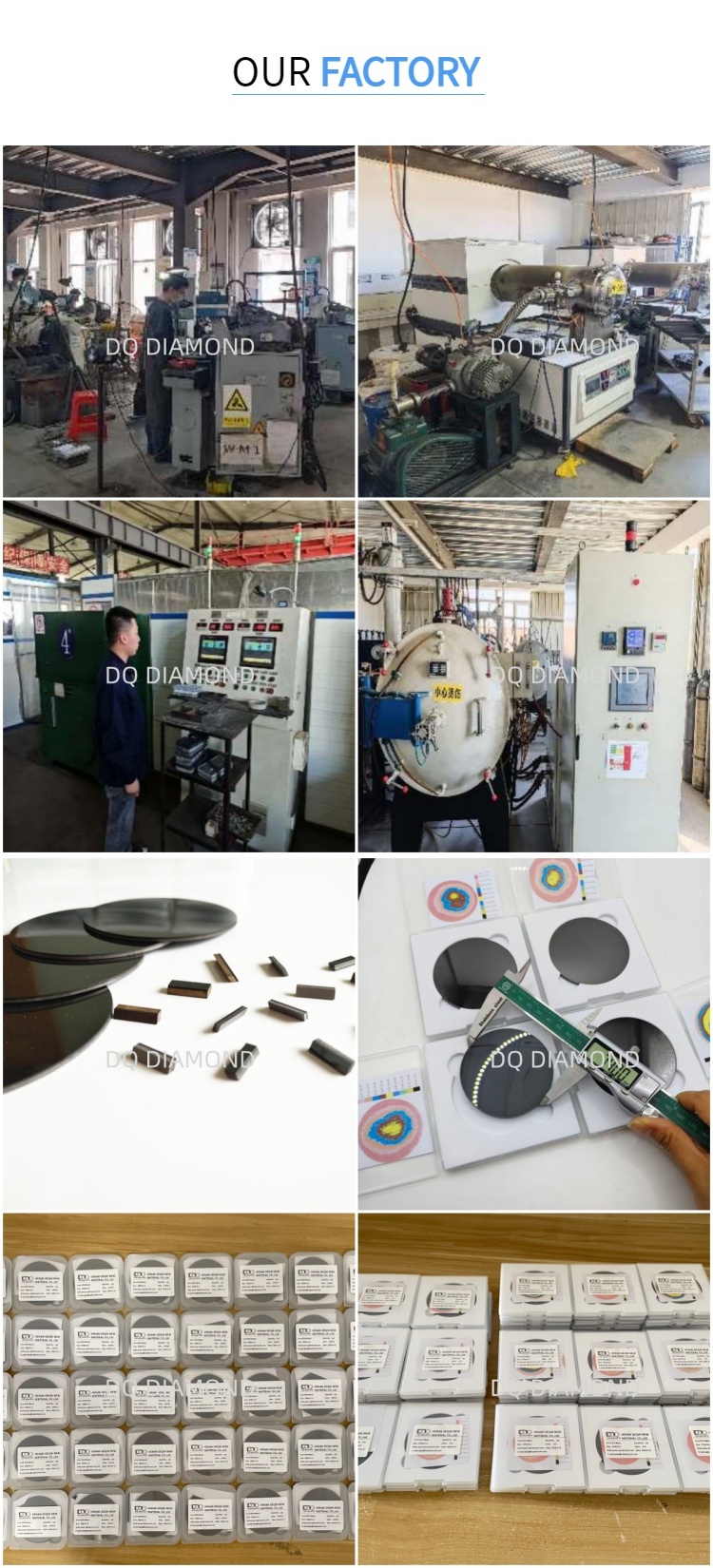

We are a professional manufacturer of PCD blanks, providing reliable and customized diamond solutions for global customers. We focus on PCD blanks and related superhard products which are mainly used in CNC machining, automotive, woodworking, stone processing, electronics manufacturing, and cutting tools for non-ferrous metals and composites.
Based on rich experience and technical expertise, we continuously improve technology to ensure high quality and stable performance of PCD blanks. With excellent wear resistance, reliable quality, and fast service, our products have been widely exported to the United States, Canada, Russia, Germany, Australia, South Korea, etc.
Our PCD blanks are designed to deliver exceptional performance, long tool life, and stable quality, making them the ideal choice for high-precision and high-efficiency machining.
Manufactured with high-purity diamond powder and advanced HPHT technology, ensuring consistent quality and superior performance.
High diamond content (>90%) provides outstanding abrasion resistance, significantly extending tool life.
Strong bonding between PCD layer and carbide substrate ensures high reliability and dimensional stability.
Suitable for machining aluminum, copper, composites, wood, stone, and other non-metallic materials.
Support custom sizes, shapes, grain sizes, and specifications to meet different application needs.
Long service life reduces tool replacement frequency and lowers overall production cost.
